- Strong off-axis light output

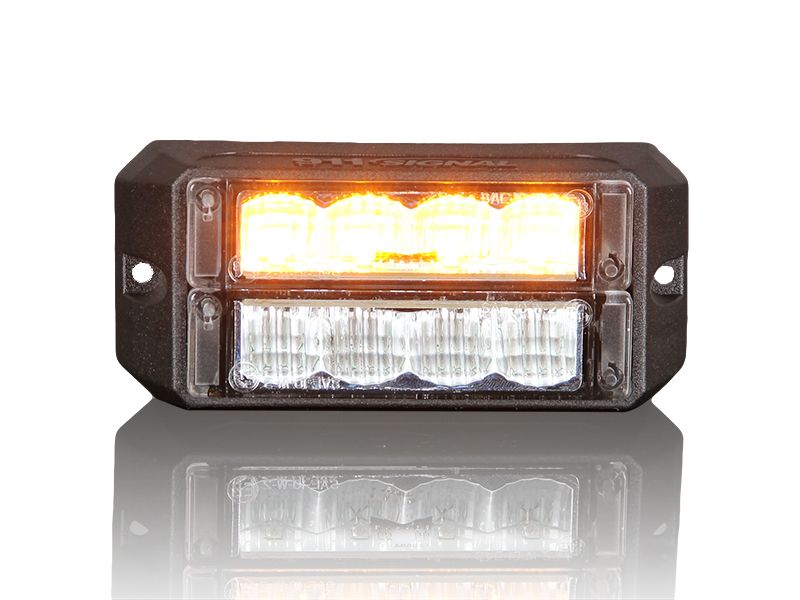

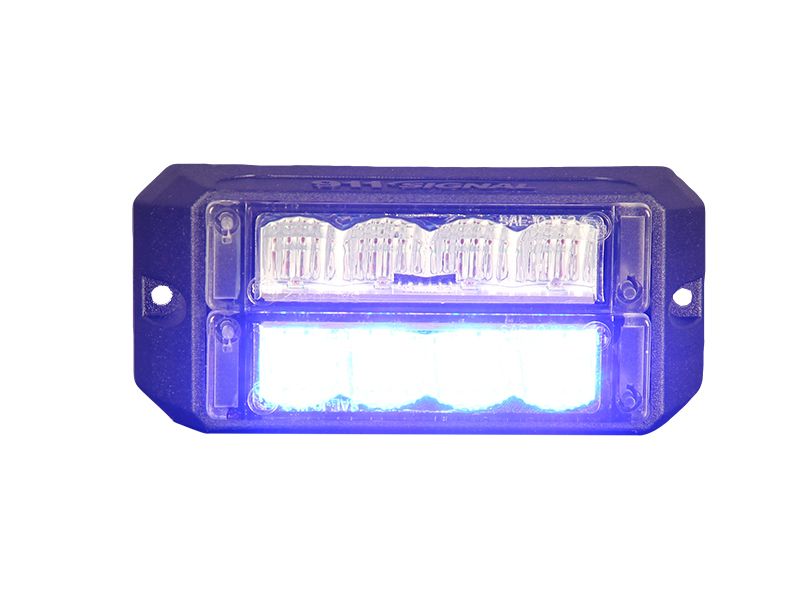

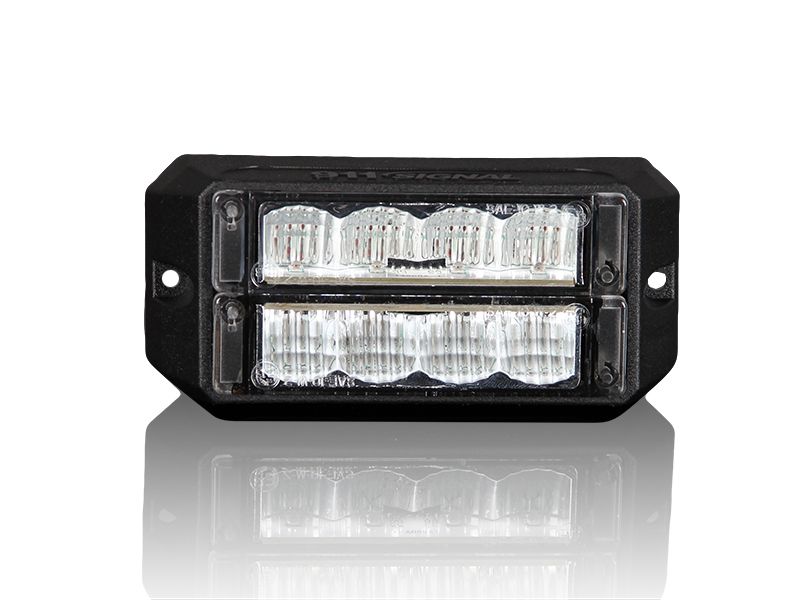

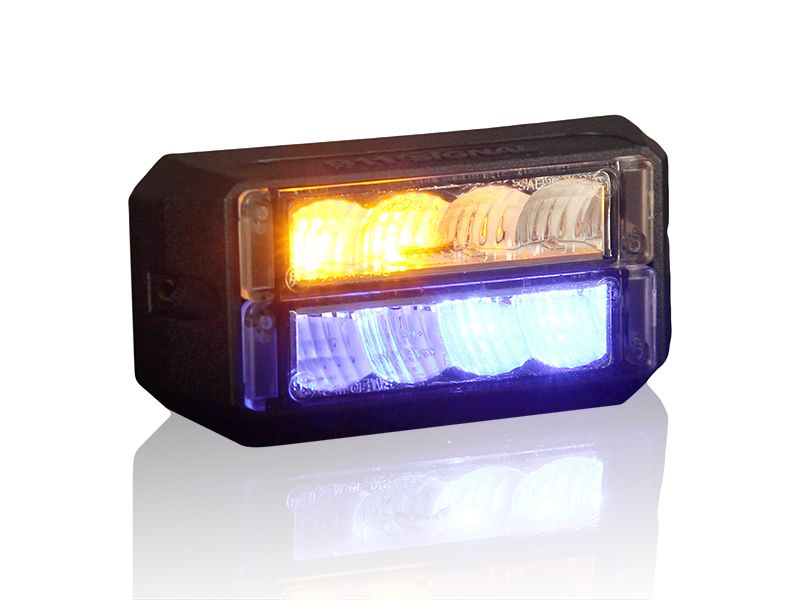

- Available in single and split color
- Easy installation with brackets or screws
- Fully encapsulated for moisture, vibration and corrosion resistance

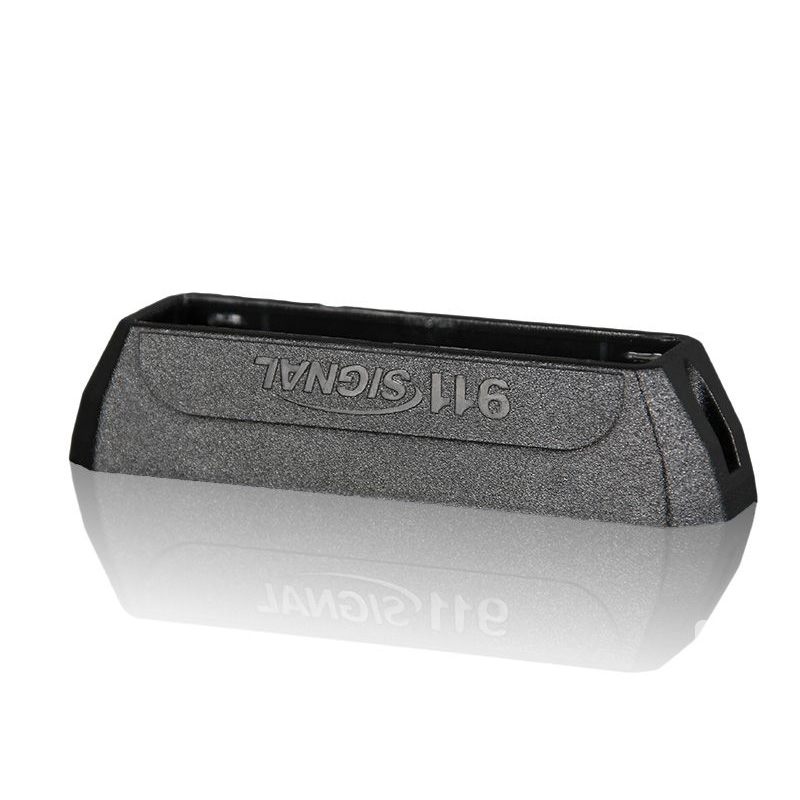

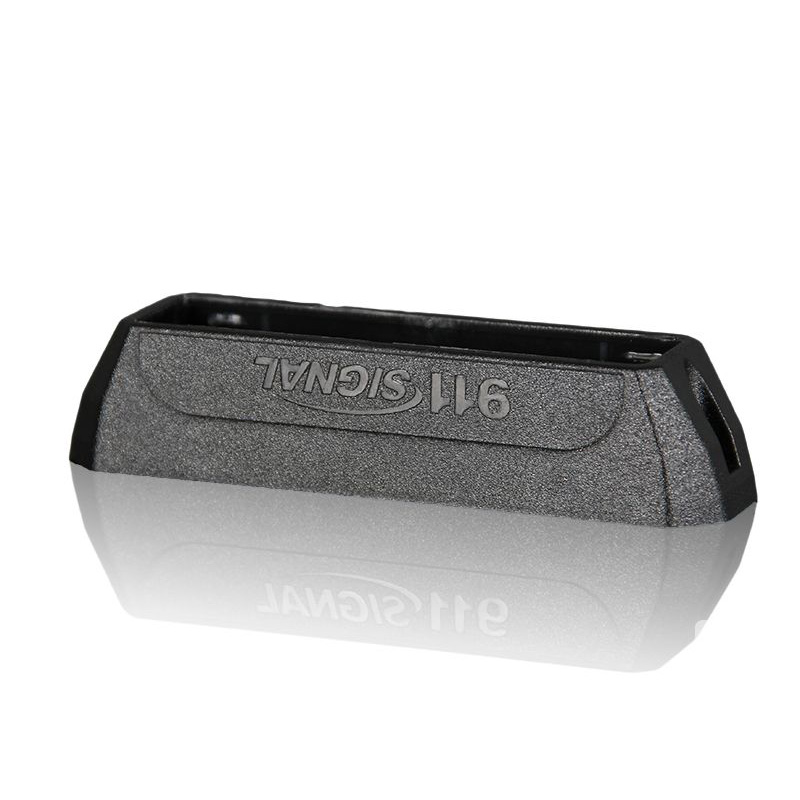

- Aluminum housing offers the best protection and heat dissipation
- Synchronize to other 911Signal products

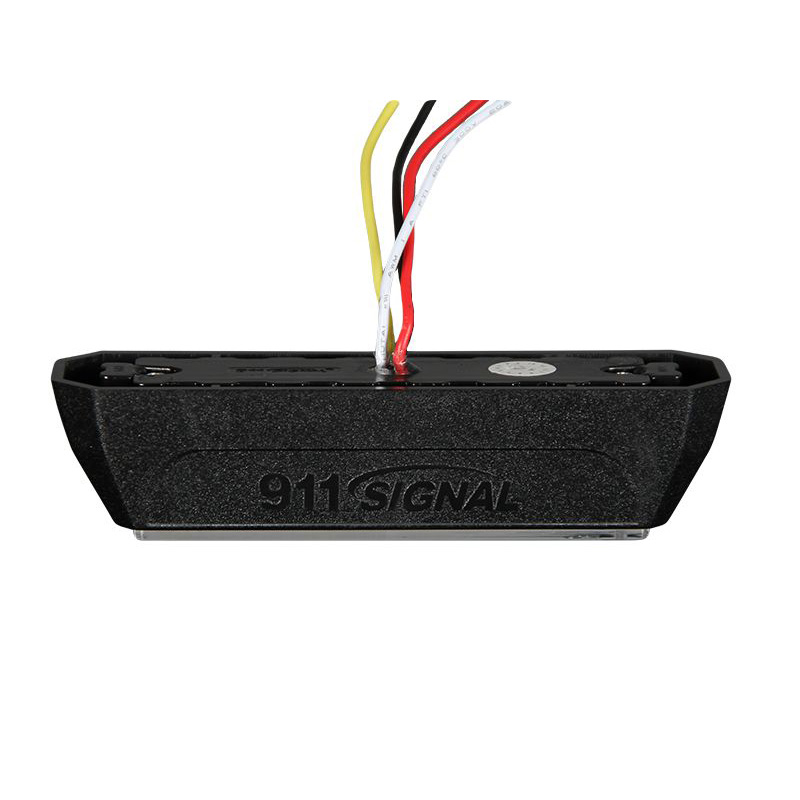

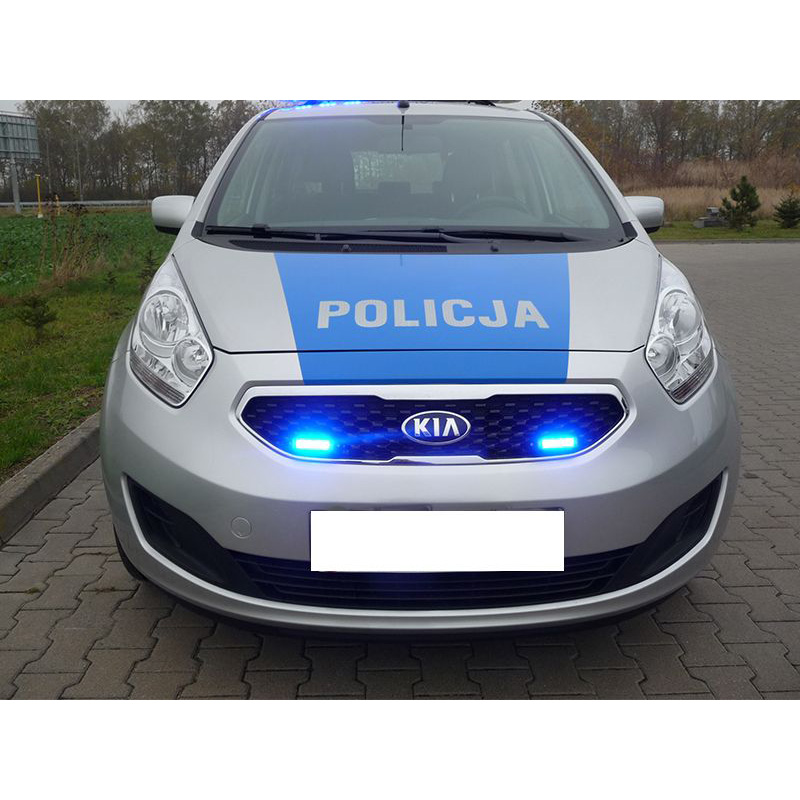

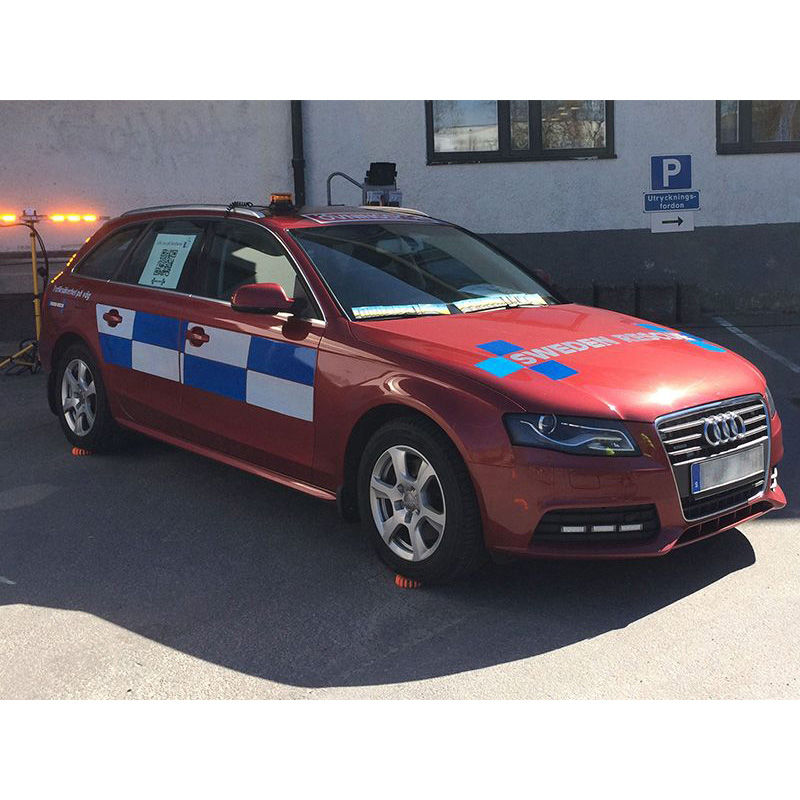

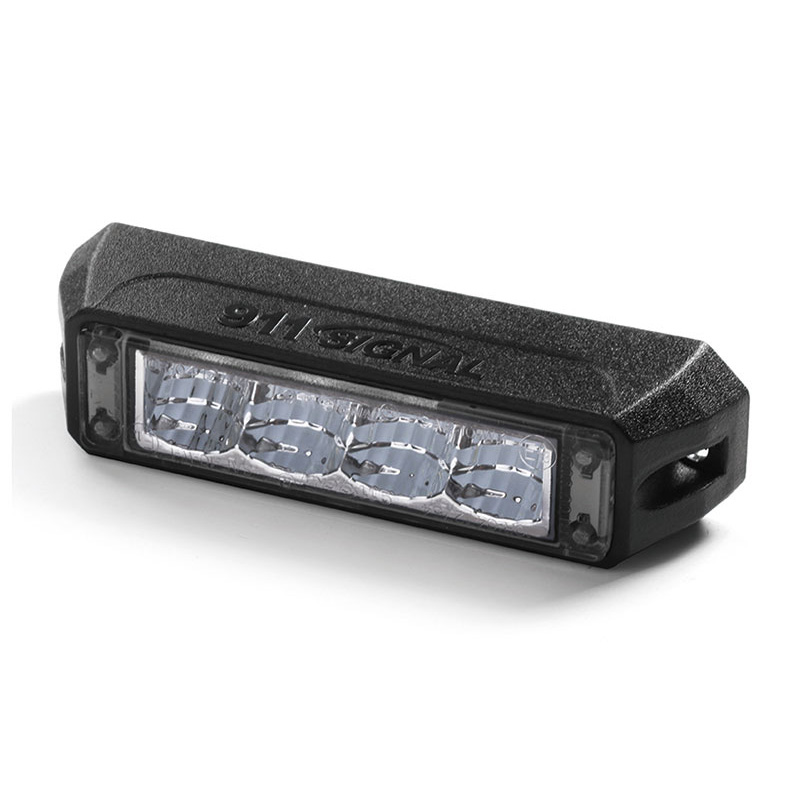

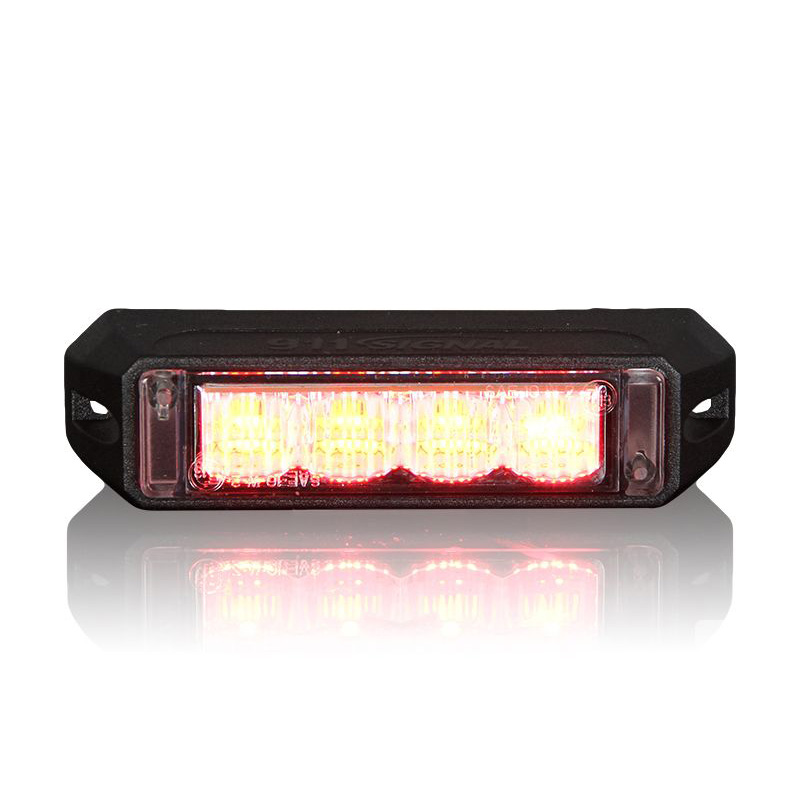

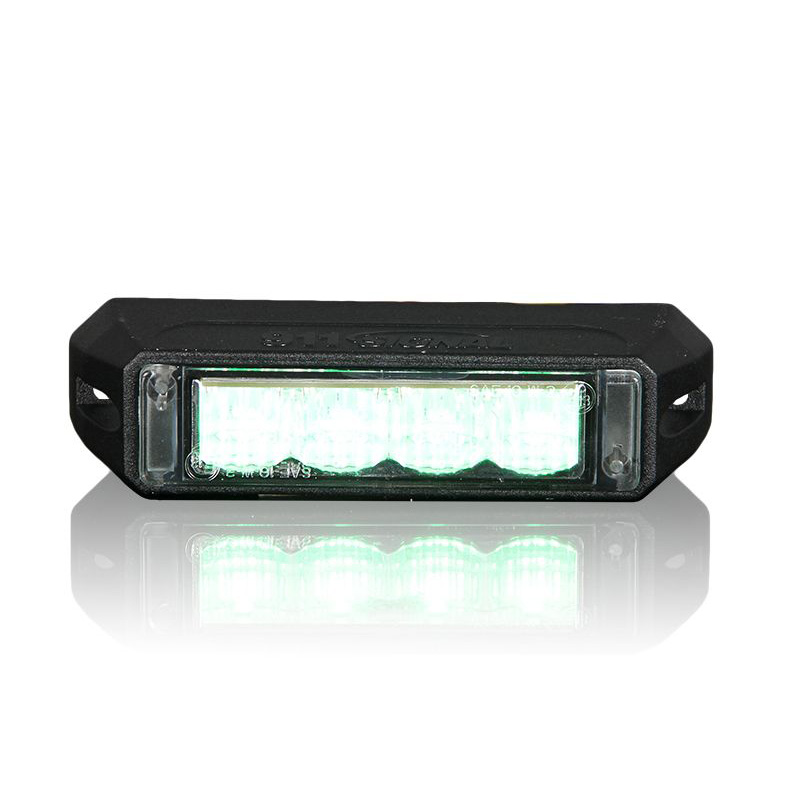

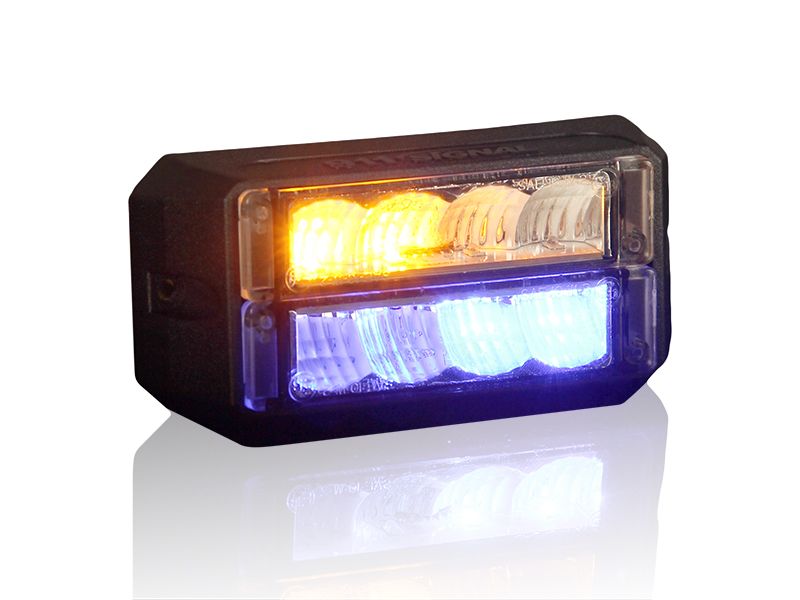

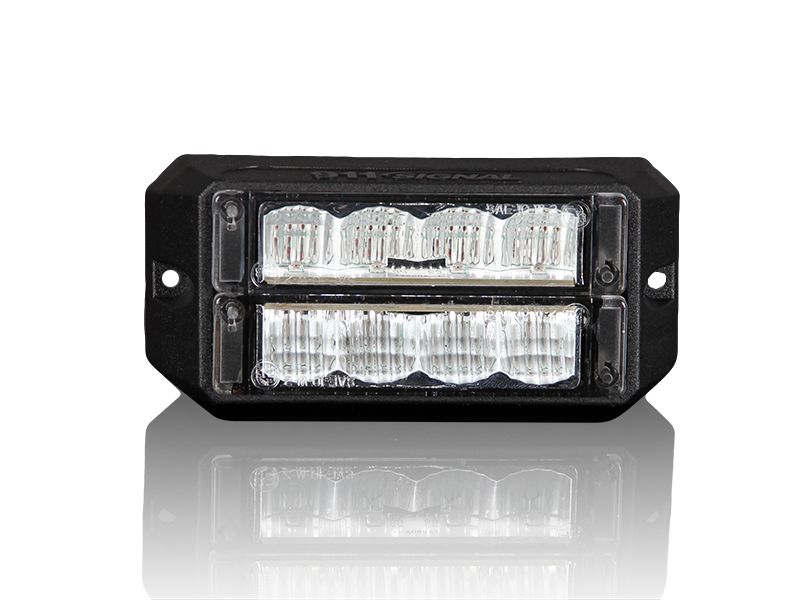

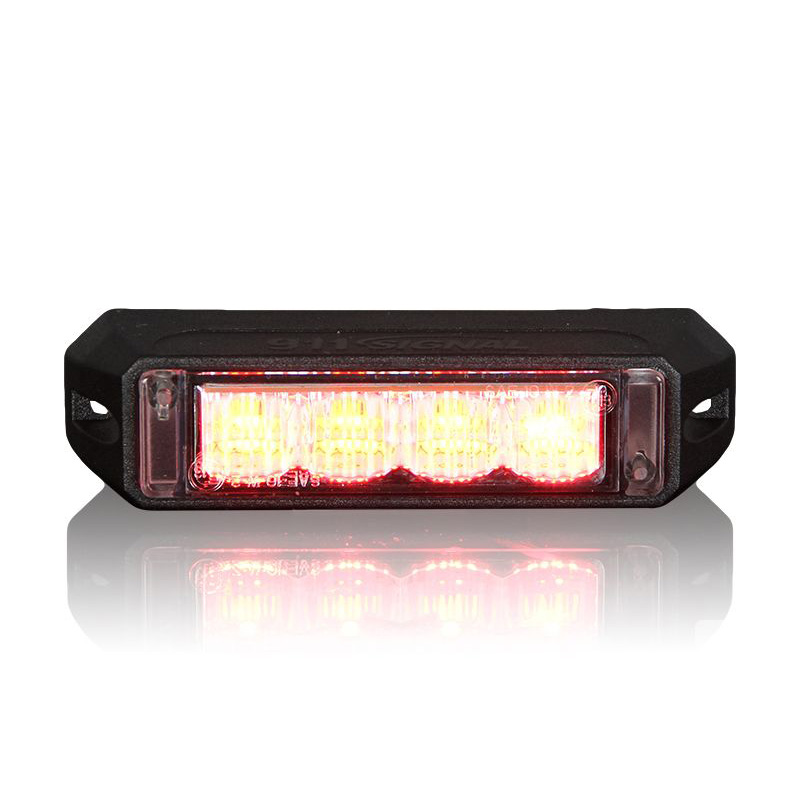

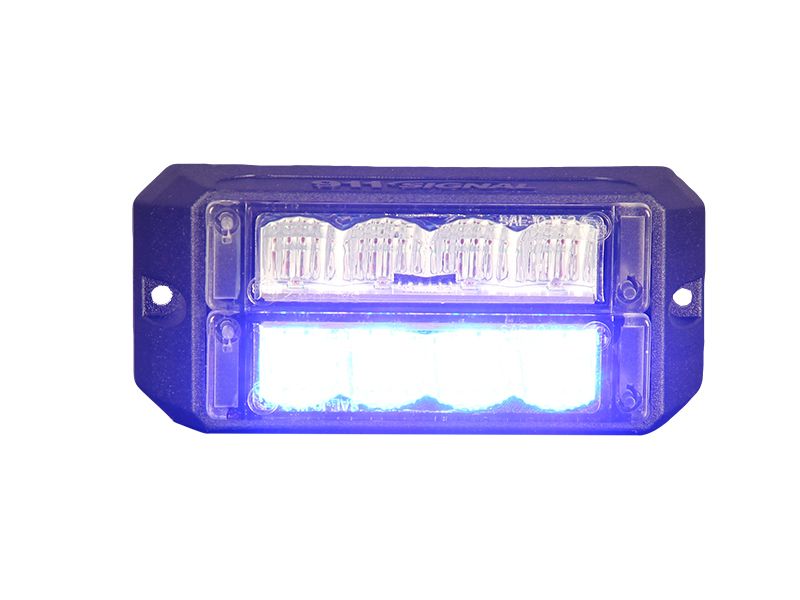

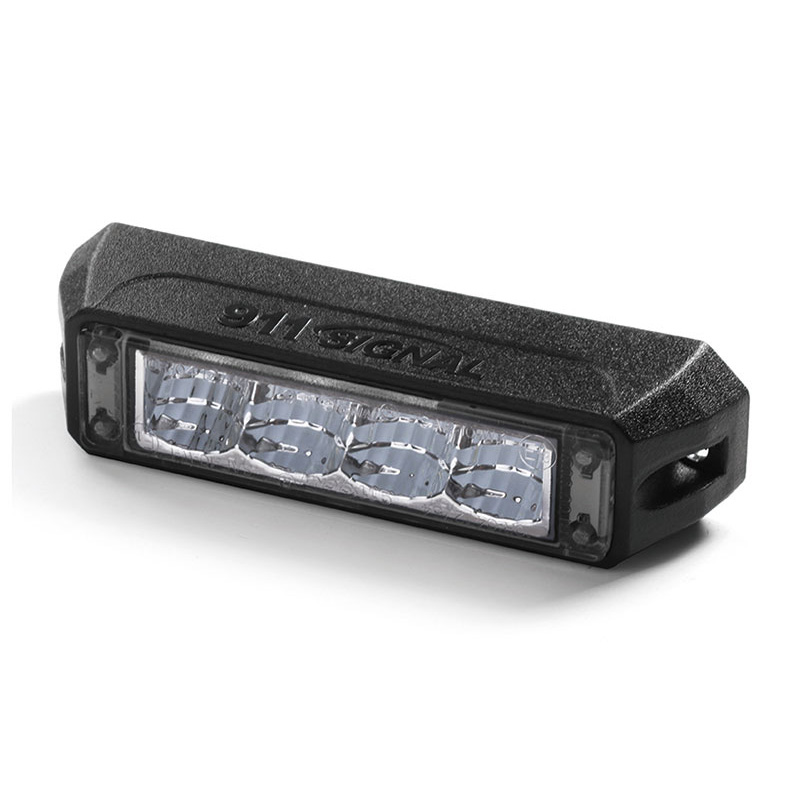

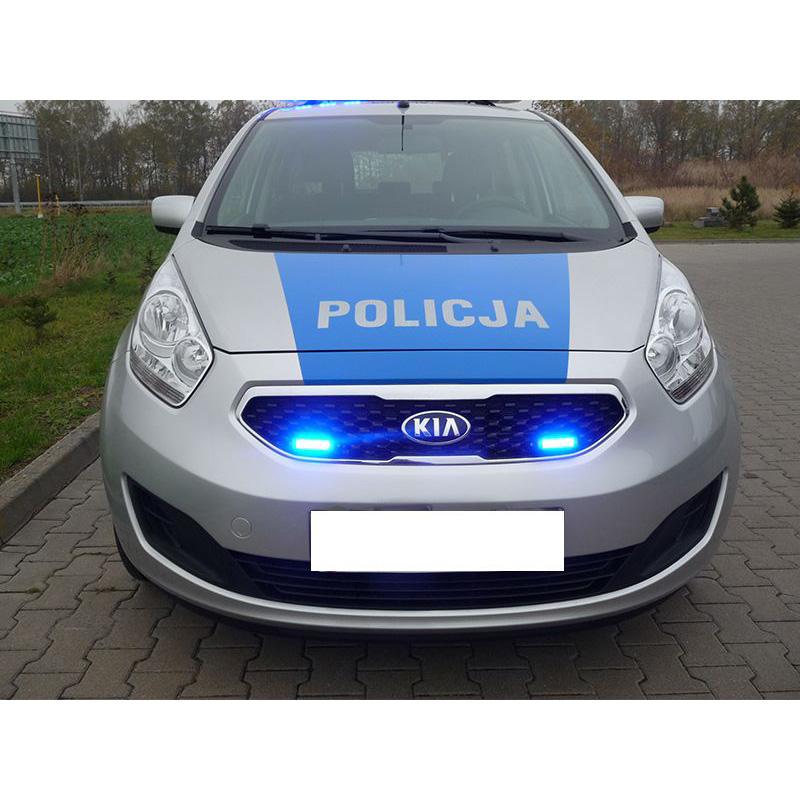

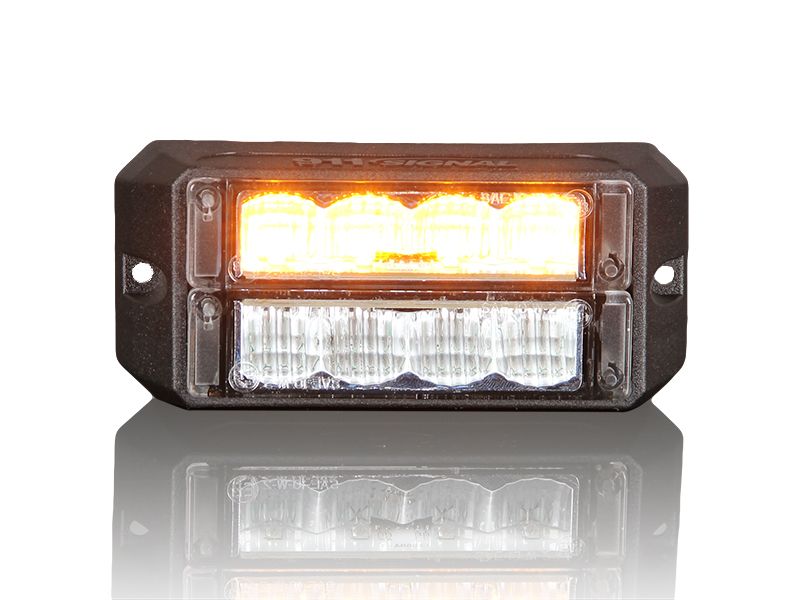

C4 & C4D Series – LED Wide angle lens Grille Bumper Lighthead
Get A Quote
DIMENSIONS
SPECIFICATION
Model:C4
Light Characteristics
LED Power:4PCS 3W LED
LED Lifespan:100,000H
Lens:Reflex
Flash settings:1-4HZ
Electrical Characteristics
Voltage:DC 10-30V
Max Power:9W
Physical Characteristics
Colour Available:Amber, Blue, Green, Red and White combination color
Ambient temperature:-20–+65℃
Waterproof:IP68
Mounting:Surface mount
Flash patterns:19
Meet and Exceeds:ECE R65 XA1 00 0036,ECE R65 XB1 00 0035,ECE R10 04 12754,SAE 3-1 10
Product Dimension:11.6cm L x 3cm W x 2.8cm H(4.5″L x 1.2″D x 1.1″H)
| ITEM | MODEL | SPECIFICATIONS |

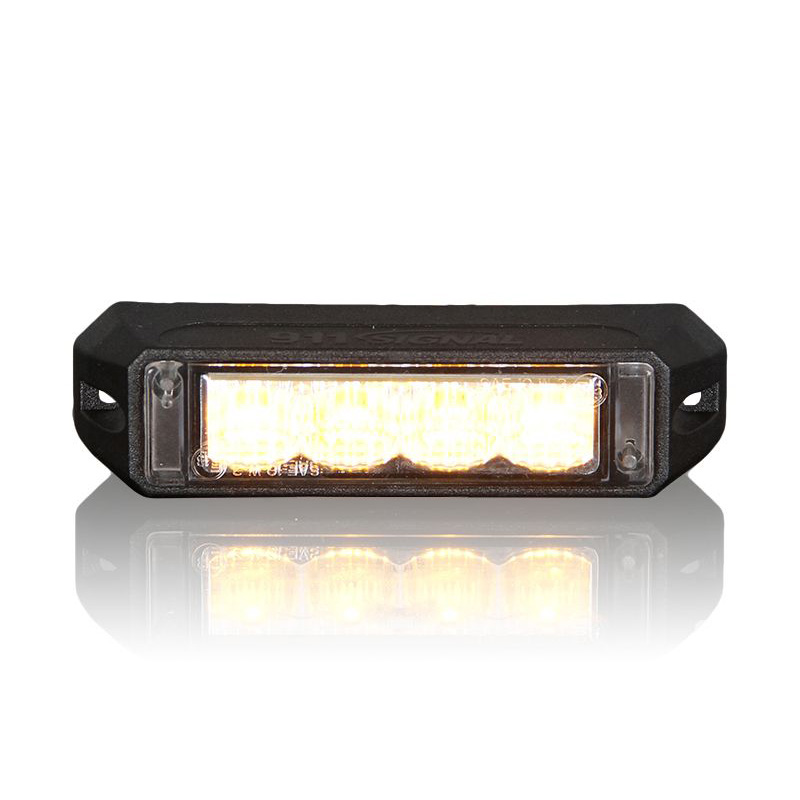

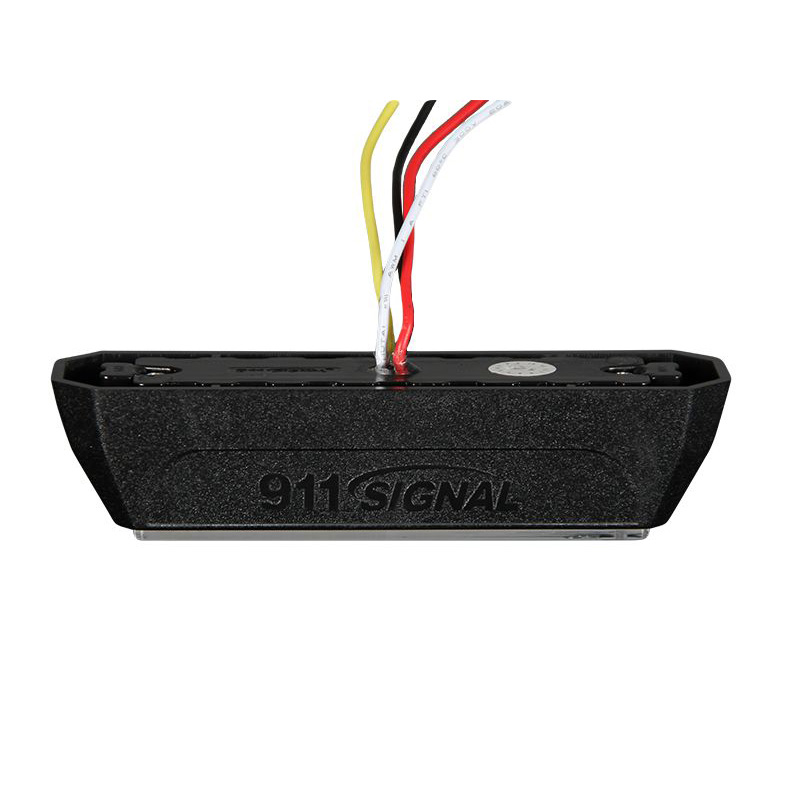

| 020101A | C4 | DC10-33V|MAX 6W|116*30*28MM|Reflective cup|Lampshade transparent|Outer cover black|LED amber 4 pieces|19 flash methods|Screw installation|4-core wire|IP67\IP69K |
| 020101R | C4 | DC10-33V|MAX 6W|116*30*28MM|Reflective cup|Lampshade transparent|Outer cover black|LED red 4 pcs|19 flash methods|Screw installation|4-core wire|IP67\IP69K |

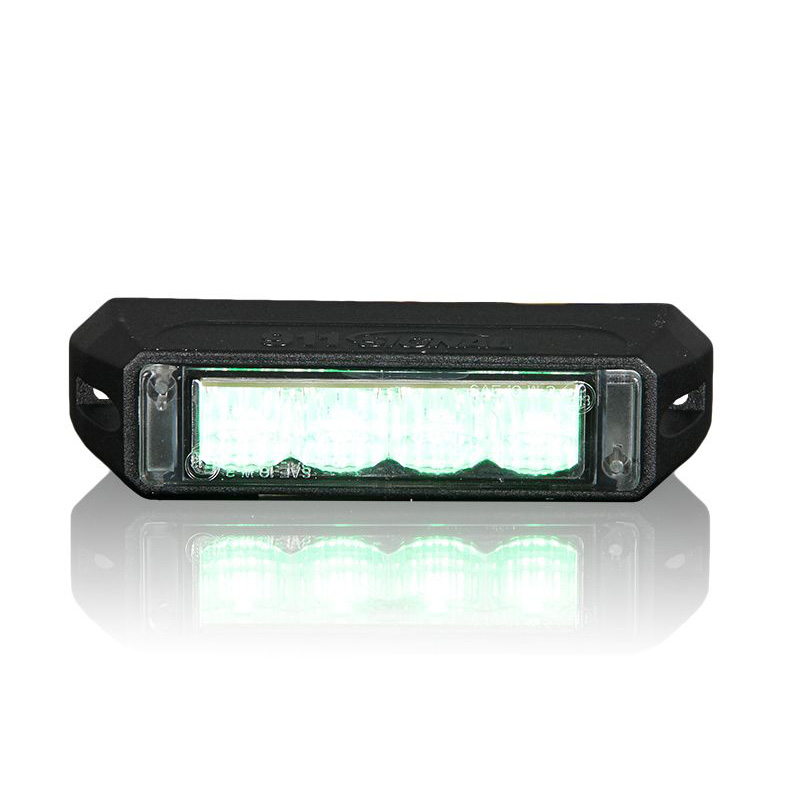

| 020101G | C4 | DC10-33V|MAX 6W|116*30*28MM|Reflective cup|Lampshade transparent|Outer cover black|4 green LEDs|19 flashing methods|Screw installation|4-core wire|IP67\IP69K |

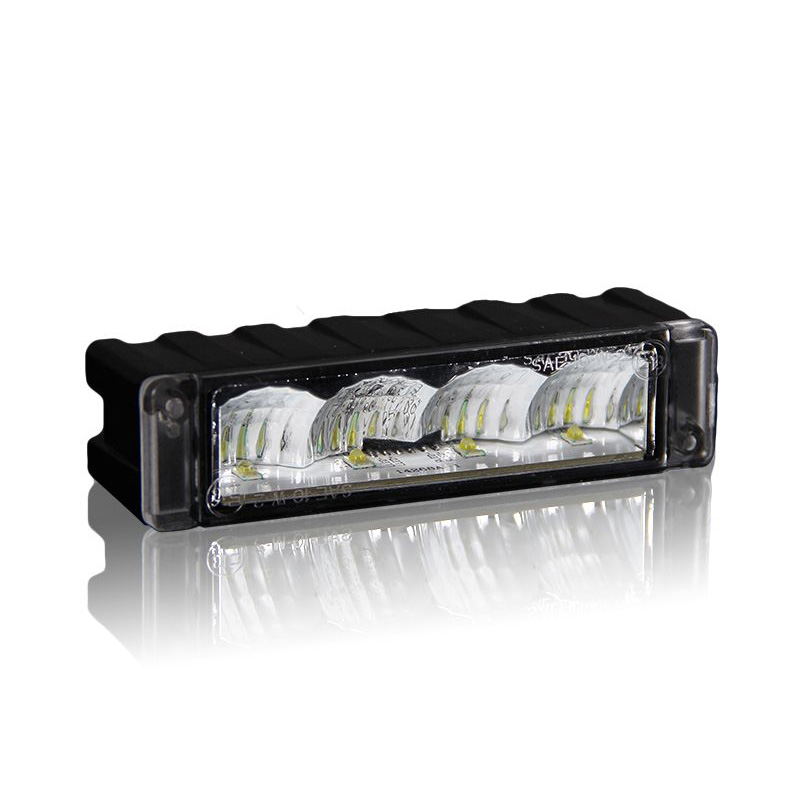

| 020101W | C4 | DC10-33V|MAX 6W|116*30*28MM|Reflective cup|Lampshade transparent|Outer cover black|4 white LEDs|19 flashing methods|Screw installation|4-core wire|IP67\IP69K |
| 020101B | C4 | DC10-33V|MAX 6W|116*30*28MM|Reflective cup|Lampshade transparent|Outer cover black|4 blue LEDs|19 flashing methods|Screw installation|4-core wire|IP67\IP69K |

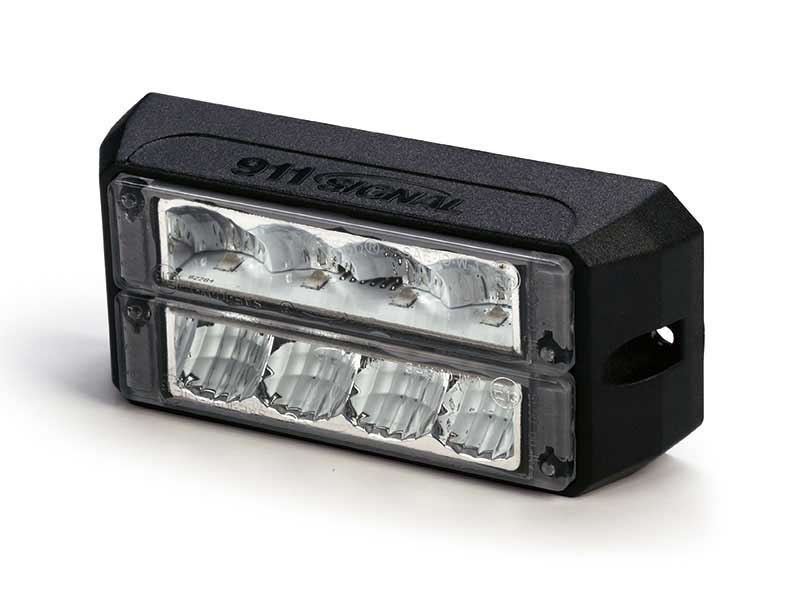

| 020103B | C4 | DC10-33V|MAX 12W|116*51*28MM|Reflective cup|Lampshade transparent|Outer cover black|8 blue LEDs|19 flash methods|Screw installation|2 4-core wires|IP67\IP69K|White box B02F20600601| Outer box B010NO200001 |
| 020109R | C4 | DC10-33V|MAX 12W|116*51*28MM|Reflective cup|Lampshade red|Outer cover black|8 red LEDs|19 flash methods|Screw installation|2 4-core sheathed wires|IP67\IP69K|White box B02F20600601 |Outer box B010NO200001 |
