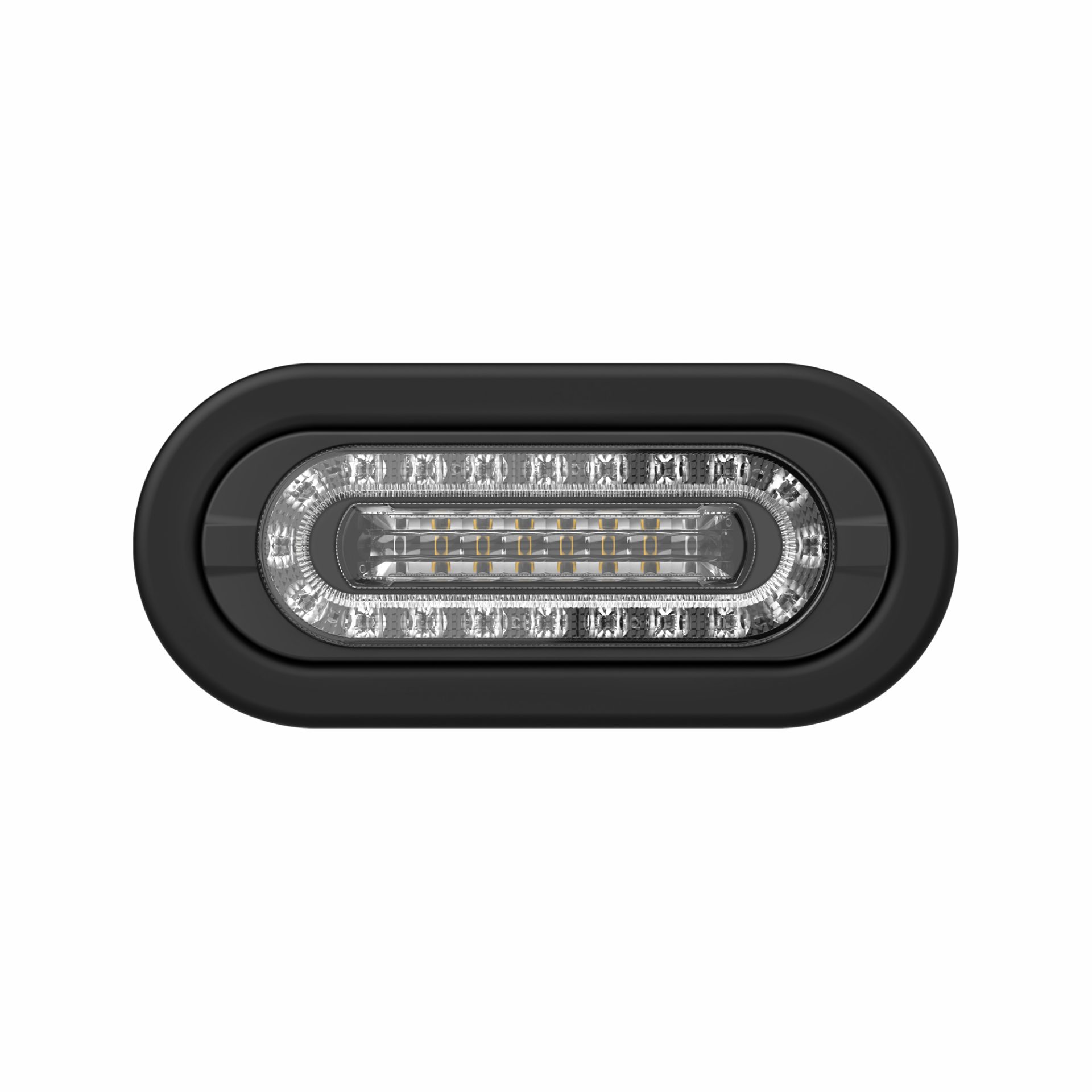

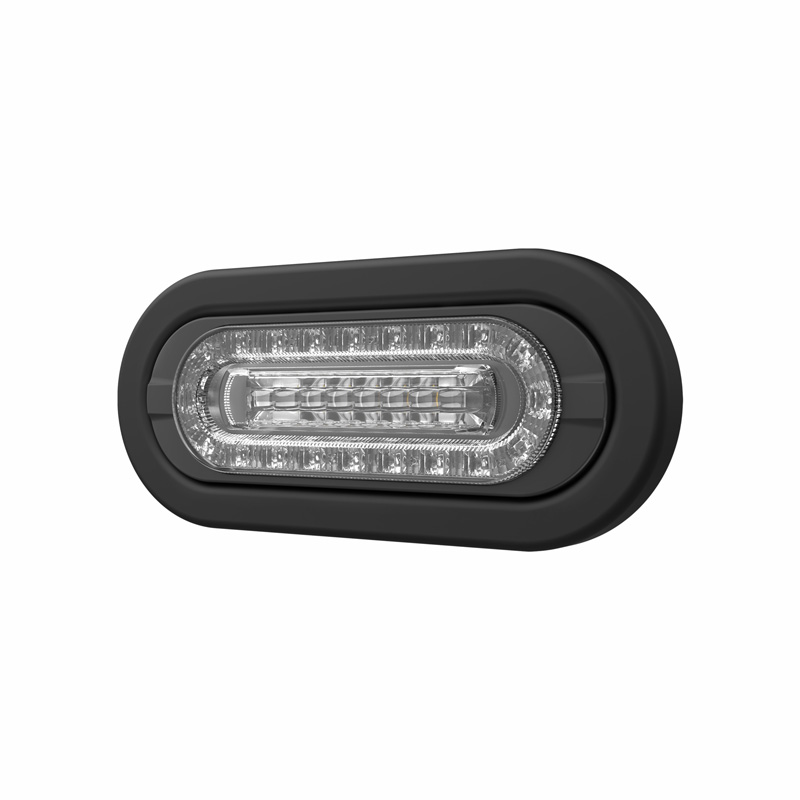

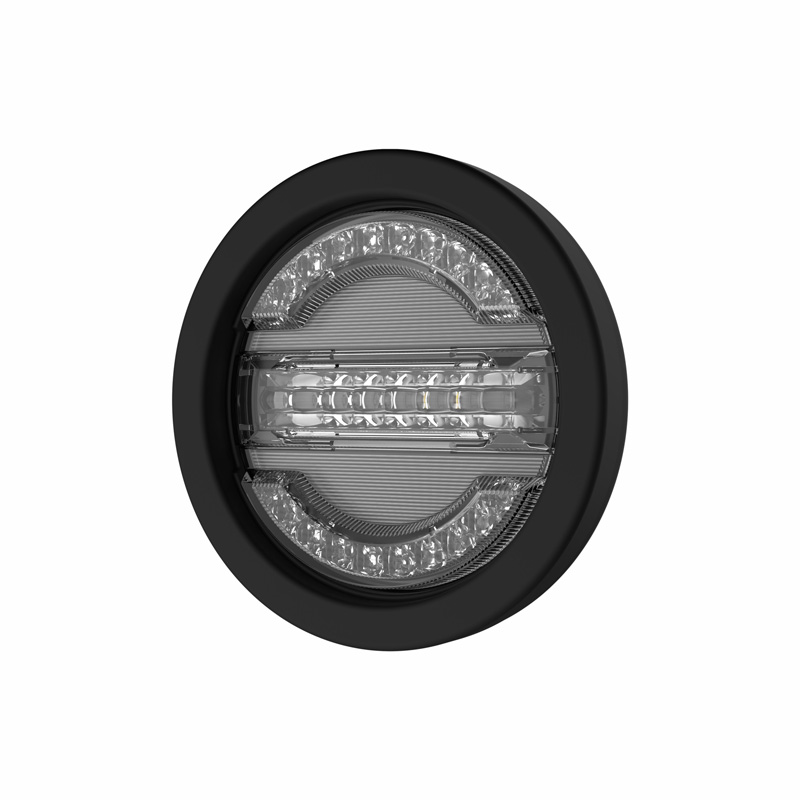

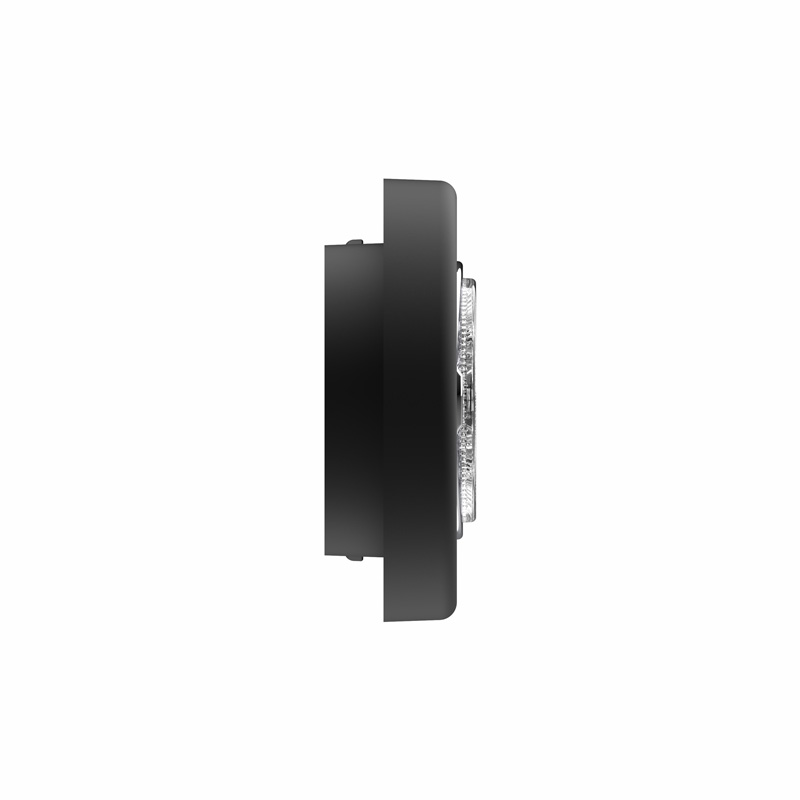

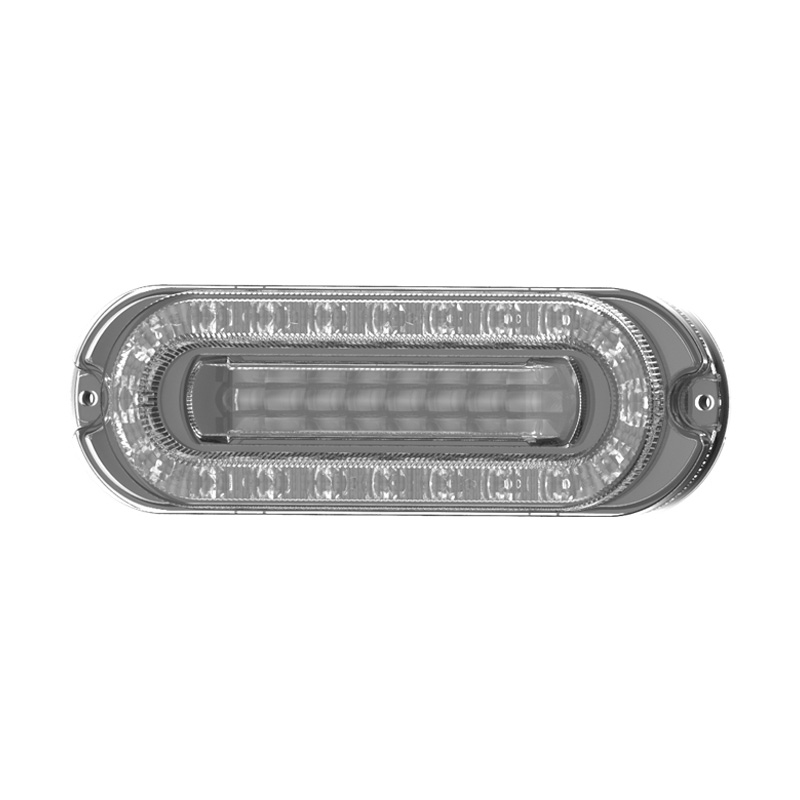

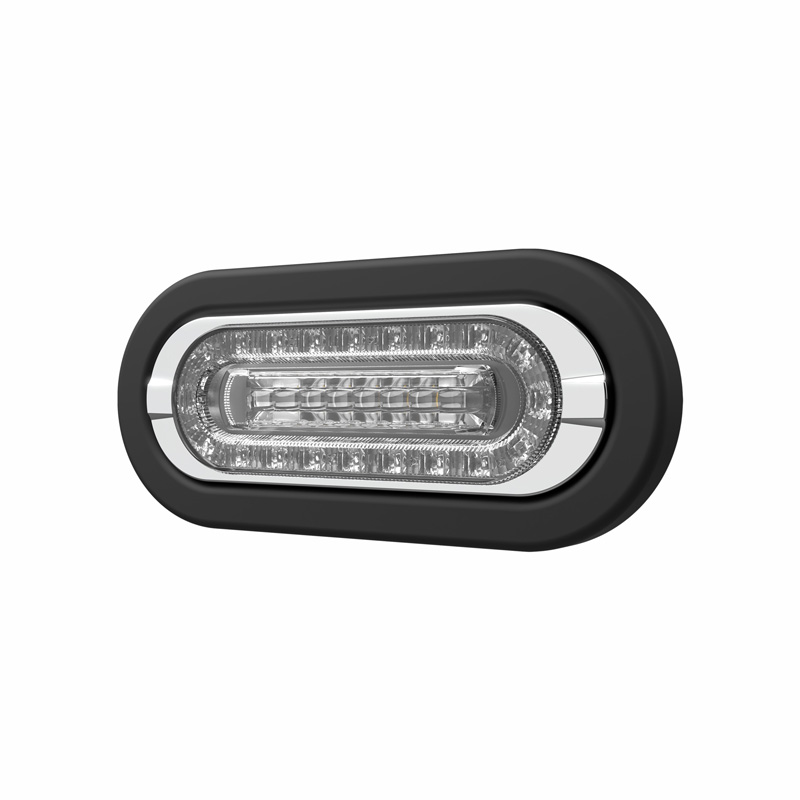

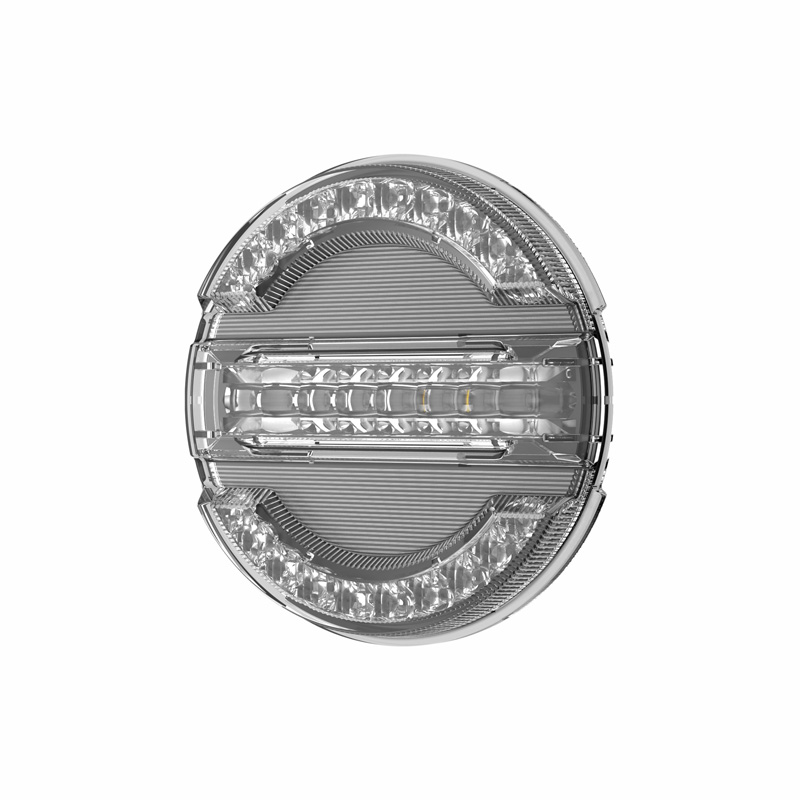

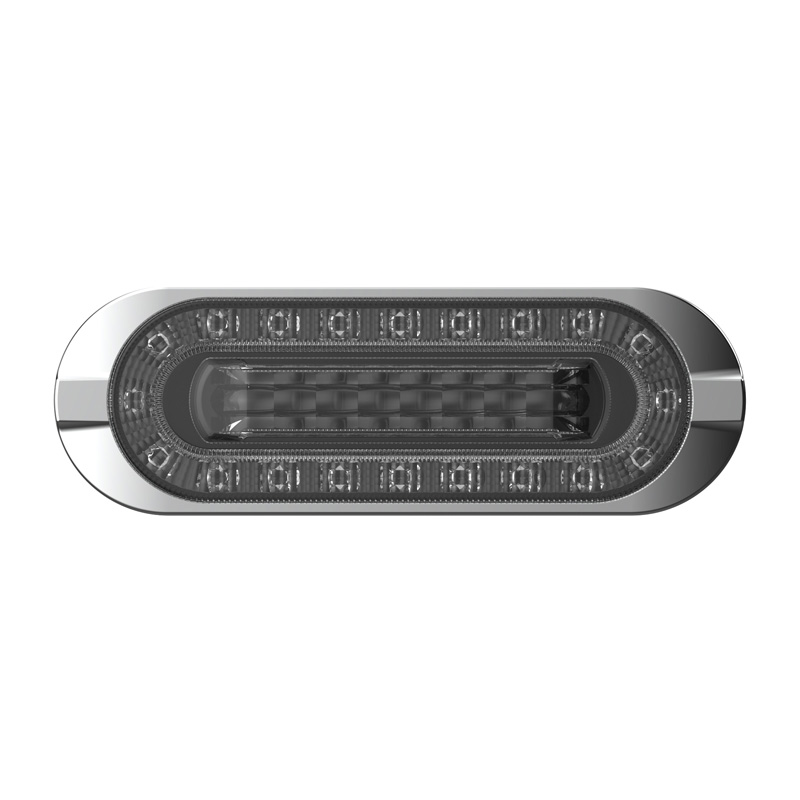

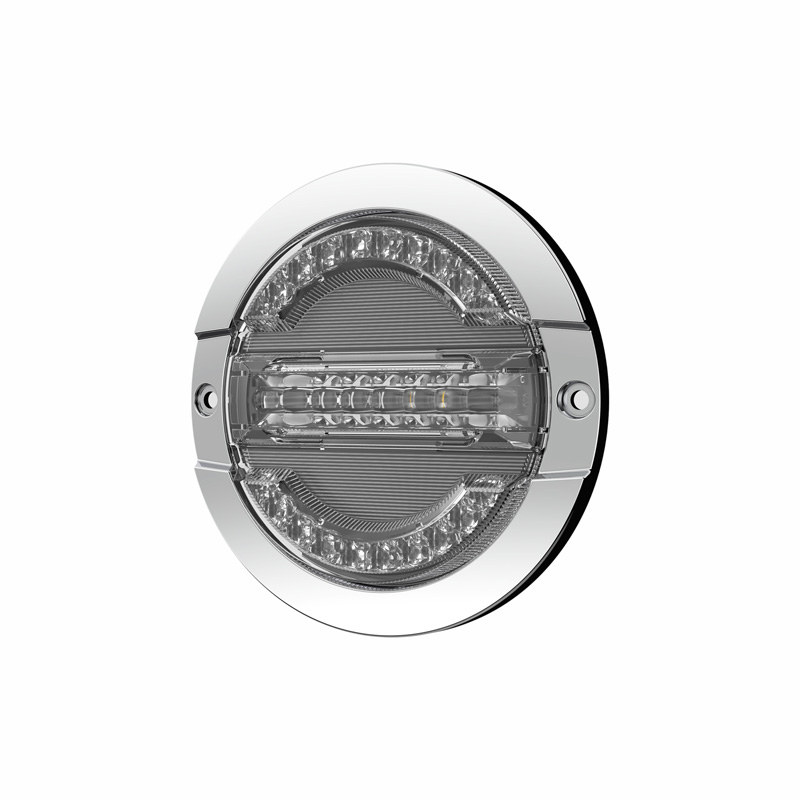

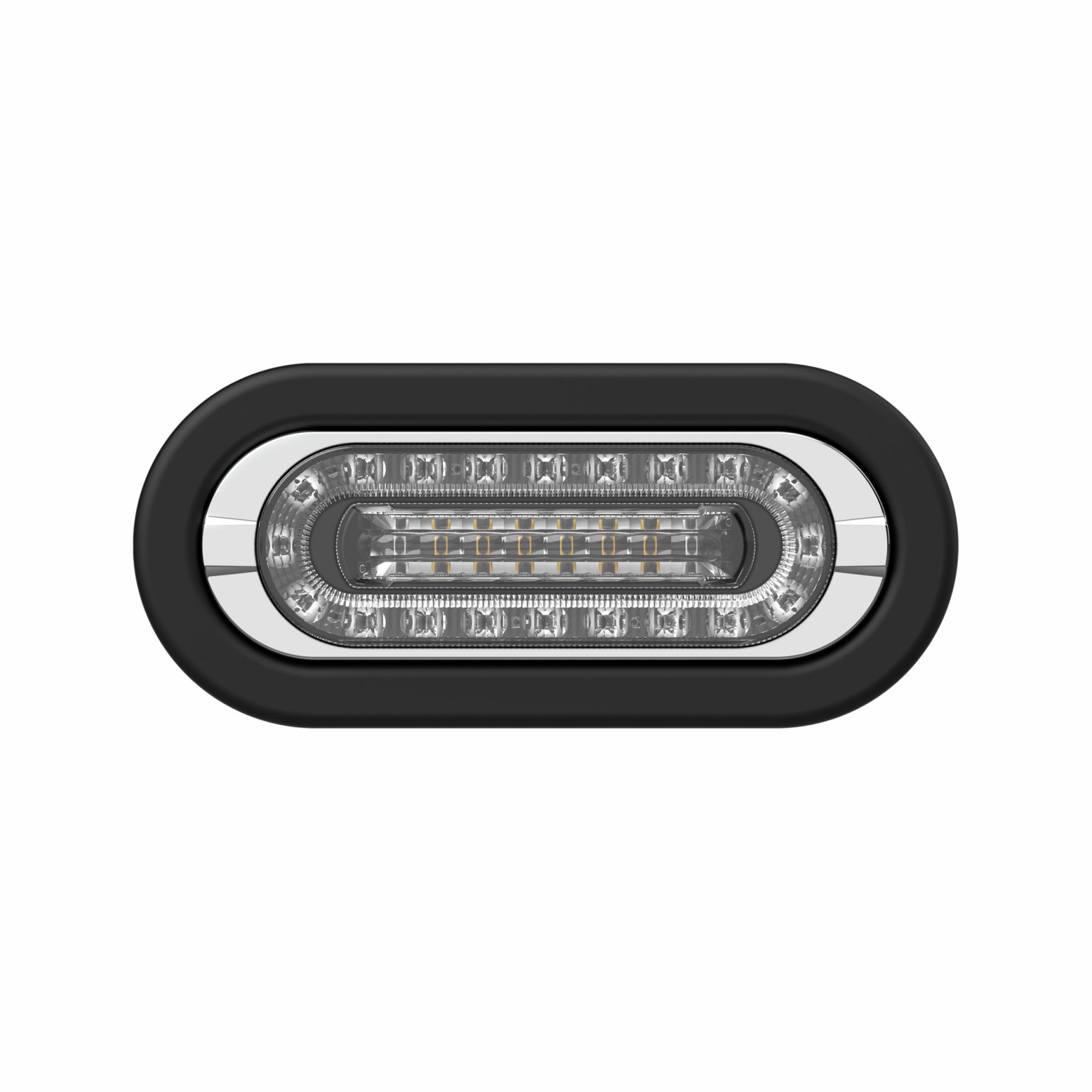

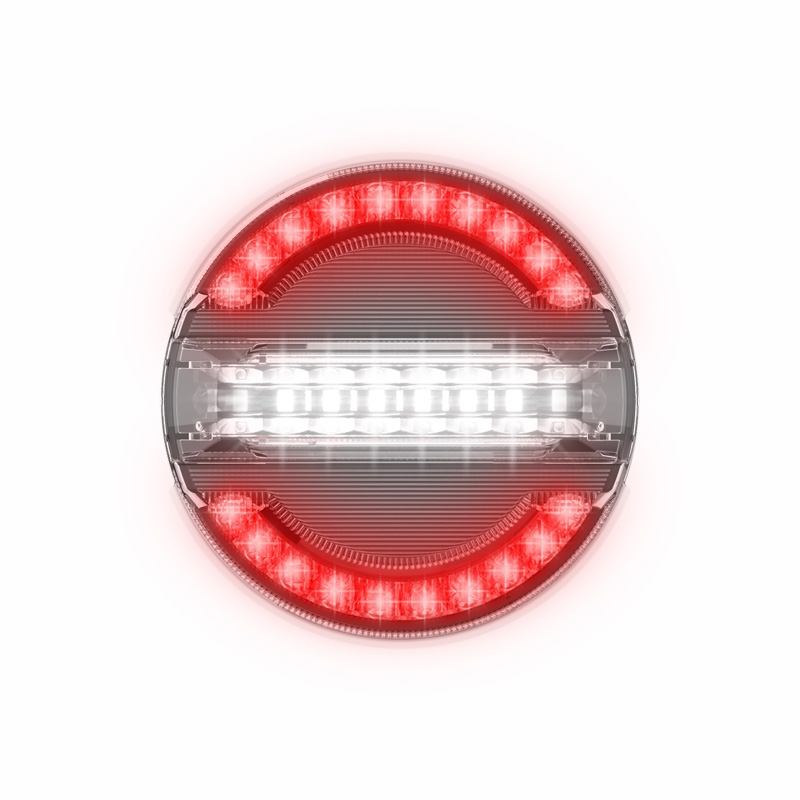

ORBIT Series – Truck Multifunctional Lighthead,Integrated of warning and STT

  • SAE J595,CA T13,R65,R7,R91 and FMVSS-108 certified
  • Integration of warning, clearance, reversing and Stop / Tail / Turn lightsthe first of its kind on the market
  • Extremely innovative and recognizable three-dimensional design makesthe product stand out among others
  • Able to replace other products with 4″ and 6″ industry standarddimension
  • Screw mount or grommet mount
  • Warning light available in single and dual color
  • IP69K rated
Get A Quote

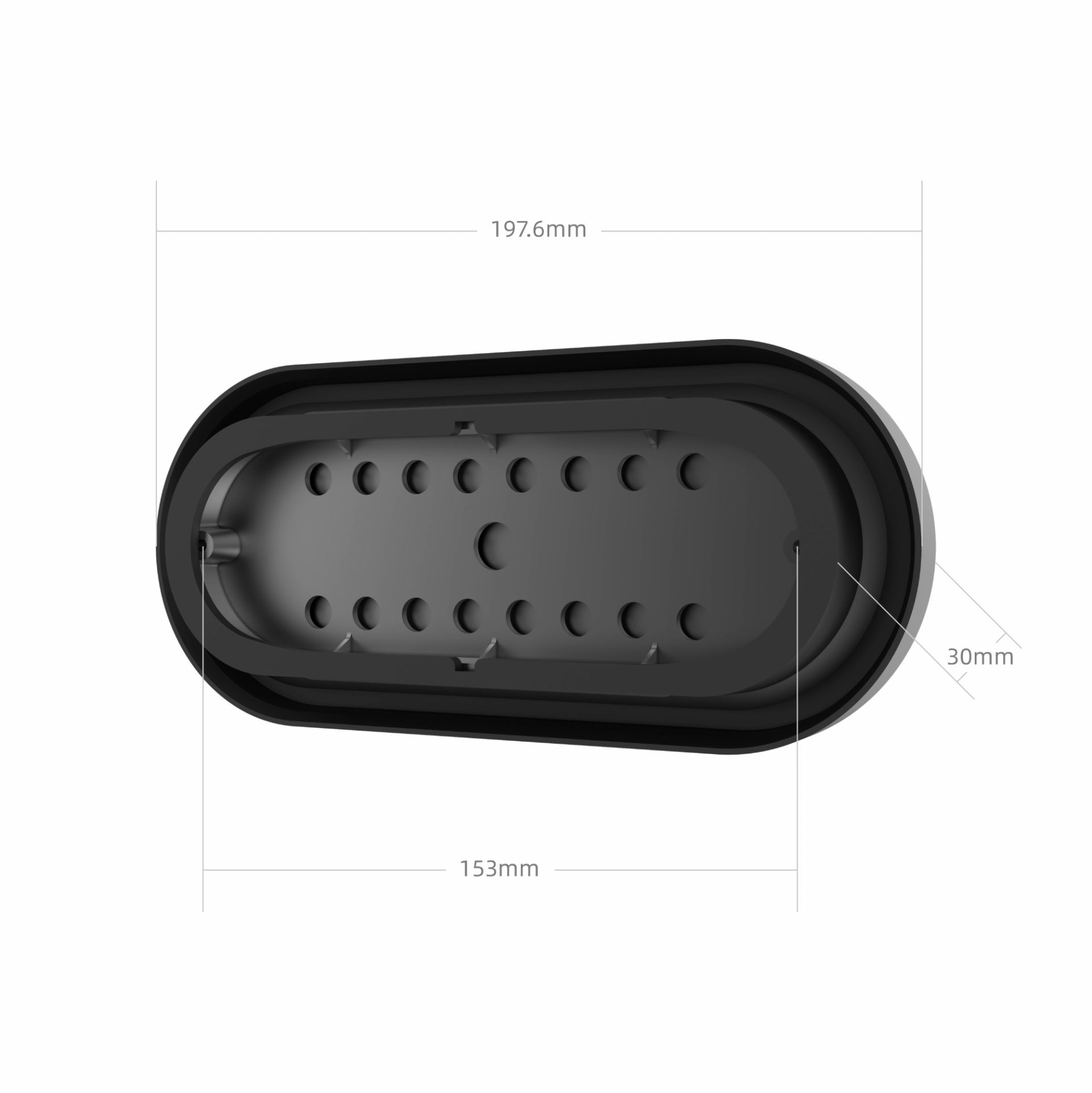

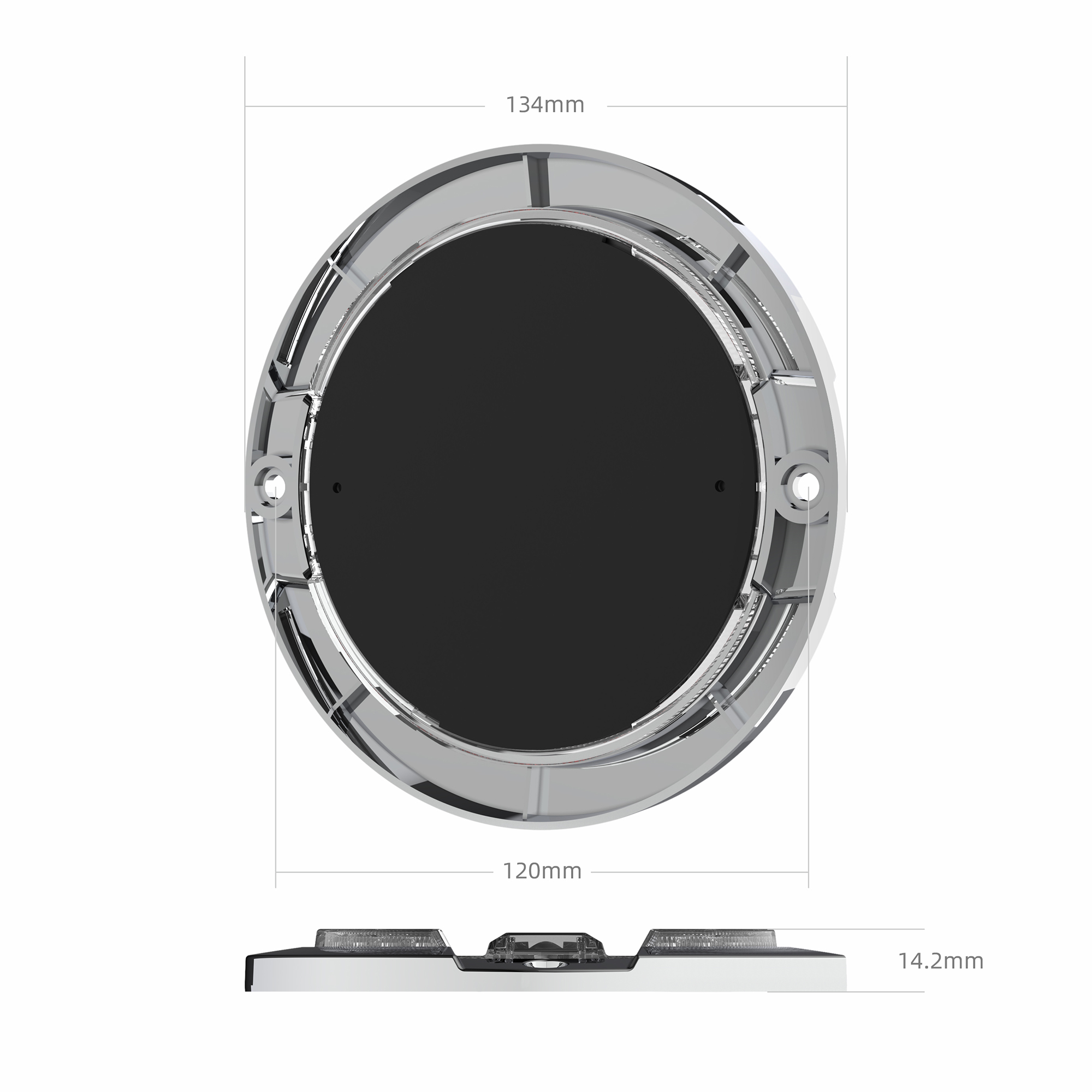

DIMENSIONS

SPECIFICATION

SPECIFICATIONS

Voltage: 10-33V

Max Power:16W

LED:32pcs

Flash Patterns:19

Lens:TIR

Mount: Grommet Mount, Screw Mount

Operating Temp.: -30 to 70 ℃

Certification:SAE J595,CA T13, R65,R7, R91, FMVSS-108

ITEMMODELSPECIFICATIONS
023506E(A)AORBIT-CDC10-33V|MAX 16W|φ134*14MM|Transparent lens|Transparent lampshade|Outer cover silver|LED amber 26 pieces|19 flashing methods|Screw installation|5-core wire|IP67\IP69K
023503E/U(A)RWORBIT-CDC10-33V|MAX 16W|φ134*14MM|Transparent lens|Lampshade transparent|Outer cover black|LED amber 6 pcs red 20 pcs white 6 pcs|19 flash methods|embedded rubber ring installation|7-core wire|IP67\IP69K
023507E/U(A)RWORBIT-CDC10-33V|MAX 16W|φ134*14MM|Transparent lens|Lampshade transparent|Outer cover silver|LED amber 6 pcs red 20 pcs white 6 pcs|19 flashing methods|Screw installation|7-core wire|IP67\IP69K
023509E/U(A)RWORBIT-CDC10-33V|MAX 16W|φ134*14MM|Transparent lens|Transparent lampshade|Outer cover black, silver|LED amber 6 pcs red 20 pcs white 6 pcs|19 flash methods|embedded rubber ring installation, screw installation|7 cores Wire | IP67\IP69K | Outer box B0100H210001, color box B02OCTLX2002, instruction manual B08OCTLX1002
023510E/U(A)RWORBIT-CDC10-33V|MAX 16W|φ134*14MM|Transparent lens|Lampshade transparent|Outer cover black|LED amber 6 pcs, red 20 pcs, white 6 pcs|19 flash methods|embedded rubber ring installation, screw installation|7-core wire| IP67\IP69K|Outer box B01SL0000001, brown box B02OCTLX2004, outer cover 100229, instruction manual B08OCTLX1004
023704E(A)AWORBIT-UDC10-33V|MAX 16W|162*52*15MM|Transparent lens|Transparent lampshade|Outer cover black, silver|LED amber 26 pcs white 6 pcs|19 flash methods|embedded rubber ring installation, screw installation|6-core wire |IP67\IP69K
023703E/U(A)RWORBIT-UDC10-33V|MAX 16W|162*52*15MM|Transparent lens|Transparent lampshade|Outer cover black, silver|LED amber 6 pcs red 20 pcs white 6 pcs|19 flash methods|Embedded rubber ring installation, screw installation| 7-core wire|IP67\IP69K
023707E/U(B)RWORBIT-UDC10-33V|MAX 16W|162*52*15MM|Transparent lens|Transparent lampshade|Outer cover silver|LED blue 6 pcs, red 20 pcs white, 6 pcs|19 flashing methods|Screw installation|7-core wire|IP67\IP69K
023711E/U(A)RWORBIT-UDC10-33V|MAX 16W|162*52*15MM|Transparent lens|Lampshade transparent|Outer cover black|LED amber 6 pcs red 20 pcs white 6 pcs|19 flash methods|embedded rubber ring installation|7-core wire|IP67 \IP69K
023725E/U(A)AOrbit-UDC10-33V|MAX 10W|162*52*15MM|Transparent lens|Transparent lampshade|Outer cover silver|LED amber 26 pieces|19 flash methods|Embedded rubber ring installation, screw installation|5-core wire|IP67\IP69K| Outer box B01C9R65X201, color box B02OU00X2004, rubber 100225, base S02L56P20001, outer cover 100215, instruction manual B08OCTLX1006
023726E/U(TAW)AOrbit-UDC10-33V|MAX 16W|162*52*15MM|Transparent lens|Lampshade transparent|Outer cover silver|LED amber 23 pcs white 3 pcs|19 flash methods|embedded rubber ring installation, screw installation|6-core wire|IP67 \IP69K|Outer box B01C9R65X201, color box B02OU00X2004, rubber 100225, base S02L56P20001, outer cover 100215, instruction manual B08OCTLX1006
023726E/U(TAG)AOrbit-UDC10-33V|MAX 10W|162*52*15MM|Transparent lens|Transparent lampshade|Outer cover silver|LED amber 23 green lights 3 pcs|19 flash methods|Embedded rubber ring installation, screw installation|6-core wire|IP67 \IP69K||Outer box B01C9R65X201, color box B02OU00X2004, rubber 100225, base S02L56P20001, outer cover 100215, instruction manual B08OCTLX1006
023713E/U(A)RWORBIT-UDC10-33V|MAX 16W|162*52*15MM|Transparent lens|Lampshade transparent|Outer cover black|Amber 6 pcs, red 20 pcs, white 6 pcs|19 flash methods|embedded rubber ring installation, screw installation|7-core wire |IP67\IP69K|Instruction manual B08OCTLX1002, color box B02OU00X2002, rubber 100225, base S02L56P20001, outer cover 100215, outer box B01C9R65X201
023714E/U(A)RWORBIT-UDC10-33V|MAX 16W|162*52*15MM|Transparent lens|Lampshade transparent|Outer cover black|Amber 6 pcs, red 20 pcs, white 6 pcs|19 flash methods|embedded rubber ring installation, screw installation|7-core wire |IP67\IP69K|Outer box B01C9R65X201, protective cover S08L56S30002, base S02L56P20001, brown box B02L56X10002
023714E/U(B)RWORBIT-UDC10-33V|MAX 16W|162*52*15MM|Transparent lens|Lampshade transparent|Outer cover black, silver|Blue 6 pcs, red 20 pcs, white 6 pcs|19 flash methods|embedded rubber ring installation, screw installation|7 Core wire|IP67\IP69K|Outer box B01C9R65X201, protective cover S08L56S30002, base S02L56P20001, brown box B02L56X10002
