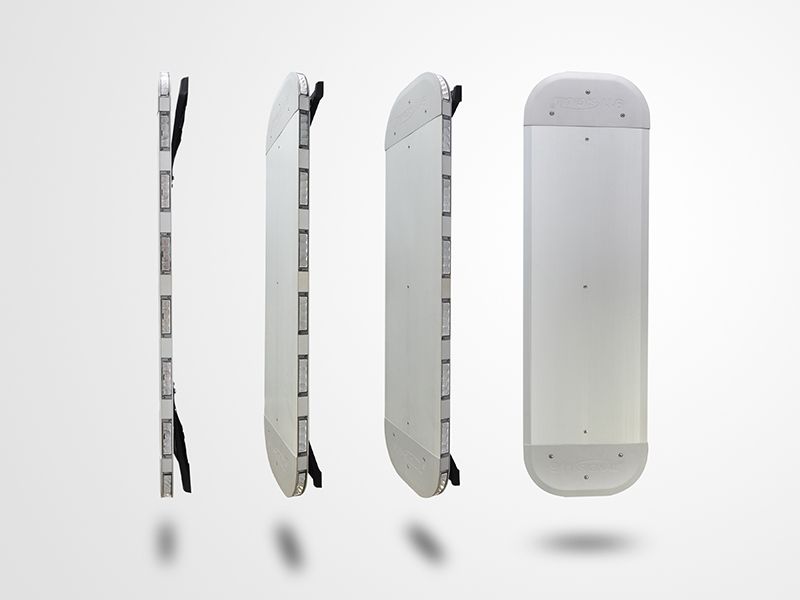

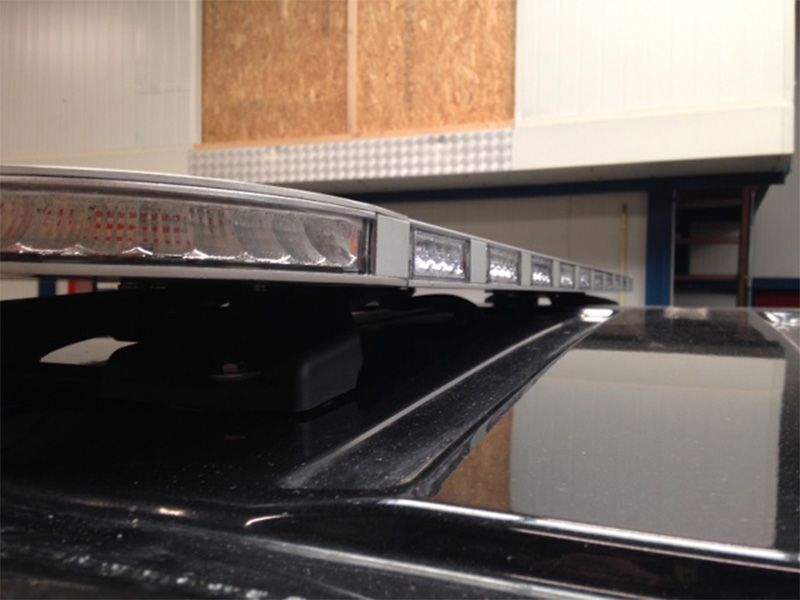

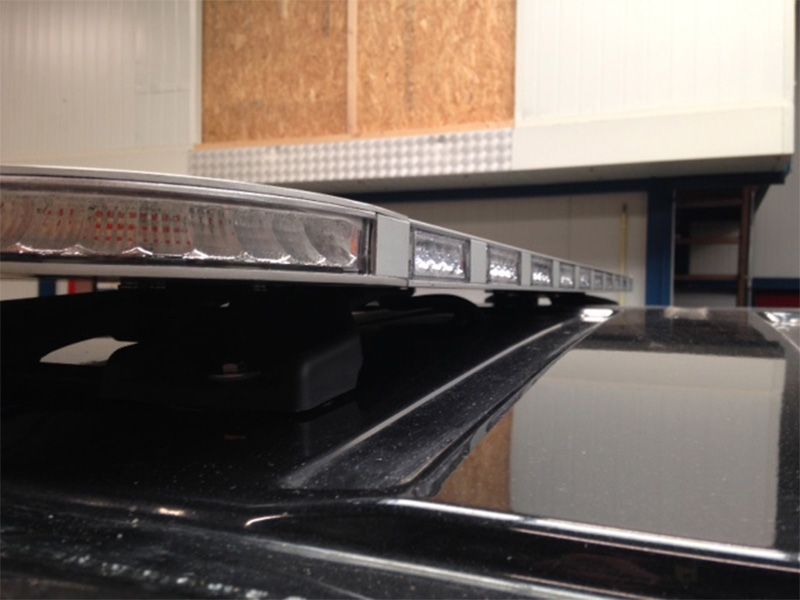

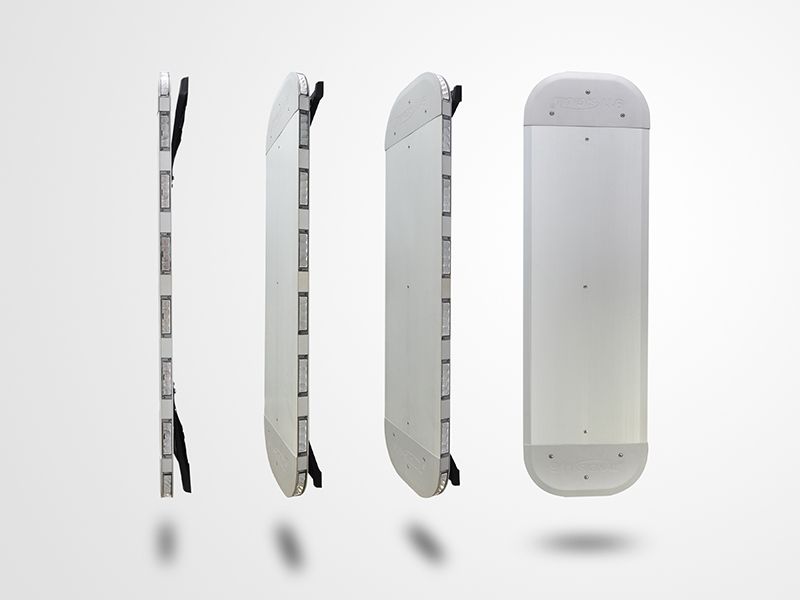

- Aerodynamic design, extremely low profile with a height of only 1.2”
- Unique LED Reflector technology intensifies light output
- Wide-angle illumination for better warning capability
- IP 68 rated; fully encapsulated for moisture, vibration and corrosion resistance

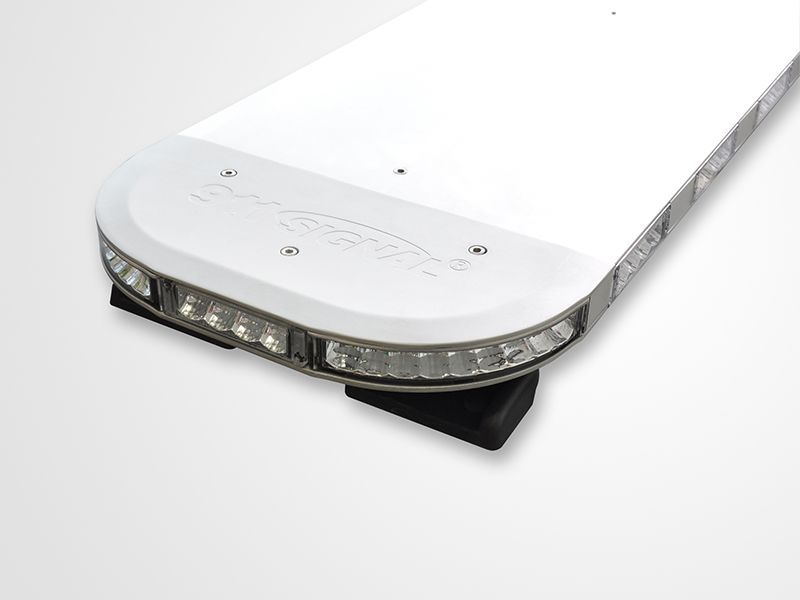

- Hard-coated lenses and aluminum housing minimize environmental damage, help dissipate heat and thus prolong lifespan
- Ready to be customized in lengths and functions to meet your requirements

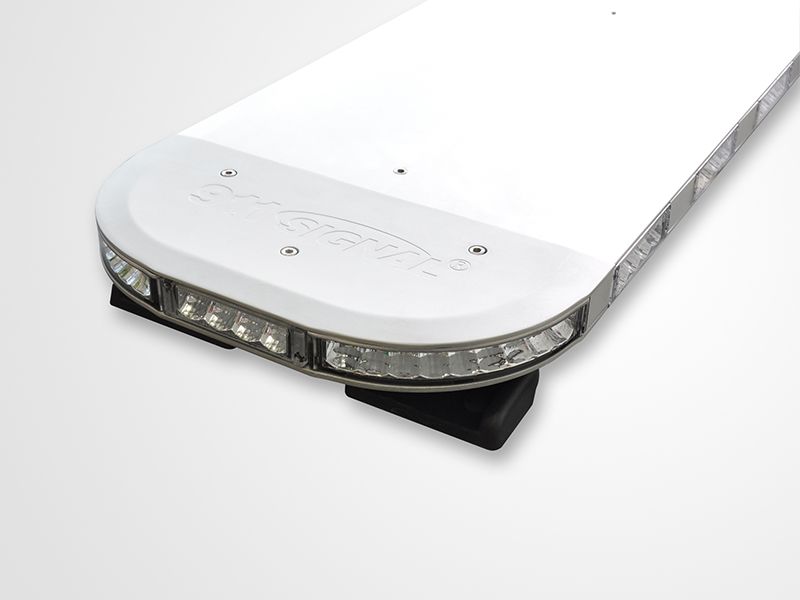

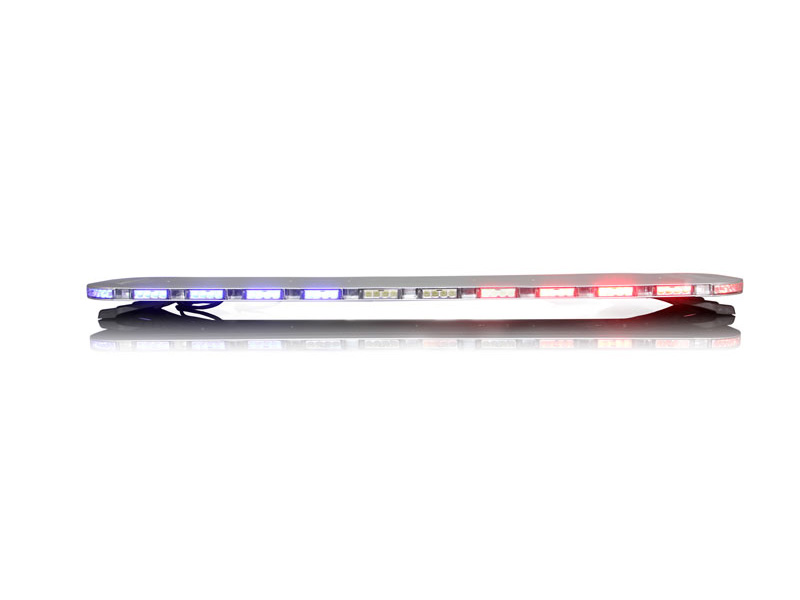

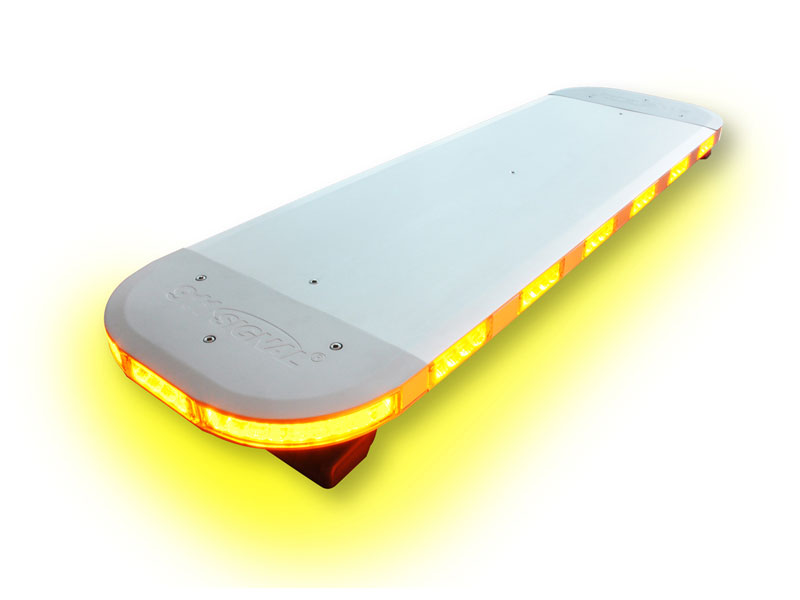

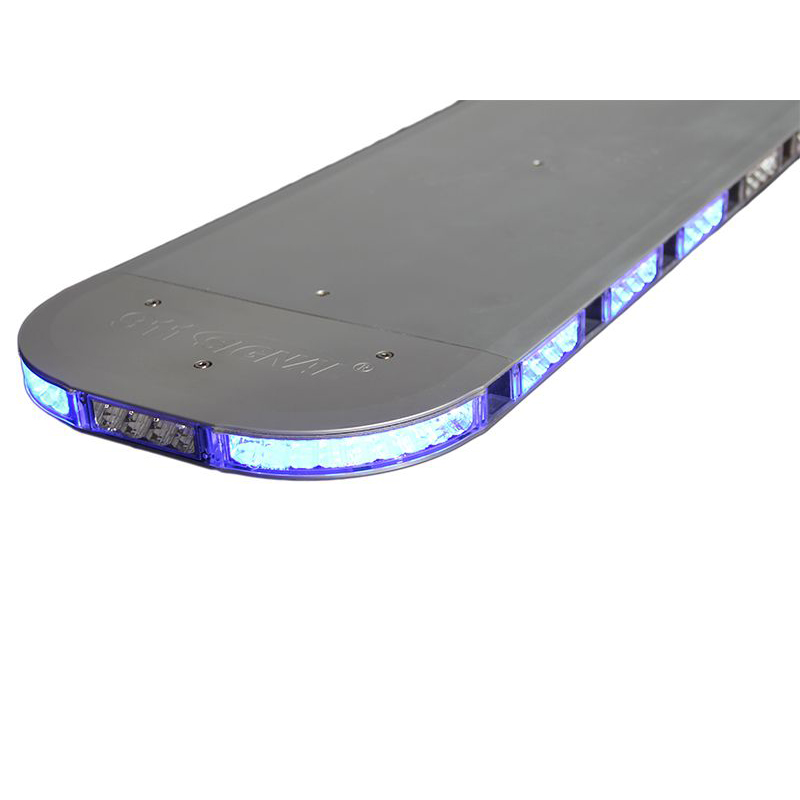

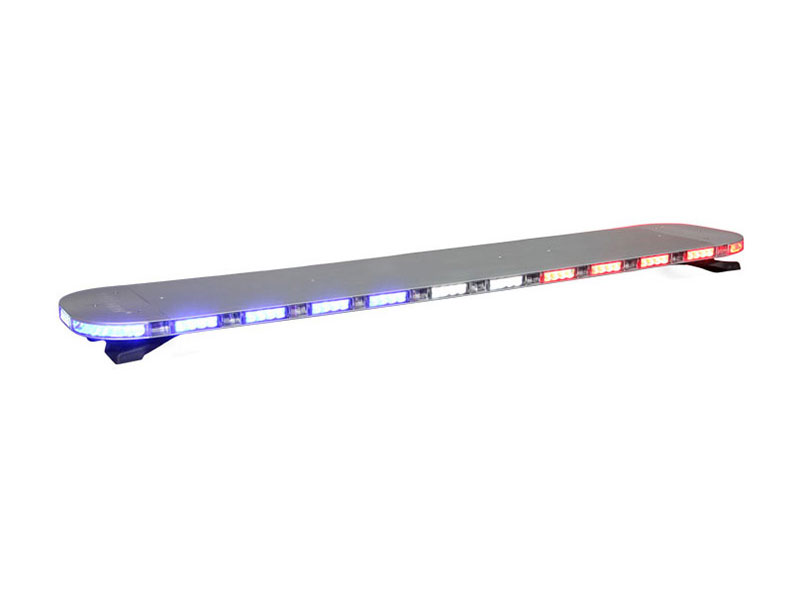

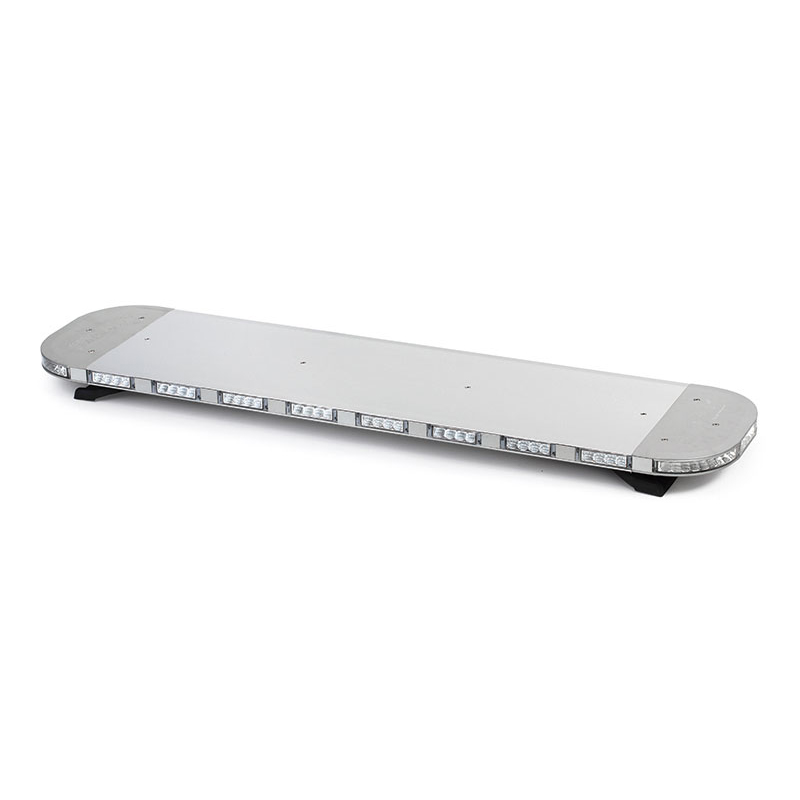

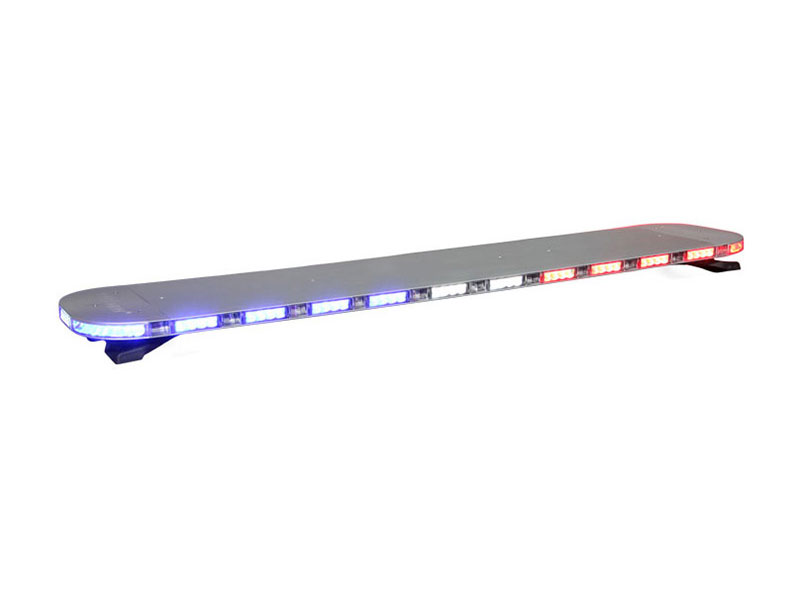

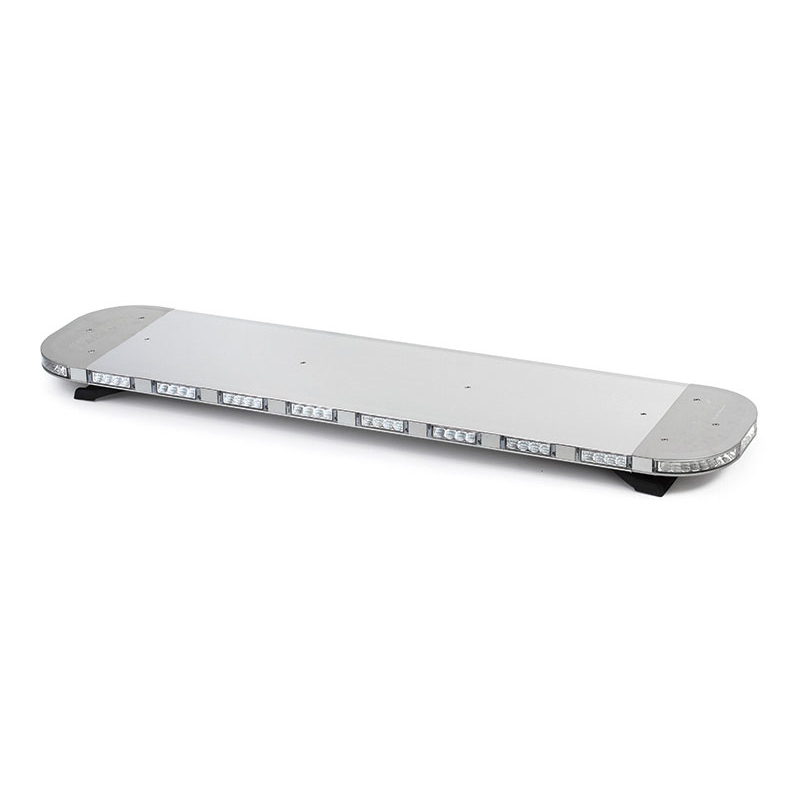

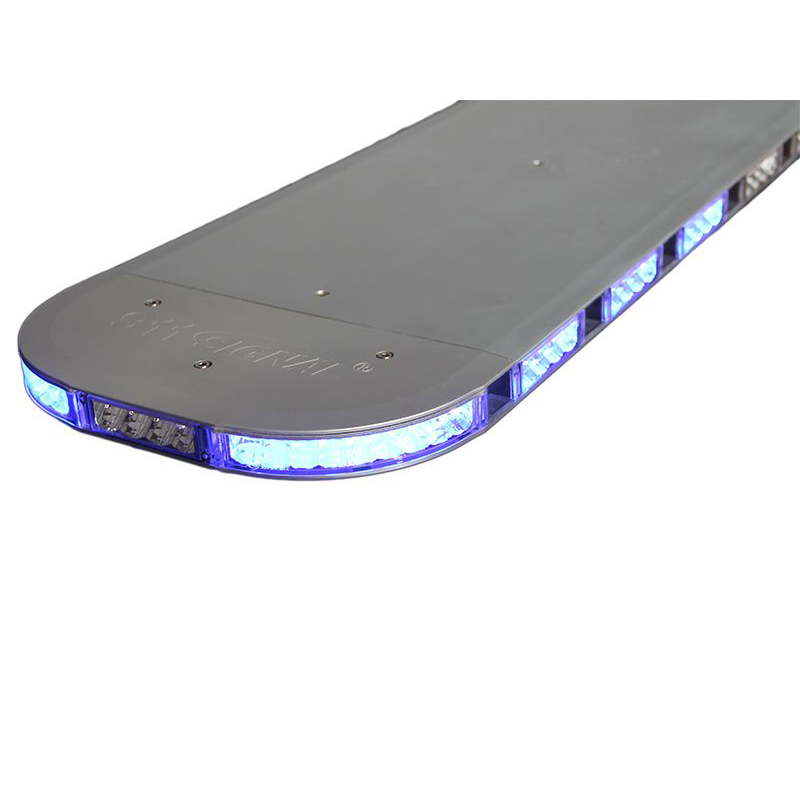

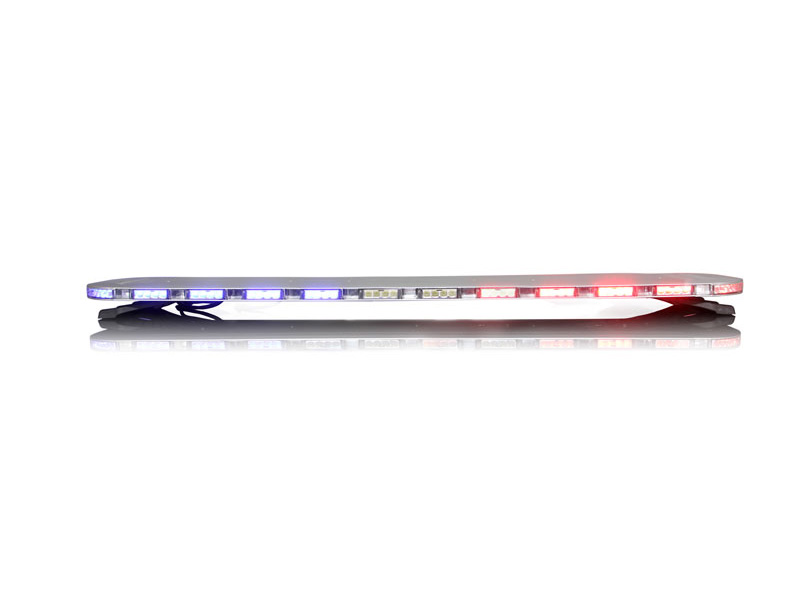

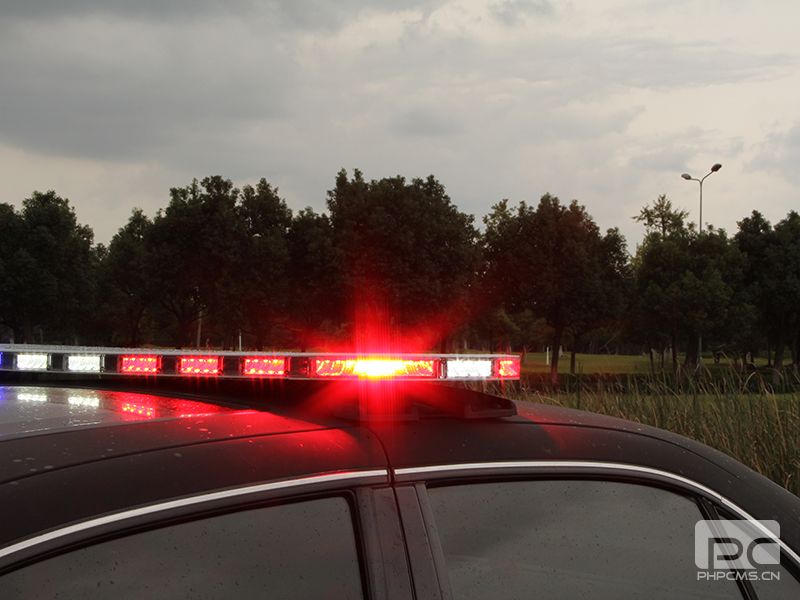

SKYLINE – CREE LED Thinnest Warning Lightbar
Get A Quote

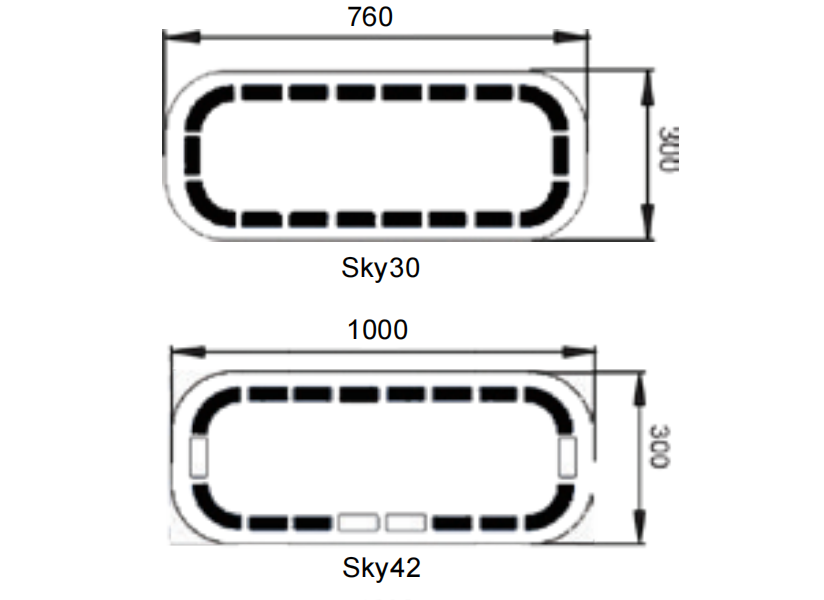

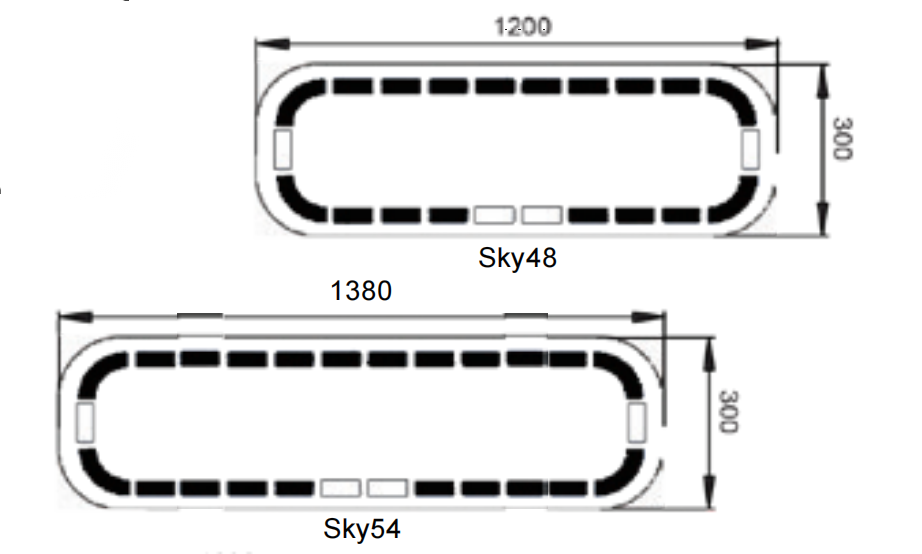

DIMENSIONS
SPECIFICATION
Light Characteristics
LED Power: 108PCS 3W LED
LED Lifespan: 50000H
LENS : Reflex
Flash settings : 1-4HZ
Electrical Characteristics
Voltage: DC 10-33V
Max Power: 214W
Physical Characteristics
Colour Available : red, blue , amber and combination color
Housing Materials: Aluminum alloy Housing
Ambient temperature: -30-+60℃
Waterproof: IP68

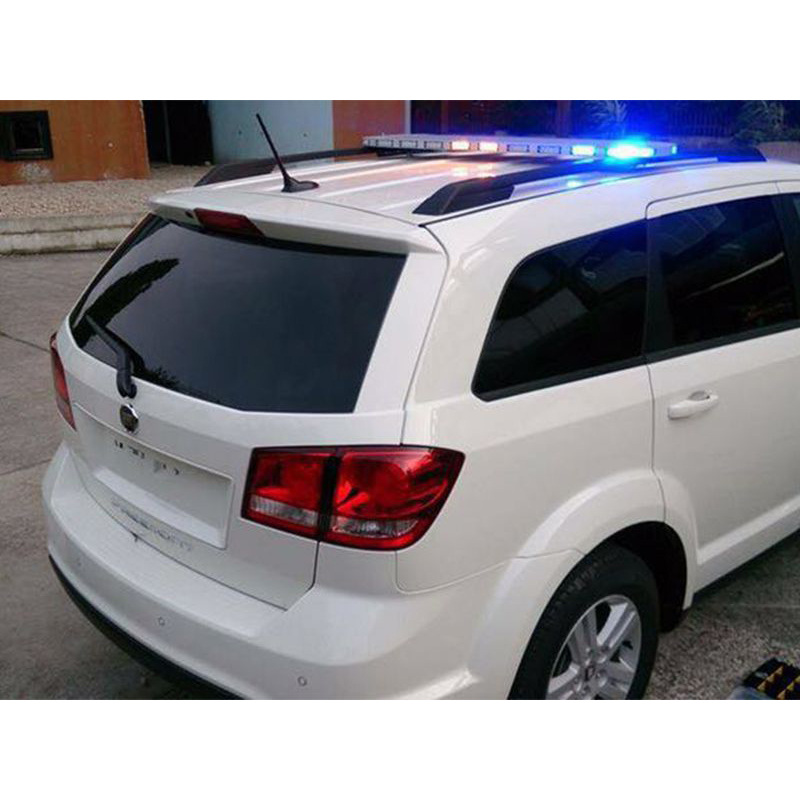

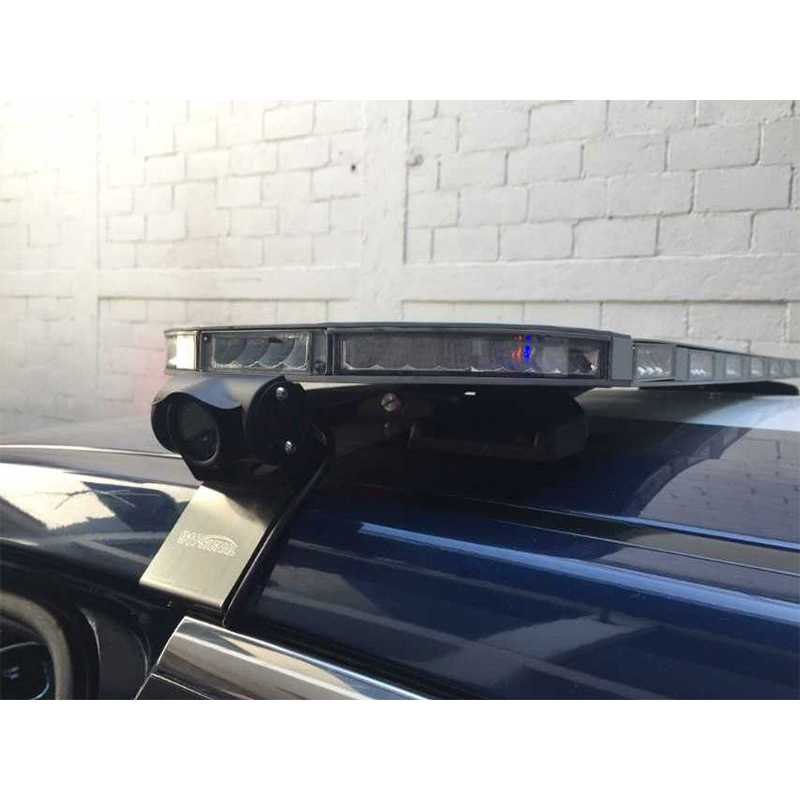

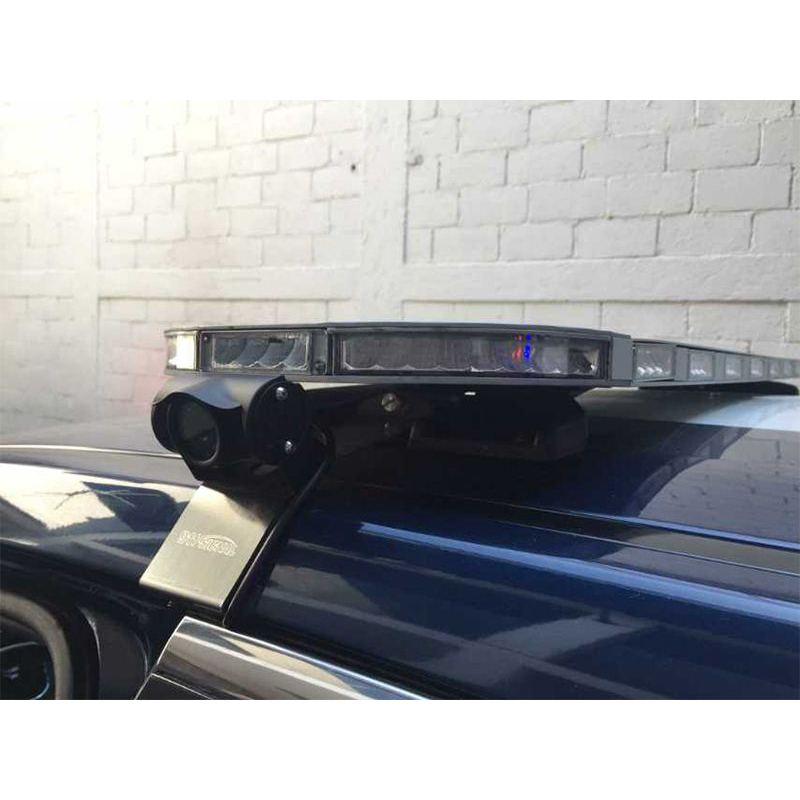

Mounting : Gutter mounting
Flash patterns: 35
Meet and Exceeds: ECE R65 TA2 00 0028, ECE R65 TB2 00 0029, ECE R10 04 12747, SAE W3-1 10
Product Dimension: 120cm L x 30cm W x 3cm H(48.0 “L x 11.8” W x 1.2″H)
Accessories : 5M length of 18 core wire
Housing Materials: Aluminum alloy Housing
| ltem | Length | LED | MaxPowere | Voltage | FlashPatterns | OperatingTemperature | Mount | Certification |

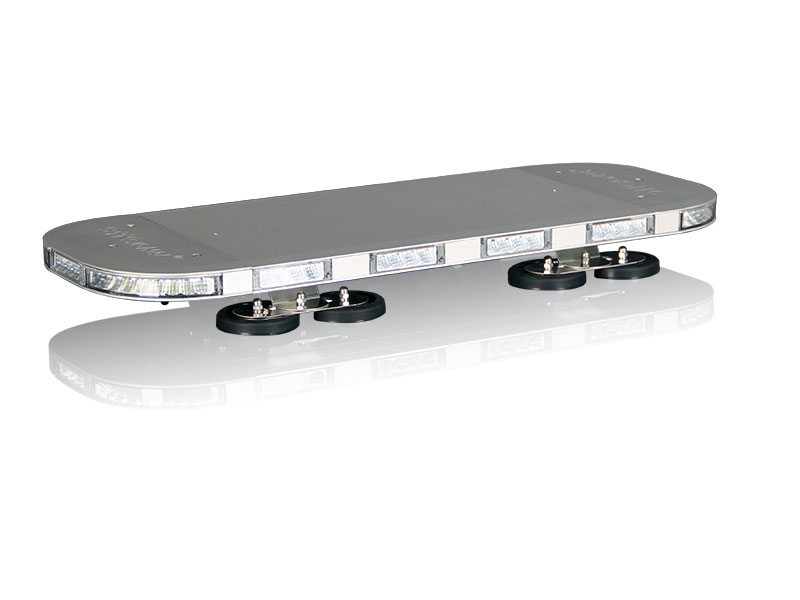

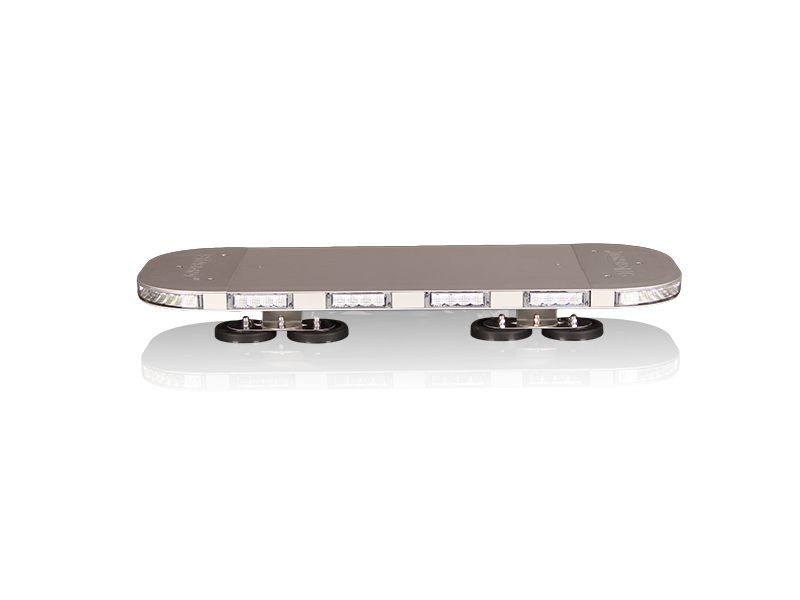

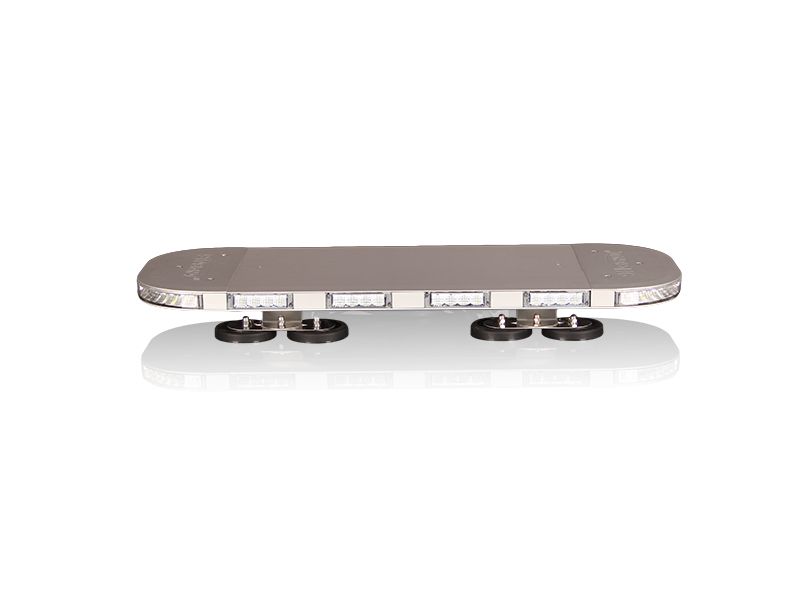

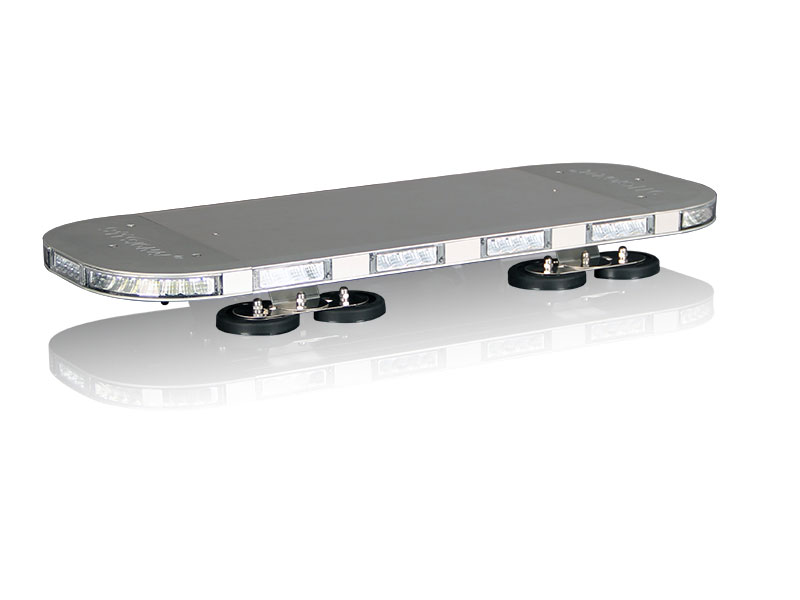

| 011301 | 30″ | 76pcs | 140W | DC 10-33V | 35 | -30 to +70 | Magnetic Mount | SAE Class 1 ECE R65 TA2 TB2 ECE R1O |
| 010101 | 42″ | 92pcs | 177W | Gutter Mount | ||||
| 010201 | 48″ | 108pcs | 222W |
