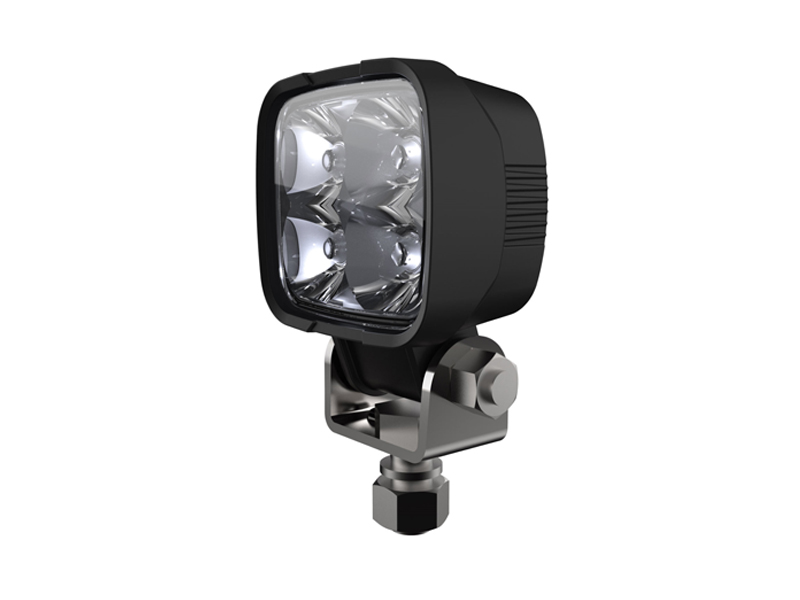

V8 Series – MINI Worklight

  • ECE R1 0, EMC certified
  • Constant and stable light output of 800lm
  • Extremely compact, suitable for versatile applications
  • Stainless screws, bracket and aluminum housing minimize environmental damage
  • IP69K rated
Get A Quote

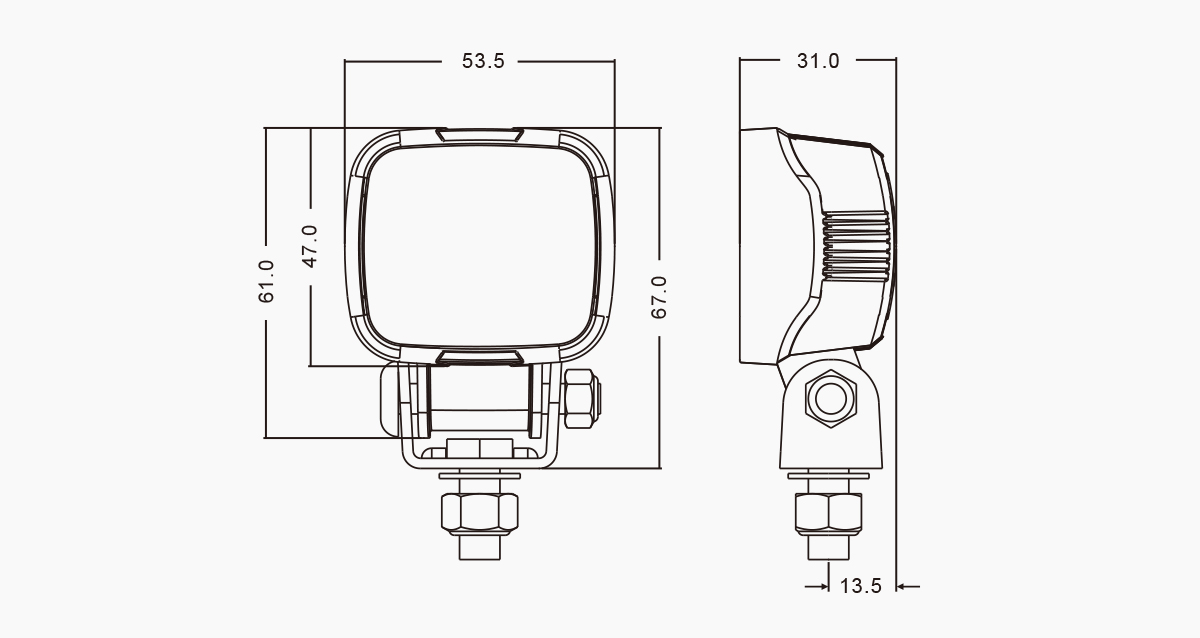

DIMENSIONS

SPECIFICATION

Model: V8 LR / V8 CR

ITEM: 120701/ 120751

Voltage: 10-33VDC

Power: 9.5W

Lux: 200lux@10m, 56lux@10m

Lumen: 800

LED: 4 pcs 3W

Lens:TIR

Color Temp: 6000K

Mount: Side, Suspend, Stand

ITEMMODELSPECIFICATIONS
120701V8DC10-33V|MAX 9.5W|53.5*47*31MM|Transparent lens|Back cover black aluminum alloy|4 white LEDs|800LM|6500K|Lightening angle 12° horizontal 5° vertical|Bracket installation|2-core sheathed wire| IP69K
120751V8DC10-33V|MAX 9.5W|53.5*47*31MM|Transparent lens|Back cover black aluminum alloy|4 white LEDs|800LM|6500K|Lightening angle 12° horizontally 12° vertically|Bracket installation|2-core sheathed wire| IP69K
120752V8DC10-33V|MAX 9.5W||53.5*47*31MM|Transparent lens|Black aluminum alloy lettering HBA on the back cover|4 white LEDs|800LM|6500K|Lightening angle 12° horizontally 12° vertically|Bracket installation|2-core protection Cable set|IP69K|Color box B02V8X1HBA01, instruction manual B08V8X2HBA01
120753V8DC10-33V|MAX 9.5W||53.5*47*31MM|Transparent lens|Black aluminum alloy engraving on the back cover RT-SYSTEM|4 white LEDs|800LM|6500K|Lightening angle horizontal 12° vertical 12°|Bracket installation|2 Core sheathed wire|IP69K
