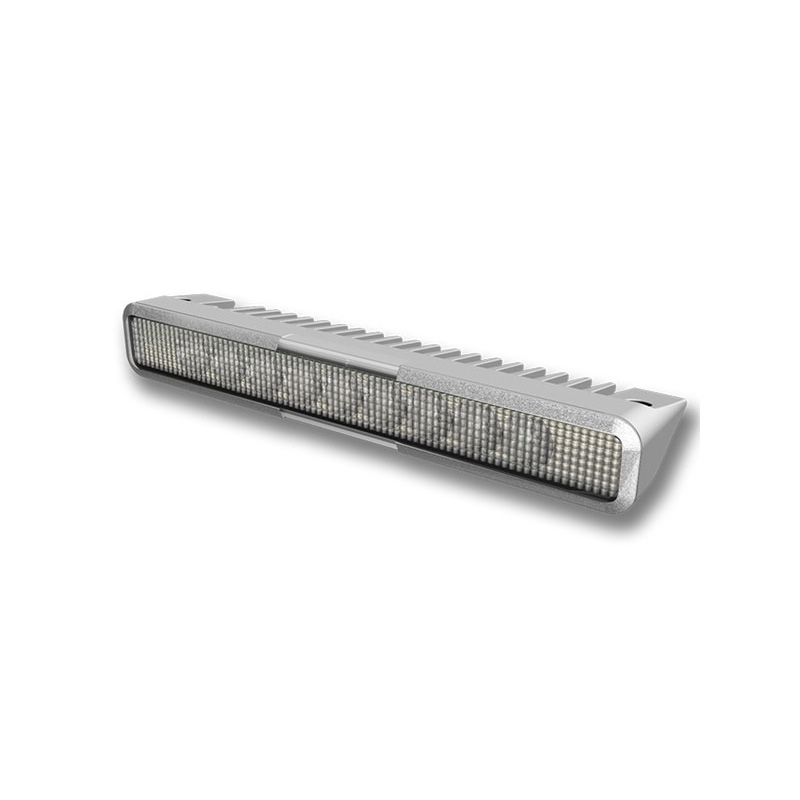

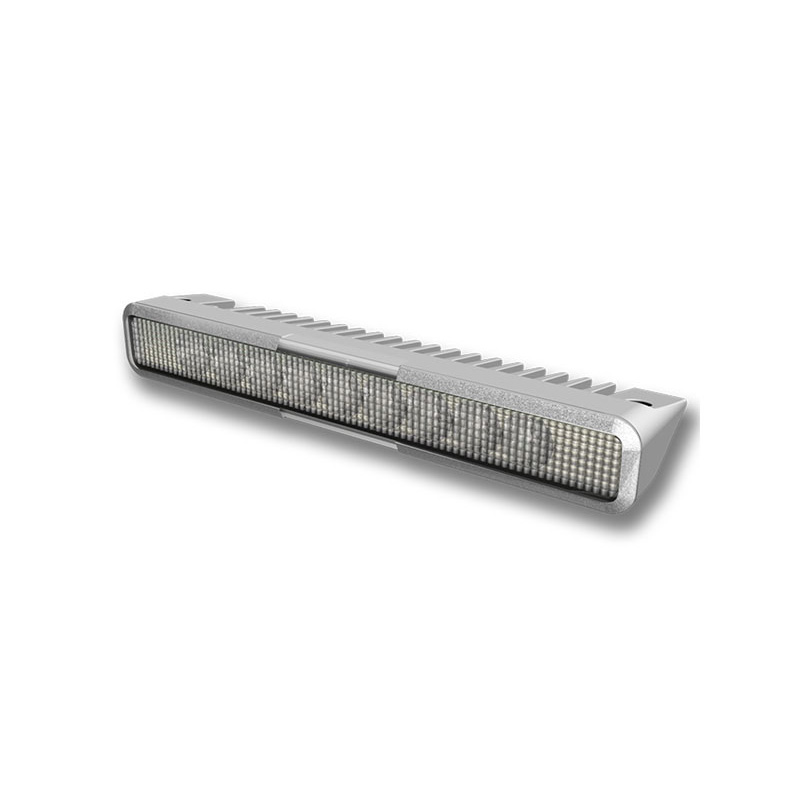

SL Series – Supplementary worklight

SL can be easily fitted to the side of your vehicle. For those who are upgrading to a new scene light, you may find it super easy to install SL because the wire connector can be adjusted to the location that fits your original mounting location.

Get A Quote

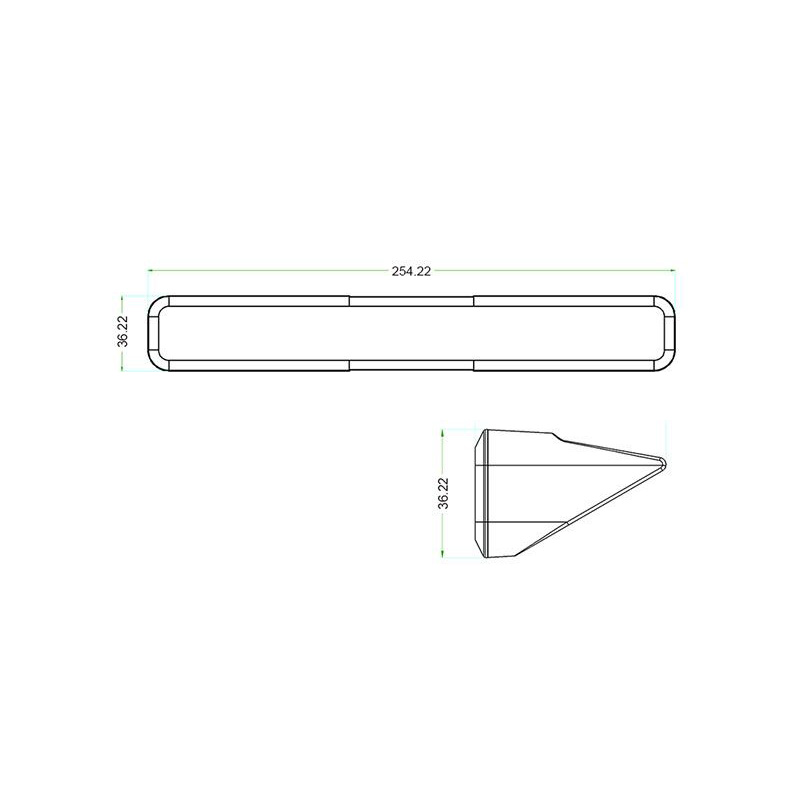

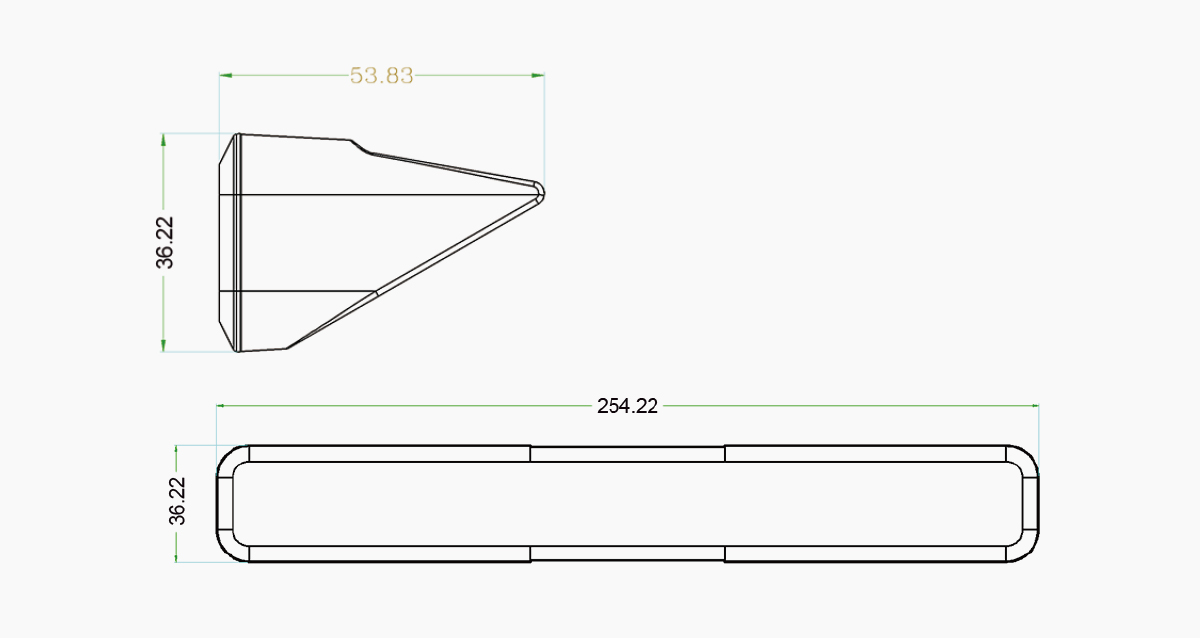

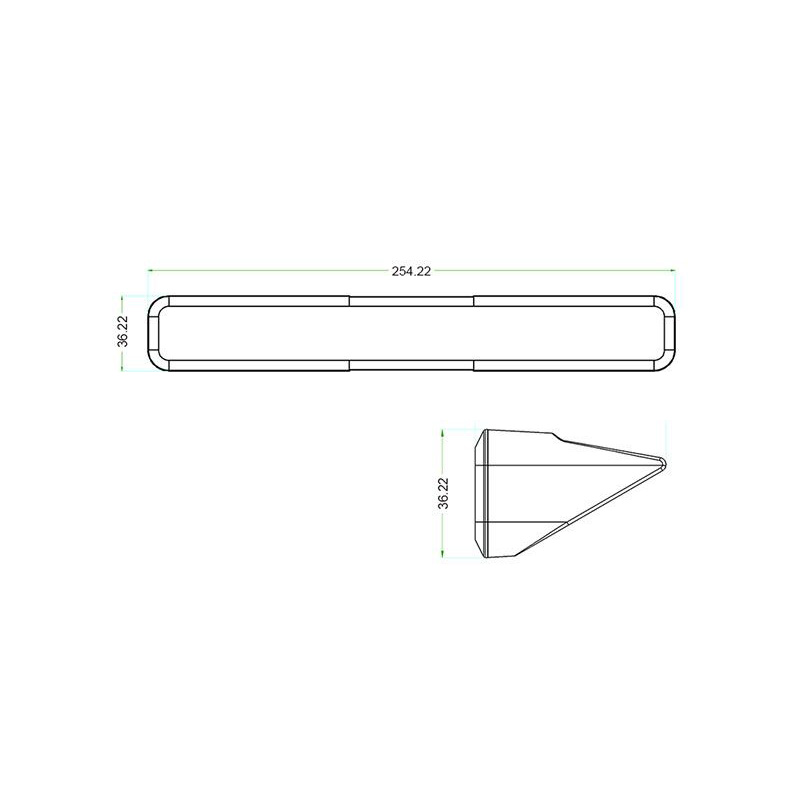

DIMENSIONS

SPECIFICATION

Operating Voltage: 10-33V

Power:15W

Color Temp: 6000K

Lumen: 1000lm

Lux (10M): 290lx

LED: 9Pcs 2W LED

Connector: Cable

Mount: Side

Certification: ECE R10 05 2167

ITEMMODELSPECIFICATIONS
120601SLDC10-33V|MAX 15W||254*54*36MM|Reflective cup|Back cover white plastic sprayed aluminum alloy|9 white LEDs|1000LM|6000K|Lightening angle 80° horizontal 60° vertical|Screw installation|2-core sheath Line|IP67
120605SLDC10-33V|MAX 25W||254*54*36MM|Reflective cup|Back cover white plastic sprayed aluminum alloy|9 white LEDs|1800LM|6000K|Lightening angle 80° horizontal 60° vertical|Screw installation|2-core sheath Line IP67
120603SLDC10-33V|MAX 15W||254*54*36MM|Reflective cup|Back cover red sprayed aluminum alloy|9 white LEDs|1000LM|6000K|Light 80° vertical 60°|Screw installation|2-core sheath Line IP67
120604SLDC10-33V|MAX 15W||254*54*36MM|Reflective cup|Back cover black plastic sprayed aluminum alloy|9 white LEDs|1000LM|6000K|Lightening angle 80° horizontal 60° vertical|Screw installation|2-core sheath Line IP67
120607SLDC10-33V|MAX 25W||254*54*36MM|Reflective cup|Back cover black plastic sprayed aluminum alloy|9 white LEDs|1800LM|6000K|Lightening angle 80° horizontally 60° vertically|Screw installation|2-core sheath Line IP67
120608SLDC10-33V|MAX 15W||254*54*36MM|Reflective cup|Back cover gray spray aluminum alloy|9 white LEDs|1000LM|6000K|Lightening angle 80° horizontally 60° vertically|Screw installation|2-core sheath Line IP67
