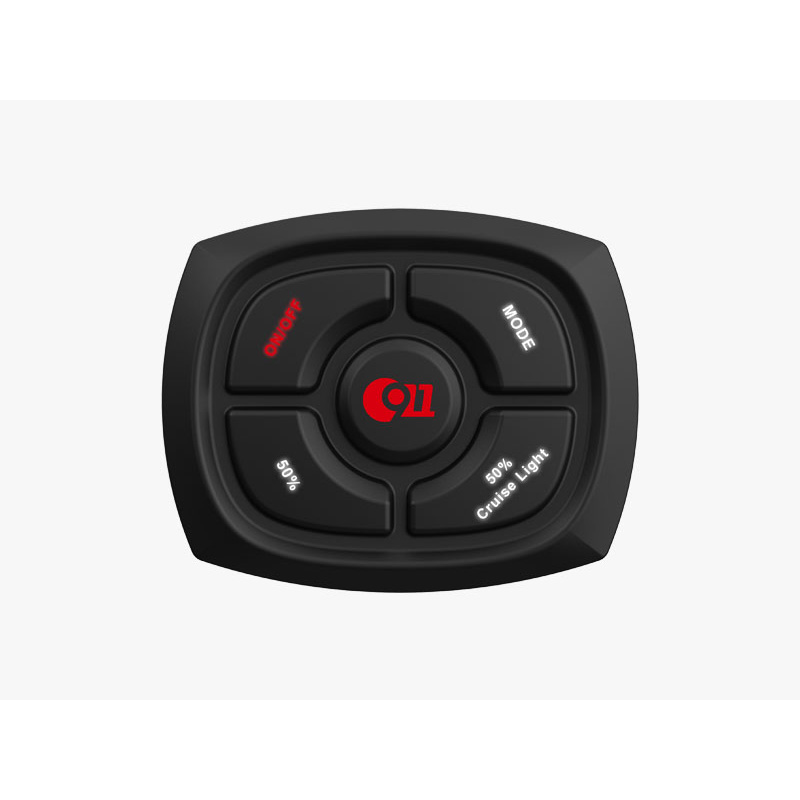

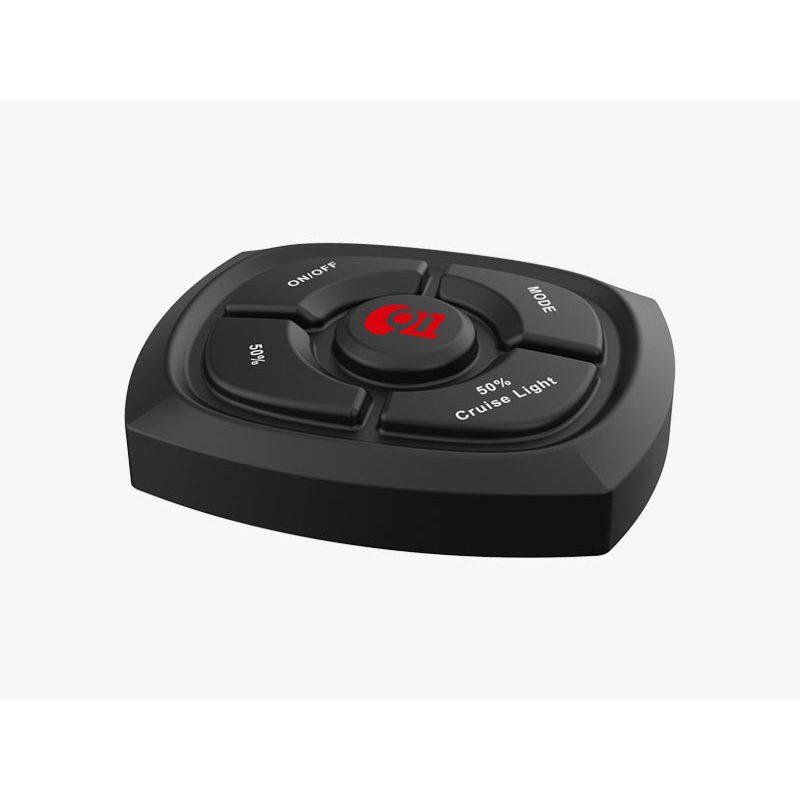

MASTER 5 – Compact design controller

  • Compact design Master5-16A Enhanced Load with 5 control buttons
  • Customizable icons for personalization
  • Smooth silicone material housing for a comfortable touch, wear-resistant, and high-temperature resistant
  • Convenient 3m adhesive installation and removal
  • Suitable for trucks, agricultural machinery, construction vehicles, service vehicles, and special vehicles
  • Switches 1 & 2 can control high-power devices (DC 10-40V, Max 12A)
    Switches 3 & 4 can control light groups or expand more capacity through external relay
  • Outstanding waterproof performance up to IP67+IP69K
Get A Quote

DIMENSIONS

SPECIFICATION

Model: Master 5
Item: 031501
Voltage: DC 10-33V
Type: Switch Panel
Output: 5 Groups
Load: Yes
Max Current: 300mA(1 groups), 5mA(4 group)
Button: 5 Buttons set by yourself
Mount: 3M Adhesive

031501Master5DC 10-33V|60.5*50*16MM|Black shell|5 custom buttons|No load 5 groups 1 group maximum 300MA, 4 groups maximum 5MA|3M adhesive paste|7-core sheathed wire
031502Master5DC 10-33V|60.5*50*16MM|Black shell|5 customized buttons|No load 5 groups, 1 group maximum 300MA, 4 groups maximum 5MA|5 customized buttons|3M adhesive stick|7-core sheathed wire Yellow line: sound switching, brown: light ON/OFF, white: night mode, orange: sound 1, purple: sound 2 | Instruction manual B08MAST5X401
031503Master5DC 10-33V|60.5*50*16MM|Black shell|5 custom buttons|No load 5 groups, 1 group maximum 300MA, 4 groups maximum 5MA|3M adhesive tape|7-core sheathed wire yellow wire: sound switching, Brown: light ON/OFF, white: air horn, orange: light and siren, purple: crusie|Instruction manual B08MAST5X401
031504Master5DC 10-30V|60.5*50*16MM|Black shell|5 custom buttons|No load 5 groups, 1 group maximum 300MA, 4 groups maximum 5MA|3M adhesive paste|7-core sheathed wire
031506Master5DC 10-30V|60.5*50*16MM|Black shell|5 customized buttons, no pattern|No load 5 groups, 1 group maximum 300MA, 4 groups maximum 5MA|3M adhesive paste|7-core sheathed wire
031508Master5DC 10-30V|60.5*50*16MM|Black shell|5 custom buttons|No load 5 groups 1 group maximum 300MA, 4 groups maximum 5MA|3M adhesive paste|8-core connector KST3208A1004|7-core sheathed wire
