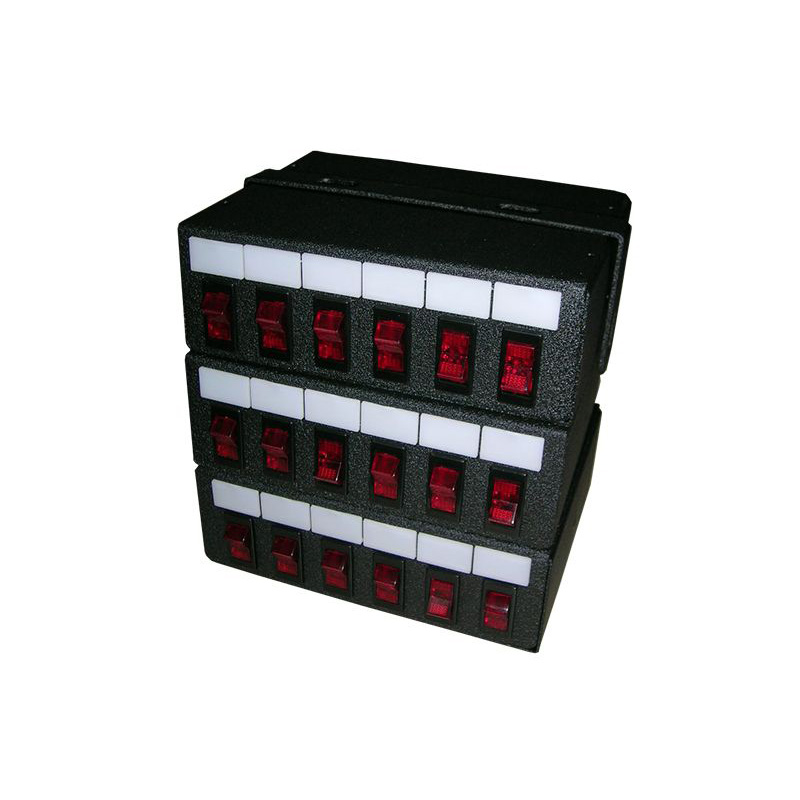

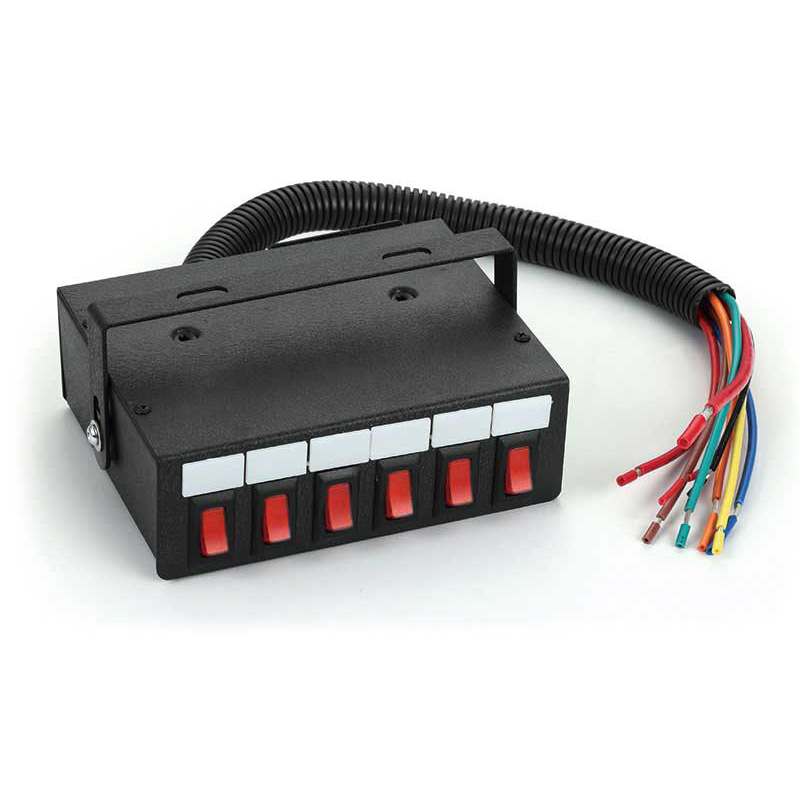

BR960 – Police Control Switch

When you receive your six-button switch box from 911 Signal, you are immediately ready to begin wiring your emergency vehicle lights to the switch box.
The switch box is easy to wire into any existing setup, and also provides users with the ability to switch between multiple preset patterns.

A sheet of sticker labels is included, so installers can make sure every switch is properly labeled during installation. Additionally, to make installation simple, color-coded wire is also included.
The control box itself can be mounted on the dash of a police cruiser to ensure it is always within easy reach of drivers.

Each switch has its own circuit breaker which provides 20 amps of power. This gives users the ability to control a variety of LED emergency lights from one simple switch box.
A backlight allows emergency personnel to easily identify which emergency lights are in use and which aren’t with just a simple glance.

Get A Quote

DIMENSIONS

SPECIFICATION

VOLTAGE: 12V

BUTTON

LOCK: 6 buttons

OUTPUT: 6 Groups

TYPE: Control Panel

MOUNT: adjustable bracket

MAX CURRENT:

5 Groups 10A

1 Group 20A

Dimensions: 6.2″ Long x 4.9″ Wide x 3.0″ High

031001BR960DC 12V | 158*128*78MM | Black shell | 6 buttons | 6 groups with load, 1 group maximum 20A, 5 groups each group maximum 10A | Adjustable bracket installation
