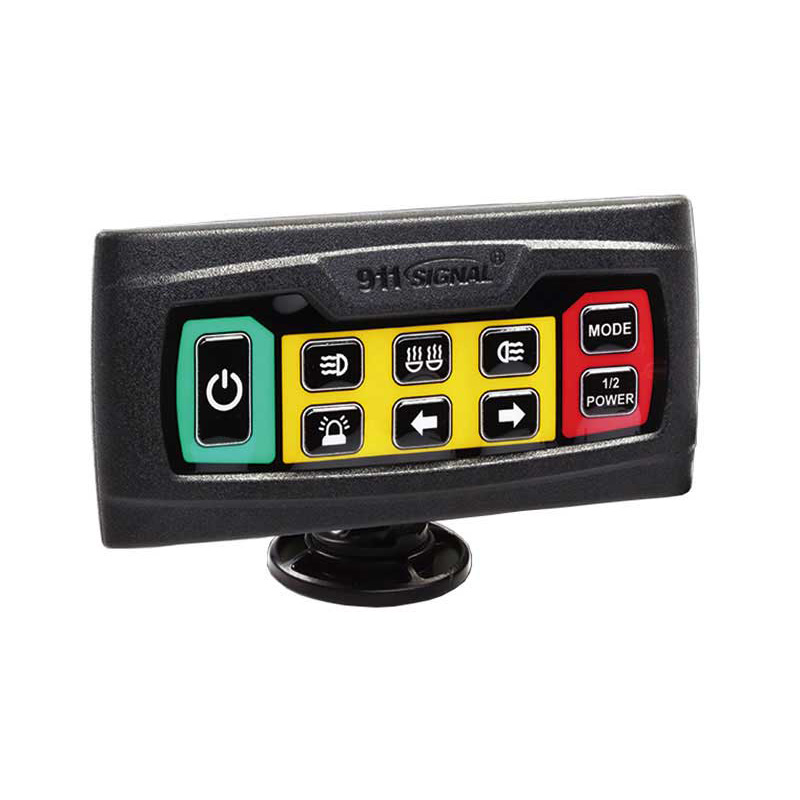

BR9000 – Switch Control Panel

Installation:
This light control panel’s bracket is available in 360 degree adjustable,and it can be suited for any vehicle.
Control:
1.Working as lightbar control panel
2.Working as traffic advisors control panel
3.Working as siren tones control panel
The Wire operation please contact with our sales for detail information.

Get A Quote

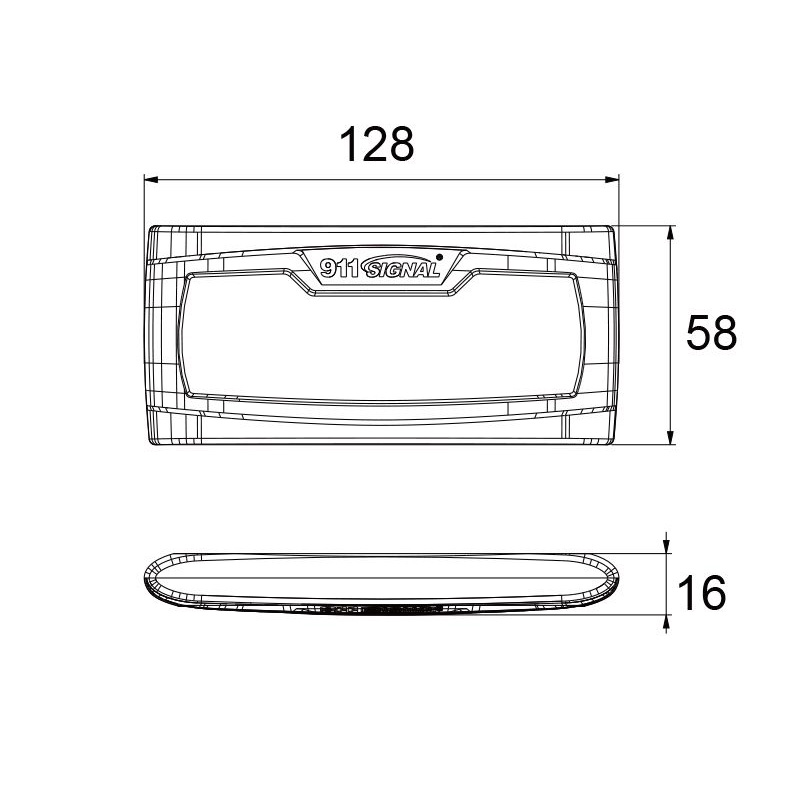

DIMENSIONS

SPECIFICATION

VOLTAGE: DC 10-30V
BUTTON
LOCK: 1 button
UNLOCK: Flash Pattern
OUTPUT: 8 Groups
TYPE : Control Panel
LOAD: NO

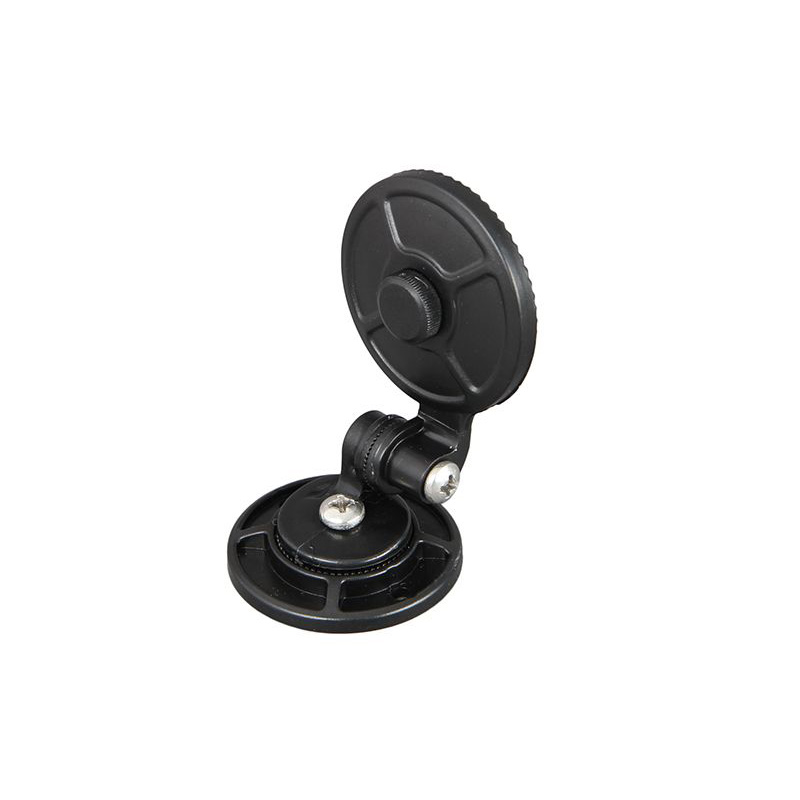

MOUNT: 360°adjustable bracket
MAX CURRENT: 20mA each
Dimensions: 5.0″Long x 2.3″ Wide x0.6″High

031101BR9000——Switch Control PanelDC 10-33V|128*58*16MM|Black shell|9 buttons|No load 8 groups max. 2MA|9 buttons|360° bracket installation|11-core sheathed wire
H27943001BR9000-HELLADC 10-33V|128*58*16MM|Black shell|9 buttons|8 groups without load, maximum 2MA|9 buttons|360° bracket installation|11-core sheathed wire|Instruction sheet B08HL9000001, sticker B04HL9000X11
