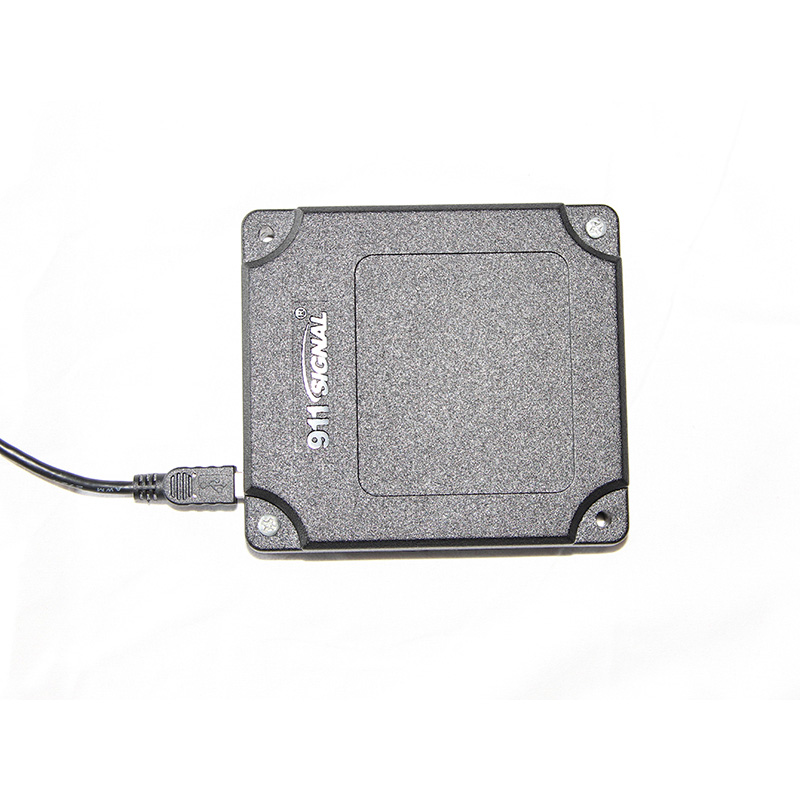

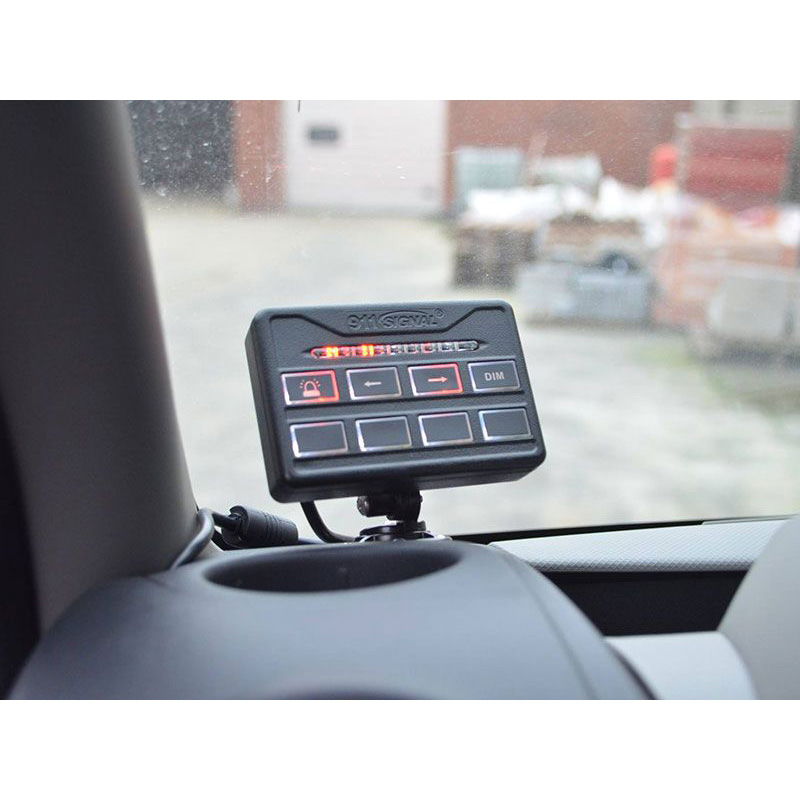

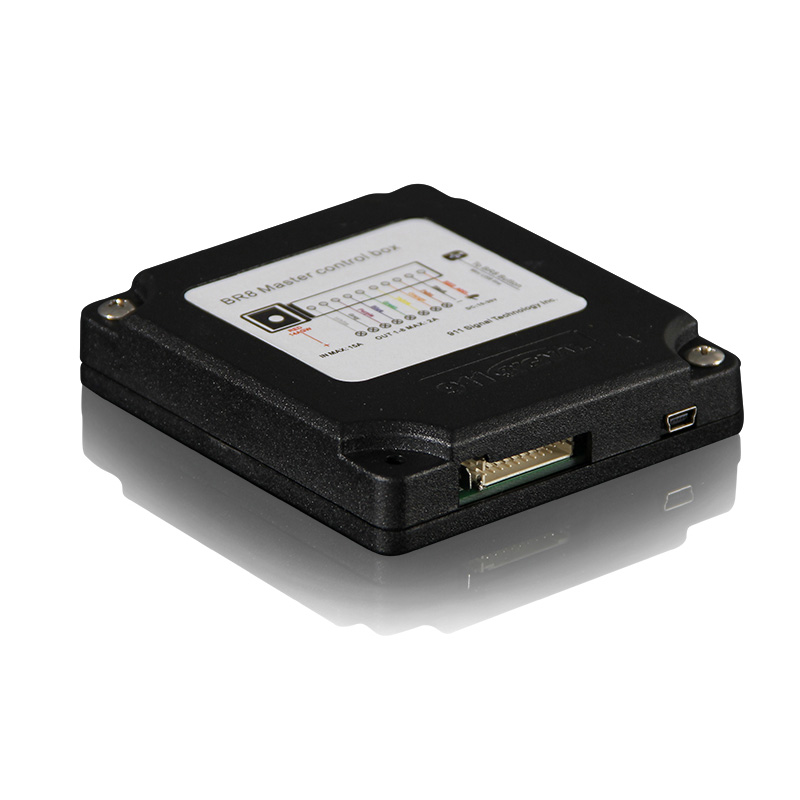

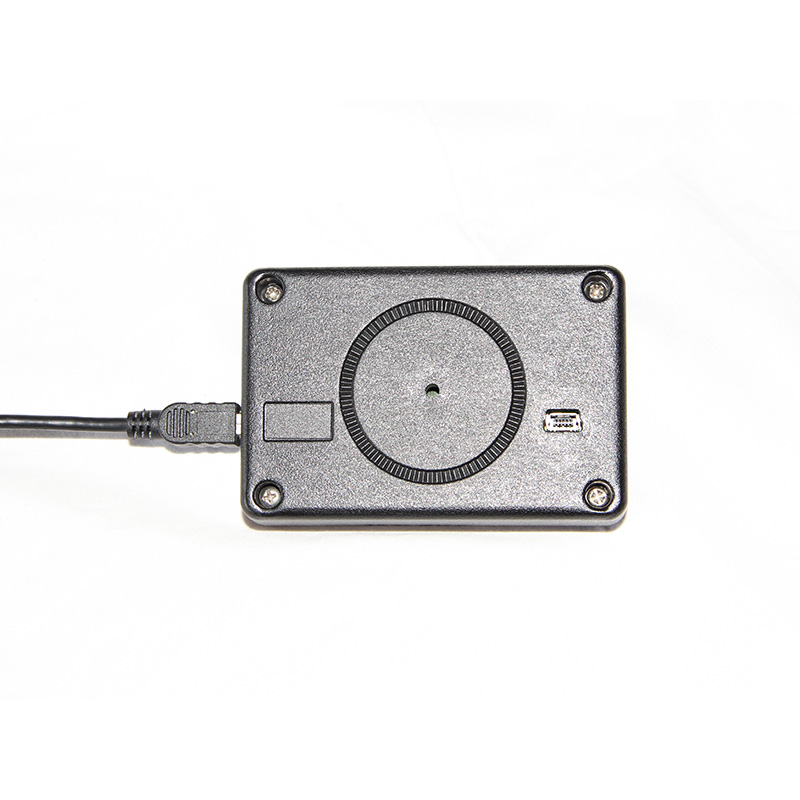

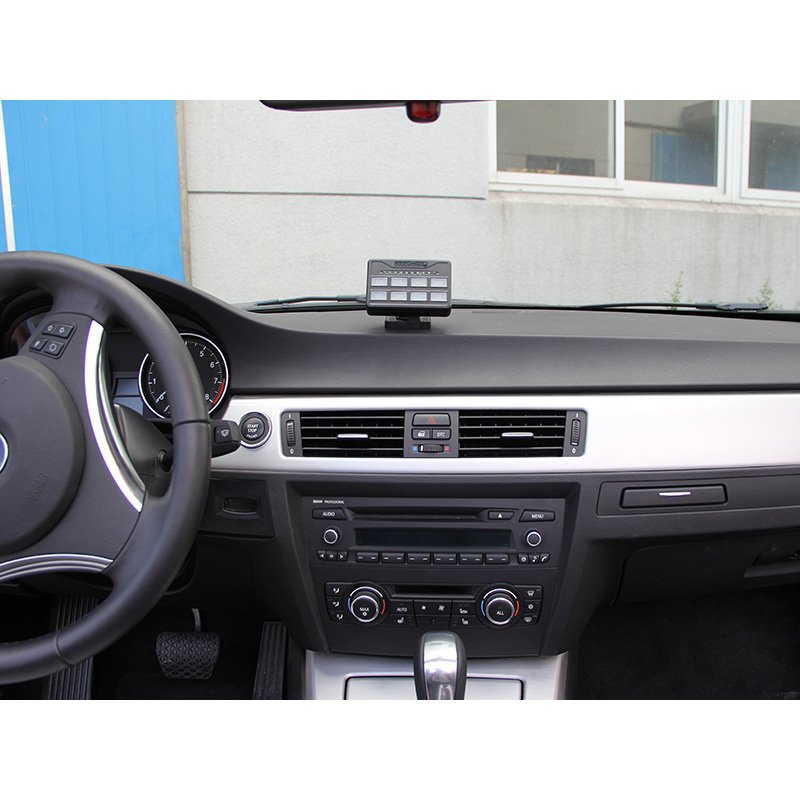

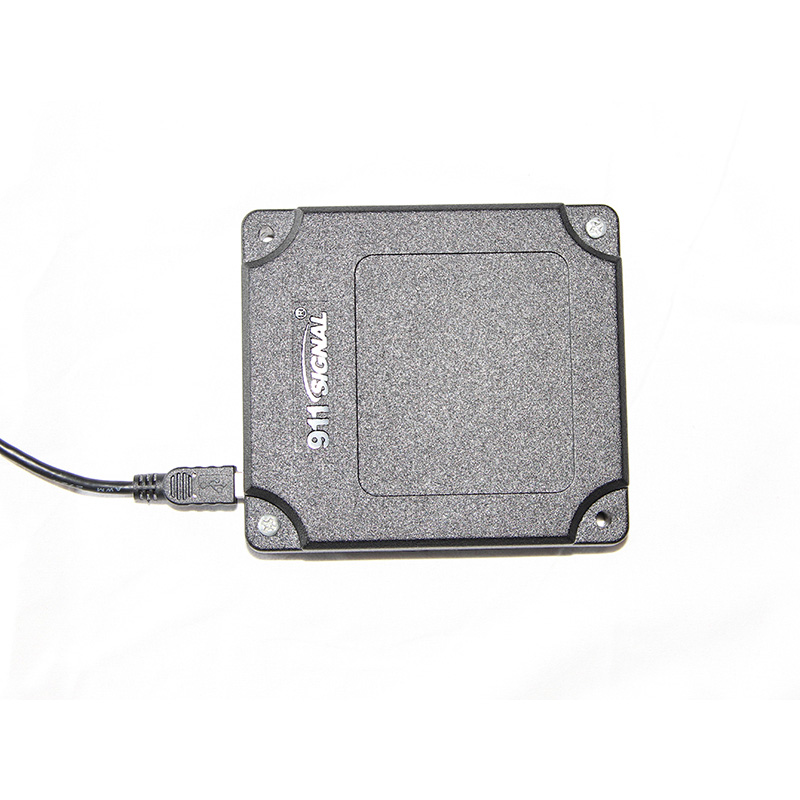

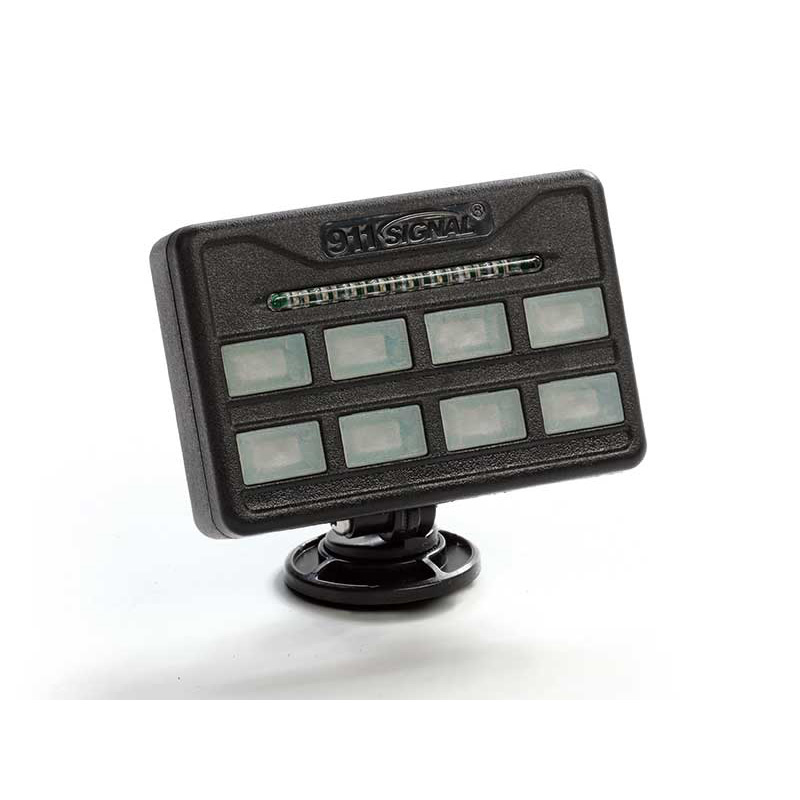

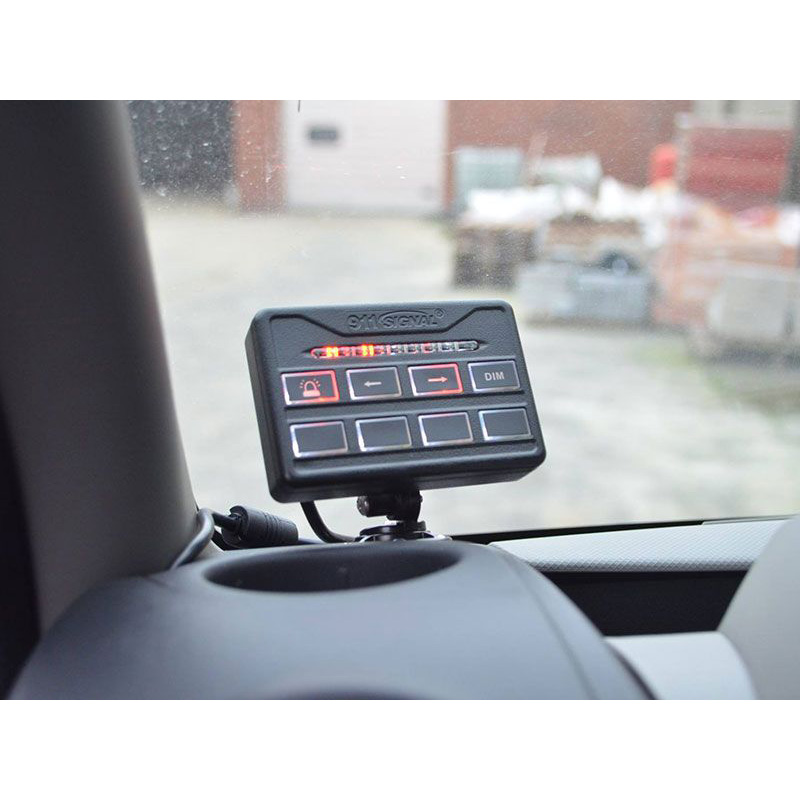

BR8 – Switch Panels Box

  •  Compact switch box features a solid-state switch panel
  •  Self-diagnosis circuitry with 2 groups output MAX 10A and 6 groups output MAX 6A
  •  Max Current Output: 25A
  •  Separate switch panel from controller
  •  Max 8 lights controllable
  •  Mini control box, easy to install

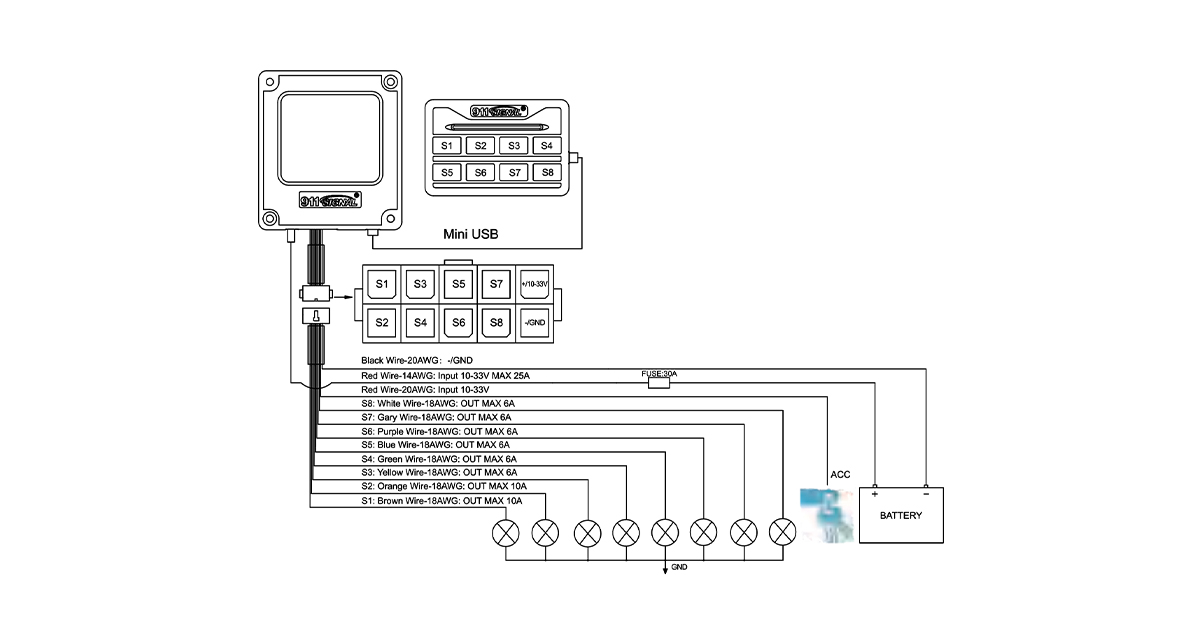

  •  Color-coded, numbered wiring
Get A Quote

DIMENSIONS

SPECIFICATION

Model: BR8
VOLTAGE: DC 10-33V
BUTTON: 8 buttons set by yourself
OUTPUT: 8 Groups,10A (2groups),6A (6groups)
TYPE: Switch Panel
LOAD:YES
MOUNT:360°adjustable bracket
MAX CURRENT:25A
Dimensions:9.0 “Long x 7.0” Wide

030101BR8DC 10-33V|128*58*16MM|Black shell|8 custom buttons|With load 8 2 groups maximum 10A, 6 groups maximum 6A|360° bracket installation|USB cable|8 mesh snakeskin cables, red cable one
030105BR8DC 10-33V|128*58*16MM|Black shell|8 custom buttons|With load 8 2 groups maximum 10A, 6 groups maximum 6A|8 custom buttons|360° bracket installation|USB cable|Reticulated snake 8 leather wires, 1 red wire, relay
