- IP 68 rated, excellent waterproof
- Available in amber and blue color
- A low profile design, with a height of only 1.9”
- PMMA housing and aluminum base protect the product from severe environmental damages
- 8 flash patterns including rotating mode
- 3 mounting options available: screw, suction cups and magnets(with a cigarette plug)
- Synchronization capability

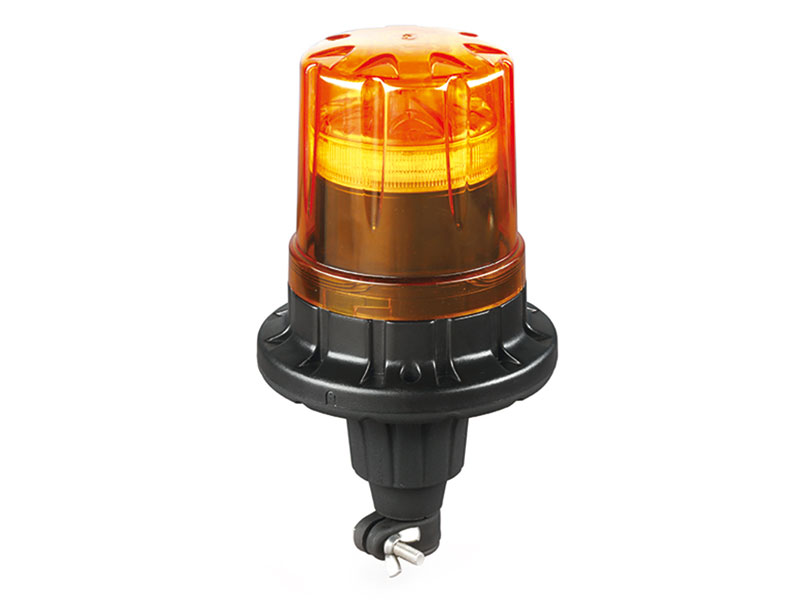

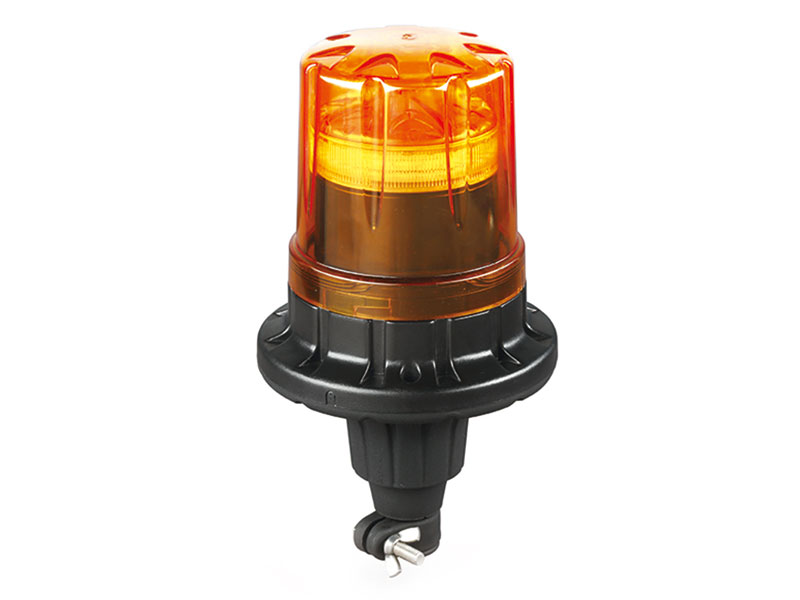

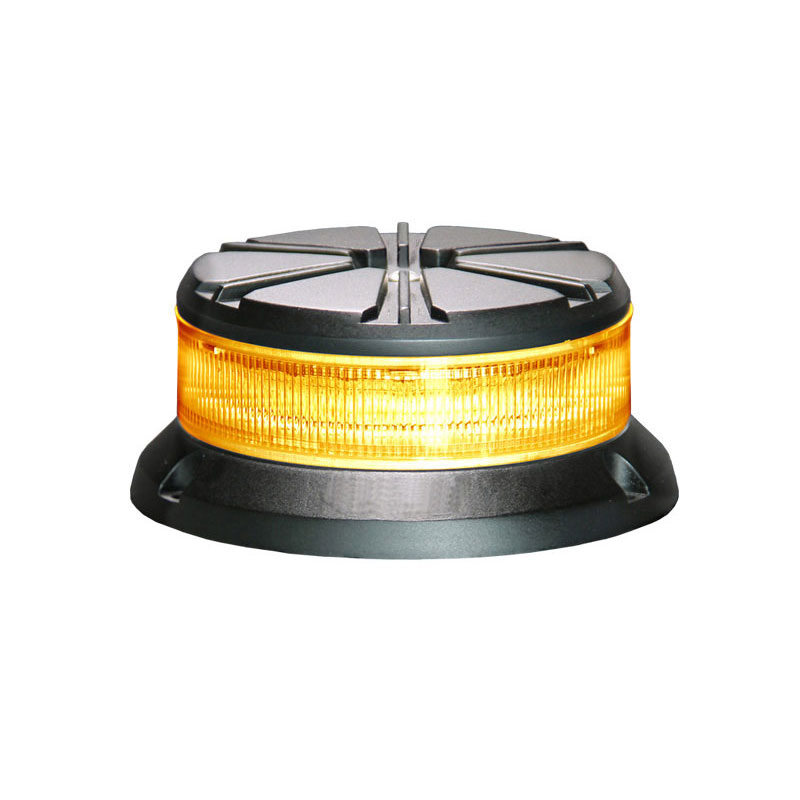

FD24 Series – LED Traffic Signal Beacons & Single Point Mount
Get A Quote

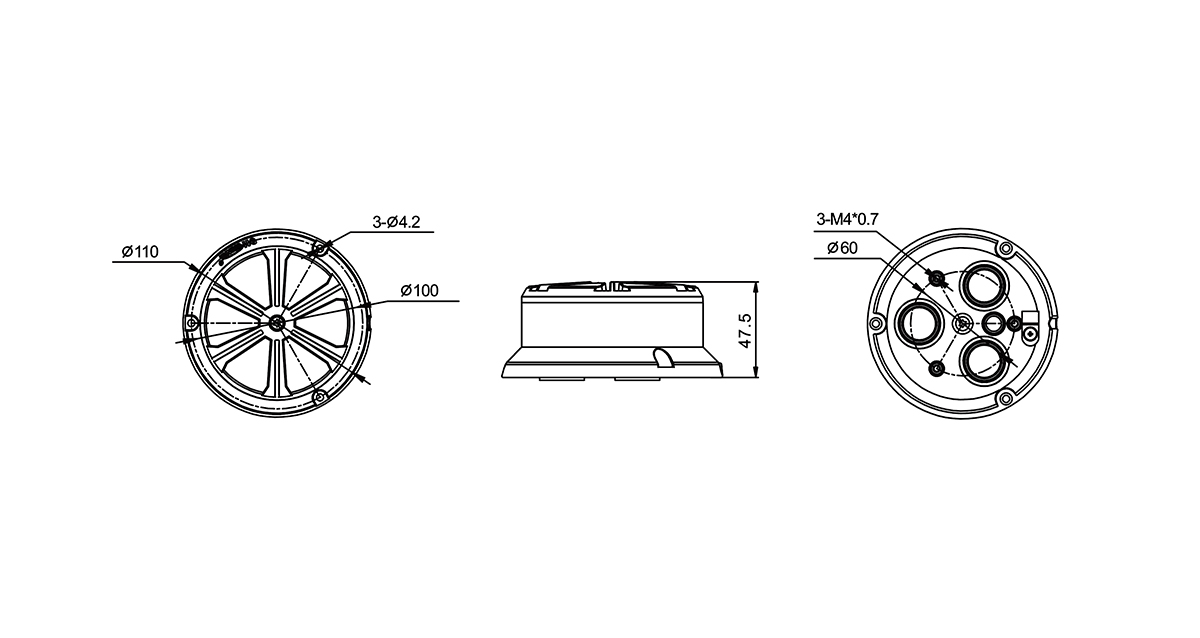

DIMENSIONS
SPECIFICATION
LED Power：24PCS 1W LED
LENS：Reflex
Voltage：DC 10-30V
Max Power：30W
Colour Available：amber
Ambient temperature：-30–+70℃
Waterproof ：IP68
Mounting：Four kinds of installation
Waterproof：IP68
Flash patterns 8(including rotating)
Meet and Exceeds: ECE R65 TA1 00 0043
Wire
AT / AF / AS35cm long 4-core wire
AM:6m long spring line with A13-E163 cigarette lighter
| ITEM | MODEL | SPECIFICATIONS |

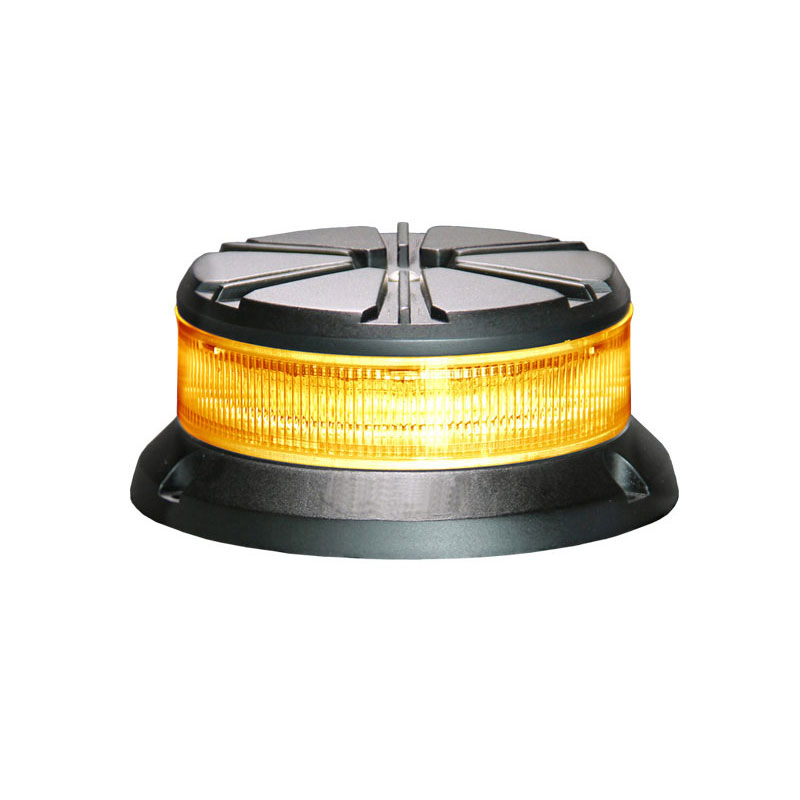

| 080602AC | FD24 MINI | DC10-33V|MAX 24W|φ110*48MM|Reflective cup|Lampshade amber|Upper cover black|Base black|LED amber 12 pieces|8 flash methods|Magnet installation|A13-163 cigarette lighter|3-core sheath Line|IP68 |
| 080602AT | FD24 MINI | DC10-33V|MAX 24W|φ110*48MM|Reflective cup|Lampshade amber|Top cover black|Base black|LED amber 12 pcs|8 flash methods|3-point screw installation|3-core wire|IP68 |

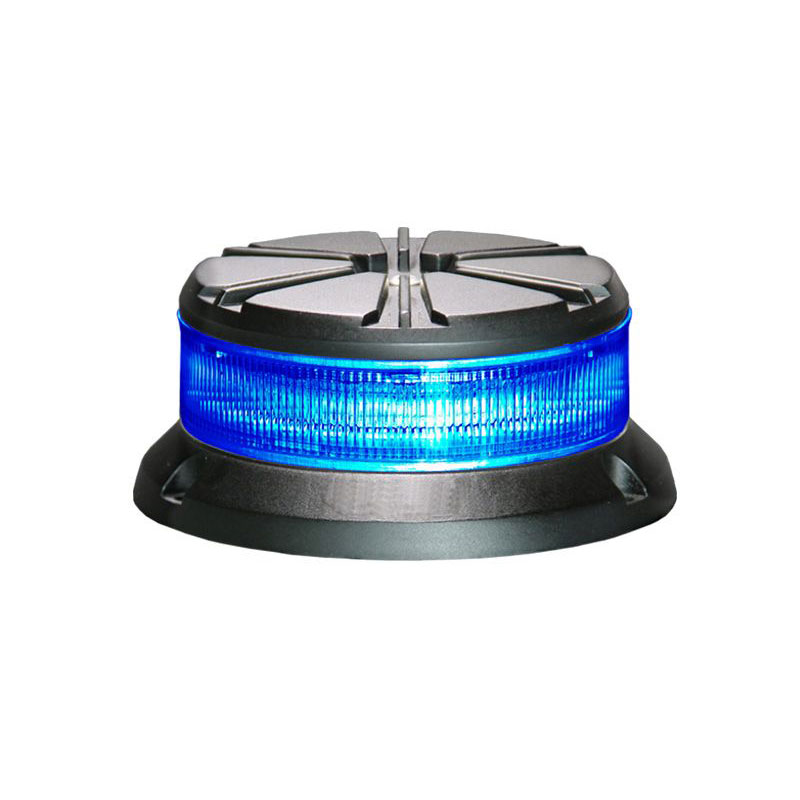

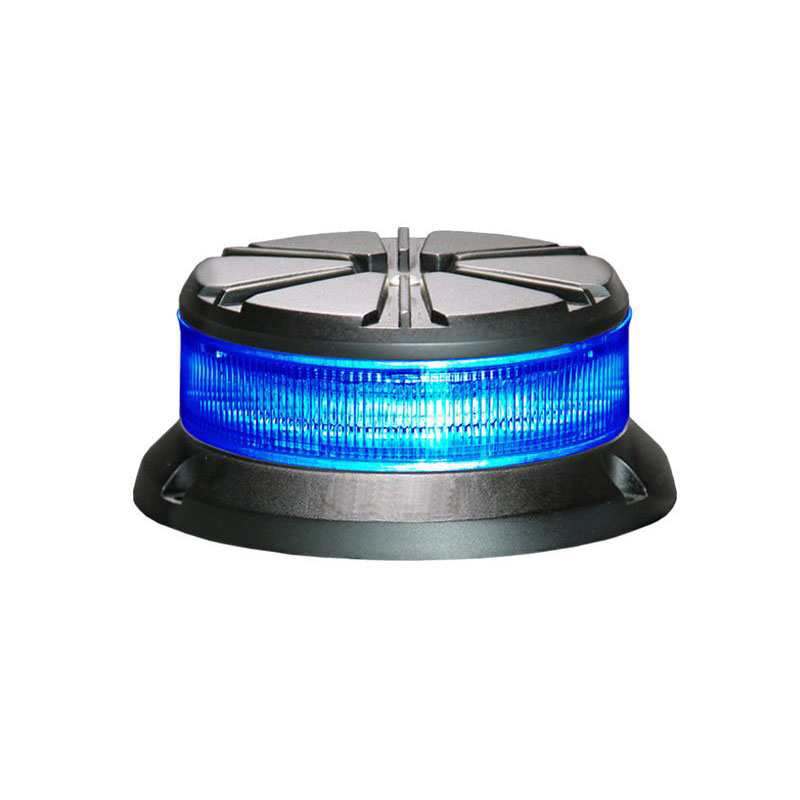

| 080602BC | FD24 MINI | DC10-33V|MAX 24W|φ110*48MM|Reflective cup|Lampshade blue|Upper cover black|Base black|12 blue LEDs|8 flash methods|Magnet installation|A13-163 cigarette lighter|3-core sheath Line|IP68 |
| 080602BT | FD24 MINI | DC10-33V|MAX 24W|φ110*48MM|Reflective cup|Lampshade blue|Top cover black|Base black|LED blue 12 pieces|8 flash methods|Three-point screw mounting screw|3-core wire|IP68 |

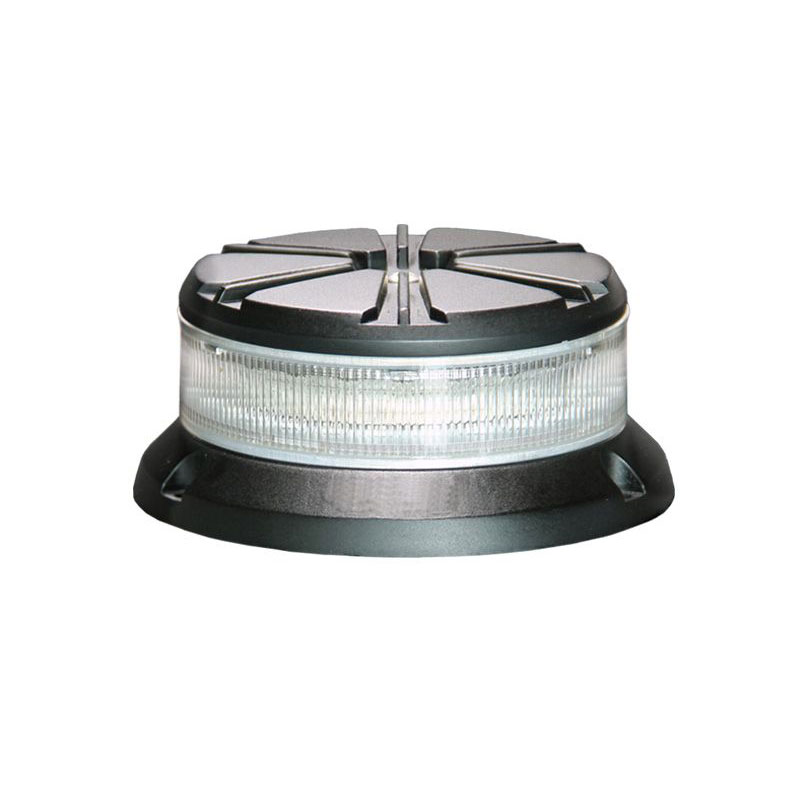

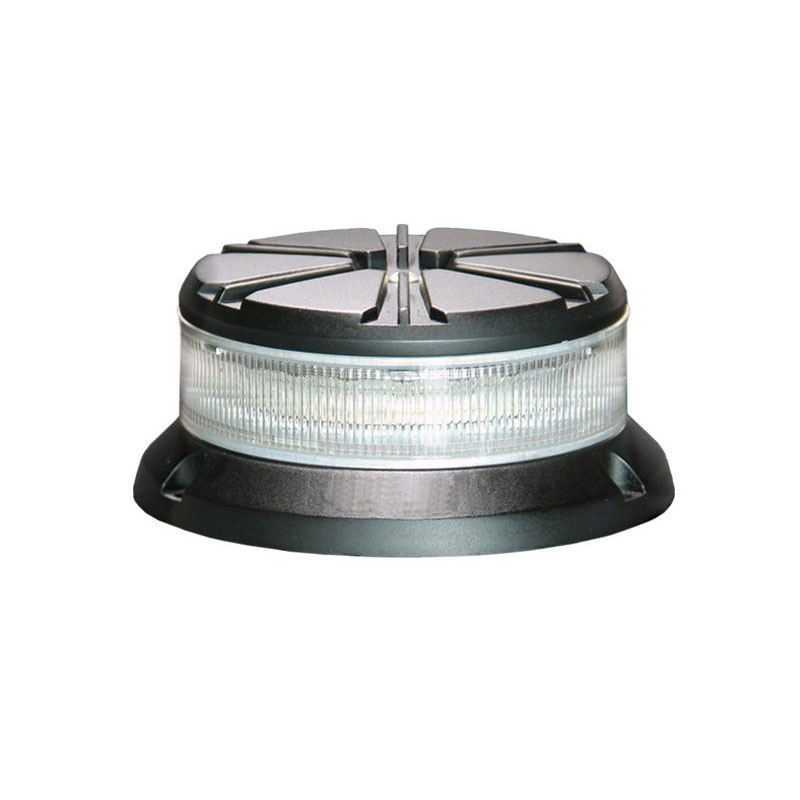

| 080603AT | FD24 MINI | DC10-33V|MAX 24W|φ110*48MM|Reflective cup|Lampshade transparent|Black upper cover|Black base|12 amber LEDs|8 flash methods|Three-point screw installation|3-core wire|IP68 |
| 080603B | FD24 MINI | DC10-33V|MAX 24W|φ110*48MM|Reflective cup|Transparent lampshade|Black upper cover|Black base|12 blue LEDs|8 flash methods|Three-point screw installation|3-core wire|IP68 |

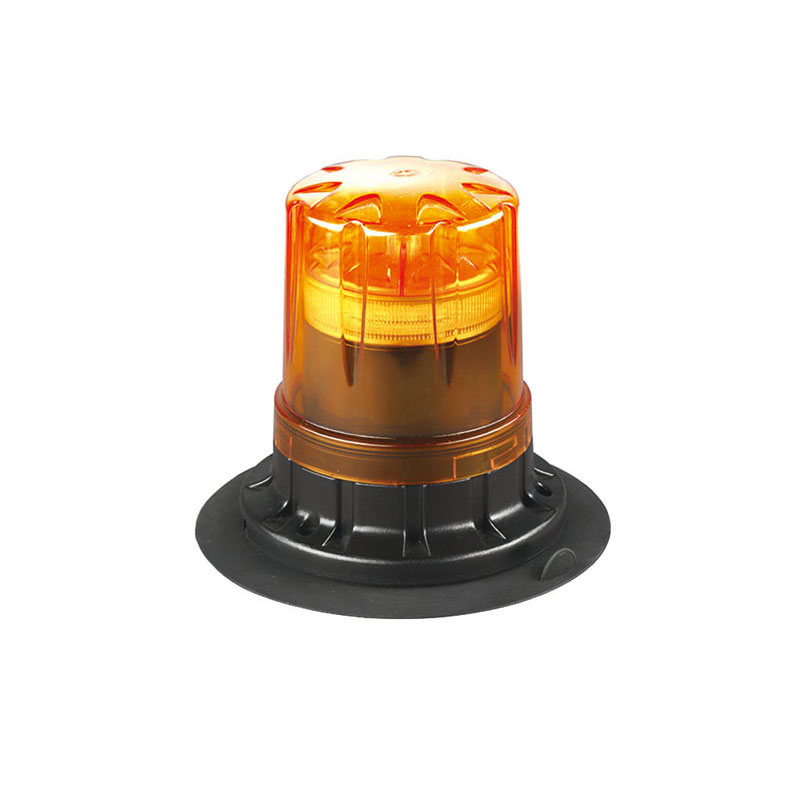

| 080601AF | FD24 | DC10-33V|MAX 24W|φ155*165MM|Reflective cup|Lampshade amber|Base black|12 LED amber|8 flash methods|Tray installation|3-core wire|IP68 |

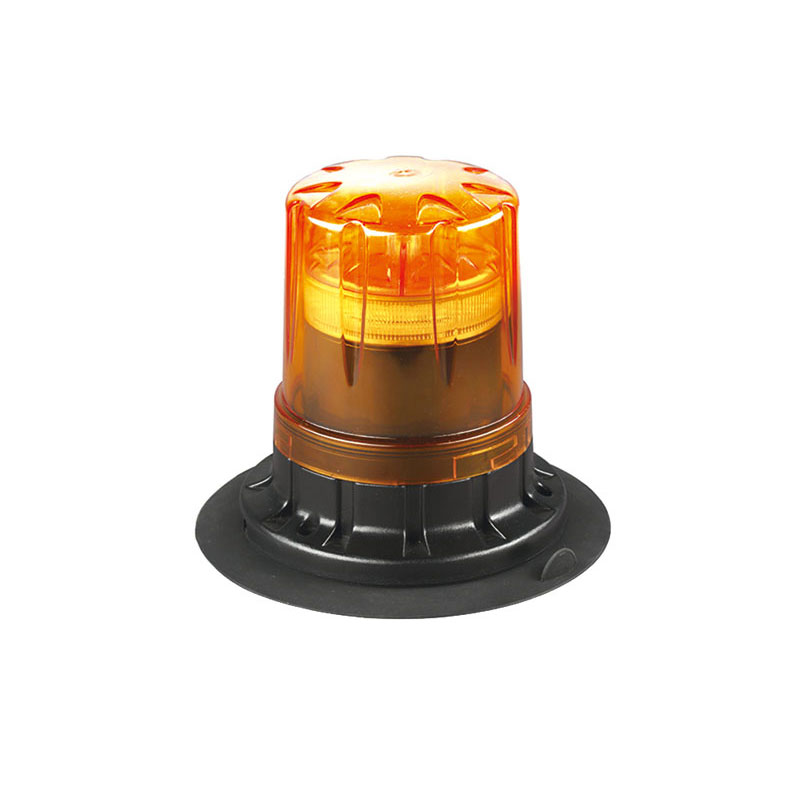

| 080601AM | FD24 | DC10-33V|MAX 24W|φ155*165MM|Reflective cup|Lampshade amber|Base black|12 LED amber|8 flash methods|Magnet installation|A13-E163 cigarette lighter|3-core spring wire|IP68 |

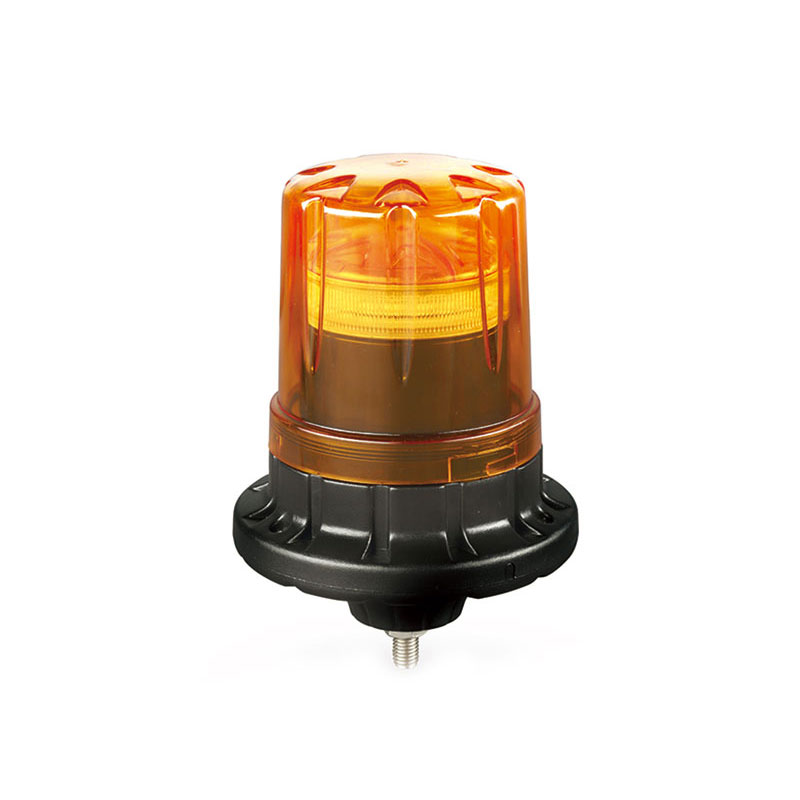

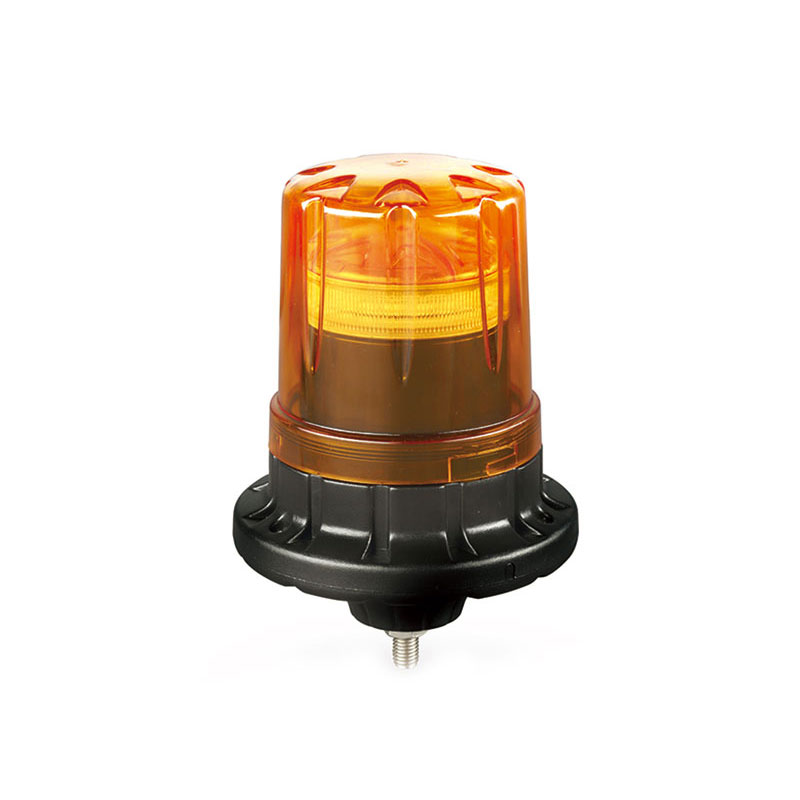

| 080601AS | FD24 | DC10-33V|MAX 24W|φ155*165MM|Reflective cup|Lampshade amber|Base black|12 LED amber|8 flash methods|Single-point screw installation|3-core wire|IP68 |
| 080601AT | FD24 | DC10-33V|MAX 24W|φ155*165MM|Reflective cup|Lampshade amber|Base black|12 LED amber|8 flash methods|Three-point screw installation|3-core wire|IP68 |
