• Sleek, low-profile, and aerodynamic design makes the product one of the thinnest and lightest LED lightbars on the market.
• Latest LED technology, PM frequency-converting techniques, and 12/24V feature high lighting performance, low amp draw, and wide application scenarios.
• Available in single and dual-color models.
• 7 length options: 27″, 34″, 41″, 48″, 55″, 61″, and 68″.
• Anti-cracking, anti-yellowing polycarbonate lens delivers great weather resistance.
• Upgraded lens seal technology features excellent weather protection with IPX8 and IP9K ratings against water and dust ingress.
• Aluminum chassis and patented thermal technology guarantee LEDs run as cool as possible and consistent lighting output.
• Simplified and highly integrated structure for easier assembly and afterservice.
• Customizable configuration includes takedown, traffic advisor, dim, cruise, alley, work light, flood mode, and stop/tail/turn.
• Great for Police Sedans, EMT Ambulances, Police SUVs, Fire Trucks.

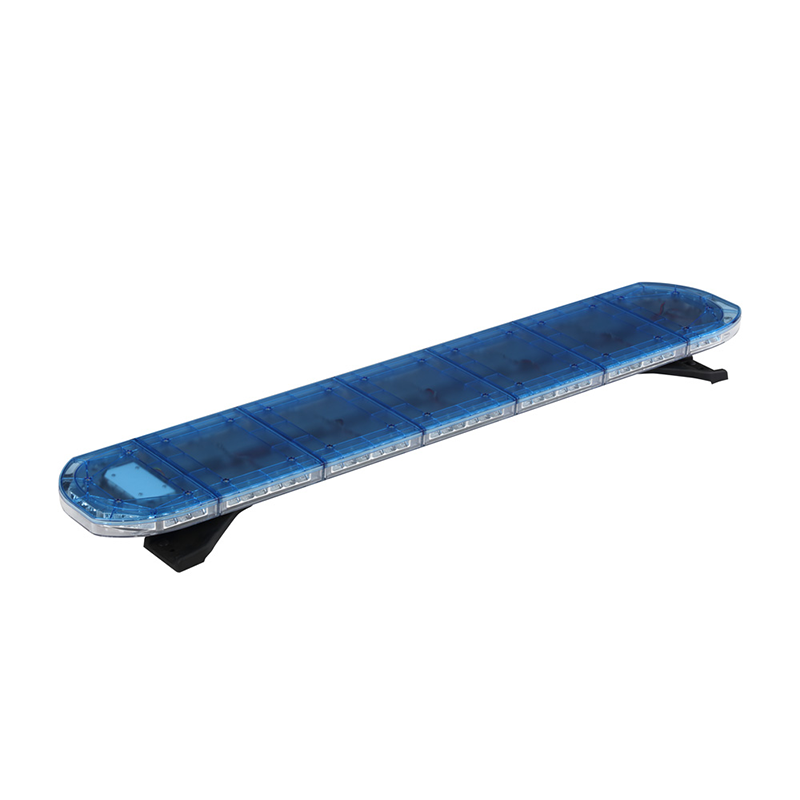

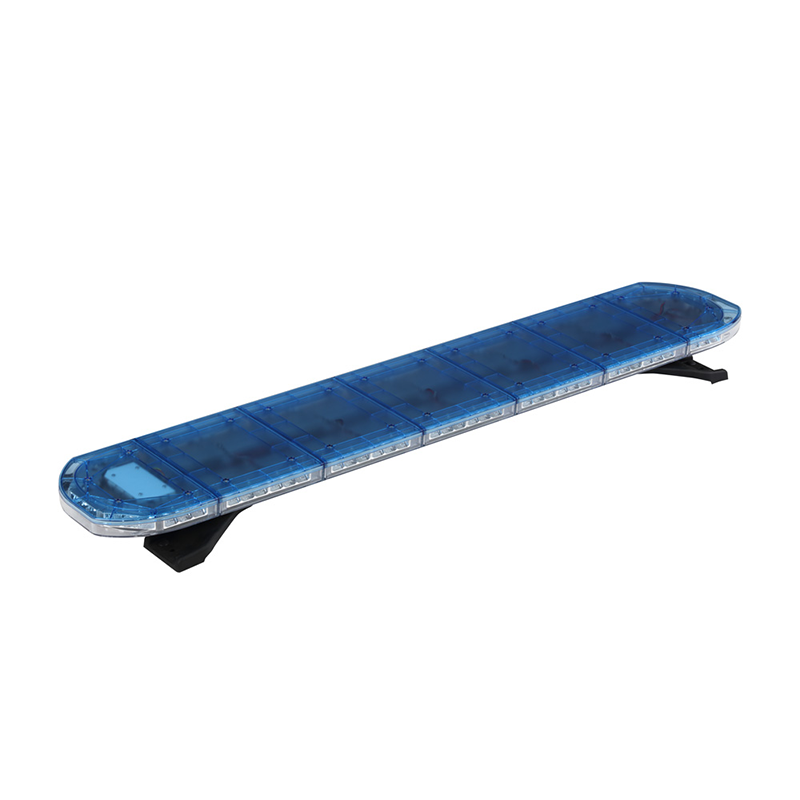

SKYLINE AIR S Lightbar
Get A Quote
DIMENSIONS
SPECIFICATION
Specification
12-24 volts DC
Flash mode: 62
Operating temperature: -30~70 0 C
Installation: hook installation; Permanent installation
Size: 41.2 mm (H), 220 mm (W)
Standard length: 41 inches (1208.6 mm), 48 inches (1208.6 mm), 55 inches (1383.6 mm), 62 inches
(1558.6 mm) and 69 inches (1733.5 mm)
Authentication
Meets ECE R10, ECE R65 TA2, TB2 and SAE Class1 standards
IP level: IPX8, IPX9K

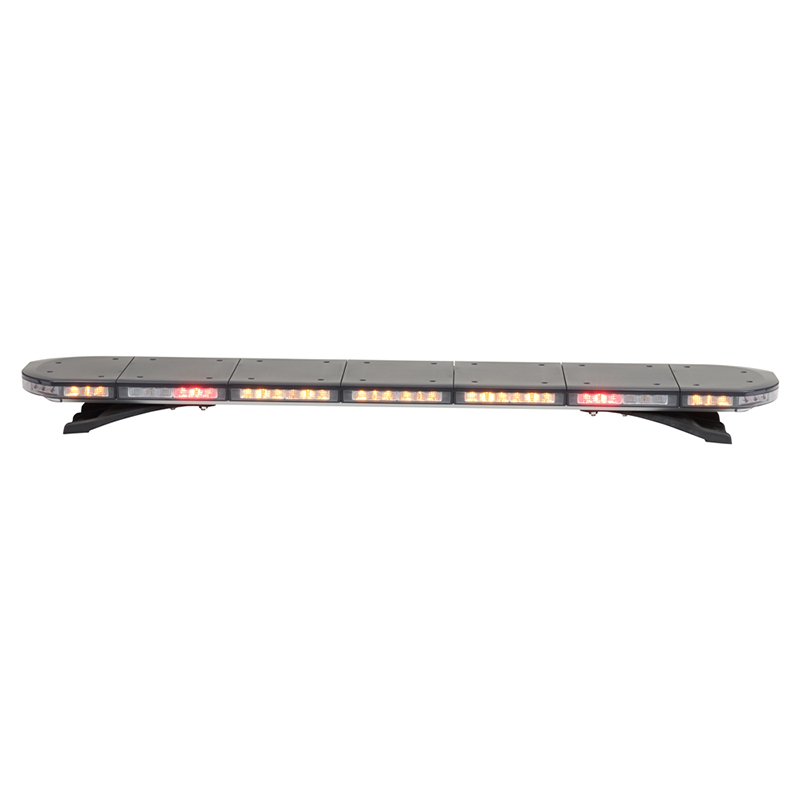

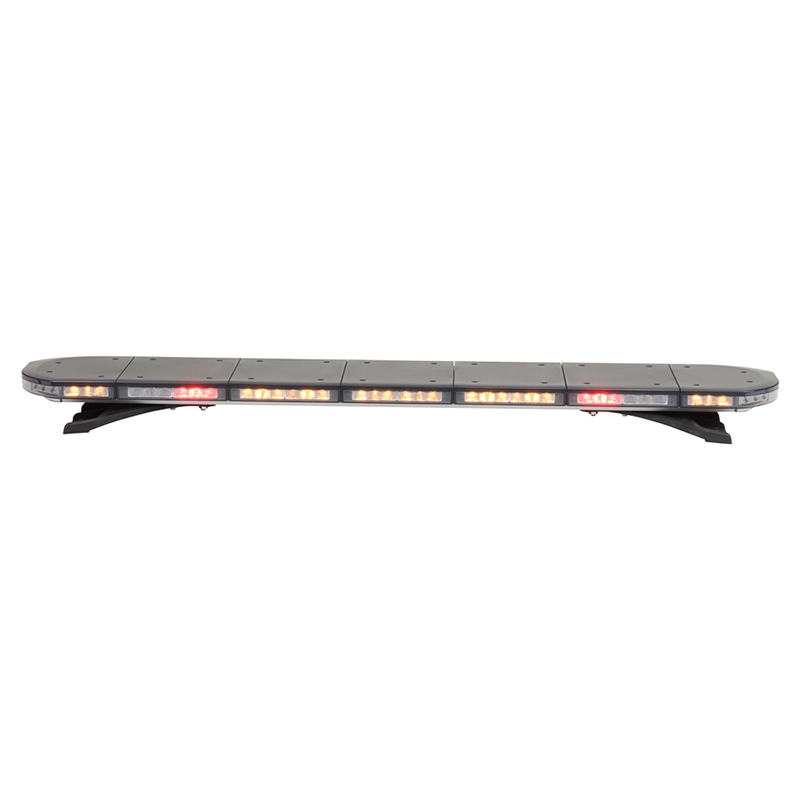

| 014301TAW+STT(A) | SKYLINE AIR S-48 | DC10-33V|MAX 236W|1208*220*41MM (without tripod)|Reflector|Upper cover 70% black|Lower cover smoked black|LED amber 102 pcs, red 6 pcs, white 48 pcs|63 flashing methods|Plastic tripod installation|29-core functional line|CAN bus|IP68 |
| 014302TAW+STT(R) | SKYLINE AIR S-48 | DC10-33V|MAX 215W|1208*220*41.2MM (without tripod)|Reflector|Upper cover 70% black|Lower cover smoked black|LED amber 78 pcs, red 12 pcs, white 48 pcs|63 flashing methods|Plastic tripod installation|29-core functional line|CAN bus|IP68 |

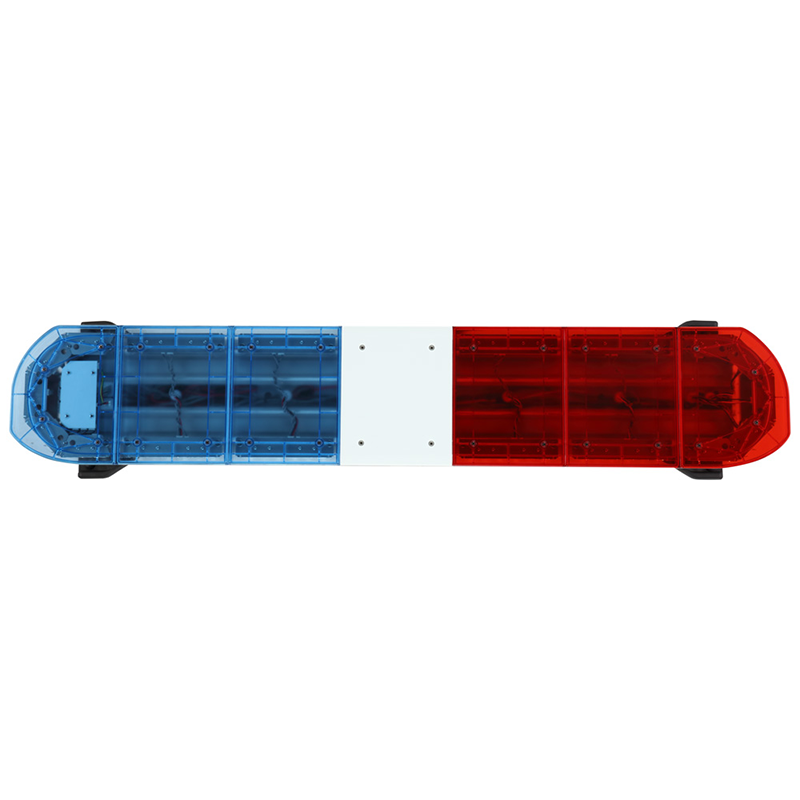

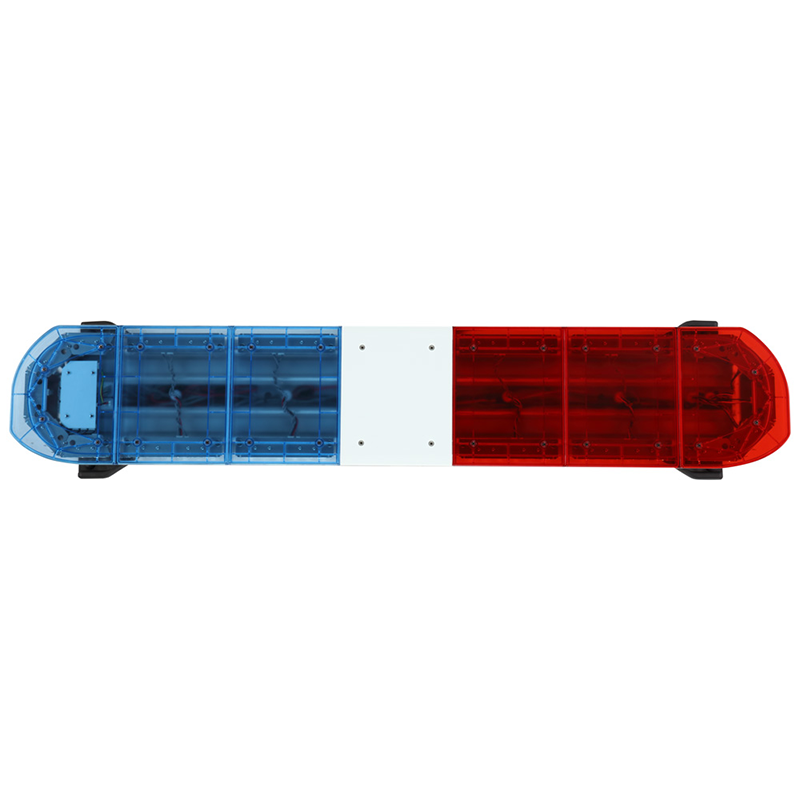

| 014303TB/RW(A) | SKYLINE AIR S-48 | DC10-33V|MAX 251W|1208*220*41MM (without tripod)|Reflector|Upper cover red, porcelain white, blue|Lower cover transparent|LED amber 30 pcs blue 39 pcs red 39 pcs white 60 pcs|63 flashing methods|Plastic tripod installation|25-core functional line|CAN bus|IP68 |

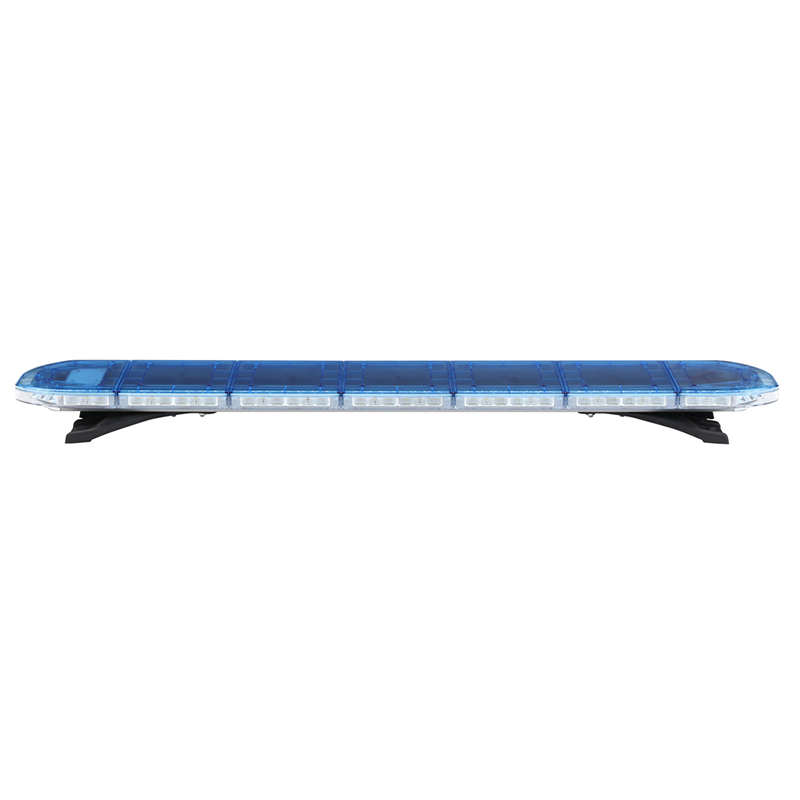

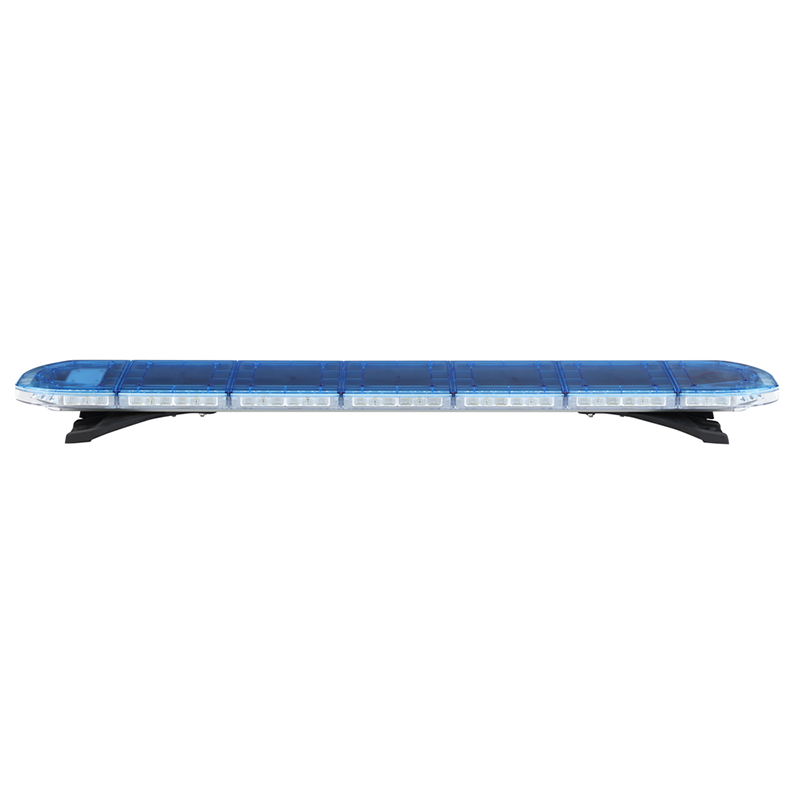

| 014303TBW（A） | SKYLINE AIR S-48 | DC10-33V|MAX 283W|1208*220*41MM (without tripod)|Reflector|Upper cover blue|Lower cover transparent|LED amber 30 pcs blue 90 pcs white 60 pcs|63 flashing methods|Plastic tripod installation|25-core functional line|CAN bus|IP68 |
| 014304TBW(A)+STT | SKYLINE AIR S-48 | DC10-33V|MAX 270W|1208*220*41MM (without tripod)|Reflector|Upper cover blue|Lower cover transparent|LED amber 24 pcs, blue 90 pcs, red 6 pcs, white 60 pcs|63 flashing methods|Plastic tripod installation|29-core functional line|CAN bus|IP68 |
| 014306TBW（A） | SKYLINE AIR S-48 | DC10-33V|MAX 223W|1208*220*41MM (without tripod)|Reflector|Upper cover blue|Lower cover transparent|LED amber 30 pcs, blue 90 pcs, white 24 pcs|63 flashing methods|Plastic tripod installation|25-core functional line|CAN bus|IP68 |
| 014309TBW(A) | SKYLINE AIR S-48-2 | DC10-33V|MAX 283W|1208*220*41.2MM (without tripod)|reflector|upper cover blue|lower cover transparent|LED amber 30 pcs, blue 90 pcs, white 60 pcs|63 flashing methods|plastic tripod installation|25-core functional line|CAN bus|IP68 |
| 014312TBW(A) | SKYLINE AIR S-48 | DC10-33V|MAX 283W|1208*220*41MM (without tripod)|reflector|upper cover 70% black|lower cover smoked black|LED amber 30 pcs, blue 90 pcs, white 60 pcs|63 flashing methods|plastic tripod installation|25-core functional line|CAN bus|IP68 |
| 014502TAW+STT | SKYLINE AIR S-41 | DC10-33V|MAX 248W|1103*220*41MM (without tripod)|Reflector|Upper cover 70% black|Lower cover smoked black|LED amber 84 pcs, red 6 pcs, white 66 pcs|62 flashing methods|Plastic tripod installation|29-core functional line|CAN bus|IP68 |
| 014504TBW(A) | SKYLINE AIR S-41 | DC10-33V|MAX 246W|1103*220*41MM (without tripod)|Reflector|Upper cover blue|Lower cover transparent|LED amber 24 pcs, blue 78 pcs, white 54 pcs|62 flashing methods|Plastic tripod installation|25-core functional line|CAN bus|IP68 |
| 014505TBW（A） | SKYLINE AIR S-41 | DC10-33V|MAX 246W|1103*220*41MM (without tripod)|Reflector|Upper cover blue|Lower cover transparent|LED amber 24 pcs, blue 78 pcs, white 54 pcs|62 flashing methods|Plastic tripod installation|25-core functional line|CAN bus|IP68 |
| 014506TRW+STT | SKYLINE AIR S-41 | DC10-33V|MAX 216W|1103*220*41MM (without tripod)|Reflector|Upper cover 70% black|Lower cover smoked black|LED amber 6 pcs, red 84 pcs, white 66 pcs|62 flashing methods|Plastic tripod installation|29-core functional line|CAN bus|IP68 |
| 014602TAW+STT(A) | SKYLINE AIR S-55 | DC10-33V|MAX 325W|1384*220*41MM (without tripod)|Reflector|Upper cover 70% black|Lower cover smoked black|LED amber 108 pcs, red 6 pcs, white 90 pcs|63 flashing methods|Plastic tripod installation|29-core functional line|CAN bus|IP68 |
| 014604TBW（A） | SKYLINE AIR S-55 | DC10-33V|MAX 321W|1384*220*41MM (without tripod)|Reflector|Upper cover blue|Lower cover transparent|LED amber 36 pcs, blue 102 pcs, white 66 pcs|63 flashing methods|Plastic tripod installation|25-core functional line|CAN bus|IP68 |
| 014605TBW（A） | SKYLINE AIR S-55 | DC10-33V|MAX 261W|1384*220*41MM (without tripod)|Reflector|Upper cover blue|Lower cover transparent|LED amber 36 pcs, blue 102 pcs, white 30 pcs|63 flashing methods|Plastic tripod installation|25-core functional line|CAN bus|IP68 |
| 014702TAW+STT | SKYLINE AIR S-62 | DC10-33V|MAX 364W|1559*220*41MM (without tripod)|Reflector|Upper cover 70% black|Lower cover smoked black|LED amber 120 pcs, red 6 pcs, white 102 pcs|63 flashing methods|Plastic tripod installation|29-core functional line|CAN bus|IP68 |
| 014802TAW+STT | SKYLINE AIR S-69 | DC10-33V|MAX 403W|1734*220*41MM (without tripod)|Reflector|Upper cover 70% black|Lower cover smoked black|LED amber 132 pcs, red 6 pcs, white 114 pcs|63 flashing methods|Plastic tripod installation|29-core functional line|CAN bus|IP68 |

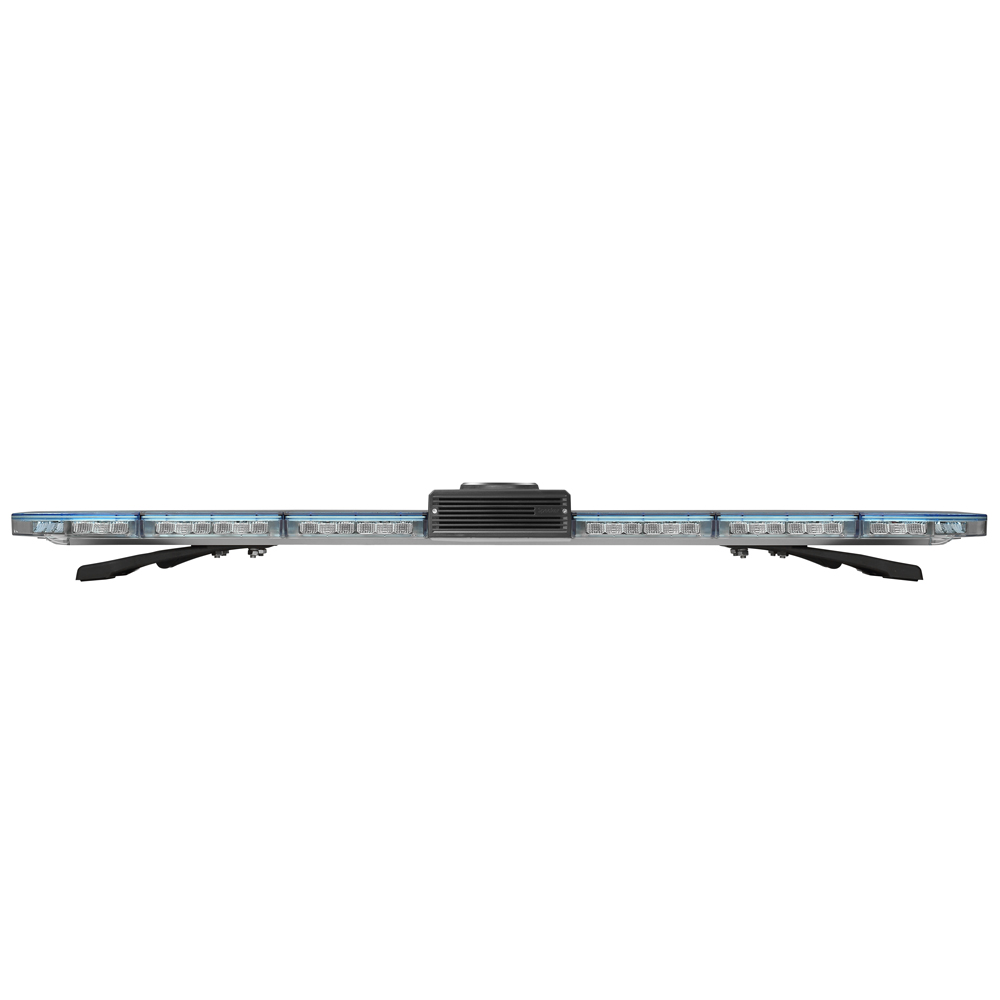

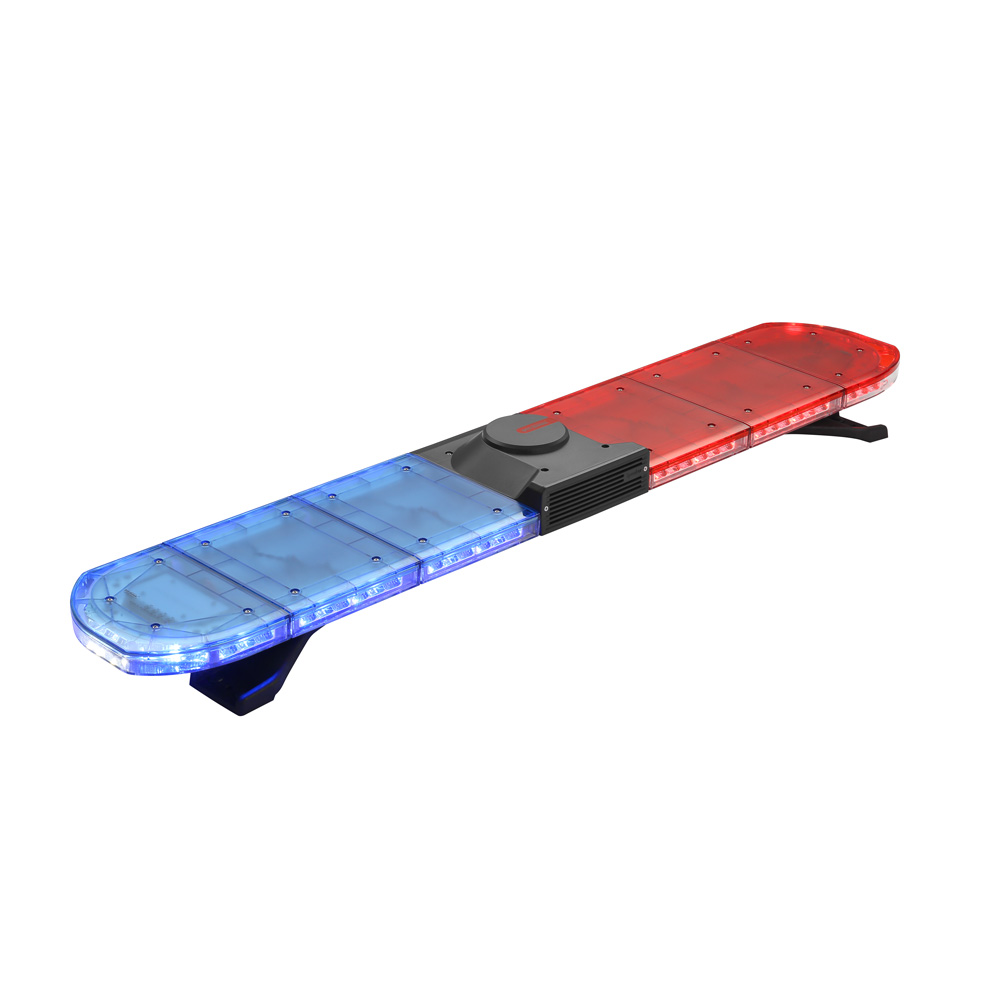

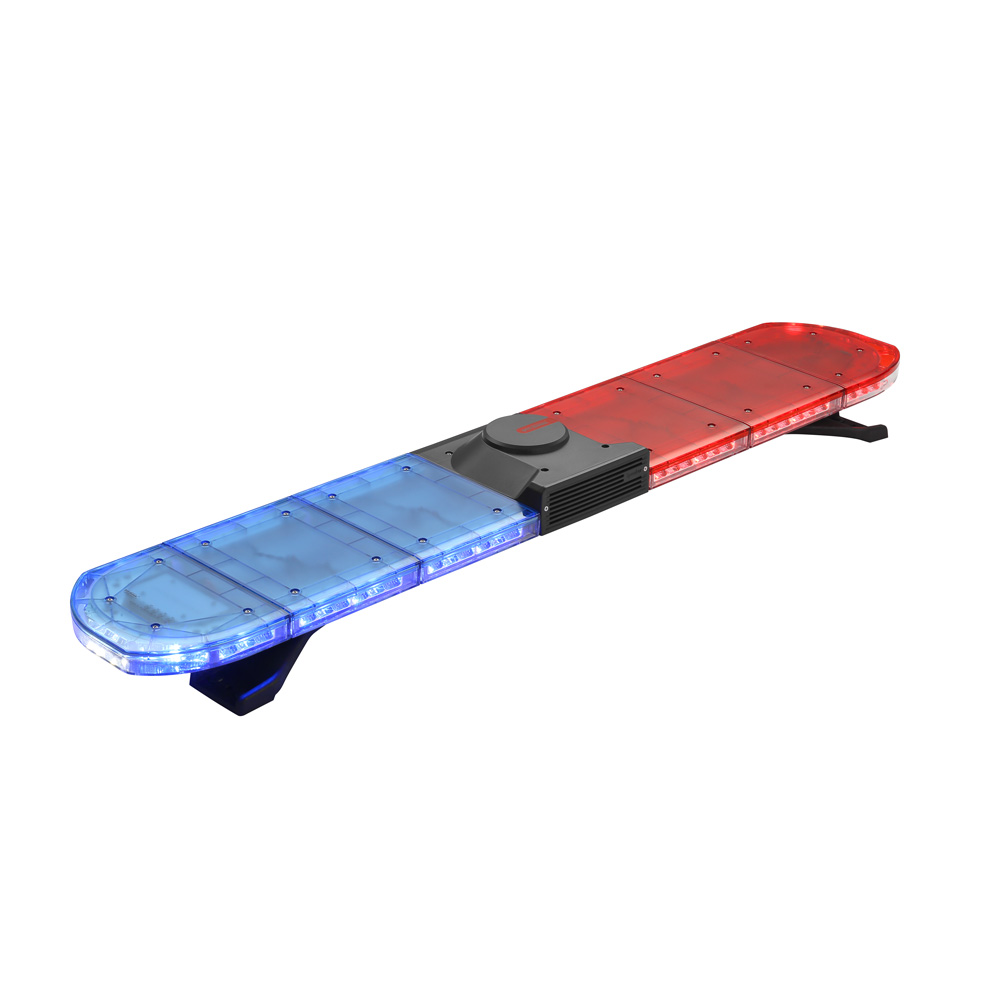

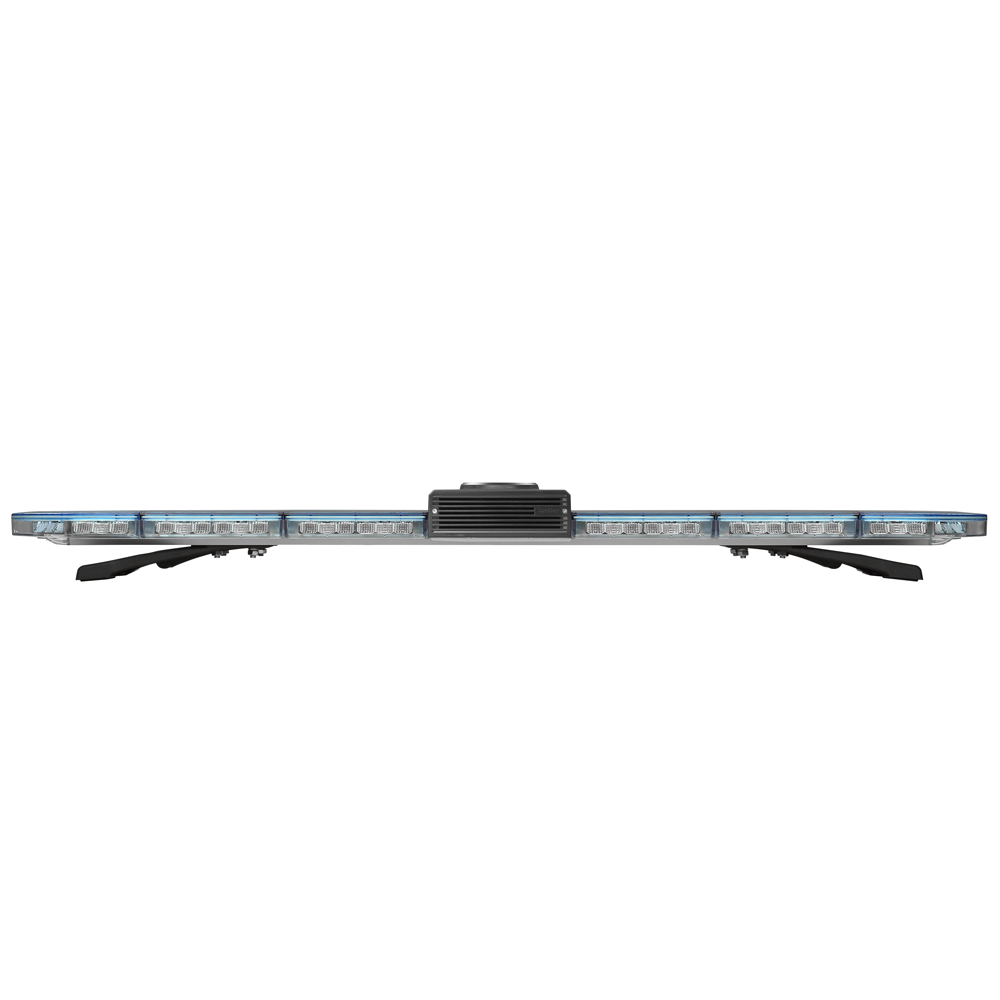

| 015001TB/RW(A)+STT | SKYLINE AIR S-48 | DC10-33V|MAX 268W||1208*220*70MM (without tripod)|Reflector|Upper cover blue, red|Lower cover transparent|LED amber 24 pcs, blue 39 pcs, red 45 pcs, white 54 pcs|63 flashing methods|Plastic tripod installation|33-core functional line|CAN bus|With speaker|IP68 |
| 015001TBW(A)+STT | SKYLINE AIR S-48 | DC10-33V|MAX 292W||1208*220*70MM (without tripod)|Reflector|Upper cover blue|Lower cover transparent|LED amber 24 pcs blue 84 pcs red 6 pcs white 54 pcs|63 flashing methods|Plastic tripod installation|33-core functional line|CAN bus|With speaker|IP68 |

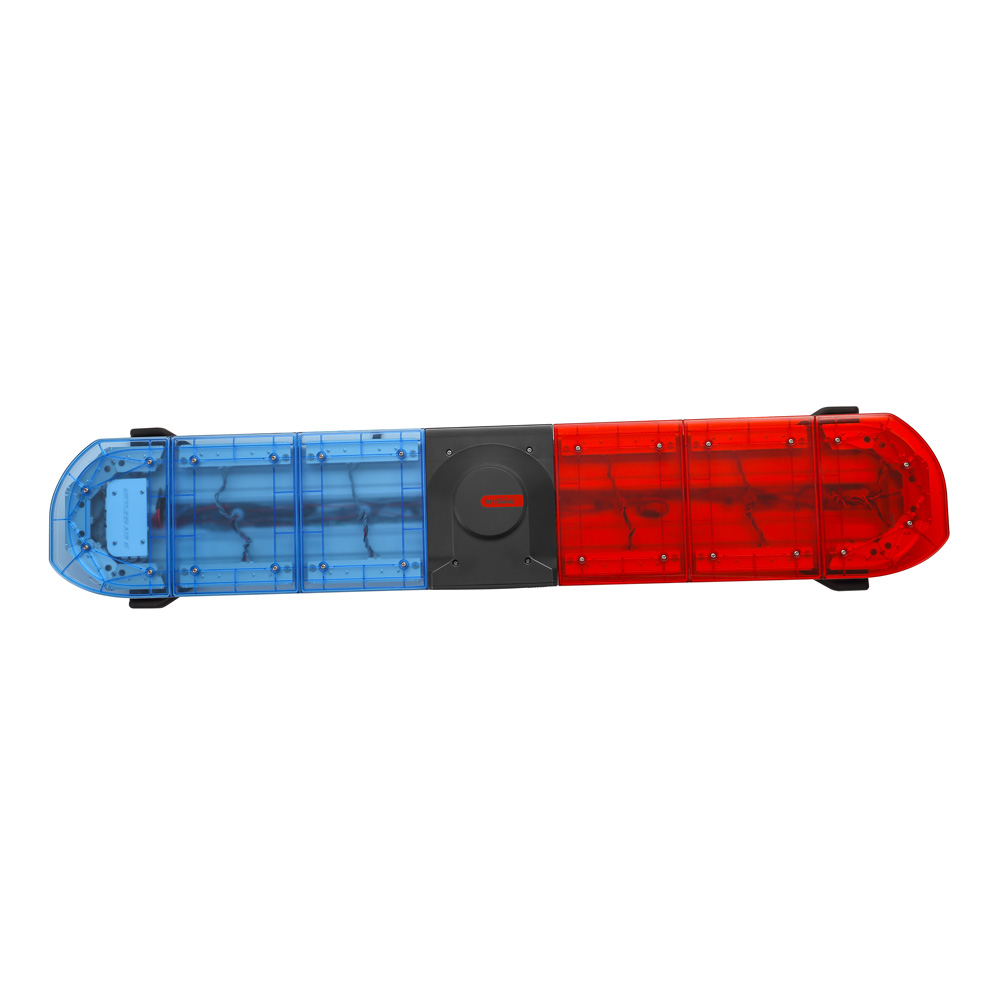

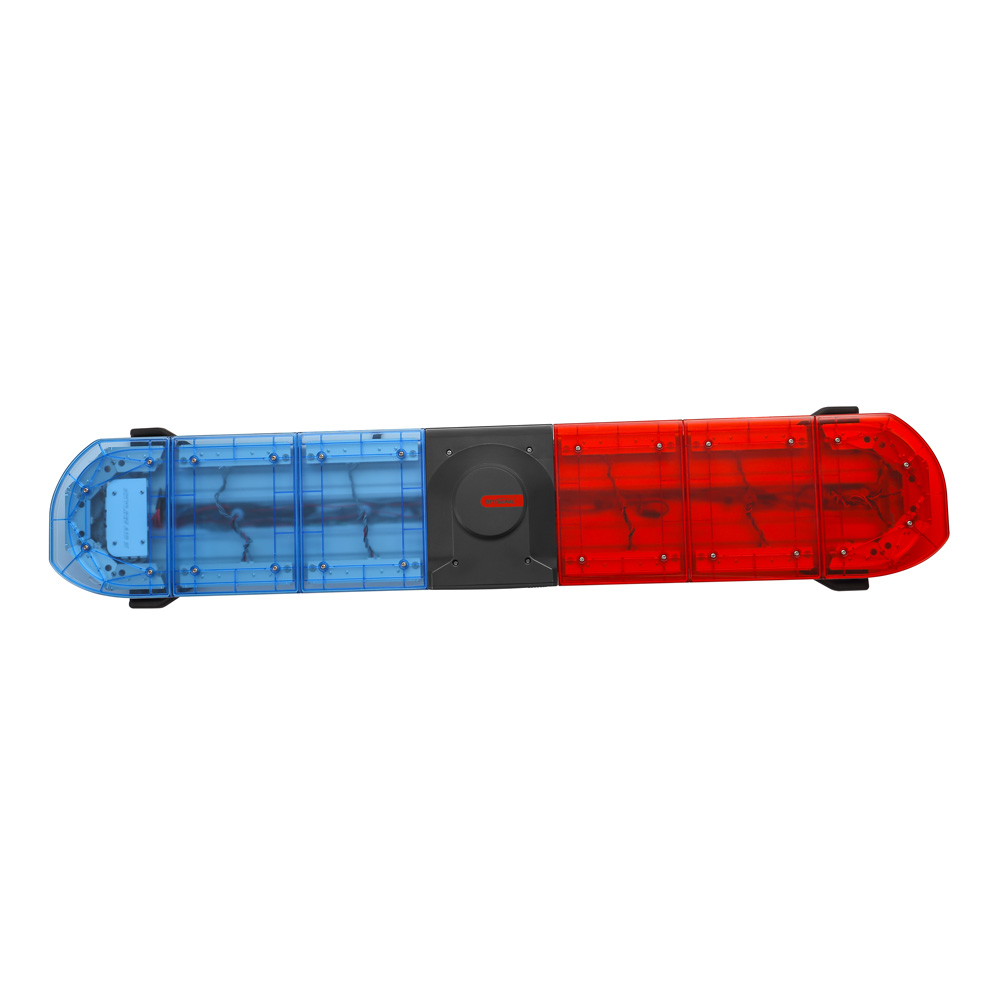

| 015002TB/RW(A) | SKYLINE AIR S-48 | DC10-33V|MAX 271W||1208*220*70MM (without tripod)|Reflector|Upper cover blue, red|Lower cover transparent|LED amber 30 pcs blue 39 pcs red 39 pcs white 54 pcs|63 flashing methods|Plastic tripod installation|29-core functional line|CAN bus|With speaker|IP68 |

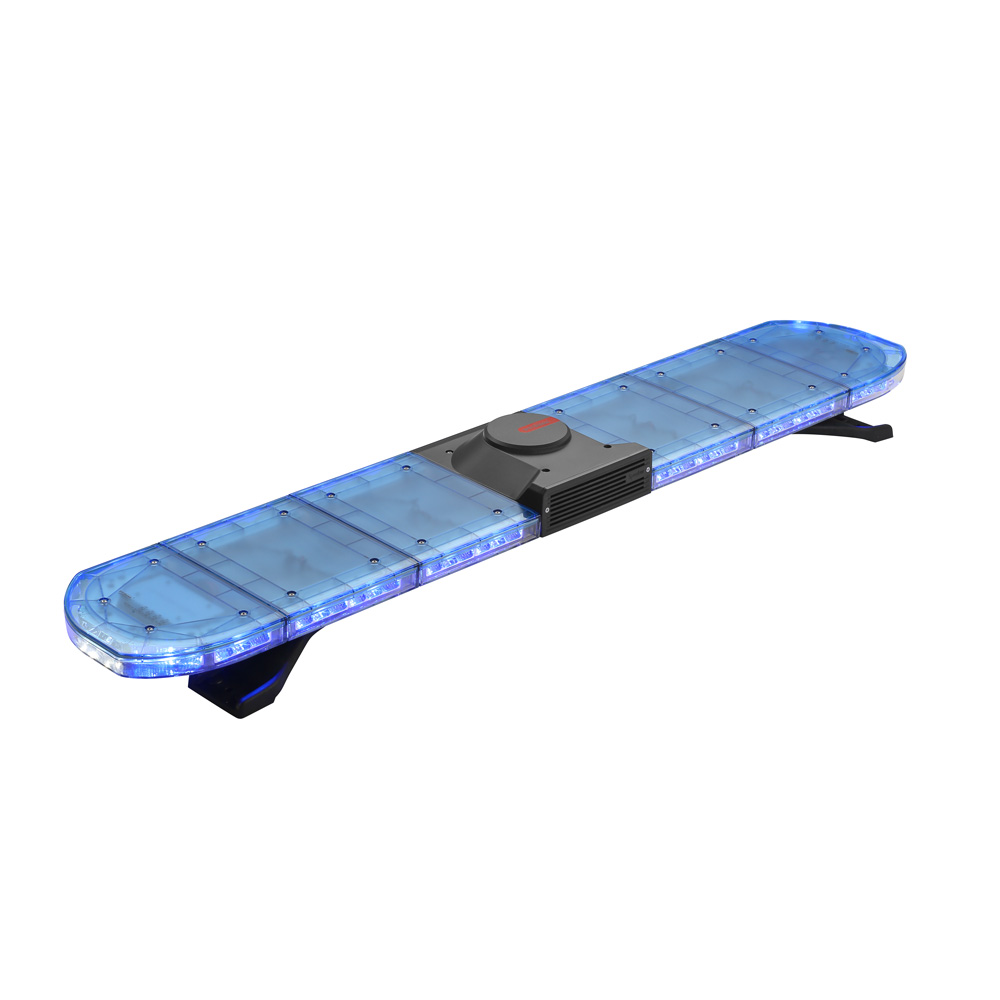

| 015002TBW（A） | SKYLINE AIR S-48 | DC10-33V|MAX 294W|1208*220*70MM (without tripod)|reflector|upper cover blue|lower cover transparent|LED amber 30 pcs, blue 84 pcs, white 54 pcs|63 flashing methods|plastic tripod installation|29-core functional line|CAN bus|with speaker|IP68 |
| 016101TAW+STT | SKYLINE AIR S-34 | DC10-33V|MAX 209W|858*220*41MM (without tripod)|reflector|upper cover 70% black|lower cover smoked black|LED amber 72 pcs, red 6 pcs, white 54 pcs|63 flashing methods|plastic tripod installation|29-core functional line|CAN bus|IP68 |
