- Latest LED technology and designed PC dome for brighter and more evenly lighting distribution.
- 19 flash patterns available.
- R65 I/R10/SAE/T13/ICAO Annex 14/CAP 168 approved.
- Three central LED specially designed for aerial identification.

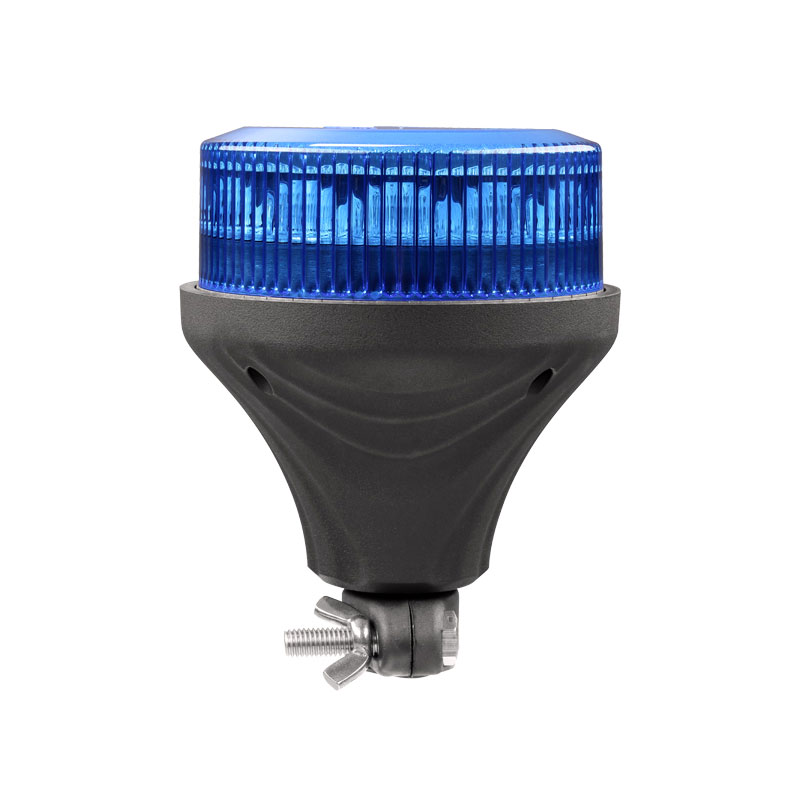

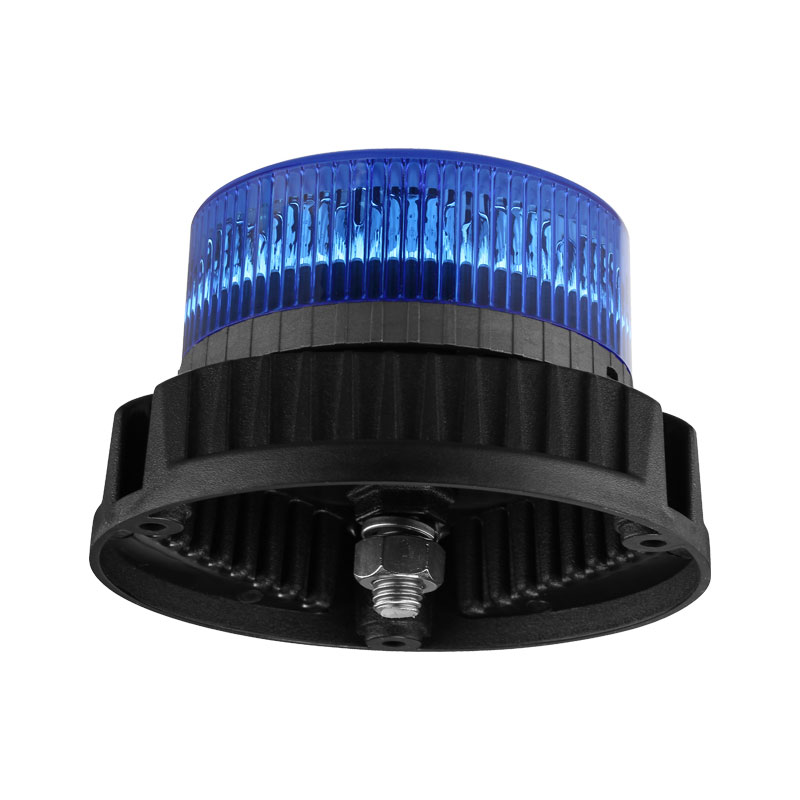

- Multiple mounting options including single point, 3 points, magnet and flexi din.

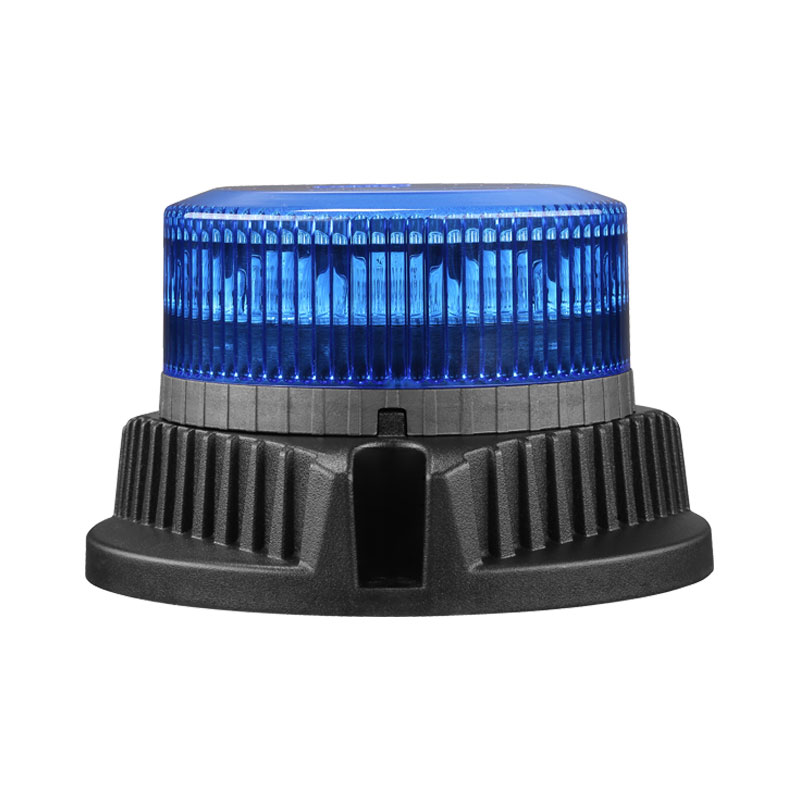

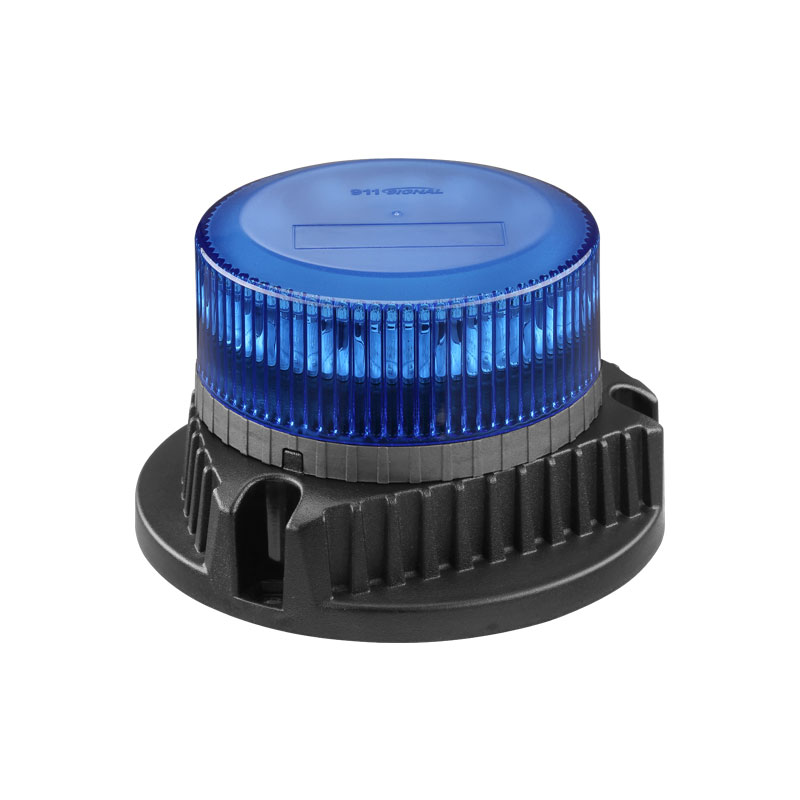

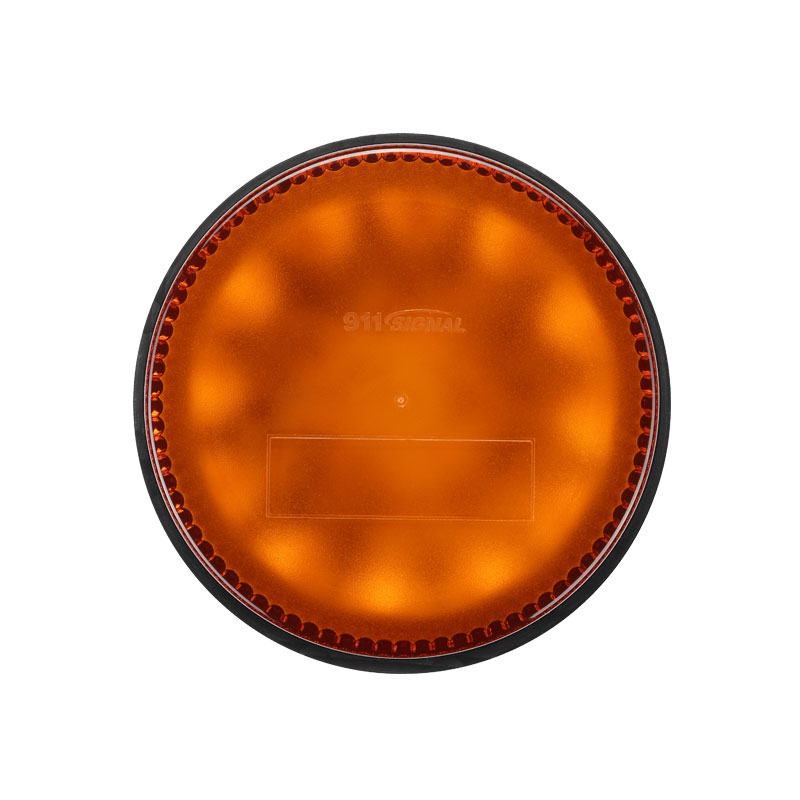

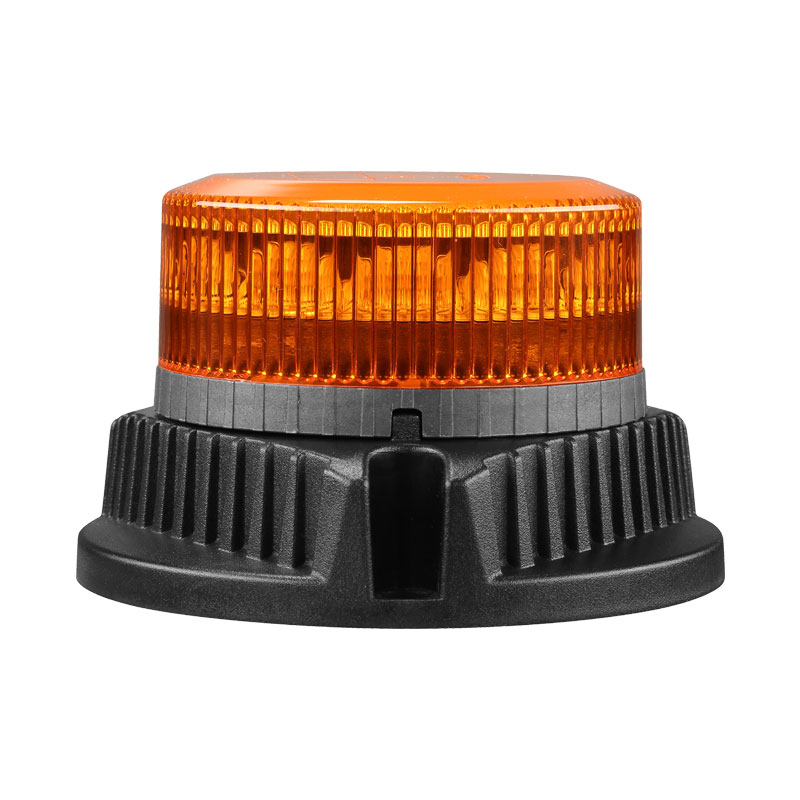

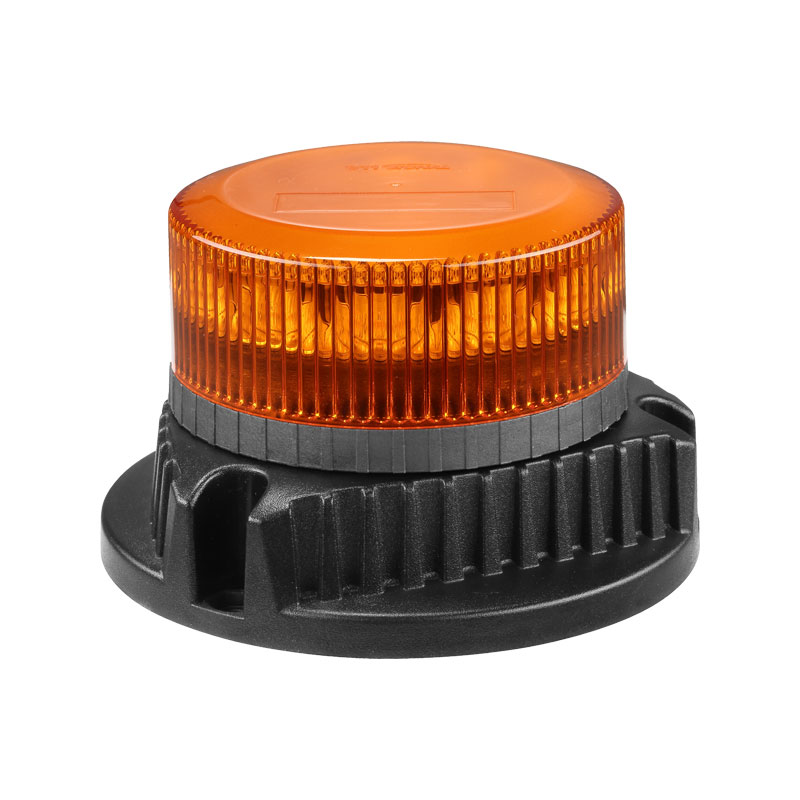

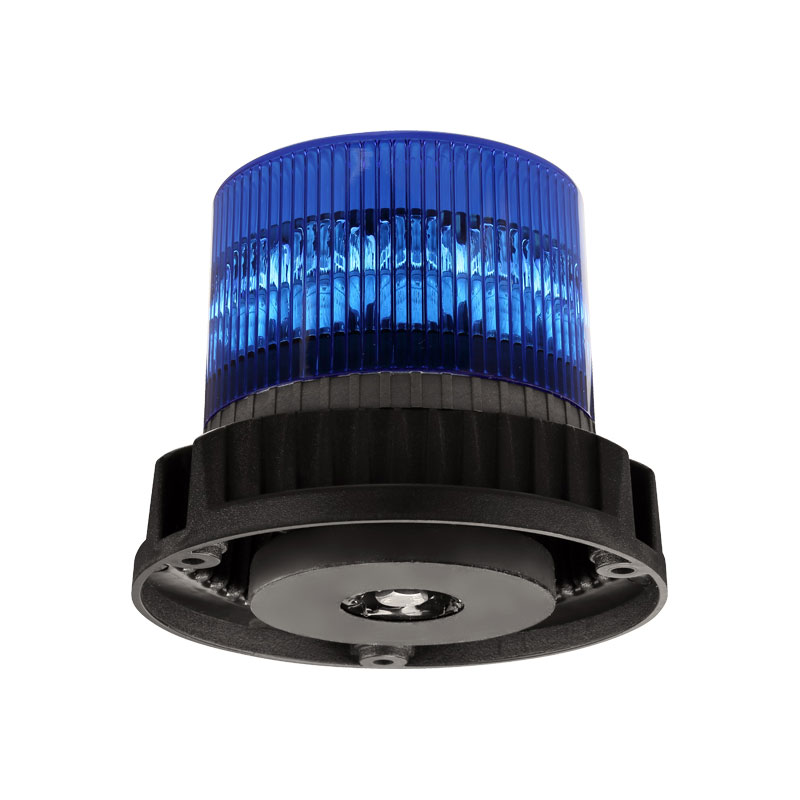

MU Series – ICAO Annex 14/CAP 168 approved
Obter um orçamento
DIMENSIONS
SPECIFICATION
Code:MU
Mount: Three Bolts, Magnetic, Single Point, Flexi-Din
Color: Amber,Blue
Max Power: 22.5W
LED:15pcs 3W LED
Lens: Reflex
Flash Patterns: 19
Certifications:R65 I/ R10/ SAE/ T13/ ICAO/ CAP168
| ITEM | MODE | SPECIFICATION |
| 082001A | MU | DC10-33V|MAX 22.5W|φ145*88MM|Reflex lens|Lampshade amber|Base black|15 amber LEDs*1.5W|19 flash patterns|Three-bolt screw installation|3-core sheathed wire|IP68 |
| 082001B | DC10-33V|MAX 22.5W|φ145*88MM|Reflex lens|Lampshade blue|Base black|15 blue LEDs*1.5W|19 flash patterns|Three-bolt screw installation|3-core sheathed wire|IP68 | |
| 082001R | DC10-33V|MAX 22.5W|φ145*88MM|Reflex lens|Lampshade red|Base black|15 red LEDs*1.5W|19 flash patterns|Three-bolts screw installation|3-core sheathed wire|IP68 | |
| 082002A | DC10-33V|MAX 22.5W|φ145*88MM|Reflex lens|Lampshade amber|Base black|15 amber LEDs*1.5W|19 flash patterns|Magnet installation|3-core sheathed wire|IP68 | |
| 082002B | DC10-33V|MAX 22.5W|φ145*88MM|Reflex lens|Lampshade blue|Base black|15 blue LEDs*1.5W|19 flash patterns|Magnet installation|3-core sheathed wire|IP68 | |
| 082002R | DC10-33V|MAX 22.5W|φ145*88MM|Reflex lens|Lampshade red|Base black|15 red LEDs*1.5W|19 flash patterns|Magnet installation|3-core sheathed wire|IP68 | |
| 082003A | DC10-33V|MAX 22.5W|φ145*88MM|Reflex lens|Lampshade amber|Base black|15 amber LED*1.5W|19 flash patterns|Single-point screw installation|3-core sheathed wire|IP68 | |
| 082003B | DC10-33V|MAX 22.5W|φ145*88MM|Reflex lens|Lampshade blue|Base black|15 blue LEDs*1.5W|19 flash patterns|Single-point screw installation|3-core sheathed wire|IP68 | |
| 082003R | DC10-33V|MAX 22.5W|φ145*88MM|Reflex lens|Lampshade red|Base black|15 red LEDs*1.5W|19 flash patterns|Single-point screw installation|3-core sheathed wire|IP68 | |

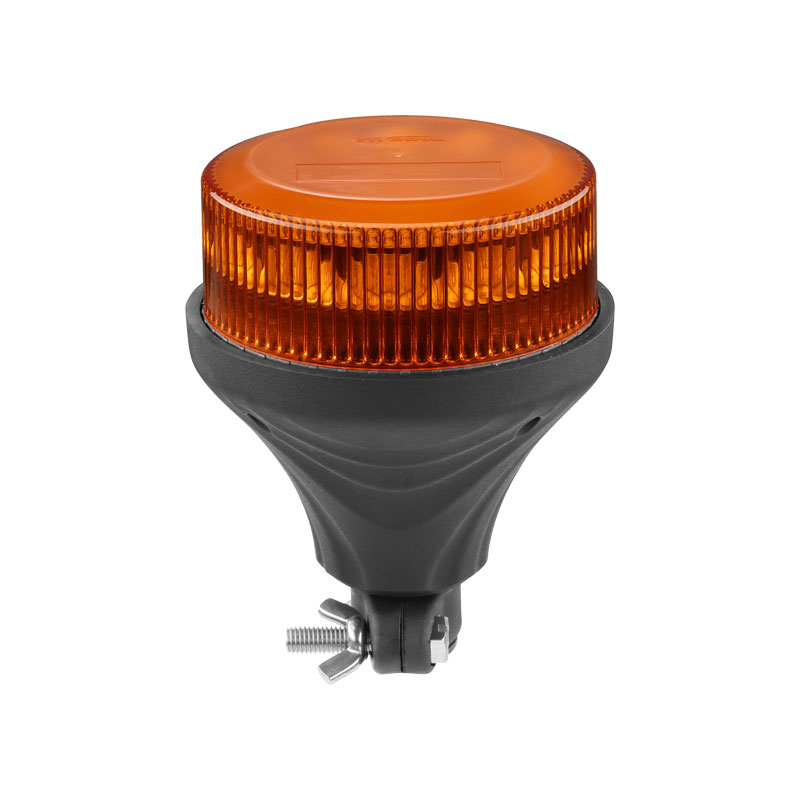

| 082004A | DC10-33V|MAX 22.5W|φ145*88MM|Reflex lens|Lampshade amber|Base black|15 amber LEDs*1.5W|19 flash patterns|Flexi-Din screw installation|3-core sheathed wire|IP68 | |
| 082004B | DC10-33V|MAX 22.5W|φ145*88MM|Reflex lens|Lampshade blue|Base black|15 blue LEDs*1.5W|19 flash patterns|Flexi-Din screw installation|3-core sheathed wire|IP68 | |
| 082004R | DC10-33V|MAX 22.5W|φ145*88MM|Reflex lens|Lampshade red|Base black|15 red LEDs*1.5W|19 flash patterns|Flexi-Din screw installation|3-core sheathed wire|IP68 | |

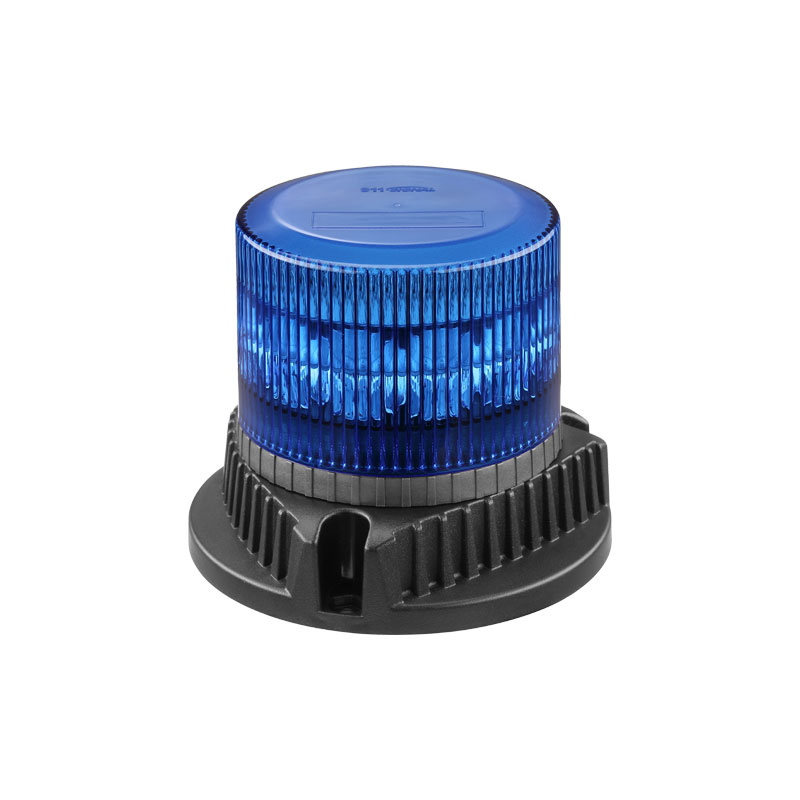

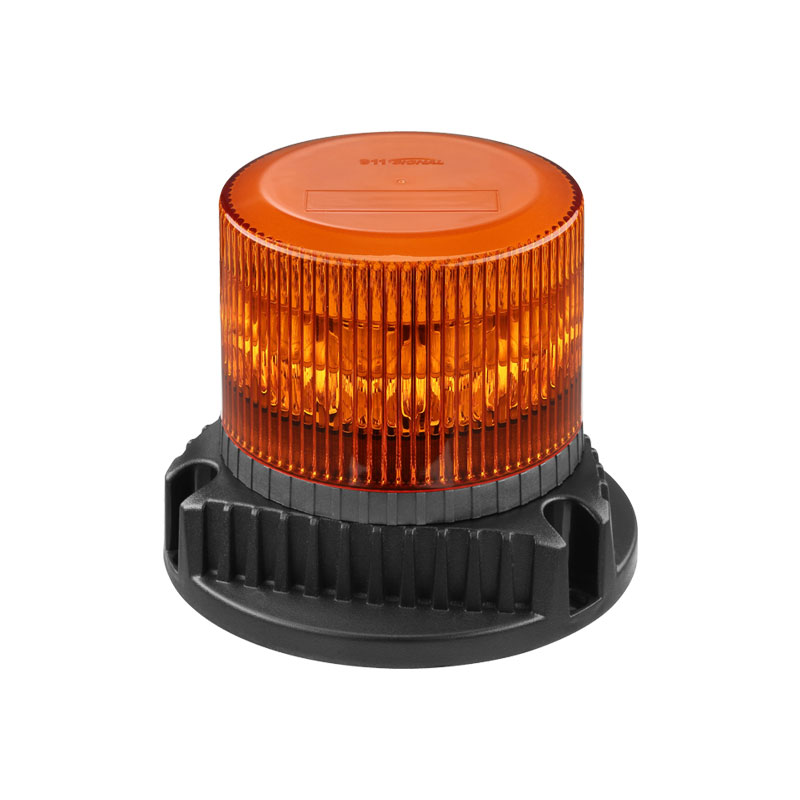

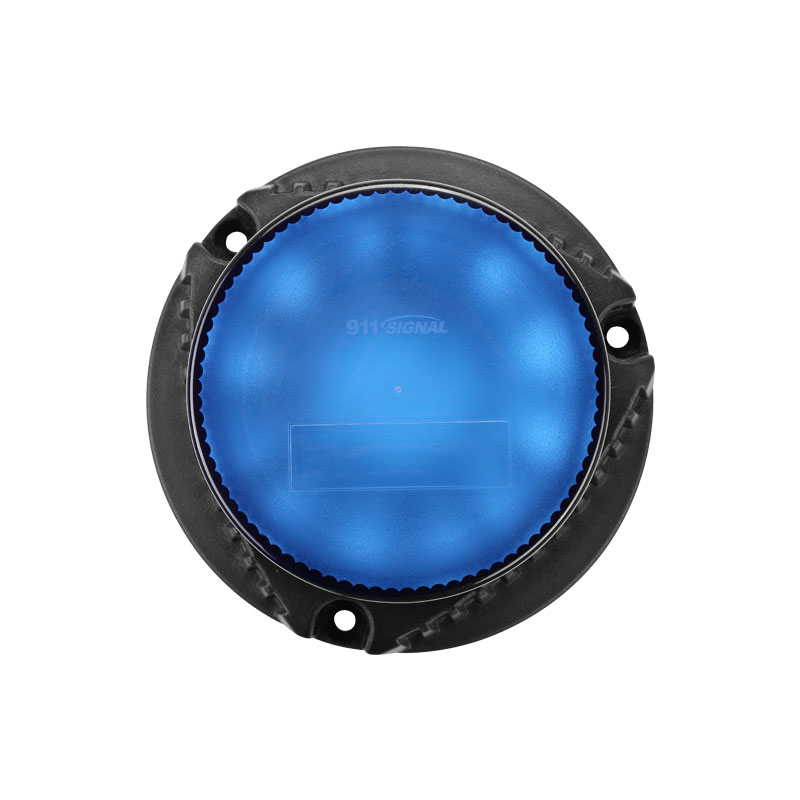

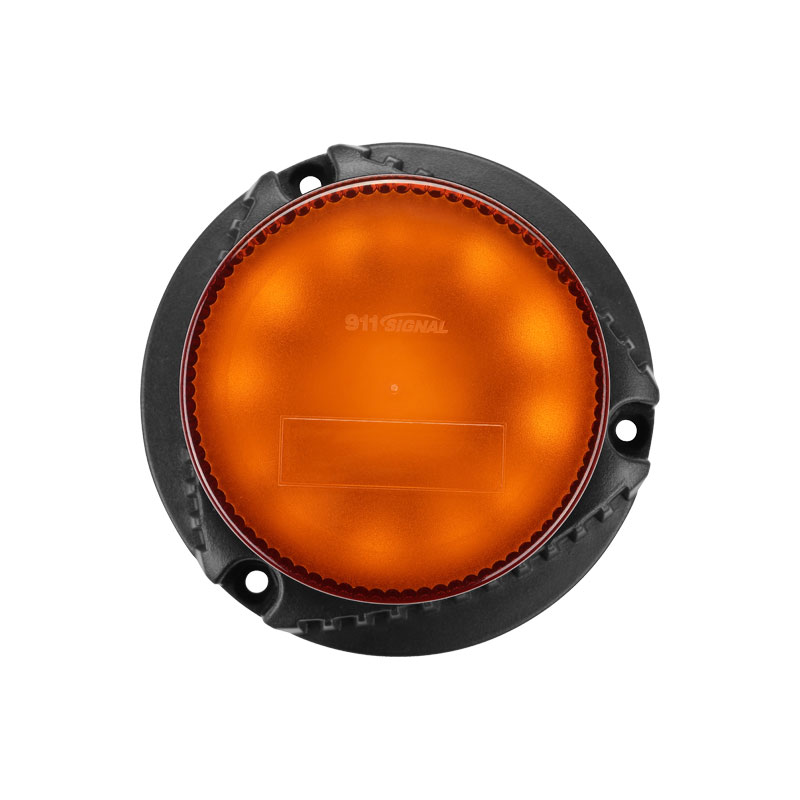

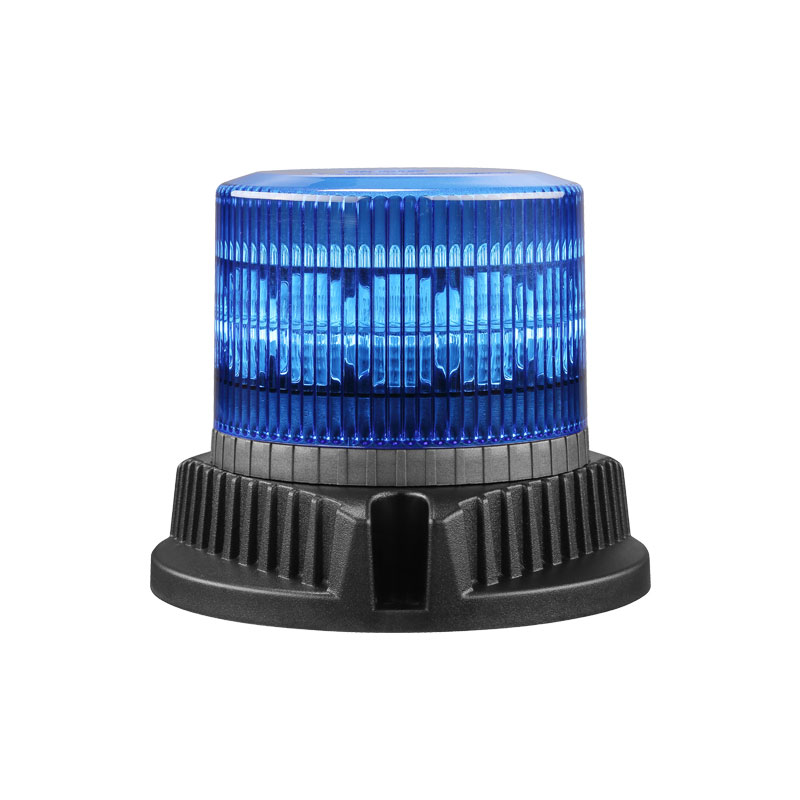

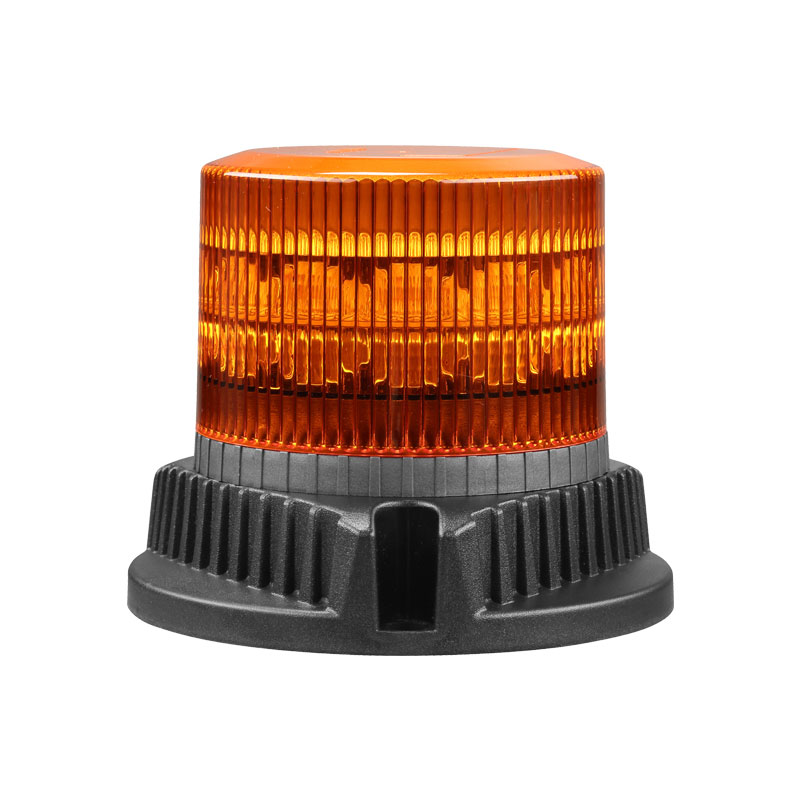

| 082101A | MU PRO | DC10-33V|MAX 40.5W|φ145*119MM|Reflex lens|Lampshade amber|Base black|27 amber LEDs*1.5W|19 flashing patterms|Three-bolt screw installation|4-core sheathed wire|IP68 |
| 082101B | DC10-33V|MAX 40.5W|φ145*119MM|Reflex lens|Lampshade blue|Base black|27 blue LEDs*1.5W|19 flash patterns|Three-bolt screw installation|4-core sheathed wire|IP68 | |
| 082101R | DC10-33V|MAX 40.5W|φ145*119MM|Reflex lens|Lampshade red|Base black|27 red LEDs*1.5W|19 flash patterns|Three-bolt screw installation|4-core sheathed wire|IP68 | |
| 082102A | DC10-33V|MAX 40.5W|φ145*119MM|Reflex lens|Lampshade amber|Base black|27 amber LEDs*1.5W|19 flashing patterns|Magnet installation|4-core sheathed wire|IP68 | |
| 082102B | DC10-33V|MAX 40.5W|φ145*119MM|Reflex lens|Lampshade blue|Base black|27 blue LEDs*1.5W|19 flashing patterns|Magnet installation|4-core sheathed wire|IP68 | |
| 082102R | DC10-33V|MAX 40.5W|φ145*119MM|Reflex lens|Lampshade red|Base black|27 red LEDs*1.5W|19 flashing patterns|Magnet installation|4-core sheathed wire|IP68 | |
| 082103A | DC10-33V|MAX 40.5W|φ145*119MM|Reflex lens|Lampshade amber|Base black|27 amber LEDs*1.5W|19 flash patterns|Single-point screw installation|4-core sheathed wire|IP68 | |
| 082103B | DC10-33V|MAX 40.5W|φ145*119MM|Reflex lens|Lampshade blue|Base black|27 blue LEDs*1.5W|19 flash patterns|Single-point screw installation|4-core sheathed wire |IP68 | |
| 082103R | DC10-33V|MAX 40.5W|φ145*119MM|Reflex lens|Lampshade red|Base black|27 red LEDs*1.5W|19 flash patterns|Single-point screw installation|4-core sheathed wire|IP68 | |
| 082104A | DC10-33V|MAX 40.5W|φ145*119MM|Reflex lens|Lampshade amber|Base black|27 amber LEDs*1.5W|19 flashing patterns|Flexi-Din screw installation|4-core sheathed wire|IP68 | |
| 082104B | DC10-33V|MAX 40.5W|φ145*119MM|Reflex lens|Lampshade blue|Base black|27 blue LEDs*1.5W|19 flashing patterns|Flexi-Din screw installation|4-core sheathed wire|IP68 | |
| 082104R | DC10-33V|MAX 40.5W|φ145*119MM|Reflex lens|Lampshade red|Base black|27 red LEDs*1.5W|19 flashing patterns|Flexi-Din screw installation|4-core sheathed wire|IP68 | |
| 082105B | DC10-33V|MAX 40.5W|φ145*119MM|Reflex lens|Lampshade blue|Base black|27 blue LEDs*1.5W|19 flashing patterns|Magnet installation|4-core sheathed wire|IP68 | |
| 082105R | DC10-33V|MAX 40.5W|φ145*119MM|Reflex lens|Lampshade red|Base black|27 red LEDs*1.5W|19 flashing patterns|Magnet installation|4-core sheathed wire|IP68 | |
| 082106B | DC10-33V|MAX 40.5W|φ145*119MM|Reflex lens|Lampshade blue|Base black|27 blue LEDs*1.5W|19 flash patterns|Single-point screw installation|4-core sheathed wire |IP68 | |

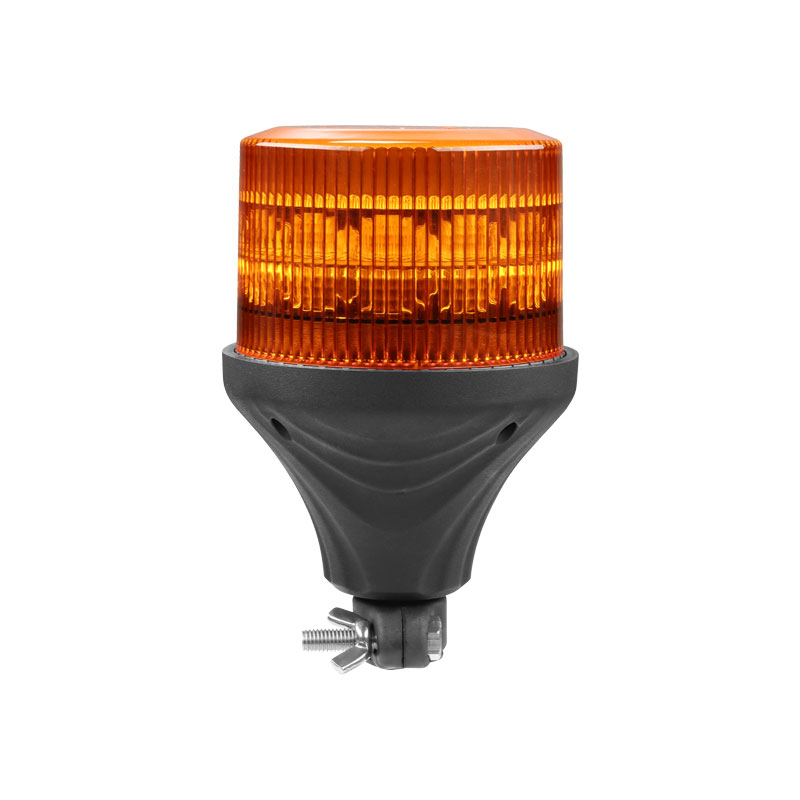

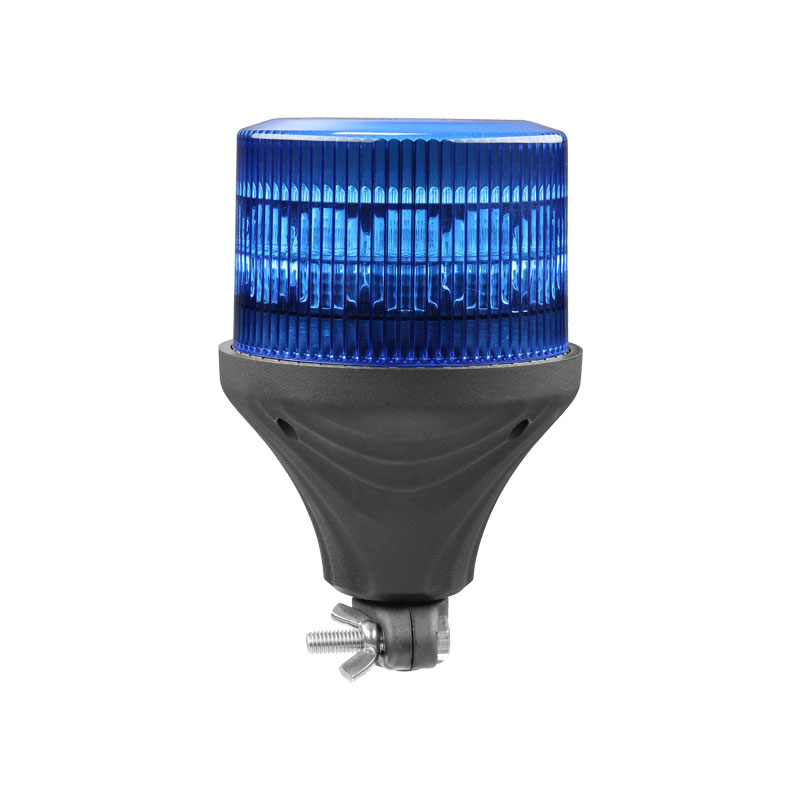

| 082201A | MU PRO-E | DC10-33V|MAX 22.5W|φ145*119MM|Reflex lens|Lampshade amber|Base black|15 amber LEDs*1.5W|19 flash patterns|Three-bolt screw installation|3-core sheathed wire|IP68 |
| 082201B | DC10-33V|MAX 22.5W|φ145*119MM|Reflex lens|Lampshade blue|Base black|15 blue LEDs*1.5W|19 flash patterns|Three-bolt screw installation|3-core sheathed wire|IP68 | |
| 082201R | DC10-33V|MAX 22.5W|φ145*119MM|Reflex lens|Lampshade red|Base black|15 red LEDs|19 flash patterns|Three-bolt screw installation|3-core sheathed wire|IP68 | |
| 082202A | DC10-33V|MAX 22.5W|φ145*119MM|Reflex lens|Lampshade amber|Base black|15 amber LEDs*1.5W|19 flash patterns|Magnet installation|3-core sheathed wire|IP68 | |
| 082202B | DC10-33V|MAX 22.5W|φ145*119MM|Reflex lens|Lampshade blue|Base black|15 blue LEDs*1.5W|19 flash patterns|Magnet installation|3-core sheathed wire|IP68 | |
| 082202R | DC10-33V|MAX 22.5W|φ145*119MM|Reflex lens|Lampshade red|Base black|15 red LEDs*1.5W|19 flash patterns|Magnet installation|3-core sheathed wire|IP68 | |
| 082203A | DC10-33V|MAX 22.5W|φ145*119MM|Reflex lens|Lampshade amber|Base black|15 amber LEDs*1.5W|19 flash patterns|Single-point screw installation|3-core sheathed wire|IP68 | |
| 082203B | DC10-33V|MAX 22.5W|φ145*119MM|Reflex lens|Lampshade blue|Base black|15 blue LEDs*1.5W|19 flash patterns|Single-point screw installation|3-core sheathed wire|IP68 | |
| 082203R | DC10-33V|MAX 22.5W|φ145*119MM|Reflex lens|Lampshade red|Base black|15 red LEDs*1.5W|19 flash patterns|Single-point screw installation|3-core sheathed wire|IP68 | |
| 082204A | DC10-33V|MAX 22.5W|φ145*119MM|Reflex lens|Lampshade amber|Base black|15 amber LEDs*1.5W|19 flash patterns|Flexi-Din screw installation|3-core sheathed wire|IP68 | |
| 082204B | DC10-33V|MAX 22.5W|φ145*119MM|Reflex lens|Lampshade blue|Base black|15 blue LEDs*1.5W|19 flash patterns|Flexi-Din screw installation|3-core sheathed wire|IP68 | |
| 082204R | DC10-33V|MAX 22.5W|φ145*119MM|Reflex lens|Lampshade red|Base black|15 red LEDs*1.5W|19 flash patterns|Flexi-Din screw installation|3-core sheathed wire|IP68 |
