- Compatible with European and American mainstream brand controllers
- US: dual/four color；EU: single/dual color
- US: 14 flash modes, (Dual-color) 5/(Four-color) 7 function lines;
EU: 14 flash modes, (Single-color) 5/(Dual-color) 6 function lines - Power and control wires use sheathed wires

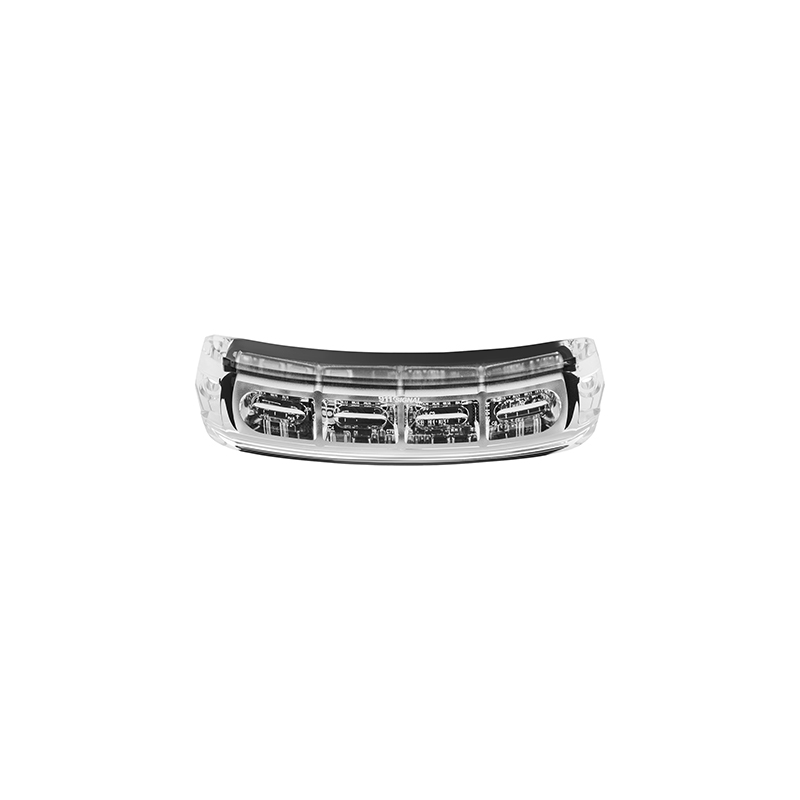

- Lens made of transparent silicone material, base made of thermally conductive silicone material, lifetime warranty

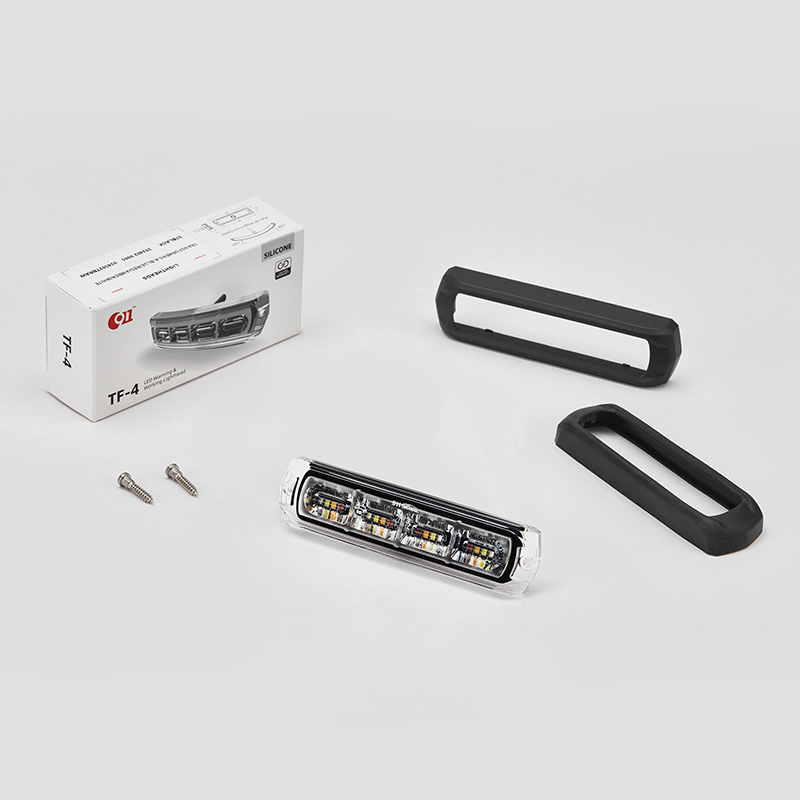

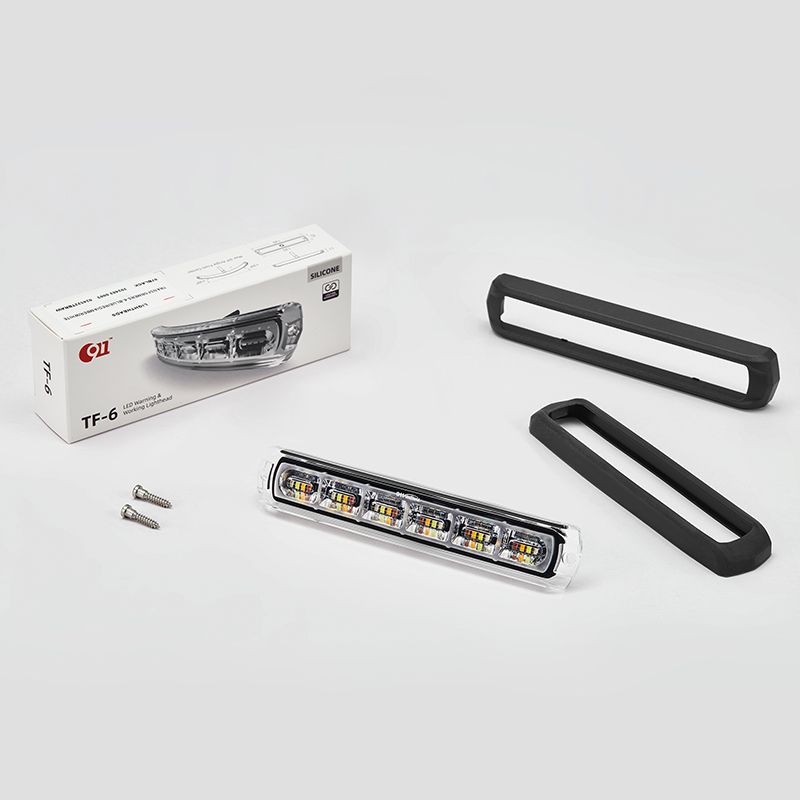

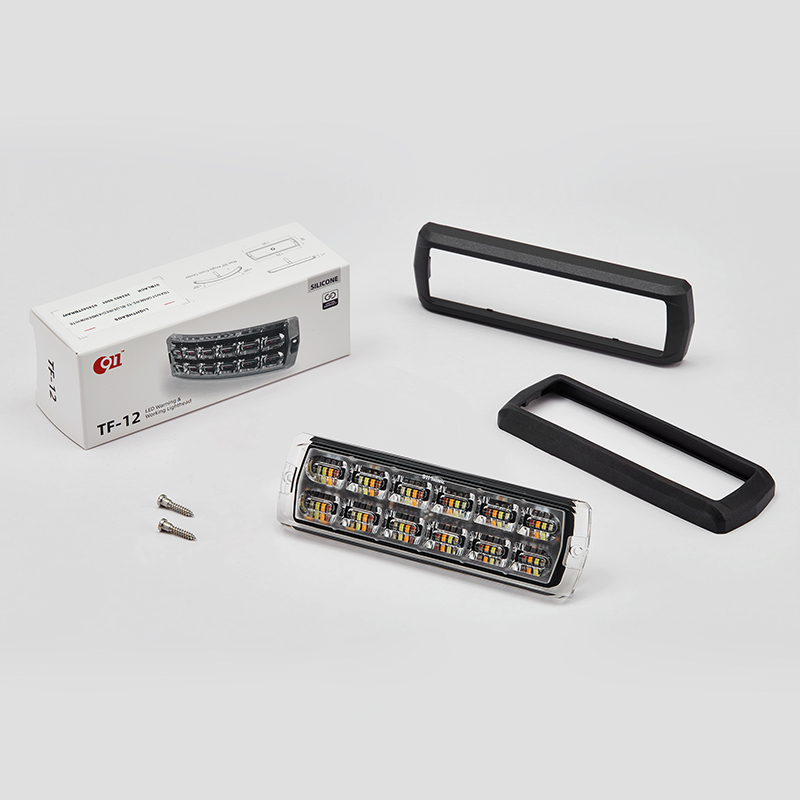

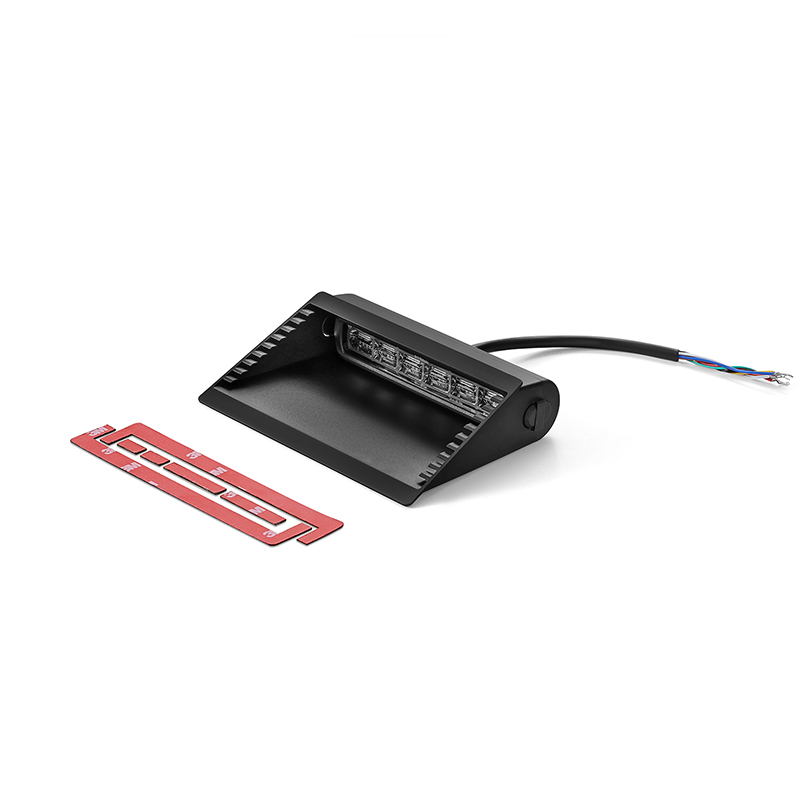

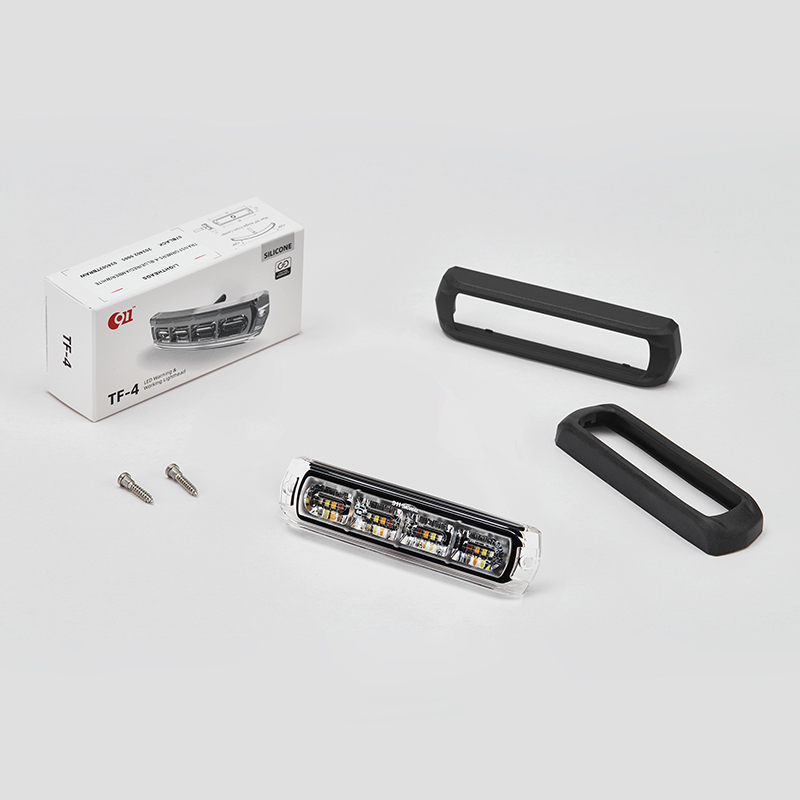

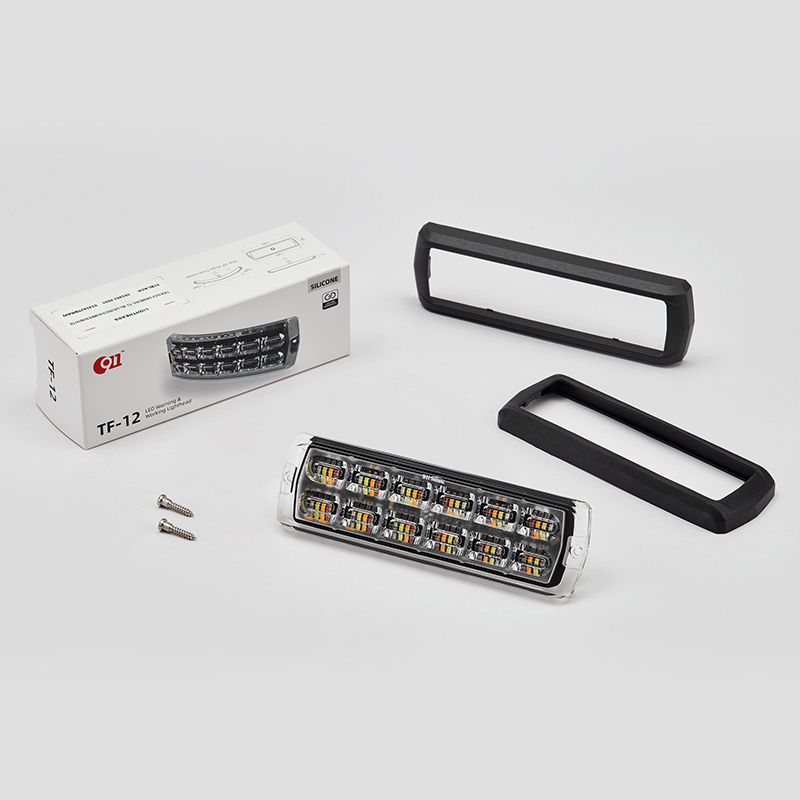

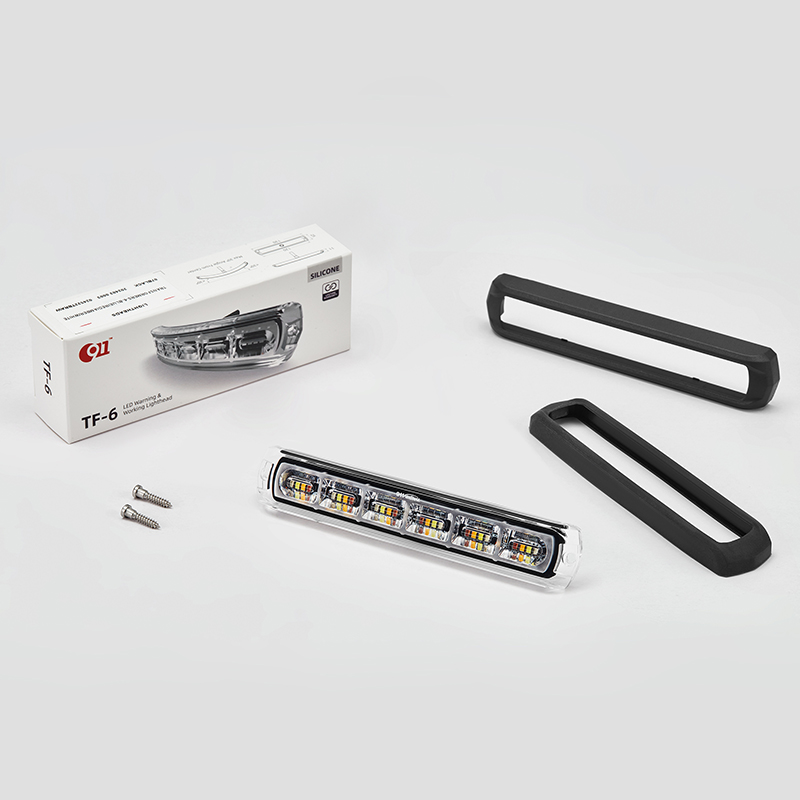

- Configured with two types of COVER, ABS hard and silicone soft materials

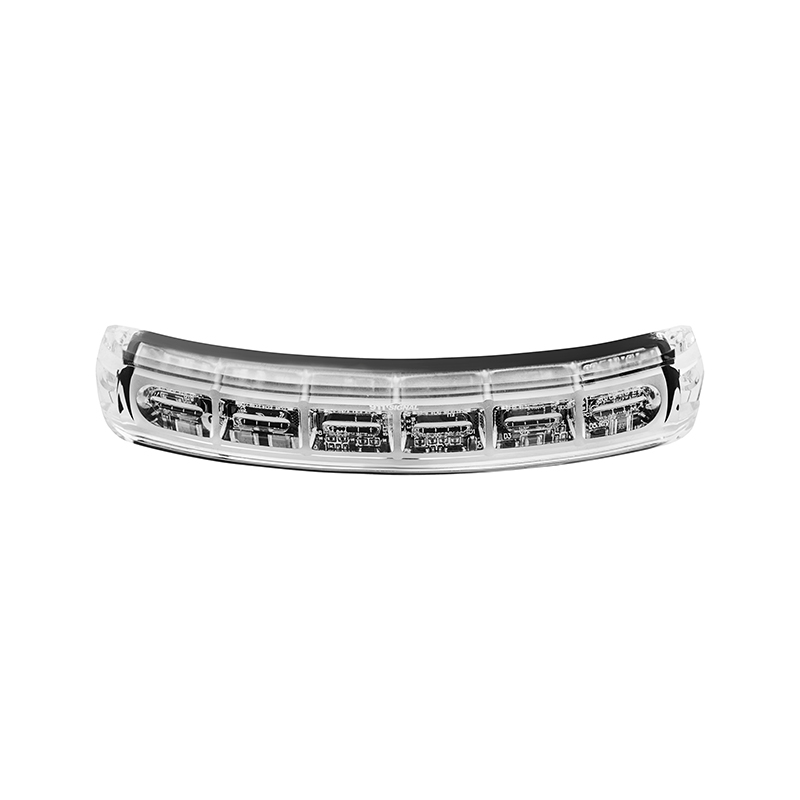

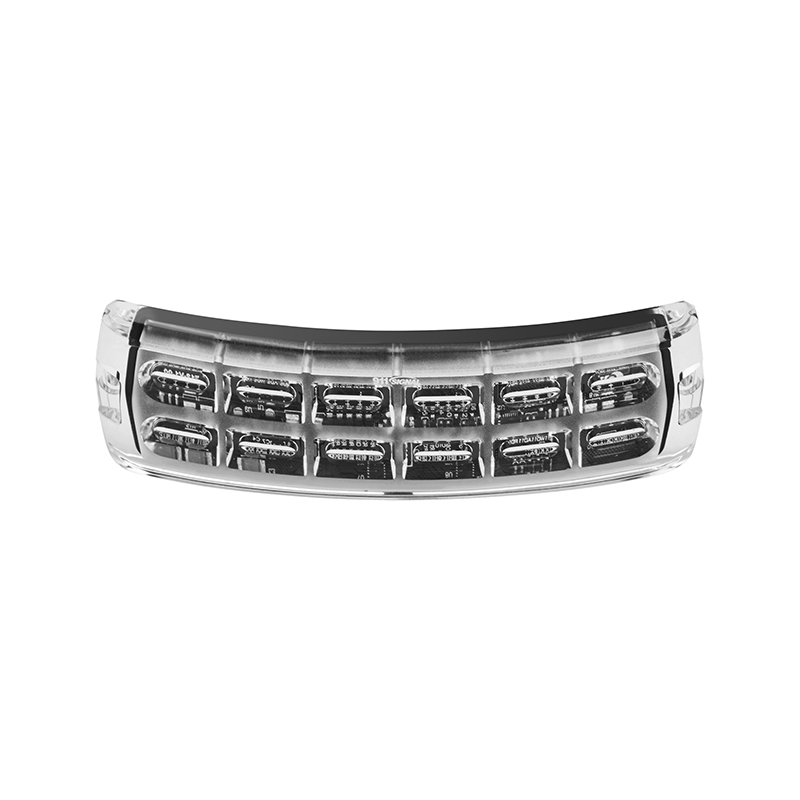

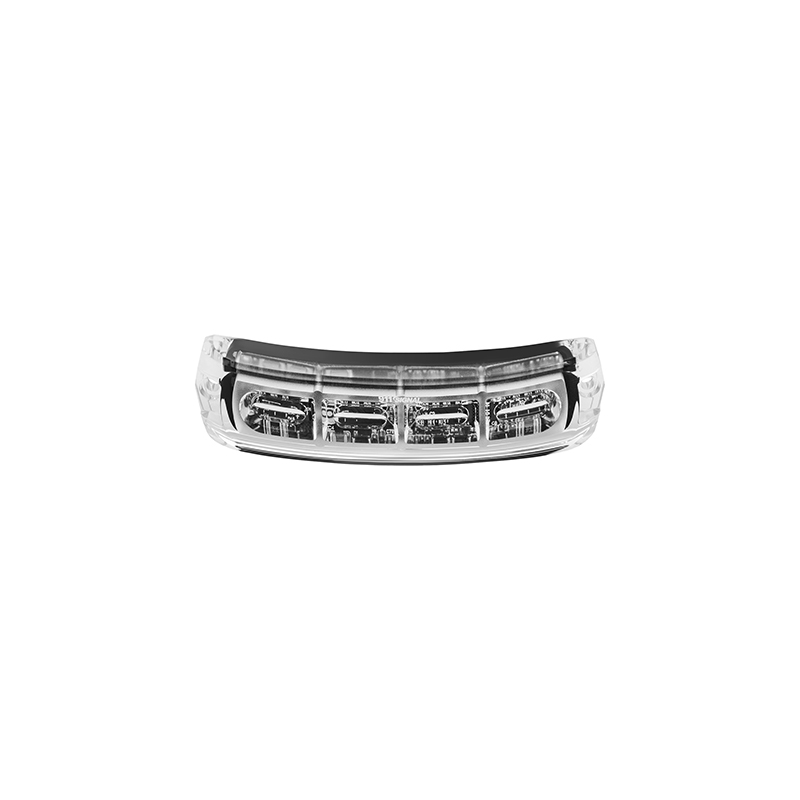

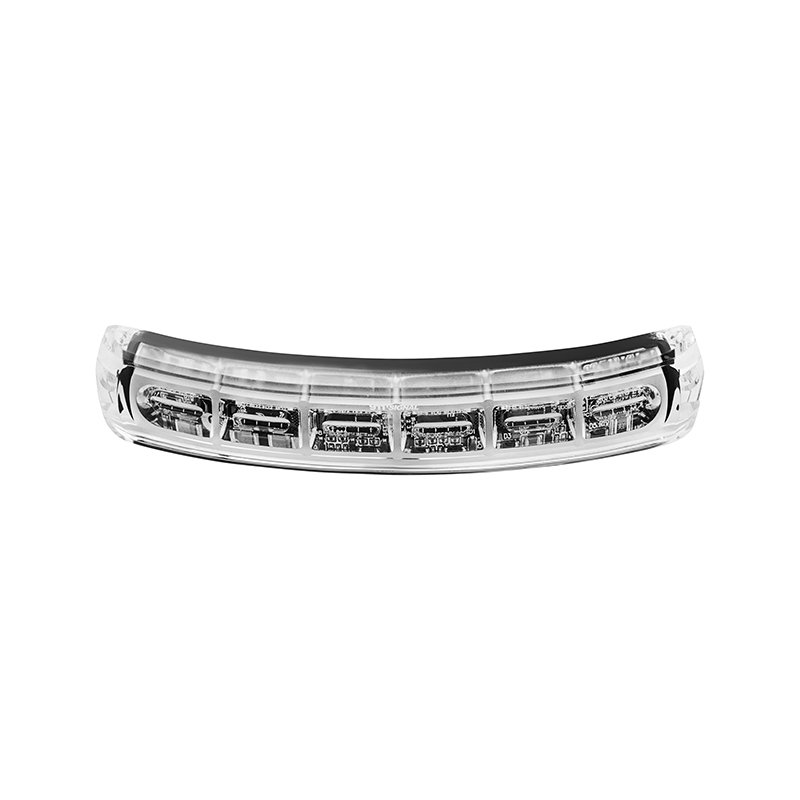

- Can be bent back up to 30° for installation on curved surfaces

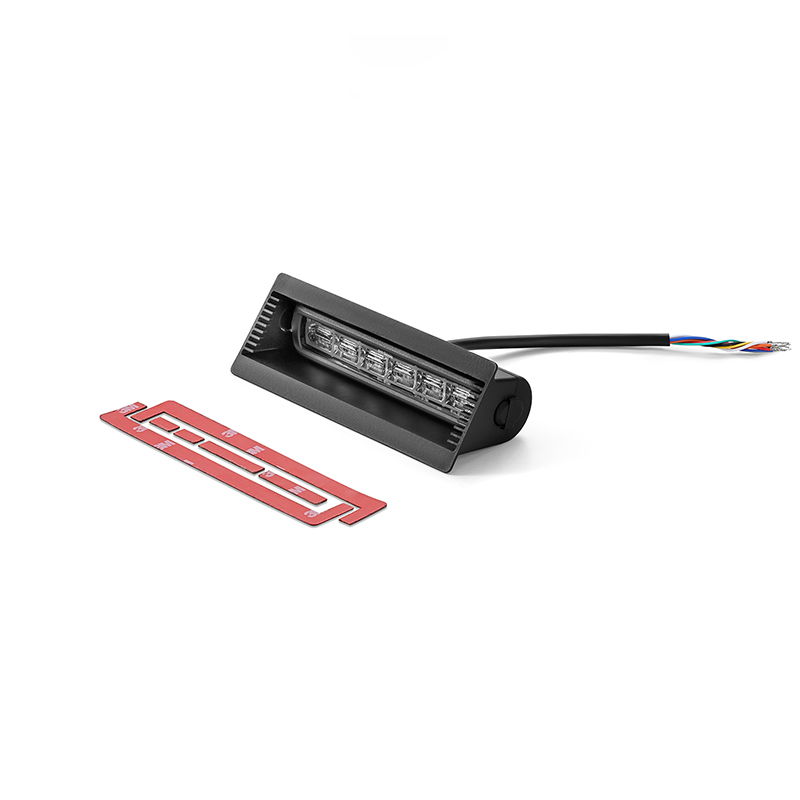

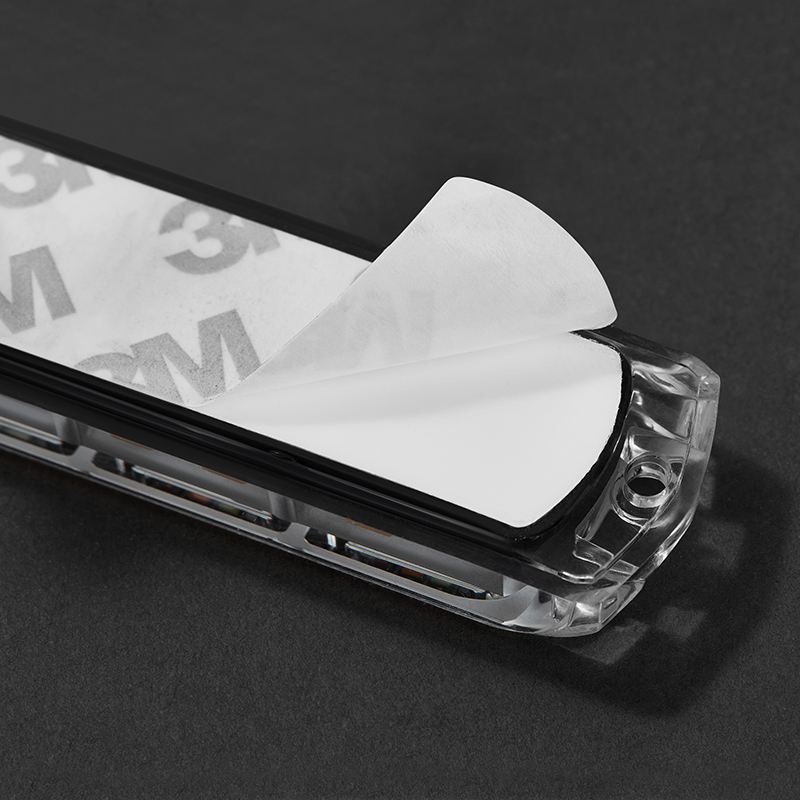

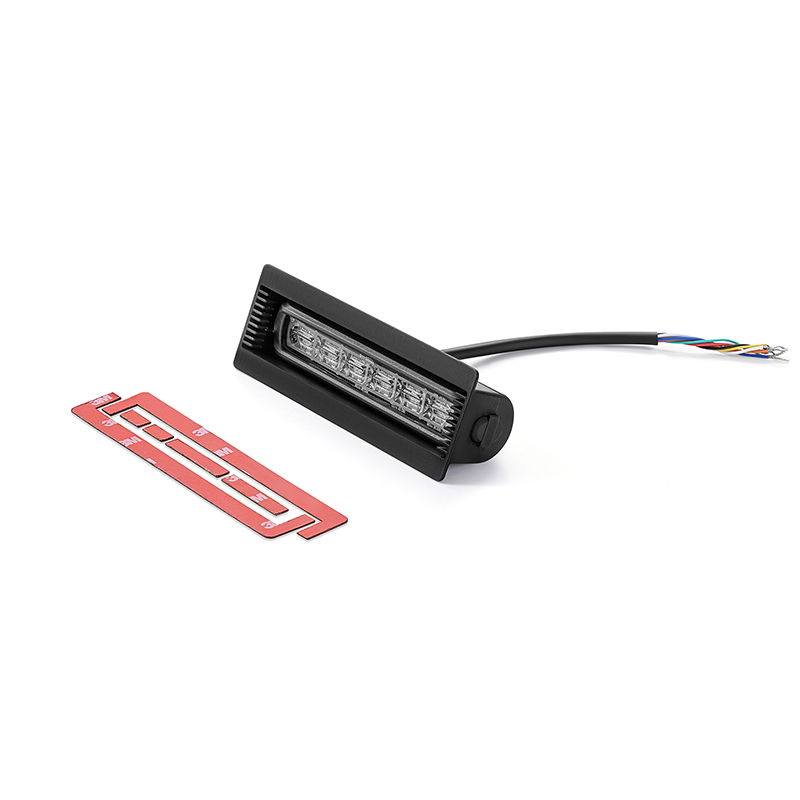

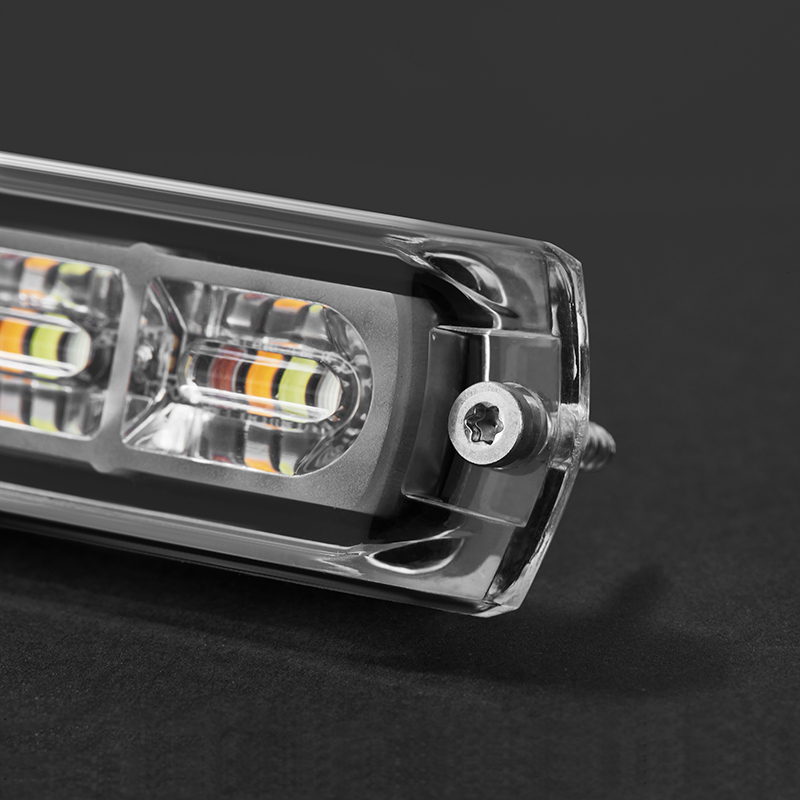

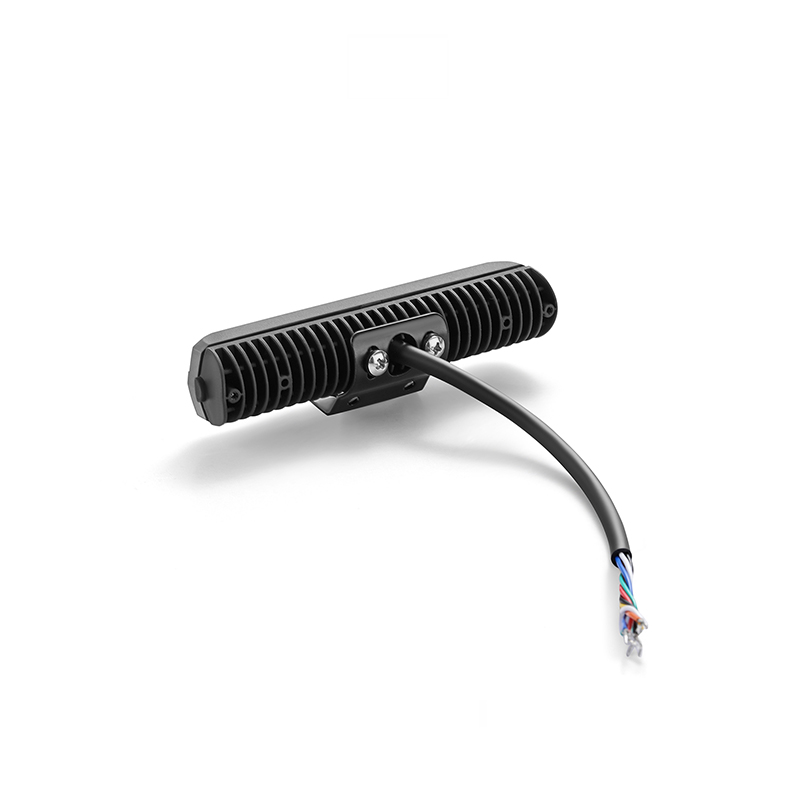

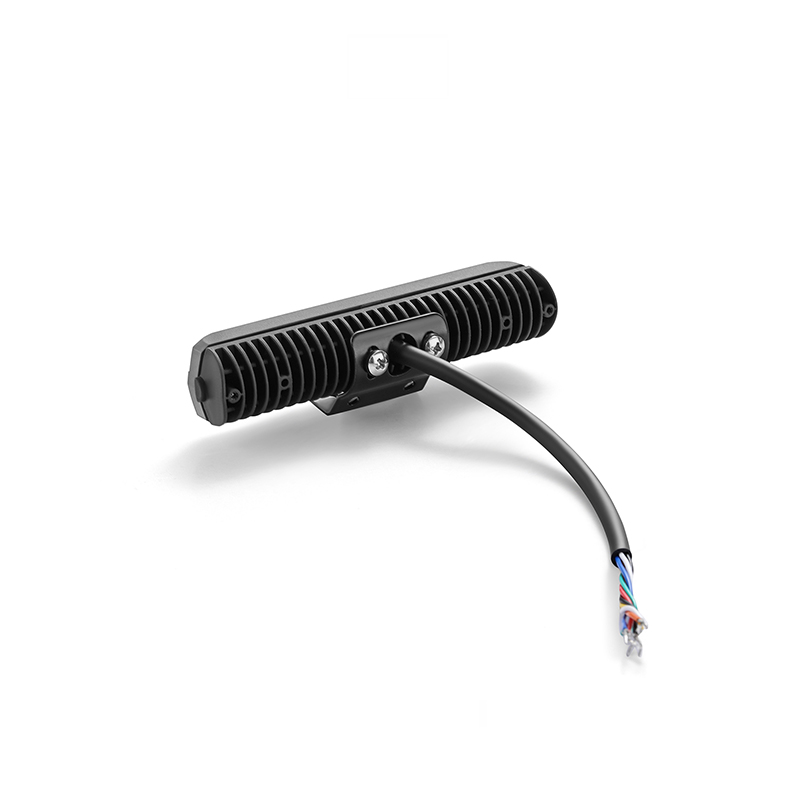

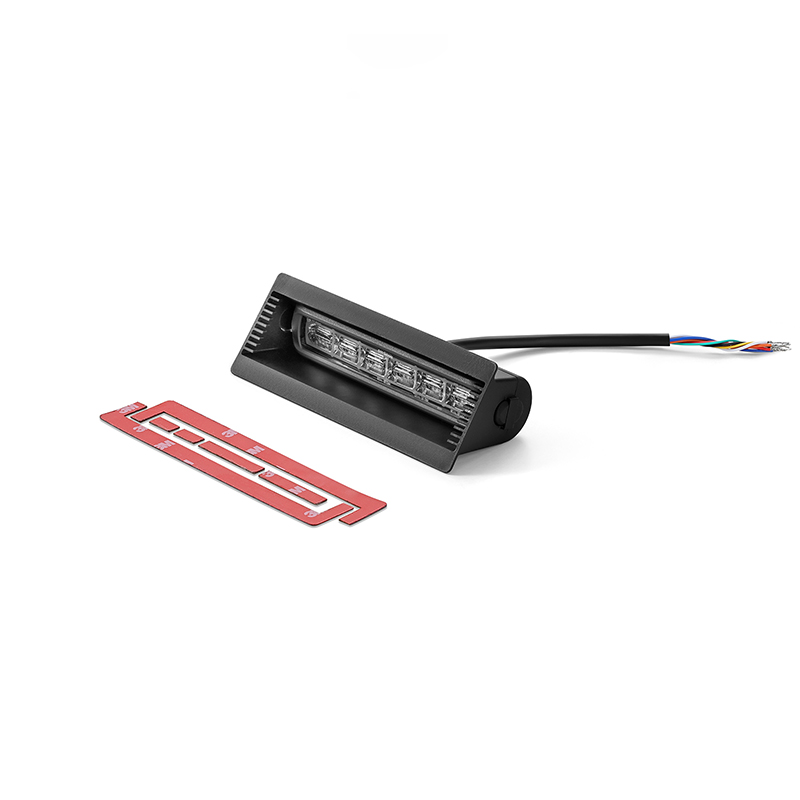

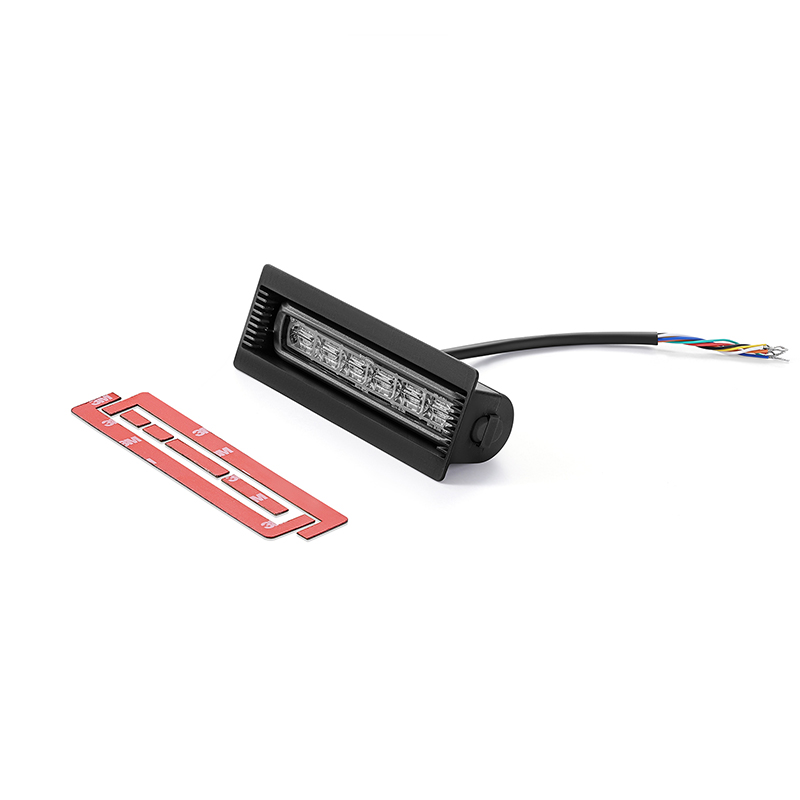

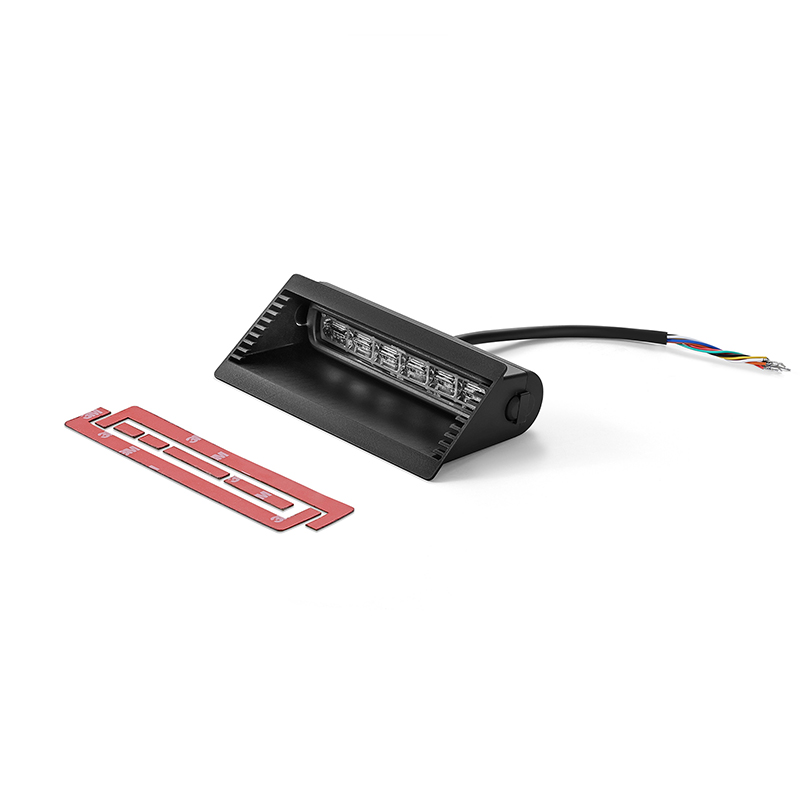

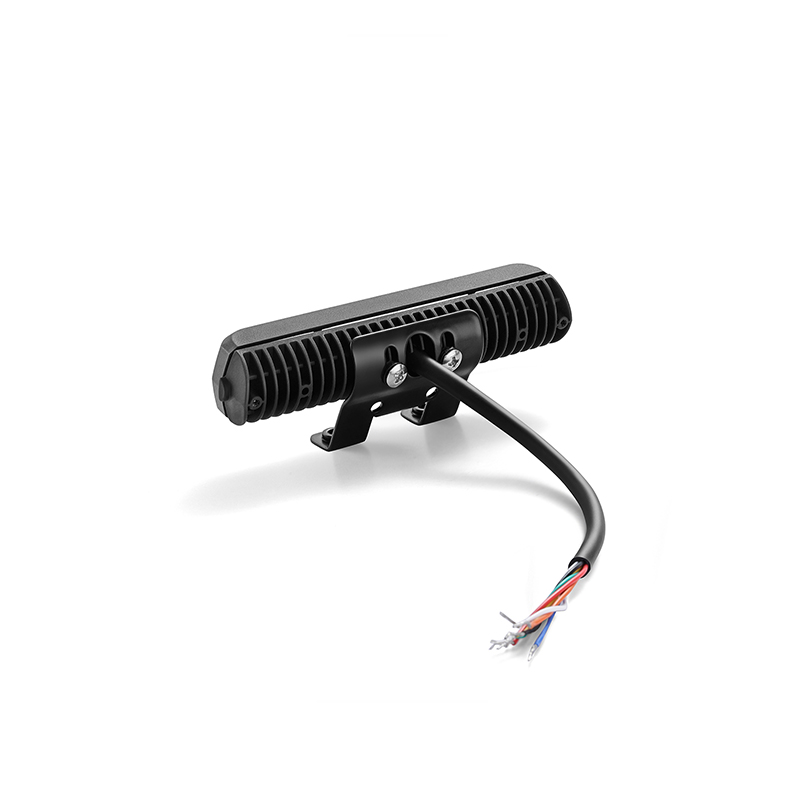

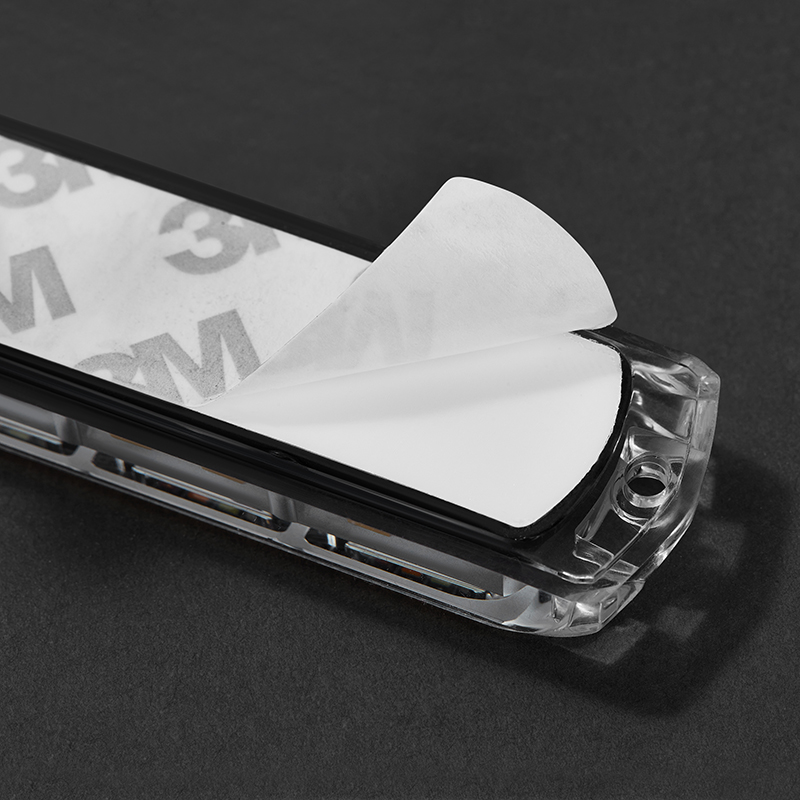

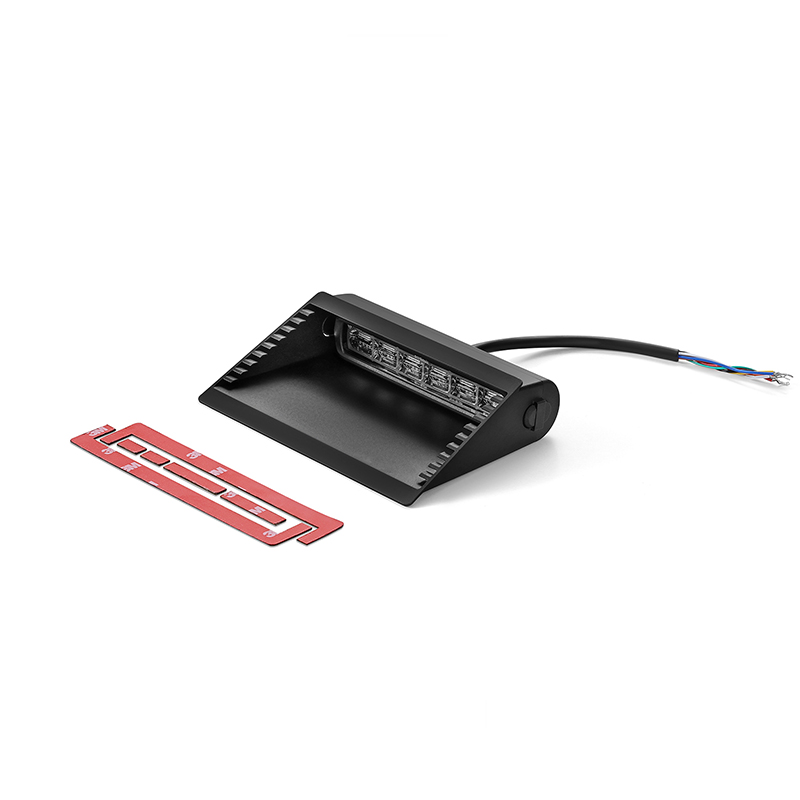

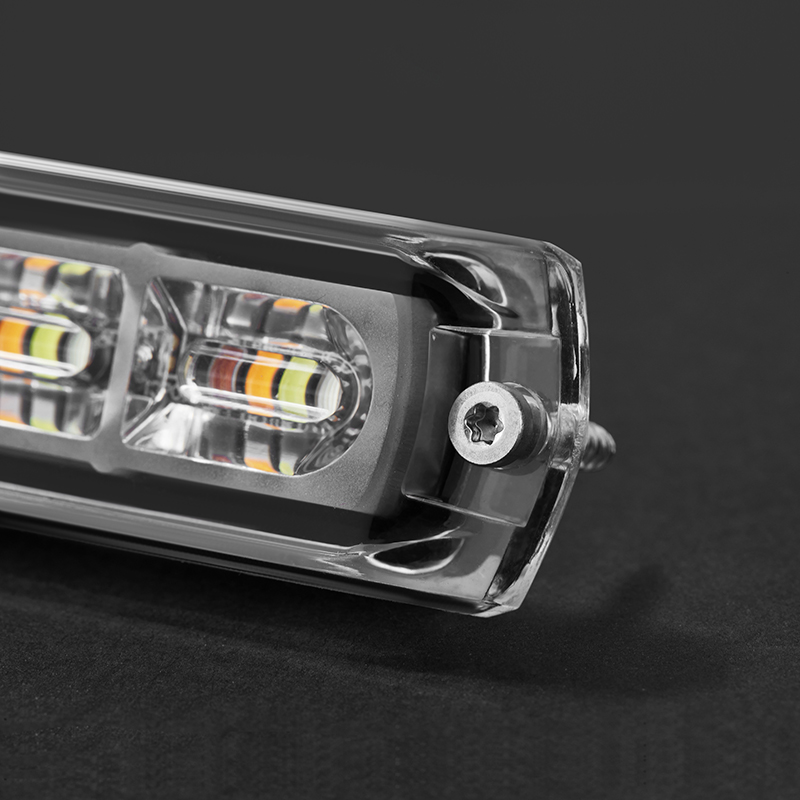

- 3M tape installation and M3 screw installation
- R10, R65 Class2, SAE J595 Class1, T13

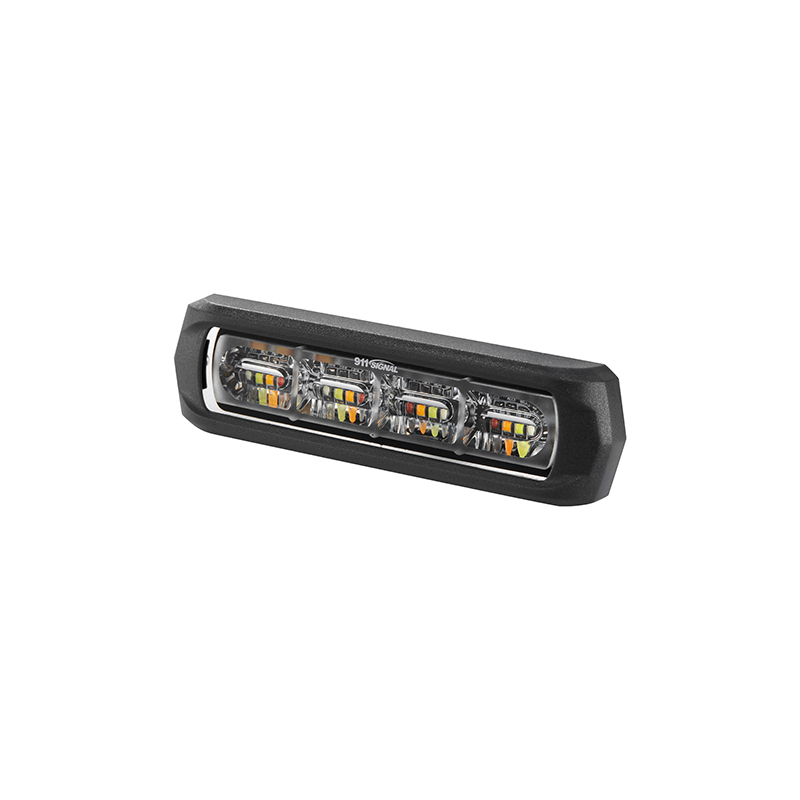

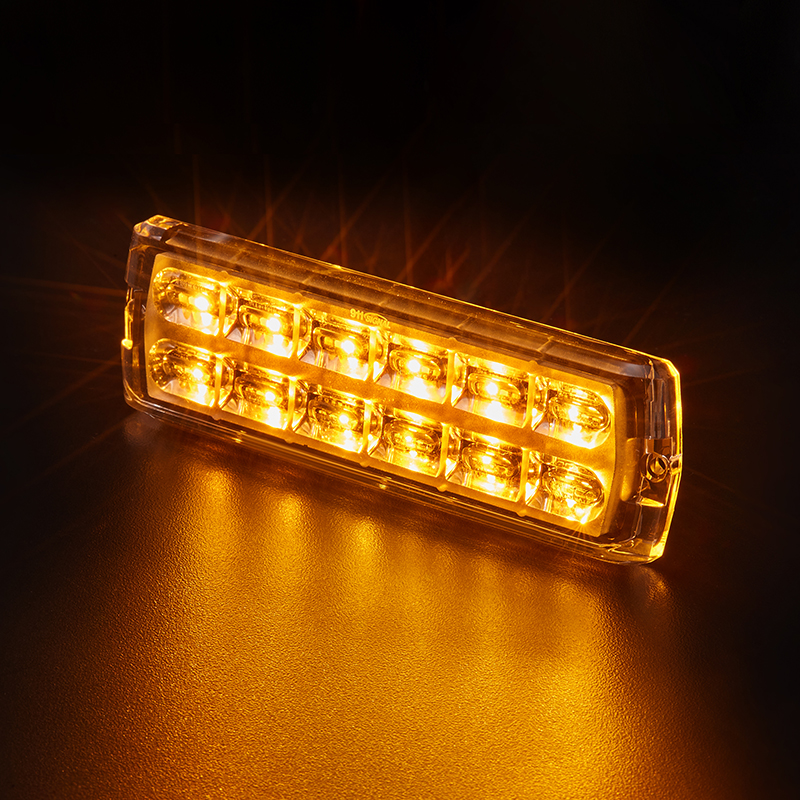

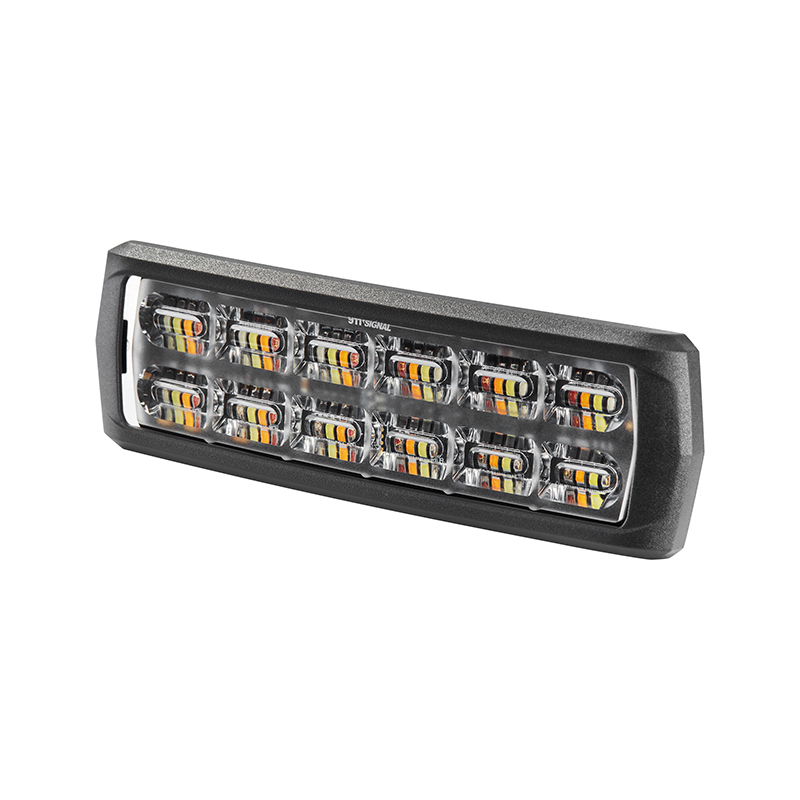

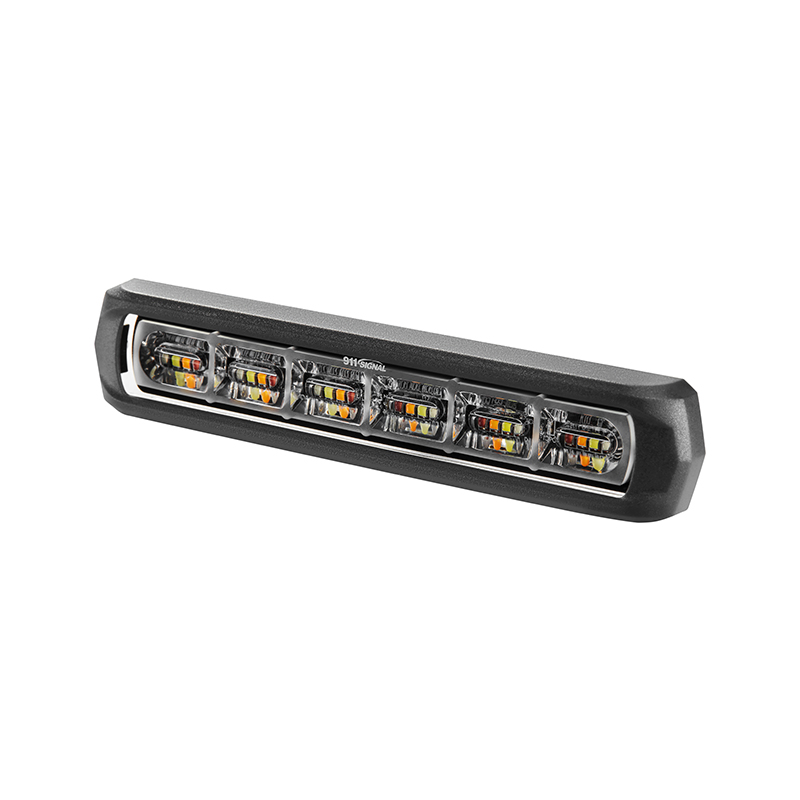

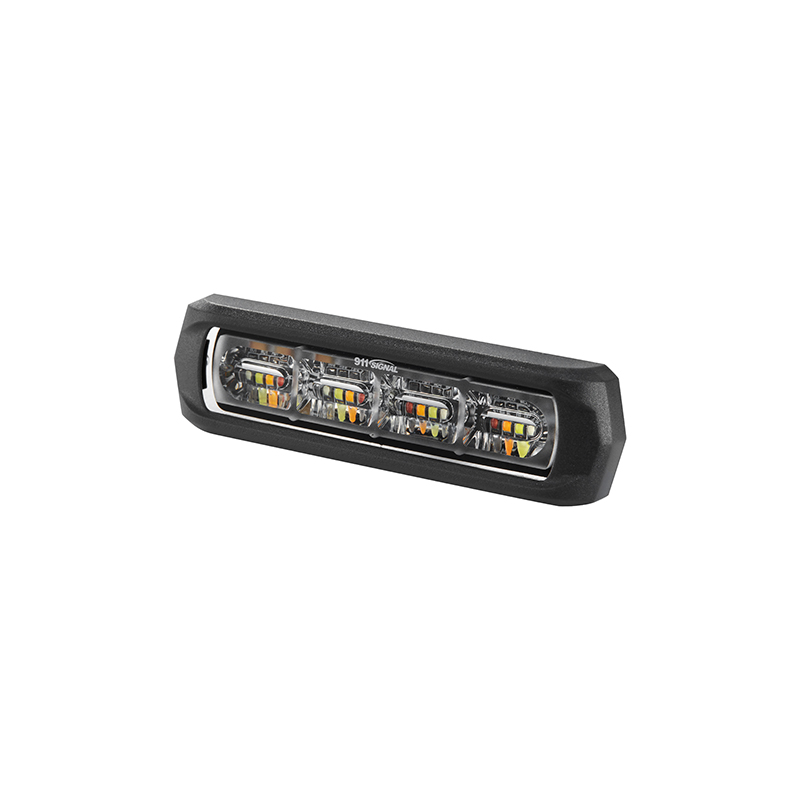

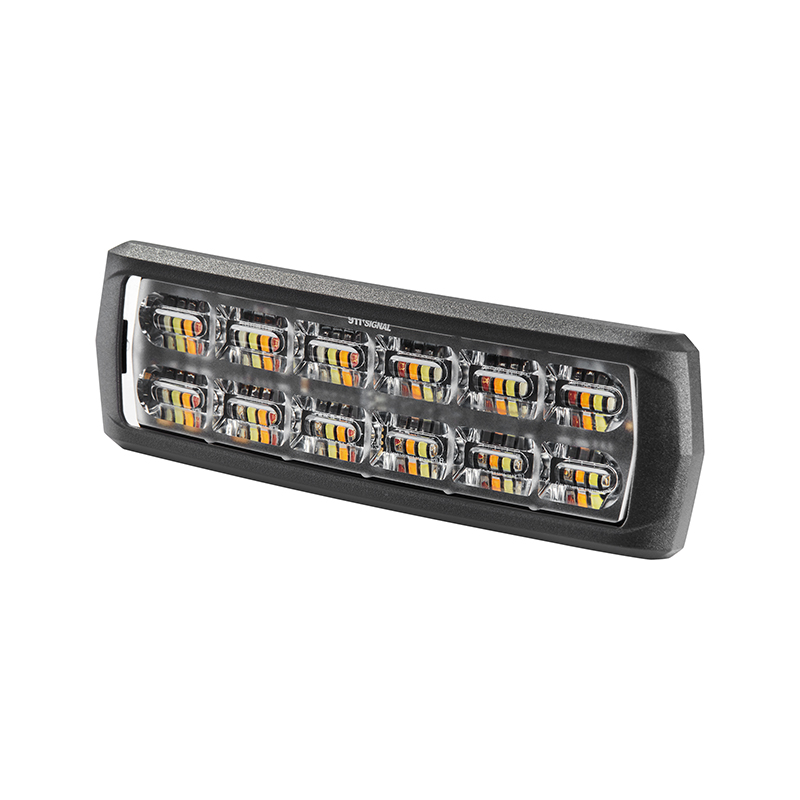

TF Series – Silicone Series LED Warning & Working Lighthead
Get A Quote

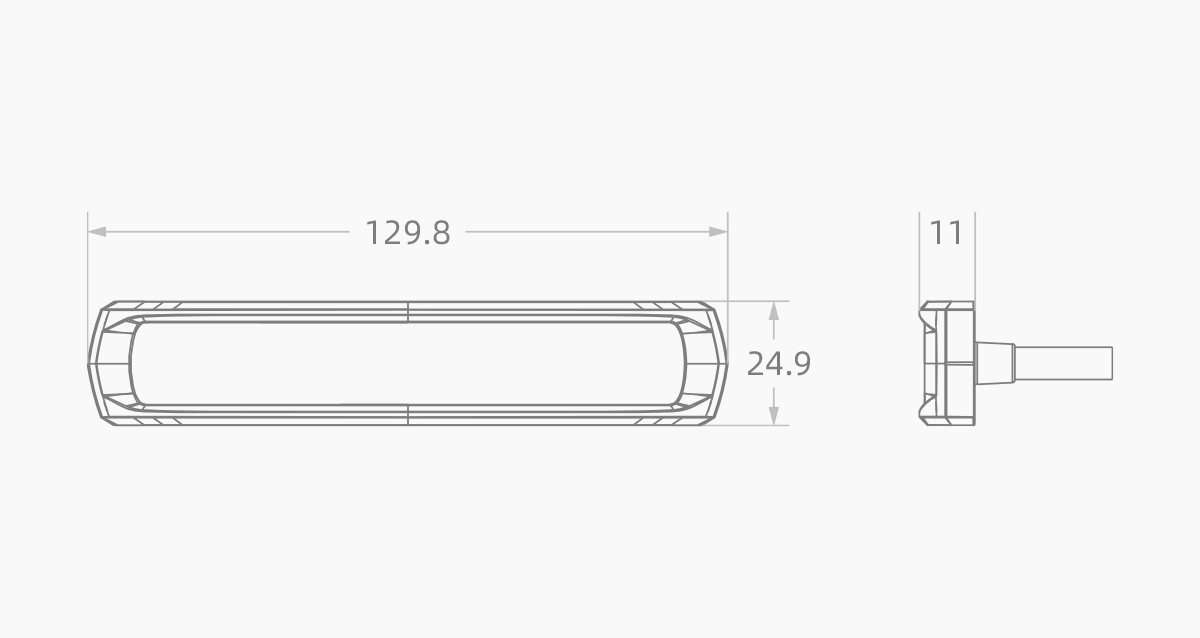

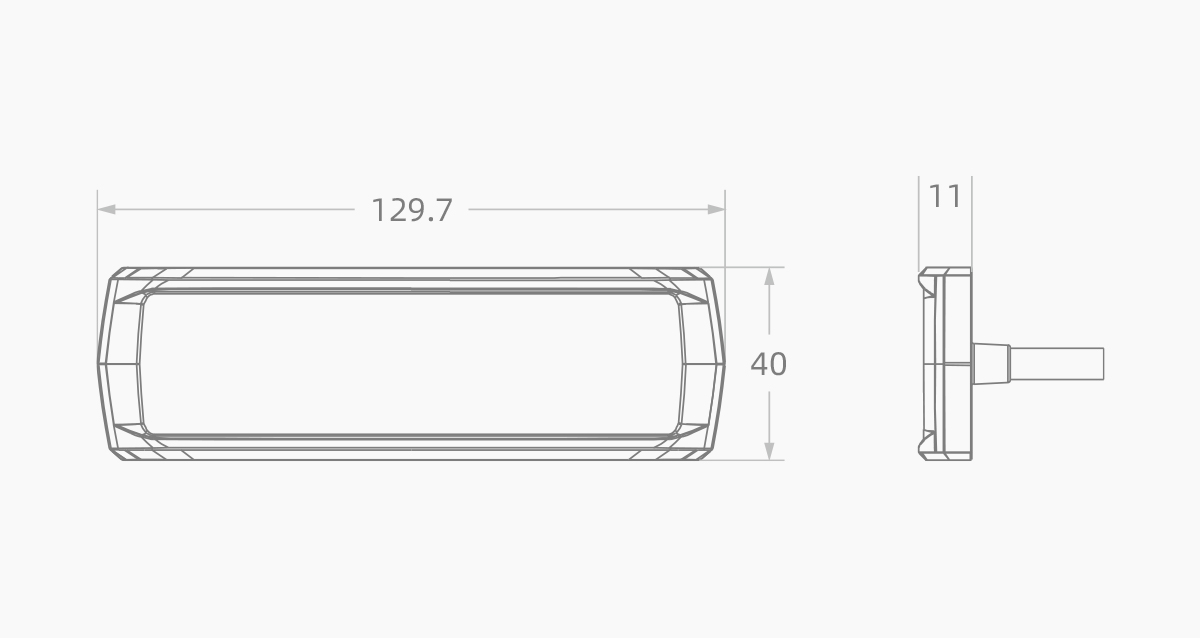

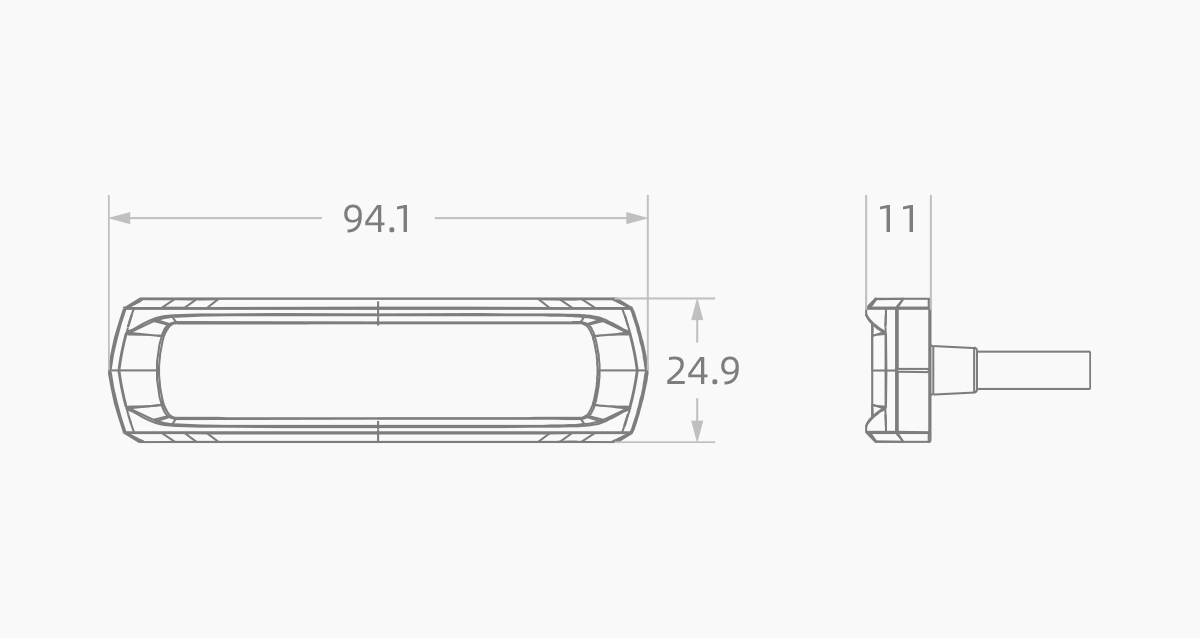

DIMENSIONS
SPECIFICATION
Code:TF4/TF6/TF12
Voltage:DC12V/DC10-33V
Color:sigle/dual/quad
Flash Pattern:14
LENS:TIR
FunctIon:Warning and Working Light
IP Rating:IP67+IP69K
Operating Temperature:-30 to +70’C
Certifications:ECE R10, ECE R65 XB2/XA2/XR2, SAE J595 class1, CA T13
Mounting:Screw Mount / 3M Tape Installation
Warranty:Lifetime Warranty
| Model | ITEM | SPECIFICATIONS | |
| TF4 | 024501TBR | DC 10-16V, Dual-color | 8-LEDs，Blue and Red |
| 024501TBW | 8-LEDs，Blue and White | ||
| 024501TRW | 8-LEDs，Red and White | ||
| 024501TAW | 8-LEDs, Amber and White | ||
| 024502TBRAW | DC 10-16V, Four-color | 16-LEDs, Red, Blue, Amber and White | |
| 024505B | DC 10-33V, Single-color | 4-LEDs, Blue | |
| 024505R | 4-LEDs, Red | ||
| 024505A | 4-LEDs, Amber | ||
| 024505W | 4-LEDs, White | ||
| 024506TBR | DC 10-33V, Dual-color | 8-LEDs，Blue and Red | |
| 024506TAB | 8-LEDs, Amber and Blue | ||
| 024506TBW | 8-LEDs, Blue and White | ||
| 024506TAR | 8-LEDs, Amber and Red | ||
| 024506TRW | 8-LEDs, Red and White | ||
| 024506TAW | 8-LEDs, Amber and White | ||

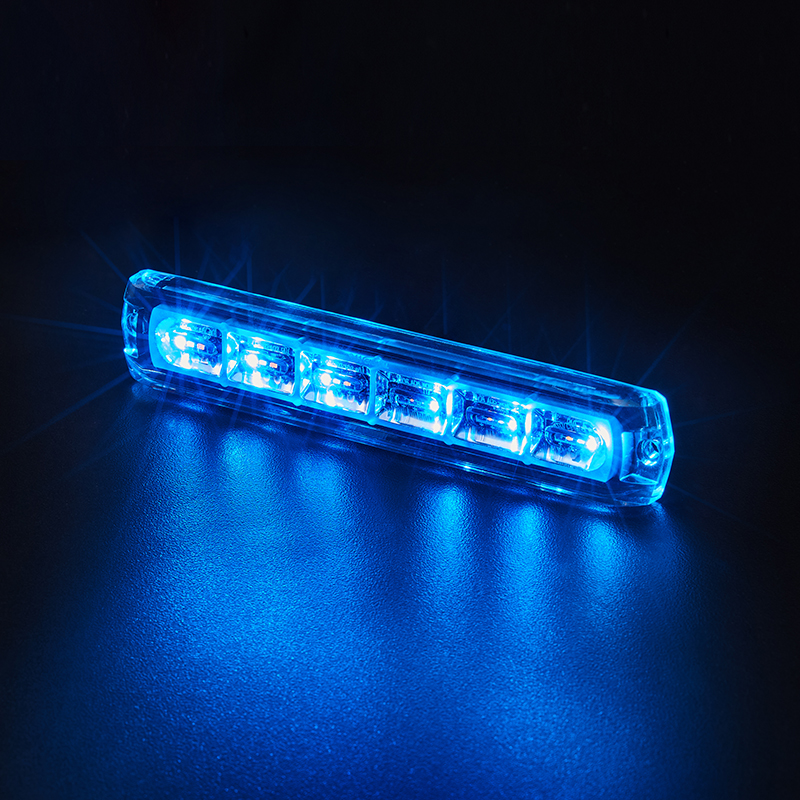

| TF6 | 024521TBR | DC 10-16V,Dual-color | 12-LEDs，Blue and Red |
| 024521TBW | 12-LEDs，Blue and White | ||
| 024521TRW | 12-LEDs，Red and White | ||
| 024521TAW | 12-LEDs, Amber and White | ||
| 024522TBRAW | DC 10-16V, Four-color | 24-LEDs, Blue, Red, Amber and White | |
| 024525B | DC 10-33V, Single-color | 6-LEDs, Blue | |
| 024525R | 6-LEDs, Red | ||
| 024525A | 6-LEDs, Amber | ||
| 024525W | 6-LEDs, White | ||
| 024526TBR | DC 10-33V, Dual-color | 12-LEDs, Blue and Red | |
| 024526TAB | 12-LEDs, Amber and Blue | ||
| 024526TBW | 12-LEDs, Blue and White | ||
| 024526TAR | 12-LEDs, Amber and Red | ||
| 024526TRW | 12-LEDs, Red and White | ||
| 024526TAW | 12-LEDs, Amber and White | ||
| TF12 | 024541TBR | DC 10-16V, Dual-color | 24-LEDs，Blue and Red |
| 024541TBW | 24-LEDs，Blue and White | ||
| 024541TRW | 24-LEDs，Red and White | ||
| 024541TAW | 24-LEDs, Amber and White | ||
| 024542TBRAW | DC 10-16V, Four-color | 48-LEDs, Blue, Red, Amber and White | |
| 024545B | DC 10-33V, Single-color | 12-LEDs, Blue | |
| 024545R | 12-LEDs, Red | ||
| 024545A | 12-LEDs, Amber | ||
| 024545W | 12-LEDs, White | ||
| 024546TBR | DC 10-33V, Dual-color | 24-LEDs, Blue and Red | |
| 024546TAB | 24-LEDs, Amber and Blue | ||
| 024546TBW | 24-LEDs, Blue and White | ||
| 024546TAR | 24-LEDs, Amber and Red | ||
| 024546TRW | 24-LEDs, Red and White | ||
| 024546TAW | 24-LEDs, Amber and White | ||
