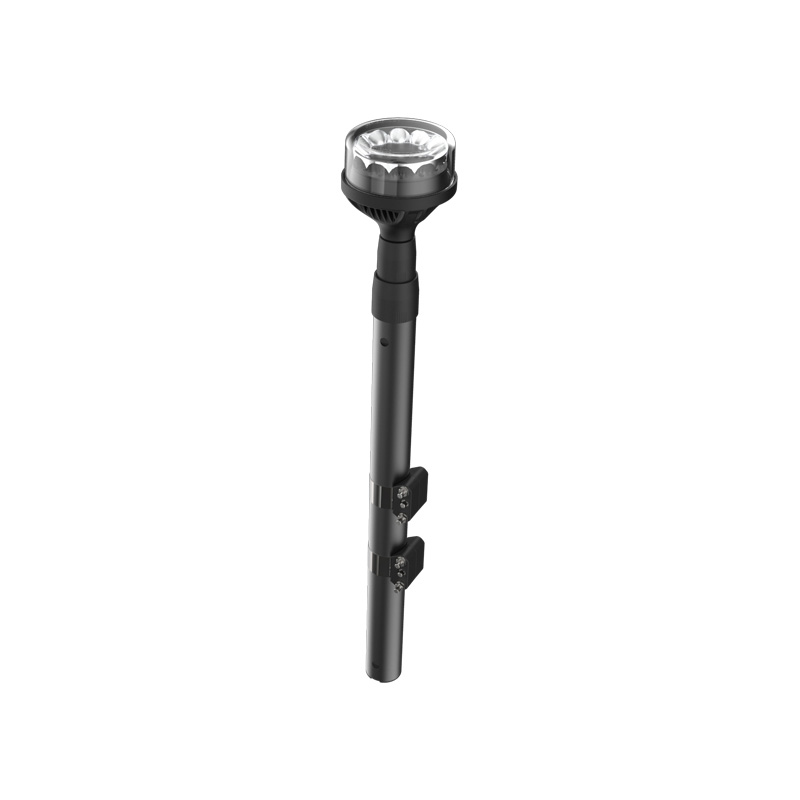

PHANTOM — Pole Mount Beacon for Motorcycle

  • Warning light available in single or dual color with SAE, R65 and R10 certifications
  • 360° visibility offers the maximized warning effects
  • Adjustable pole lengths
  • ABS and aluminum bracket maximizes longevity
  • Fast side mount with screws
Get A Quote

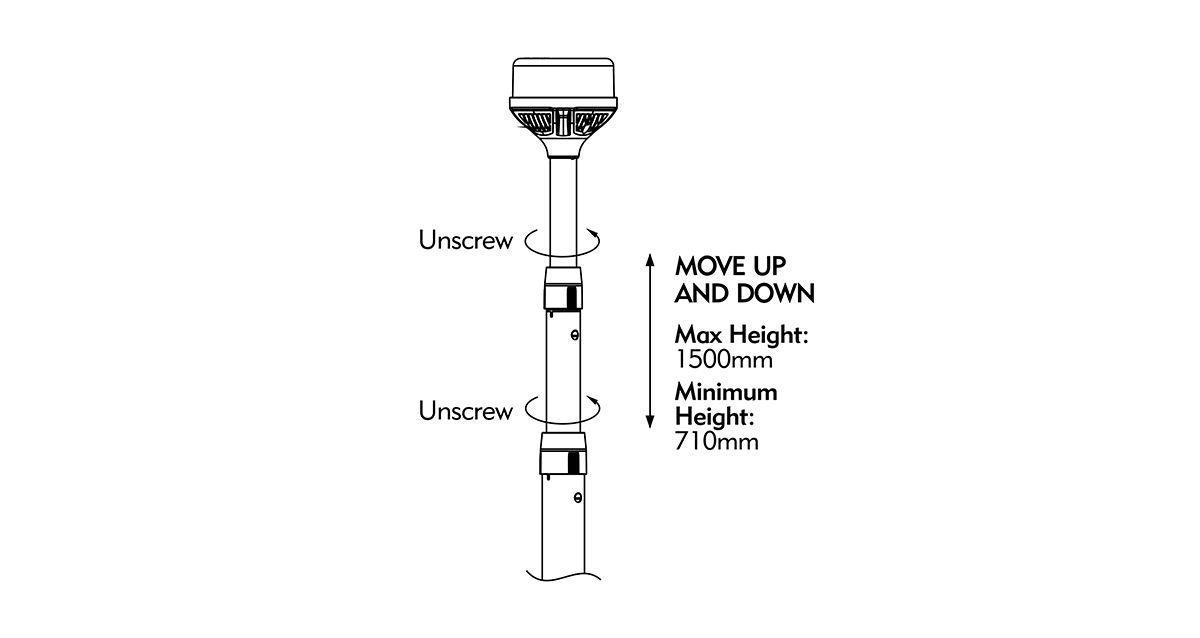

DIMENSIONS

SPECIFICATION

Model:Phantom

ITEM:081601,081602

Color: Single or Dual Color

Voltage:DC 10-33V

Max Power: 14W

LED: Single Color: 12pcs 3W; Dual Color: 24pcs 3W

Lens: Reflex

Flash Patterns: Single Color:22, Dual Color: 8

Mount: Screw Mount

Operating Temperature:-30 to 70℃

Certification:SAE, ECE R65, R10

ITEMMODELSPECIFICATIONS
081601APhantom C12DC10-33V|MAX 18W|φ129×(710-1500)MM|Reflective cup|Lampshade amber|Base black|12 LED amber|22 flash methods|Screw installation|3-core spring wire|IP68
081601BPhantom C12DC10-33V|MAX 18W|φ129×(710-1500)MM|Reflective cup|Lampshade blue|Base black|12 blue LEDs|22 flashing methods|Screw installation|3-core spring wire|IP68
081602TABPhantom C12DC10-33V|MAX 36W|φ129×(710-1500)MM|Reflective cup|Lampshade transparent|Black base|LED amber 12 pcs blue|22 flashing methods|Screw installation|4-core spring wire|IP68
081602TRBPhantom C12DC10-33V|MAX 36W|φ129×(710-1500)MM|Reflective cup|Lampshade transparent|Black base|LED blue 12 pcs red|22 flashing methods|Screw installation|4-core spring wire|IP68
081602TBRPhantom C12DC10-33V|MAX 36W|φ129×(710-1500)MM|Reflective cup|Lampshade transparent|Black base|LED blue 12 pcs red|22 flashing methods|Screw installation|4-core spring wire IP68
081606APhantom C12DC10-33V|MAX 18W|φ129×(710-1500)MM|Reflective cup|Lampshade transparent|Black base|12 LED amber|22 flash methods|Screw installation|3-core spring wire|IP68
