BEAR — TAIL LIFT WARNING AND WORKING LIGHT

  • The warning light is designed with a special attention to tail lift safety and is equipped with six light sources (LED) that flash both backwards and to the side.                                                    This ensures the security in the area of the platform.
  • The light sources are offset 270°and constructed photometrically identical so that the light can be mounted on a tail lift left or right.and the downward lighting function (500lm),when the trunk is open
  • The product is ultra-low profile and has an optimized slope design.
  • Cover made of zinc die casting with reflector design;
  • The warning lights blink automatically to the unfolding of lifting platform;
  • Water and dust proof to IP67 and IPX9K.
Get A Quote

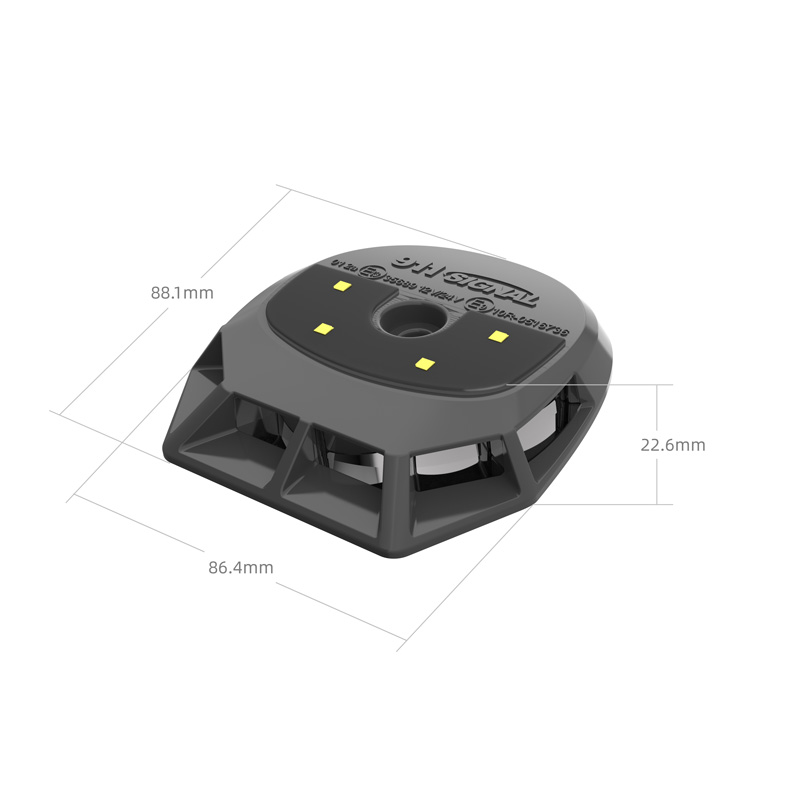

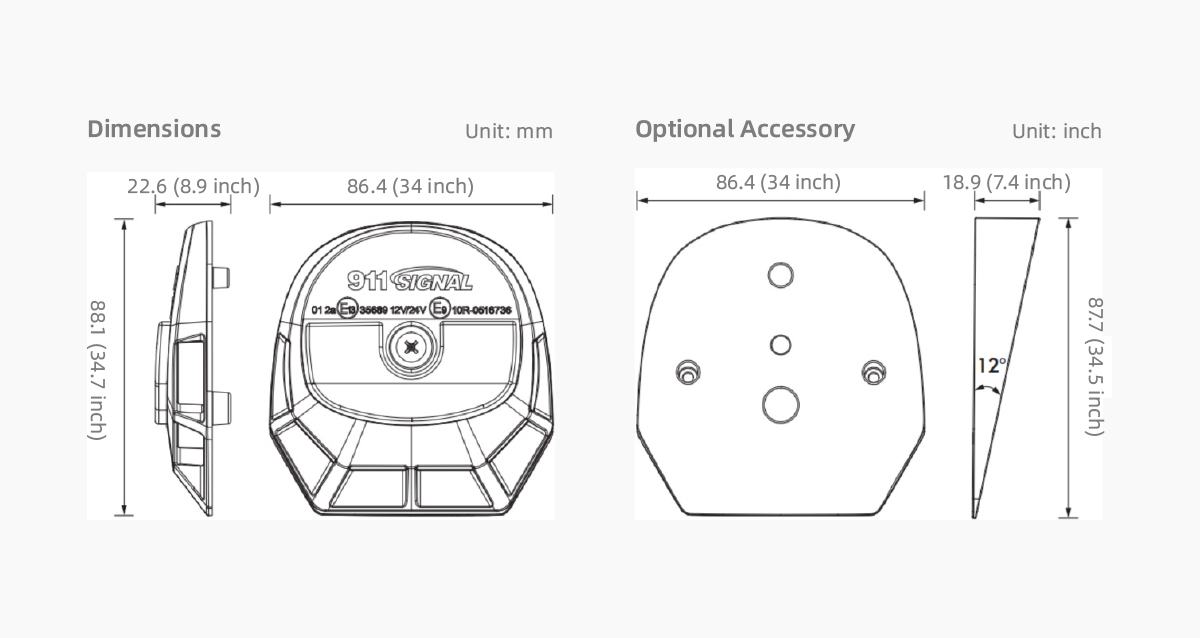

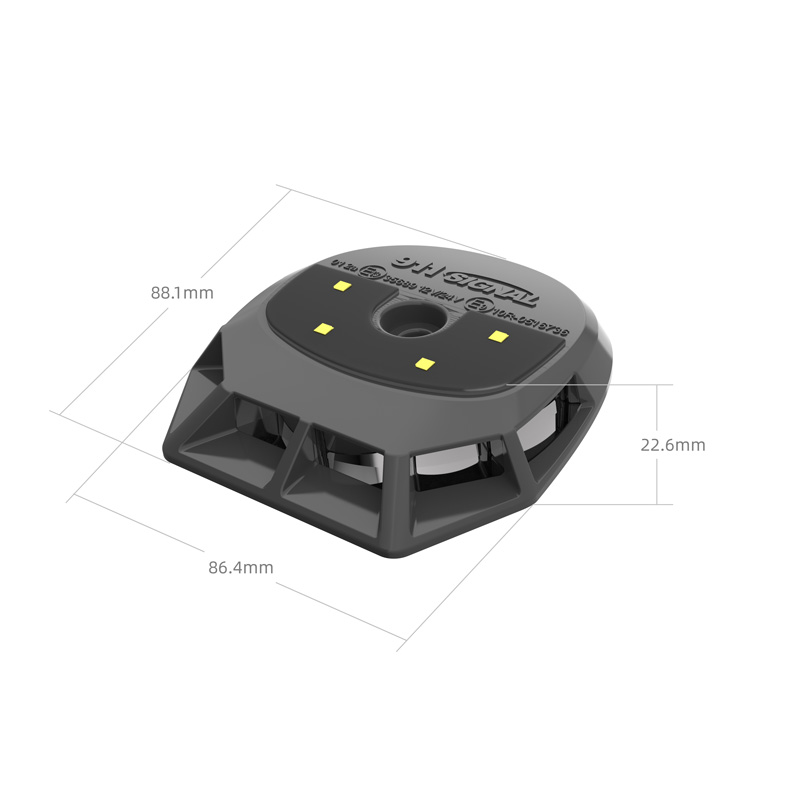

DIMENSIONS

SPECIFICATION

Voltage:DC 10-33V

Max Power:23W

LED:6Pcs(Warning light),4Pcs(floodlight)

Flash Patterns:13

Lens:Reflex

Mount:Screw Mount

Certification:EMC R10

ITEMMODELSPECIFICATIONS
024001ABEARDC10-33V|MAX 23W|86*88*23MM|Reflective cup|Zinc alloy cover|6 amber LEDs|12 flash methods|Screw installation|4-core sheathed wire|IP67\IP69K
024002ABEARDC10-33V|MAX 23W|86*88*23MM|Reflective cup|Zinc alloy cover|6 amber LEDs, 4 white LEDs 500LM|12 flashing methods|Screw installation|5-core sheathed wire|IP67\IP69K| Outer box B01WGWX30002, lining B01WGX300001, lining B01WGX100001, lining B01WGX200001, instruction manual B08BEAR00001
024002BBEARDC10-33V|MAX 23W|86*88*23MM|Reflective cup|Zinc alloy cover|6 blue LEDs, 4 white LEDs 500LM|12 flashing methods|Screw installation|5-core sheathed wire|IP67\IP69K| Outer box B01WGWX30002, lining B01WGX300001, lining B01WGX100001, lining B01WGX200001, instruction manual B08BEAR00001
