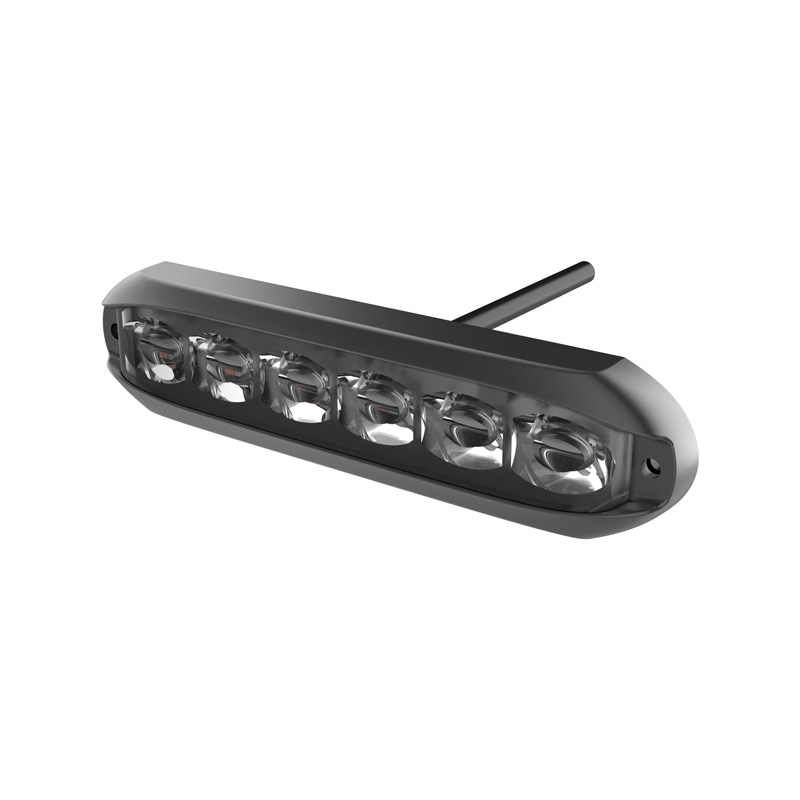

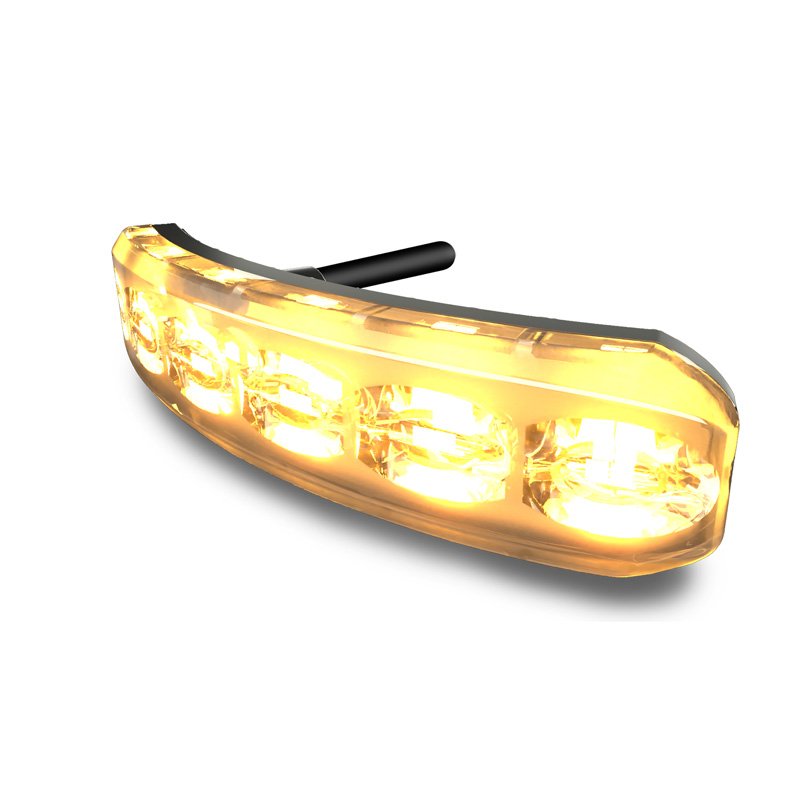

LOKI Series-Bendable for mounting on flat or curved surfaces

Lifetime warranty
LOKI silicone bendable LED light has effective resistance to impact and corrosion
Better anti–yellowing and antioxidant lens design than traditional ones

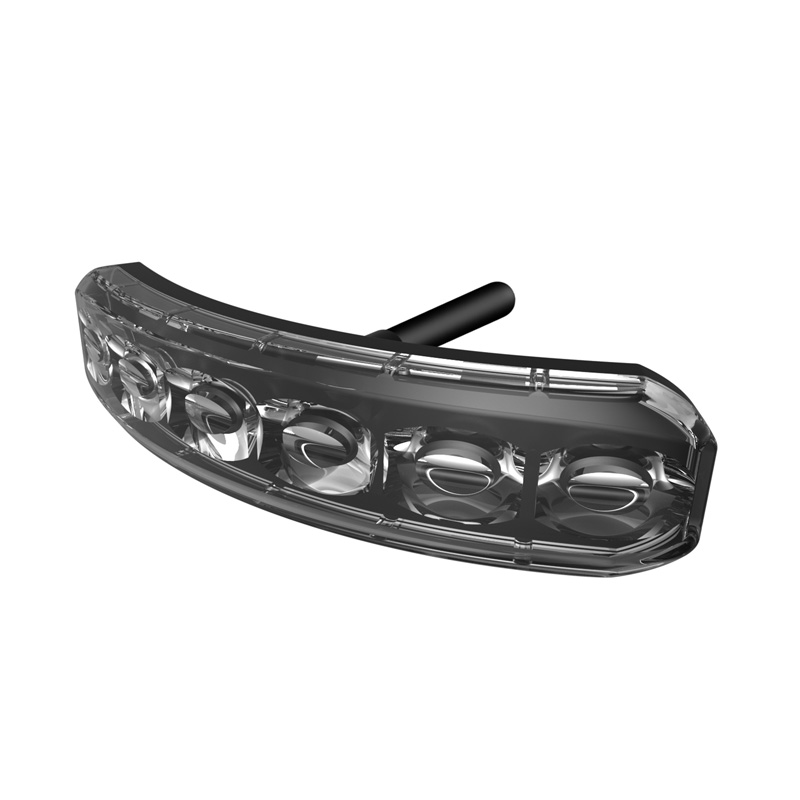

Can bend backward up to 30°, suitable for mounting on curved surfaces
3M VHB tape mounting and screw mounting
19 flash patterns for single color and 12 flash patterns for dual color
Unique heat dissipation technology is design to prolong service life
Reach and exceed: ECE R10 ECE R65 SAE J595 CA T13

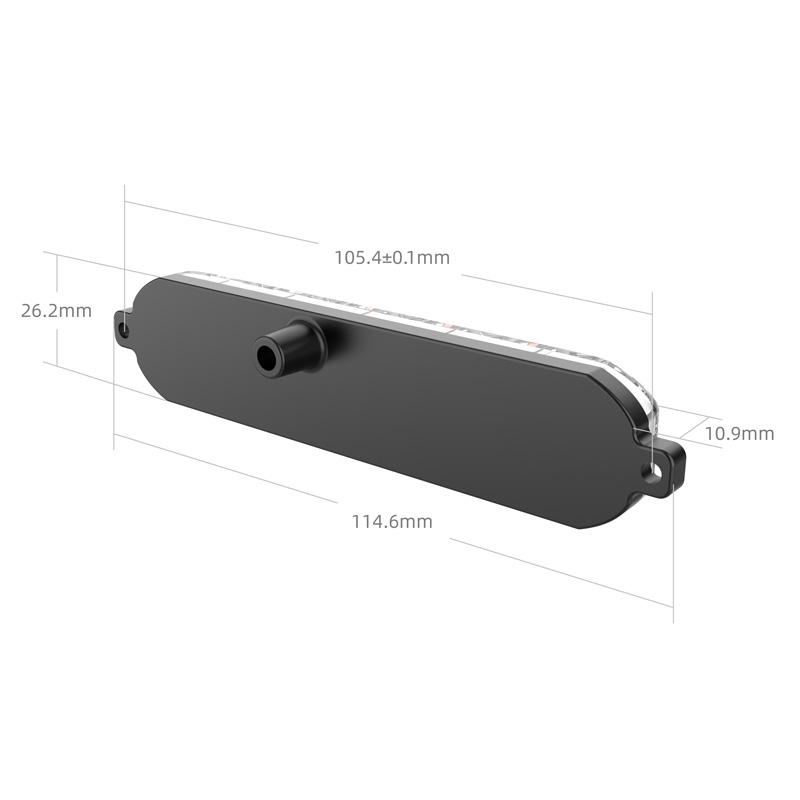

DIMENSIONS

SPECIFICATION

Product Name： LOKI

Max Power: 10W

Voltage: DC 10-33V

Dimensions: 100*23*10mm(Bezel-Free)

Lens: TIR

LEDS: Single 6pcs *3W/ Dual 12pcs 3W

Flash Pattern: Single 19/ Dual 12

Operating Temp.: -30°C to +70°C

Protection Level: IP67+IP69K

Certifications: ECE R65 Class 1, ECE R10, SAE J595, T13

Mounting: Screw Mounting/3M VHB Tape Mounting

ITEM	MODEL	SPECIFICATIONS
024118A	LOKI	DC10-33V\|MAX 10W\|1132611MM\|Bendable 30°\|Silicone transparent lens\|Outer cover 70% black\|6 LED amber colors\|19 flash methods\|3M glue paste\|4-core sheathed wire\|IP67 \IP69K
024118B	LOKI	DC10-33V\|MAX 10W\|1132611MM\|Bendable 30°\|Silicone transparent lens\|Outer cover 70% black\|LED blue 6 pieces\|19 flash methods\|3M glue paste\|4-core sheathed wire\|IP67 \IP69K
024118TAW	LOKI	DC10-33V\|MAX 10W\|1132611MM\|Bendable 30°\|Silicone transparent lens\|Outer cover 70% black\|LED amber 6 pcs white\|12 flash methods\|3M glue paste\|5-core sheath Line\|IP67\IP69K
024118TBW	LOKI	DC10-33V\|MAX 10W\|1132611MM\|Bendable 30°\|Silicone transparent lens\|Outer cover 70% black\|LED blue 6 pcs white 6 pcs\|12 flash methods\|3M glue paste\|5-core sheath Line\|IP67\IP69K
024118TRW	LOKI	DC10-33V\|MAX 10W\|1132611MM\|Bendable 30%\|Silicone transparent lens\|Outer cover 70% black\|LED red 6 pcs white\|12 flash methods\|3M glue paste\|5-core sheathed wire \|IP67\IP69K
024118TAB	LOKI	DC10-33V\|MAX 10W\|1132611MM\|Bendable 30%\|Silicone transparent lens\|Outer cover 70% black\|LED amber 6 pcs blue\|12 flash methods\|3M glue paste\|5 core protection Set of cables\|IP67\IP69K
024118TBR	LOKI	DC10-33V\|MAX 10W\|1132611MM\|Bendable 30°\|Silicone transparent lens\|Outer cover 70% black\|LED blue 6 pcs red\|12 flash methods\|3M glue paste\|5-core sheath Line\|IP67\IP69K
024121A	LOKI	DC10-33V\|MAX 10W\|1132611MM\|Bendable 30%\|Silicone transparent lens\|Outer cover 70% black\|6 amber LEDs\|19 flashing methods\|Screw installation, 3M glue paste\|4-core sheath Line\|IP67\IP69K
024123TAW	LOKI	DC10-33V\|MAX 10W\|1132611MM\|Bendable 30%\|Silicone transparent lens\|Outer cover 70% black\|LED amber 6 pcs white\|12 flashing methods\|Screw installation, 3M glue paste\|5 Core sheathed wire\|IP67\IP69K
024123TAB	LOKI	DC10-33V\|MAX 10W\|1132611MM\|Bendable 30%\|Silicone transparent lens\|Outer cover 70% black\|LED amber 6 pcs blue\|12 flashing methods\|Screw installation, 3M glue paste\| 5-core sheathed wire\|IP67\IP69K
024401B	LOKI	DC10-33V\|MAX 10W\|Flexible\|No lens\|Glue\|LED blue 6 pieces\|19 flashing methods\|3M glue paste\|4-core sheathed wire
024119A	LOKI	DC10-33V\|MAX 10W\|1132611MM\|Bendable 30%\|Silicone transparent lens screen printing LEDSON\|Outer cover 70% black\|6 LED amber colors\|19 flashing methods\|Screw installation, 3M glue paste\|4 cores Sheathed wire 2.5 meters red: positive pole, black: negative pole, yellow: sync/trigger/reset, white: alternating\|IP67\IP69K\|color box B020NO418002, outer box B010NO400001, instruction manual B08LOKIX2003
024120A	LOKI	DC10-33V\|MAX 10W\|1132611MM\|30% bendable\|Silicone transparent lens screen printing Durite\|Outer cover 70% black\|6 LED amber colors\|19 flashing methods\|Screw installation, 3M glue paste\|Sheath Wire \| 4 wires red: positive, black: negative, yellow: synchronization/trigger/reset, white: alternating\|IP67\IP69K\|color box B02LOKIX1002, instruction manual B08LOKIX2002
024301A	LOKI	DC10-33V\|MAX 10W\|1132611MM\|Bendable 30%\|Silicone transparent lens screen printing AWARD\|Outer cover 70% black\|6 LED amber colors\|19 flashing methods\|Screw installation, 3M glue paste\|Sheath Wire \| 4 wires red: positive, black: negative, yellow: synchronization/trigger/reset, white: alternating\|IP67\IP69K\|color box B02LOKIX1004, instruction manual B08LOKIX2005
024302A	LOKI	DC10-33V\|MAX 10W\|1132611MM\|Bendable 30%\|Silicone transparent lens\|Outer cover 70% black\|6 LED amber colors\|19 flashing methods\|Screw installation, 3M glue paste\|4-core sheath Cable 2.5 meters red: positive pole, black: negative pole, yellow: sync/trigger/reset, white: alternating\|IP67\IP69K\|Color box B020NO418001\|Outer box B010NO400001
