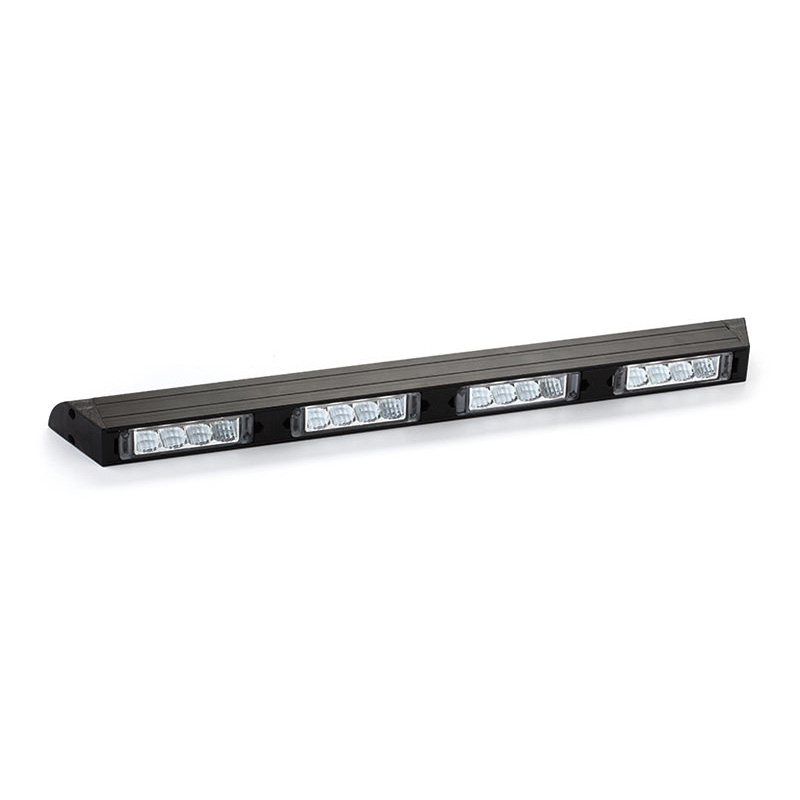

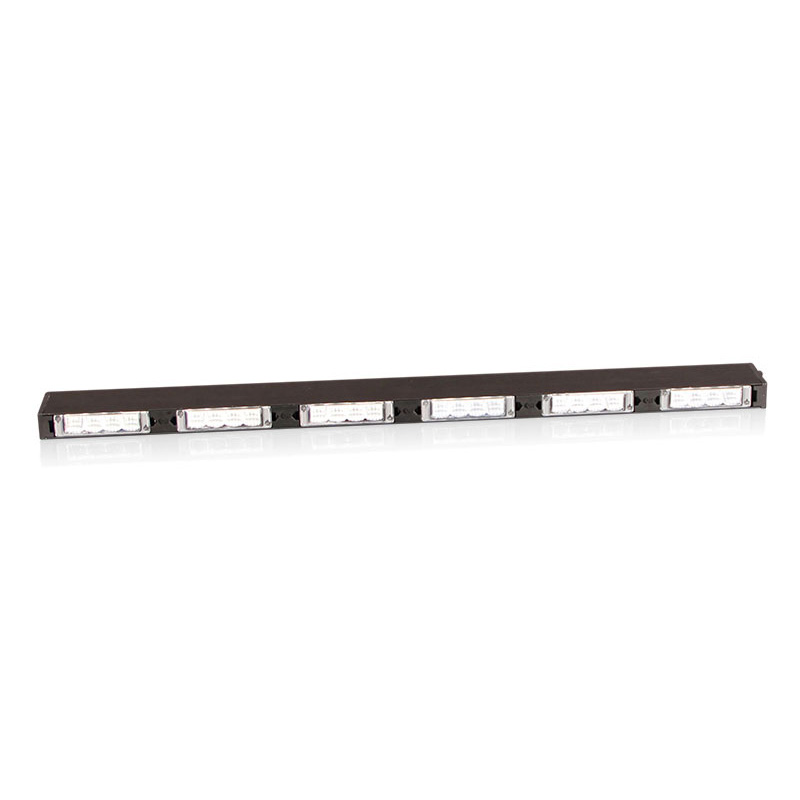

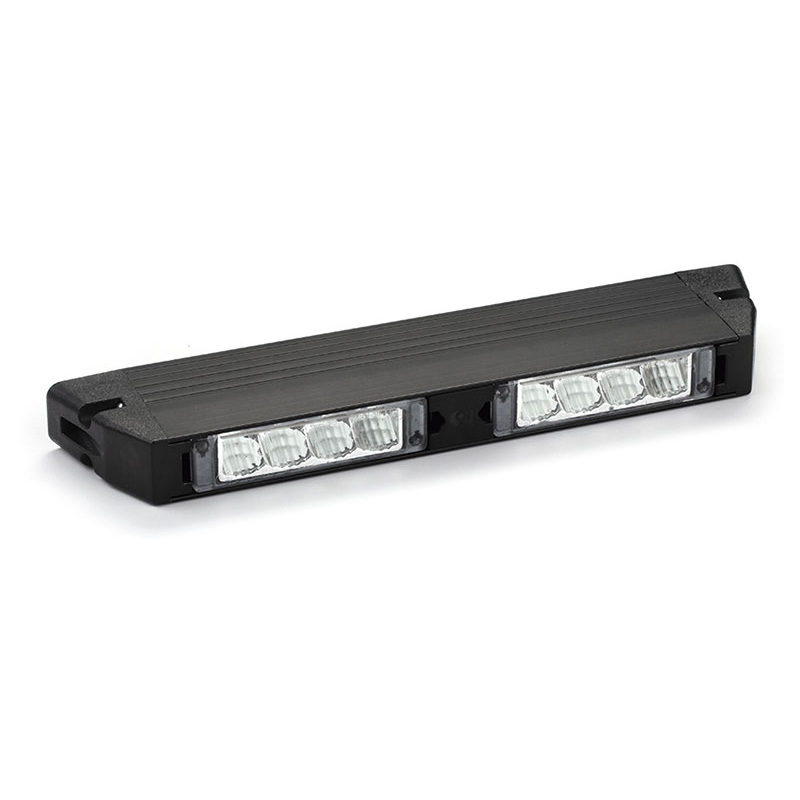

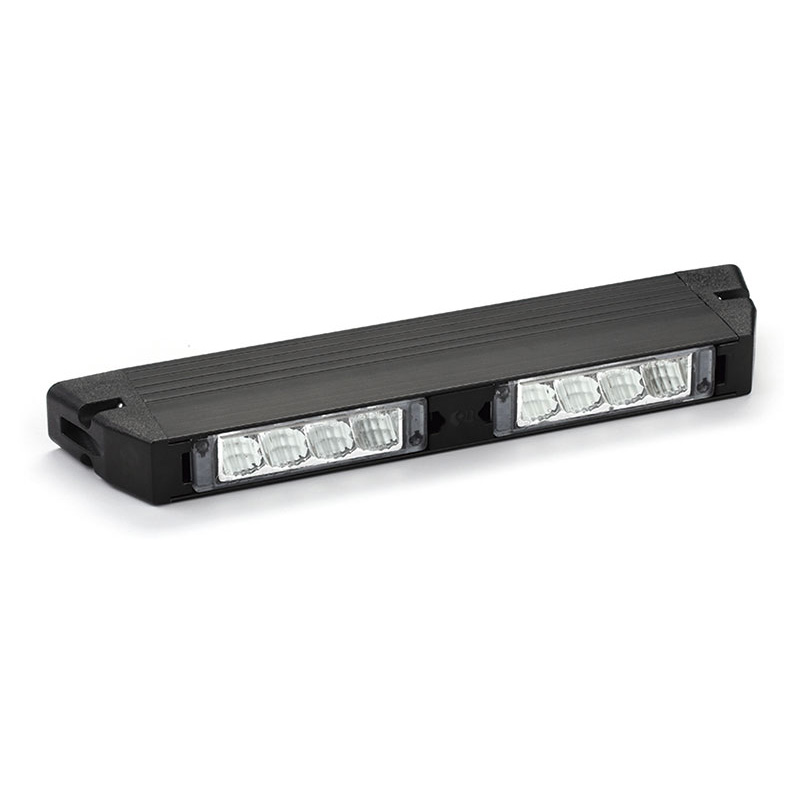

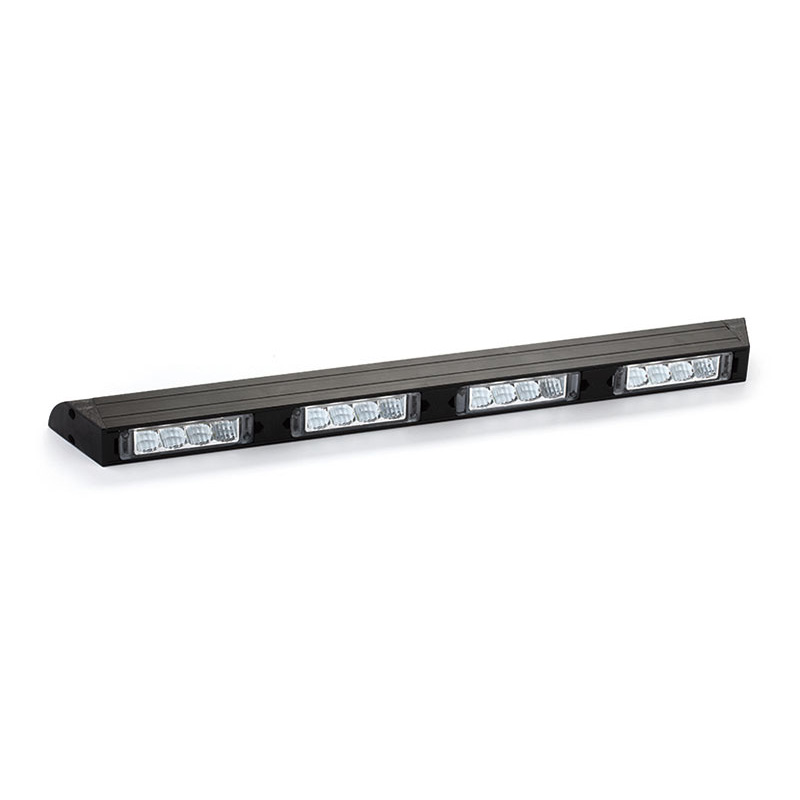

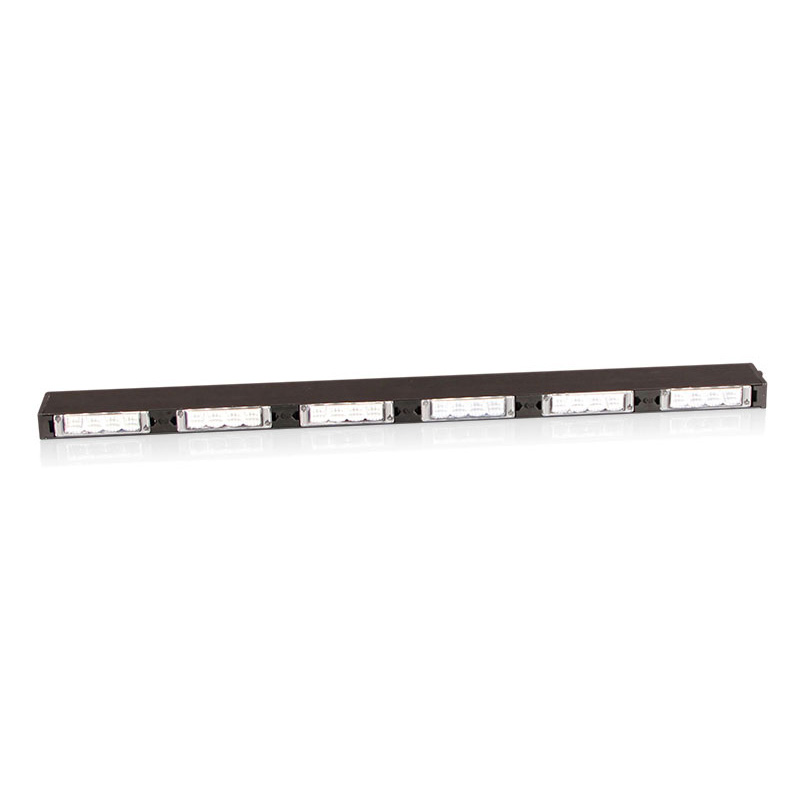

- LED Vehicle Light Stick, LED Warning Light Bars
- Black Aluminum enclosure, to ensure good cooling effect.
- The T-shaped Bolt Mount And Standard Screw Mount Optional.
- Installation: Screw or T-shaped screws or Bracket

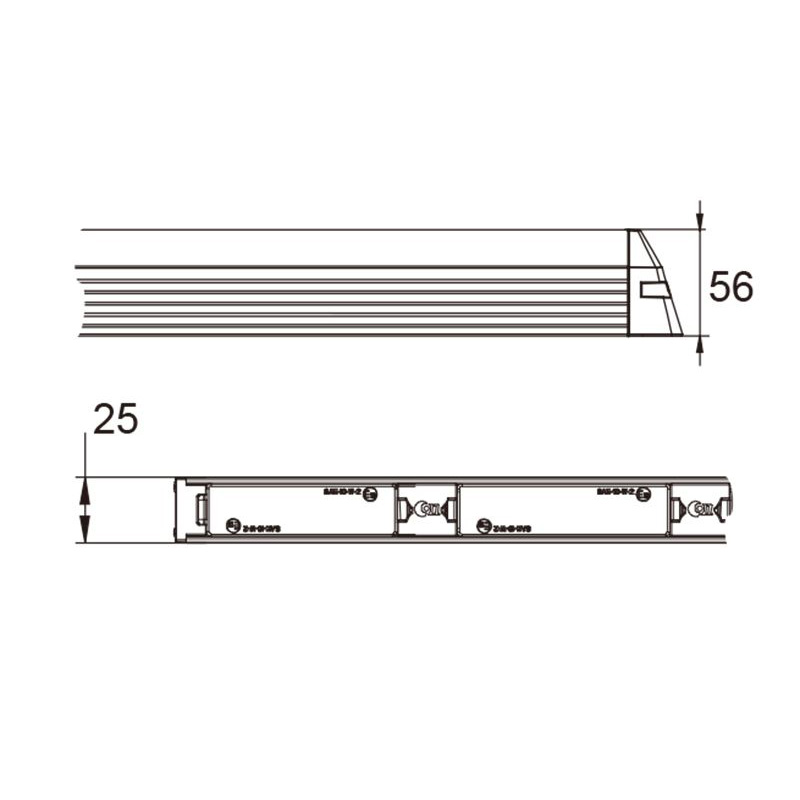

DIMENSIONS
SPECIFICATION
Electrical Characteristics
Voltage: DC 10-30V
Max Power: 42W
Physical Characteristics
Colour Available: red, blue, white and amber and combination color
Ambient temperature: -20–+65℃
Mounting : T-Shaped Screws or Bracker
Flash patterns: 26
Waterproof: IP67
Meet and Exceeds: ECE R65 XB1 00 0035, ECE R65 XA1 00 0036, ECE R10 04 12754, SAE 3-1 10
Product Dimension: 68cm L x 5.6cm W x 2.5cm H(27.0 “L x 2.2” W x 1.0″H)
| Model | ltem | Length | MaxPower | FlashPatterns | LED | Wire | Lens | Voltage | Operating Temperature | Mount | Certification | |
| C4-S SERIES | 040101 | C4-2 | 9″(228mm) | 21W | 19 | 8PCS 3W | 4 coreCable | REFLEX | DC 12-24V | -30 to +70℃C | T-shaped Screws, Bracket Mount | SAE. ECE R65 XA1 XB1 ECE R10 |
| 040102 | C4-4 | 19″(482mm) | 41W | 26 | 16PCS 3W | |||||||
| 040103 | C4-8 | 36″ (915mm) | 87W | 26 | 32PCS 3W | 8 coreCable | ||||||
| 040104 | TC4-DB | 36″(915mm) | 87W | 43 | 64PCS 3W | |||||||
| 040501 | Work light LC4 | 19″(482mm) | 54W | SteadyBurn | 16PCS 3W | 2 coreCable | BracketMount | |||||
