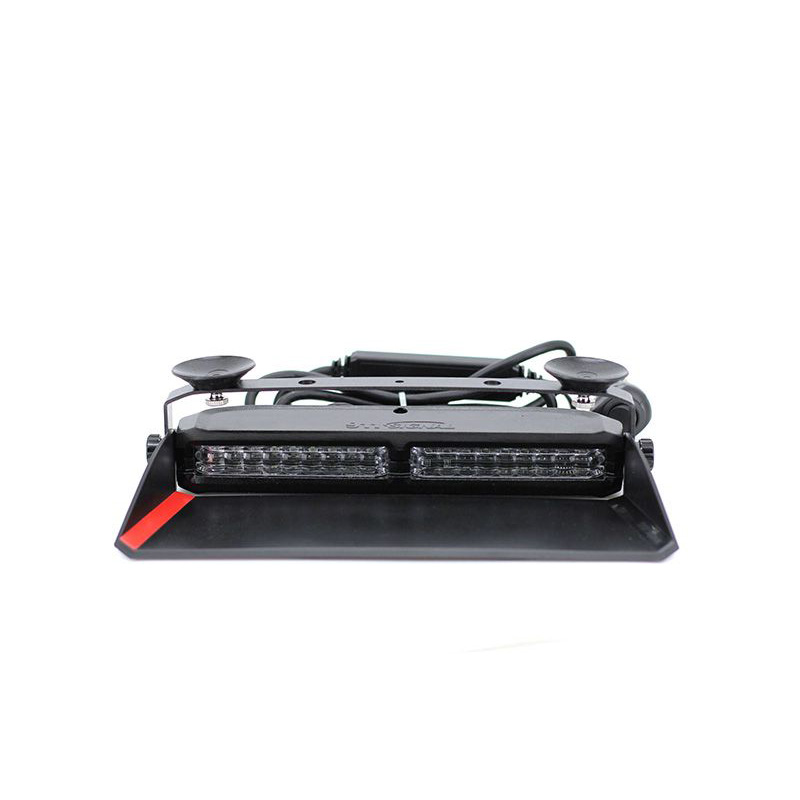

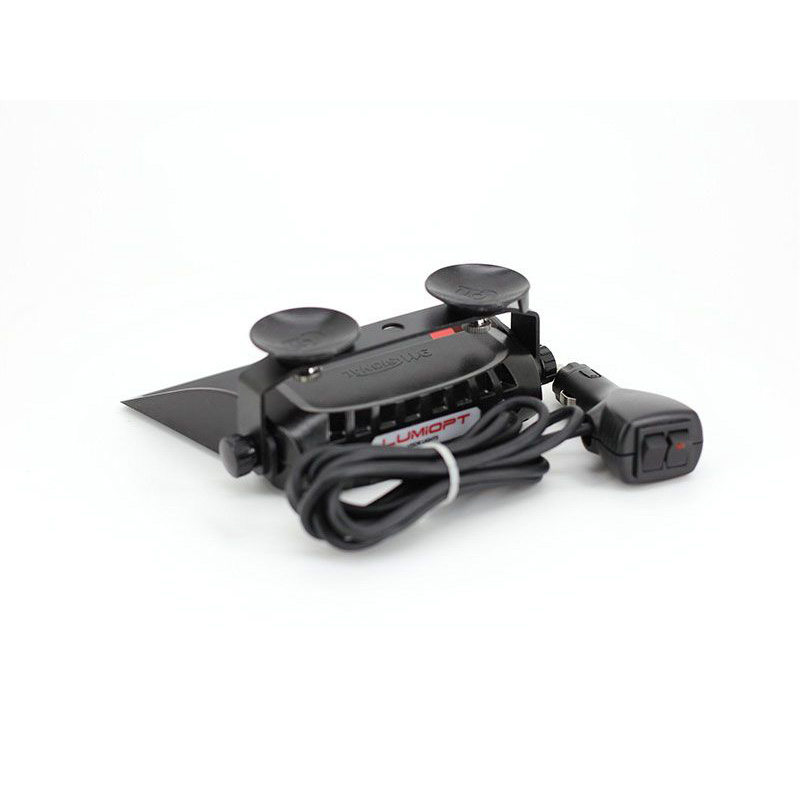

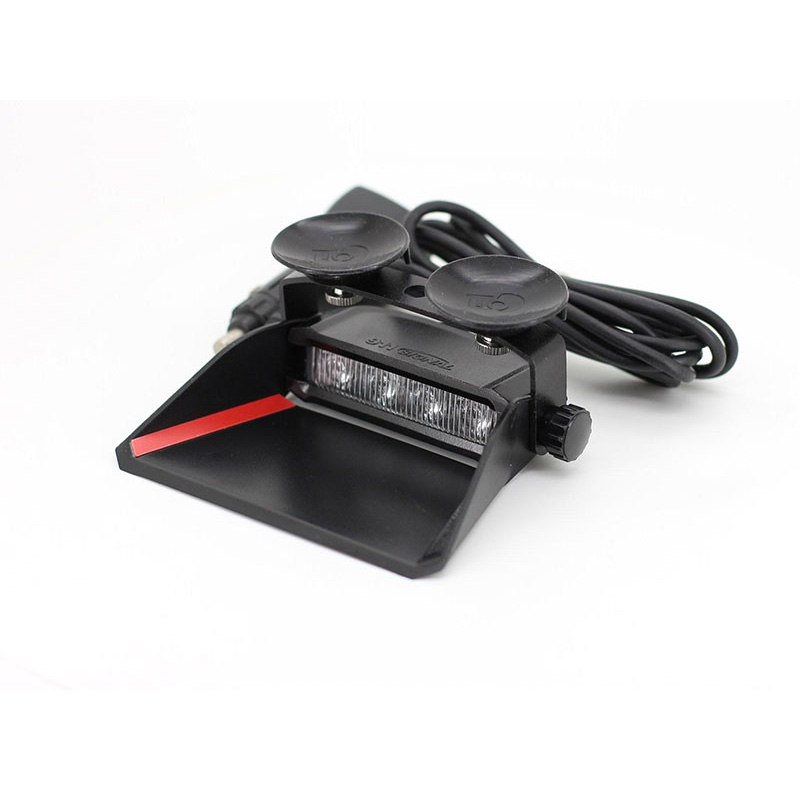

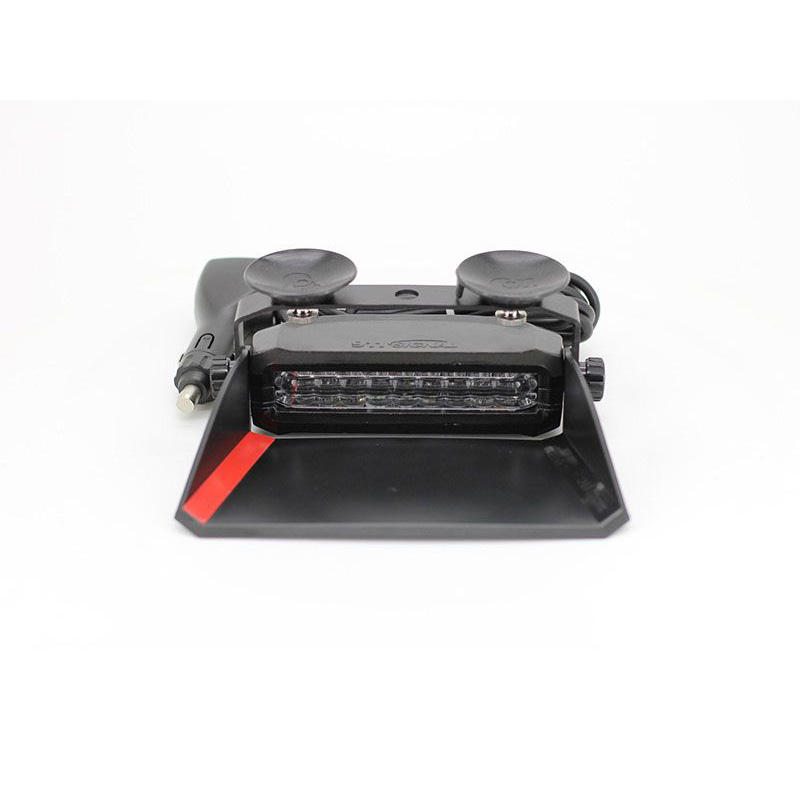

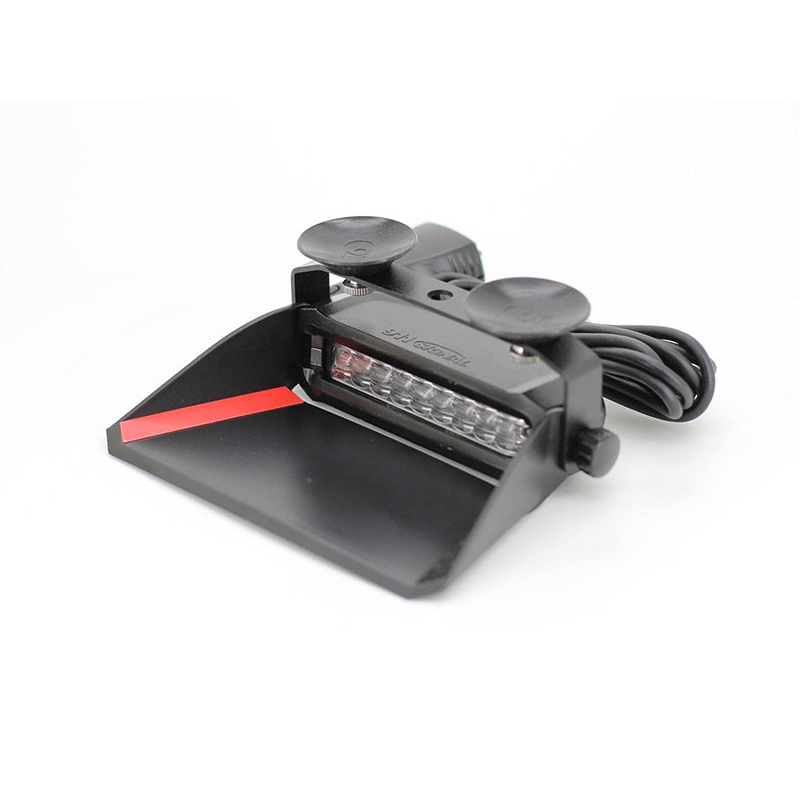

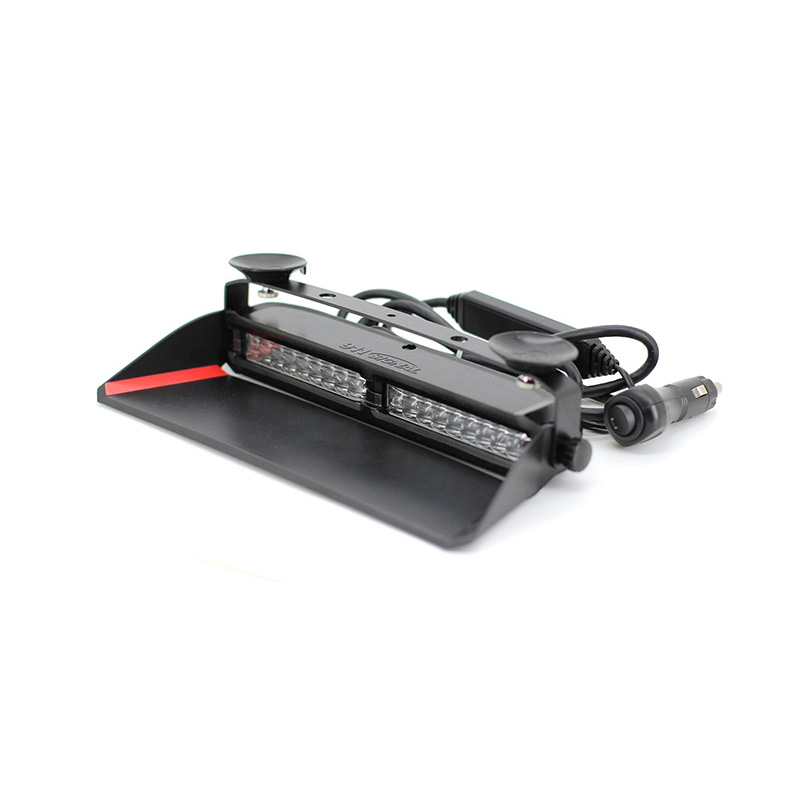

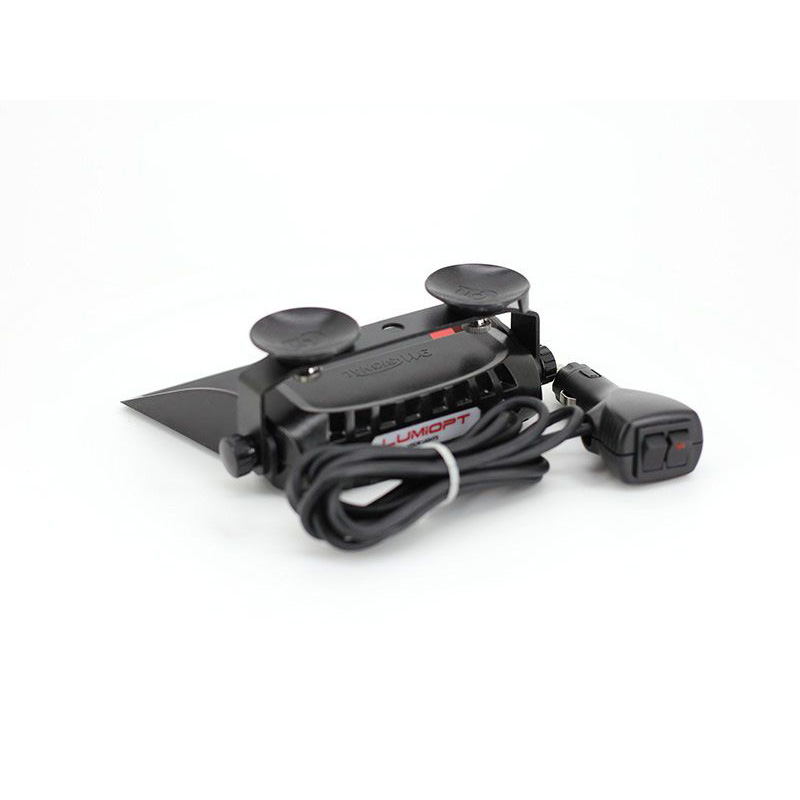

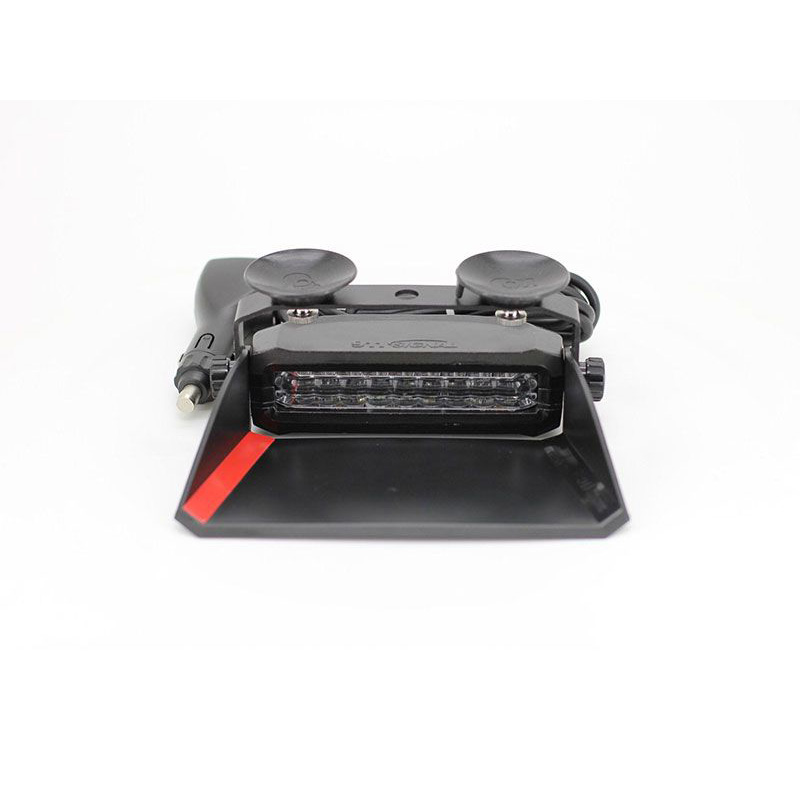

Lumiopt Series – LED Dash Light

  • SAE J595, CA T13, ECE R65 and ECE R10 Certified
  • Glare shield is adjustable and will not block the driver’s vision
  • Adjustable brackets, suitable for various applications
  • Full encapsulated for moisture, vibration and corrosion resistance
  • Hard-coated lenses and aluminum housing minimize environmental damage
  • Available in single, dual or triple colors
  • Multiple functions and excellent performance

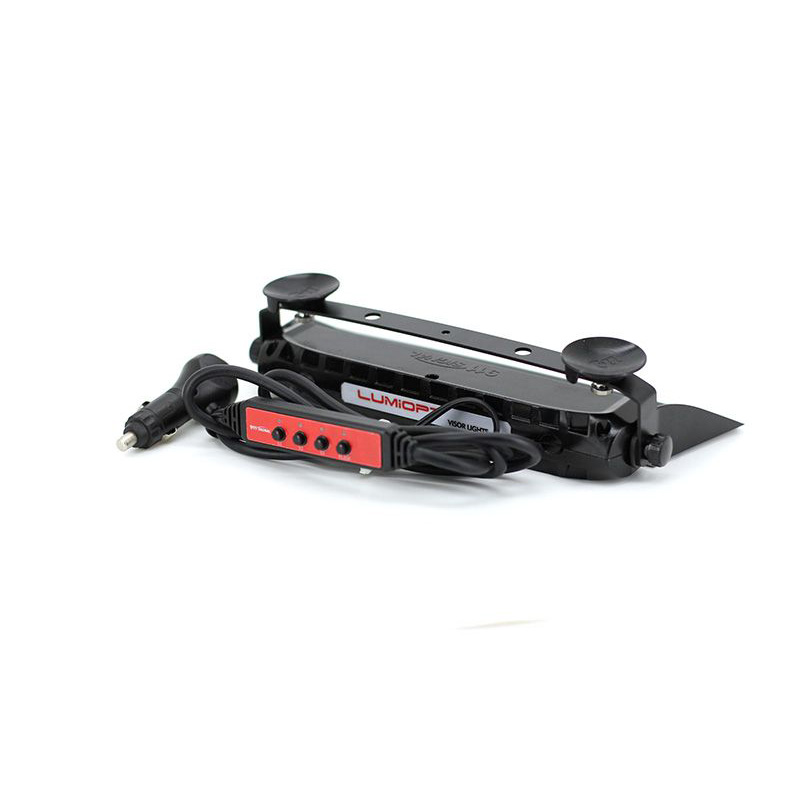

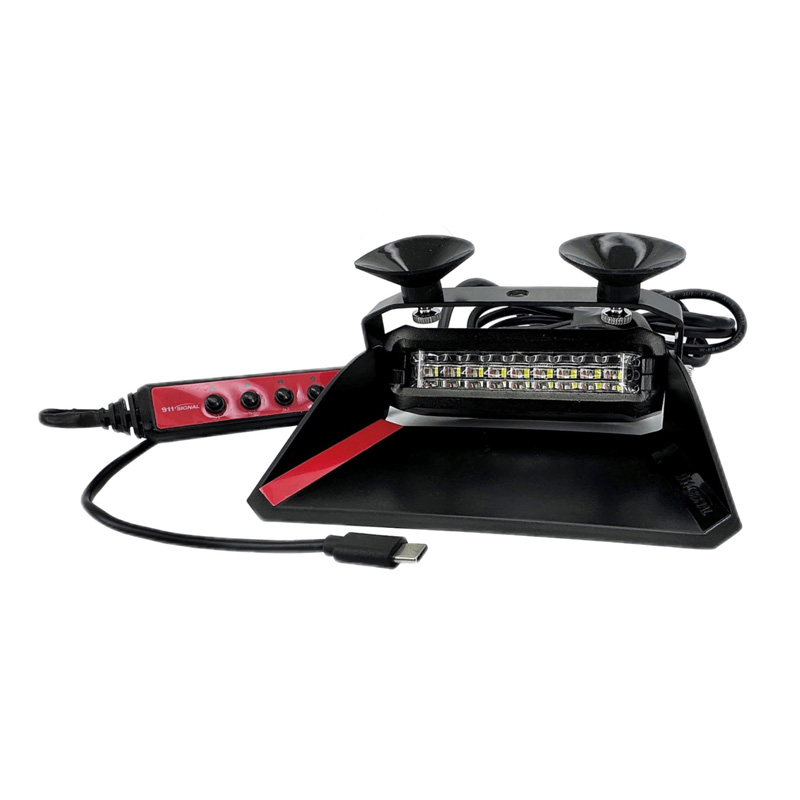

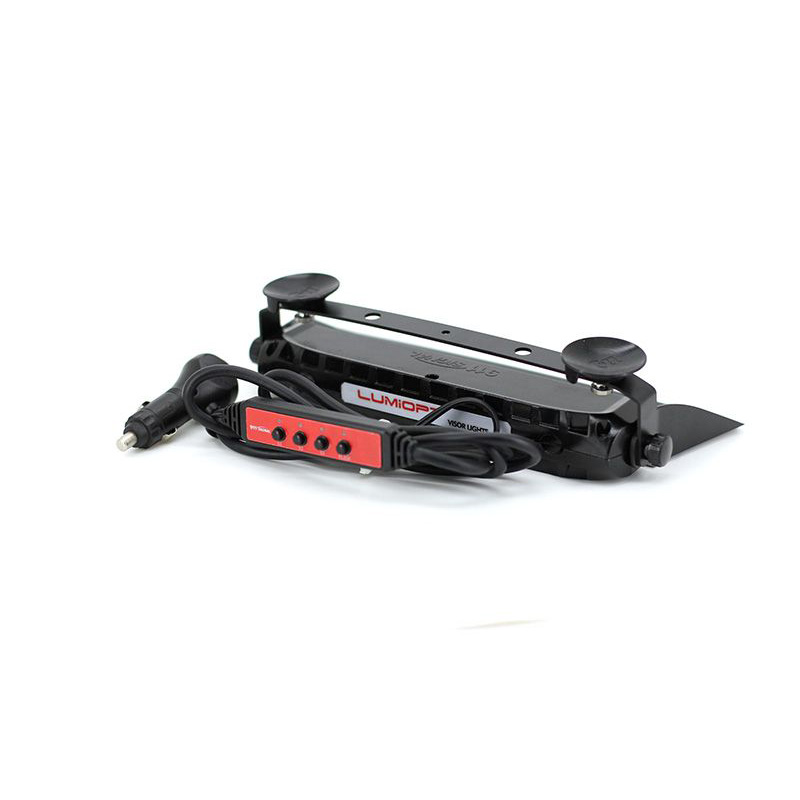

  • Triple-color model is supplied with a controller which provides the option to select LED colors and flash patterns

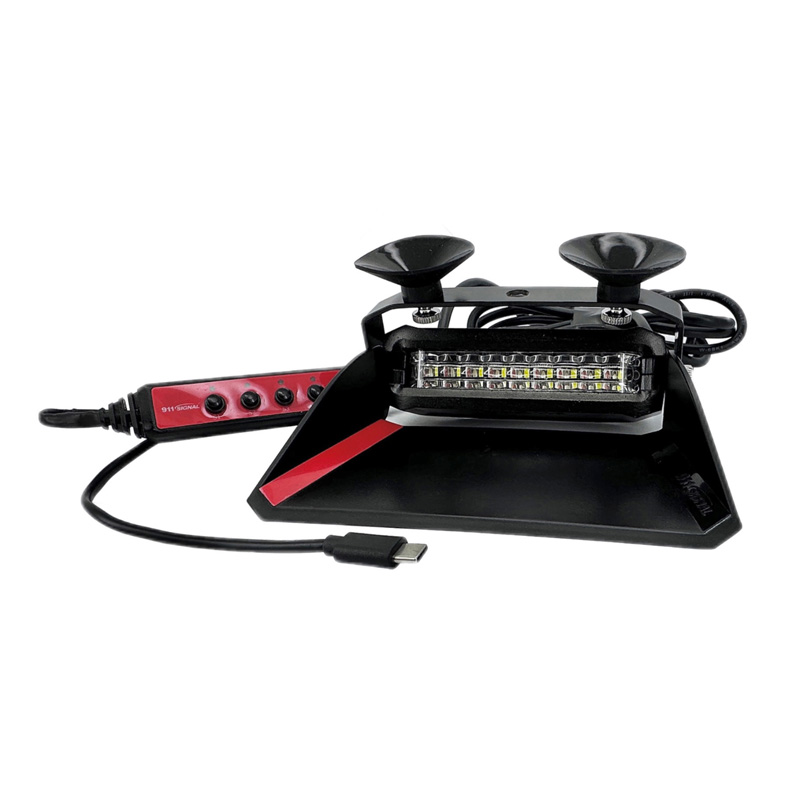

  • Typ-c plug, can be connected to a mobile power supply
  • Synchronize to other 911Signal products
Get A Quote

DIMENSIONS

SPECIFICATION

Light Characteristics

LED Power: 18 pcs of 3W LEDs

Lens: TIR

Electrical Characteristics

Voltage: DC 10-33V

Max Power: 44W

Physical Characteristics

Colour: Available in single or dual or three color models

Ambient temperature: -30–+80°

Mounting: Suction cup mount

Flash patterns: 19

Meet and Exceeds: ECE R65 XA2 00 0083; ECE R65 XB2 00 0084; ECE R65 XR2 00 0085; SAE-16-W-1; CA T13

Product Dimension: 273mm×118mm×67mm(10.7 “Long x 4.6” Wide x 2.6″High)

ITEMMODELSPECIFICATIONS

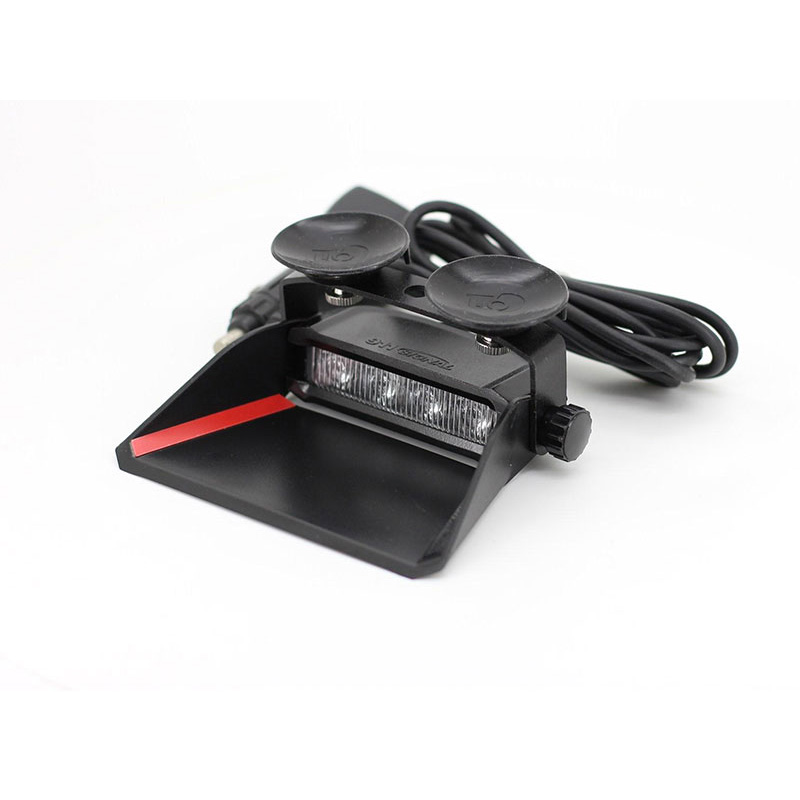

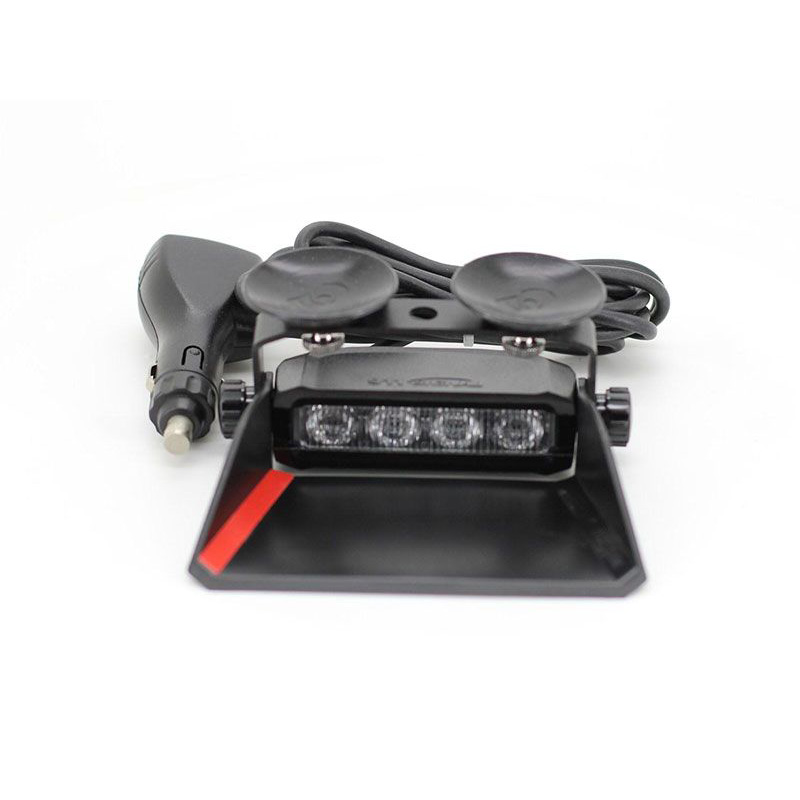

051801ALUMIOPT-T4DC10-33V|MAX 6W|123*26MM|Transparent lens|Casing black aluminum alloy|4 LED amber colors|19 flash methods|Suction cup installation|A13-163 cigarette lighter|3-core sheathed wire

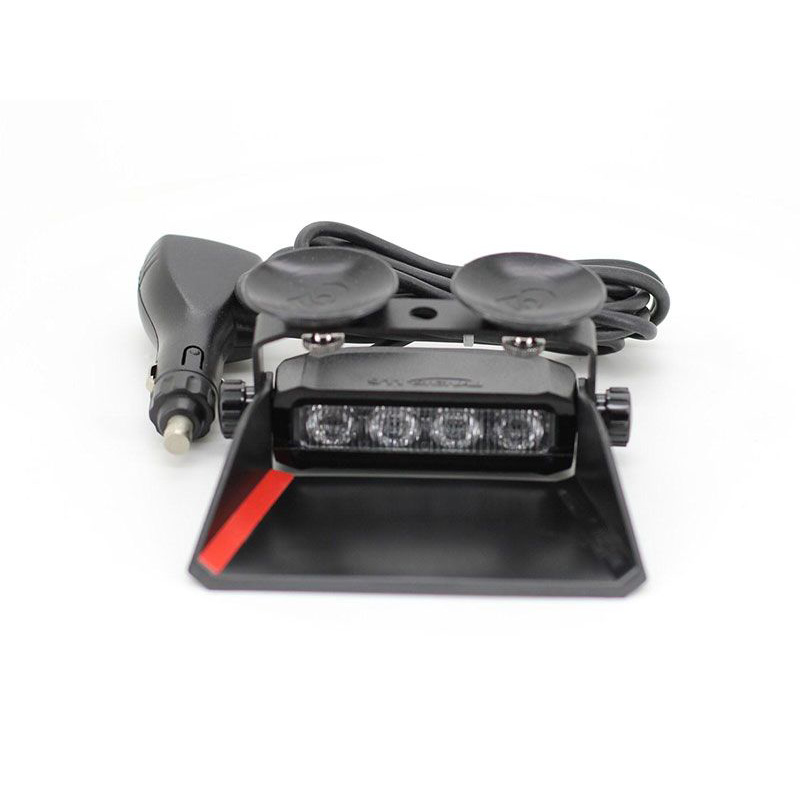

051801BLUMIOPT-T4DC10-33V|MAX 6W|123*26MM|Transparent lens|Casing black aluminum alloy|4 blue LEDs|19 flash methods|Suction cup installation|A13-163 cigarette lighter|3-core sheathed wire
051801RLUMIOPT-T4DC10-33V|MAX 6W|123*26MM|Transparent lens|Black aluminum alloy casing|4 red LEDs|19 flash methods|Suction cup installation|A13-163 cigarette lighter|3-core sheathed wire
051801RBLUMIOPT-T4DC10-33V|MAX 6W|123*26MM|Transparent lens|Casing black aluminum alloy|LED blue 2 pcs red|19 flash methods|Suction cup installation|A13-163 cigarette lighter|3-core sheathed wire
051806ALUMIOPT-T4DC10-33V|MAX 6W|123*26MM|Transparent lens|Casing black aluminum alloy|4 LED amber colors|19 flash methods|Suction cup installation|A13-163 cigarette lighter|3-core sheathed wire|Sticker B04ILX300002
051806BLUMIOPT-T4DC10-33V|MAX 6W|123*26MM|Transparent lens|Casing black aluminum alloy|4 amber LEDs|19 flash methods|Suction cup installation|A13-163 cigarette lighter|3-core sheathed wire

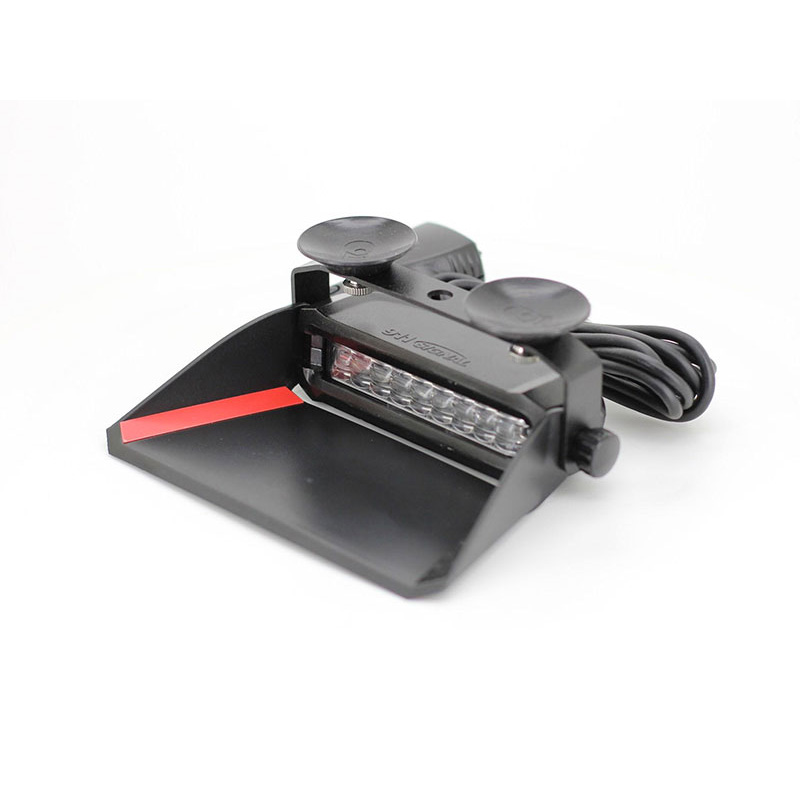

051802ALUMIOPT-X9DC10-33V|MAX 12W|164*36.5MM|Transparent lens|Casing black aluminum alloy|9 LED amber colors|19 flash methods|Suction cup installation|A13-163 cigarette lighter|3-core sheathed wire
051802BLUMIOPT-X9DC10-33V|MAX 12W|164*36.5MM|Transparent lens|Casing black aluminum alloy|9 LED blue|19 flash methods|Suction cup installation|A13-163 cigarette lighter|3-core sheathed wire
051802RLUMIOPT-X9DC10-33V|MAX 12W|164*36.5MM|Transparent lens|Casing black aluminum alloy|9 red LEDs|19 flash methods|Suction cup installation|A13-163 cigarette lighter|3-core sheathed wire
051802RBWLUMIOPT-X9DC10-33V|MAX 12W|164*36.5MM|Transparent lens|Casing black aluminum alloy|LED red 9 pcs blue 9 pcs white 9 pcs|12 flash methods|Suction cup installation|A13-76 cigarette lighter, controller| 8-core sheathed wire
051810ALUMIOPT-X9DC10-33V|MAX12W|164*36.5MM|Transparent lens|Casing black aluminum alloy|9 amber LEDs|19 flash methods|Bracket installation, suction cup installation|A13-163 cigarette lighter|3-core sheathed wire|Instruction B0800ILX7002, sticker B04ILX800001
051810BLUMIOPT-X9DC10-33V|MAX 12W|164*36.5MM|Transparent lens|Casing black aluminum alloy|9 blue LEDs|19 flash methods|Suction cup installation|A13-163 cigarette lighter|3-core sheathed wire|Instruction manual B0800ILX7002, Sticker B04ILX800001
051810TABLUMIOPT-X9DC10-33V|MAX 12W|164*36.5MM|Transparent lens|Casing black aluminum alloy|LED amber 9 pcs blue 9 pcs|12 flash methods|Suction cup installation|A13-163 cigarette lighter|4-core sheathed wire |Instruction manual B0800ILX7002, sticker B04ILX800001

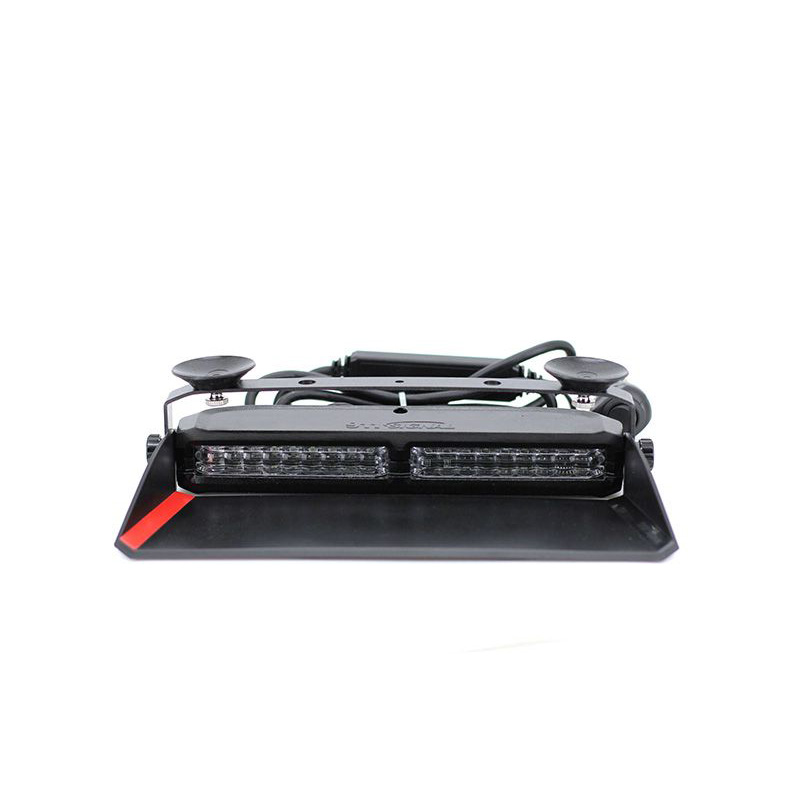

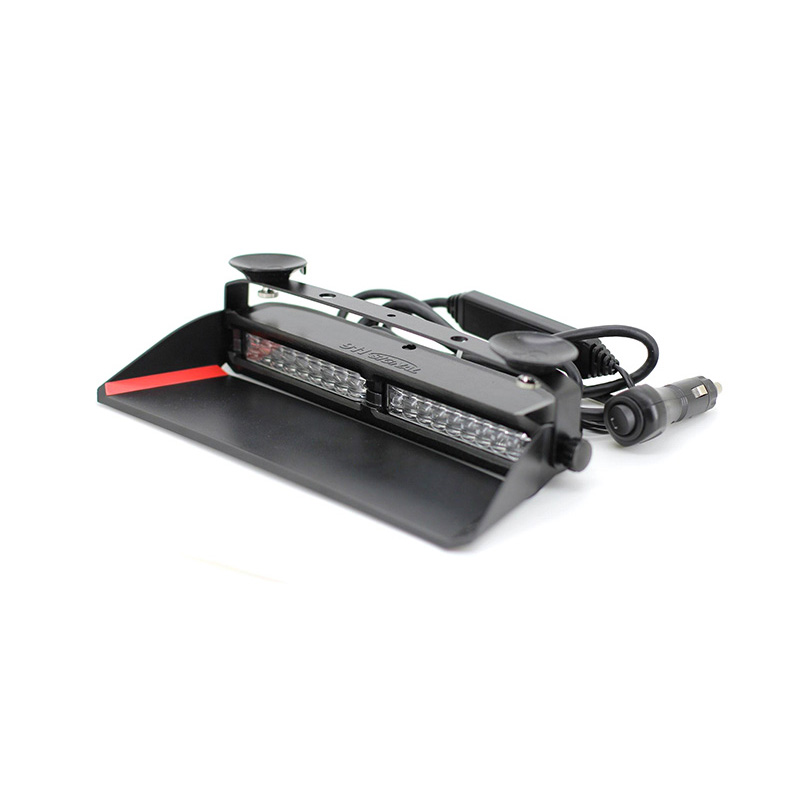

051803ALUMIOPT-2X9DC10-33V|MAX 24W|273*36.5MM|Transparent lens|Casing black aluminum alloy|18 LED amber colors|19 flash methods|Suction cup installation|A13-163 cigarette lighter|4-core sheathed wire
051803BLUMIOPT-2X9DC10-33V|MAX 24W|273*36.5MM|Transparent lens|Casing black aluminum alloy|18 blue LEDs|19 flash methods|Suction cup installation|A13-163 cigarette lighter|4-core sheathed wire
051803BRLUMIOPT-2X9DC10-33V|MAX 24W|273*36.5MM|Transparent lens|Casing black aluminum alloy|LED blue 9 pcs red|19 flash methods|Suction cup installation|A13-163 cigarette lighter|4-core sheathed wire
051803TRBLUMIOPT-2X9DC10-33V|MAX 24W|273*36.5MM|Transparent lens|Casing black aluminum alloy|LED blue 18 pcs red 18 pcs|21 flash methods|Suction cup installation|A13-163P cigarette lighter|Sheathed wire|Wire 5 root
051803RBWLUMIOPT-2X9DC10-33V|MAX 48W|273*36.5MM|Transparent lens|Casing black aluminum alloy|LED blue 18 pcs red 18 pcs white 18 pcs|21 flash methods|Suction cup installation|A13-76 cigarette lighter, controller| 6 sheathed wires, 2 parallel wires
051808BLUMIOPT-2X9DC10-33V|MAX 24W|273*36.5MM|Transparent lens|Casing black aluminum alloy|18 blue LEDs|19 flash methods|Suction cup installation|A13-163 cigarette lighter|3-core sheathed wire|Instruction sheet B0800ILX7002
051809BLUMIOPT 2X9DC10-33V|MAX 24W|273*36.5MM|Transparent lens|Casing black aluminum alloy|LED blue 18 pieces|19 flash methods|Suction cup installation|A13-163 cigarette lighter|4-core sheathed wire|Instruction sheet B0800ILX7002
