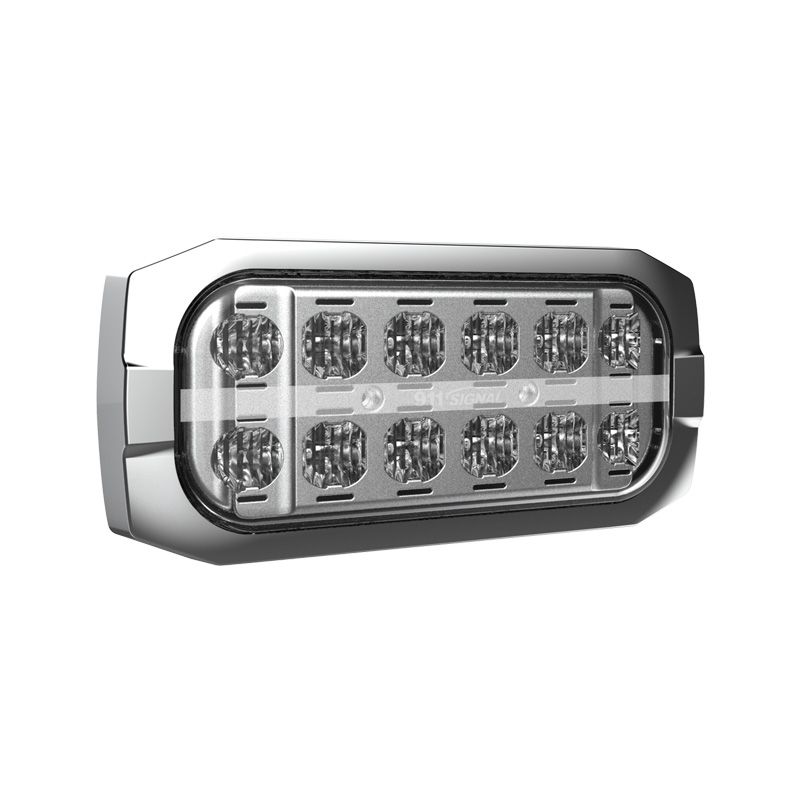

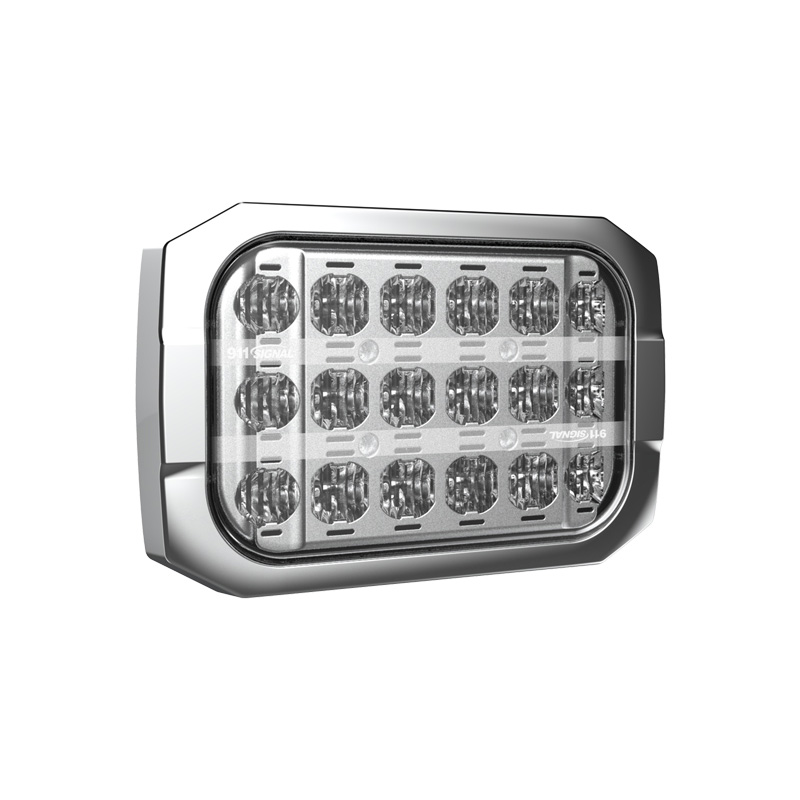

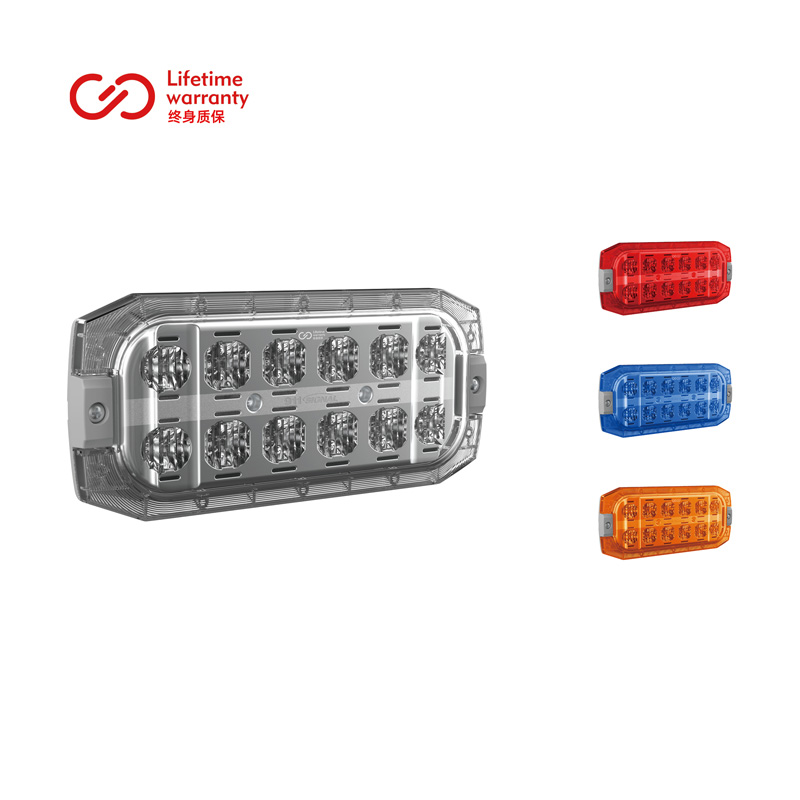

STARK O Series-Full-size Multifunctional LED Light Head

  • SAE,CAT13,R65,R10,NAFA,J1 119 and KKK certified
  • Multi-functional with warning light and worklight

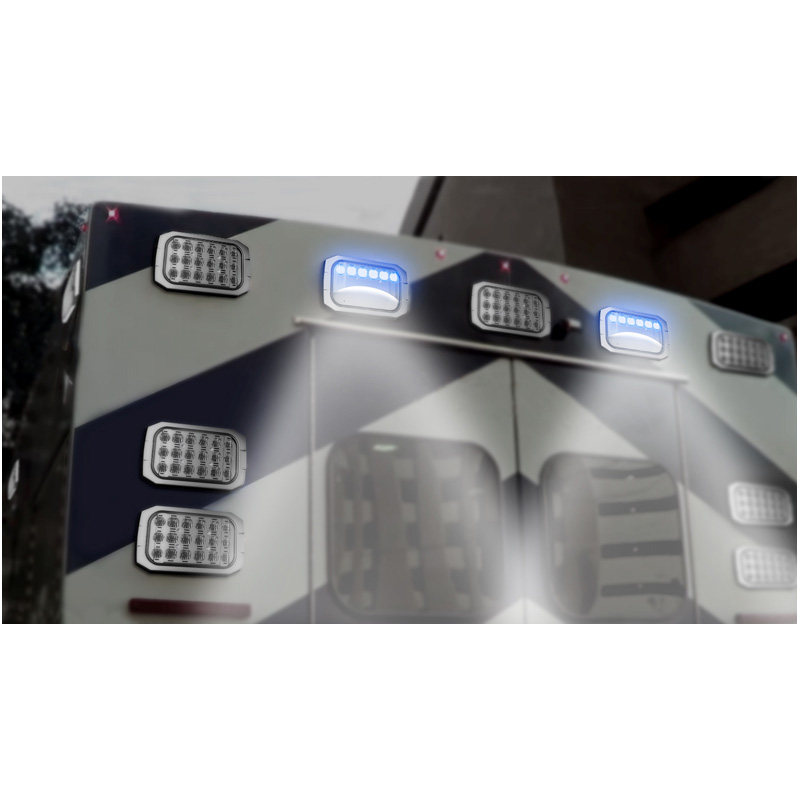

  • Worklight offers homogeneous illumination right around the nearby rescue area
  • Available in single, split, dual and triple colors
  • Rugged weather-resistant enclosure
  • Synchronize with other Stark O series
  • Aluminum die-casting base provides excellent heat dissipation
  • IP69
  • 5 year warranty
Get A Quote

DIMENSIONS

SPECIFICATION

Technical Specifications

Voltage:10-33VDC

LENS:TIR

LED: Single Color、Dual、Trio Color

Mount: Surface Mount

Operating Temperature:-30 to 70 ℃

ITEMMODELSPECIFICATIONS
023401BSTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|upper cover blue|outer cover silver|12 blue LEDs|96 flash methods|screw installation|5-core wire|IP67\IP69K
023401RSTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|upper cover red|outer cover silver|12 red LEDs|96 flash methods|screw installation|5-core wire|IP67\IP69K
023401ASTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|Upper cover amber|Outer cover silver|12 LED amber|96 flash methods|Screw installation|5-core wire|IP67\IP69K
023404WSTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|Transparent upper cover|Silver outer cover|12 white LEDs|96 flashing methods|Screw installation|5-core wire|IP67\IP69K
023404RSTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|Transparent upper cover|Silver outer cover|12 red LEDs|96 flashing methods|Screw installation|5-core wire|IP67\IP69K
023402TRWSTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|Transparent upper cover|Silver cover|LED red 12 pcs white|96 flashing methods|Screw installation|10 core wire|IP67\IP69K
023402TBRSTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|Transparent upper cover|Silver cover|LED red 12 pcs blue|96 flashing methods|Screw installation|10 core wire|IP67\IP69K
023403TRWSTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|Transparent upper cover|Silver cover|LED red 12 pcs white|96 flashing methods|Screw installation|6-core wire|IP67\IP69K
023403TBRSTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|Transparent upper cover|Silver cover|LED blue 12 pcs red|96 flashing methods|Screw installation|6-core wire|IP67\IP69K
023406BSTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|Upper cover blue|Outer cover silver|12 blue LEDs|96 flash methods, initial flash method Quint(ALL)|Screw installation|5-core wire| IP67\IP69K
023406RSTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|upper cover red|outer cover silver|12 red LEDs|96 flash methods, initial flash method Quint(ALL)|screw installation|5-core wire|IP67\ IP69K
023407RSTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|Red upper cover|Porcelain white outer cover|12 red LEDs|96 flash methods, initial flash method Quint(ALL)|Screw installation|5-core wire|IP67 \IP69K
023407BSTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|upper cover blue|outer cover porcelain white|12 blue LEDs|96 flash methods, initial flash method Quint(ALL)|screw installation|5-core wire |IP67\IP69K

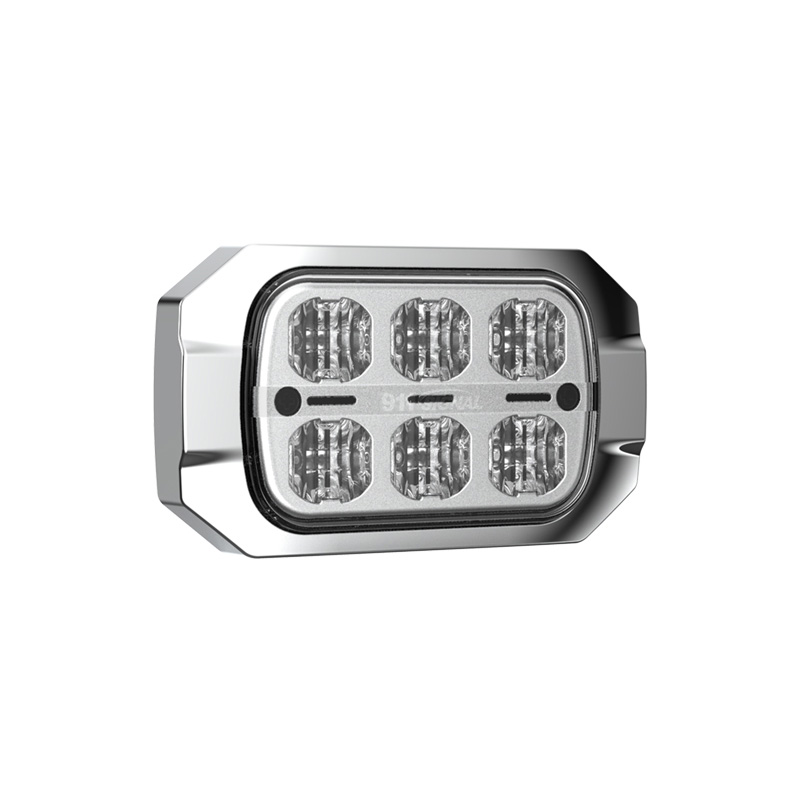

023414ASTARK O 4″*3″DC10-33V|MAX 10W|125×74*23MM|Transparent lens|Upper cover amber|Outer cover silver|LED amber 6 pieces|19 flash methods|Screw installation|4-core wire|IP67\IP69K
023414RSTARK O 4″*3″DC10-33V|MAX 10W|125×74*23MM|Transparent lens|upper cover red|outer cover silver|6 red LEDs|19 flash methods|screw installation|4-core wire|IP67\IP69K
023414BSTARK O 4″*3″DC10-33V|MAX 10W|125×74*23MM|Transparent lens|upper cover blue|outer cover silver|6 blue LEDs|19 flash methods|screw installation|4-core wire|IP67\IP69K
023415ASTARK O 4″*3″DC10-33V|MAX 10W|125×74*23MM|Transparent lens|Transparent upper cover|Silver outer cover|6 amber LEDs|19 flash methods|Screw installation|4-core wire|IP67\IP69K
023415BSTARK O 4″*3″DC10-33V|MAX 10W|125×74*23MM|Transparent lens|Transparent upper cover|Silver outer cover|6 blue LEDs|19 flashing methods|Screw installation|4-core wire|IP67\IP69K
023415RSTARK O 4″*3″DC10-33V|MAX 10W|125×74*23MM|Transparent lens|Transparent upper cover|Silver outer cover|6 red LEDs|19 flashing methods|Screw installation|4-core wire|IP67\IP69K
023416RBWSTARK O 4″*3″DC10-33V|MAX 10W|125×74*23MM|Transparent lens|Transparent upper cover|Silver cover|LED blue 6 pcs red 6 pcs white|12 flashing methods|Screw installation|6-core wire|IP67\IP69K
023423RSTARK O 6″*4″DC10-33V|MAX 27W|197*120*22MM|Transparent lens|Transparent upper cover|Silver outer cover|18 red LEDs|96 flash methods|Screw installation|5-core wire|IP67\IP69K
023423WSTARK O 6″*4″DC10-33V|MAX 27W|197*120*22MM|Transparent lens|Transparent upper cover|Silver outer cover|18 white LEDs|96 flashing methods|Screw installation|5-core wire|IP67\IP69K
023418TRBSTARK O 6″*4″DC10-33V|MAX 27W|197*120*22MM|Transparent lens|Transparent upper cover|Outer cover silver|LED blue 18 pcs white 18 pcs|96 flashing methods|Screw installation|10 core wire|IP67\IP69K
023418TRWSTARK O 6″*4″DC10-33V|MAX 27W|197*120*22MM|Transparent lens|Transparent upper cover|Silver outer cover|LED red 18 pcs white 18 pcs|96 flashing methods|Screw installation|10 core wire|IP67\IP69K
023419TRBSTARK O 6″*4″DC10-33V|MAX 27W|197*120*22MM|Transparent lens|Transparent upper cover|Silver outer cover|LED red 18 pcs white 18 pcs|96 flashing methods|Screw installation|6-core wire|IP67\IP69K

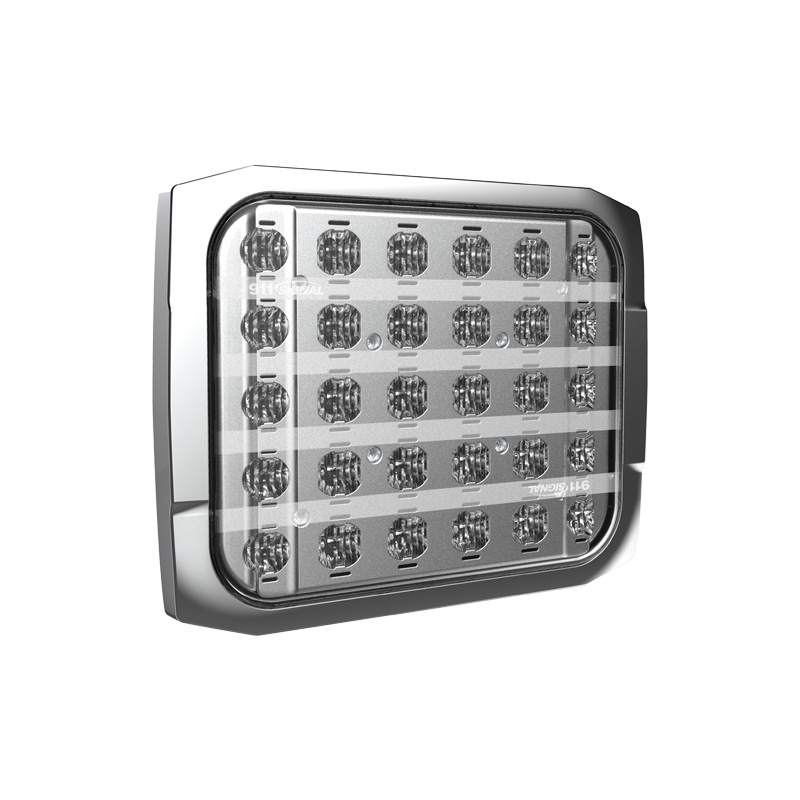

023420RSTARK O 9″*7″DC10-33V|MAX 45W|259*201*23MM|Transparent lens|upper cover red|outer cover silver|30 red LEDs|96 flash methods|screw installation|5-core wire|IP67\IP69K
023420BSTARK O 9″*7″DC10-33V|MAX 45W|259*201*23MM|Transparent lens|upper cover blue|outer cover silver|30 blue LEDs|96 flash methods|screw installation|5-core wire|IP67\IP69K
023420ASTARK O 9″*7″DC10-33V|MAX 45W|259*201*23MM|Transparent lens|Upper cover amber|Outer cover silver|30 LED amber|96 flash methods|Screw installation|5-core wire|IP67\IP69K
023424RSTARK O 9″*7″DC10-33V|MAX 45W|259*201*23MM|Transparent lens|Transparent upper cover|Silver outer cover|30 red LEDs|96 flashing methods|Screw installation|5-core wire|IP67\IP69K
023424BSTARK O 9″*7″DC10-33V|MAX 45W|259*201*23MM|Transparent lens|Transparent upper cover|Silver outer cover|30 blue LEDs|96 flashing methods|Screw installation|5-core wire|IP67\IP69K
023424WSTARK O 9″*7″DC10-33V|MAX 45W|259*201*23MM|Transparent lens|Transparent upper cover|Silver outer cover|30 white LEDs|96 flashing methods|Screw installation|5-core wire|IP67\IP69K
023421TRWSTARK O 9″*7″DC10-33V|MAX 45W|259*201*23MM|Transparent lens|Transparent upper cover|Silver cover|LED red 30 pcs white 30 pcs|96 flashing methods|Screw installation|10 core wire|IP67\IP69K
023422TBWSTARK O 9″*7″DC10-33V|MAX 45W|259*201*23MM|Transparent lens|Transparent upper cover|Silver outer cover|LED blue 30 pcs white 30 pcs|96 flashing methods|Screw installation|6-core wire|IP67\IP69K
023422TRWSTARK O 9″*7″DC10-33V|MAX 45W|259*201*23MM|Transparent lens|Transparent upper cover|Silver cover|LED red 30 pcs white 30 pcs|96 flashing methods|Screw installation|6-core wire|IP67\IP69K
023422TRBSTARK O 9″*7″DC10-33V|MAX 45W|259*201*23MM|Transparent lens|Transparent upper cover|Silver outer cover|LED blue 30 pcs red 30 pcs|96 flashing methods|Screw installation|10 core wire|IP67\IP69K

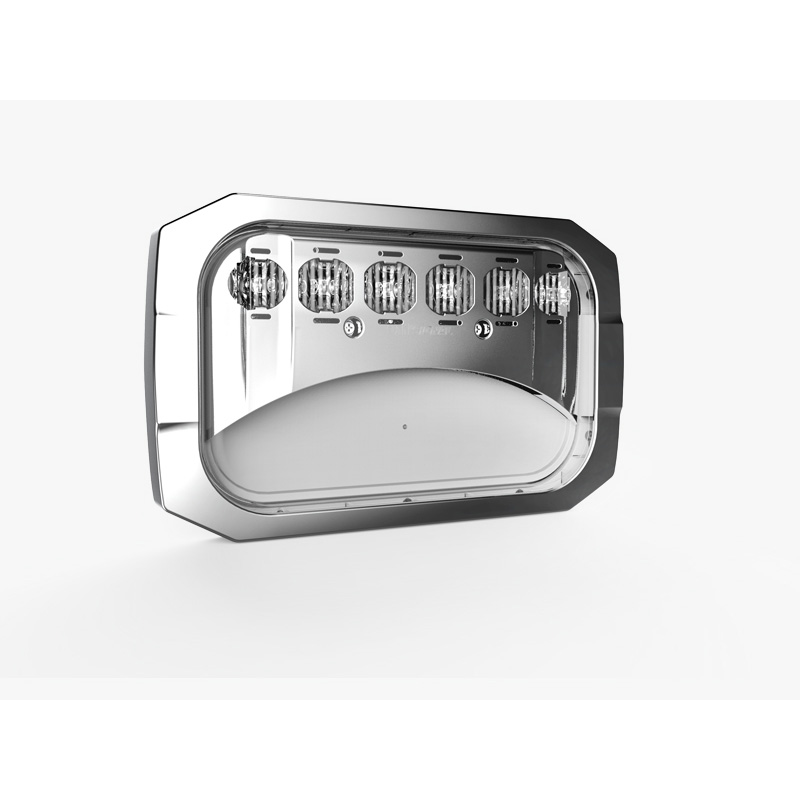

140201ASTARK O 6″*4″  WLDC10-33V|MAX 30W|197*120*22MM|Transparent lens|Reflector cup|Transparent upper cover|Outer cover silver|LED amber 6 pcs white 12 pcs|96 flashing methods|Screw installation|6-core wire|IP67\IP69K
140201BSTARK O 6″*4″  WLDC10-33V|MAX 30W|197*120*22MM|Transparent lens|Reflector cup|Transparent upper cover|Outer cover silver|LED blue 6 pcs white 12 pcs|96 flashing methods|Screw installation|6-core wire|IP67\IP69K
140201RSTARK O 6″*4″  WLDC10-33V|MAX 30W|197*120*22MM|Transparent lens|Reflector cup|Transparent upper cover|Silver outer cover|LED red 6 pcs white 12 pcs|96 flashing methods|Screw installation|6-core wire|IP67\IP69K
140202TRBSTARK O 6″*4″ WLDC10-33V|MAX 30W|197*120*22MM|Transparent lens|Reflector cup|Transparent upper cover|Outer cover silver|LED blue 6 pcs red 6 pcs white 12 pcs|96 flashing methods|Screw installation|7-core wire| IP67\IP69K
140202TRWSTARK O 6″*4″  WLDC10-33V|MAX 30W|197*120*22MM|Transparent lens|Transparent upper cover|Silver cover|LED red 12 pcs white 26 pcs|96 flashing methods|Screw installation|7-core wire|IP67\IP69K
140202TBWSTARK O 6″*4″ WLDC10-33V|MAX 30W|197*120*22MM|Transparent lens|Reflector cup|Transparent upper cover|Outer cover silver|LED blue 6 pcs white 18 pcs|96 flashing methods|Screw installation|7-core wire|IP67\IP69K
140203RBWSTARK O 6″*4″ WLDC10-33V|MAX 30W|197*120*22MMMM|Transparent lens|Reflector cup|Transparent upper cover|Outer cover silver|LED blue 6 pcs red 1 pc white 13 pcs|96 flashing methods|Screw installation|8-core wire| IP67\IP69K
140208BSTARK O 6″*4″ WLDC10-33V|MAX 30W|197*120*22MM|Transparent lens|Chrome lens holder|Reflector cup|Transparent upper cover|Silver outer cover|LED blue 6 pcs white 12 pcs|96 flashing methods|Screw installation|6-core wire |IP67\IP69K
140208RSTARK O 6″*4″ WLDC10-33V|MAX 28W|197*120*22MM|Transparent lens|Chrome lens holder|Reflector cup|Transparent upper cover|Silver outer cover|LED red 6 pcs white 12 pcs|96 flashing methods|Screw installation|6-core wire| IP67\IP69K
140209BSTARK O 6″*4″ WLDC10-33V|MAX 30W|197*120*22MM|Transparent lens|Chrome lens holder|Reflector cup|Transparent upper cover|Porcelain white outer cover|LED blue 6 pcs white 12 pcs|96 flash methods|Screw installation|6 cores Wire|IP67\IP69K
140209RSTARK O 6″*4″ WLDC10-33V|MAX 28W|197*120*22MM|Transparent lens|Chrome lens holder|Reflector cup|Transparent upper cover|Porcelain white outer cover|LED red 6 pcs white 12 pcs|96 flashing methods|Screw installation|6-core wire |IP67\IP69K
023426ASTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|Top cover amber|Base 50% black|12 LED amber|19 flash methods|Screw installation|7-core wire|IP67\IP69K
023426BSTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|upper cover blue|base 50% black|12 blue LEDs|19 flash methods|screw installation|7-core wire|IP67\IP69K
023426RSTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|Top cover red|Base 50% black|12 red LEDs|19 flash methods|Screw installation|7-core wire|IP67\IP69K
023426WSTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|Transparent upper cover|50% black base|12 white LEDs|19 flashing methods|Screw installation|7-core wire|IP67\IP69K
023427WSTARK O 6″*4″DC10-33V|MAX 27W|197*120*22MM|Transparent lens|Transparent upper cover|50% black base|LED white 18 pcs white|19 flashing methods|Screw installation|7-core wire|IP67\IP69K
023427RSTARK O 6″*4″DC10-33V|MAX 27W|197*120*22MM|Transparent lens|upper cover red|base 50% black|18 red LEDs|19 flash methods|screw installation|7-core wire|IP67\IP69K
023427BSTARK O 6″*4″DC10-33V|MAX 27W|197*120*22MM|Transparent lens|upper cover blue|base 50% black|18 blue LEDs|19 flash methods|screw installation|7-core wire|IP67\IP69K
023427ASTARK O 6″*4″DC10-33V|MAX 27W|197*120*22MM|Transparent lens|Top cover amber|Base 50% black|18 LED amber|19 flash methods|Screw installation|7-core wire|IP67\IP69K
023428BSTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|Transparent upper cover|50% black base|12 blue LEDs|19 flashing methods|Screw installation|7-core wire|IP67\IP69K
023428RSTARK O 7″*3″DC10-33V|MAX 20W|204*90*22MM|Transparent lens|Transparent upper cover|50% black base|12 red LEDs|19 flashing methods|Screw installation|7-core wire|IP67\IP69K
