- Available in 3 types: PT7, PTT40 and PL10
- Tough PC lens minimizes UV damage and resists scratches

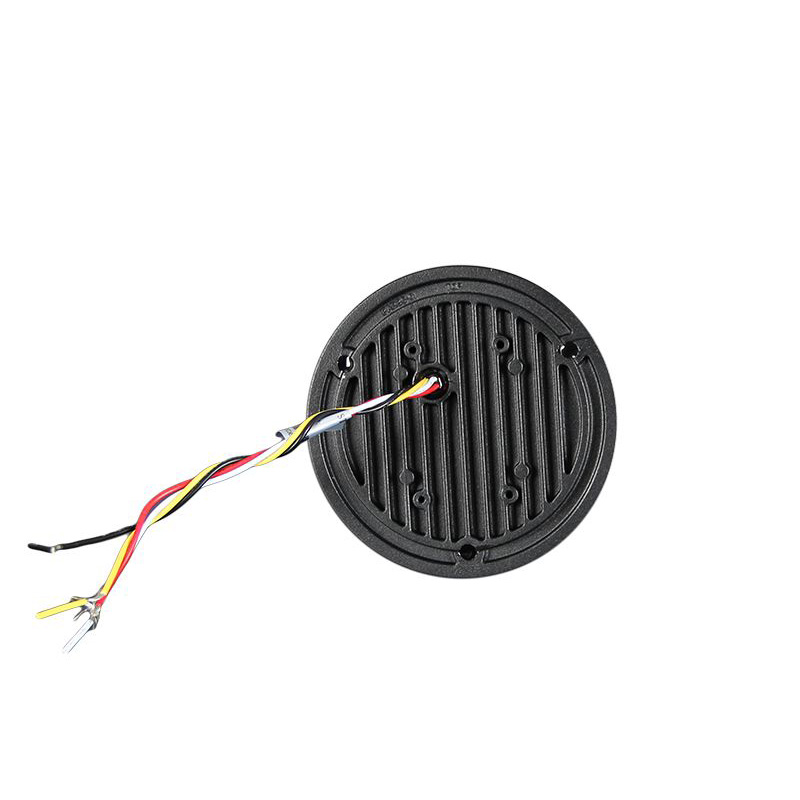

- Aluminum chassis offers fine heat dissipation and prolongs lifespan

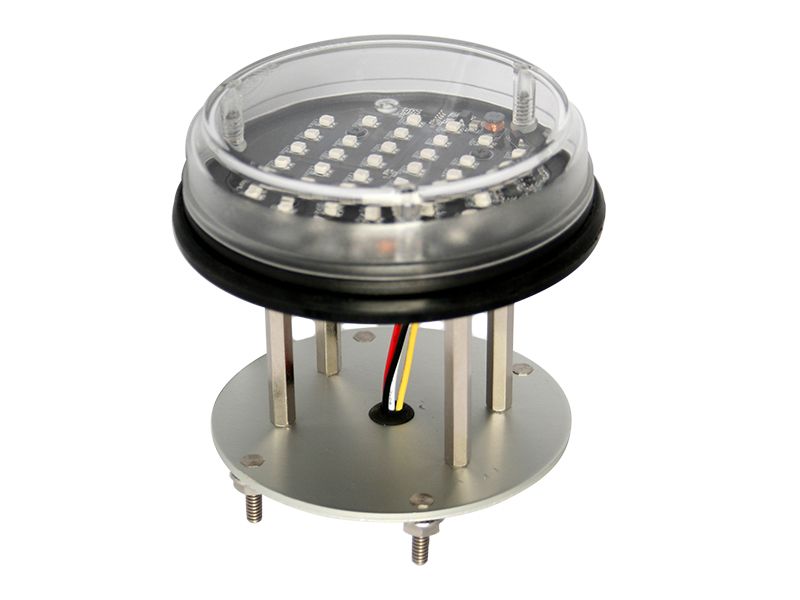

- Easy installation with surface mount or bracket mount
- Optional chrome or black bezel
- Fully encapsulated for moisture, vibration and corrosion resistance

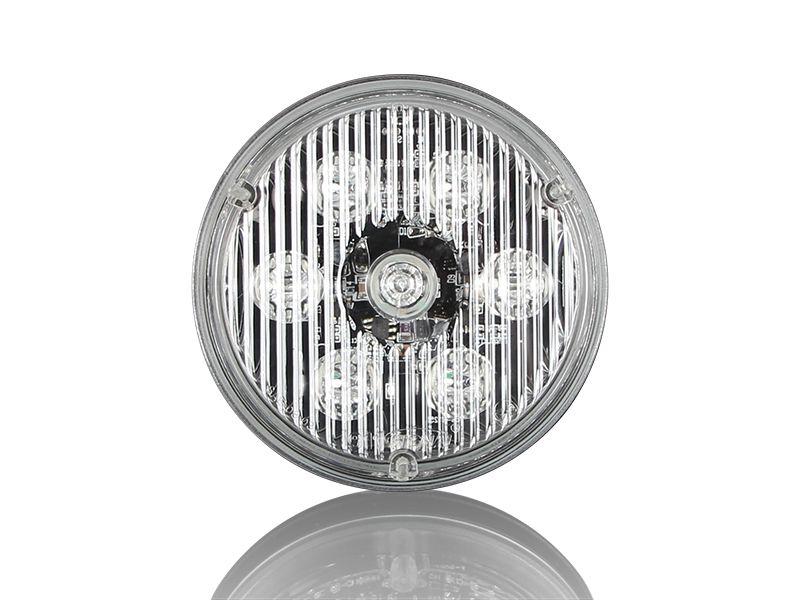

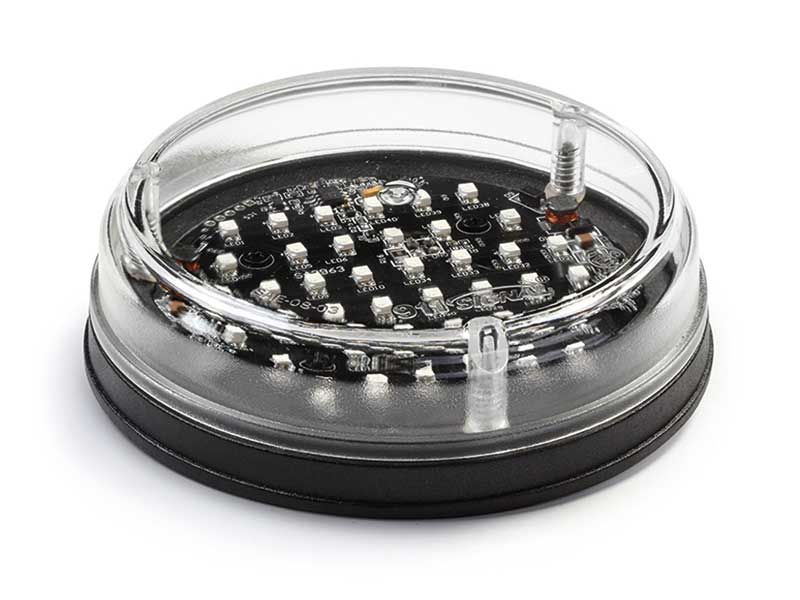

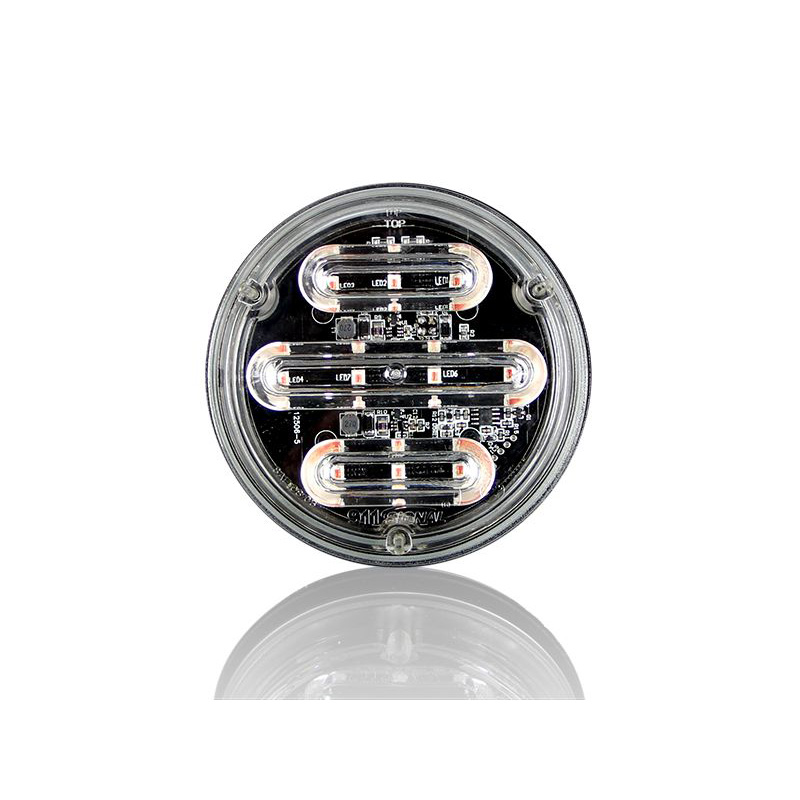

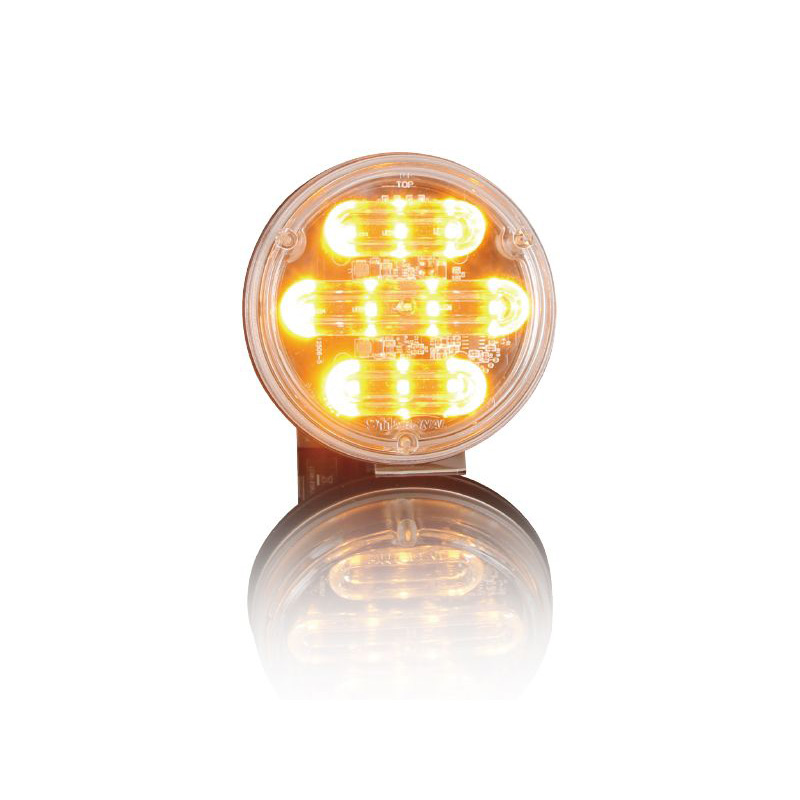

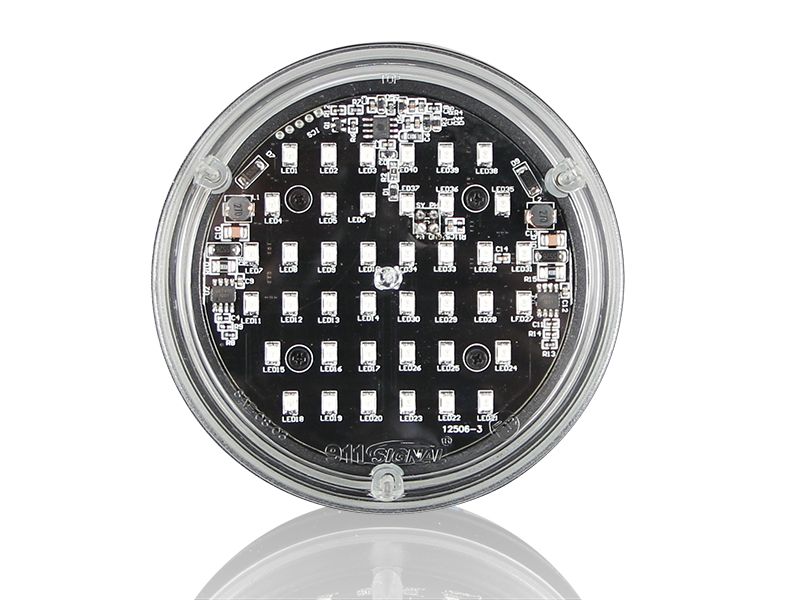

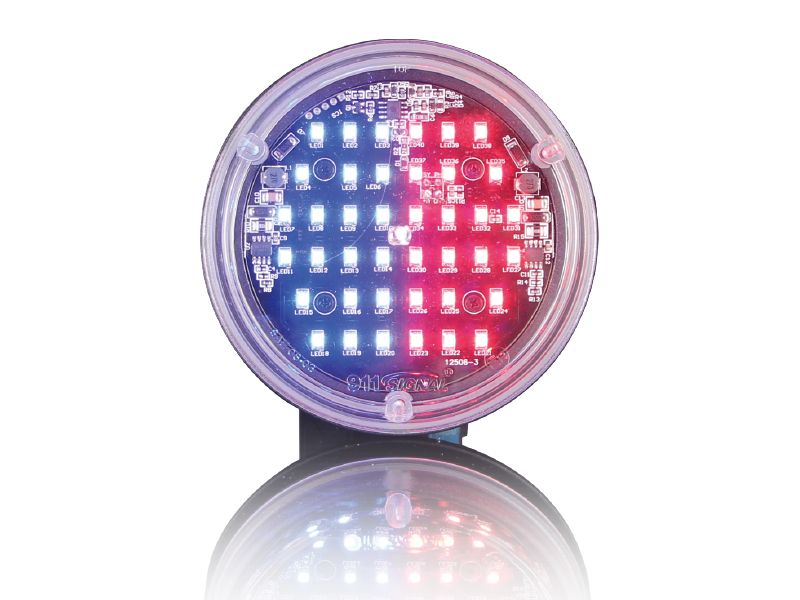

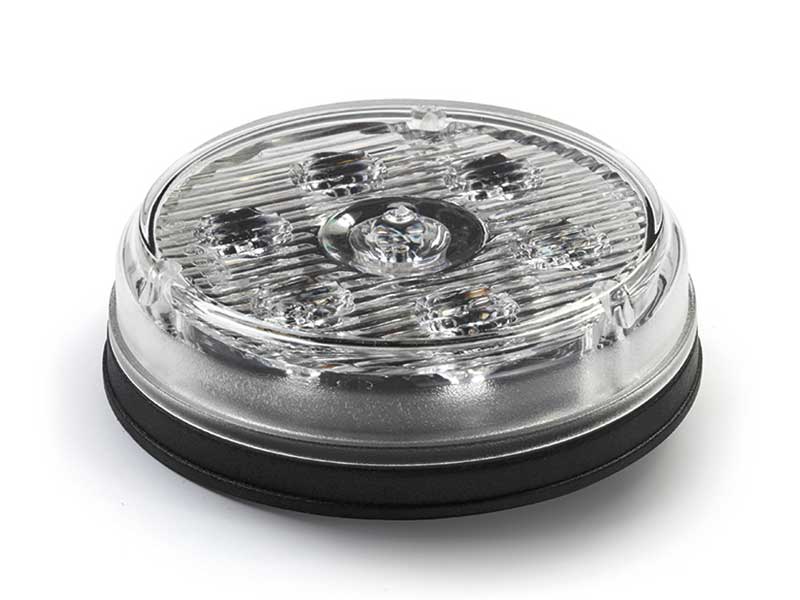

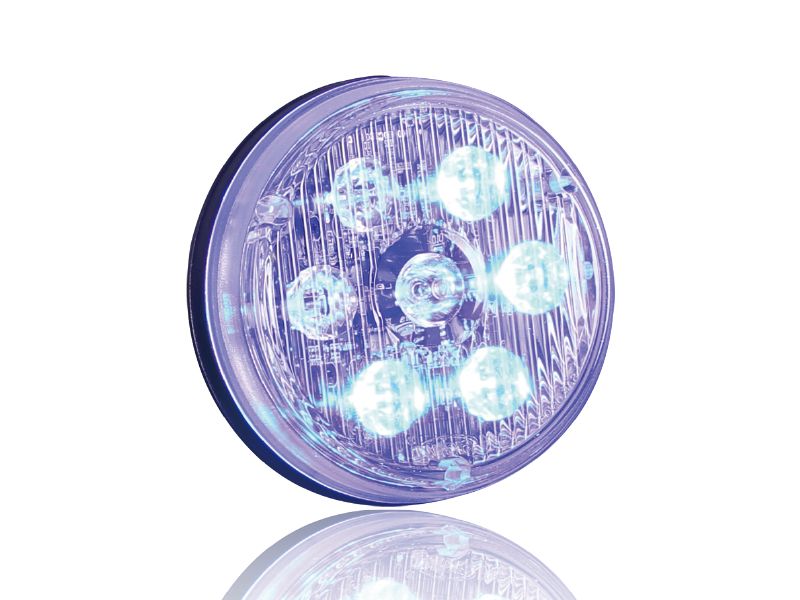

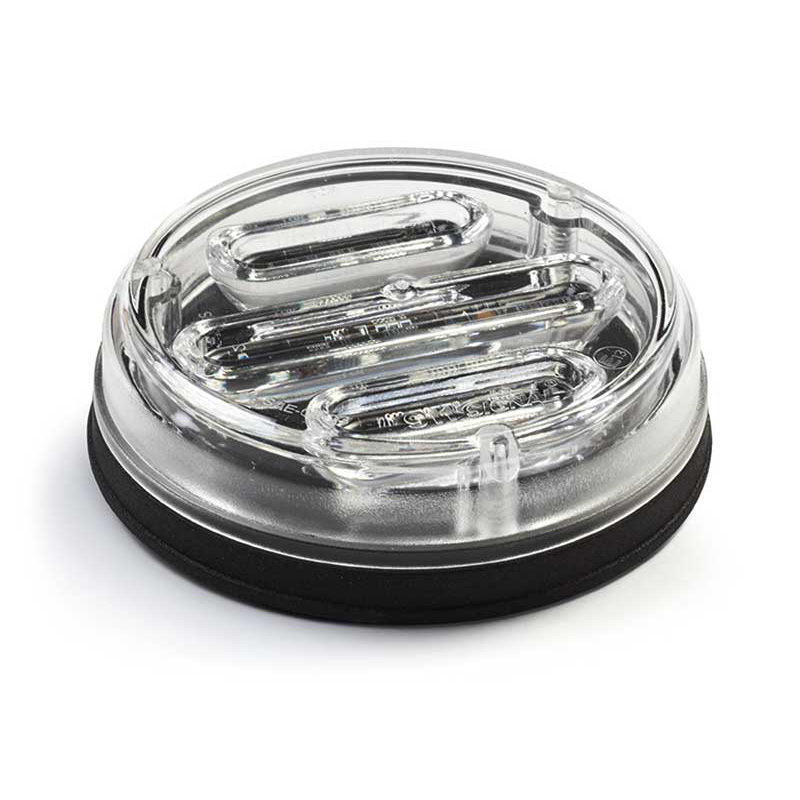

PAR36 Series – PL10 & PT7 & PTT40:Surface Mount 3 Watt LED Warning Strobe Lighthead
Get A Quote

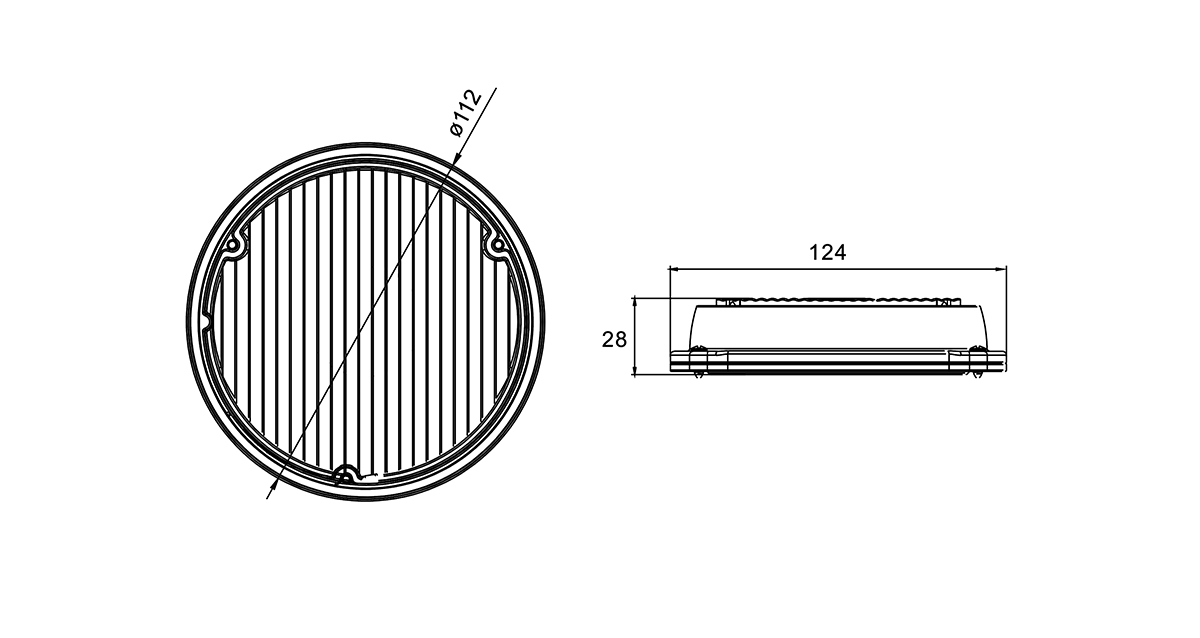

DIMENSIONS
SPECIFICATION
Light Characteristics
LED Power:10PCS 3W LED
LED Lifespan:100,000H
Flash settings:1-4HZ
Lens:LIN
Electrical Characteristics
Voltage:DC 10-30V
Max Power:28W
Physical Characteristics
Colour Available:Red, Amber, Blue, White
Ambient temperature:-20–+65℃
Waterproof:IP65
Mounting:Surface mount,Bracket mount
Flash patterns:19
Meet and Exceeds:ECE R10 03 12468
Product Dimension:11.2cm D x 2.8cm H(4.4″D x 1.1″H)
| ITEM | MODEL | SPECIFICATIONS |
| 020603A | PL10 | DC12-24V|MAX 16W|φ112*28MM|Transparent lens|Base black|LED amber 10 pcs|19 flash methods|Screw installation|4-core wire|IP67\IP69K |
| 020603B | PL10 | DC12-24V|MAX 16W|φ112*28MM|Transparent lens|Base black|LED blue 10 pieces|19 flash methods|Screw installation|4-core wire|IP67\IP69K |
| 020603R | PL10 | DC12-24V|MAX 16W|φ112*28MM|Transparent lens|Base black|10 red LEDs|19 flash methods|Screw installation|4-core wire|IP67\IP69K |
| 020601A | PT7 | DC12-24V|MAX 16W|φ112*28MM|Transparent lens|Base black|LED amber 7 pcs|19 flash methods|Screw installation|4-core wire|IP67\IP69K |
| 020601W | PT7 | DC12-24V|MAX 16W|φ112*28MM|Transparent lens|Base black|7 white LEDs|19 flashing methods|Screw installation|4-core wire|IP67\IP69K |
