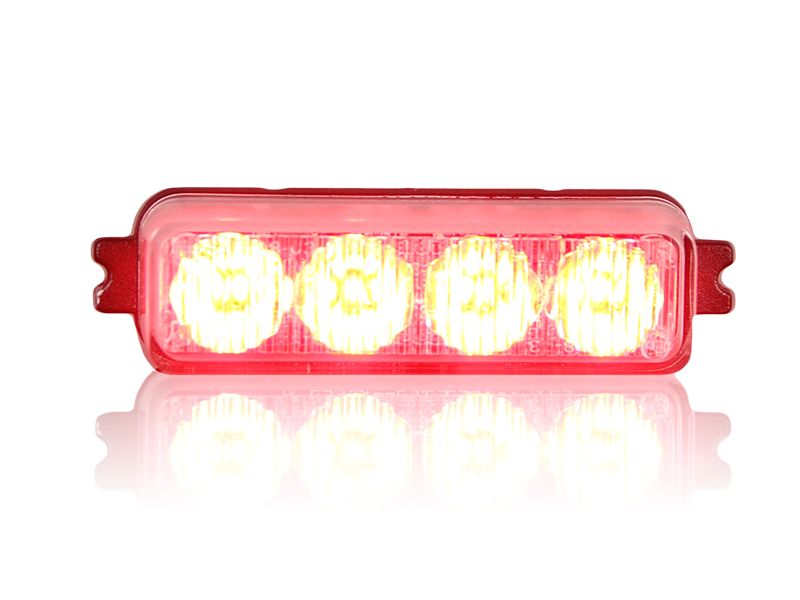

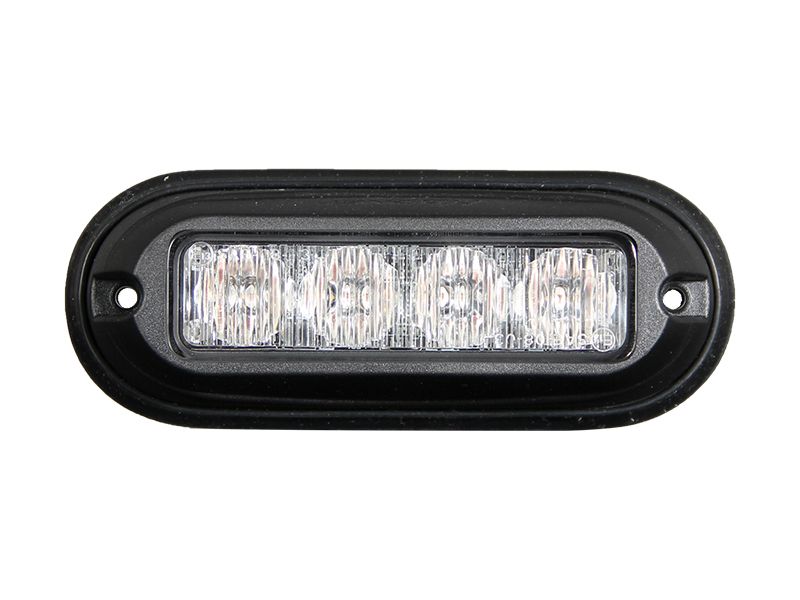

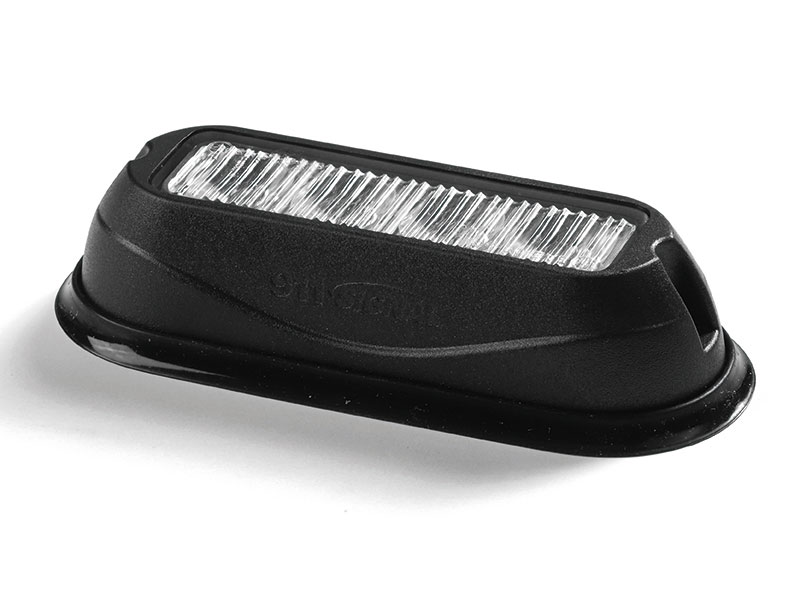

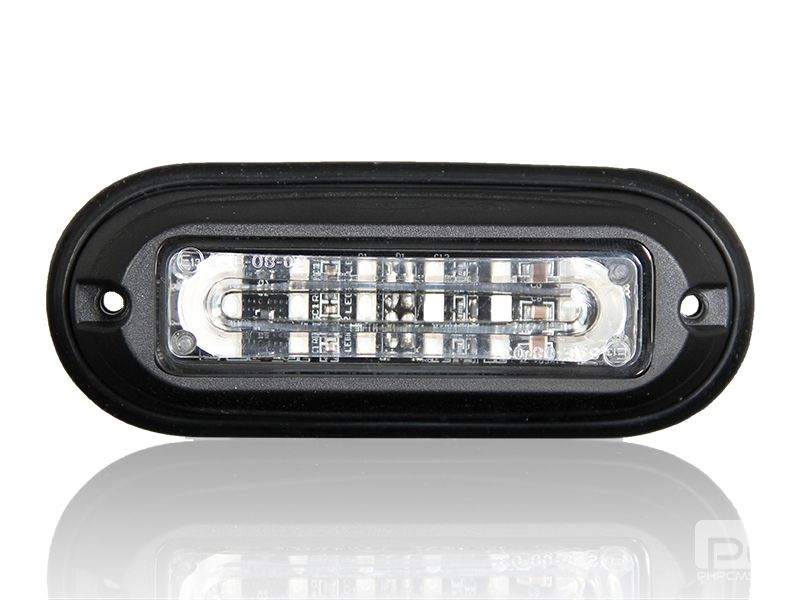

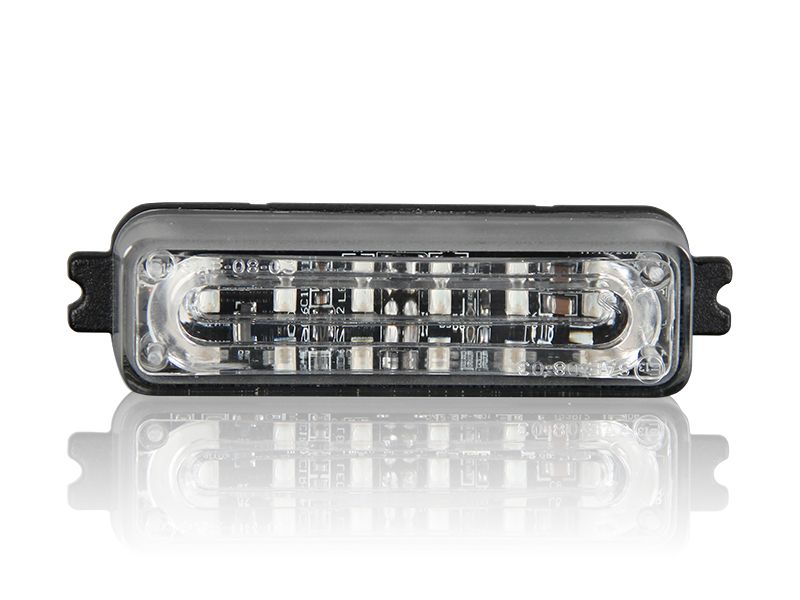

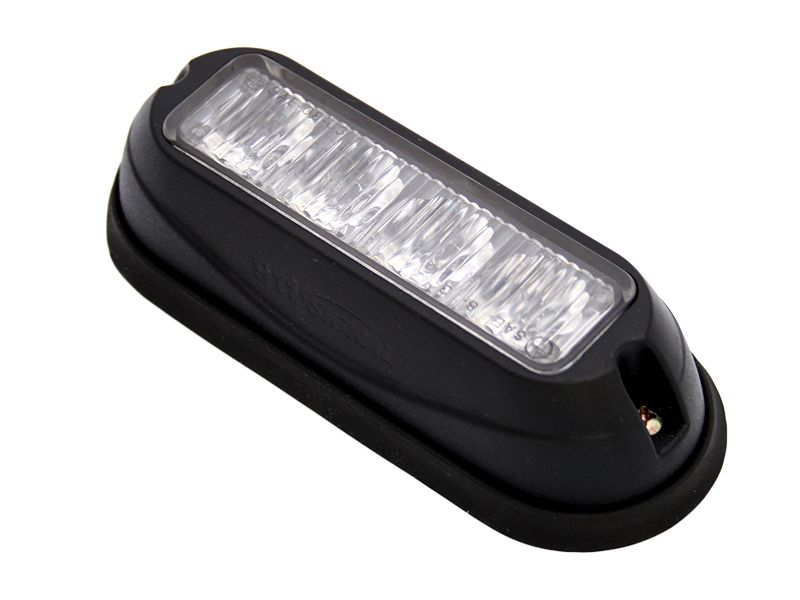

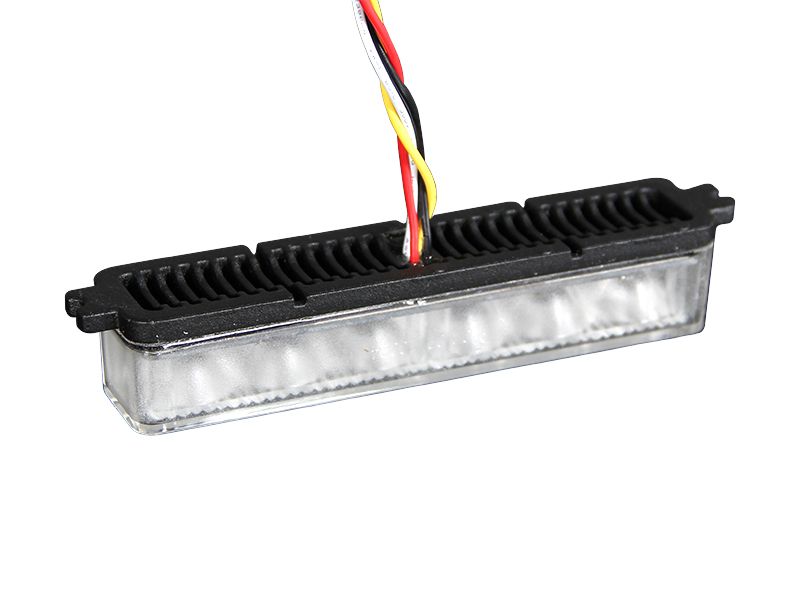

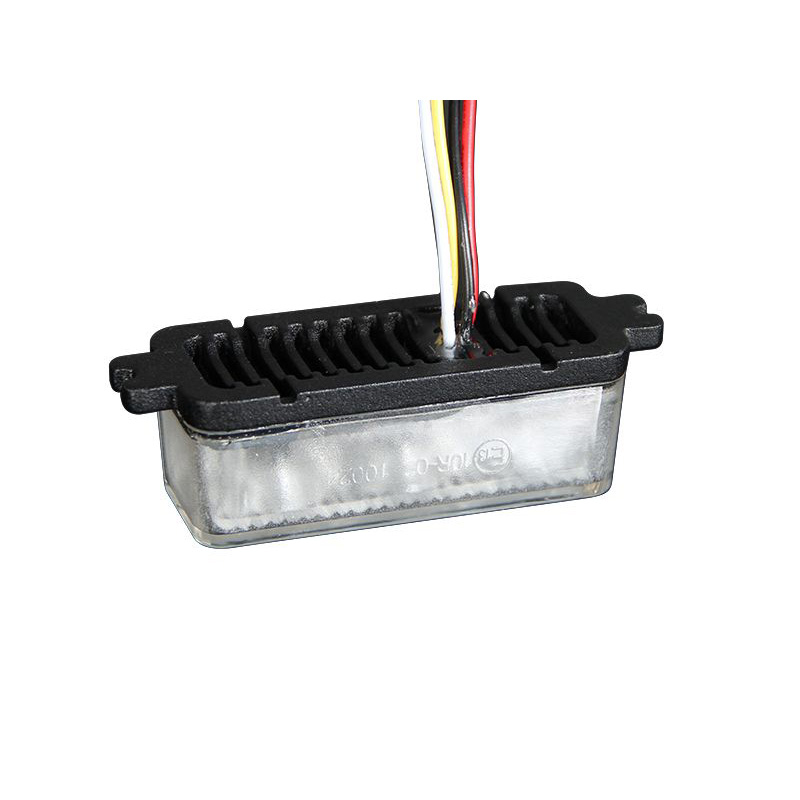

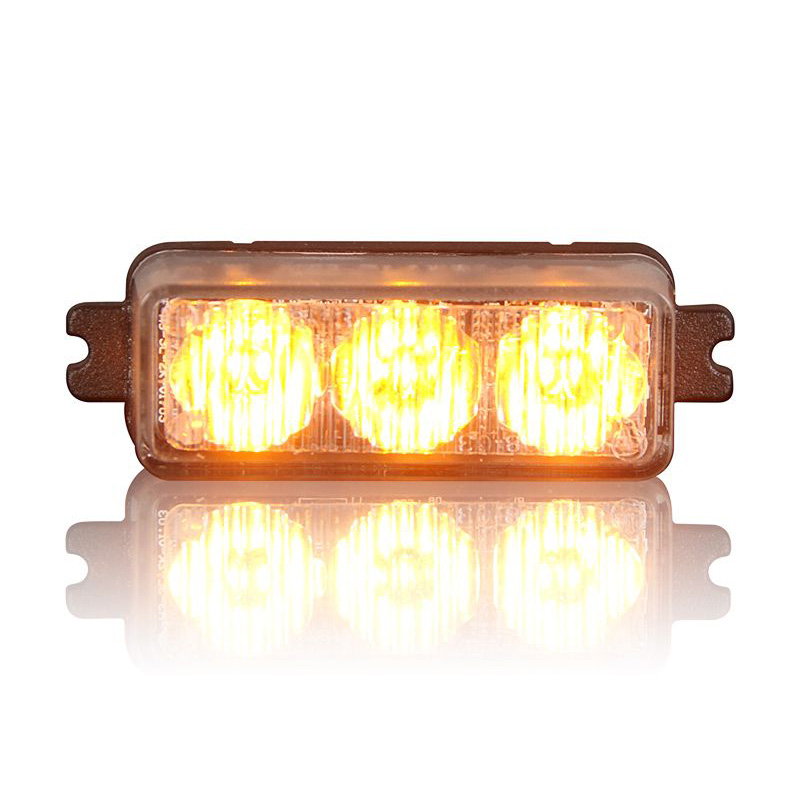

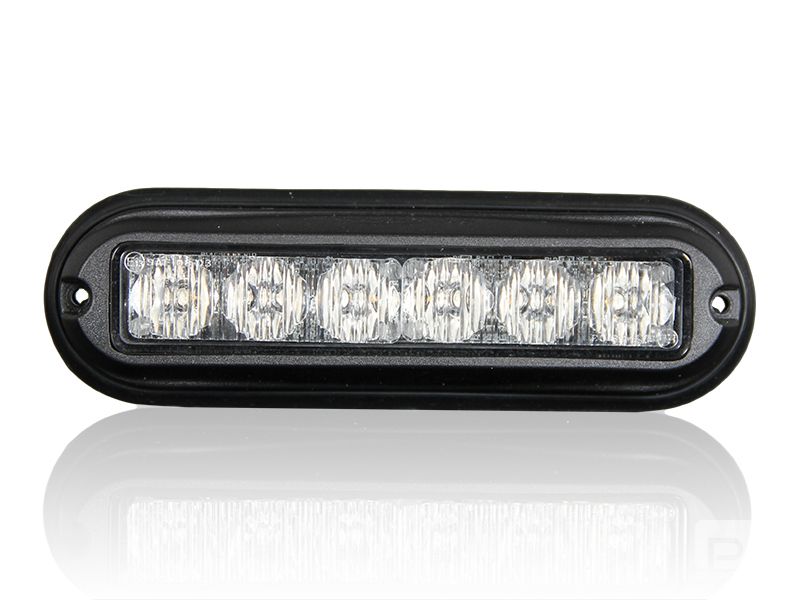

H3 &H4 & H6 Series – Surface Mount LED Warning Strobe Lighthead

  • Available in single color
  • Small size with powful output
  • Fully encapsulated for moisture, vibration and corrosion resistance
  • Synchronization capability
Get A Quote

DIMENSIONS

SPECIFICATION

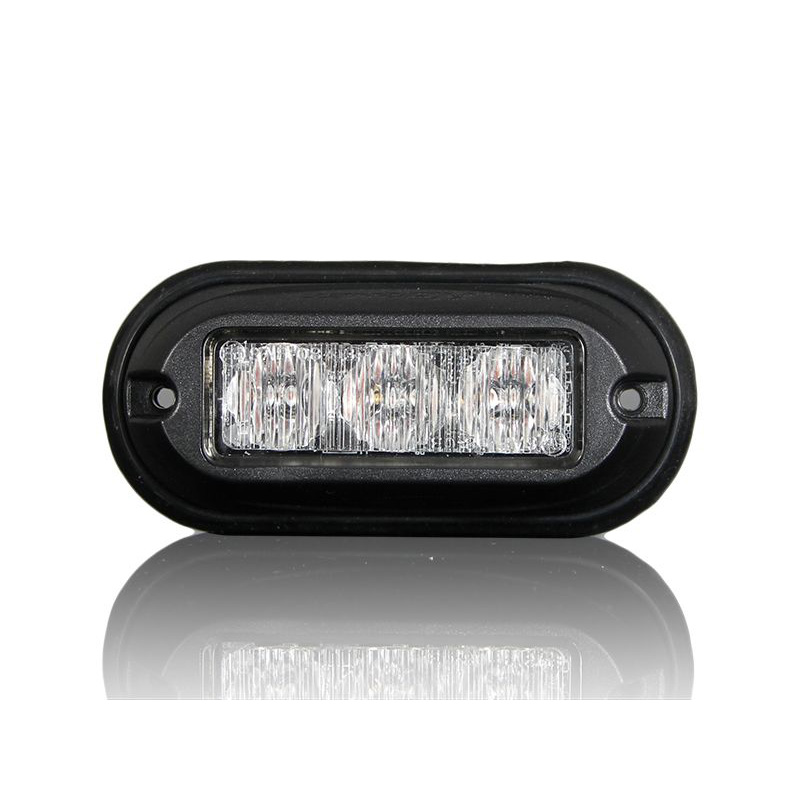

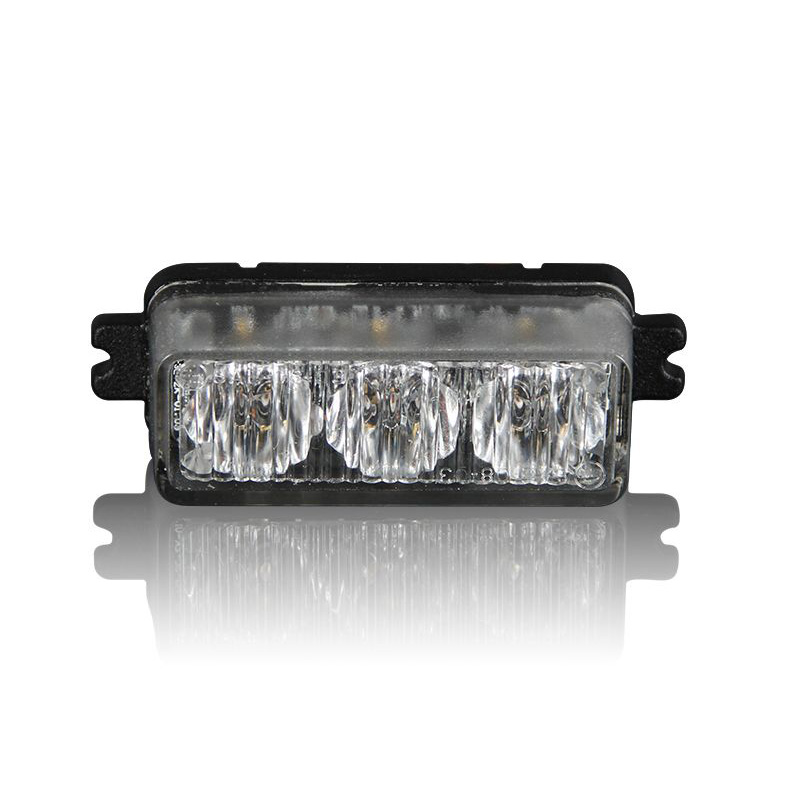

Model:H3
Light Characteristics
LED Power:3PCS 3W LED
LED Lifespan:100000H
Flash settings:1-4HZ
LENS:TIR
Electrical Characteristics
Voltage:DC 10-30V
Max Power:6W
Physical Characteristics
Colour Available:Blue,amber ,Red,White
Waterproof:IP68
Ambient temperature:-20–+65℃
Mounting:Surface mount
Flash patterns:19
Meet and Exceeds:ECE R10 03 12468
Product Dimension:10cm L x 4.2cm W x 2.5cm H(4.0 “L x 1.7” W x 1.0″H)
Wire:20 AWG

ITEMMODELSPECIFICATIONS
020301AH3DC10-33V|MAX 4.5W|100*42*25MM|Transparent lens|Transparent lampshade|Black outer cover|3 LED amber colors|19 flashing methods|Screw installation|4-core wire|IP67\IP69K
020301BH3DC10-33V|MAX 4.5W|100*42*25MM|Transparent lens|Transparent lampshade|Black outer cover|3 blue LEDs|19 flash methods|Screw installation|4-core wire|IP67\IP69K

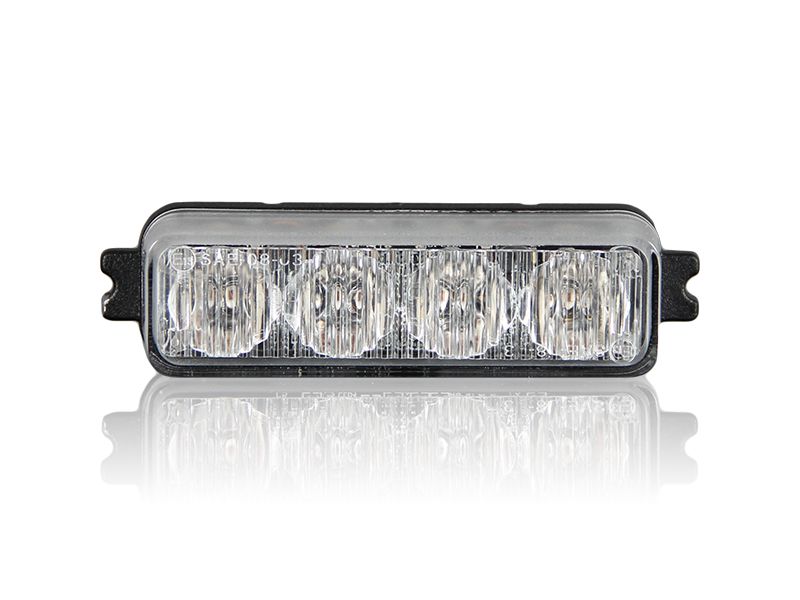

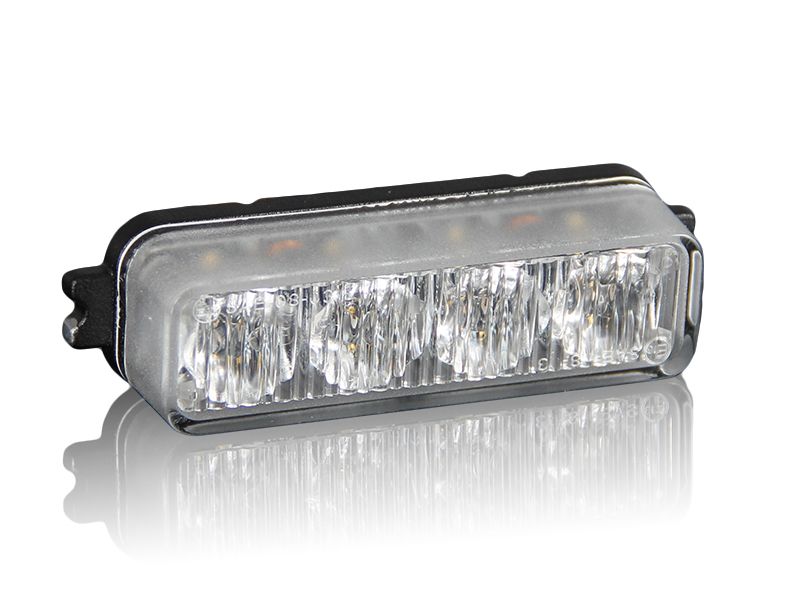

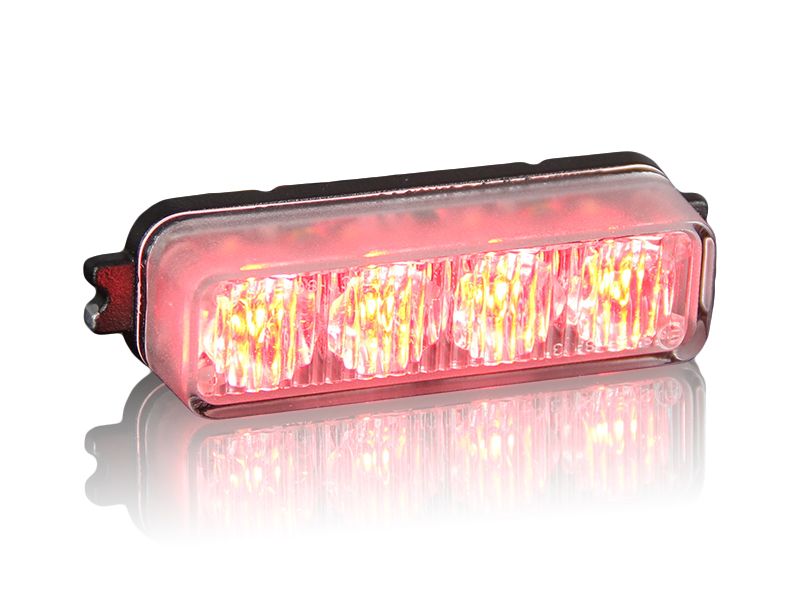

020302AH4DC10-33V|MAX 6W|120*42*25MM|Transparent lens|Lampshade transparent|Outer cover black|4 amber LEDs|19 flashing methods|Screw installation|4-core wire|IP67\IP69K

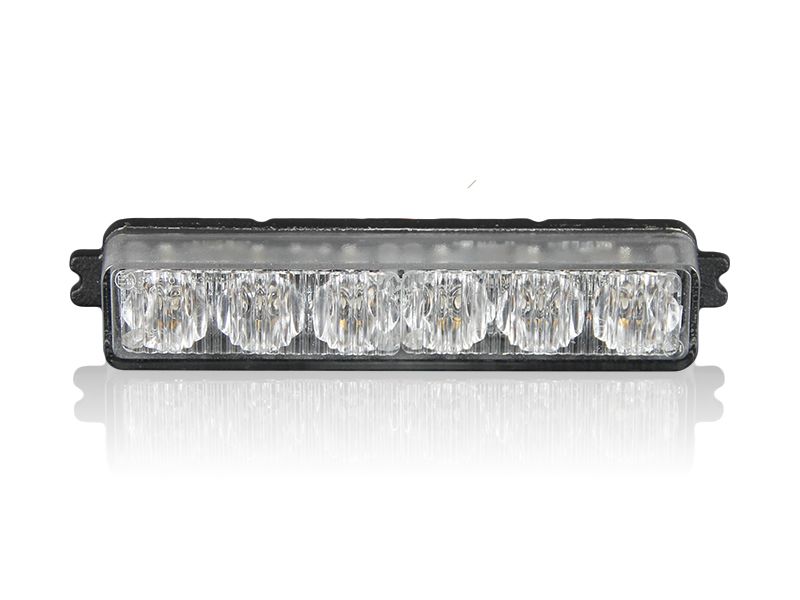

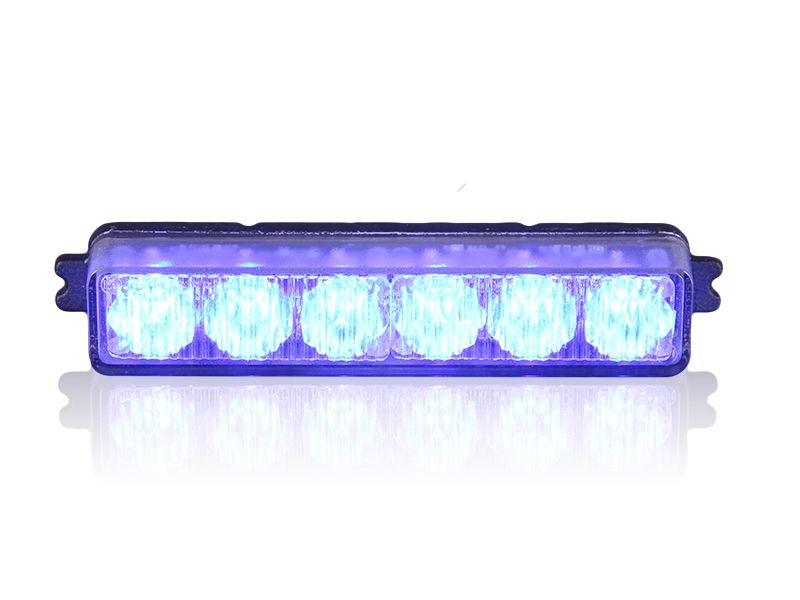

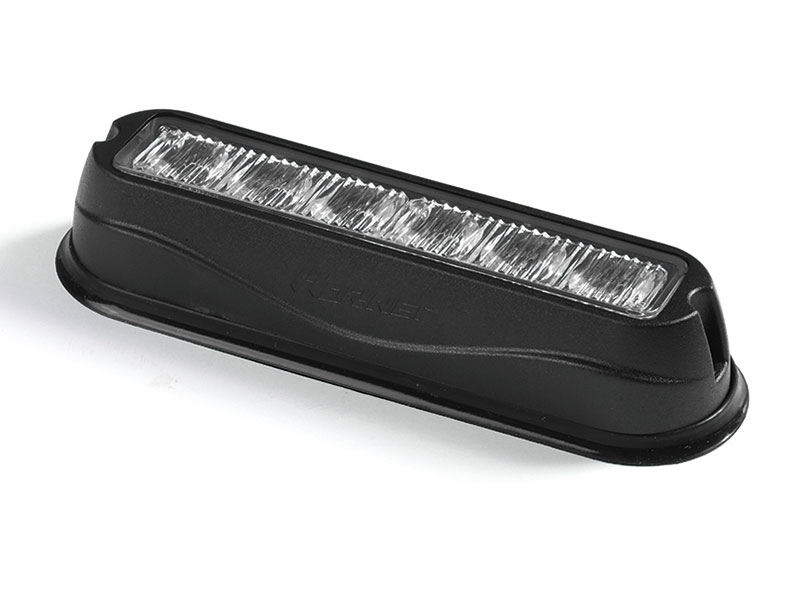

020304BH6DC10-33V|MAX 9W|155*42*25MM|Transparent lens|Lampshade transparent|Outer cover black|6 blue LEDs|19 flashing methods|Screw installation|4-core wire|IP67\IP69K
