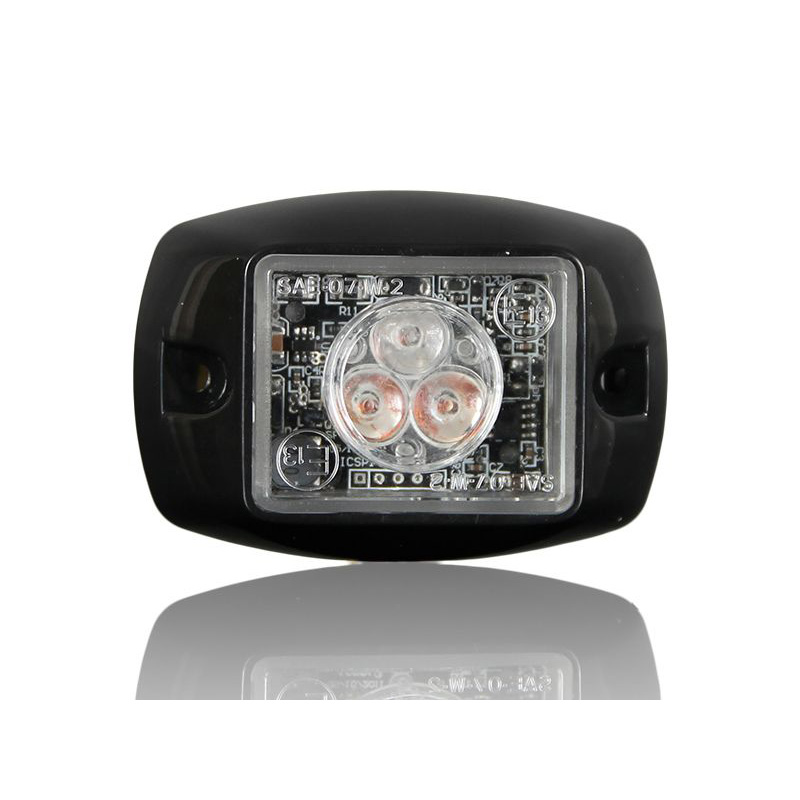

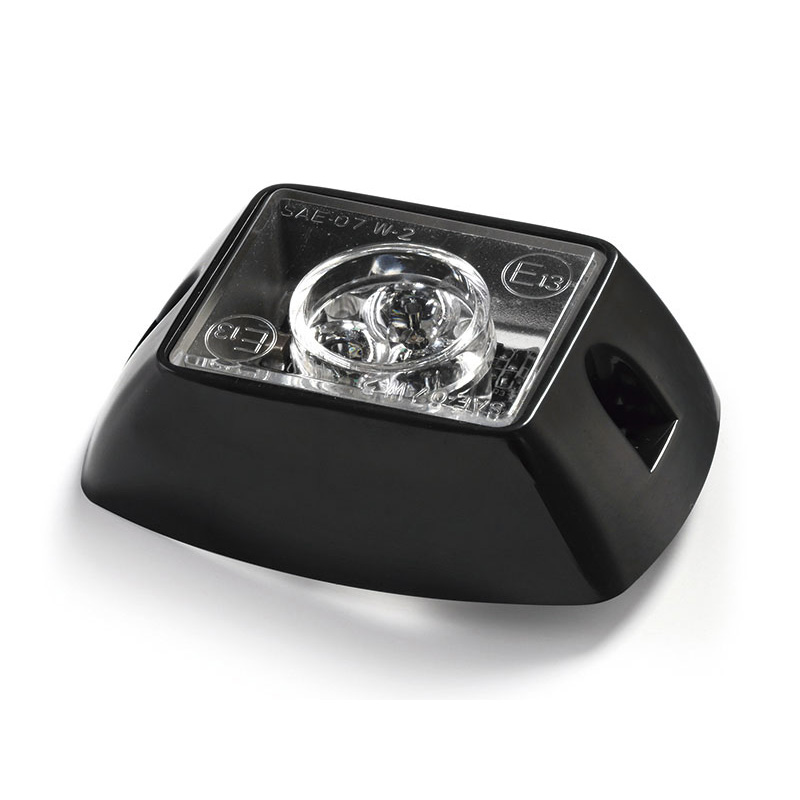

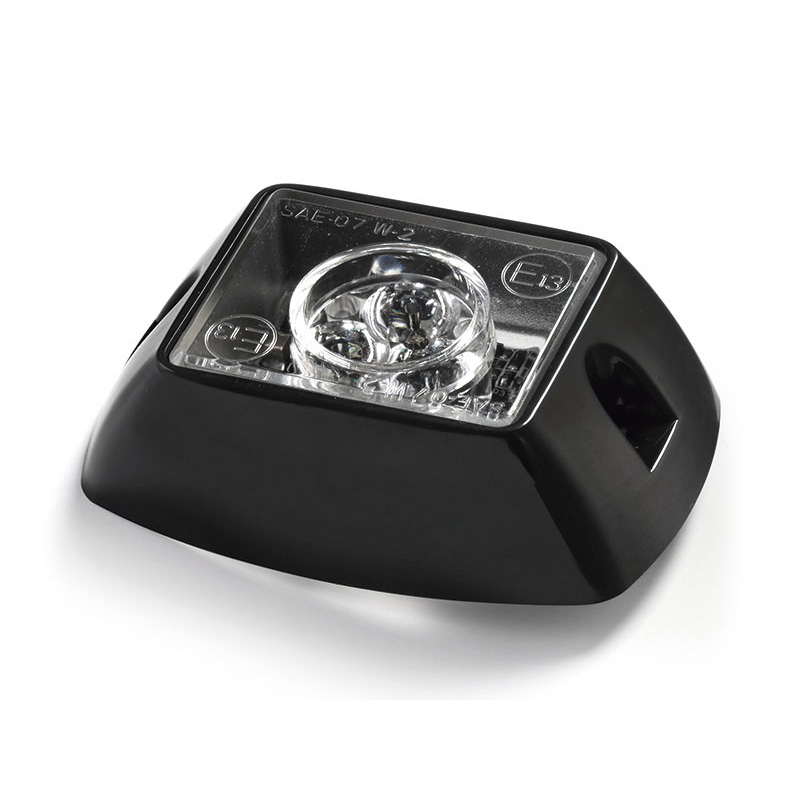

P3 & P3 PRO Series – 4 color LED Warning lighthead

  • Durable PMMA lens minimizes UV damage and resists scratches
  • Aluminum chassis offers fine heat dissipation and prolongs lifespan
  • IP 67 rated; fully encapsulated for dust and moisture resistance
  • Synchronize to other 911Signal products
Get A Quote

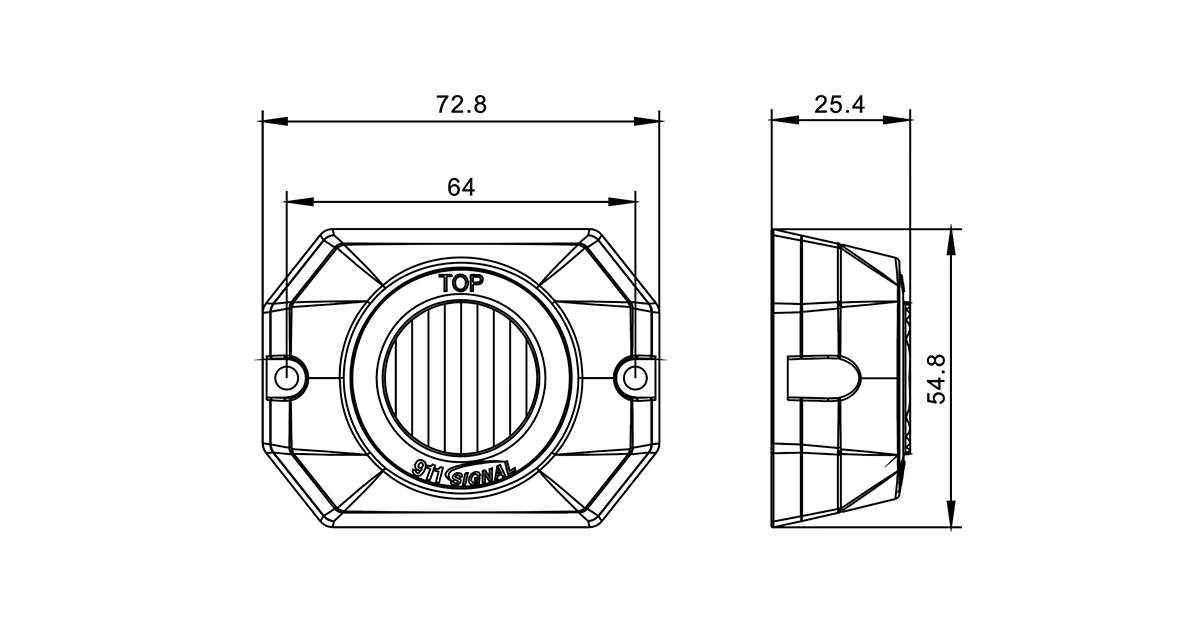

DIMENSIONS

SPECIFICATION

Model: P3 PRO
Light Characteristics
LED Power:3PCS 3W LED
LED Lifespan:100000H
Flash settings:1-4HZ
LENS:TIR
Electrical Characteristics
Voltage:DC 10-33V
Max Power:9W
Physical Characteristics
Colour Available:Blue,Amber ,Red,White
Ambient temperature:-20–+65℃

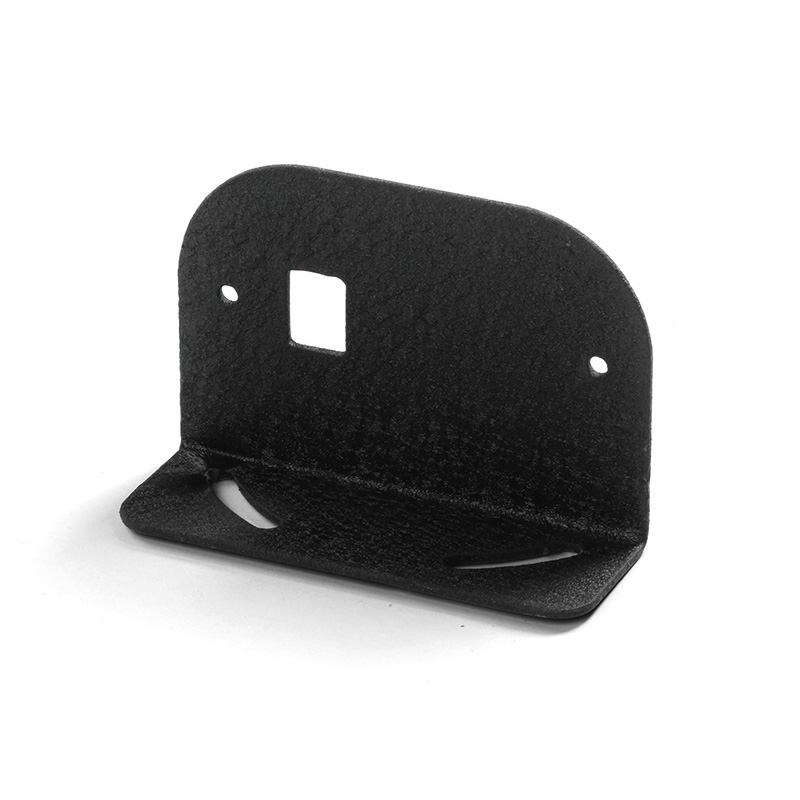

Mounting:Surface mount/Bracket mount
Flash patterns:13
Meet and Exceeds:ECE R65 XB1 00 0073; ECE R65 XA1 00 0072
Product Dimension:7.3cm L x 5.5cm W x 2.5cm H(2.9″L x 2.2″ W x1.0″H)

ITEMMODELSPECIFICATIONS
020501AP3DC10-33V|MAX 7W|71*50*22MM|Transparent lens|Outer cover black|3 amber LEDs|19 flash methods|Screw installation|4-core wire|IP67\IP69K
020501BP3DC10-33V|MAX 7W|71*50*22MM|Transparent lens|Outer cover black|3 blue LEDs|19 flashing methods|Screw installation|4-core wire|IP67\IP69K
020501RP3DC10-33V|MAX 7W|71*50*22MM|Transparent lens|Outer cover black|3 red LEDs|19 flashing methods|Screw installation|4-core wire|IP67\IP69K
021401AP3 PRODC10-33V|MAX 9W|73*55*25MM|Transparent lens|Outer cover black|3 amber LEDs|13 flashing methods|Screw installation|4-core wire|IP67\IP69K
021401BP3 PRODC10-33V|MAX 9W|73*55*25MM|Transparent lens|Outer cover black|3 blue LEDs|13 flashing methods|Screw installation|4-core wire|IP67\IP69K

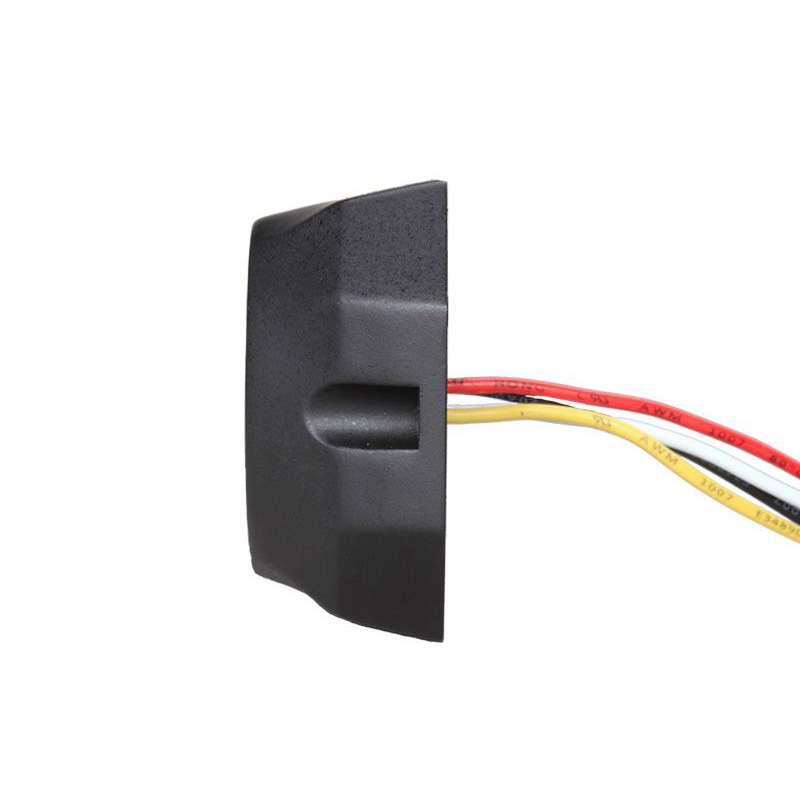

021402AP3 PRODC10-33V|MAX 9W|73*55*25MM|Transparent lens|Outer cover black|3 amber LEDs|13 flashing methods|Screw installation|4-core sheathed wire 1.5M Red: positive pole, black: negative pole, yellow: Sync/Trigger/Reset, White: Alternate|IP67\IP69K|Outer box B010NO400001, brown box B02V20X10001, sticker B04P3PRO0101
