- As the name suggests, it offers 200° high intensity light coverage
- Available in single, split or dual colors
- Perfect combination of work light and warning light
- Includes steady-burn, simultaneous and alternating flash patterns
- Low power consumption, especially for night time use
- Fully encapsulated for moisture, vibration and corrosion resistance
- Can be synchronized with multiple units

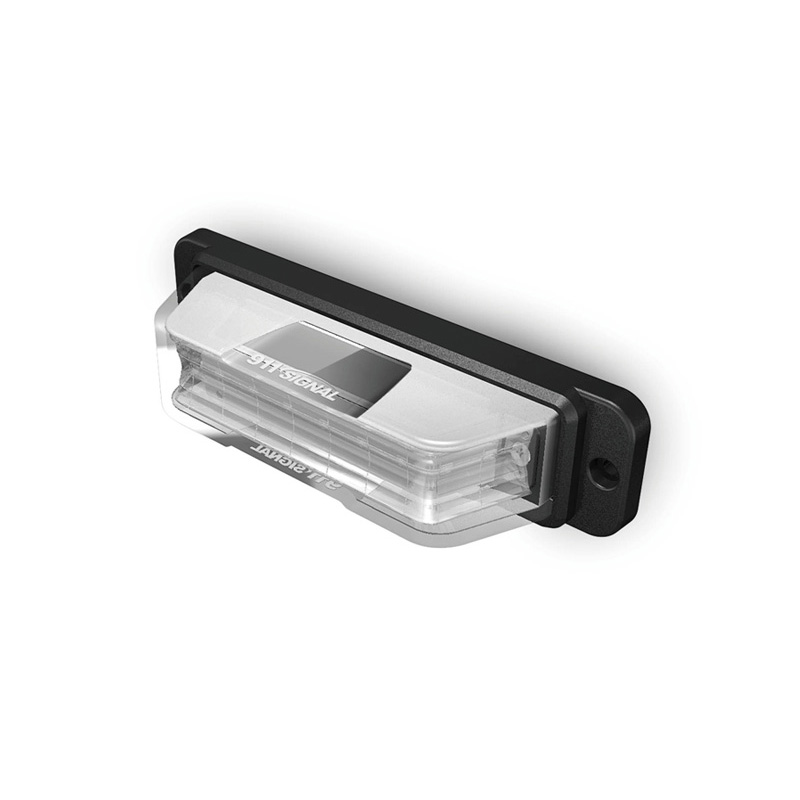

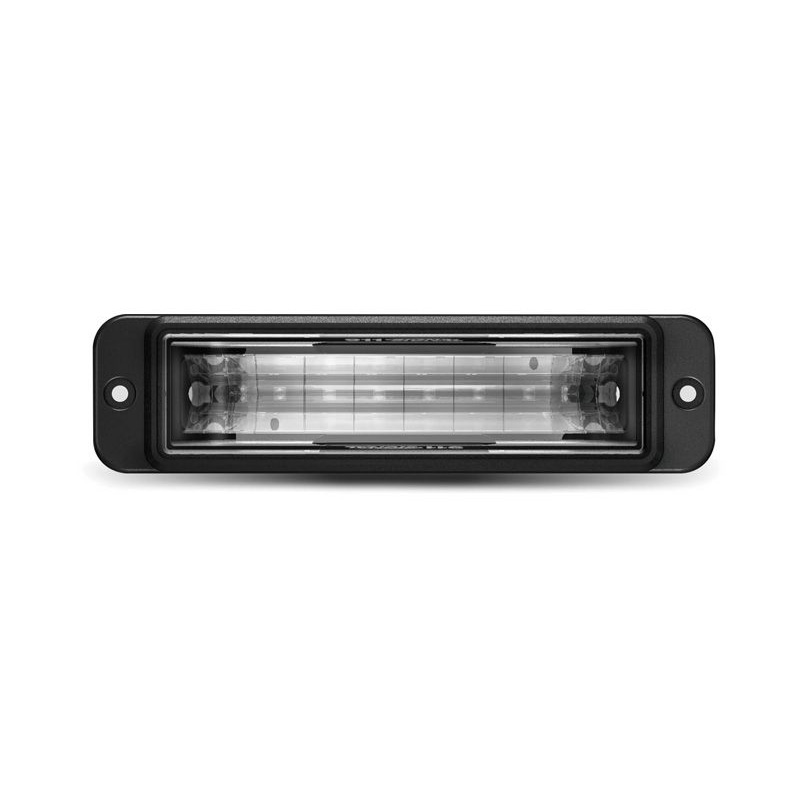

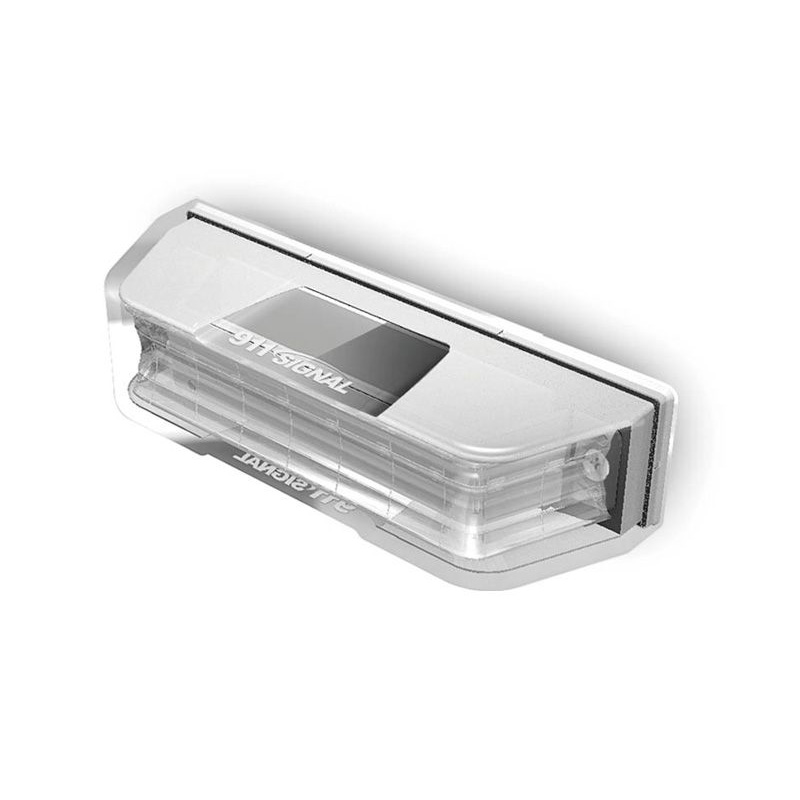

L200 – 200 Degrees LED Lighthead
Get A Quote

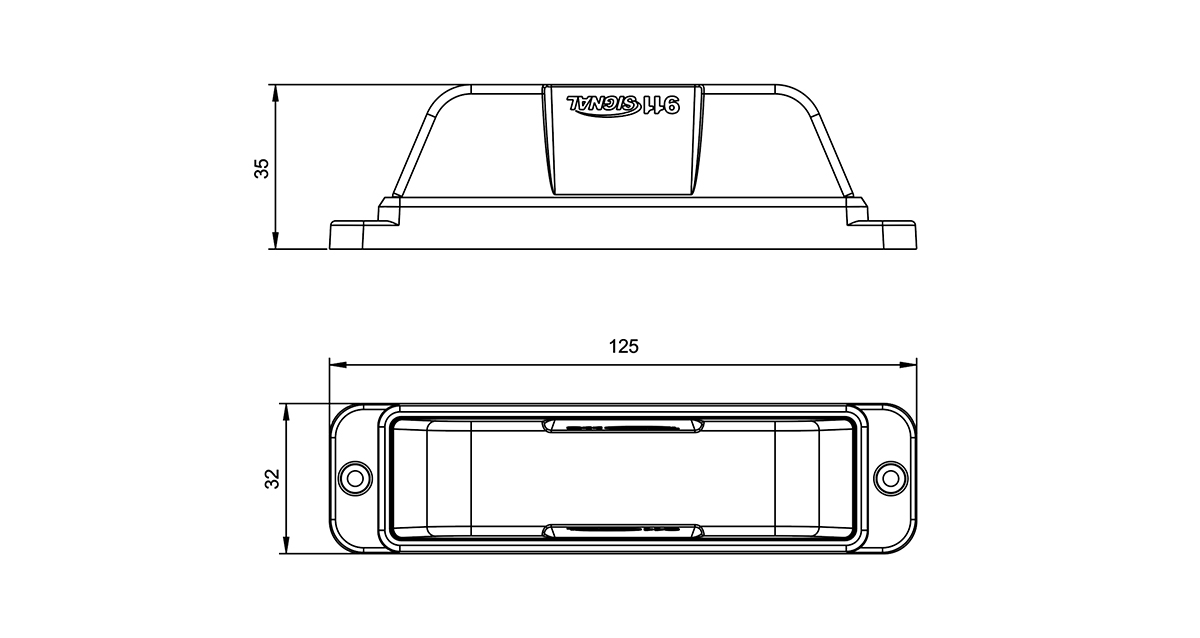

DIMENSIONS
SPECIFICATION
Model L200(022201)
Light Characteristics
LED Power: 10 Pcs 3W + 2Pcs 2W(steady burn) LEDs
LED Lifespan: 100000
Flash settings: 1-4HZ
Electrical Characteristics
Voltage: DC 10-33V
Max Power: 27W
Physical Characteristics
Colour Available: Available in Red, Blue, Amber
Mounting : Surface mount
Flash patterns: 19
Meet and Exceeds: ECE R65 XA1 XB1,ECE R10,SAE CLASS1,CA Title 13
Product Dimension: 125mm×32mm×35mm
| ITEM | MODEL | SPECIFICATIONS |
| 022201A | L200 | DC10-33V|MAX 10W|125*32*35MM|Transparent lens|Transparent lampshade|Base black|LED amber 10 pcs|19 flashing methods|Screw installation|4-core wire|IP67\IP69K |
| 022201R | L200 | DC10-33V|MAX 10W|125*32*35MM|Transparent lens|Transparent lampshade|Base black|lED red 10 pcs|19 flashing methods|Screw installation|4-core wire|IP67\IP69K |
| 022201W | L200 | DC10-33V|MAX 10W|125*32*35MM|Transparent lens|Transparent lampshade|Base black|LED white 10 pieces|19 flashing methods|Screw installation|4-core wire|IP67\IP69K |
| 022203B | L200 | DC10-33V|MAX 10W|125*32*35MM|Transparent lens|Transparent lampshade|Base black|LED blue 10 pcs white 2 pcs|19 flashing methods|Screw installation|5-core wire|IP67\IP69K |
| 022205W | L200 | DC10-33V|MAX 10W|125*32*35MM|Transparent lens|Transparent lampshade|Base black|LED white 10 pieces|19 flash methods, initial flash method Quint(ALL)|Screw installation|4-core wire|IP67\IP69K |
