- Ultra thin, compact but powerful

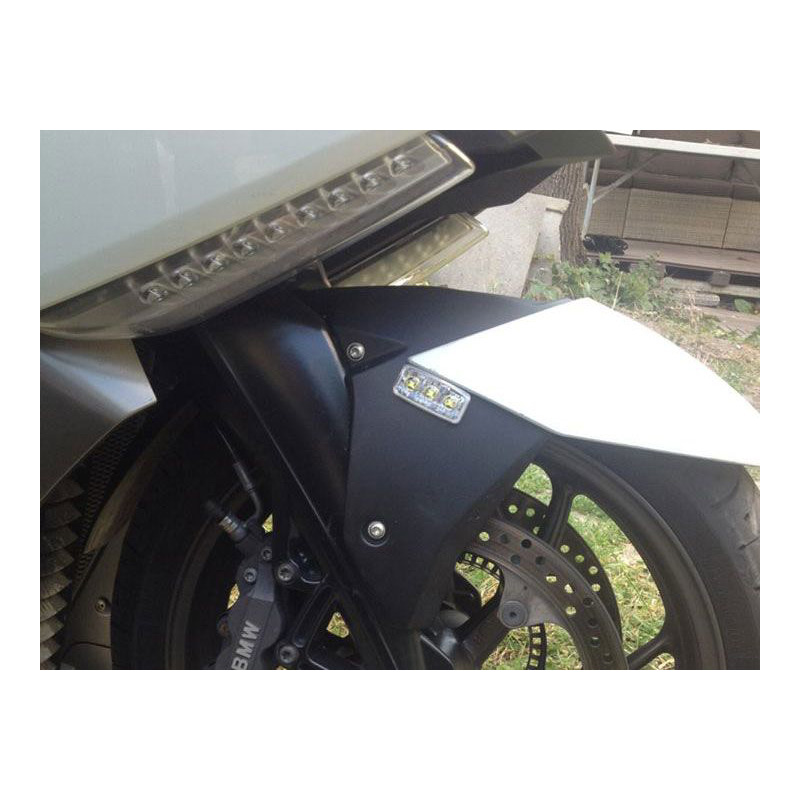

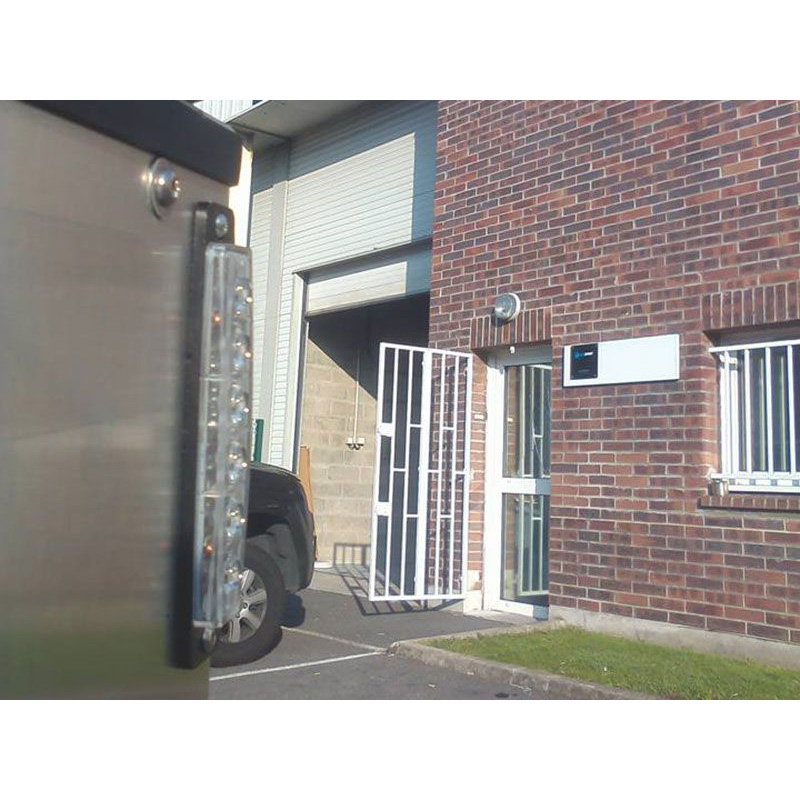

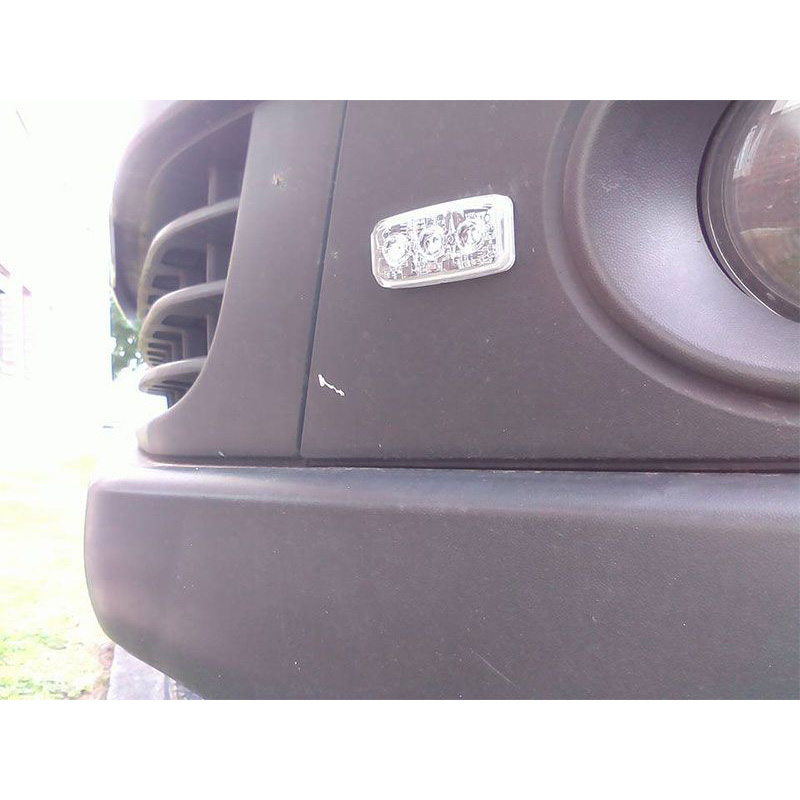

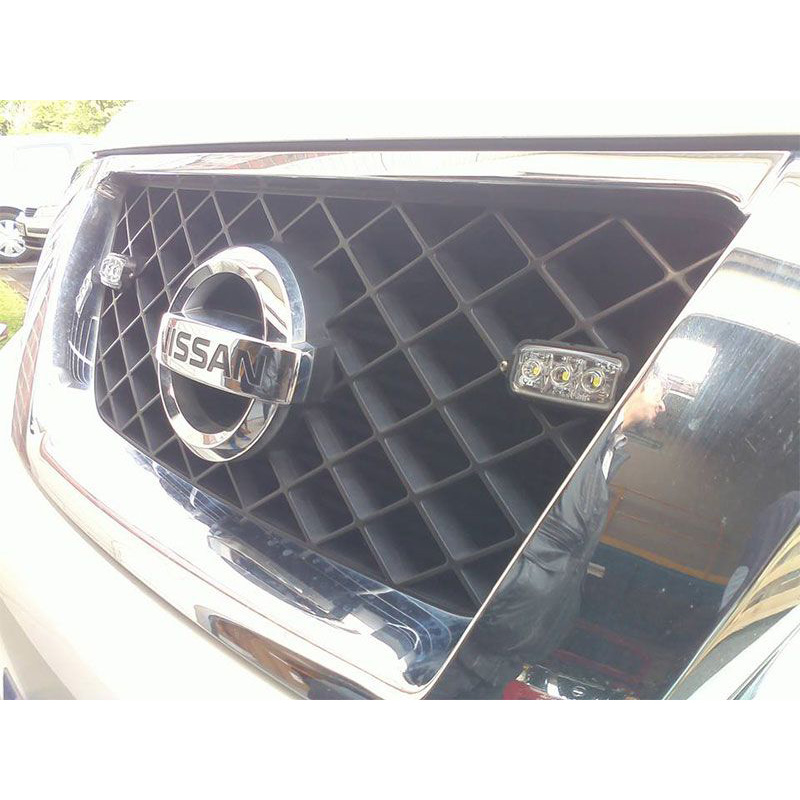

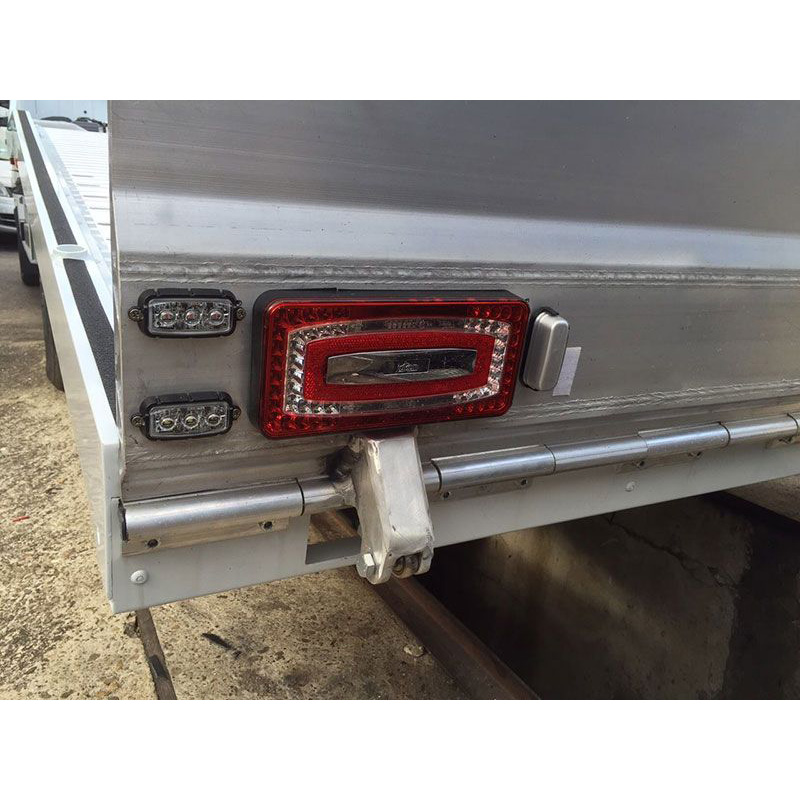

- Can be applied to any desired surface with brackets or 3M adhesive
- Available in single or split color
- Offer 180° light spread
- Full encapsulated for moisture, vibration and corrosion resistance
- Hard-coated lenses and aluminum housing minimize environmental damage
- Synchronize to other 911Signal products

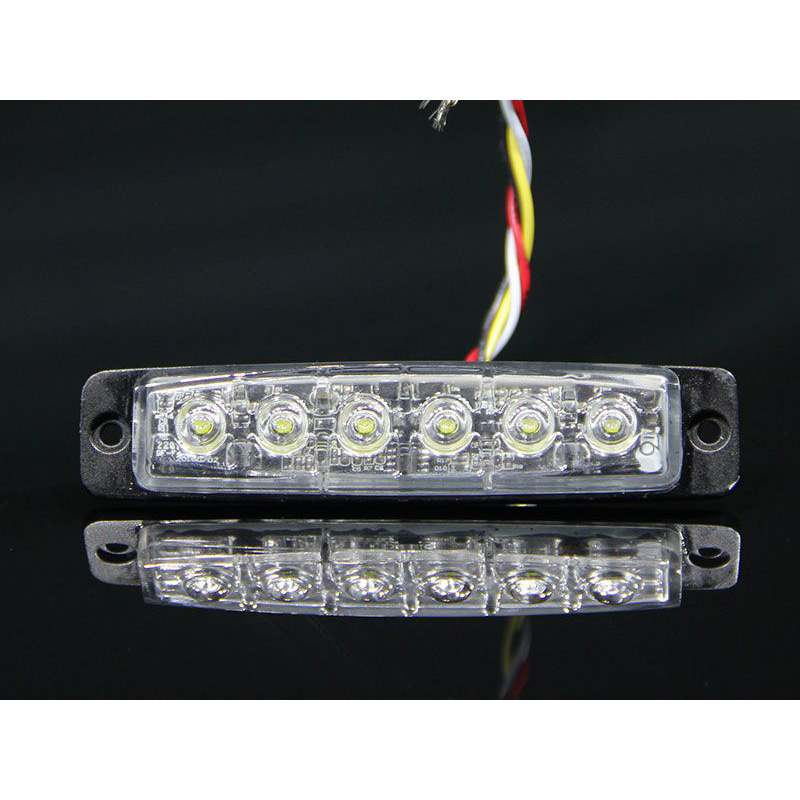

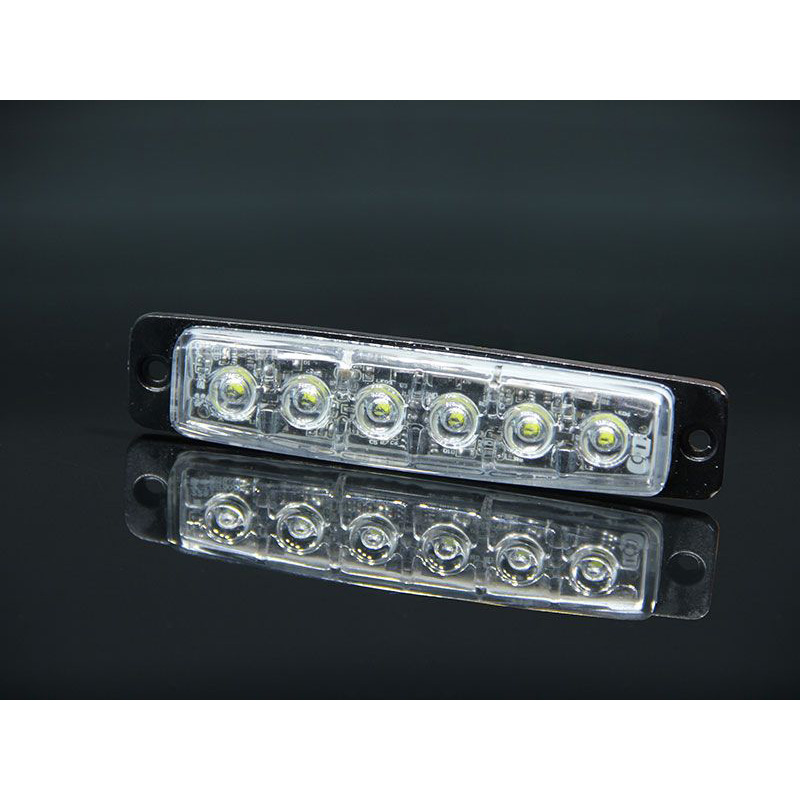

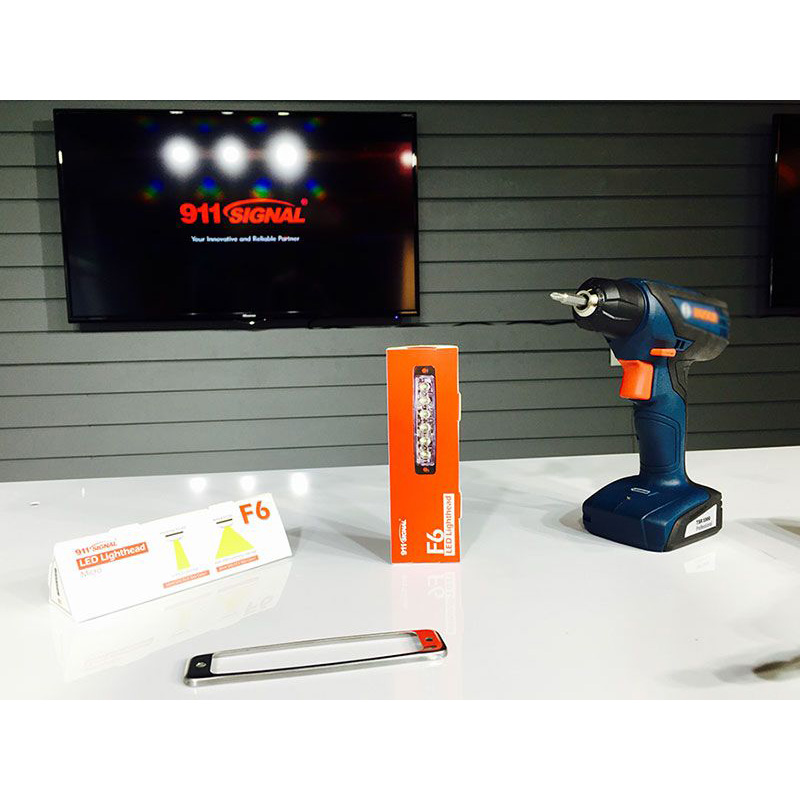

F3 & F6 Series – CREE LED High Output Illumination Lighthead
Get A Quote

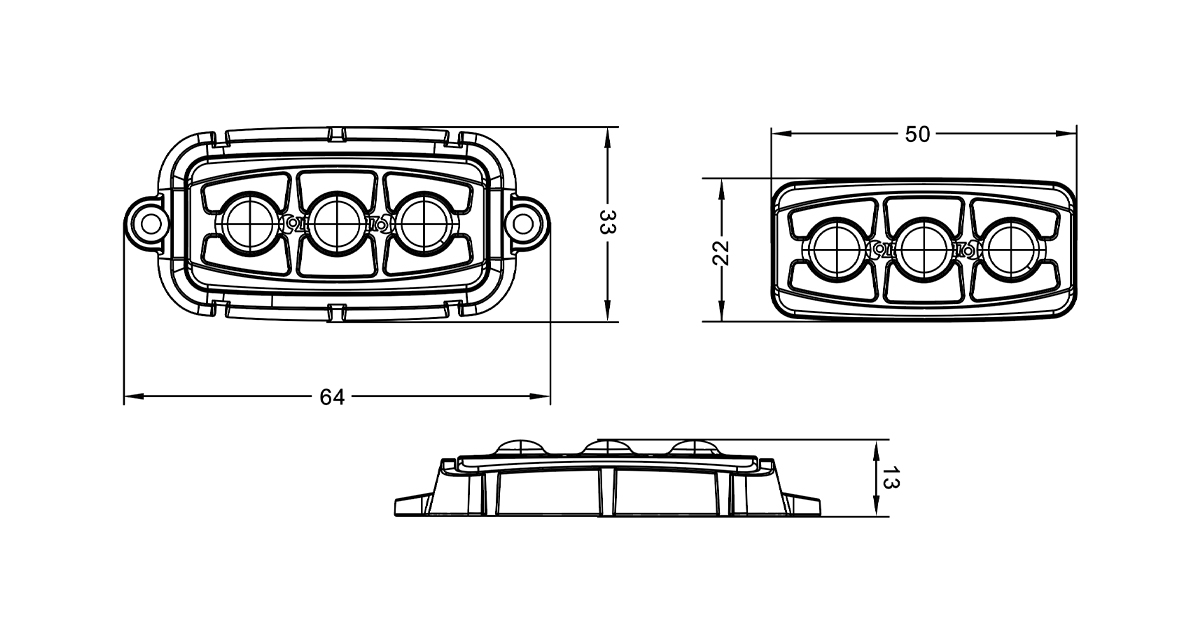

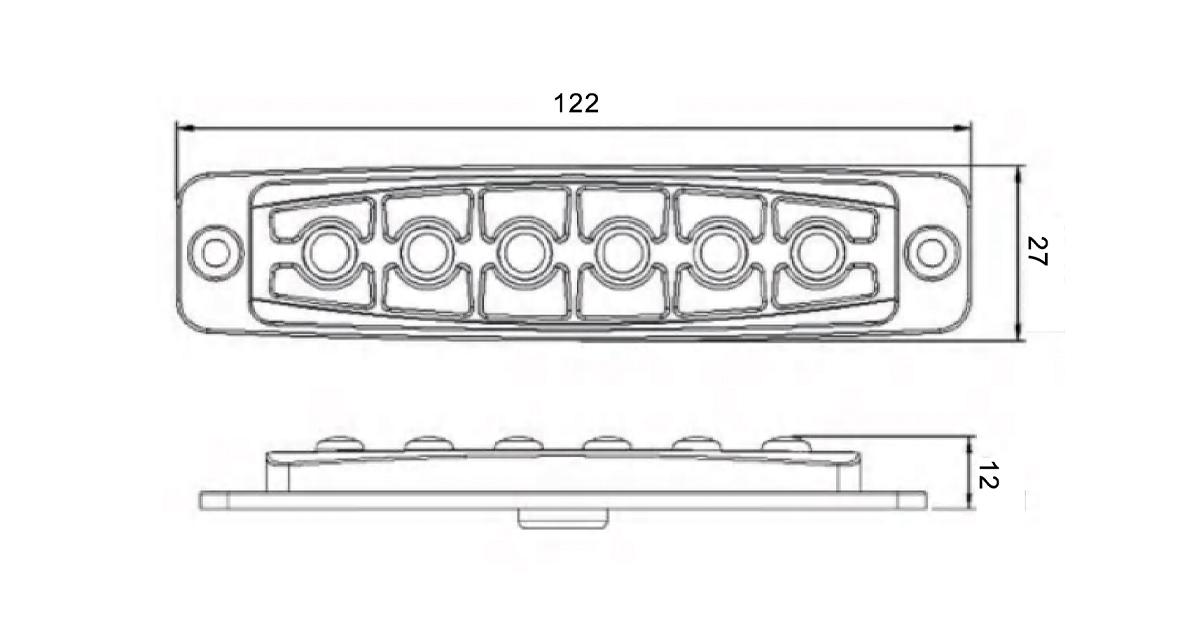

DIMENSIONS
SPECIFICATION
Electrical Characteristics
Voltage:DC 10-33V
Physical Characteristics
Colour Available:Blue,amber ,Red,White
Ambient temperature:-20–+65°
Waterproof:IP67

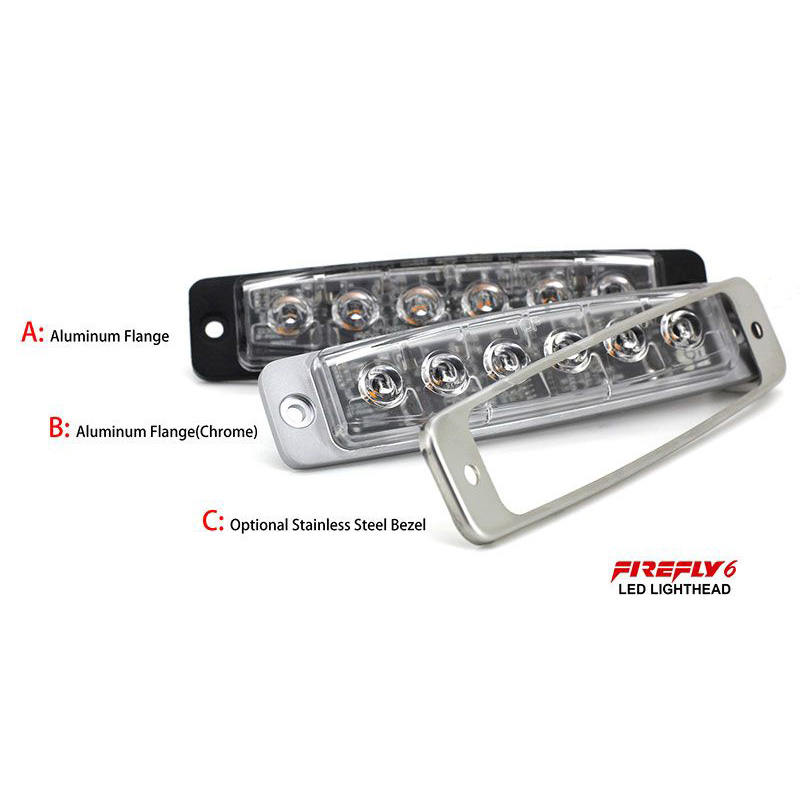

Mounting:3m adhesive mount/Surface mount/Bracket mount
Flash patterns:13/19
Meet and Exceeds:SAE-16-W-1; CA T13,ECE R65 XB1 0066, ECE R65 XA1 0067; ECE R10 052168
| ITEM | MODEL | SPECIFICATIONS |

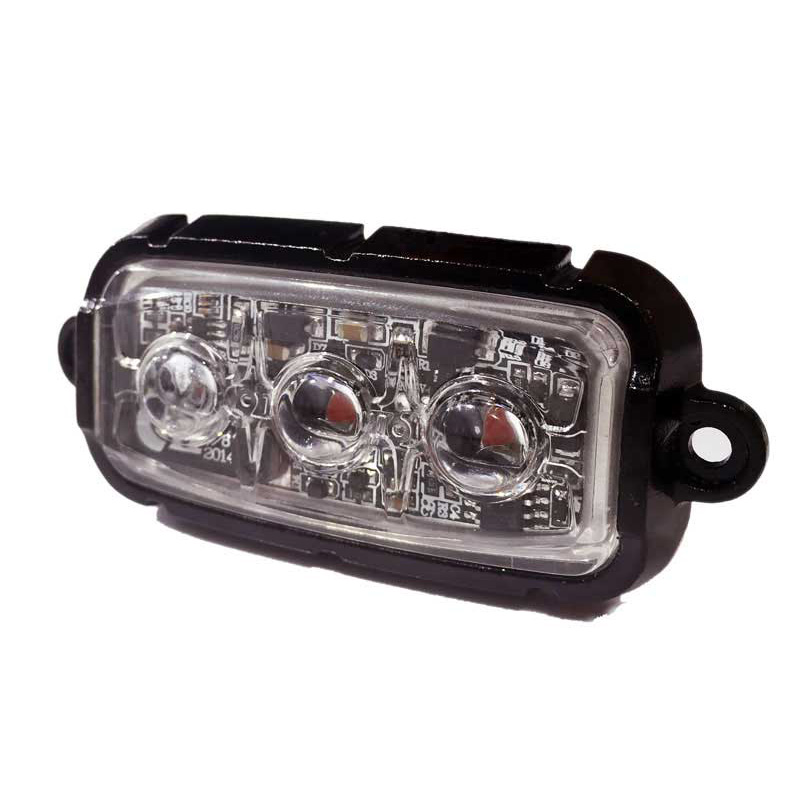

| 021201A | F3 | DC10-33V|MAX 4.5W|64*33*13MM|Transparent lens|Outer cover black|3 amber LEDs|13 flash methods|Screw installation|4-core wire|IP67\IP69K |
| 021201B | F3 | DC10-33V|MAX 4.5W|64*33*13MM|Transparent lens|Outer cover black|3 blue LEDs|13 flash methods|Screw installation|4-core wire|IP67\IP69K |
| 021201R | F3 | DC10-33V|MAX 4.5W|64*33*13MM|Transparent lens|Outer cover black|3 red LEDs|13 flashing methods|Screw installation|4-core wire|IP67\IP69K |
| 021201W | F3 | DC10-33V|MAX 4.5W|64*33*13MM|Transparent lens|Outer cover black|3 white LEDs|13 flash methods|Screw installation|4-core wire|IP67\IP69K |
| 021201A(AWARD) | F3 | DC10-33V|MAX 4.5W|64*33*13MM|Transparent lens|Outer cover black|3 amber LEDs|13 flash methods|Screw installation|4-core wire|IP67\IP69K|Outer box B010NO100001, color box B0200F300004, Manual B080F3499302 |

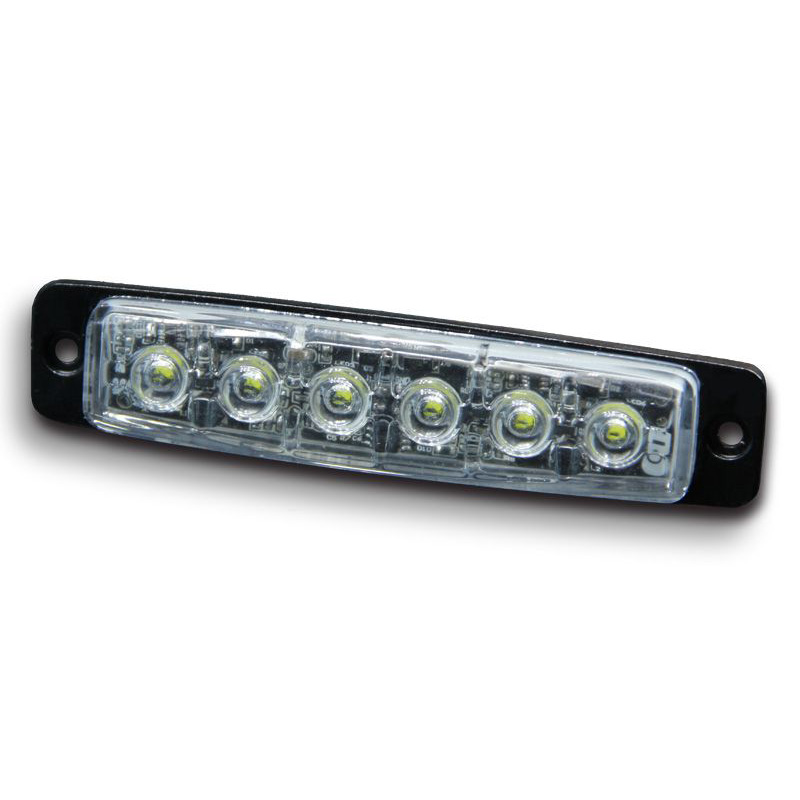

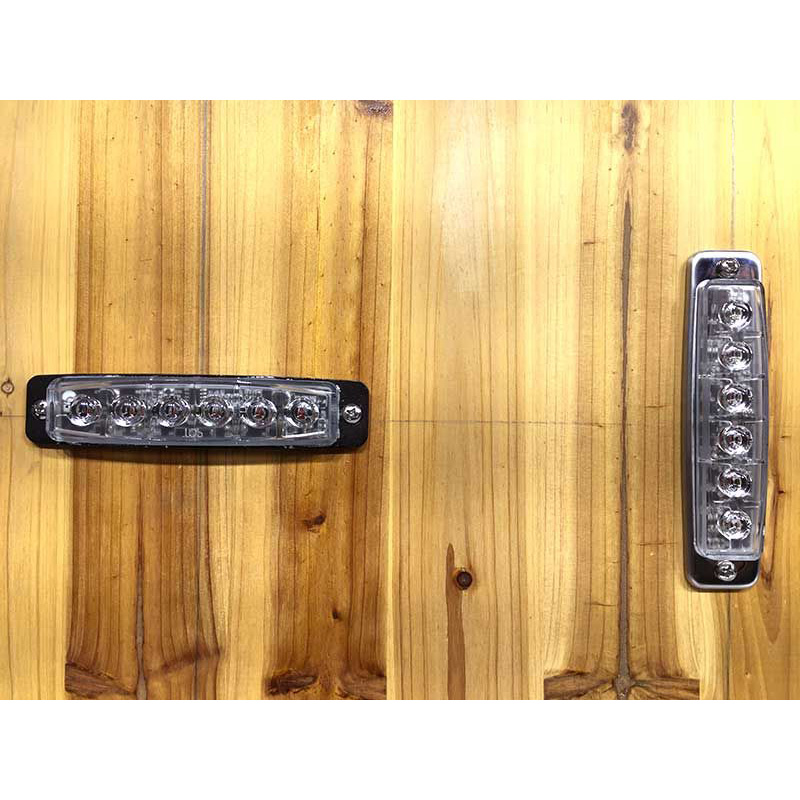

| 021301A | F6（H） | DC10-33V|MAX 18W|122*27*12MM|Transparent lens|Outer cover black|6 amber LEDs|19 flash methods|Horizontal screw installation|4-core wire|IP67\IP69K |
| 021301B | F6（H） | DC10-33V|MAX 18W|122*27*12MM|Transparent lens|Outer cover black|6 blue LEDs|19 flash methods|Horizontal screw installation|4-core wire|IP67\IP69K |
| 021301R | F6（H） | DC10-33V|MAX 18W|122*27*12MM|Transparent lens|Outer cover black|6 red LEDs|19 flash methods|Horizontal screw installation|4-core wire|IP67\IP69K |
| 021302A | F6（V） | DC10-33V|MAX 18W|122*27*12MM|Transparent lens|Outer cover black|6 amber LEDs|19 flash methods|Vertical screw installation|4-core wire|IP67\IP69K |
| 021302B | F6（V） | DC10-33V|MAX 18W|122*27*12MM|Transparent lens|Outer cover black|6 blue LEDs|19 flash methods|Vertical screw installation|4-core wire|IP67\IP69K |
| 021301RB | F6（H） | DC10-33V|MAX 18W|122*27*12MM|Transparent lens|Outer cover black|LED blue 3 pcs red|19 flash methods|Horizontal screw installation|4-core wire|IP67\IP69K |

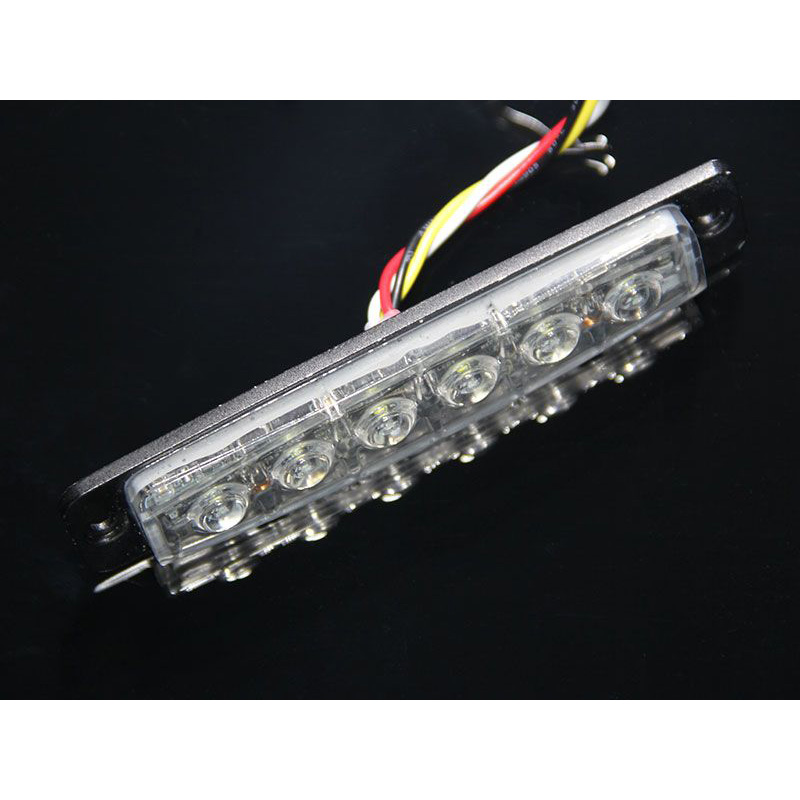

| 021303A | F6（H） | DC10-33V|MAX 18W|122*27*12MM|Transparent lens|Outer cover black|6 amber LEDs|19 flash methods|Horizontal screw installation|4-core sheathed wire 50CM Red: positive pole, black: negative pole, yellow: Sync/Trigger/Reset, White: Alternate|IP67\IP69K|Outer box B0200F600005, color box B0200F600005, instruction manual B08F6VF01001 |
| 021302A(VENTA) | F6（V） | DC10-33V|MAX 9W|122*27*12MM|Transparent lens with engraved VENTA|Outer cover black|6 amber LEDs|19 flash methods|Vertical screw installation|4-core wire|IP67\IP69K|Color box B0200F600004, instruction manual B08F6VEN0001 |
| 021304A | F6 （V） | DC10-33V|MAX 18W|122*27*12MM|Transparent lens|Outer cover black|6 amber LEDs|19 flash methods|Vertical screw installation|4-core sheathed wire 50CM Red: positive pole, black: negative pole, yellow: Sync/Trigger/Reset, White: Alternate|IP67\IP69K|Outer box B0200F600005, color box B0200F600003, instruction manual B08F6VF01001 |
| 021306A | F6（V） | DC10-33V|MAX 18W|122*27*12MM|Transparent lens|Outer cover black|6 amber LEDs|19 flash methods|Horizontal screw installation|4-core sheathed wire 2.5M Red: positive pole, black: negative pole, yellow : Sync/Trigger/Reset, White: Alternate|IP67\IP69K|Outer box B01C9R65X201, brown box B02C9R65X201, self-adhesive B040F6300001 |
