- Available in single color
- Fully encapsulated for moisture, vibration and corrosion resistance
- High performance with a reasonable price
- Synchronization capability

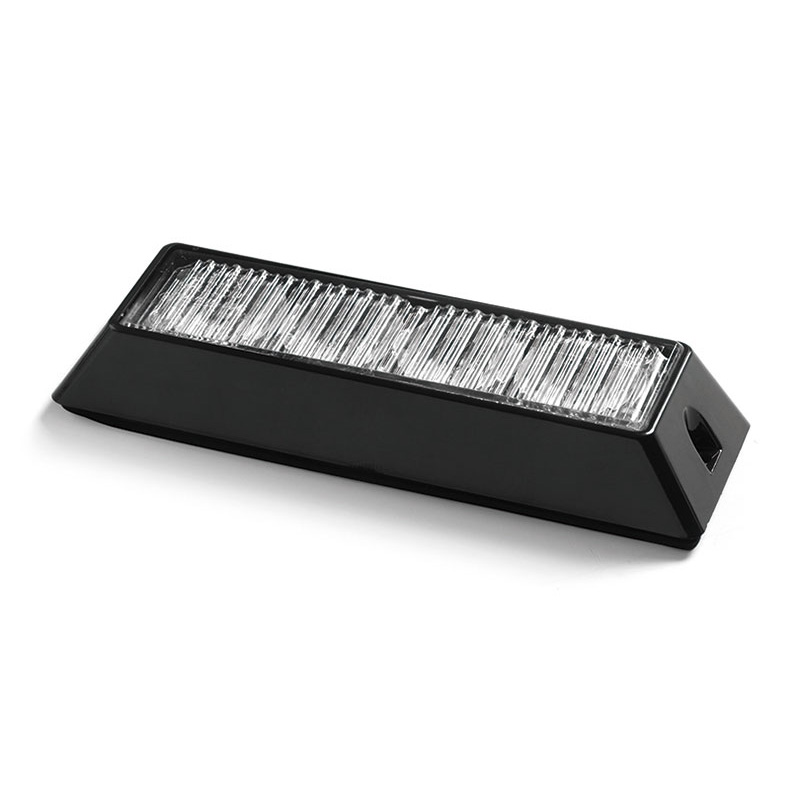

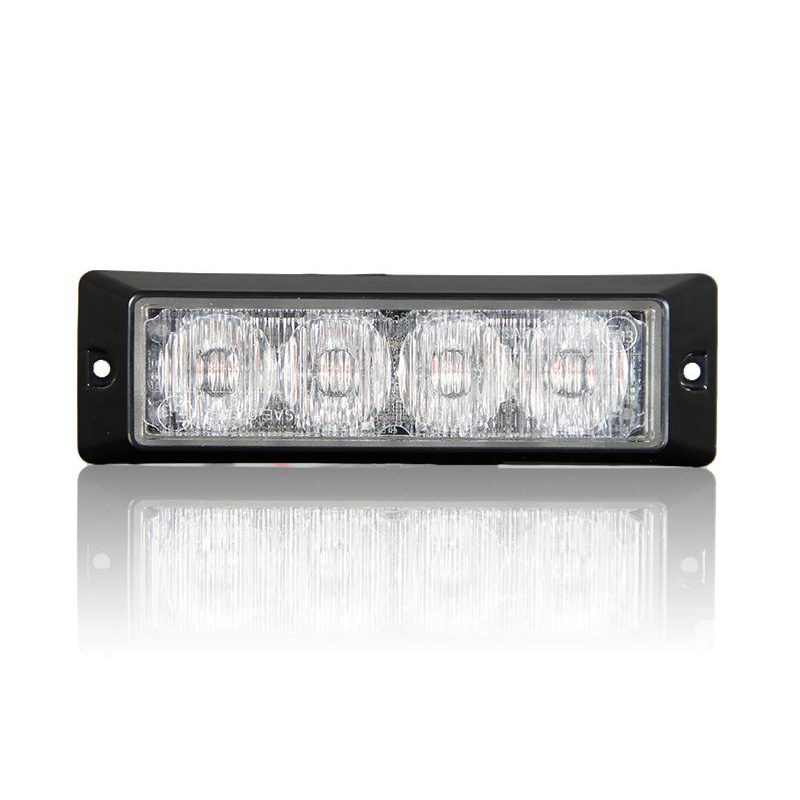

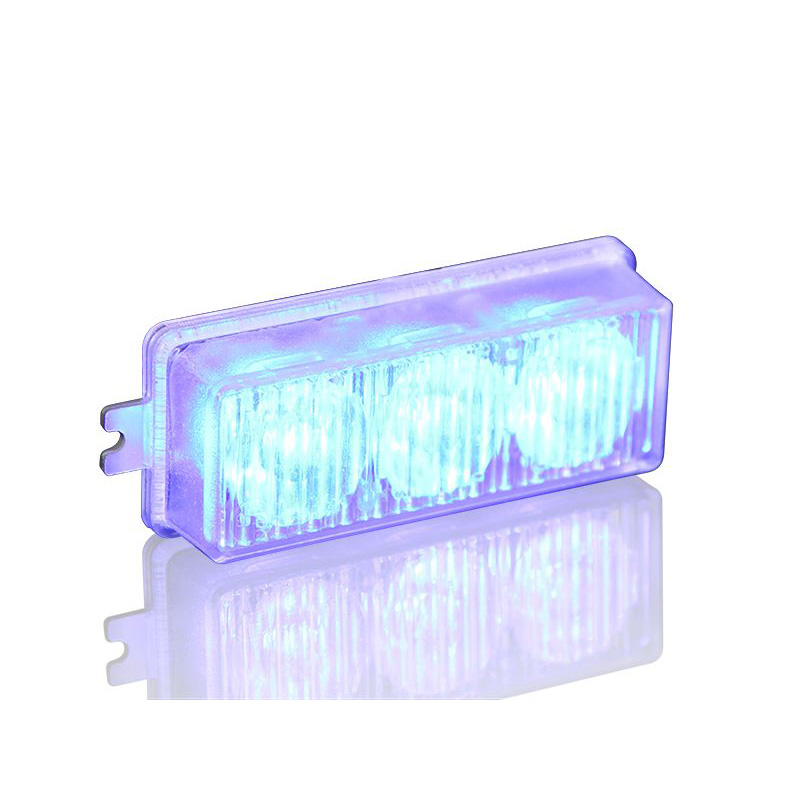

E3 & E4 & E24 & E36 Series – LED Waterproof Dash Warning Bumper Lighthead
Get A Quote

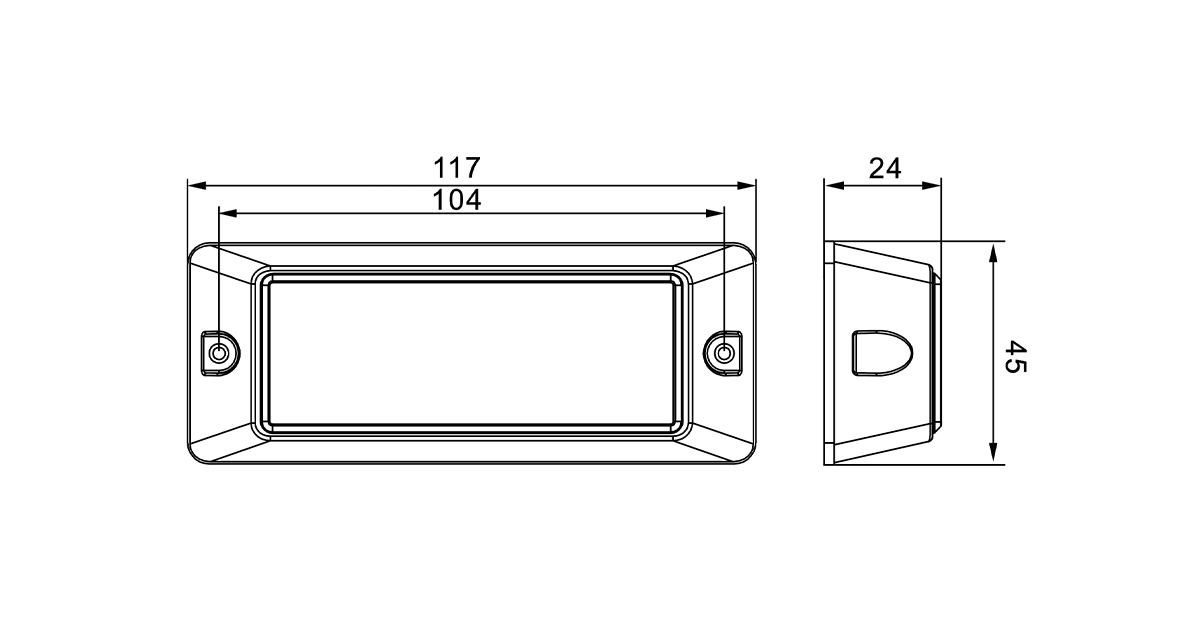

DIMENSIONS
SPECIFICATION

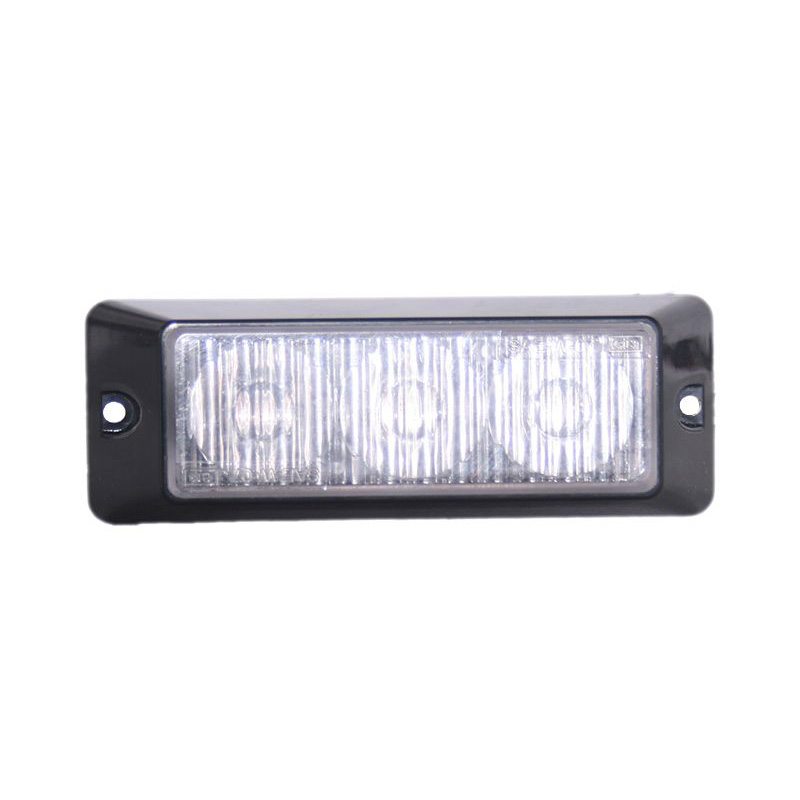

Model:E3
Light Characteristics
LED Power:3PCS 3W LED
LED Lifespan:100,000H
Flash settings:1-4HZ
LENS:TIR
Electrical Characteristics
Voltage:DC 10-30V
Max Power:7W
Physical Characteristics
Colour Available:cred, blue , amber,white
Ambient temperature:-20–+65℃
Waterproof:IP65
Mounting:Surface mount
Flash patterns:19
Meet and Exceeds:ECE R10 03 12468; ECE R65 XB1 00 0025
Product Dimension:11.7cm L x 4.5cm W x 2.4cm H(4.6″L x 1.8″D x 1.0″H)
WIRE:20 AWG
| ITEM | MODEL | SPECIFICATIONS |

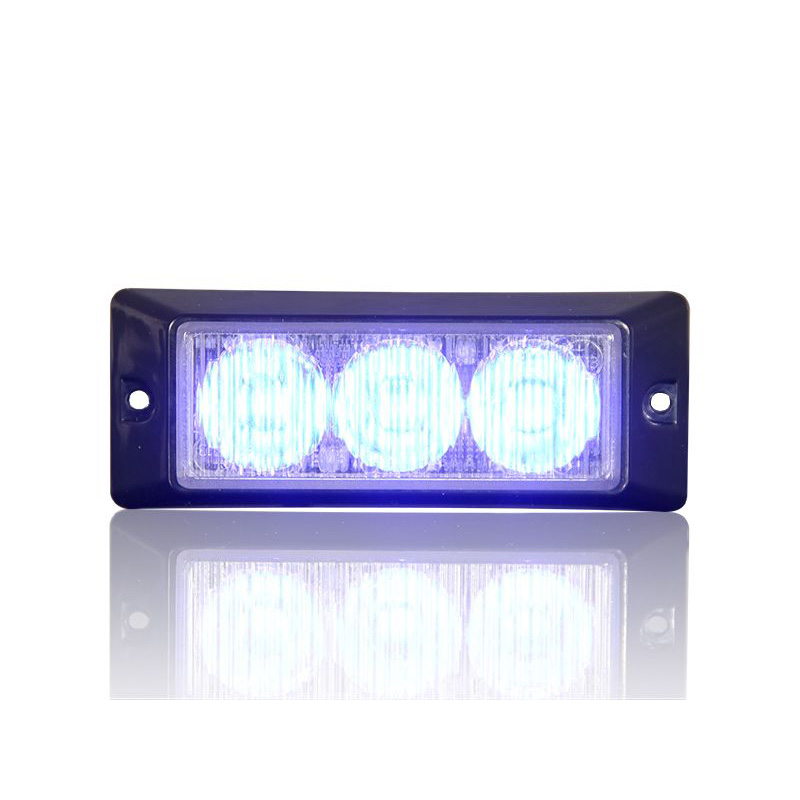

| 020201B | E3 | DC10-33V|MAX 4.5W|117*45*24MM|Transparent lens|Transparent lampshade|Black outer cover|3 blue LEDs|19 flash methods|Screw installation|4-core wire|IP67\IP69K |
| 020202B | E4 | DC10-33V|MAX 6W|117*45*24MM|Transparent lens|Lampshade transparent|Outer cover black|LED blue 4 pcs|19 flashing methods|Screw installation|4-core wire|IP67\IP69K |

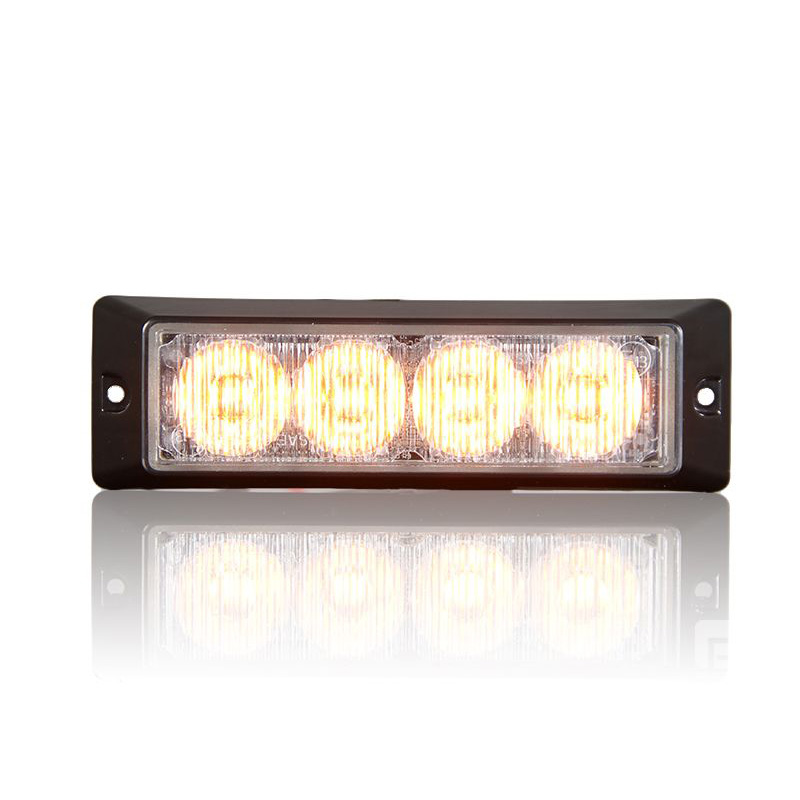

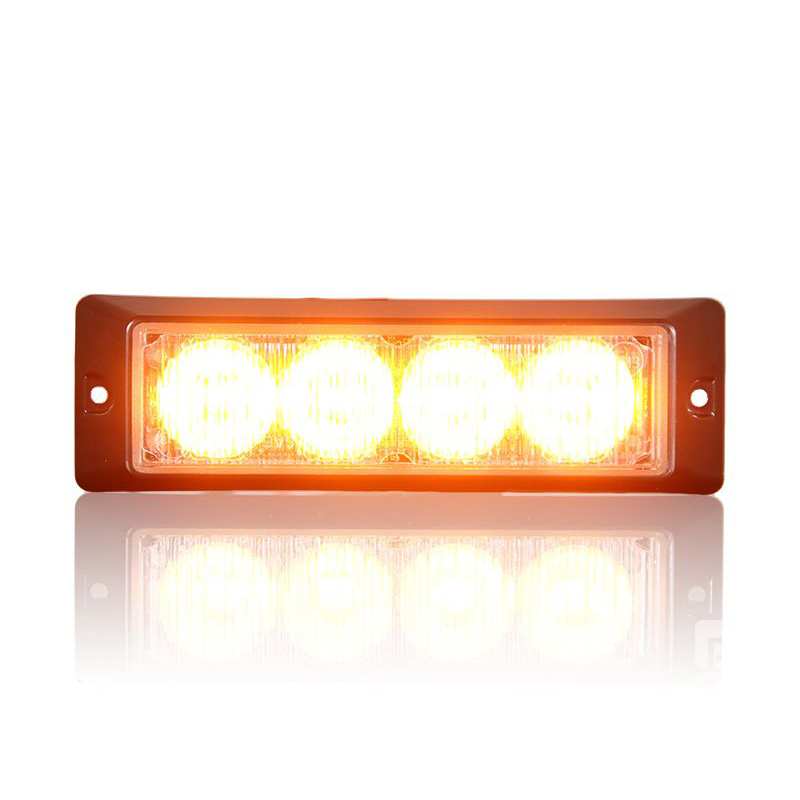

| 020202A | E4 | DC10-33V|MAX 6W|117*45*24MM|Transparent lens|Lampshade transparent|Outer cover black|4 amber LEDs|19 flash methods|Screw installation|4-core wire|IP67\IP69K |
| 020202RB | E4 | DC10-33V|MAX 6W|117*45*24MM|Transparent lens|Lampshade transparent|Outer cover black|LED blue 2 pcs red|19 flashing methods|Screw installation|4-core wire|IP67\IP69K |
| 020202WA | E4 | DC10-33V|MAX 6W|117*45*24MM|Transparent lens|Lampshade transparent|Outer cover black|LED red 2 pcs white|19 flashing methods|Screw installation|4-core wire|IP67\IP69K |
