- All time best seller
- Eyebrows protect the lighthead against impacts and scratches
- Available in single or split color
- Super wide light angle
- Fully encapsulated for moisture, vibration and corrosion resistance
- Aluminum housing offers the best protection and heat dissipation

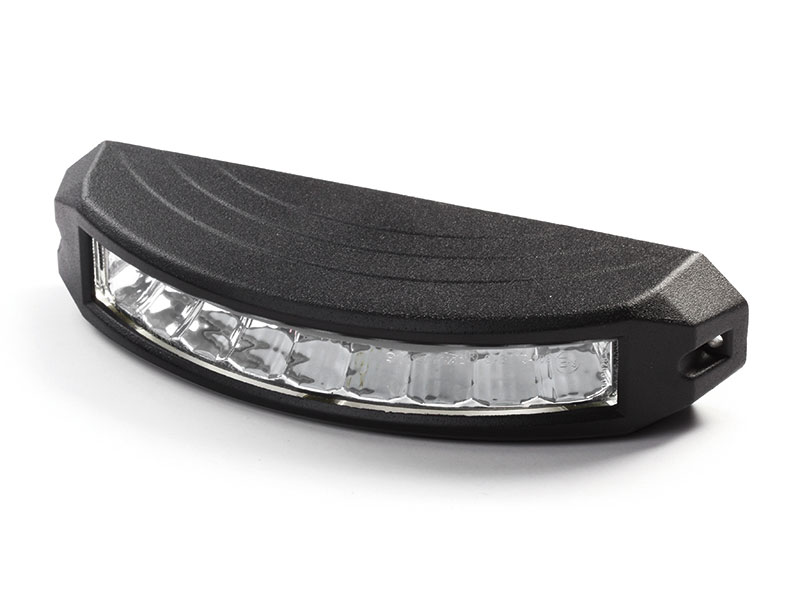

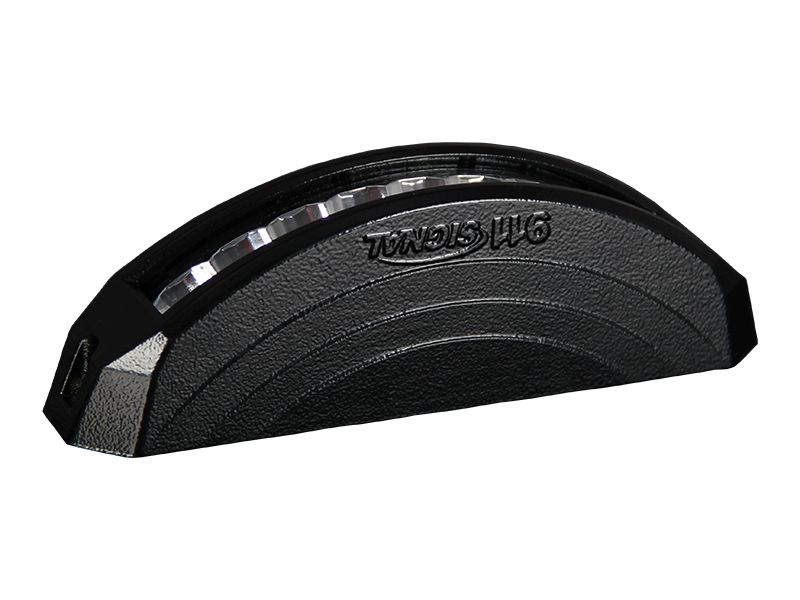

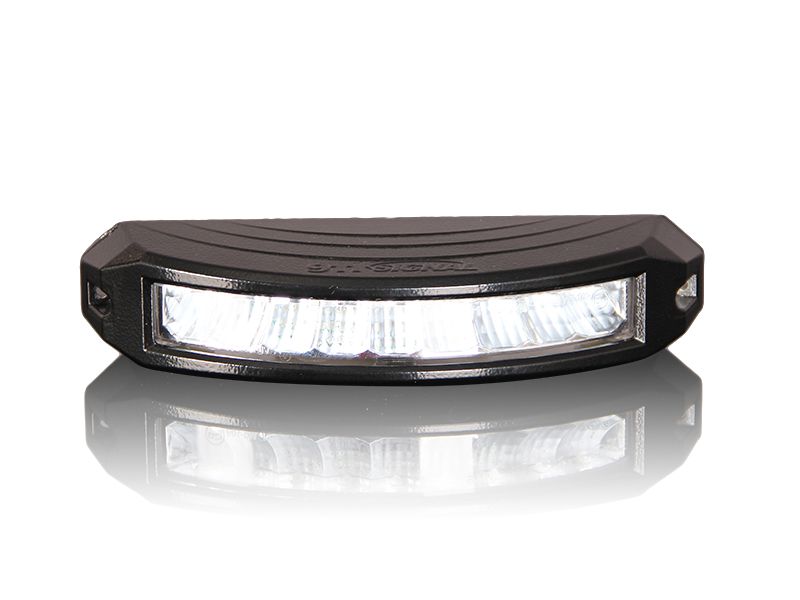

C9 – High-end luminance LED Surface Mount Strobe Lighthead
Get A Quote
DIMENSIONS
SPECIFICATION
Model:C9
Light Characteristics
LED Power:9 PCS 3W LEDS
LED Lifespan:100,000H
Flash settings:1-4HZ
OPtics:REFLEX
Electrical Characteristics
Voltage:DC10-33V
Max Power:13W
Physical Characteristics
Colour Available:Red, Blue, Amber, Green, White and combination color
Ambient temperature:-20–+65℃
Waterproof:IP67
Mounting:Surface mount
Flash patterns:19
Pattern Memory:YES
Housing:Aluminium/PolyCarbonate
Meet and Exceeds:ECE R65 XA1 00 0039; ECE R10 05 1864
Product Dimension:17.4cm L x 5.2cm W x 3.5cm H(6.9″L x 2.0″D x 1.4″H)
| ITEM | MODEL | SPECIFICATIONS |
| 020104A | C9 | DC10-33V|MAX 13W|174*53*38MM|Reflective cup|Lampshade transparent|Outer cover black|9 LED amber colors|19 flash methods|Screw installation|4-core wire|IP67\IP69K |
| 020104AB | C9 | DC10-33V|MAX 13W|174*53*38MM|Reflective cup|Lampshade transparent|Outer cover black|LED amber 6 pcs blue|19 flashing methods|Screw installation|4-core wire|IP67\IP69K |
| 023102ABW | C9 | DC10-33V|MAX 15W|174*53*38MM|Reflective cup|Lampshade transparent|Outer cover black|LED amber 9 blue 9 white lights 9|12 flash methods|Screw installation|6-core wire|IP67\ IP69K |
| 023102RBW | C9 | DC10-33V|MAX 15W|174*53*38MM|Reflective cup|Lampshade is transparent|Outer cover is black|9 LED blue lights, 9 red lights, 9 white lights|12 flashing methods|Screw installation|6-core wire|IP67\ IP69K |
