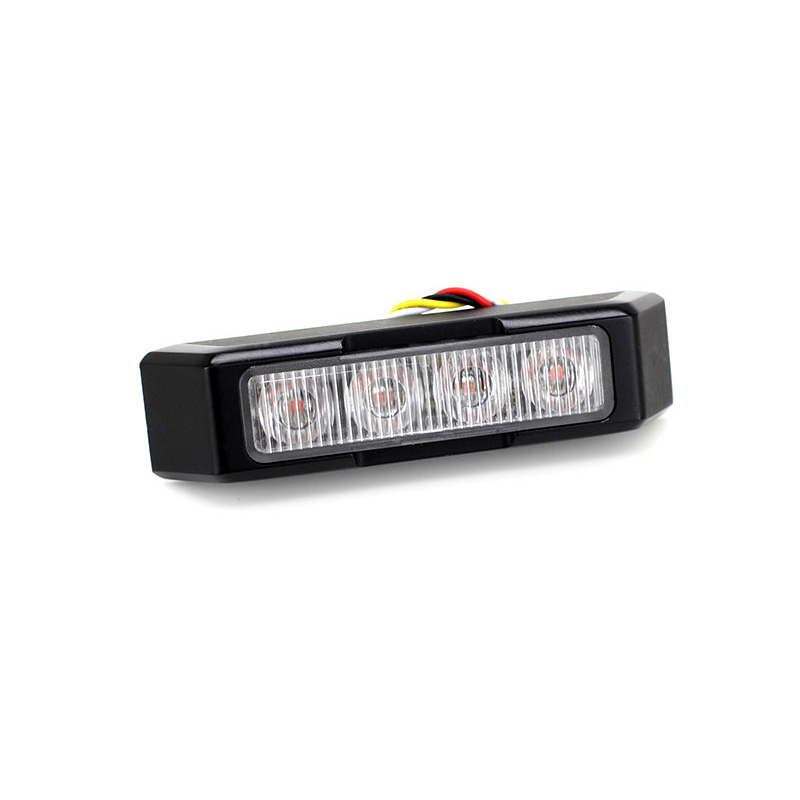

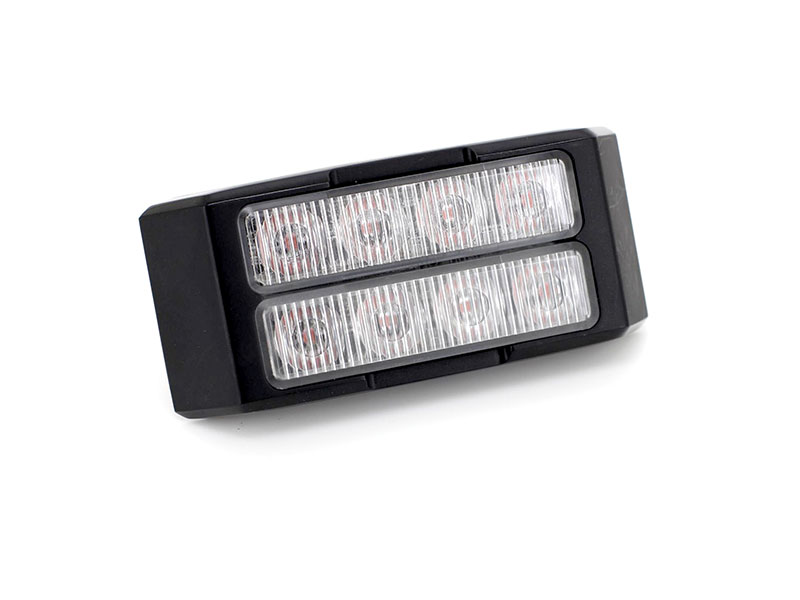

T4 & T8 Series – LED Lighthead

  • Modern and beautiful look
  • Super high intensity output in remarkably compact and low-profile design
  • Available in single or split color
  • Includes steady-burn, simultaneous and alternating flash patterns
  • Fully encapsulated for moisture, vibration and corrosion resistance
  • Hard-coated lenses and aluminum housing minimize environmental damage
  • Synchronize with other 911Signal products
  • Low power consumption, especially for night time use
Get A Quote

DIMENSIONS

SPECIFICATION

Model:T4(021601)
Light Characteristics
LED Power:4 pcs of 3W LEDs
LED Lifespan:100000
Flash settings:1-4HZ
Lens:TIR
Electrical Characteristics
Voltage:DC 10-33V
Max Power:12W
Physical Characteristics
Colour Available:Available in Red, Blue, White, Amber; Dual color available in Amber/White and Red/Blue
Ambient temperature:-20–+65°
Mounting:Surface mount/Bracket mount
Flash patterns:19
Meet and Exceeds:ECE R65 XA1 00 0079; ECE R65 XB1 00 0080; CA T13;ECE R65 00 0082;  SAE-16-W-1;
Product Dimension:109mm*28mm*19mm(4.3 “Long x 1.1” Wide x 0.7″High)

ITEMMODELSPECIFICATIONS
021601AT4DC10-33V|MAX 6W|109*19*28MM|Transparent lens|Outer cover black|4 amber LEDs|19 flash methods|Screw installation|4-core wire|IP67\IP69K
021601BT4DC10-33V|MAX 6W|109*19*28MM|Transparent lens|Outer cover black|4 blue LEDs|19 flash methods|Screw installation|4-core wire|IP67\IP69K
021601RT4DC10-33V|MAX 6W|109*19*28MM|Transparent lens|Outer cover black|4 red LEDs|19 flash methods|Screw installation|4-core wire|IP67\IP69K
021601AWT4DC10-33V|MAX 6W|109*19*28MM|Transparent lens|Outer cover black|LED amber 2 pcs white 2 pcs|Screw installation|19 flash methods|4-core wire|IP67\IP69K
021603AWT4DC10-33V|MAX 6W|109*19*28MM|Transparent lens|Outer cover black|LED amber 2 pcs white|19 flash methods|Screw installation|4-core wire|Silicone sheath|IP67\IP69K|Outer box B010NO200001, color box B020NO218001, instruction manual B08T41X10001
021602GT4DC10-33V|MAX 6W|109*19*28MM|Transparent lens|Outer cover black|4 green LEDs|Always on|Screw installation|2-core connector TYCO 282104-1 Red: positive pole, black: negative pole|Silicone sheath| IP67\IP69K|Outer box B010NO200001, color box B020NO218001, instruction manual B08T41X10001
021602AT4DC10-33V|MAX 6W|109*19*28MM|Transparent lens|Outer cover black|4 amber LEDs|Always on|Screw installation|2-core connector TYCO 282104-1|Red: positive pole, black: negative pole silicone sheath |IP67\IP69K|Outer box B010NO200001, color box B020NO218001, instruction manual B08T41X10001
021602BT4DC10-33V|MAX 6W|109*19*28MM|Transparent lens|Outer cover black|4 blue LEDs|Always on|Screw installation|2-core connector TYCO 282104-1 red: positive pole, black: negative pole|silica gel sheath |IP67\IP69K|Outer box B010NO200001, color box B020NO218001, instruction manual B08T41X10001
021602RT4DC10-33V|MAX 6W|109*19*28MM|Transparent lens|Outer cover black|4 red LEDs|Always on|Screw installation|2-core connector TYCO 282104-1 red: positive pole, black: negative pole|silica gel sheath| IP67\IP69K|Outer box B010NO200001, color box B020NO218001, instruction manual B08T41X10001
021602WT4DC10-33V|MAX 6W|109*19*28MM|Transparent lens|Outer cover black|4 white LEDs|Always on|Screw installation|2-core connector TYCO 282104-1 red: positive pole, black: negative pole|silica gel sheath| IP67\IP69K|Outer box B010NO200001, color box B020NO218001, instruction manual B08T41X10001
021701BRT8DC10-33V|MAX 6W|109*19*28MM|Transparent lens|Outer cover black|LED blue 2 pcs red|19 flashing methods|Screw installation|8-core wire|IP67\IP69K
