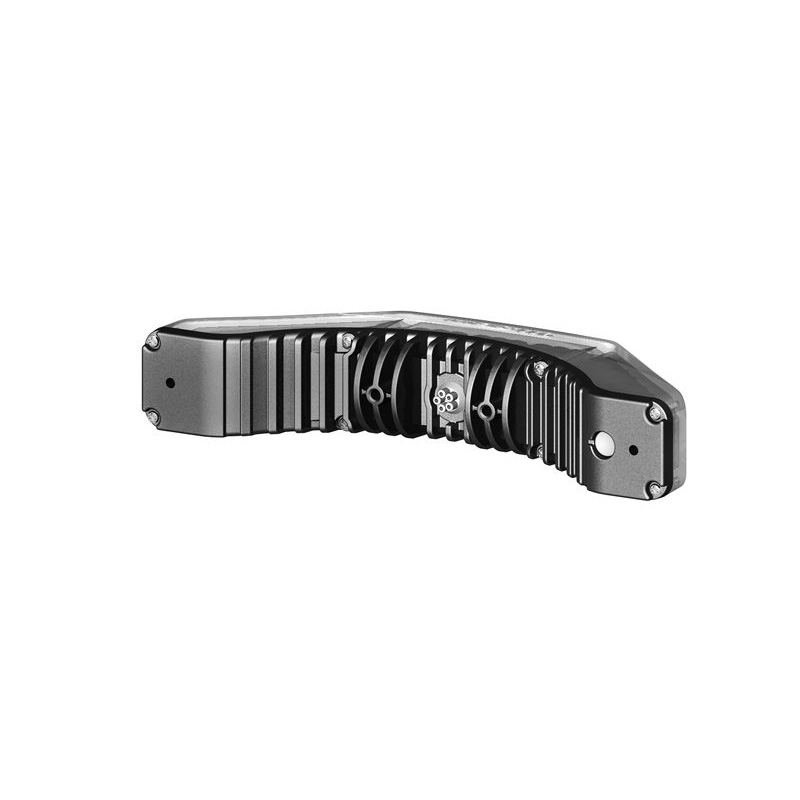

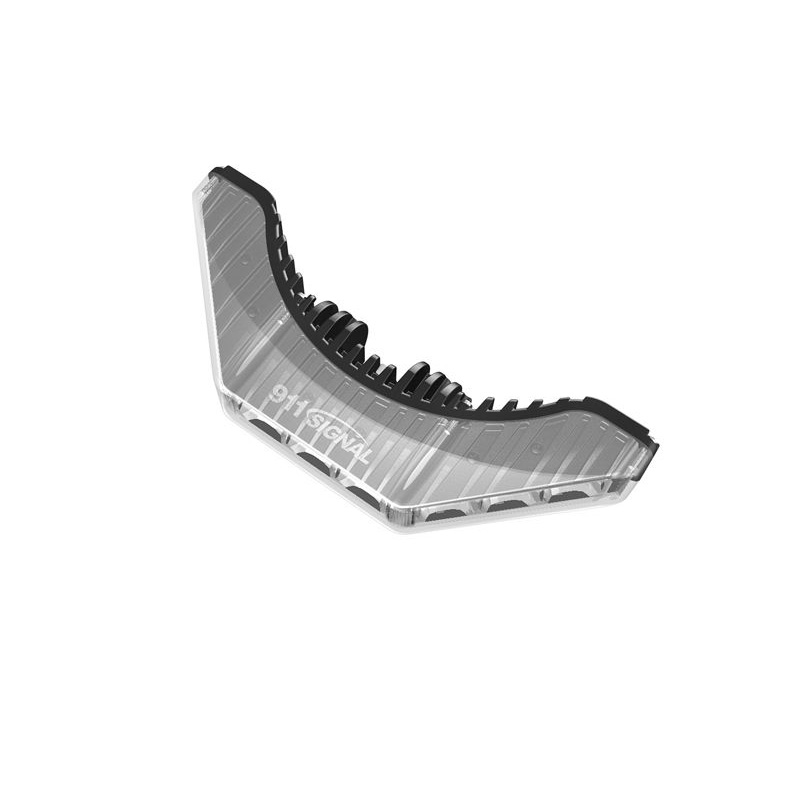

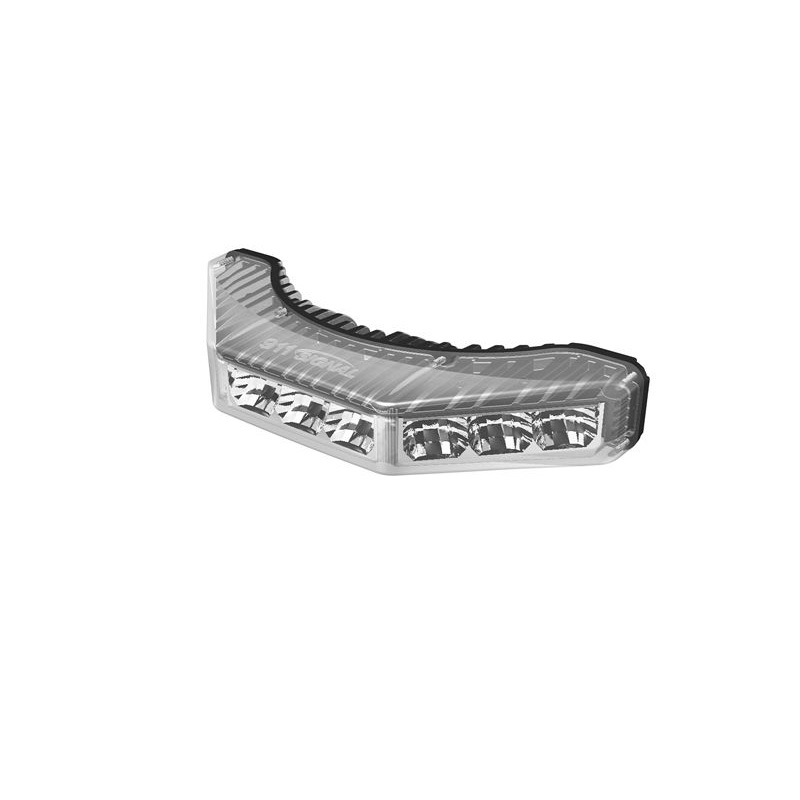

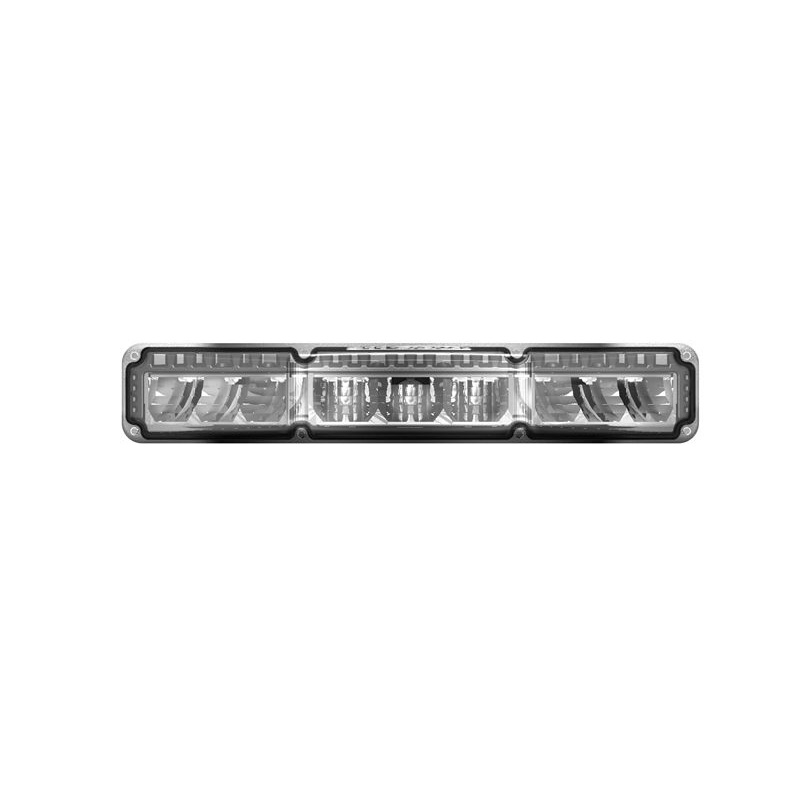

Panorama(L270)-270° Emitting LED Lighthead

  • Approved to ECE R65, Categories  ‘X’,‘T’& ‘HT’ and ECE R10 certified
  • Exceptionally wide spread of light: over 150° visibility with single product, over 270° warning coverage with a pair in the front or rear and a full 360° with one module on each corner of the vehicle
  • Best visible range after installation and no affection to the objects on the car roof
  • Available in 9 powerful LEDs for single color and 18 for dual colors

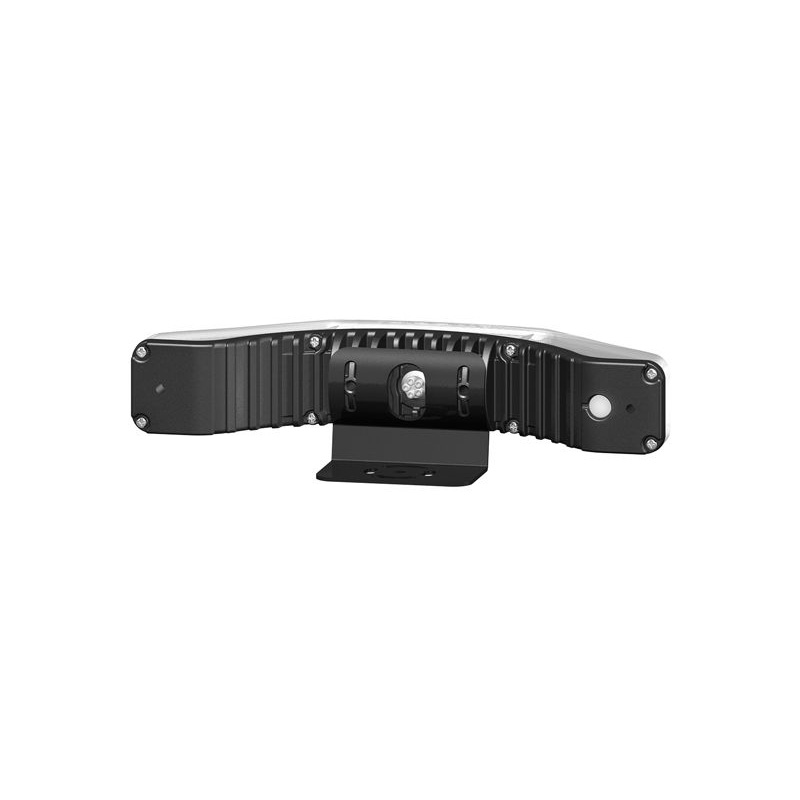

  • Quick and easy installation with an adjustable bracket, making the product extremely versatile
  • Perfectly economical, easy to replace and maintain
Get A Quote

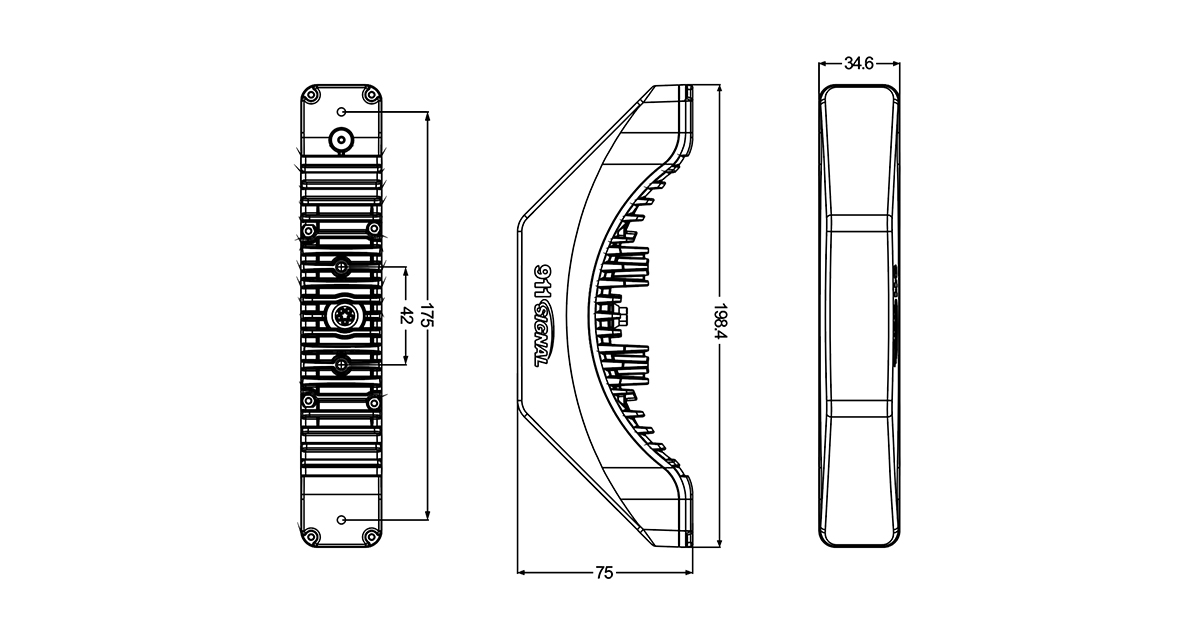

DIMENSIONS

SPECIFICATION

Light Characteristics

LED Power: 9 pcs of 3W

LED Lifespan: 100000

Flash settings: 1-4HZ

Lens: reflector

Electrical Characteristics

Voltage: DC 10-33V

Max Power: 15W

Physical Characteristics

Colour Available: A/B/R/W, TWA/TBR/TRA/TWR/TWB/TBA

Ambient temperature     -30–+70℃

Mounting : Bracket mount

Flash patterns: 12

Meet and Exceeds: ECE R65, Categories ‘X’, ‘T’ & ‘HT’ , ECE R10

Product Dimension: 198.37mm×75.1mm×34.61 mm (7.8 ” Long x 2.9″ Wide x 1.36″ High)

ITEMMODELSPECIFICATIONS
022901BSL270DC10-33V|MAX 12W|198*75*35MM|Reflective cup|Lampshade transparent|Base black|LED blue 9 pieces|12 flash methods|Bracket installation|4-pin 3-way connector|IP67\IP69K
022901RSL270DC10-33V|MAX 10W|198*75*35MM|Reflective cup|Lampshade transparent|Base black|LED red 9 pieces|12 flash methods|Bracket installation|4-pin 3-way connector|IP67\IP69K
023001TBWL270TDC10-33V|MAX 10W|198*75*35MM|Reflective cup|Lampshade transparent|Base black|LED blue 9 pcs white|12 flash methods|Bracket installation|4-pin 3-way connector|IP67\IP69K
023001TBRL270TDC10-33V|MAX 10W|198*75*35MM|Reflective cup|Lampshade transparent|Base black|LED blue 9 pcs red|12 flash methods|Bracket installation|4-pin 3-way connector|IP67\IP69K
022904AL270DC10-33V|MAX 10W|198*75*35MM|Reflective cup|Transparent outer cover|9 amber LEDs|12 flash methods|Bracket installation|4-core sheathed wire 20CM Red: positive pole, black: negative pole, yellow: synchronization /Trigger, White: Dimming 50% |P67\IP69K|Instruction Manual B08L270X2002
022906AL270DC10-33V|MAX 10W|198*75*35MM|Reflective cup|Transparent outer cover|9 amber LEDs|12 flash methods|Bracket installation|4-core sheathed wire 50CM Red: positive pole, black: negative pole, yellow: synchronization /Trigger, White: Dimming 50%|P67\IP69K
022906BL270DC10-33V|MAX 10W|198*75*35MM|Reflective cup|Transparent outer cover|9 blue LEDs|12 flash methods|Bracket installation|4-core sheathed wire 50CM Red: positive pole, black: negative pole, yellow: synchronization /Trigger, White: Dimming 50%|P67\IP69K
022907AL270DC10-33V|MAX 10W|198*75*35MM|Reflective cup|Transparent outer cover|9 amber LEDs|12 flash methods|Bracket installation|4-core sheathed wire 50CM Red: positive pole, black: negative pole, yellow: synchronization /Trigger, White: Dimming 50%|P67\IP69K|White box B02L270X5001, instruction manual B08L270X2004
022907BL270DC10-33V|MAX 10W|198*75*35MM|Reflective cup|Transparent outer cover|9 blue LEDs|12 flash methods|Bracket installation|4-core sheathed wire 50CM Red: positive pole, black: negative pole, yellow: synchronization /Trigger, White: Dimming 50%|P67\IP69K|White box B02L270X5001, instruction manual B08L270X2004
022908AL270DC10-33V|MAX 10W|198*75*35MM|Reflective cup|Transparent outer cover|9 amber LEDs|12 flash methods|Bracket installation|4-core sheathed wire 5M Red: positive pole, black: negative pole, yellow: synchronization /Trigger, White: Dimming 50%|P67\IP69K|PE bag B05250350001
023003TABL270TDC10-33V|MAX 10W|198*75*35MM|Reflective cup|Transparent cover|LED amber 9 pcs blue|12 flash methods|Bracket installation|4-core waterproof connector red: color 1 switch positive, white : Color 2 switch positive, black: negative, yellow: sync/trigger | IP67\IP69K
023003TAWL270TDC10-33V|MAX 10W|198*75*35MM|Reflective cup|Transparent outer cover|LED red 9 pcs white 9 pcs|12 flash methods|Bracket installation|4-core waterproof connector Red: color 1 switch positive pole, white: color 2 switch positive pole, black: negative pole, yellow: sync/trigger | IP67\IP69K
