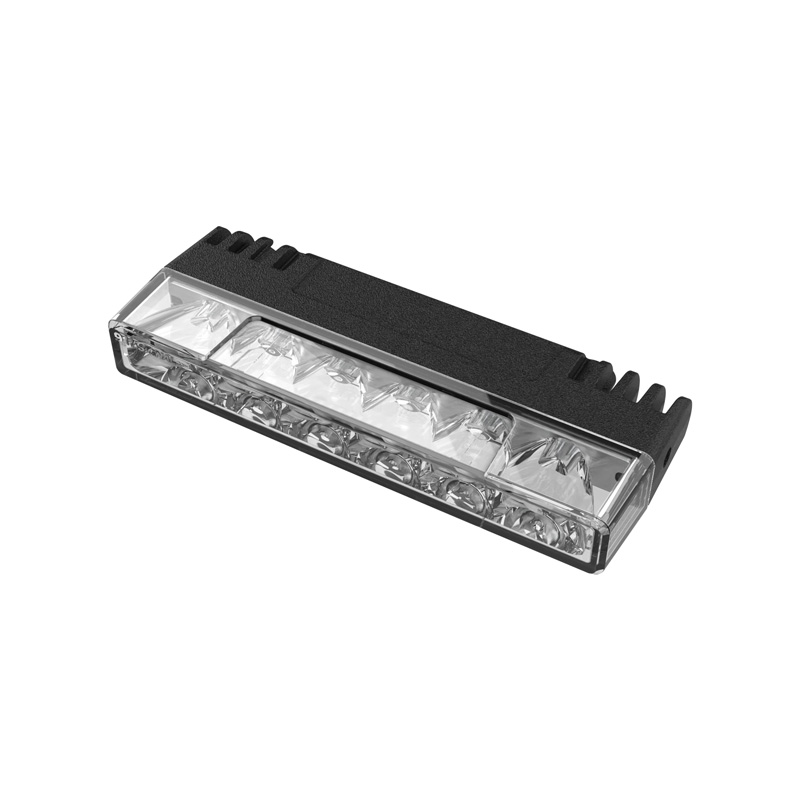

NR6.35

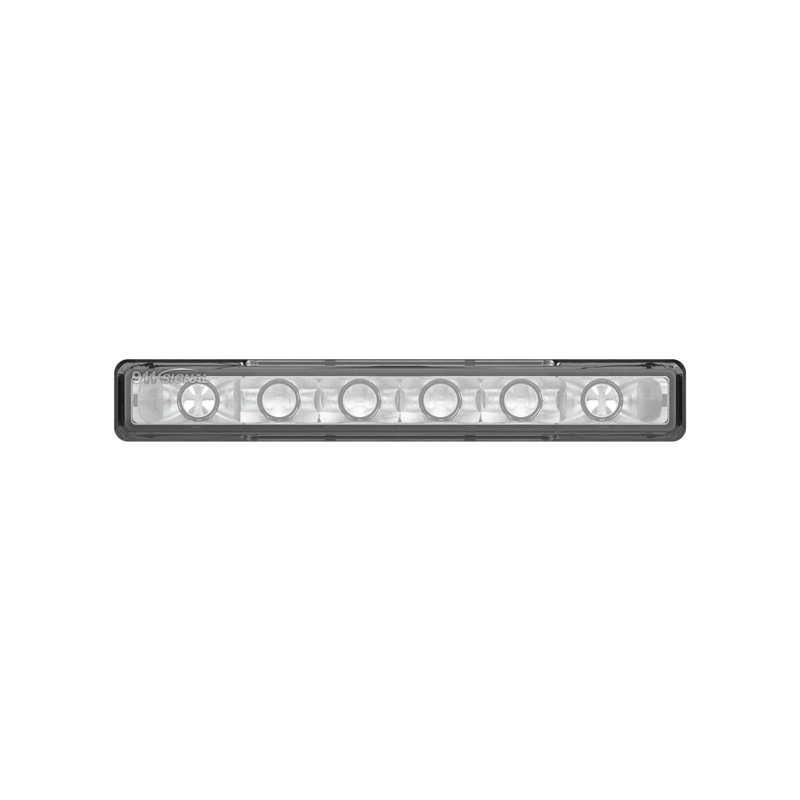

NR6-front-1

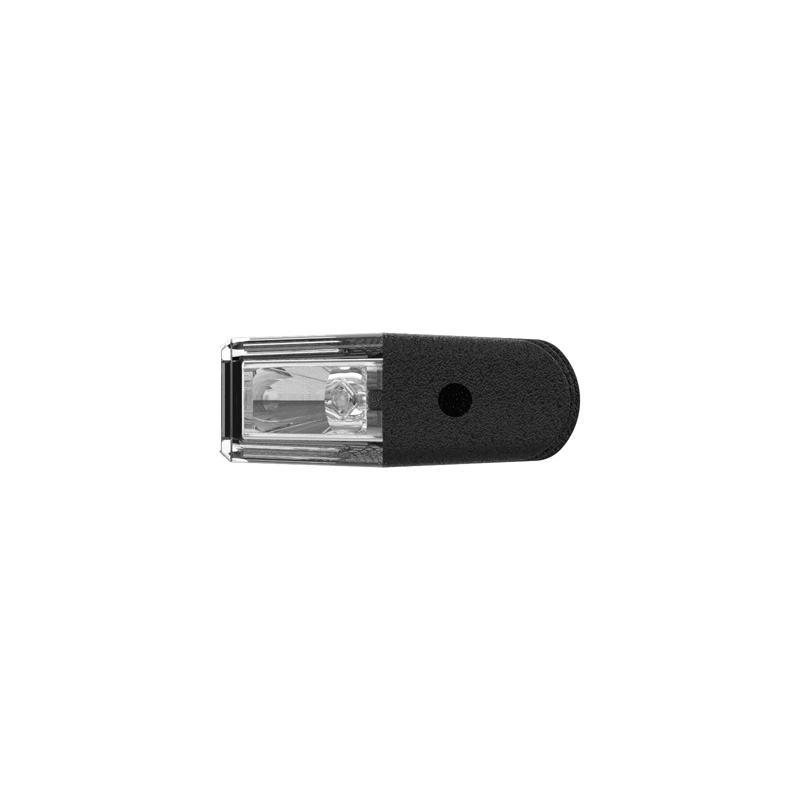

NR6-side

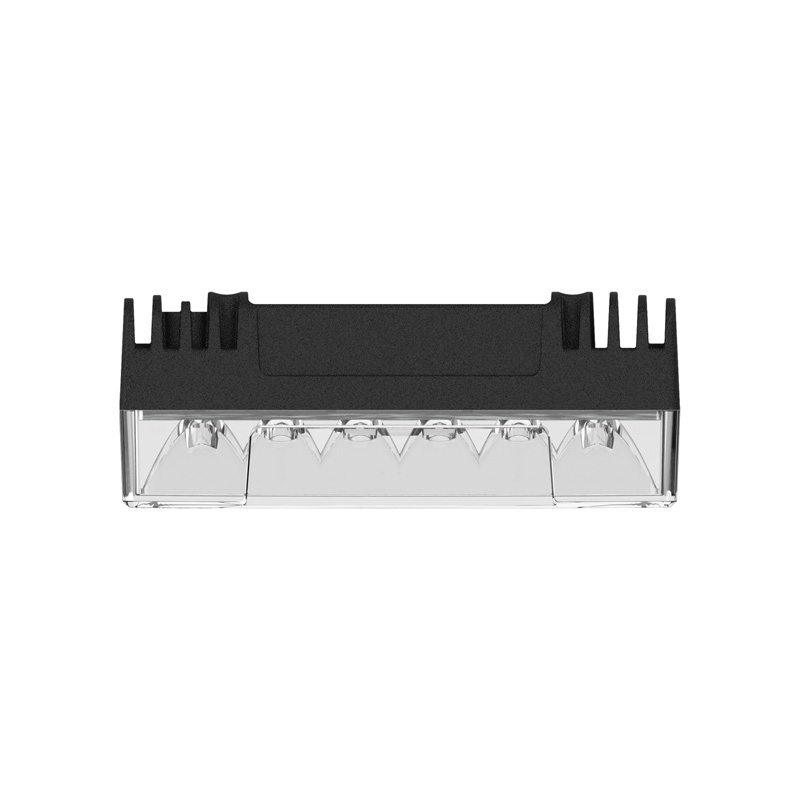

NR6-top

NR6.45

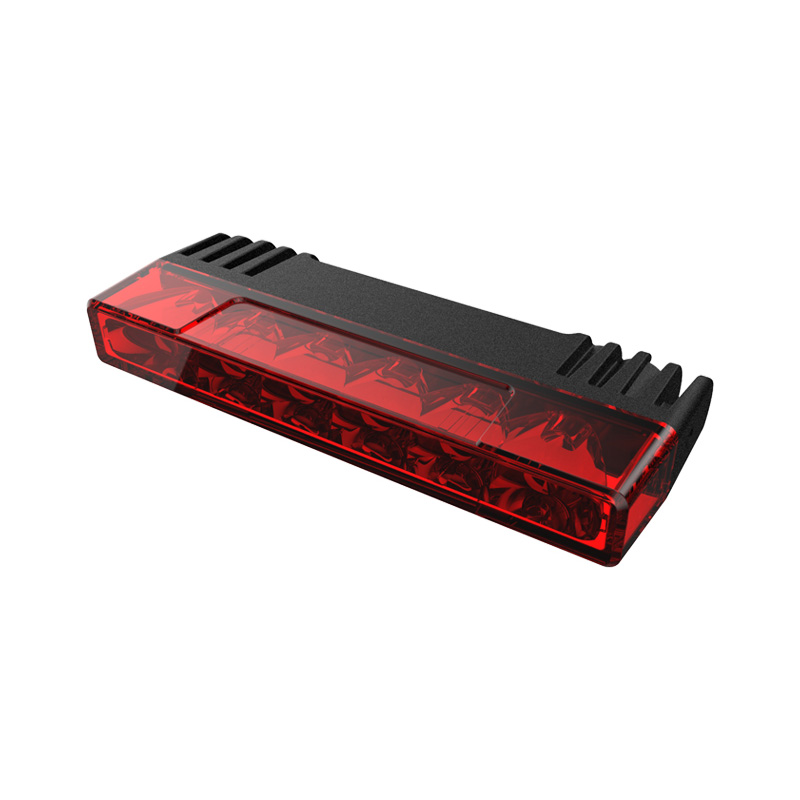

2_15

3_16

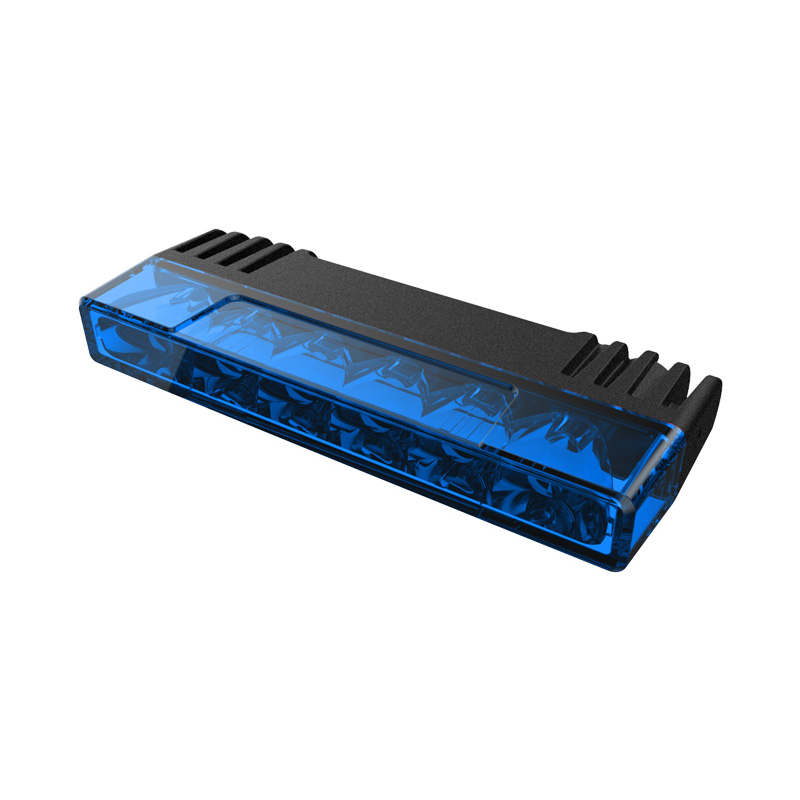

4_16

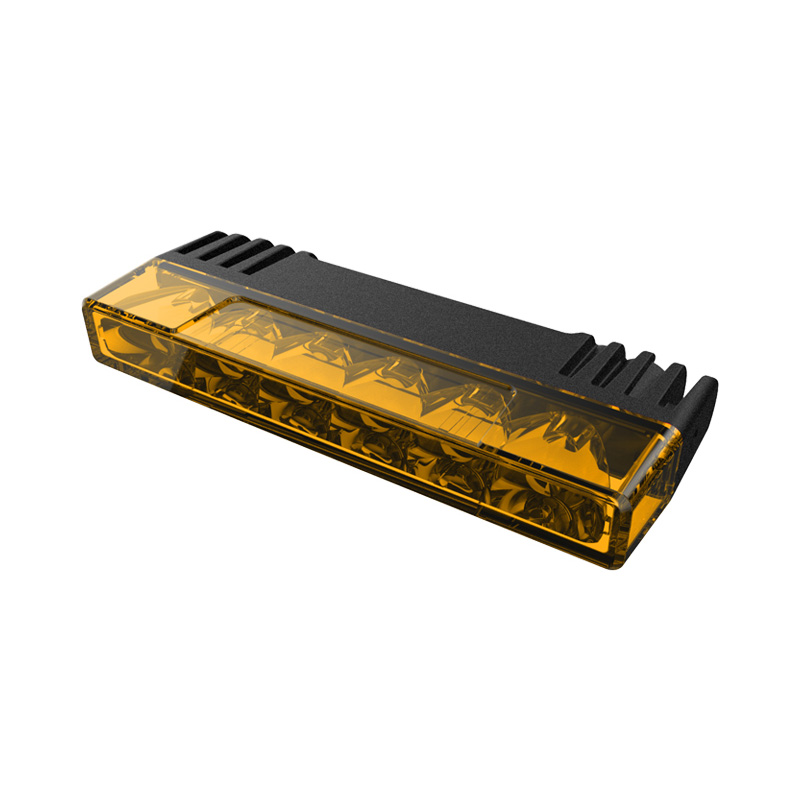

NR6 Series-Low Profile LED Warning Lighthead

Can work with most of US brand control systems
Ultra low profile, suitable for tight spaces like front grills
Control board and LED panel integrated in the chassis, making the product extremely compact
Two universal brackets included for easy installation
Fine heat dissipation with aluminum base
PMMA lens minimizes UV damage and resists scratches
SAE J595, CA T13, ECE R65 Class2 and R10 certified
Five year warranty

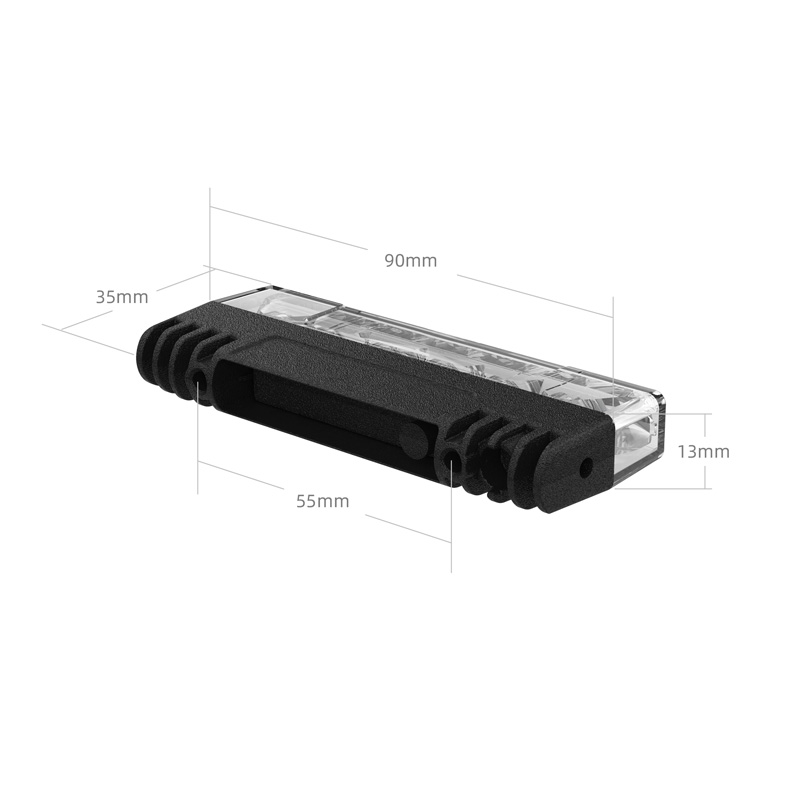

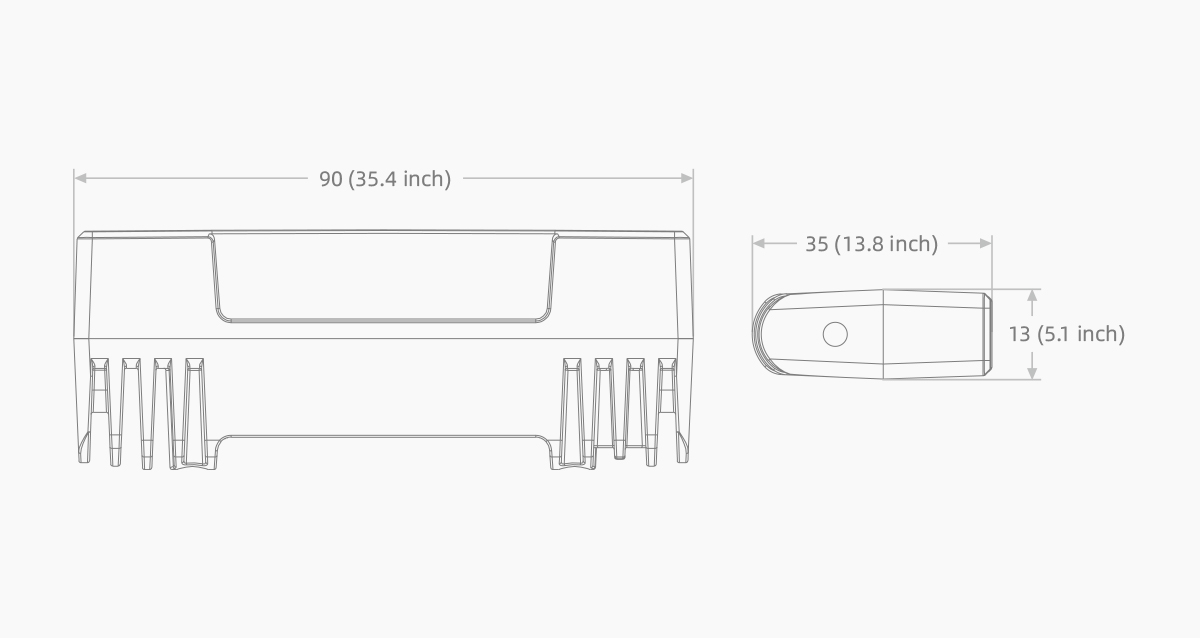

DIMENSIONS

SPECIFICATION

Light Characteristics

LED Power: 6 / 12 pcs of 3W

LED Lifespan: 100000

Flash settings: 1-4HZ

Lens:Clear Lens

Electrical Characteristics

Voltage: DC 10-33V/DC 12V

Max Power : 10W

Physical Characteristics

Colour Available: A/B/R/W/AR/BR/WR/AB/AW/BW

Ambient temperature: -30–+70℃

Mounting : Bolt Mount or Adhesive Mount

Flash patterns: 19 / 12

Meet and Exceeds : ECE R65 Class2, R10, SAE J595, CA T13

Product Dimension :90mm×35mm×13mm

ITEM	MODEL	SPECIFICATIONS
023302A	NR6	DC10-33V\|MAX 10W\|903513MM\|Transparent lens\|Transparent lampshade\|Black base\|6 LED amber colors\|19 flash methods\|Bracket installation\|5-core sheathed wire\|IP67\IP69K
023302B	NR6	DC10-33V\|MAX 10W\|903513MM\|Transparent lens\|Transparent lampshade\|Base black\|LED blue 6 pieces\|19 flash methods\|Bracket installation\|5-core sheathed wire\|IP67\IP69K
023302R	NR6	DC10-33V\|MAX 10W\|903513MM\|Transparent lens\|Transparent lampshade\|Base black\|LED red 6 pieces\|19 flash methods\|Bracket installation\|5-core sheathed wire\|IP67\IP69K
023302W	NR6	DC10-33V\|MAX 10W\|903513MM\|Transparent lens\|Transparent lampshade\|Black base\|6 white LEDs\|19 flash methods\|Bracket installation\|5-core sheathed wire\|IP67\IP69K
023302BW	NR6	DC10-33V\|MAX 10W\|903513MM\|Transparent lens\|Transparent lampshade\|Base black\|LED blue 3 pcs white\|19 flash methods\|Bracket installation\|5-core sheathed wire\|IP67\IP69K
023301TRB	NR6	DC10-33V\|MAX 10W\|903513MM\|Transparent lens\|Transparent lampshade\|Base black\|LED blue 6 pcs red\|12 flash methods\|Bracket installation\|6-core sheathed wire\|IP67\IP69K
023301TRW	NR6	DC10-33V\|MAX 10W\|903513MM\|Transparent lens\|Transparent lampshade\|Base black\|LED red 6 pcs white 6 pcs\|12 flash methods\|Bracket installation\|6-core sheathed wire\|IP67\IP69K
023301TAB	NR6	DC10-33V\|MAX 10W\|903513MM\|Transparent lens\|Transparent lampshade\|Base black\|LED amber 6 pcs blue\|12 flash methods\|Bracket installation\|6-core sheathed wire\|IP67\IP69K
023301TAW	NR6	DC10-33V\|MAX 10W\|903513MM\|Transparent lens\|Transparent lampshade\|Base black\|LED red 6 pcs white 6 pcs\|12 flash methods\|Bracket installation\|6-core sheathed wire\|IP67\IP69K
023301TBW	NR6	DC10-33V\|MAX 10W\|903513MM\|Transparent lens\|Transparent lampshade\|Base black\|LED blue 6 pcs white\|12 flash methods\|Bracket installation\|6-core sheathed wire\|IP67\IP69K
023312TRB	NR6	DC10-33V\|MAX 10W\|903513MM\|Transparent lens\|Transparent lampshade\|Base black\|LED blue 6 pcs red\|13 flash methods to add Steady (all)\|Bracket installation\|6-core sheathed wire\| IP67\IP69K\|Instruction Manual B08NR6X20001
023306A	NR6	DC10-33V\|MAX 10W\|903513MM\|Transparent lens\|Transparent lampshade\|Aluminum black\|LED amber 6 pieces\|19 flash methods\|Bracket installation\|5-core sheathed wire 2.5 meters Red: positive, black: Negative pole, green: dimming 50%, yellow: sync/trigger/reset, white: alternating\|IP67\IP69K\|outer box B01C9R65X201, brown box B02C9R65X201
023307A	NR6	DC10-33V\|MAX 10W\|903513MM\|Transparent lens\|Transparent lampshade\|Aluminum parts custom screen printing LED\|6 LED amber colors\|19 flash methods\|Bracket installation\|Sheathed wire\|5 wires 20CM Red: positive pole , Black: Negative, Green: Dimming 50%, Yellow: Sync/Trigger/Reset, White: Alternate \| IP67\IP69K \| White box B02NR6X10002, instruction manual B08NR6X10003
023307B	NR6	DC10-33V\|MAX 10W\|903513MM\|Transparent lens\|Transparent lampshade\|Aluminum parts custom screen printing LED\|6 LED amber colors\|19 flash methods\|Bracket installation\|Sheathed wire\|5 wires 20CM Red: positive pole , Black: Negative, Green: Dimming 50%, Yellow: Sync/Trigger/Reset, White: Alternate \| IP67\IP69K \| White box B02NR6X10002, instruction manual B08NR6X10003
023309B	NR6	DC10-33V\|MAX 10W\|903513MM\|Transparent lens\|Transparent lampshade\|Aluminum black\|LED blue 6 pieces\|19 flash methods\|Bracket installation\|Sheathed wire\|3 wires 20CM Red: positive, black : Negative, Yellow: Synchronous\|IP67\IP69K\|Outer box B01WGWX30001, lining B01WGX300001, lining B01WGX100001, lining B01WGX100001, certificate Z03JYHGZ0001
023311B	NR6	DC10-33V\|MAX 10W\|903513MM\|Transparent lens\|Transparent lampshade\|Aluminum black\|LED blue 6 pieces\|19 flash methods\|Bracket installation\|One-core connector + three-core connector\|Sheathed wire \|5 wires 1.3M red: positive, black: negative, green: cruise constant light dimming 50%, yellow: sync/trigger, white: alternating\|IP67\IP69K\|Outer box B01WGWX30001, lining B01WGX300001, lining B01WGX100001, Lining B01WGX100001
023303TAW	NR6	DC10-33V\|MAX 10W\|903513MM\|Transparent lens\|Transparent lampshade\|Customized silk screen SSI for aluminum parts\|LED amber 6 pcs white\|12 flash methods\|bracket installation\|sheathed wire\|wire 6 red : Positive color switch 2 Brown: Positive color switch 1, Black: Negative, Green: Dimming 50%, Yellow: Sync/Trigger/Reset, White: Alternate\|IP67\IP69K\|B02NR6X10002 white box, SSI manual B08NR6X10002
