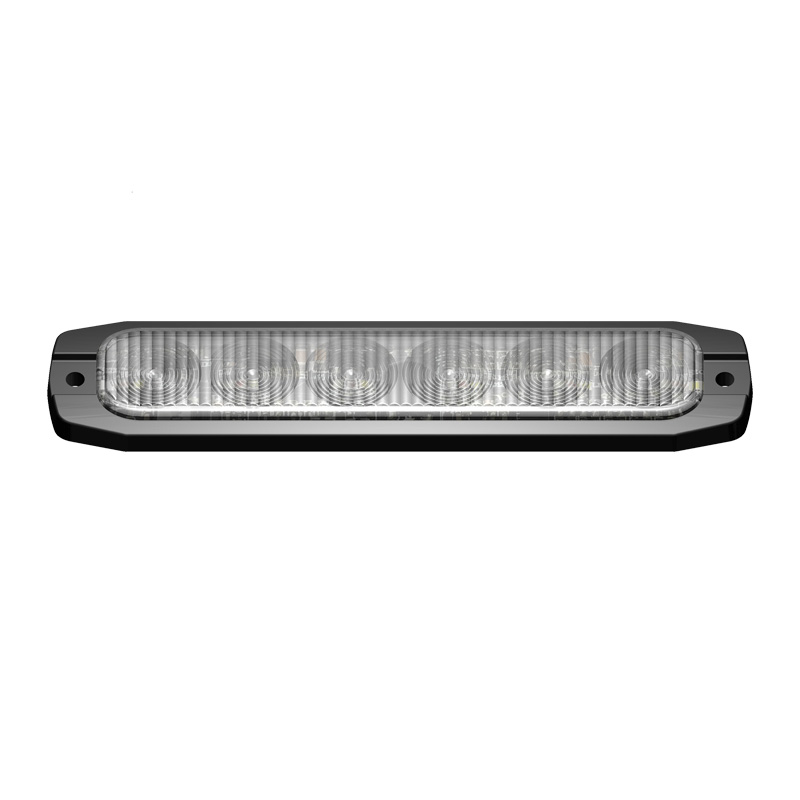

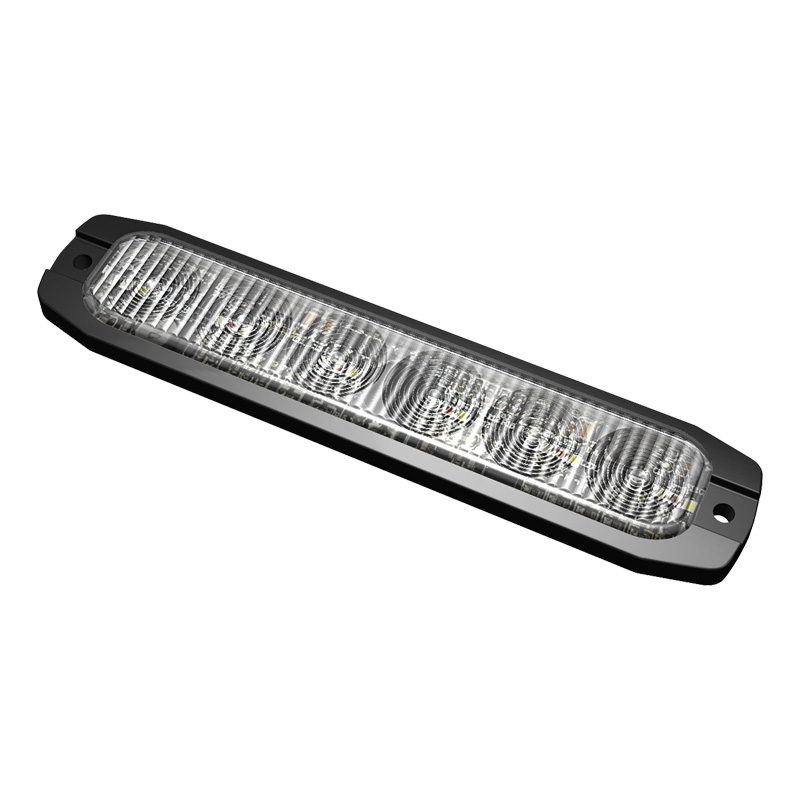

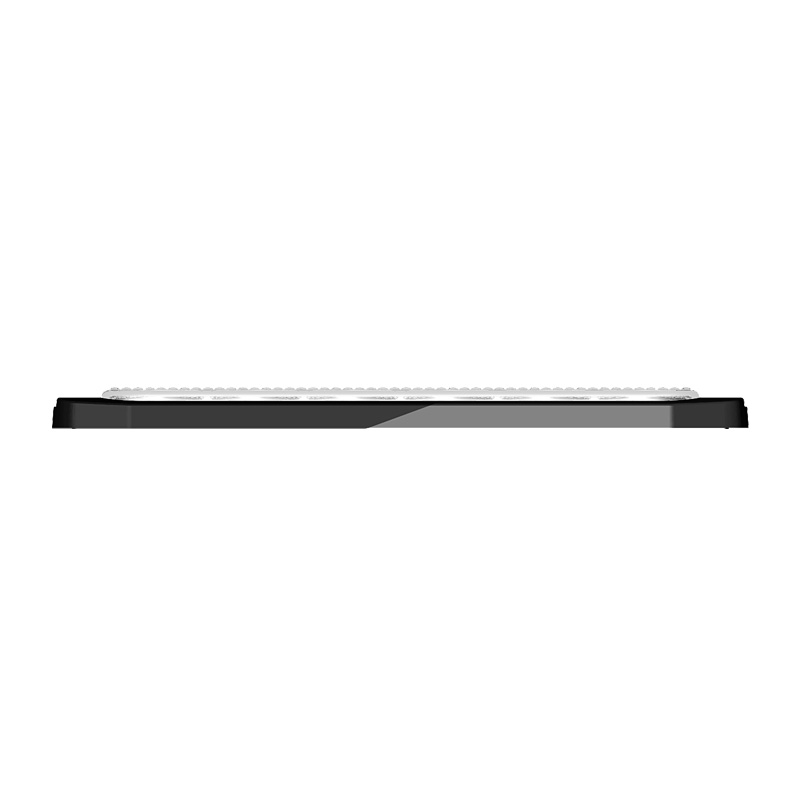

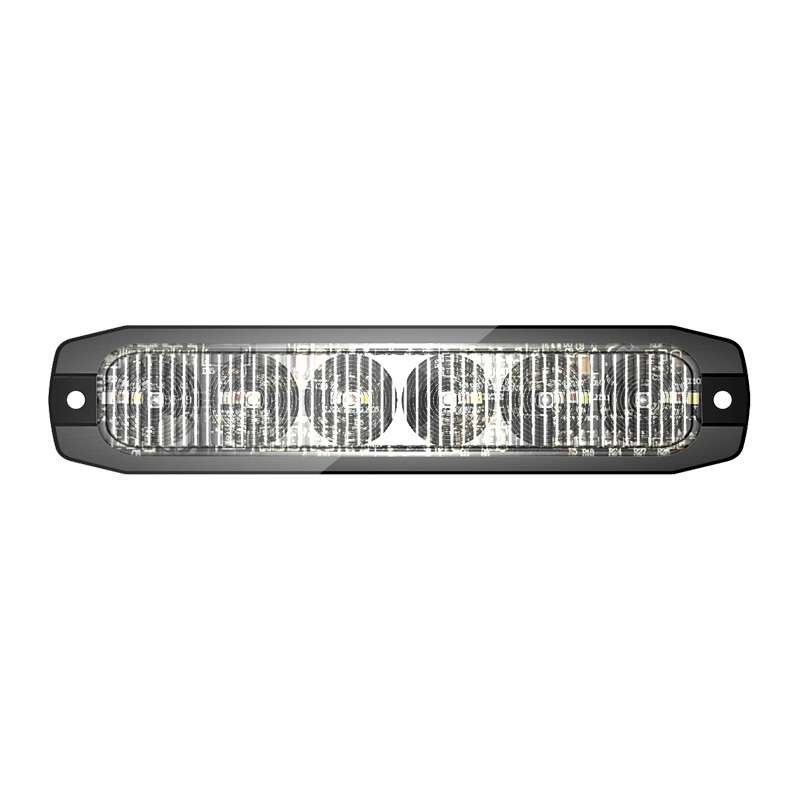

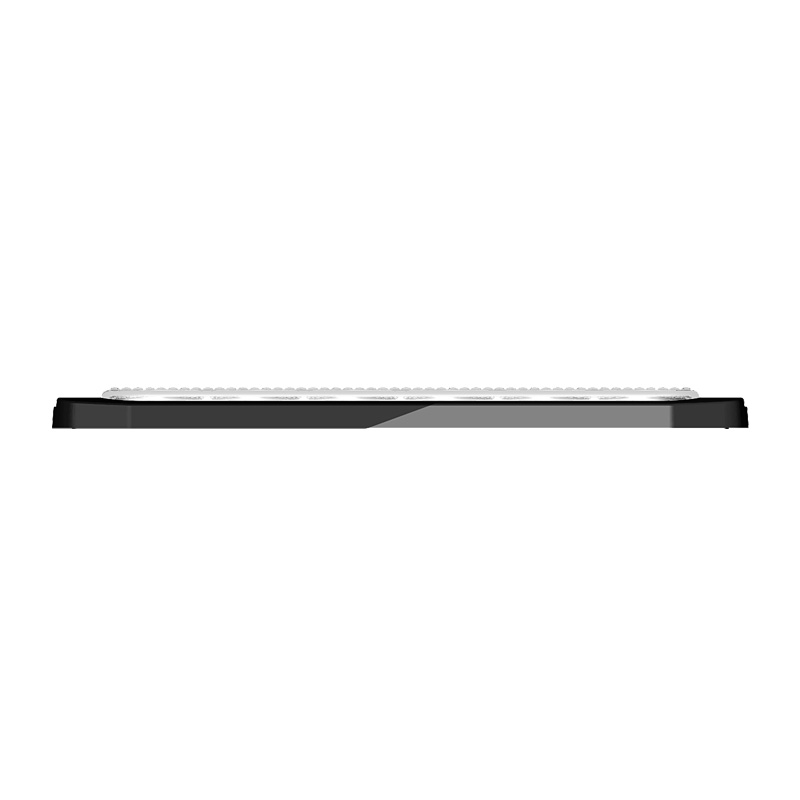

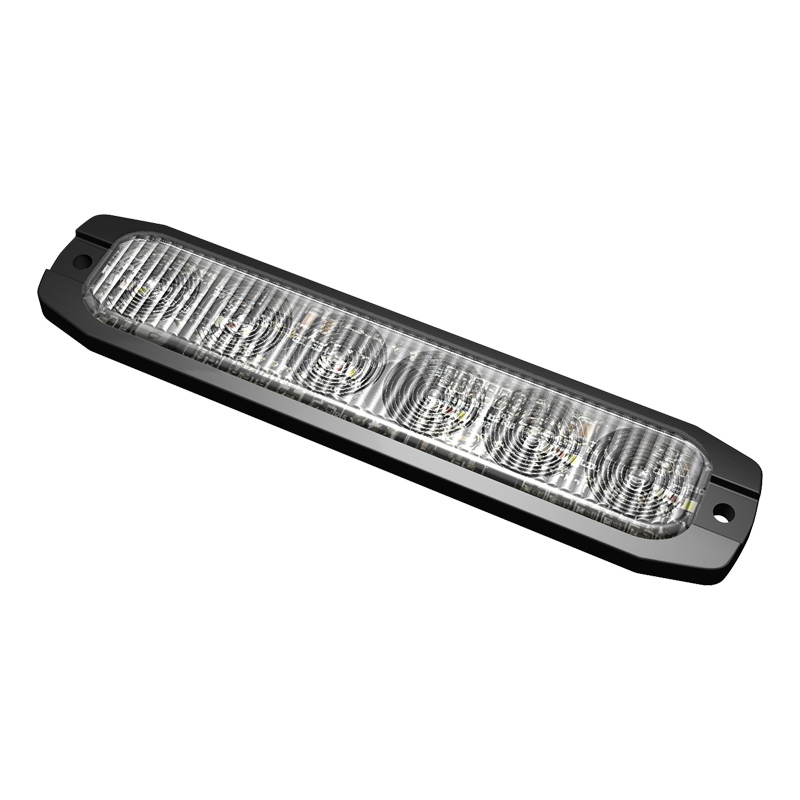

FIN6 – Ultra thin Lighthead

  • SAE, CA Tl 3, ECE R65 and R10 certified
  • Available in single or triple colors
  • Ultra-thin but well layered design, excellent in texture
  • Bolt mount or adhesive mount
  • DKM bi-injection technology
Get A Quote

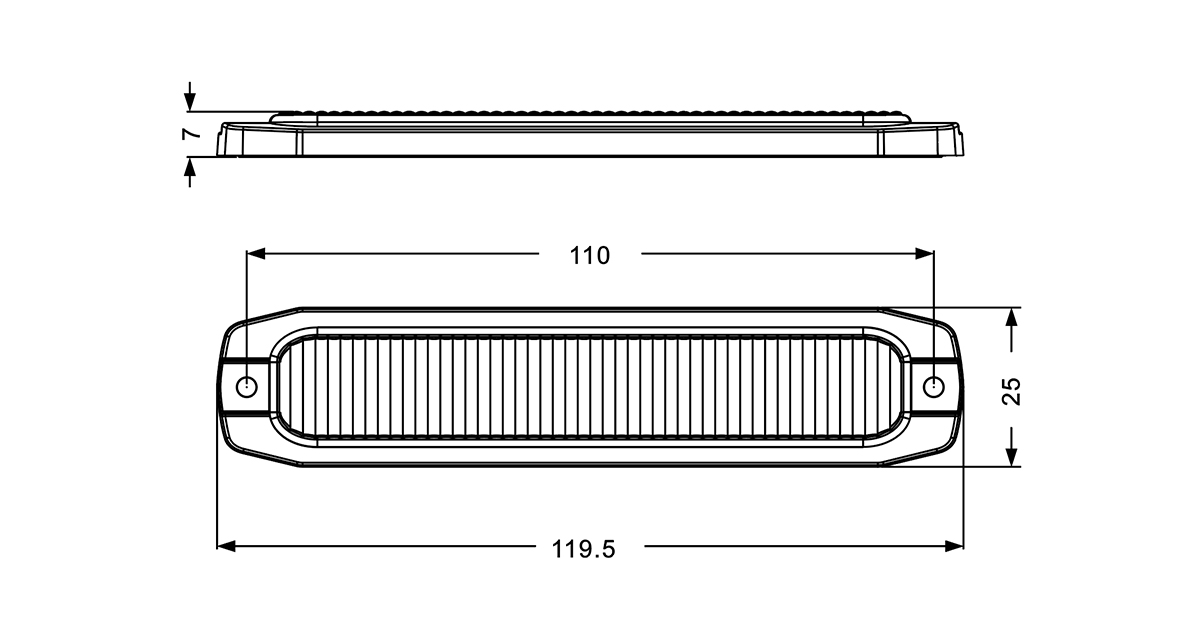

DIMENSIONS

SPECIFICATION

Light Characteristics

LED Power: 6 / 18 pcs of 3W

Lens: Fresnel Lens

Electrical Characteristics

Voltage: DC 10-33V

Max Power: 9W

Physical Characteristics

Colour Available: A/B/R/W/WBR/BRW/WRA/RBA

Ambient temperature: -30–+70℃

Mounting : Bolt Mount or Adhesive Mount

Flash patterns: 19 / 12

Meet and Exceeds: ECE R65,ECE R10, SAE J595, CA T13

Product Dimension: 119.5mm×25.5mm×7mm

ITEMMODELSPECIFICATIONS
022701AFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover black|6 amber LEDs|19 flash methods|Screw installation|5-core wire|IP67\IP69K
022701BFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover black|LED blue 6 pieces|19 flashing methods|Screw installation|5-core wire|IP67\IP69K
022701RFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover black|LED red 6 pieces| 19 flash methods|Screw installation|5-core wire|IP67\IP69K
022701WFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover black|6 white LEDs|19 flashing methods|Screw installation|5-core wire|IP67\IP69K
022701AWFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover black|LED amber 3 pcs white| 19 flashing methods|Screw installation|5-core wire|IP67\IP69K
022701RBFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover black|LED blue 3 pcs red| 19 flashing methods|Screw installation|5-core wire|IP67\IP69K
022701WBAFIN6DC10-33V|MAX 25W|119.5*25*7MM|Transparent lens|Outer cover black|LED amber 6 pcs blue 6 pcs white 6 pcs | 12 flash methods | Screw installation | 6-core wire | IP67\IP69K
022701BRAFIN6DC10-33V|MAX 25W|119.5*25*7MM|Transparent lens|Outer cover black|LED amber 6 pcs blue 6 pcs red 6 pcs | 12 flash methods | Screw installation | 6-core wire | IP67\IP69K
022701WBRFIN6DC10-33V|MAX 25W|119.5*25*7MM|Transparent lens|Outer cover black|LED blue 6 pcs, red 6 pcs white, 6 pcs|12 flash methods|Screw installation|6-core wire|IP67\IP69K
022702BFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover with black lettering dBlux|6 blue LEDs|20 flash methods plus Single 120FPM|Screw installation|5-core wire white: always on, blue: dimming 40%|IP67\IP69K|White box B02FTX100002|Instruction manual B08FIN610001
022702AFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|Black lettering on outer cover dBluxdBlux style lettering|6 amber LEDs|20 flash methods to add Single 120FPM|Screw installation|5-core wire white: always bright, blue: Dimming 40%|IP67\IP69K|White box B02FTX100002|Instruction manual B08FIN610001
022702RFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover with black lettering dBlux|LED red 6 pcs|20 flash methods plus Single 120FPM|Screw installation|5-core wire white: always on, blue: dimming 40 %|IP67\IP69K|White box B02FTX100002|Instruction manual B08FIN610001
022702WFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover with black lettering dBlux|6 white LEDs|20 flash methods plus Single 120FPM|Screw installation|5-core wire white: always on, blue: dimming 40 %|IP67\IP69K|White box B02FTX100002|Instruction manual B08FIN610001
022703AFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover with black lettering AWARD|6 amber LEDs|19 flash methods|Screw installation|5-core wire red: positive pole, black: negative pole, blue: dimming 50%, yellow: sync/trigger/reset, white: alternating|IP67\IP69K|color box B02AFIN60001, description B08AFIN60001
022704AFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover black|6 amber LEDs|19 flash methods|Screw installation|5-core sheathed wire 2.5 meters Red: positive pole, black: negative pole, blue: Dimming 50%, yellow: sync/trigger/reset, white: alternating|IP67\IP69K|Color box B020NO418001, self-adhesive sticker B04FIN600001, outer box B010NO400001
022705AFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|HBA with black engraving on outer cover|6 amber LEDs|19 flashing methods|Screw installation|5-core sheathed wire 2 meters red: positive pole, black: negative pole, Blue: Dimming 50%, Yellow: Sync/Trigger/Reset, White: Alternate|IP67\IP69K|Color box B02FIN6HBA01, outer box B010NO400001, instruction manual B08FIN6HBA01
022710AFIN6DC10-33V|MAX 9W|119.5*25*7MM|Transparent lens|Black engraved LED on the outer cover|6 amber LEDs|19 flash methods|Screw installation|5-core wire red: positive pole, black: negative pole, blue: dimming 50%, Yellow: Sync/Trigger/Reset, White: Alternate|IP67\IP69K|White box B02FTX100002, instruction manual B08DGLEDFIN6
022710BFIN6DC10-33V|MAX 9W|119.5*25*7MM|Transparent lens|Outer cover with black lettering LED|6 blue LEDs|19 flashing methods|Screw installation|5-core wire red: positive pole, black: negative pole, blue: dimming 50%, Yellow: Sync/Trigger/Reset, White: Alternate|IP67\IP69K|White box B02FTX100002, instruction manual B08DGLEDFIN6
022711WFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover black|6 white LEDs|Always on|Screw installation|2 wires Red: positive pole, black: negative pole|IP67\IP69K|Chinese instruction manual B08FIN6ZW001
022711BFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover black|6 white LEDs|Always on|Screw installation|2 wires Red: positive pole, black: negative pole|IP67\IP69K|Chinese instruction manual B08FIN6ZW001
022716BFIN6DC 12V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover black|6 blue LEDs|Always on|Screw installation|2-core connector DJ7021-2.8-11 Wire harness length 20CM Red: positive pole, black: negative pole |IP67\IP69K|Outer box B01WGWX30001, certificate Z03JYHGZ0001, grid lining B01WGX300001, grid lining B01WGX100001, grid lining B01WGX200001, brown box B02V20X10001
022718BFIN6DC 12V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover black|6 blue LEDs|Always on|Screw installation|2-core connector DT04-2P Harness length 16CM Red: positive pole, black: negative pole|IP67 \IP69K|Certificate Z03JYHGZ0001, bubble bag B05131100001
022707ABFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover with black lettering dBlux|LED amber 3 pcs blue|20 flash methods plus Single 120FPM|Initial flash method R65Double|Screw installation|5-core wire Red: positive pole, black: negative pole, yellow: synchronization/trigger/reset, white: color 1 switch, blue: color 2 switch|IP67\IP69K|White box B02FTX100002, instruction manual B08FIN610001
022707RBFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover with black lettering dBlux|LED amber 3 pcs blue|20 flash methods plus Single 120FPM|Initial flash method R65Double|Screw installation|5-core wire Red: positive pole, black: negative pole, yellow: synchronization/trigger/reset, white: color 1 switch, blue: color 2 switch|IP67\IP69K|White box B02FTX100002, instruction manual B08FIN610001
022715RBFIN6DC10-33V|MAX 10W|119.5*25*7MM|Transparent lens|Outer cover black|LED blue 3 red 3 LEDs|19 flashing methods|Screw installation|5-core connector TE 282107-1 Wire harness length 20CM, TE 282089-1 Wire harness length 60CM Red: positive pole, black: negative pole, blue: dimming 50%, yellow: sync/trigger/reset, white: alternating|IP67\IP69K|Brown box B0200C900001, outer box B0100C900001
022720WBFIN6DC10-33V|MAX 20W|119.5*25*7MM|Transparent lens|Outer cover with black lettering dBlux|LED blue 6 white 6 pcs|3 flash methods DOUBLE(ALL) 125FPM, SINGLE(ALL) 125FPM, SINGLE 120FPM | Screw installation, 3M glue paste | 6-core wire red wire: positive blue light switch 1, green wire: positive white light switch 2, white: always on | IP67\IP69K | white box B02FTX100002, instruction manual B08FTX200003
