- Hard-coated lenses and aluminum housing minimize environmental damage
- Synchronize with up to 12 911Signal products
- Available in single, dual and triple colors
- Includes steady-burn, alternating and simultaneous patterns
- Mount with bracket, 3M adhesive or bolts, suitable for numerous applications
- 180° wide-angle illumination

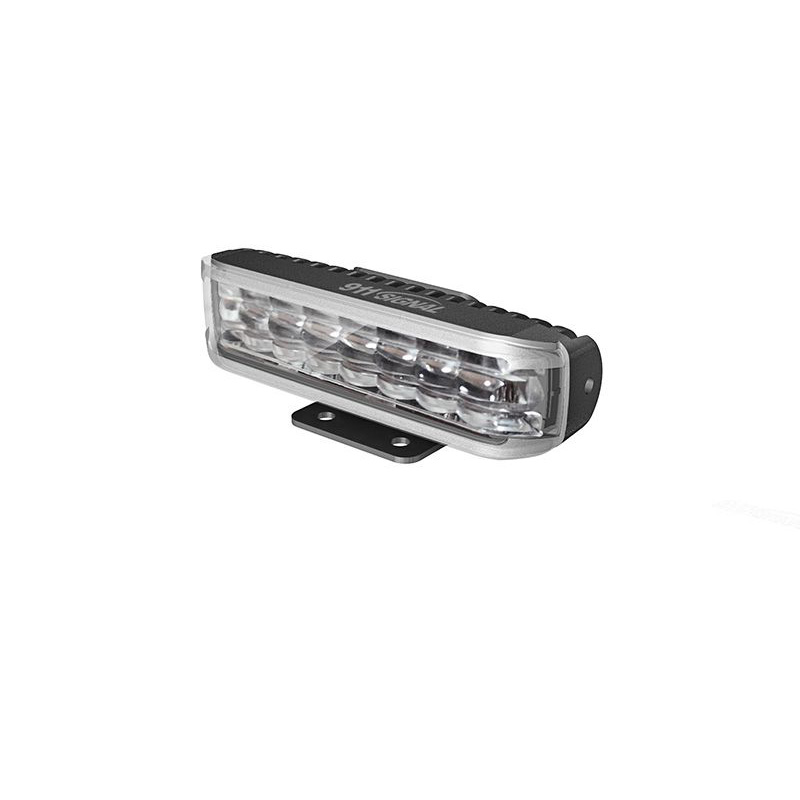

X8 Series – LED Warning Lighthead
Get A Quote

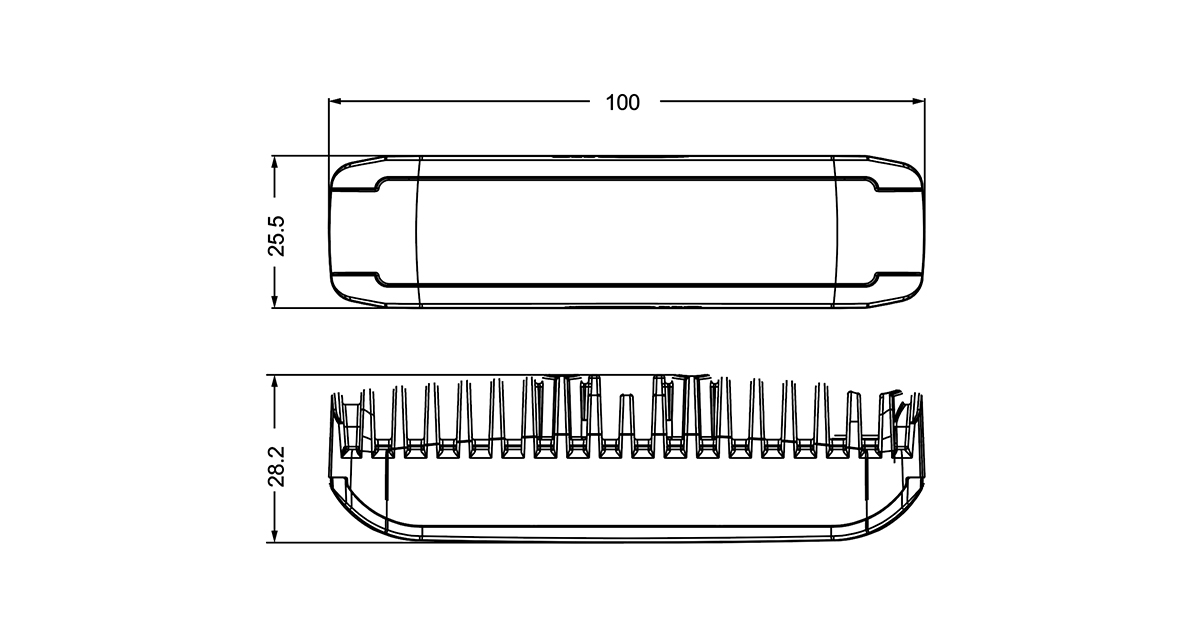

DIMENSIONS
SPECIFICATION
Light Characteristics
LED Power: 24 pcs of 3W
LED Lifespan: 100000
Flash settings: 1-4HZ
Lens: clear lens
Electrical Characteristics
Voltage: DC 10-33V
Max Power: 12W
Physical Characteristics
Colour Available: WBR/ BRA/ WRA/ WBA
Ambient temperature: -30–+70℃
Mounting : Bracket mount
Flash patterns: 12
Meet and Exceeds: ECE R65,ECE R10, SAE J595, CA T13
Product Dimension: 100mm×26mm×28mm(3.9 “Long x 1.0” Wide x 1.1″High)
| ITEM | MODEL | SPECIFICATIONS |
| 022501A | X8 | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black|LED amber 8 pieces|19 flash methods|Bracket installation|4-core wire|IP67\IP69K |
| 022501B | X8 | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black|LED blue 8 pieces|19 flash methods|Bracket installation|4-core wire|IP67\IP69K |
| 022501R | X8 | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black|LED red 8 pcs|19 flash methods|Bracket installation|4-core wire|IP67\IP69K |
| 022603TBR | X8T | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black|LED blue 8 pcs red|12 flash methods|Bracket installation|5-core wire|IP67\IP69K|Color box B02X8T100002 |
| 022603TWA | X8T | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black|LED amber 8 pcs white|12 flash methods|Bracket installation|5-core wire|IP67\IP69K|Color box B02X8T100002 |
| 022603TWB | X8T | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black|LED blue 8 pcs white|12 flash methods|Bracket installation|5-core wire|IP67\IP69K|Color box B02X8T100002 |
| 022603TWR | X8T | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black|LED red 8 pcs white|12 flash methods|Bracket installation|5-core wire|IP67\IP69K|Color box B02X8T100002 |
| 022603WBR | X8T | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black|LED blue 8 pcs red 8 pcs white|12 flash methods|Bracket installation|6-core wire|IP67\IP69K| Color box B02X8T100002 |
| 022603RAW | X8T | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black|LED amber 8 pcs red 8 pcs white|12 flash methods|Bracket installation|6-core wire|IP67\IP69K| Color box B02X8T100002 |
| 022603ABW | X8T | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black|LED amber 8 pcs blue 8 pcs white 8 pcs|12 flash methods|Bracket installation|6-core wire|IP67\IP69K |B02X8T100002 |
| 022502B | X8 | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black|LED blue 8 pieces|19 flash methods, initial flash method Quint(ALL)|Bracket installation|4-core wire|IP67\ IP69K |
| 022502R | X8 | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black|8 red LEDs|19 flash methods, initial flash method Quint(ALL)|Bracket installation|4-core wire|IP67\IP69K |
| 022502A | X8 | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black|LED amber 8 pieces|19 flash methods, initial flash method Quint(ALL)|Bracket installation|4-core wire|IP67\ IP69K |
| 022605TRW | X8 | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black|LED red 8 pcs white 8 pcs|12 flash methods|Bracket installation|5-core wire|IP67\IP69K|Instruction manual B02X8T100002 |
| 022591TWA | X8T | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black silk screen OEM|LED amber 8 pcs white 8 pcs|12 flash methods|Bracket installation|6-core wire|IP67\IP69K|White Box B02X8X8T0001, instruction manual B08X8X8T0002 |
| 022606BRW | X8T | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black|LED blue 8 pcs red 8 pcs white|12 flash methods|Bracket installation|6-core wire|IP67\IP69K| B02X8T100002 |
| 022606RAW | X8T | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black|LED amber 8 pcs red 8 pcs white|12 flash methods|Bracket installation|6-core wire|IP67\IP69K| B02X8T100002 |
| 022591WBR | X8T | DC10-33V|MAX 12W|100*26*28MM|Transparent lens|Transparent lampshade|Base black|LED blue 8 pcs red 8 pcs white|12 flash methods|Bracket installation|6-core wire|IP67\IP69K| White box B02X8X8T0001, instruction manual B08X8X8T0002 |
