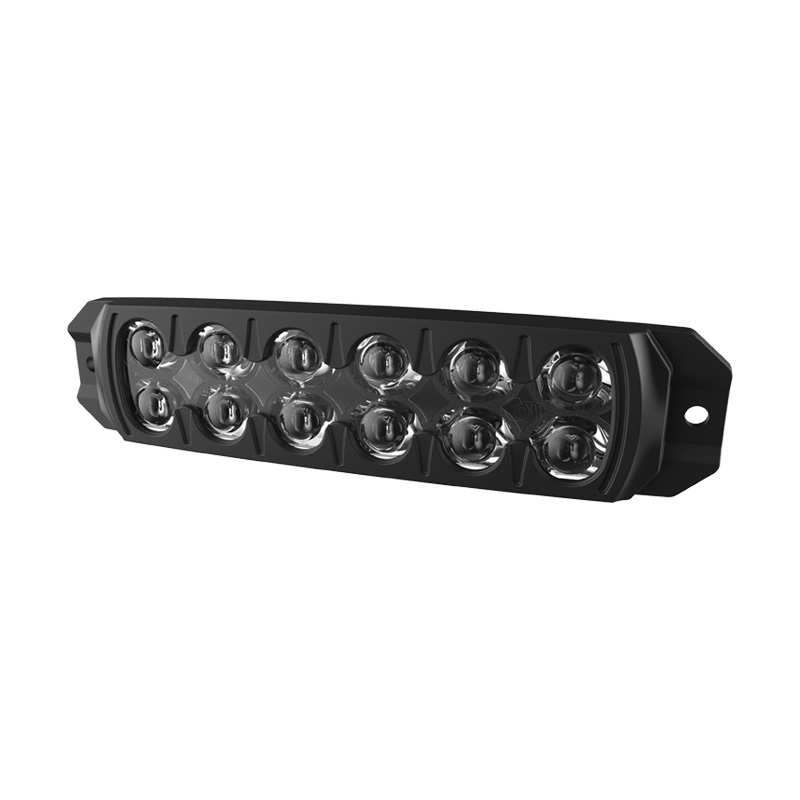

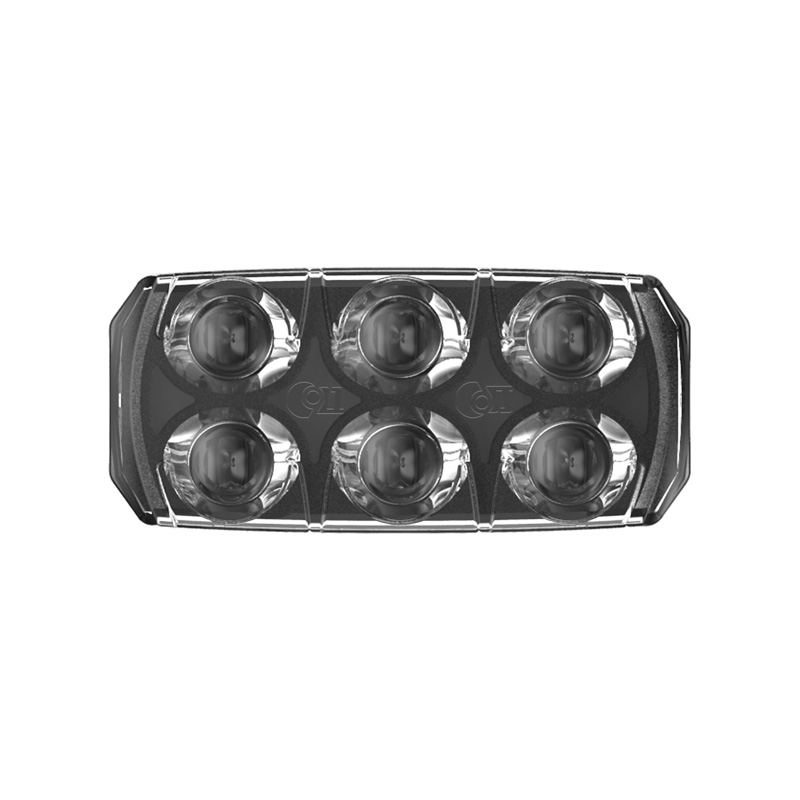

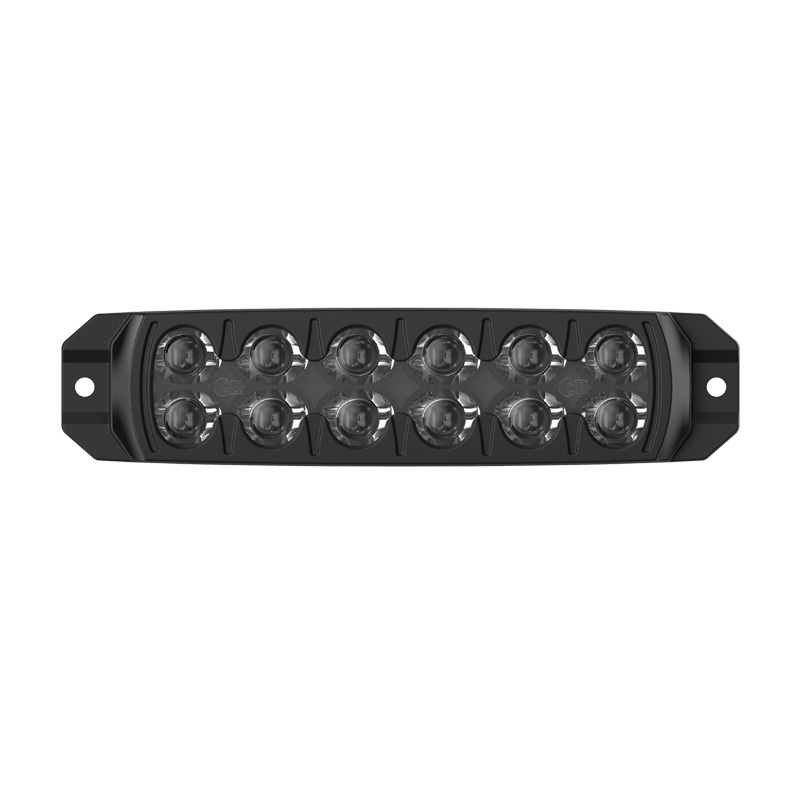

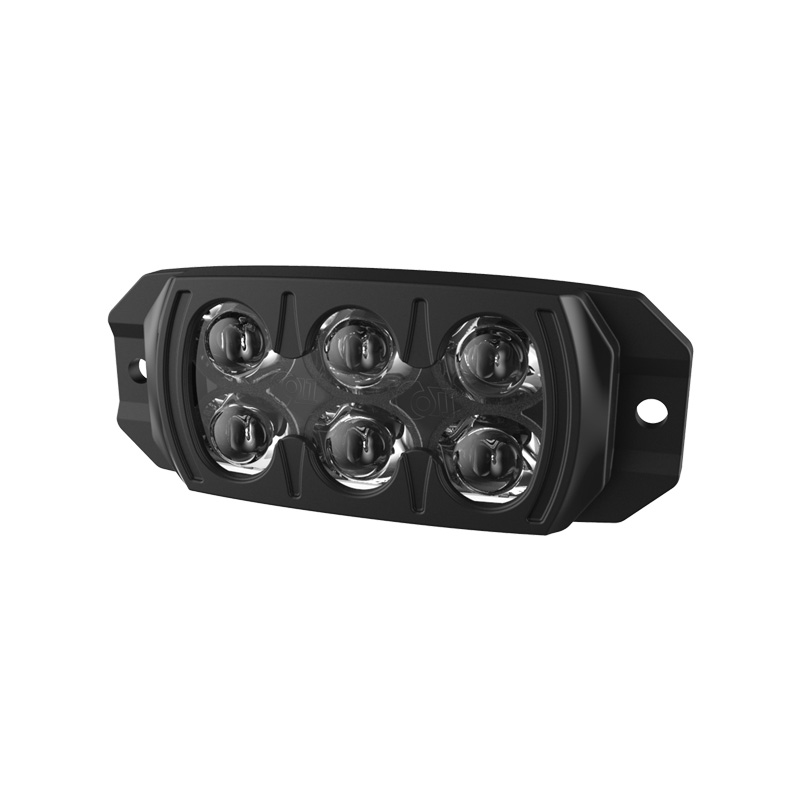

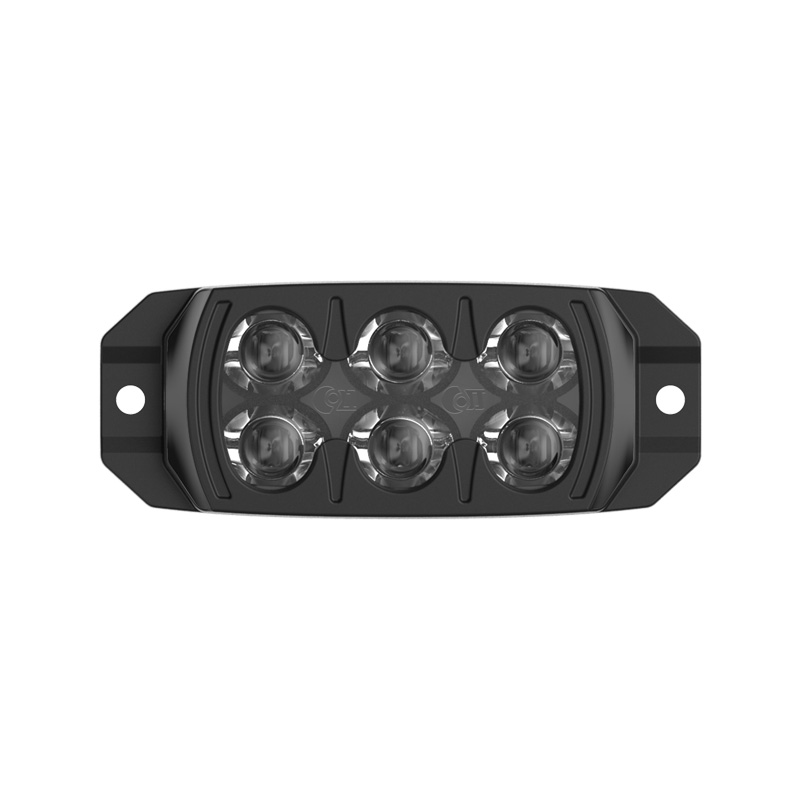

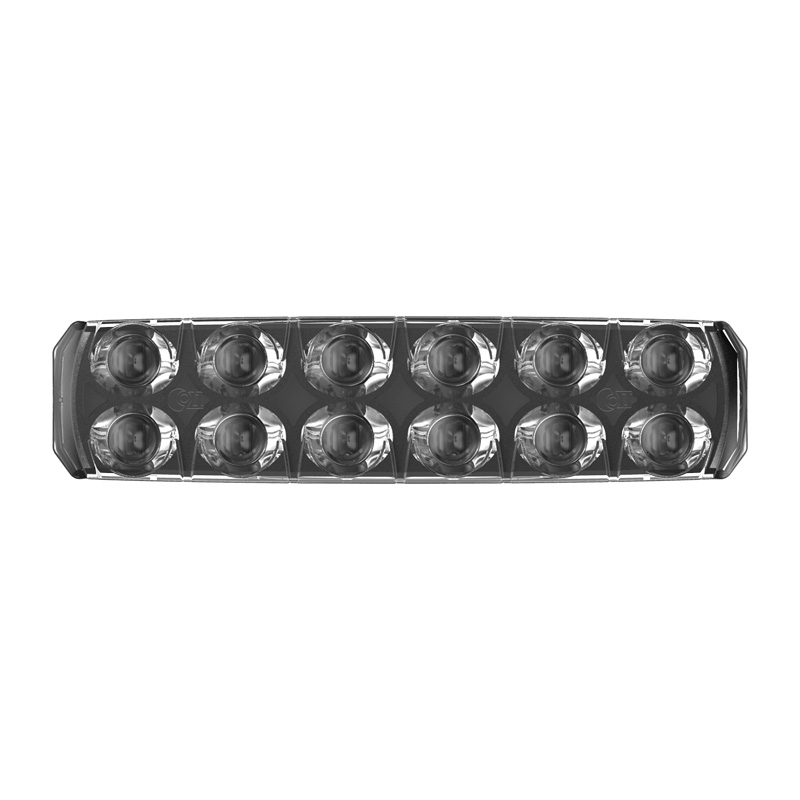

F3S & F6S Series – LED Warning Lighthead

  • Low profile with a robust structure and an artistic look
  • Compact design offers multiple mounting locations
  • Super fast installation with 3M adhesive or an optional bezel
  • Fully encapsulated for moisture, vibration and corrosion resistance
  • Synchronization capability
  • IP69K rated
Get A Quote

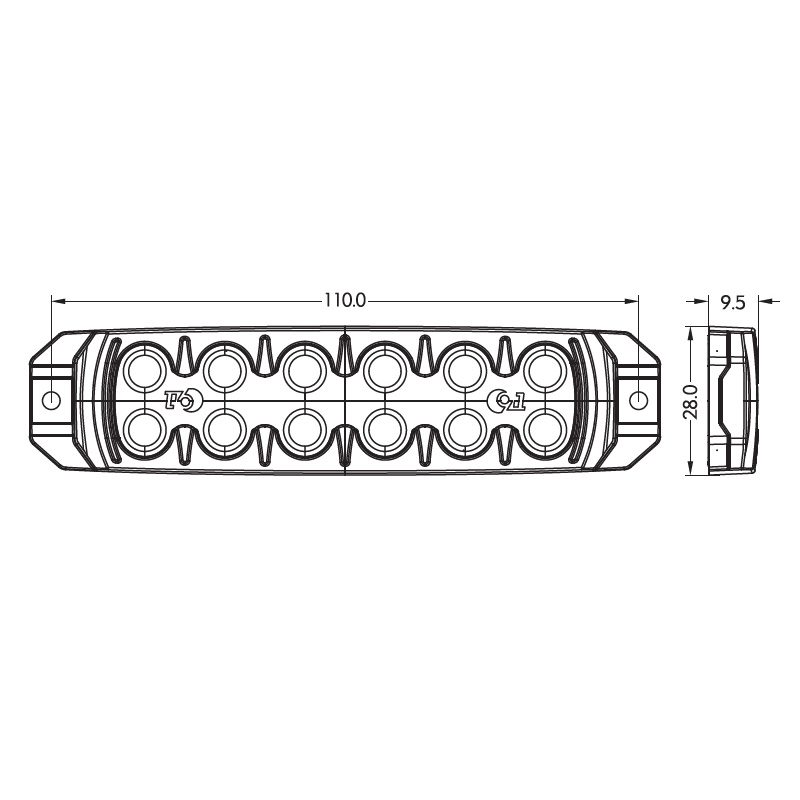

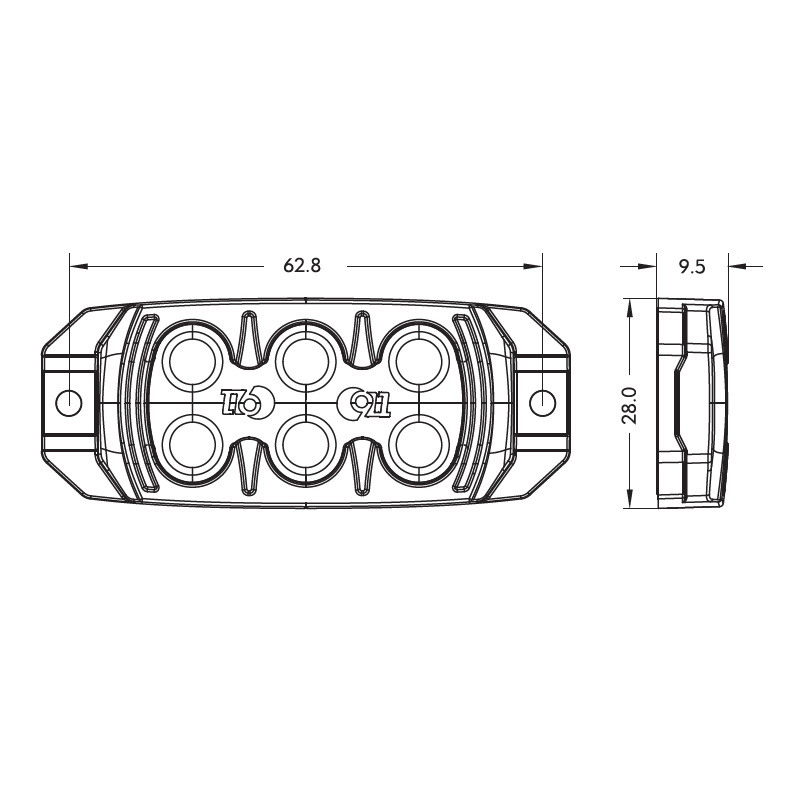

DIMENSIONS

SPECIFICATION

Voltage:DC 10-33V
LENS:TIR
Flash Patterns:19/12
Mount:3M Adhesive or Cover
Operating Temperature:-30 to 70℃
Certification:SAE J595 I,CA T13,ECE R65 I,R10

ITEMMODELSPECIFICATIONS
023801AF3SDC10-33V|MAX 9W|70*28*9.5MM|Transparent lens|Outer cover black|6 amber LEDs|19 flashing methods|Screw installation, 3M glue paste|4-core wire|IP67\IP69K
023801BF3SDC10-33V|MAX 9W|70*28*9.5MM|Transparent lens|Outer cover black|6 blue LEDs|19 flashing methods|Screw installation, 3M glue paste|4-core wire|IP67\IP69K
023801RF3SDC10-33V|MAX 9W|70*28*9.5MM|Transparent lens|Outer cover black|6 red LEDs|19 flashing methods|Screw installation, 3M glue paste|4-core wire|IP67\IP69K
023801WF3SDC10-33V|MAX 9W|70*28*9.5MM|Transparent lens|Outer cover black|6 white LEDs|19 flashing methods|Screw installation, 3M glue paste|4-core wire|IP67\IP69K
023801RAF3SDC10-33V|MAX 9W|70*28*9.5MM|Transparent lens|Outer cover black|LED amber 3 pcs red|19 flashing methods|Screw installation, 3M glue paste|4-core wire|IP67\IP69K
023801RWF3SDC10-33V|MAX 9W|70*28*9.5MM|Transparent lens|Outer cover black|LED red 3 pcs white|19 flashing methods|Screw installation, 3M glue paste|4-core wire|IP67\IP69K
023801AWF3SDC10-33V|MAX 9W|70*28*9.5MM|Transparent lens|Outer cover black|LED amber 3 pcs white|19 flash methods|Screw installation, 3M glue paste|4-core wire|IP67\IP69K
023801ABF3SDC10-33V|MAX 9W|70*28*9.5MM|Transparent lens|Outer cover black|LED amber 3 pcs blue|19 flash methods|Screw installation, 3M glue paste|4-core wire|IP67\IP69K
023802AF3SDC10-33V|MAX 9W|70*28*9.5MM|Transparent lampshade|Outer cover black|6 LED amber colors|19 flash methods|Screw installation|Sheathed wire|4-core sheathed wire 2.5 meters Red: positive, black : Negative, yellow: sync/trigger, white: alternating|IP67\IP69K|Color box B020NO418001, outer box B010NO400001, self-adhesive sticker B04F3S0000001
023902AWF6SDC10-33V|MAX 18W|70*28*9.5MM|Transparent lens|Outer cover black|LED amber 6 pcs white 6 pcs|12 flash methods|Screw installation, 3M glue paste|6-core wire|IP67\IP69K
023902RWF6SDC10-33V|MAX 18W|70*28*9.5MM|Transparent lens|Outer cover black|LED red 6 pcs white 6 pcs|12 flash methods|Screw installation, 3M glue paste|6-core wire|IP67\IP69K
023903AF6SDC10-33V|MAX 18W|70*28*9.5MM|Transparent lampshade|Outer cover black|LED amber 12 pcs|19 flash methods|Screw installation|Sheathed wire|5-core sheathed wire 2.5 meters Red: positive, black : Negative, Green: Dimming 50%, Yellow: Sync/Trigger, White: Alternate | IP67\IP69K | Color box B020NO418001 | Outer box B010NO400001 | Self-adhesive sticker B04F6S0000001
023905AF6SDC10-33V|MAX 18W|70*28*9.5MM|Transparent lampshade|Outer cover black|LED amber 6 pcs blue 6 pcs|19 flash methods|Screw installation|Sheathed wire|5-core sheathed wire 10 meters red : Positive pole, black: negative pole, green: dimming 50%, yellow: sync/trigger, white: alternating|IP67\IP69K|outer box B010C2400002|self-adhesive sticker B04F6S0000001|PE bag B05250350001
023904ABF6SDC10-33V|MAX 18W|70*28*9.5MM|Transparent lampshade|Outer cover black|LED amber 6 pcs blue 6 pcs|19 flash methods|Screw installation|Sheathed wire|6-core sheathed wire 2.5 meters red : Positive color switch 2 Brown: Positive color switch 1, Black: Negative, Green: Dimming 50%, Yellow: Synchronous/triggered, White: Alternate | IP67\IP69K | Color box B020NO418001 | Outer box B010NO400001 | Self-adhesive sticker B04F6S0000001
