- 911 Signal exclusive Family C design with diamond-cutting techniques
- The most compact warning light to be certified under ECE R65 Class 2 regulations

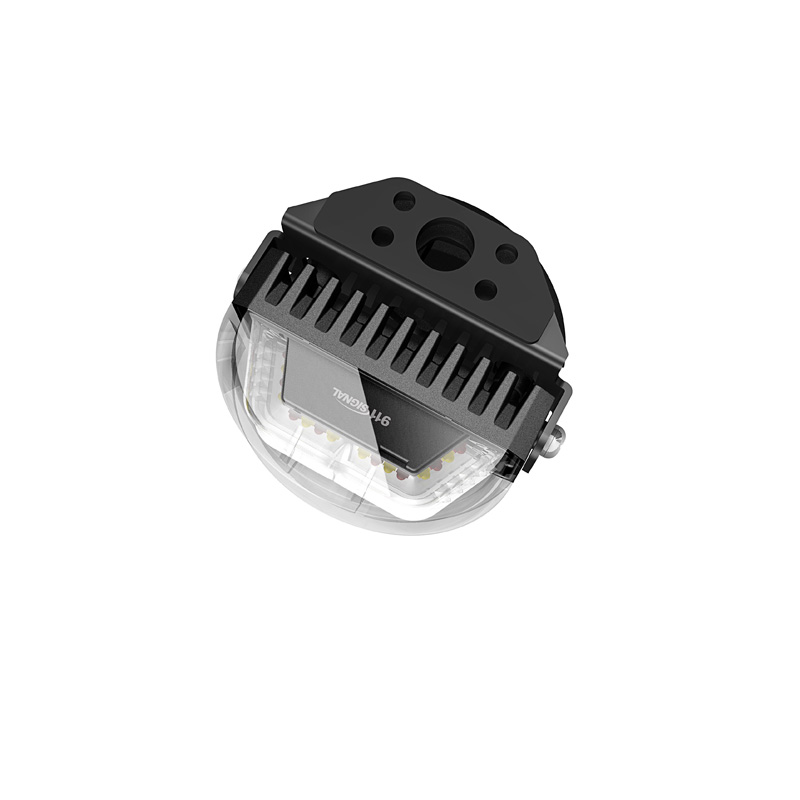

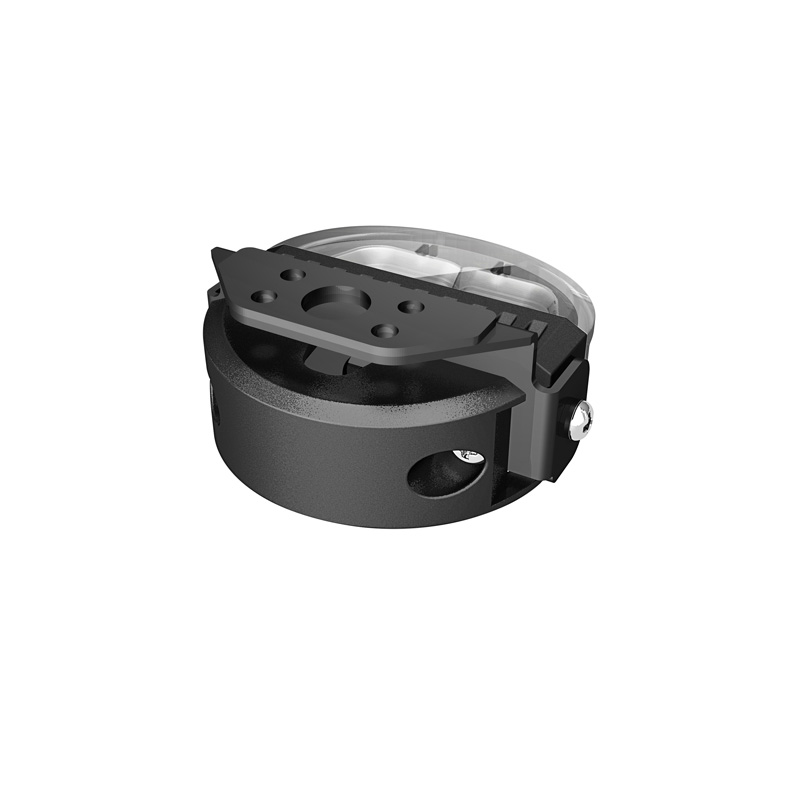

- Versatile mounting options with specially designed brackets
- Solid and durable structure provides excellent weather resistance
- Effective heat dissipation prolongs lifespan
- IP69K rated

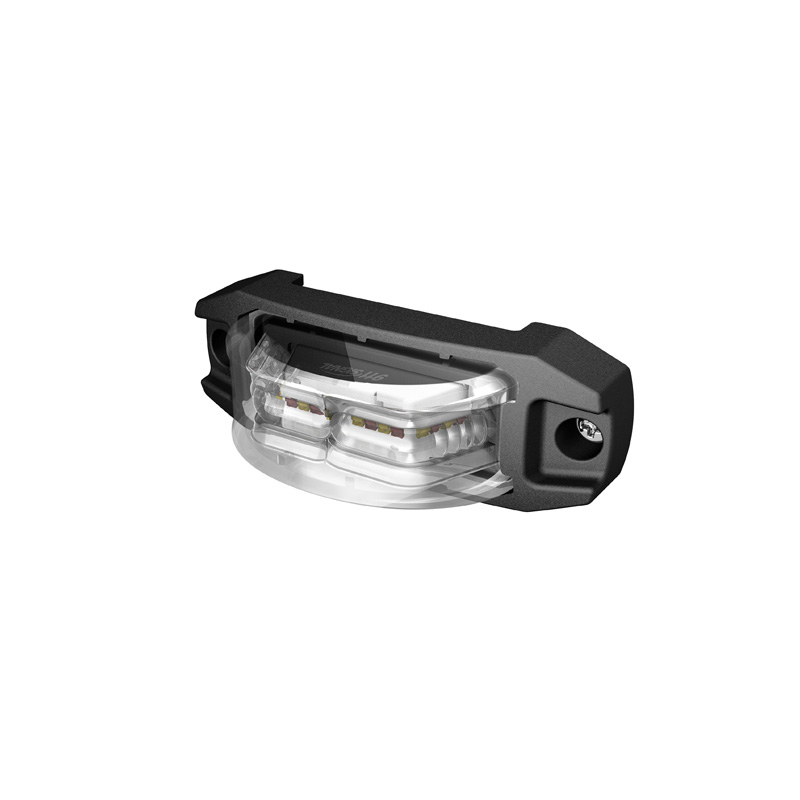

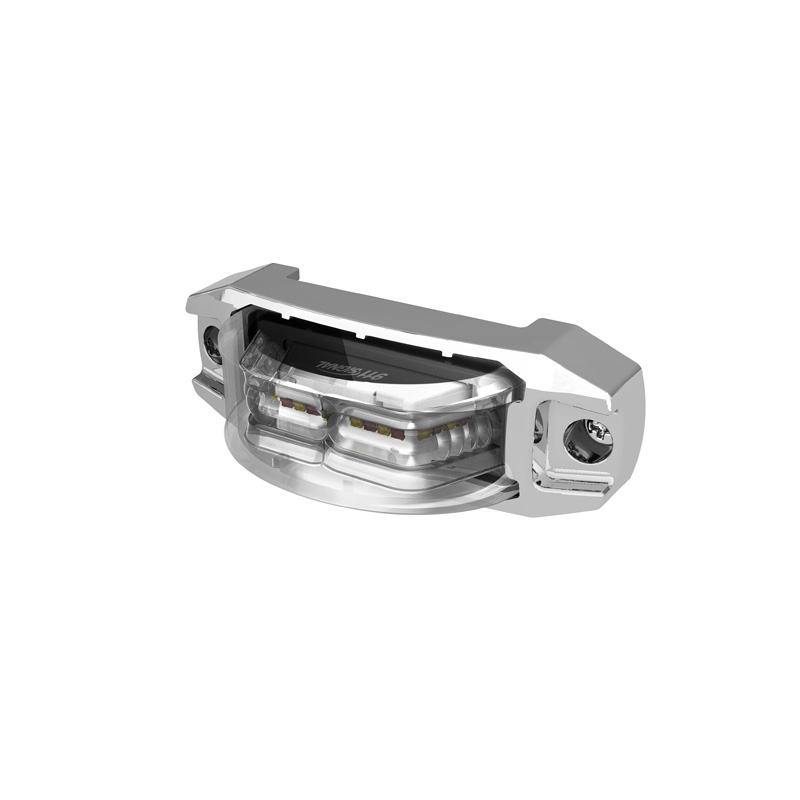

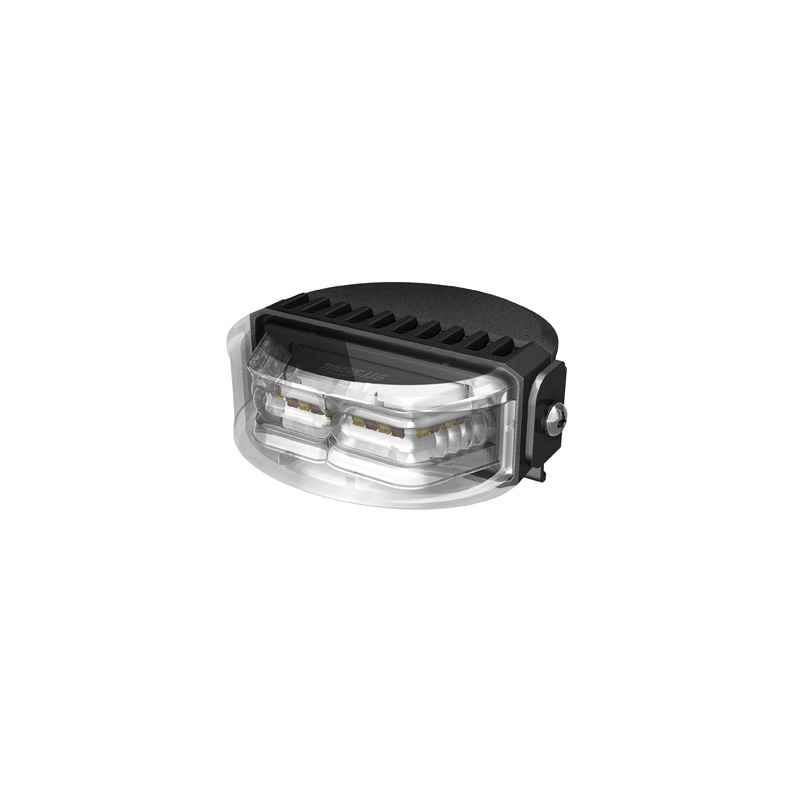

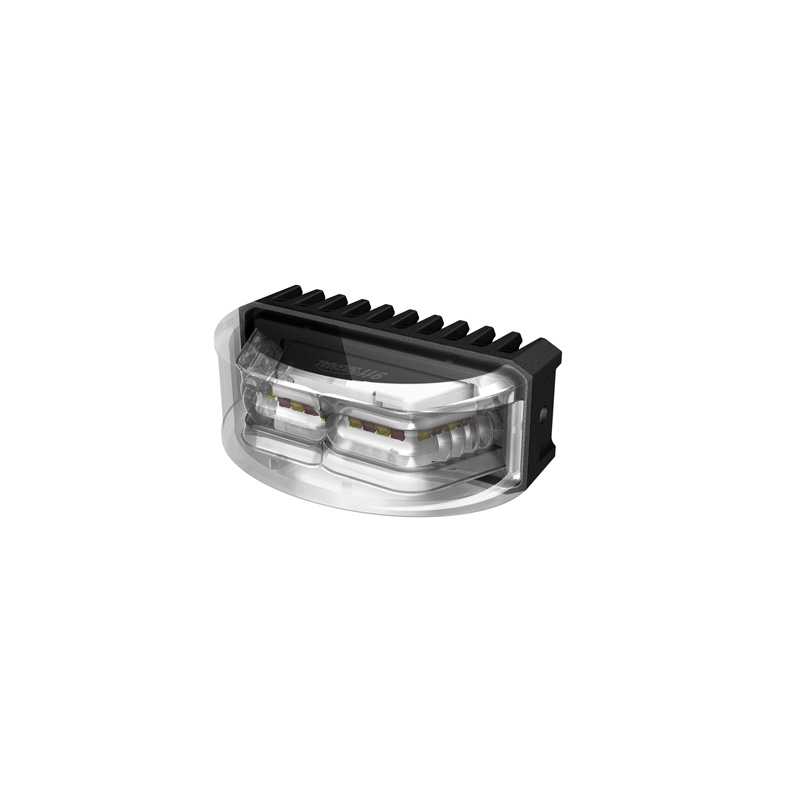

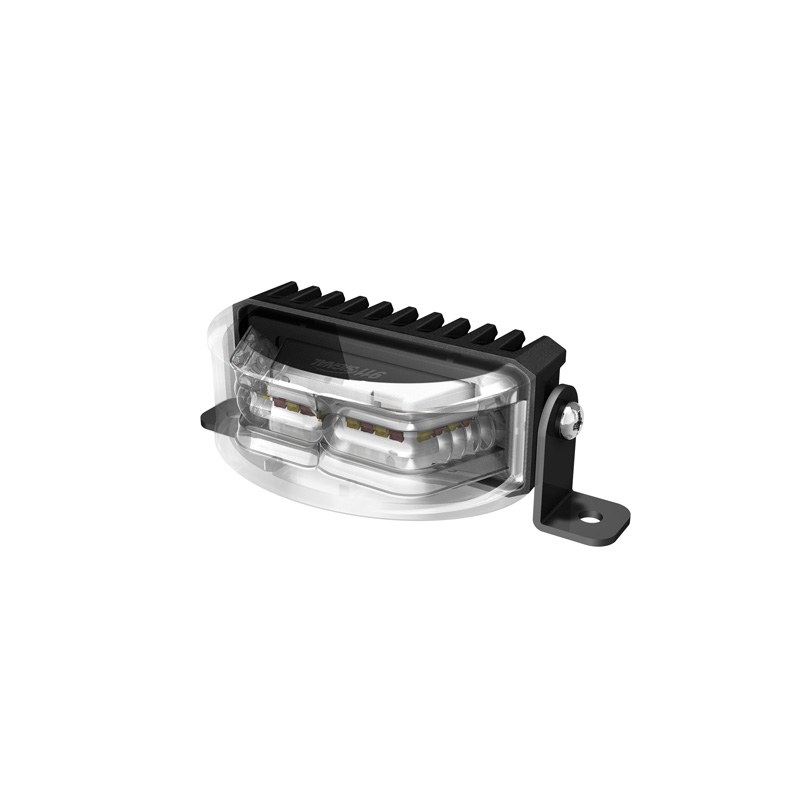

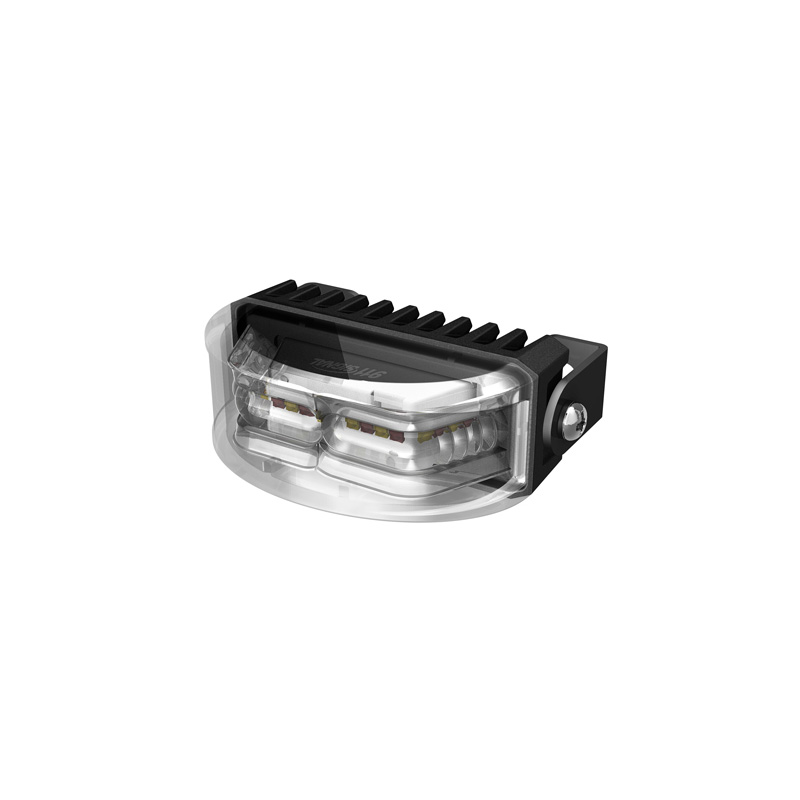

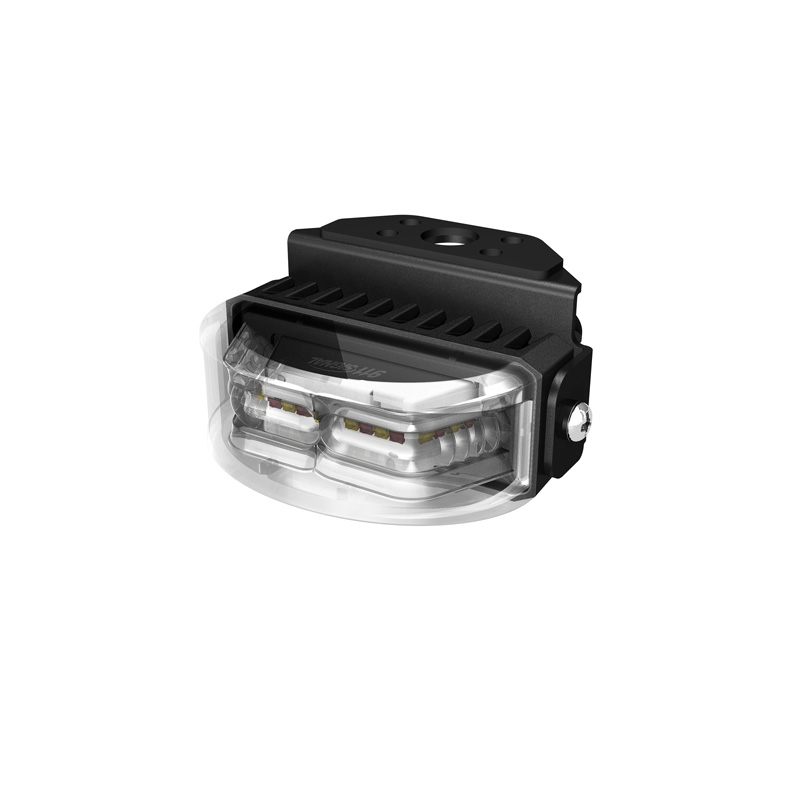

CRESCENT — 180° Visibility Compact Warning Lighthead
Get A Quote
DIMENSIONS
SPECIFICATION
Model: Crescent
ITEM: 023601 Dual color, 023602 Single color
Color : R,B,A,W; RA,RB,RW,AB,AW,BW
Voltage: DC 10-33V
Max Power : 24W
LED: 8pcs 3W Single color / 16pcs 3W Dual color
LENS: TIR
Flash Patterns : 12

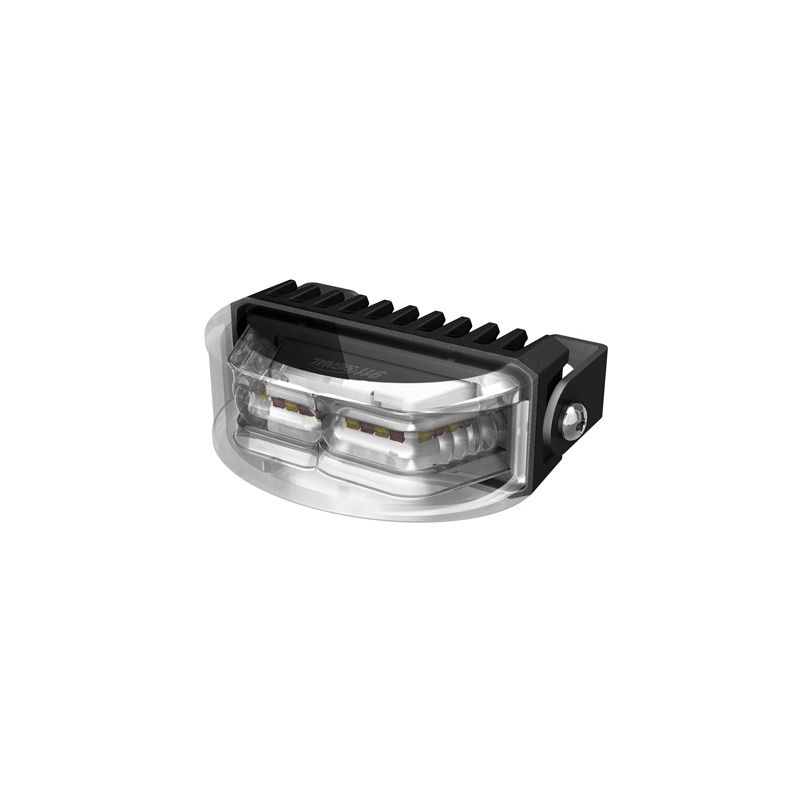

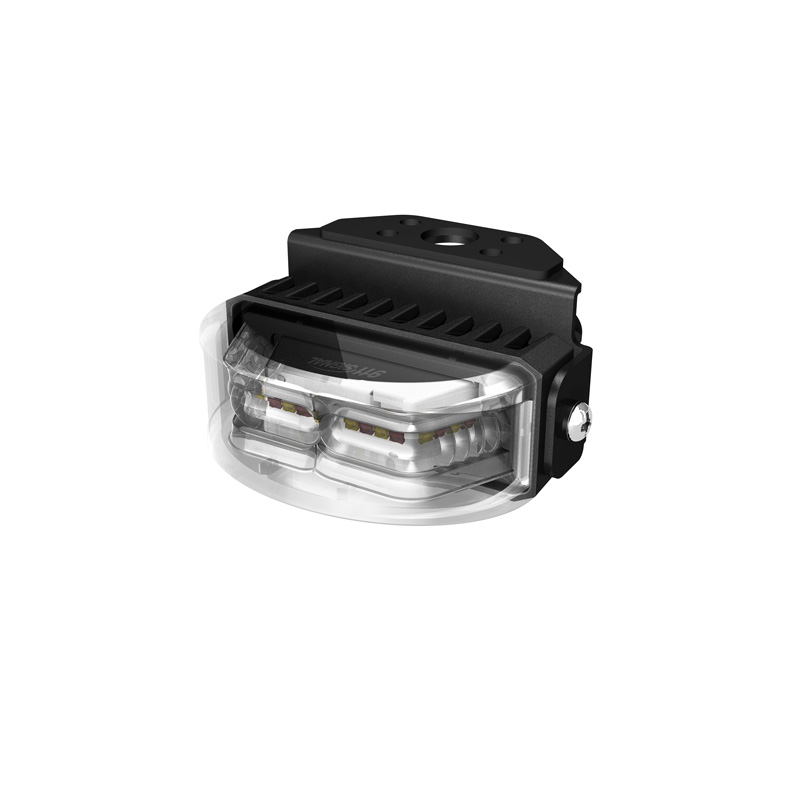

Mount: Surface Mount or Bracket Mount
Operating Temperature: -30 to 70℃
Certification: SAE ,CA T13 ,ECE R65 ,R10
| ITEM | MODEL | SPECIFICATIONS |
| 023602A | CRESCENT | DC10-33V|MAX 16W|65*40*27MM|Transparent lens|Transparent lampshade|Black outer cover|8 amber LEDs|12 flash methods|Bracket installation, screw installation|5-core wire|IP67\IP69K |
| 023602B | CRESCENT | DC10-33V|MAX 16W|65*40*27MM|Transparent lens|Transparent lampshade|Black outer cover|8 blue LEDs|12 flash methods|Bracket installation, screw installation|5-core wire|IP67\IP69K |
| 023602R | CRESCENT | DC10-33V|MAX 16W|65*40*27MM|Transparent lens|Transparent lampshade|Black outer cover|8 red LEDs|12 flash methods|Bracket installation, screw installation|5-core wire|IP67\IP69K |
| 023601TBW | CRESCENT | DC10-33V|MAX 16W|65*40*27MM|Transparent lens|Lampshade transparent|Outer cover black|LED blue 8 pcs white|12 flash methods|Bracket installation, screw installation|6-core wire|IP67\IP69K |
| 023601TRW | CRESCENT | DC10-33V|MAX 16W|65*40*27MM|Transparent lens|Lampshade transparent|Outer cover black|LED red 8 pcs white|12 flash methods|bracket installation, screw installation|6-core wire|IP67\IP69K |
| 023601TRB | CRESCENT | DC10-33V|MAX 16W|65*40*27MM|Transparent lens|Lampshade transparent|Outer cover black|LED blue 8 pcs red|12 flash methods|bracket installation, screw installation|6-core wire|IP67\IP69K |
| 023601TRA | CRESCENT | DC10-33V|MAX 16W|65*40*27MM|Transparent lens|Lampshade transparent|Outer cover black|LED amber 8 pcs red|12 flash methods|bracket installation, screw installation|6-core wire|IP67\IP69K |
| 023605B | CRESCENT | DC10-33V|MAX 16W|65*40*27MM|Transparent lens|Lampshade blue|Outer cover black|8 blue LEDs|12 flash methods|Bracket installation, screw installation|4-core wire red + brown: ON/OFF , Brown: Cruise 50% brightness, initial flash method Steady 2|IP67\IP69K|Instruction manual B08CCNTX3001 |
| 023609R | CRESCENT | DC10-33V|MAX 16W|65*40*27MM|Transparent lens|Lampshade red|Outer cover black|8 red LEDs|12 flash methods|Bracket installation, screw installation|5-core wire|IP67\IP69K |
| 023610B | CRESCENT | DC10-33V|MAX 16W|65*40*27MM|Transparent lens|Lampshade blue|Outer cover black|8 blue LEDs|12 flash methods, initial flash method R65-Double|Bracket installation, screw installation|3-core connection Plug-in DT04-3P red wire: +, black wire: GND, yellow wire: MODE|IP67\IP69K|Certificate Z03JYHGZ0001 |
| 023611B | CRESCENT | DC10-33V|MAX 16W|65*40*27MM|Transparent lens|Transparent lampshade|Outer cover black|8 blue LEDs|12 flash methods, initial flash method Single-Quad (ALL)|Screw installation|3-core wire red wire :+, black wire: GND, yellow wire: MODE|IP67\IP69K|Outer box B01WGWX30001, lining B01WGX300001, lining B01WGX100001, lining B01WGX200001, brown box B02V20X10001, certificate Z03JYHGZ0001| |
| 023603TRW | CRESCENT | DC10-33V|MAX 16W|65*40*27MM|Transparent lens|Transparent lampshade|Black outer cover|LED 8 red 8 white pcs|12 flash methods|Bracket installation, screw installation|6-core wire|IP67\IP69K|Instruction manual B08CCNTX2002 |
| 023603TAW | CRESCENT | DC10-33V|MAX 16W|65*40*27MM|Transparent lens|Lampshade transparent|Outer cover black|LED amber 8 pcs white|12 flash methods|Bracket installation, screw installation|6-core wire|IP67\IP69K| Manual B08CCNTX2002 |
| 023603TRB | CRESCENT | DC10-33V|MAX 16W|65*40*27MM|Transparent lens|Transparent lampshade|Outer cover black|LED blue 8 pcs red|12 flash methods|Bracket installation, screw installation|6-core wire|IP67\IP69K| Manual B08CCNTX2002 |
| 023603TBW | CRESCENT | DC10-33V|MAX 16W|65*40*27MM|Transparent lens|Lampshade transparent|Outer cover black|LED blue 8 pcs white|12 flash methods|Bracket installation, screw installation|6-core wire|IP67\IP69K| Manual B08CCNTX2002 |
| 023603TRA | CRESCENT | DC10-33V|MAX 16W|65*40*27MM|Transparent lens|Lampshade transparent|Outer cover black|LED amber 8 pcs red|12 flash methods|Bracket installation, screw installation|6-core wire|IP67\IP69K| Manual B08CCNTX2002 |
| 023612TAB | CRESCENT | DC10-33V|MAX 16W|65*40*27MM|Transparent lens|Lampshade transparent outer cover black|LED amber 8 pcs blue|12 flash methods|Bracket installation, screw installation|6-core sheathed wire 2.5M red : Color 1 switch positive, Brown: Color 2 switch positive, Black: Negative, Blue: Dimming 50%, Yellow: Sync/Trigger/Reset, White: Alternate|IP67\IP69K|Brown box B02C9R65X201, outer box B01C9R65X201, non-drying Adhesive sticker B04CRE000001, instruction manual B08CCNTX2004 |
