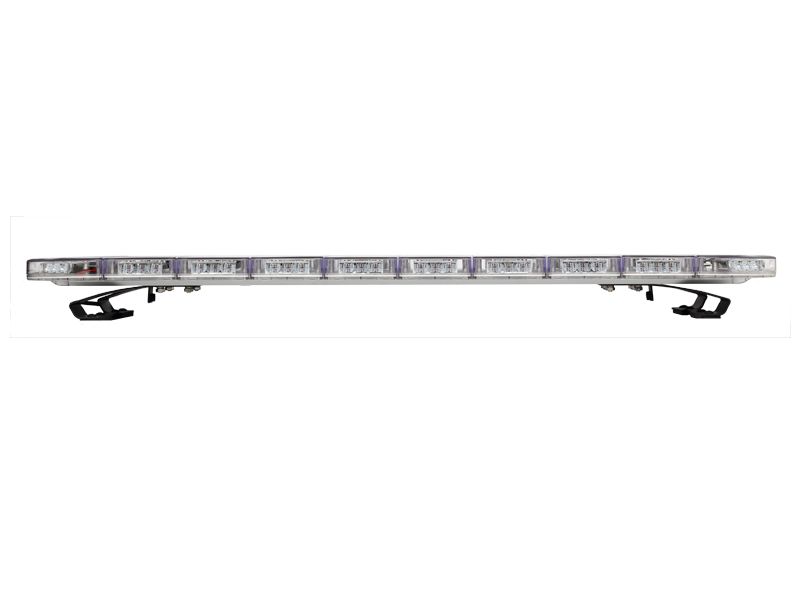

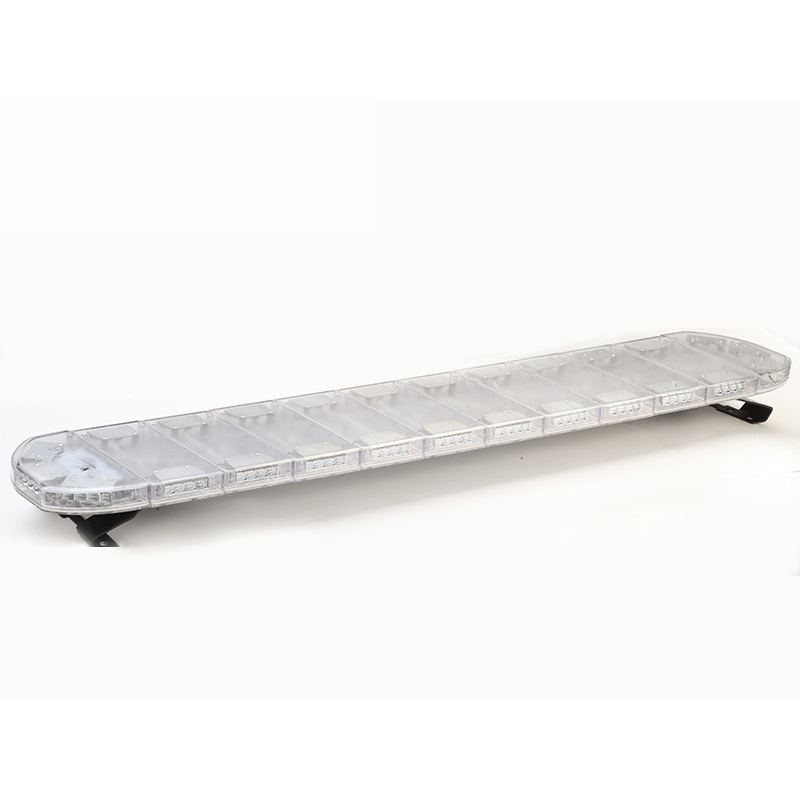

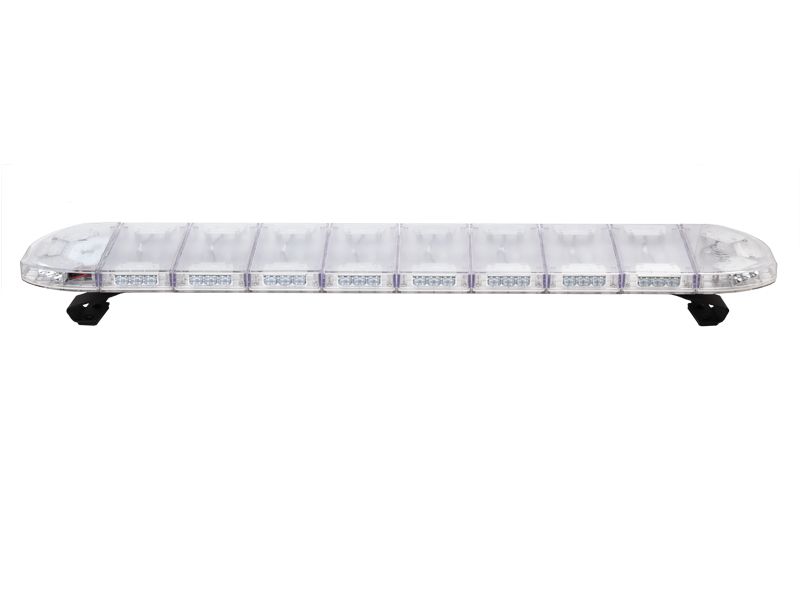

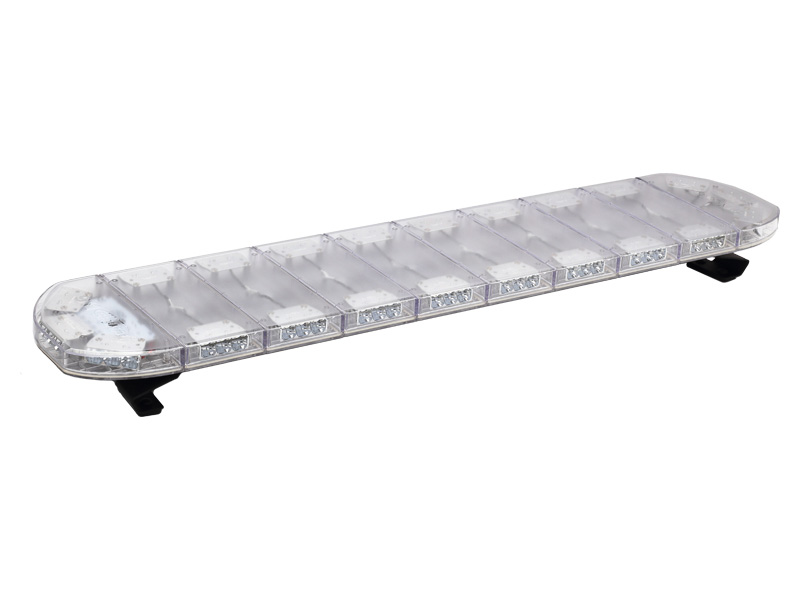

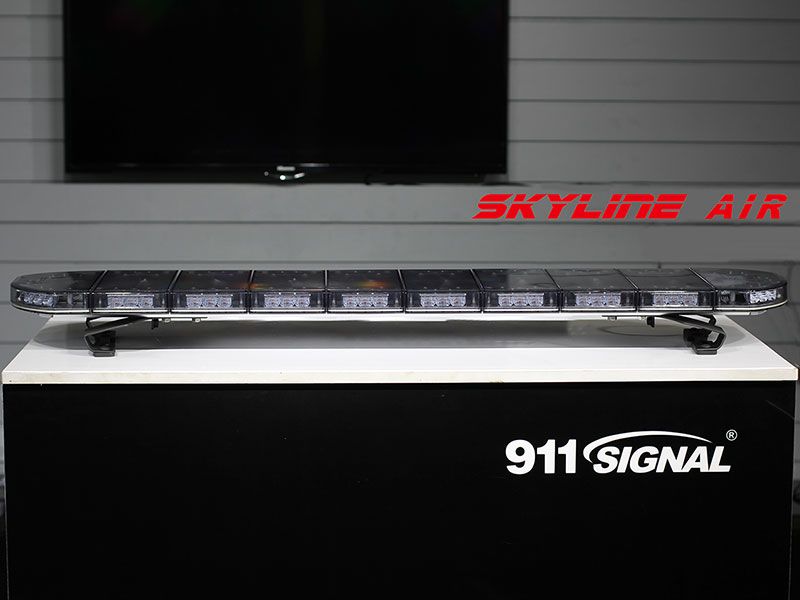

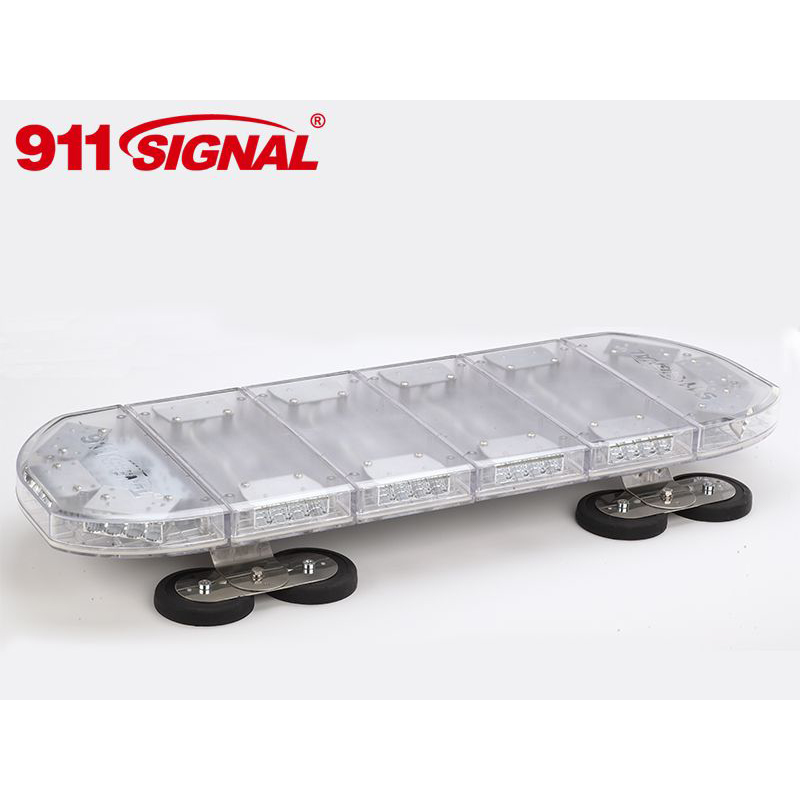

SKYLINE AIR – Led emergency lightba(C3&C4module)

  • Sleek, low profile and aerodynamic design makes the product the thinnest and lightest LED lightbar on the market
  • Ready to be customized in lengths and functions to satisfy your needs
  • Upgraded PC material minimizes environmental damage and provides sufficient heat dissipation
  • IP68 rated; fully encapsulated for moisture, vibration and corrosion resistance

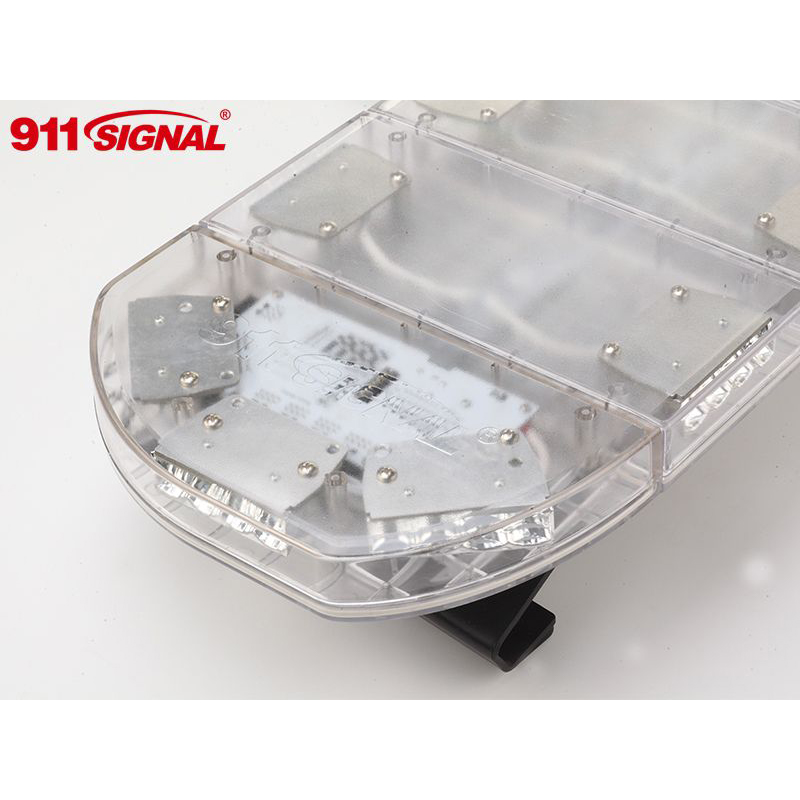

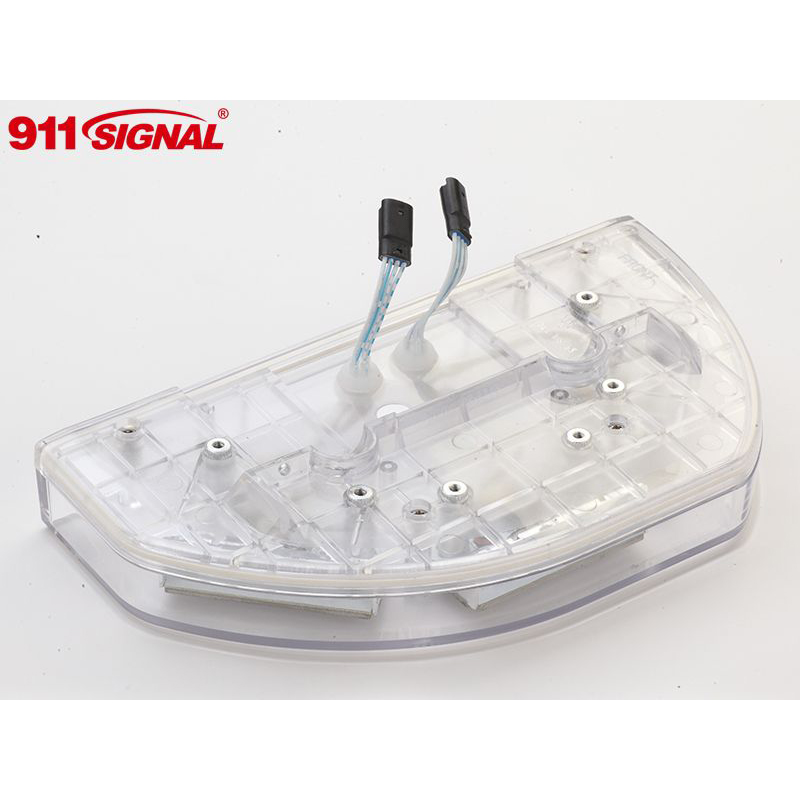

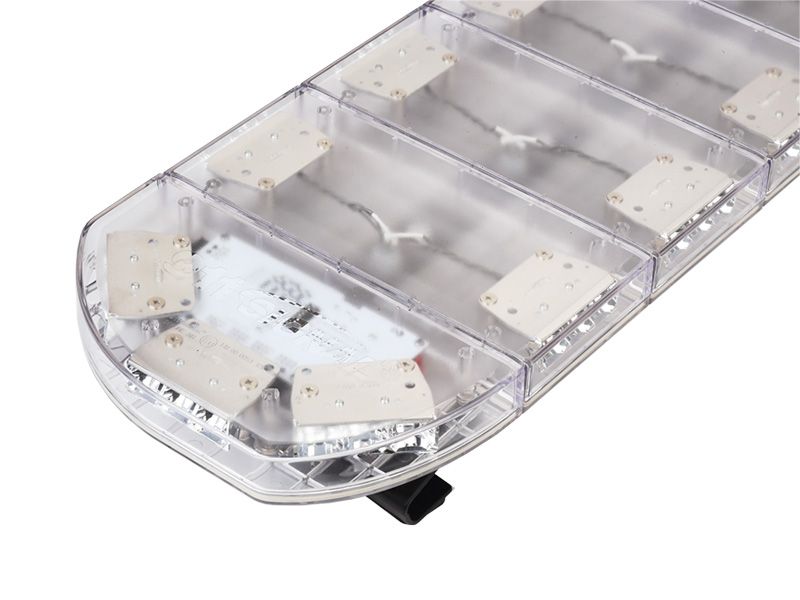

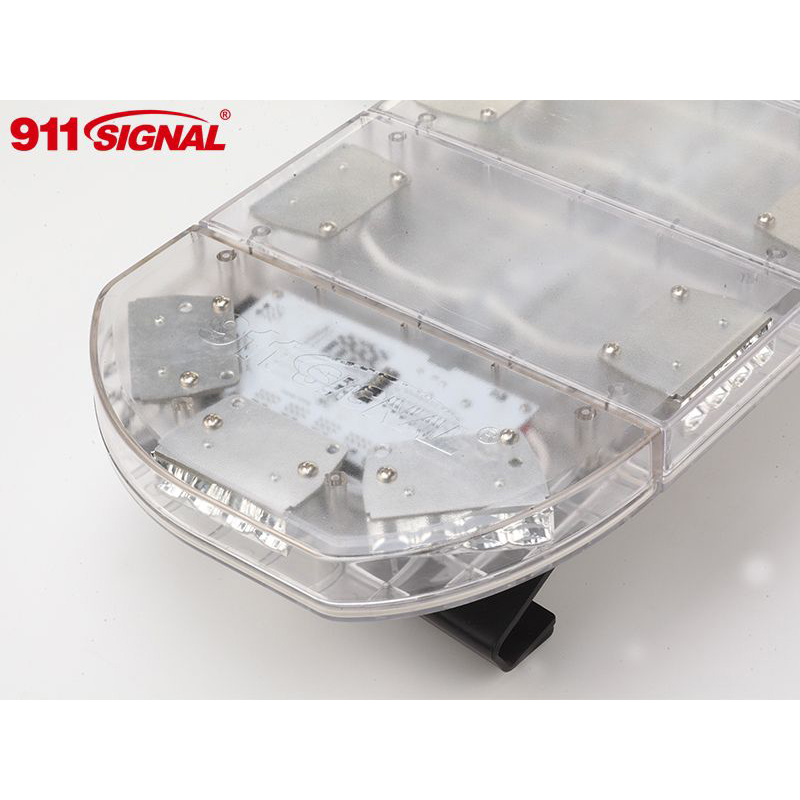

  • Each module is given its own plastic housing, increasing flexibility of use and assembly without sacrificing either performance or reliability
  • Clear and other color options available for outer lenses
Get A Quote

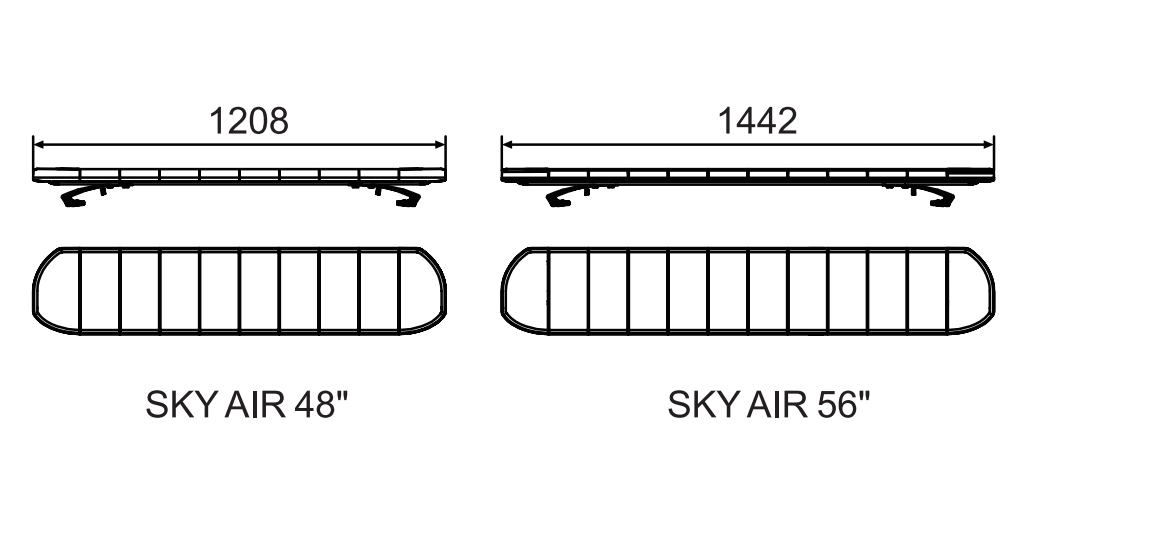

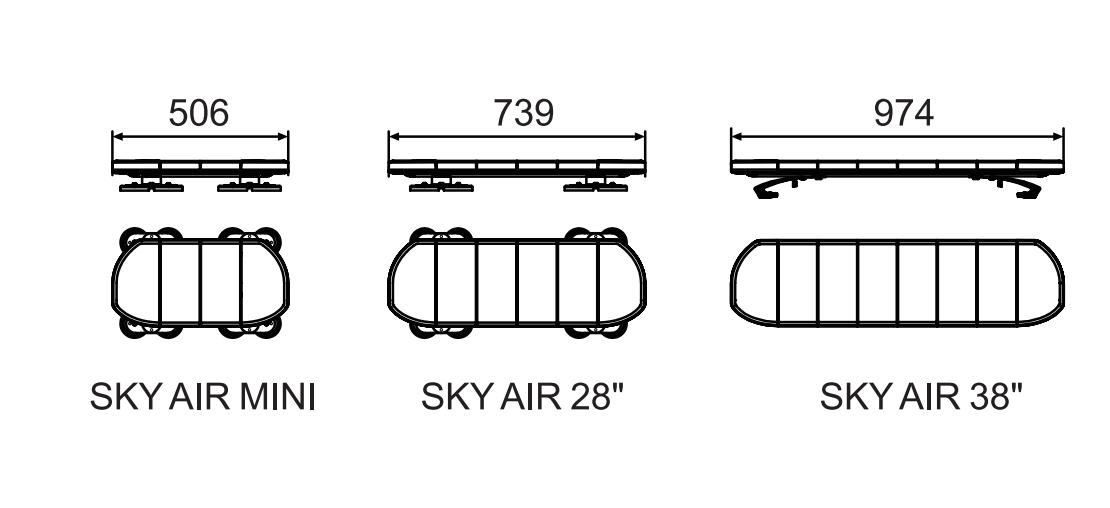

DIMENSIONS

SPECIFICATION

Light Characteristics

LED Power

SKY AIR20: 40PCS 3W; SKY AIR29:56PCS 3W; SKY AIR38:72PCS 3W; SKY AIR48:88PCS 3W; SKY AIR56:104PCS 3W

LED Lifespan : 100000H

Flash settings : 1-4HZ

Electrical Characteristics

Voltage: DC 10-33V

Physical Characteristics

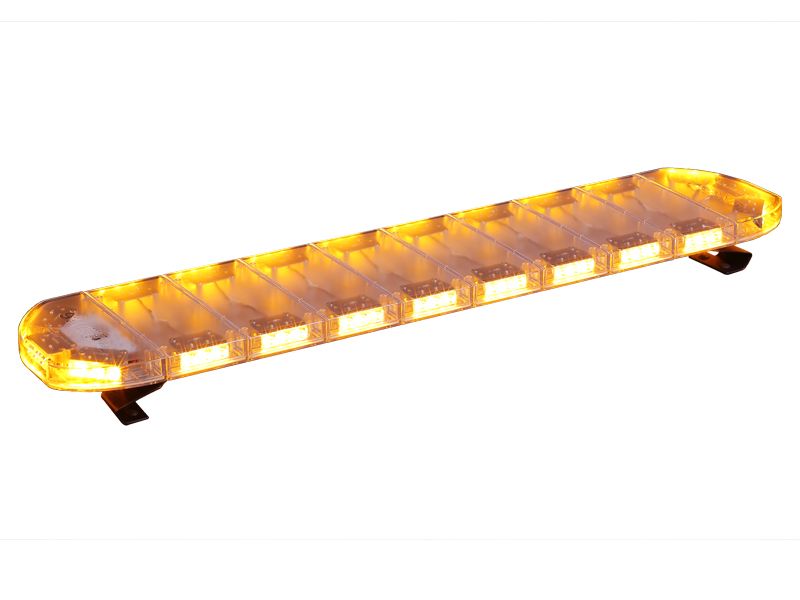

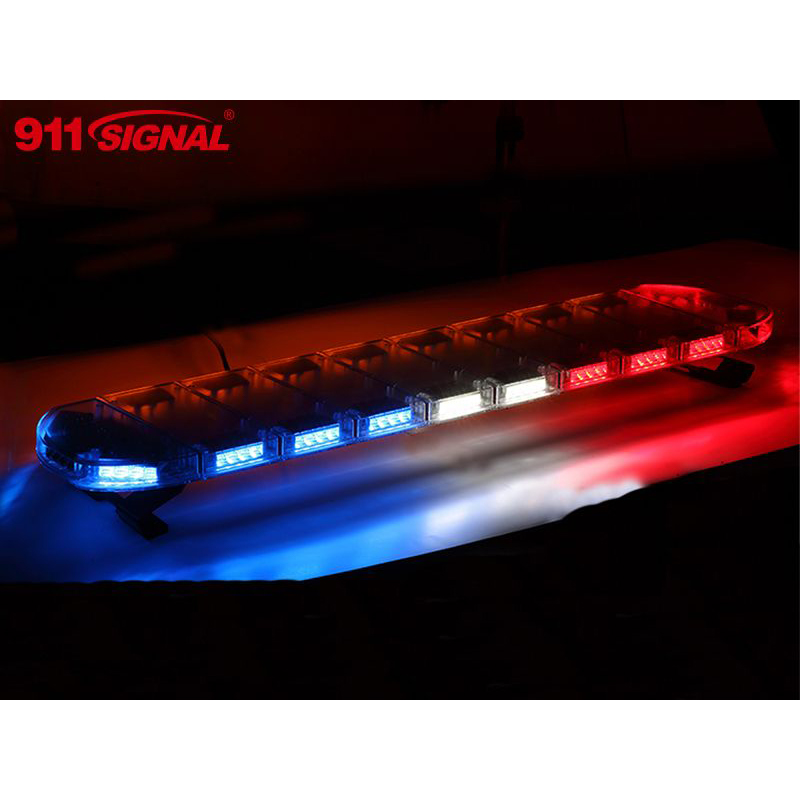

Colour Available : Red,Blue,Amber and Combination Color

Ambient Temperature: -30– +70 ℃

Waterproof: IP68

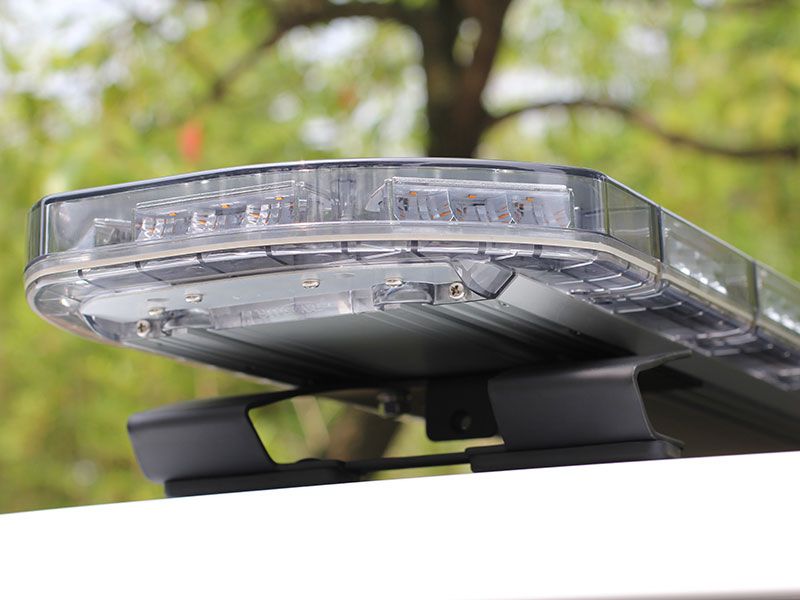

Mounting :

SKY AIR20 / 29: Magnet

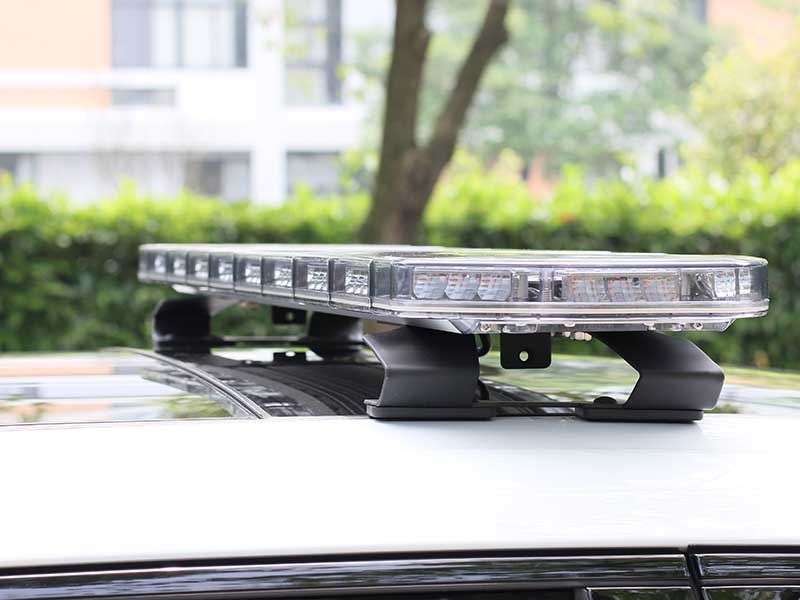

SKY AIR38 / 48/56: Gutter / Roof Rail / Roof One Point / Direct/Bolt(Optional)

Flash patterns

SKY AIR20: 25; SKY AIR29/38/48/56: 29

Product Dimension :

SKY AIR20:20″L x 9.8″W x 1.8″H(50.6cm x 25cm x 4.5cm)

SKY AIR29: 29″L x 9.8″W x 1.8″H(74.0cm x 25cm x 4.5cm)

SKY AIR38: 38″L x 9.8″W x 1.8″H(97.4cm x 25cm x 4.5cm)

SKY AIR48: 48″L x 9.8″W x 1.8″H(120.0cm x 25cm x 4.5cm)

SKY AIR56: 56″L x 9.8″W x 1.8″H(144.2cm x 25cm x 4.5cm)

Meet and exceeds: ECE R65 TA1 00 0053; ECE R65 TA2 00 0091; ECE R65 TB2 00 0086; ECE R10 052171

WIRE

SKY AIR 20 / 29: 3M length with A13-163 cigarette plug

SKY AIR 38 / 48 / 56: 5M length of 8 core wire

Housing Materials : Plastic

Optional controller: BR9000

ITEMMODELSPECIFICATIONS
010314BSKYLINE 54DC10-33V|MAX 155W|1391*250*45MM (without tripod)|Reflective cup|Silver upper cover|Silver lower cover|124 blue LEDs|34 flash methods|Tripod installation|3-core sheath function Line|IP68
011801ASKYLINE AIR 20DC10-33V|MAX 51W|506*250*45MM (not including tripod)|Reflective cup|Transparent upper cover|Transparent lower cover|40 amber LEDs|25 flash methods|Magnet installation|A13-163 cigarette lighter |1-core functional cable|IP68
011801RSKYLINE AIR 20DC10-33V|MAX 38W|506*250*45MM (not including tripod)|Reflective cup|Transparent upper cover|Transparent lower cover|40 red LEDs|25 flash methods|Magnet installation|A13-163 cigarette lighter| 1-core functional cable|IP68
011810ASKYLINE AIR 29DC10-33V|MAX 72W|739*250*45MM (not including tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|56 amber LEDs|29 flash methods|Magnet installation|A13-163 cigarette lighter |1-core functional cable|IP68
011826ASKYLINE AIR 38DC10-33V | MAX 92W | 974*250*45MM (without tripod) | Reflective cup | Transparent upper cover | Transparent lower cover | 72 amber LEDs | 29 flash methods | Tripod installation | 5-core sheath function Line, green line: dimming 50%|IP68
011827ASKYLINE AIR 43DC10-33V|MAX 102W|1091*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|80 amber LEDs|29 flash methods|Tripod installation|5-core sheath function Line, green line: dimming 50%|IP68
011834ASKYLINE AIR 48DC10-33V|MAX 113W|1208*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|88 LED amber colors|29 flash methods|Tripod installation|2-core sheath function Line|IP68
011834RSKYLINE AIR 48DC10-33V|MAX 84W|1208*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|88 red LEDs|29 flash methods|Tripod installation|2-core sheathed functional line |IP68
011839ASKYLINE AIR 48DC10-33V|MAX 113W|1208*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|88 LED amber colors|29 flash methods|Tripod installation|5-core sheath function Line, green line: dimming 50%|IP68
011840ASKYLINE AIR 56DC10-33V|MAX 135W|1442*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|LED amber 88 pcs white 16 pcs|29 flash methods|Tripod installation|6 cores Sheathed functional line|IP68
011841ASKYLINE AIR 48DC10-33V|MAX 104W|1208*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|LED amber 54 pcs white 12 pcs|29 flash methods|Tripod installation|6 cores Sheathed functional line|IP68
011841BSKYLINE AIR 48DC10-33V|MAX 102W|1208*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|LED blue 54 pcs white 12 pcs|29 flash methods|Tripod installation|6 cores Sheathed functional line|IP68
011841BRSKYLINE AIR 48DC10-33V|MAX 92W|1208*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent lower cover|LED blue 27 red 27 white 12 pcs|29 flash methods|Tripod installation| 6-core sheathed functional cable|IP68
011841RSKYLINE AIR 48DC10-33V|MAX 82W|1208*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|LED red 54 pcs white 12 pcs|29 flash methods|Tripod installation|6-core protection Set of functional lines|IP68
011843ASKYLINE AIR 48DC10-33V|MAX 102W|1208*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|66 amber LEDs|29 flash methods|Tripod installation|2-core sheath function Line|IP68
011843BSKYLINE AIR 48DC10-33V|MAX 100W|1208*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|66 blue LEDs|29 flash methods|Tripod installation|2-core sheath function Line|IP68
011843RSKYLINE AIR 48DC10-33V|MAX 75W|1208*250*45MM (without tripod)|Reflective cup|Transparent upper cover|Transparent lower cover|66 red LEDs|29 flashing methods|Tripod installation|2-core sheathed functional line |IP68
011849ASKYLINE AIR 56DC10-33V|MAX 133W|1442*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|104 LED amber colors|29 flash methods|Tripod installation|5-core sheath function Line, green line: dimming 50%|IP68
011850ASKYLINE AIR 20DC10-33V|MAX 47W|506*250*45MM (not including tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|30 amber LEDs|25 flash methods|Magnet installation|A13-163 cigarette lighter |1 core functional line 3M|IP68
011850BSKYLINE AIR 20DC10-33V|MAX 45W|506*250*45MM (not including tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|30 pieces in blue|25 flash methods|Magnet installation|A13-163 cigarette lighter| 1-core functional cable 3M|IP68
011861ASKYLINE AIR 29DC10-33V | MAX 65W | 739*250*45MM (without tripod) | Reflective cup | Transparent upper cover | Transparent lower cover | 42 amber LEDs | 29 flash methods | Tripod installation | 3-core sheath function Line|IP68
011871ASKYLINE AIR 38DC10-33V|MAX 84W|974*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|54 LED amber colors|29 flash methods|Tripod installation|2-core sheath function Line|IP68
011888ASKYLINE AIR 56DC10-33V|MAX 125W|1442*250*45MM (not including tripod)|Reflective cup|Top cover transparent|Transparent lower cover|LED amber 52 pcs red 4 pcs white 24 pcs|29 flash methods|Screw installation| 7-core sheathed functional cable|IP68
011897ASKYLINE AIR 38DC10-33V|MAX 84W|974*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|54 LED amber colors|29 flash methods|Tripod installation|3-core sheath function Line|IP68
011898ASKYLINE AIR 56DC10-33V|MAX 120W|1442*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|78 LED amber colors|29 flash methods|Tripod installation|3-core sheath function Line|IP68
011899ASKYLINE AIR 66DC10-33V | MAX 140W | 1675*250*45MM (without tripod) | Reflective cup | Transparent upper cover | Transparent lower cover | 90 amber LEDs | 14 flash methods | Tripod installation | 3-core sheath function Line|IP68
011900ASKYLINE AIR 71DC10-33V|MAX 149W|1795*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|96 LED amber colors|14 flash methods|Tripod installation|3-core sheath function Line|IP68
013404ASKYLINE AIR 48DC10-33V|MAX 102W|1208*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|66 amber LEDs|29 flash methods|Tripod installation|5-core sheath function Line|IP68
013406ASKYLINE AIR 48DC10-33V|MAX 102W|1208*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|66 amber LEDs|29 flash methods|Tripod installation|3-core sheath function Line|IP68
013413BSKYLINE AIR 71DC10-33V|MAX 86W|1795*250*45MM (not including tripod)|Reflective cup|Upper cover blue|Lower cover blue|57 blue LEDs|14 flashing methods|Screw installation|3 functional wires |IP68
013415BSKYLINE AIR 71DC10-33V|MAX 84W|1795*250*45MM (not including tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|LED blue 51 pcs red 6 pcs|14 flash methods|Screw installation|4 core protection Set of functional lines|IP68
013416BSKYLINE AIR 56DC10-33V|MAX 120W|1442*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|LED blue 66 pcs white 12 pcs|29 flash methods|Plastic tripod installation|5 Core sheath functional wire|IP68
013701ASKYLINE AIR 38DC10-33V|MAX 92W|974*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|72 LED amber colors|29 flash methods|Tripod installation|6-core sheath function Line|IP68
013702ASKYLINE AIR 48DC10-33V|MAX 113W|1208*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|88 LED amber colors|29 flash methods|Tripod installation|6-core sheath function Line|IP68
013704ASKYLINE AIR 38DC10-33V|MAX 84W|974*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|54 LED amber colors|29 flash methods|Tripod installation|4-core sheath function Line|IP68
013705ASKYLINE AIR 38DC10-33V|MAX 84W|974*250*45MM (without tripod)|Reflective cup|Blackened upper cover|Blackened lower cover|54 LED amber colors|29 flash methods|Tripod installation|4-core protection Set of functional lines|IP68
013706ASKYLINE AIR 48DC10-33V|MAX 102W|1208*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|66 amber LEDs|29 flash methods|Tripod installation|4-core sheath function Line|IP68
013708ASKYLINE AIR 56DC10-33V|MAX 121W|1442*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|78 LED amber colors|29 flash methods|Tripod installation|4-core sheath function Line|IP68
013712ASKYLINE AIR 71DC10-33V|MAX 154W|1795*250*45MM (not including tripod)|Reflective cup|Top cover transparent, porcelain white|Lower cover transparent, porcelain white|LED amber 64 pcs red 4 pcs white 30 pcs|28 types Flash method | Screw installation | 7-core sheathed functional cable | IP68
013713ASKYLINE AIR 56DC10-33V|MAX 124W|1442*250*45MM (not including tripod)|Reflective cup|Top cover transparent, porcelain white|Lower cover transparent, porcelain white|LED amber 54 white 24|29 flash methods|Screws Installation | 3-core sheathed functional cable | IP68
013716BSKYLINE AIR 48DC10-33V|MAX 102W|1208*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|LED blue 54 pcs white 12 pcs|29 flash methods|Plastic tripod installation|5 Core sheath functional wire|IP68
013720ASKYLINE AIR 71DC10-33V|MAX 153W|1795*250*45MM (not including tripod)|Reflective cup|Top cover transparent, porcelain white|Lower cover transparent, porcelain white|LED amber 66 pcs white 30 pcs|28 flash methods| Screw installation | 3-core sheathed functional cable | IP68
013724BSKYLINE AIR 48DC10-33V|MAX 100W|1208*250*45MM (without tripod)|Reflective cup|Upper cover blue|Lower cover blue|66 blue LEDs|29 flash methods|Tripod installation|4-core protection Set of functional lines|IP68
013729ASKYLINE AIR 48DC10-33V|MAX 102W|1208*250*45MM (without tripod)|Reflective cup|Upper cover amber|Lower cover amber|66 LED amber|29 flash methods|Plastic tripod installation|2 cores Sheathed functional line|IP68
013734BRSKYLINE AIR 48DC10-33V|MAX 84W|1208*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|LED blue 33 pcs red 33 pcs|29 flash methods|Tripod installation|5 cores Sheathed functional line|IP68
013737ASKYLINE AIR 29DC10-33V | MAX 65W | 739*250*45MM (without tripod) | Reflective cup | Transparent upper cover | Transparent lower cover | 42 amber LEDs | 29 flash methods | Tripod installation | 5-core sheath function Line|IP68
013738ASKYLINE AIR 34DC10-33V | MAX 74W | 855*250*45MM (without tripod) | Reflective cup | Transparent upper cover | Transparent lower cover | 48 amber LEDs | 29 flash methods | Tripod installation | 5-core sheath function Line|IP68
013739ASKYLINE AIR 38DC10-33V|MAX 84W|974*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|54 LED amber colors|29 flash methods|Tripod installation|5-core sheath function Line|IP68
013740ASKYLINE AIR 48DC10-33V|MAX 102W|1208*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|66 amber LEDs|29 flash methods|Tripod installation|5-core sheath function Line|IP68
013741ASKYLINE AIR 56DC10-33V|MAX 121W|1442*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|78 LED amber colors|29 flash methods|Tripod installation|5-core sheath function Line|IP68
013742ASKYLINE AIR 66DC10-33V | MAX 140W | 1675*250*45MM (without tripod) | Reflective cup | Transparent upper cover | Transparent lower cover | 90 amber LEDs | 14 flash methods | Tripod installation | 5-core sheath function Line|IP68
013743ASKYLINE AIR 71DC10-33V|MAX 84W|1795*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|LED blue 51 pcs red 6 pcs|14 flash methods|Tripod installation|5 cores Sheathed functional line|IP68
013745ASKYLINE AIR 38DC10-33V|MAX 84W|974*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|54 LED amber colors|29 flash methods|Tripod installation|4-core sheath function Line|IP68
013746ASKYLINE AIR 38DC10-33V|MAX 84W|974*250*45MM (without tripod)|Reflective cup|Blackened upper cover|Blackened lower cover|54 LED amber colors|29 flash methods|Tripod installation|4-core protection Set of functional lines|IP68
013747ASKYLINE AIR 48DC10-33V|MAX 102W|1208*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|66 amber LEDs|29 flash methods|Tripod installation|4-core sheath function Line|IP68
013748ASKYLINE AIR 48DC10-33V|MAX 102W|1208*250*45MM (without tripod)|Reflective cup|Blackened upper cover|Blackened lower cover|66 LED amber colors|29 flash methods|Tripod installation|4-core protection Set of functional lines|IP68
013749ASKYLINE AIR 56DC10-33V|MAX 121W|1442*250*45MM (without tripod)|Reflective cup|Top cover transparent|Transparent bottom cover|78 LED amber colors|29 flash methods|Tripod installation|4-core sheath function Line|IP68
013750ASKYLINE AIR 56DC10-33V|MAX 120W|1442*250*45MM (without tripod)|Reflective cup|Blackened upper cover|Blackened lower cover|LED blue 66 pcs white 12 pcs|29 flash methods|Plastic tripod installation |4-core sheathed functional cable|IP68
H27941001-MSKYLINE AIR 48DC10-33V|MAX 84W|1208*250*45MM (not including tripod)|Reflective cup|Upper cover blackened|Blackened lower cover|LED amber 48 pcs red 6 pcs white 6 pcs|3 flash methods|Plastic Tripod installation | 6-core sheathed functional cable | IP68
H27941021SKYLINE AIR 56DC10-33V|MAX 101W|1442*250*45MM (not including tripod)|Reflective cup|Blackened upper cover|Blackened lower cover|LED amber 48 pcs red 6 white 12 pcs|29 flash methods|Plastic feet Rack installation | 10-core sheathed functional cable | IP68
H27941031SKYLINE AIR 60DC10-33V|MAX 129W|1558*250*45MM (not including tripod)|Reflective cup|Blackened upper cover|Blackened lower cover|LED amber 66 pcs red 6 white 12 pcs|29 flash methods|Plastic feet Rack installation | 10-core sheathed functional cable | IP68
H27941071SKYLINE AIR 48DC10-33V|MAX 75W|1208*250*45MM (without tripod)|Reflective cup|Blackened upper cover|Blackened lower cover|LED red 48 pcs white 12 pcs|29 flash methods|Plastic tripod installation| 6-core sheathed functional cable|IP68
H27941091SKYLINE AIR 48DC10-33V|MAX 95W|1208*250*45MM (without tripod)|Reflective cup|Blackened upper cover|Blackened lower cover|LED amber 48 pcs white 12 pcs|29 flash methods|Plastic tripod installation |6-core sheathed functional cable|IP68
