- 360° visibility
- Available in amber, blue and red/blue combinations
- Standard magnetic mount or optional bracket mount
- Easy connection to vehicles through a cigarette plug
- Extruded aluminum platform for long life dependability
- Tough and solid outer dome and lower cover minimize environmental damage
- Fully sealed and sufficient waterproof capability

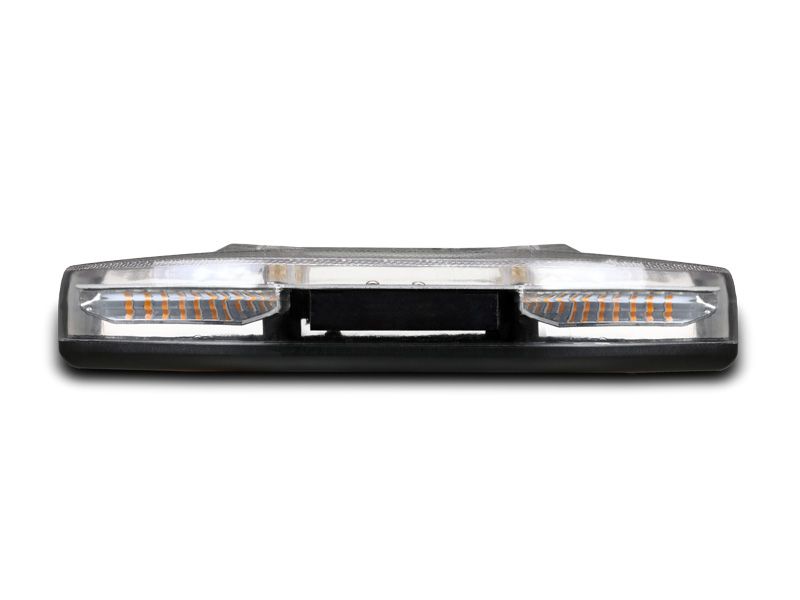

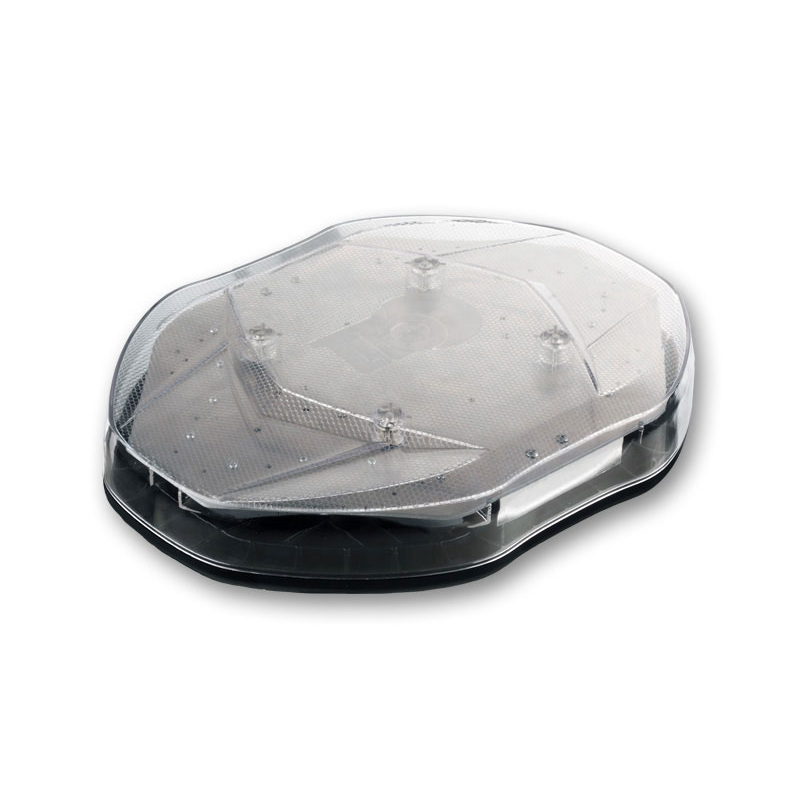

Mini Warrior
Get A Quote

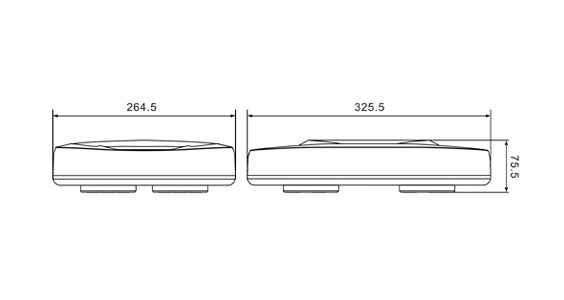

DIMENSIONS
SPECIFICATION
Light Characteristics
LED Power : 32Pcs 3W LED
LED Lifespan : 100000H
Flash settings: 1-4HZ
Electrical Characteristics
Voltage : DC 10-33V
Max Power: 55W
Physical Characteristics
Colour Available: AMBER/BLUE/BLUE&RED
Ambient temperature: -30–+70℃
Waterproof : IP66
Mounting : Magnet
Flash patterns: 19
Meet and Exceeds: ECE R65 TA1 00 3773, ECE R10 04 1242
Product Dimension: 352mm(14 ”) × 265mm(10.5 ”) × 76mm(3 ”)
| ITEM | MODEL | SPECIFICATIONS |
| 011901A | MINI WARRIOR-14 | DC10-33V|MAX 48W|326*265*76mm|Reflective Cup|Upper Cover Transparent|Lower Cover Black|32 LED Amber Colors|19 Flash Methods|Magnet Installation|A13-163 Cigarette Lighter|Sheath Wire|Function 1 cable|IP67 |
| 011901B | MINI WARRIOR-14 | DC10-33V|MAX 48W|326*265*76mm|Reflective Cup|Upper Cover Transparent|Lower Cover Black|32 Blue LEDs|19 Flash Methods|Magnet Installation|A13-163 Cigarette Lighter|Sheath Wire|Function 1 cable|IP67 |
| 011901R | MINI WARRIOR-14 | DC10-33V|MAX 48W|326*265*76mm|Reflective cup|Upper cover transparent|Lower cover black|32 red LEDs|19 flash methods|Magnet installation|A13-163 cigarette lighter|Sheath line|Functional line 1 root|IP67 |
| 011902R | MINI WARRIOR-14 | DC10-33V|MAX 48W|326*265*76mm|Reflective cup|upper cover transparent|lower cover black|32 red LEDs|19 flash methods|magnet installation|sheathed wire|1 functional wire|IP67 |
| 011902A | MINI WARRIOR-14 | DC10-33V|MAX 48W|326*265*76mm|Reflective cup|Upper cover transparent|Lower cover black|32 amber LEDs|19 flash methods|Magnet installation|Sheath wire|1 functional wire|IP67 |
