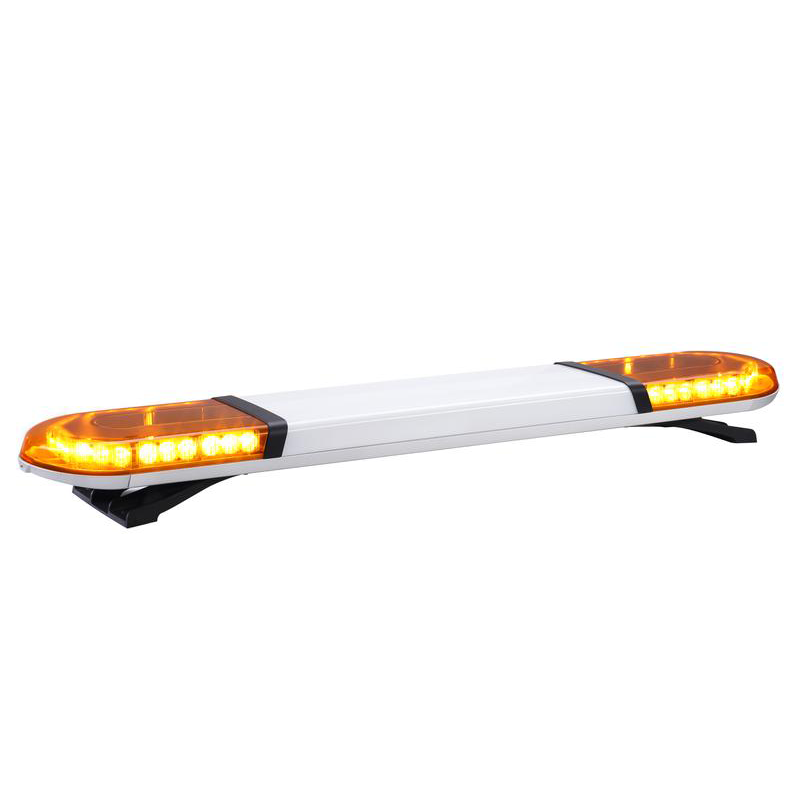

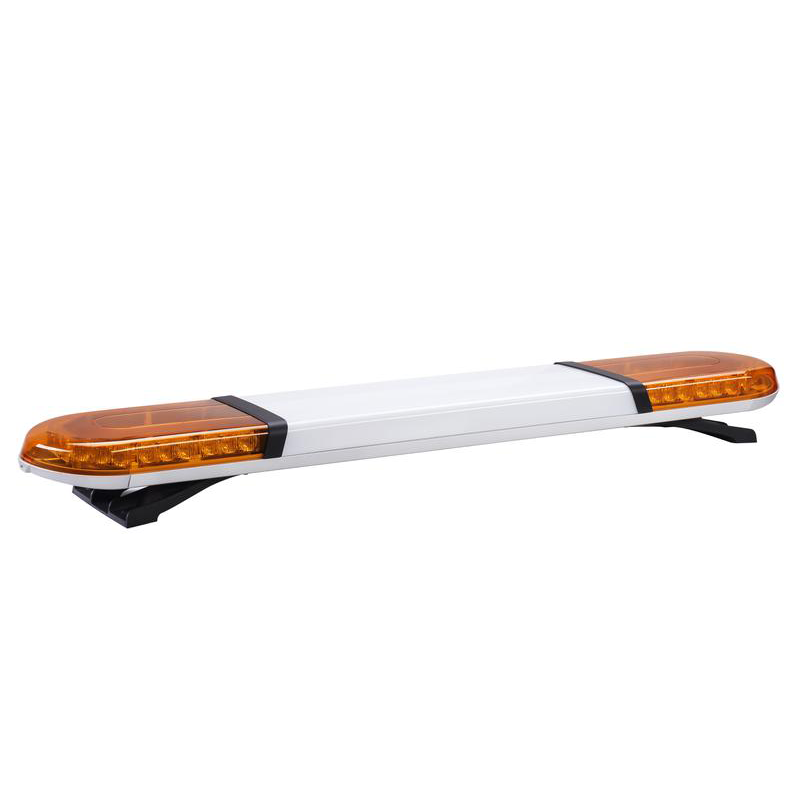

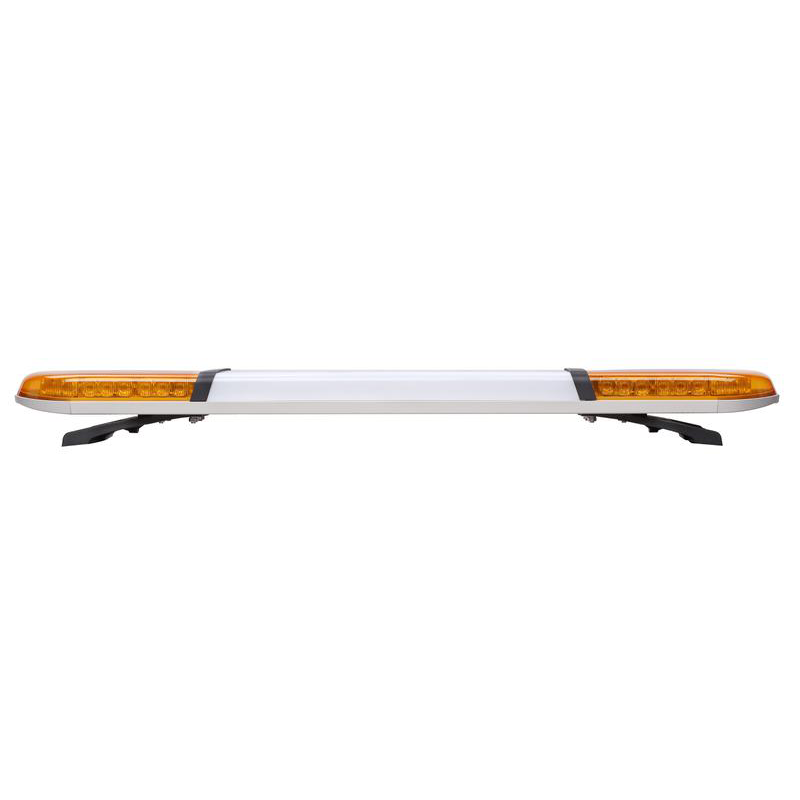

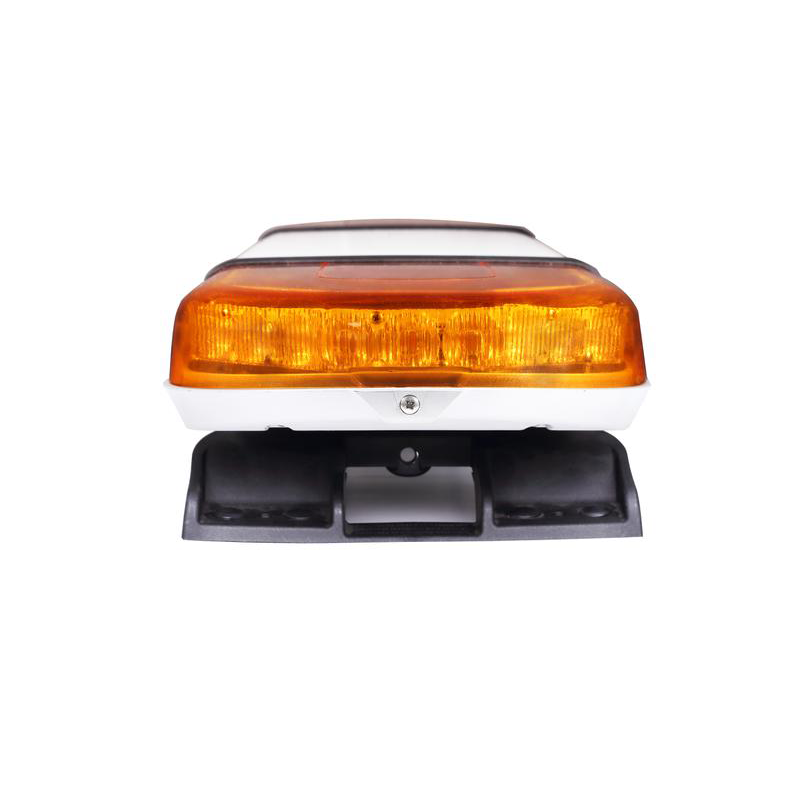

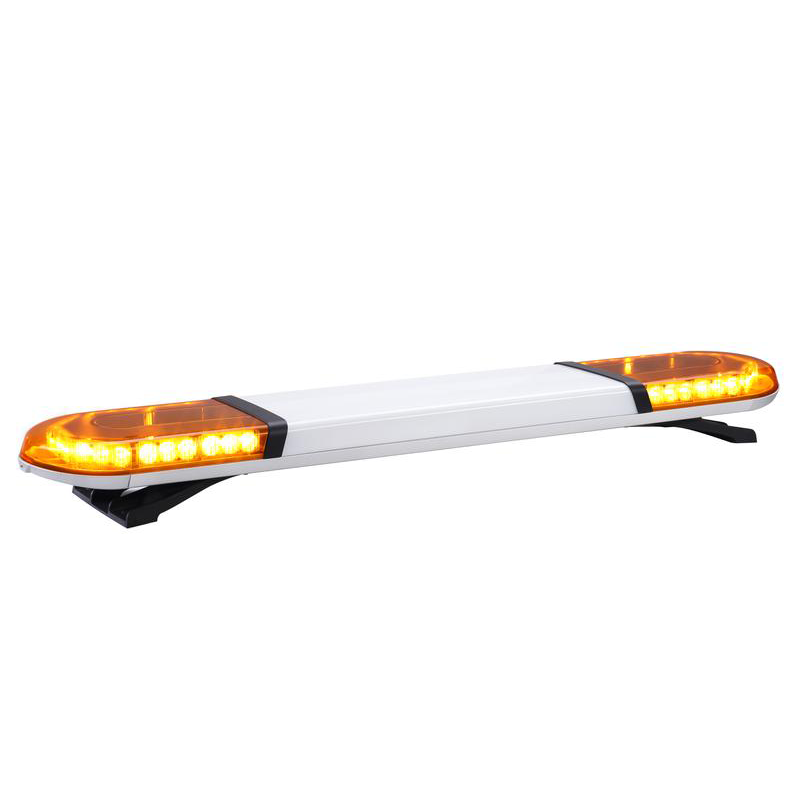

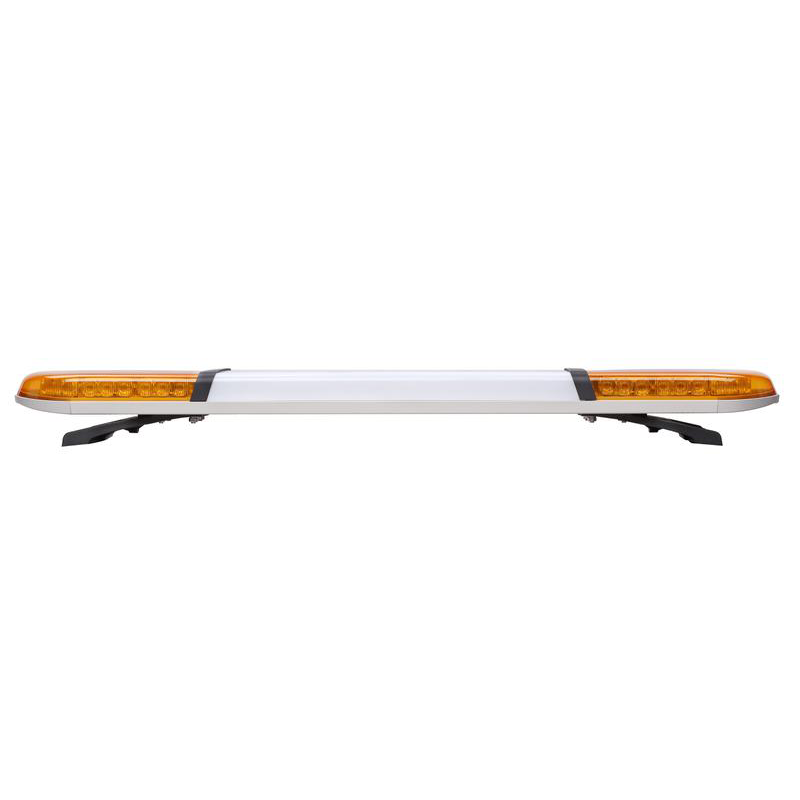

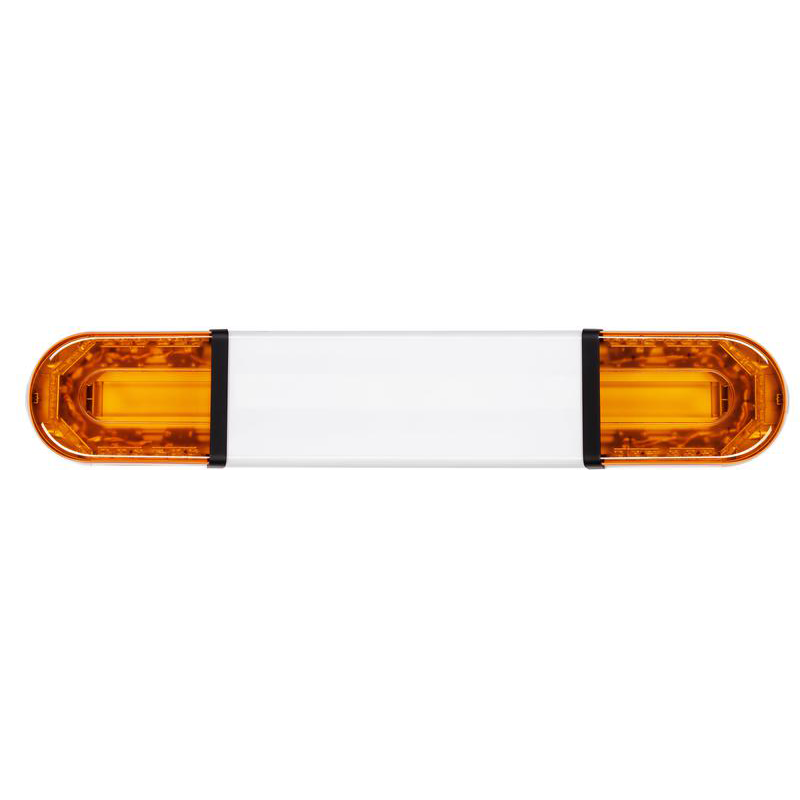

- Low-profile design, economical with guaranteed quality
- Optimized warning effects with 360 degree R65 Class II light output
- Different lengths to choose from, suitable for various industries
- A 4-core harness provides simple control over functions

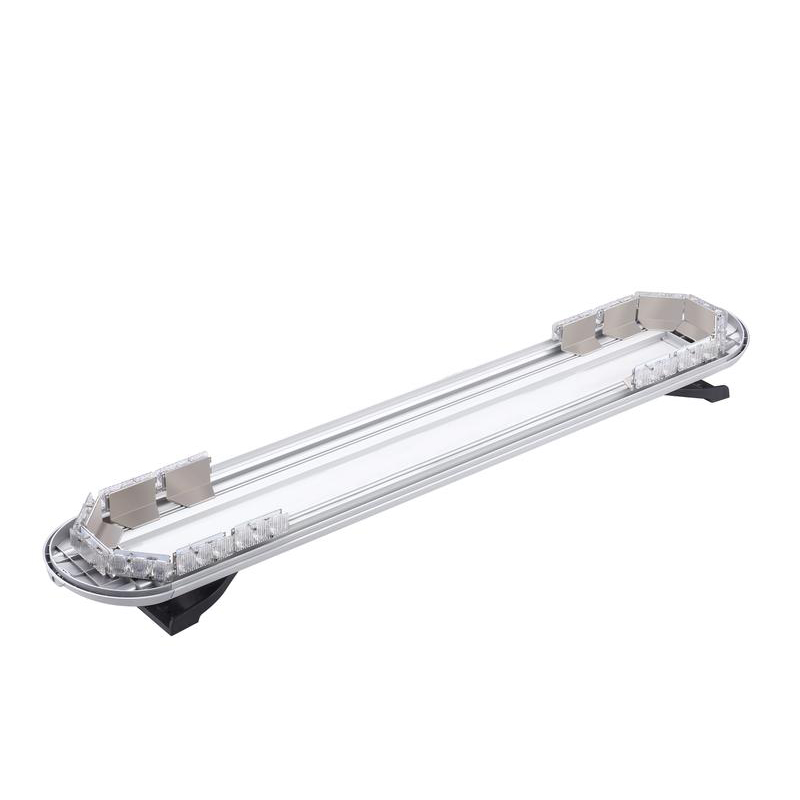

- Fine heat dissipation with aluminum chassis
- Robust and durable structure with PC outer dome
- Fully encapsulated for moisture, vibration and corrosion resistance

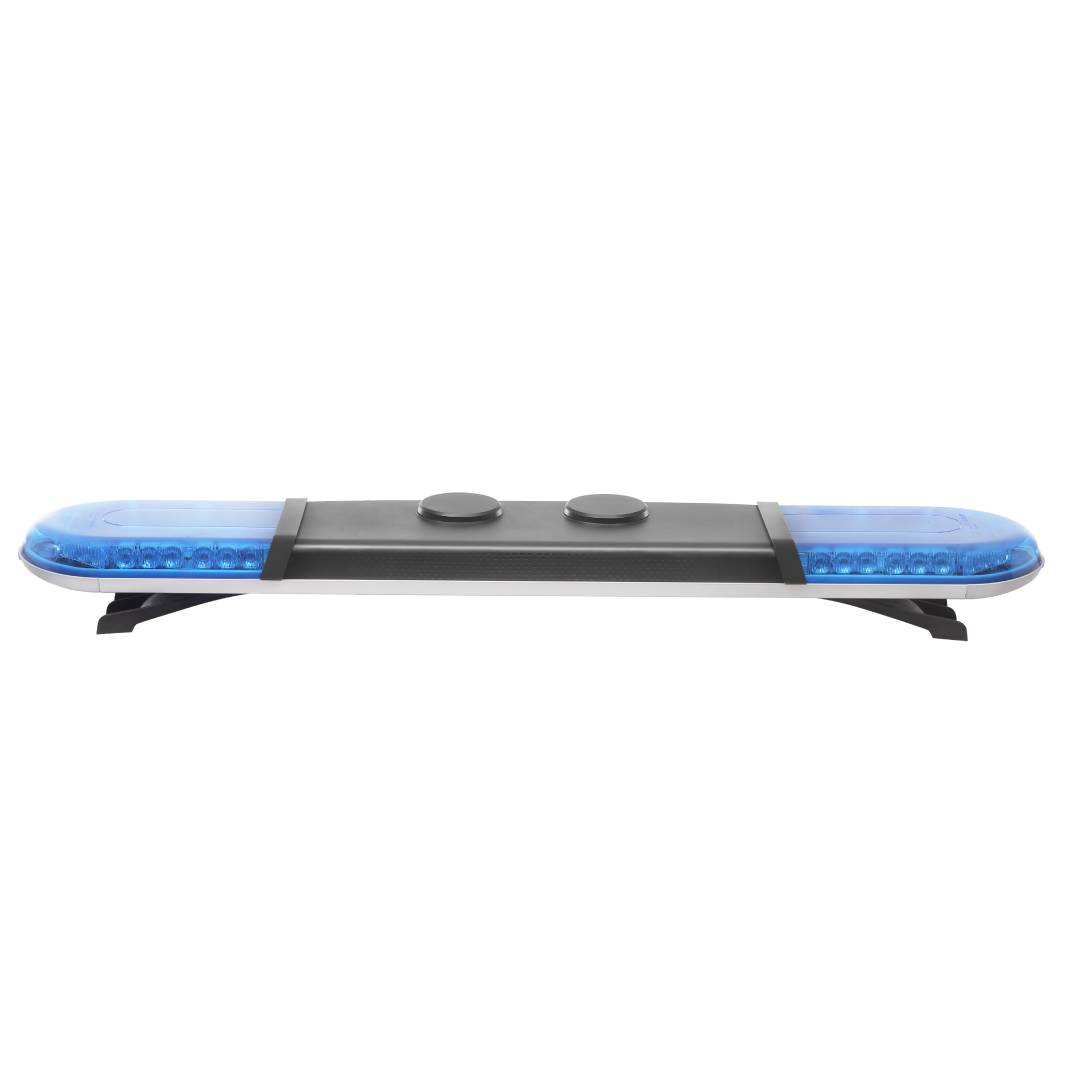

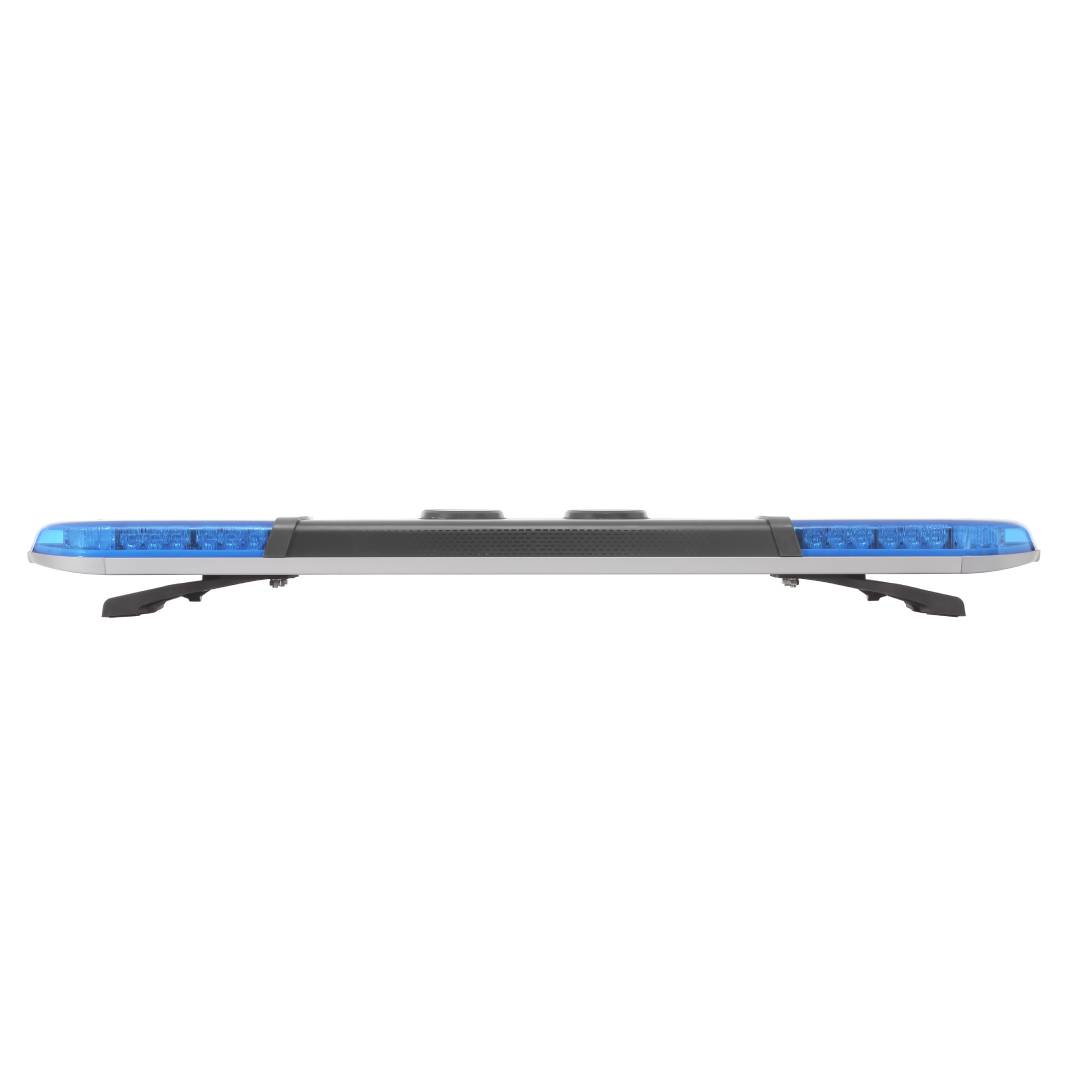

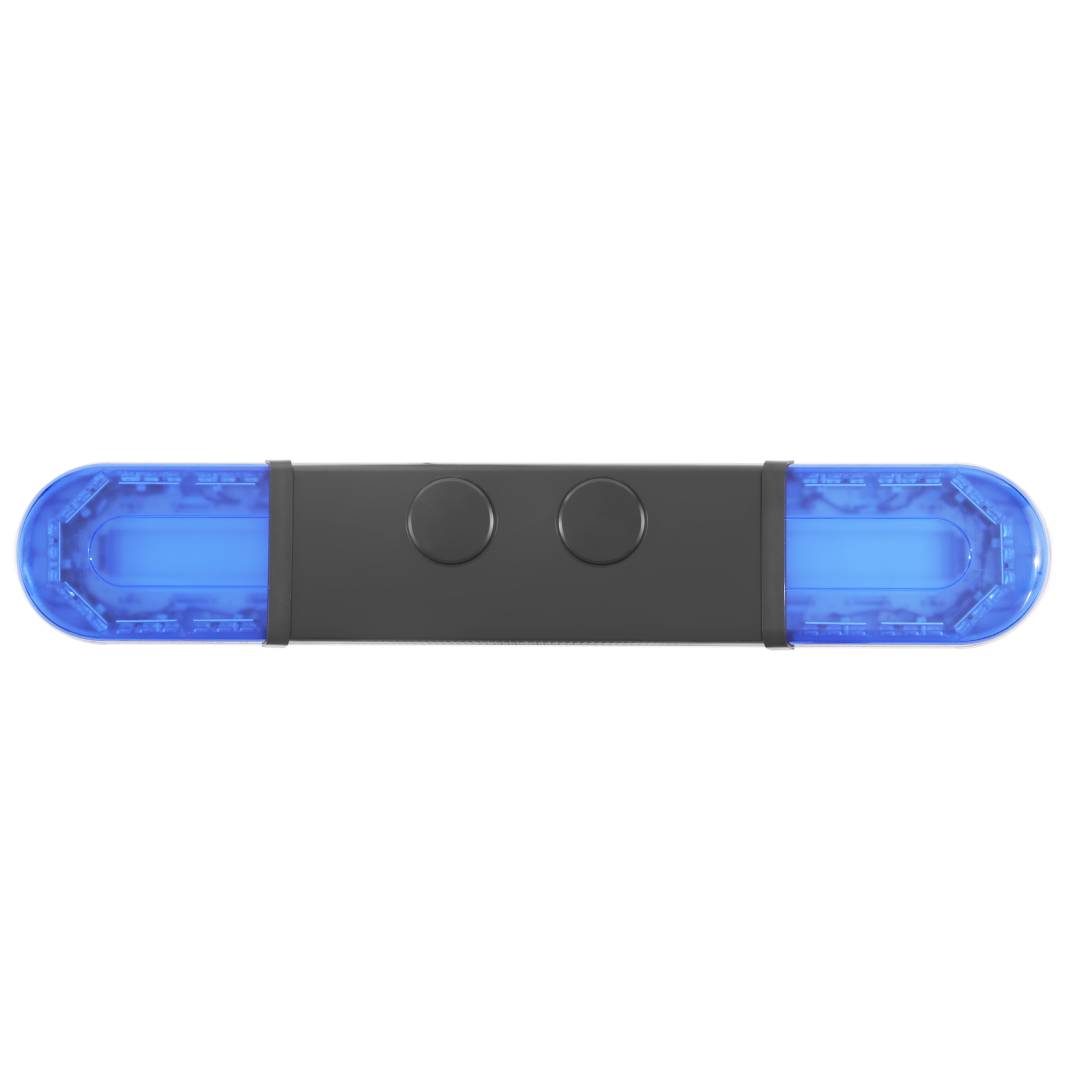

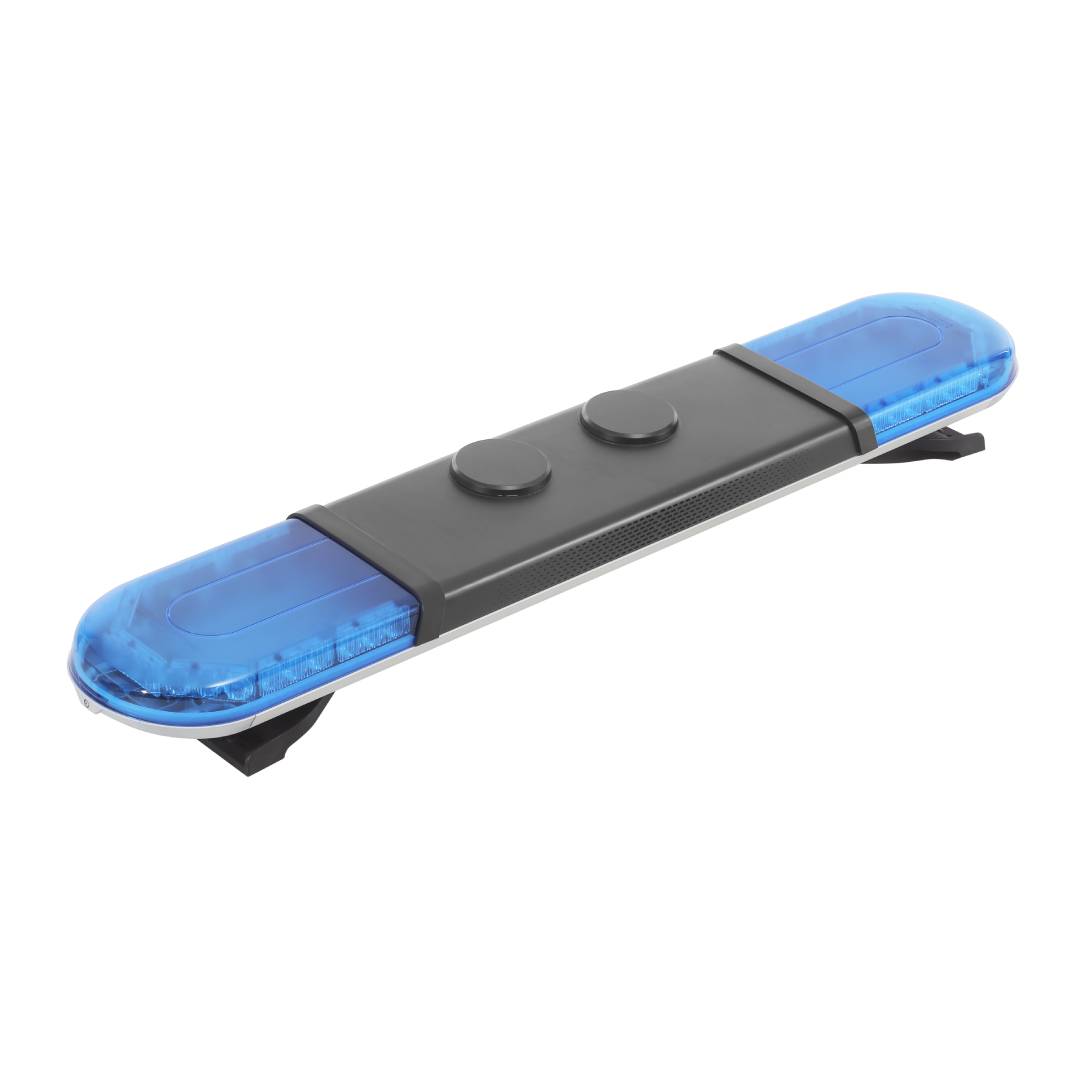

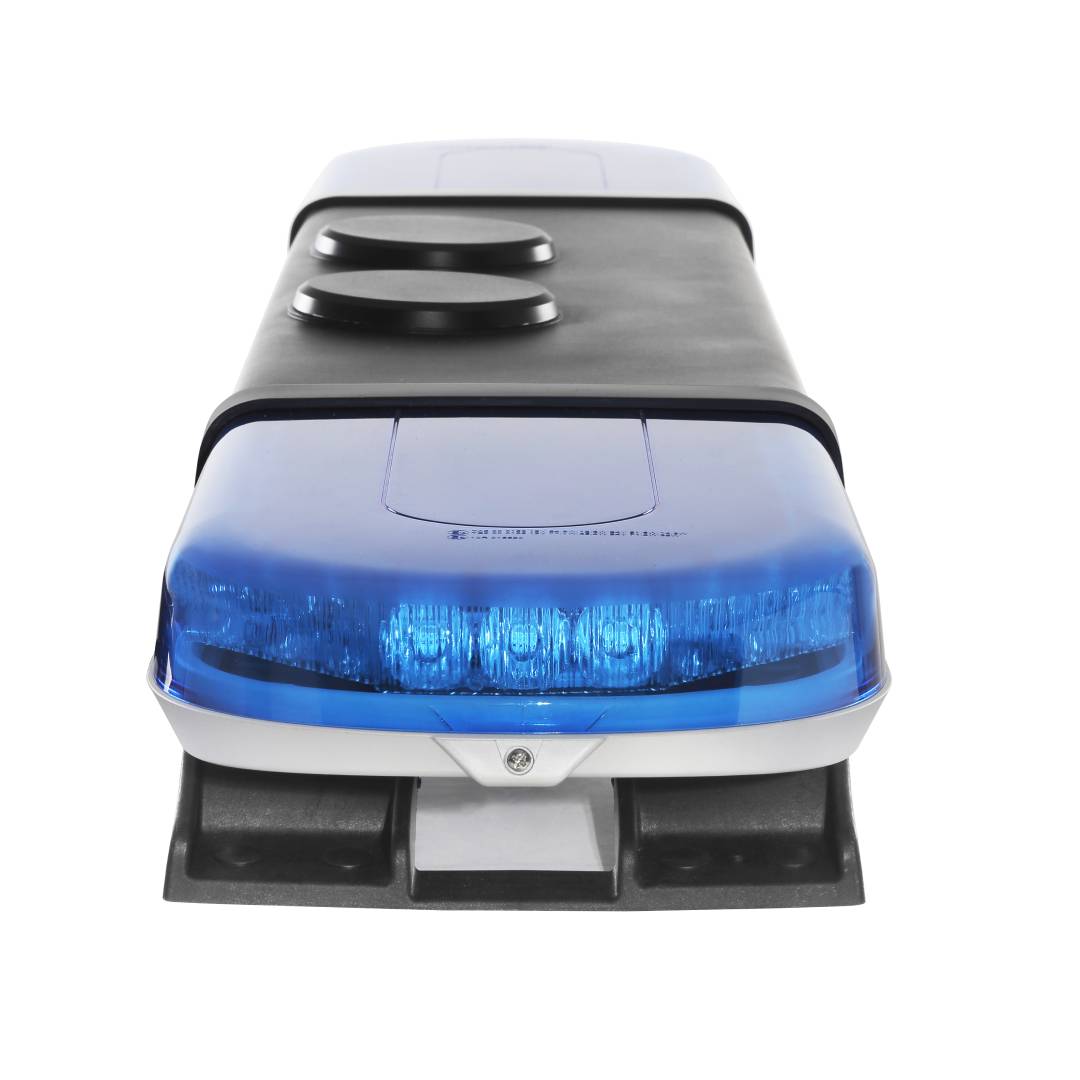

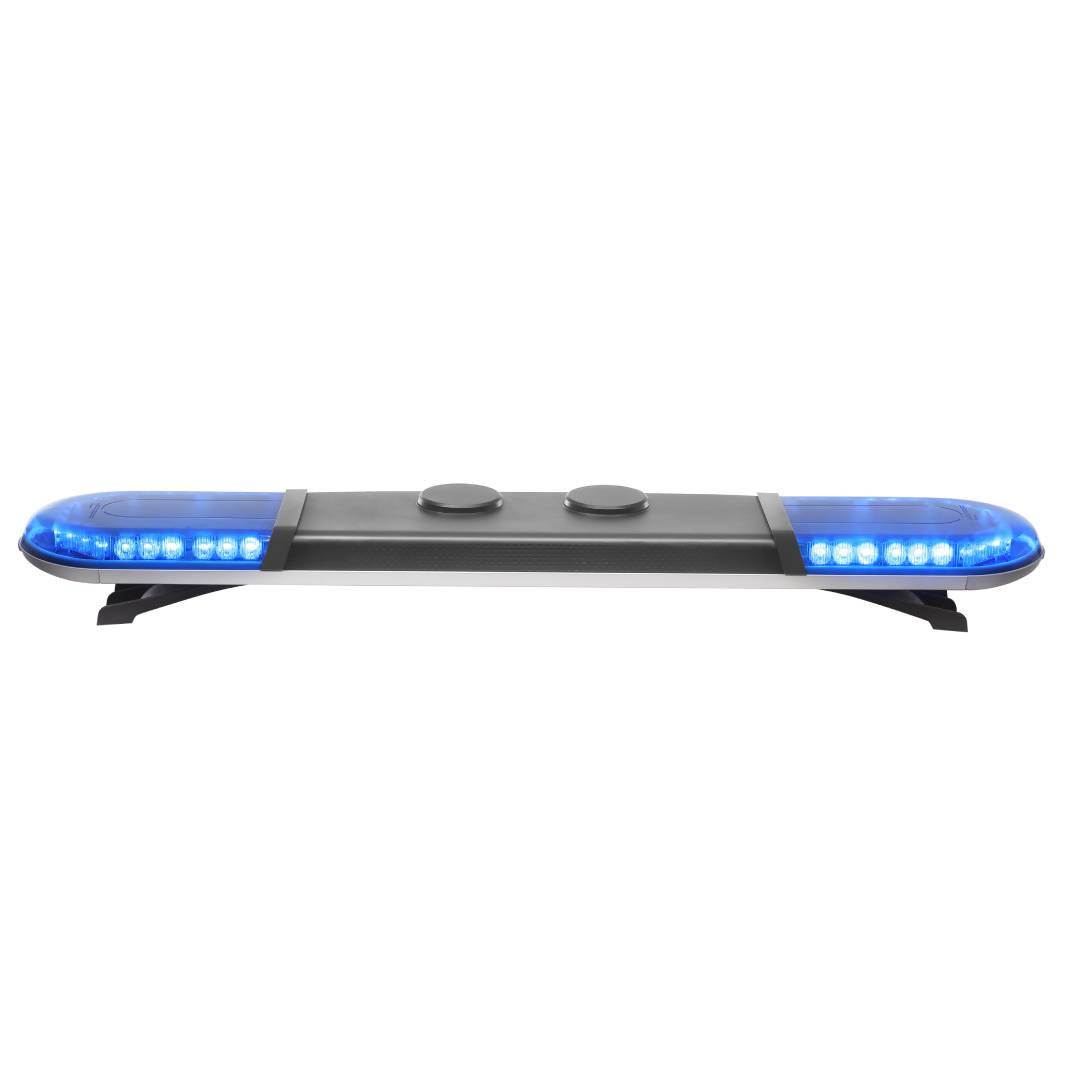

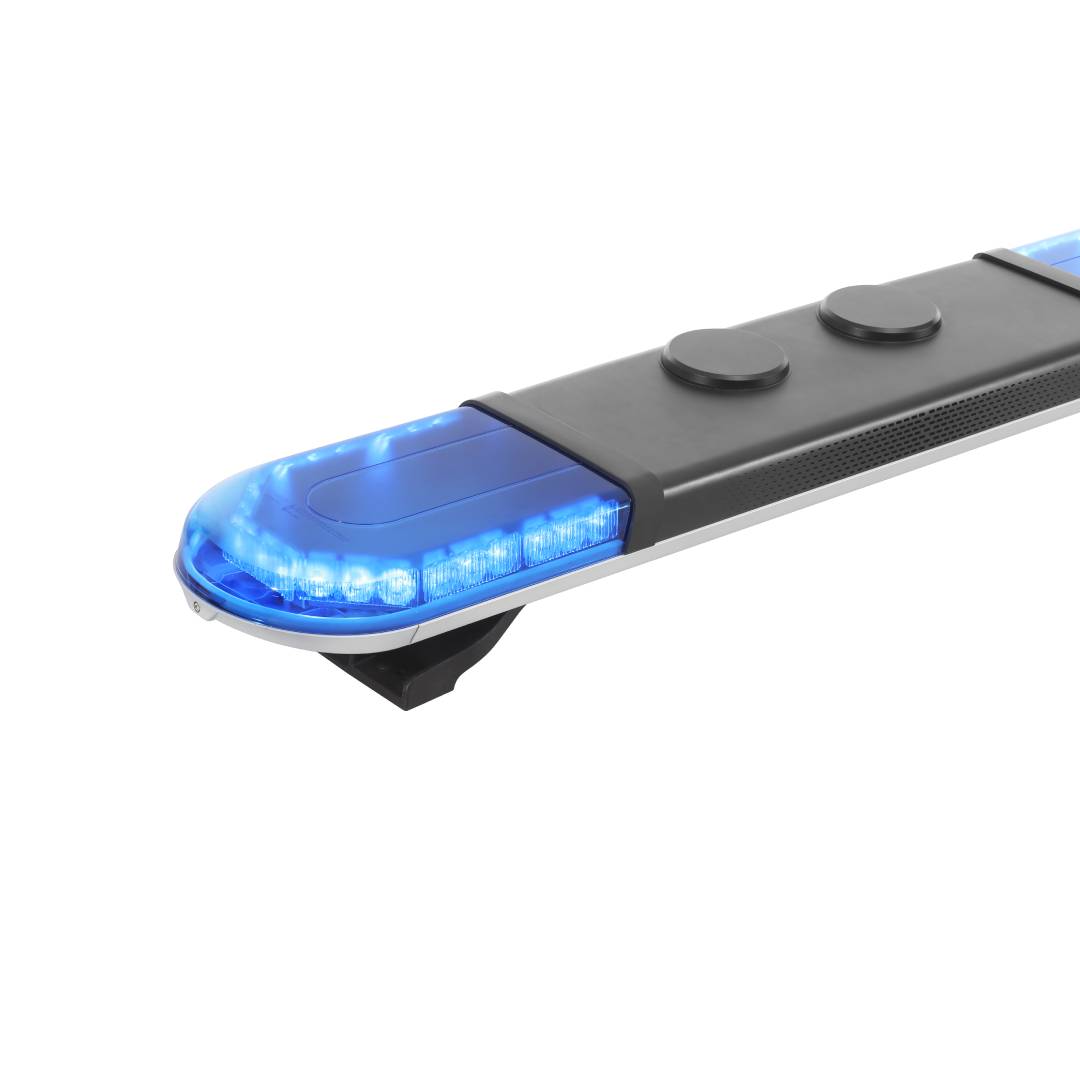

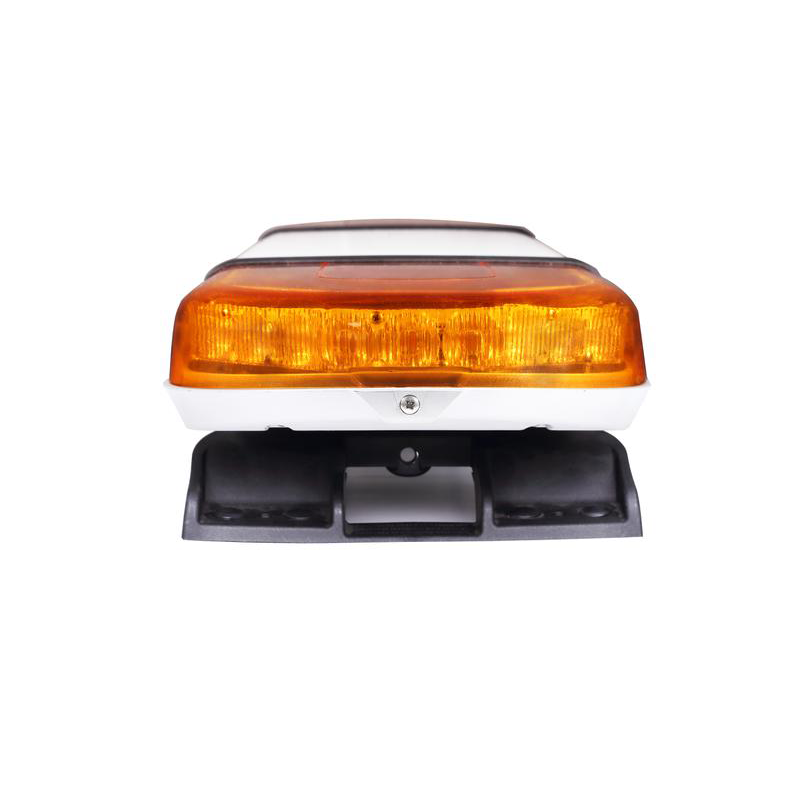

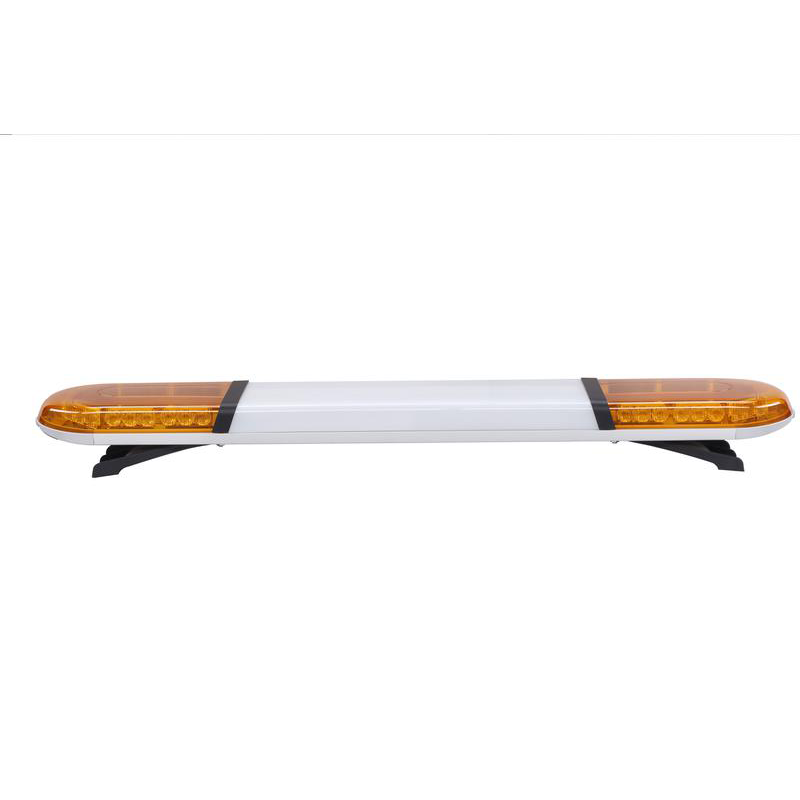

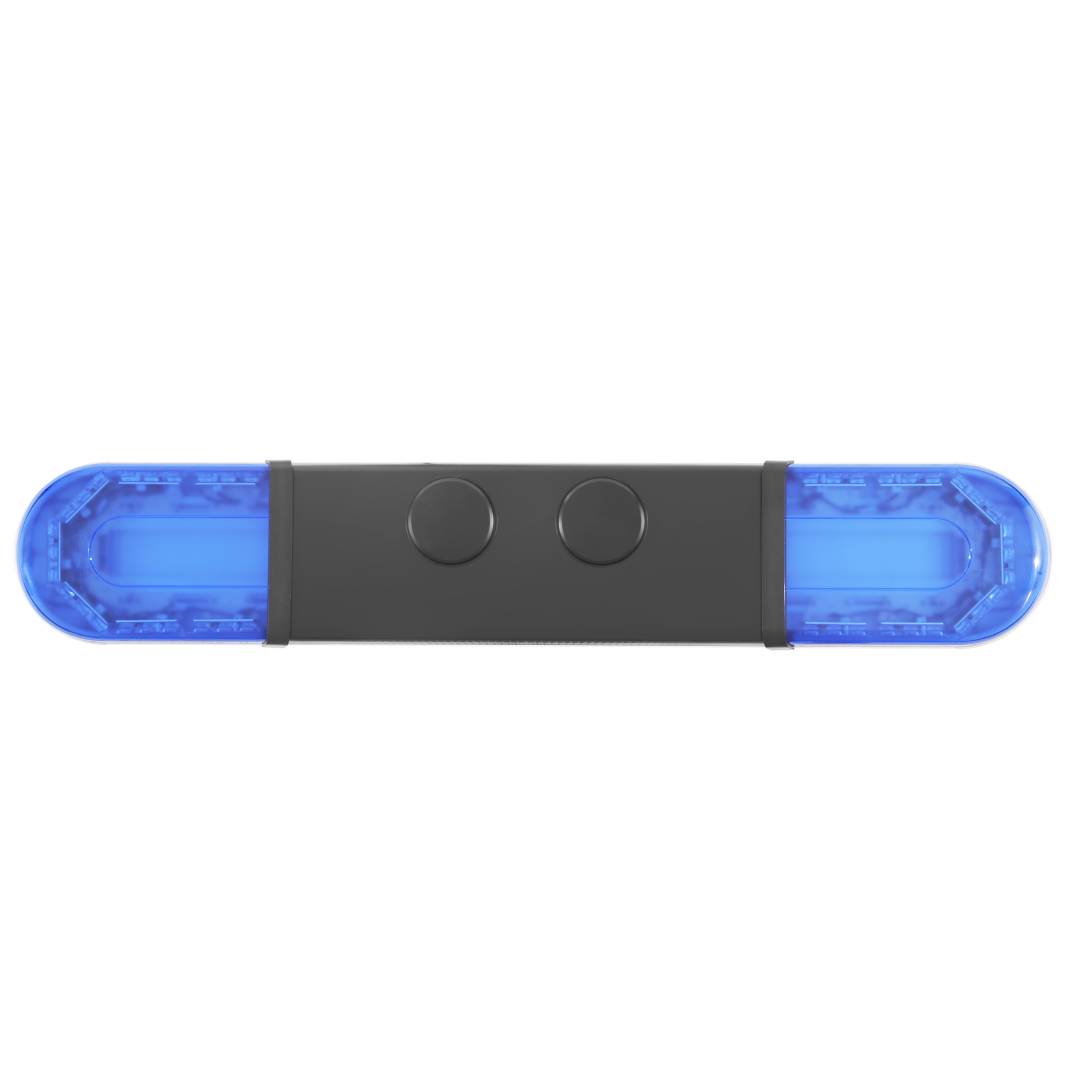

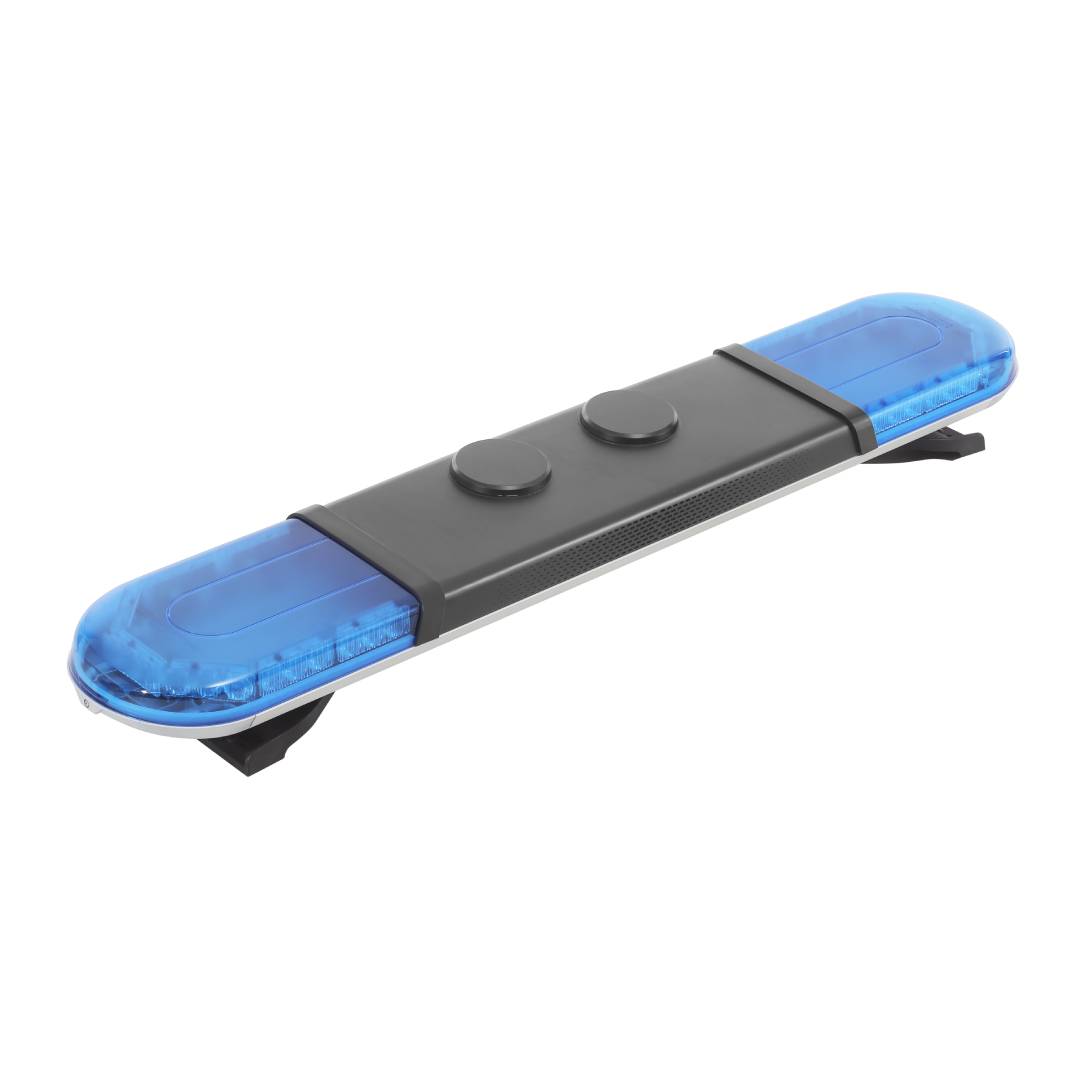

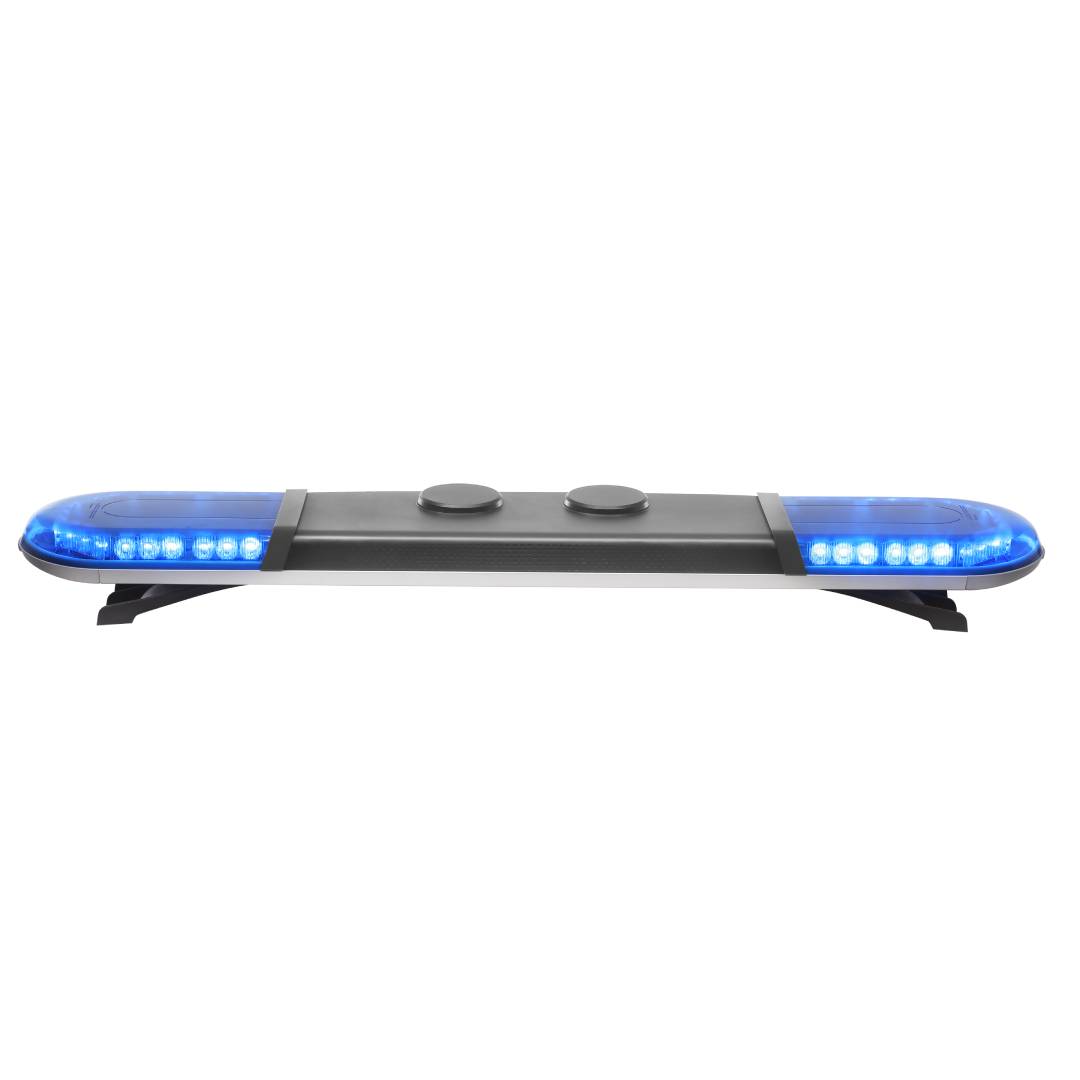

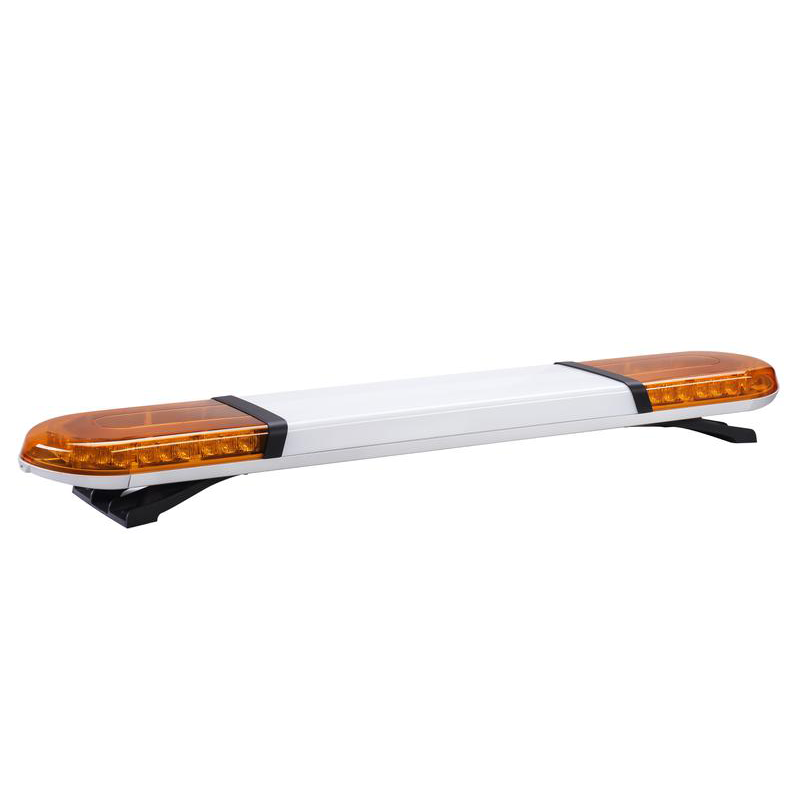

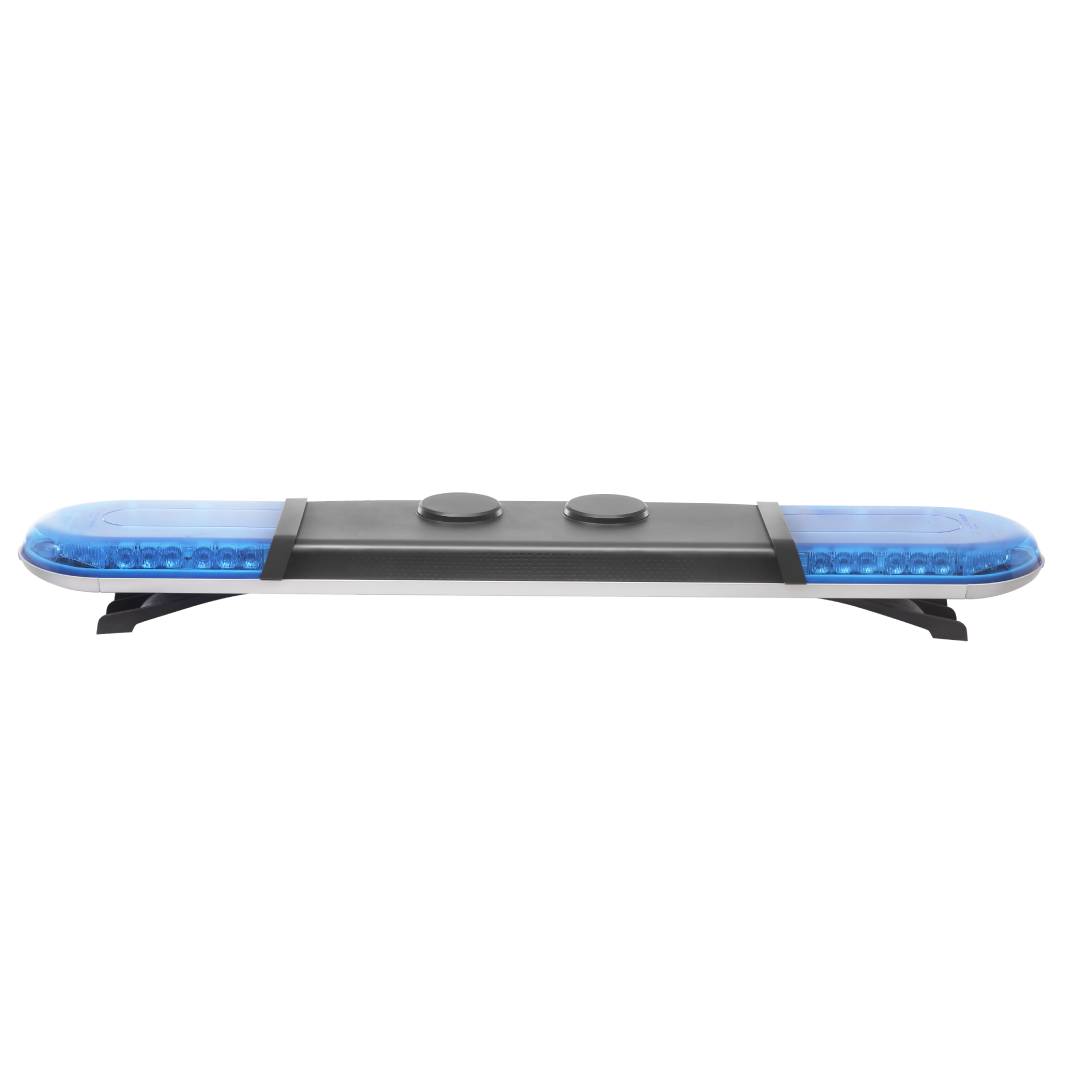

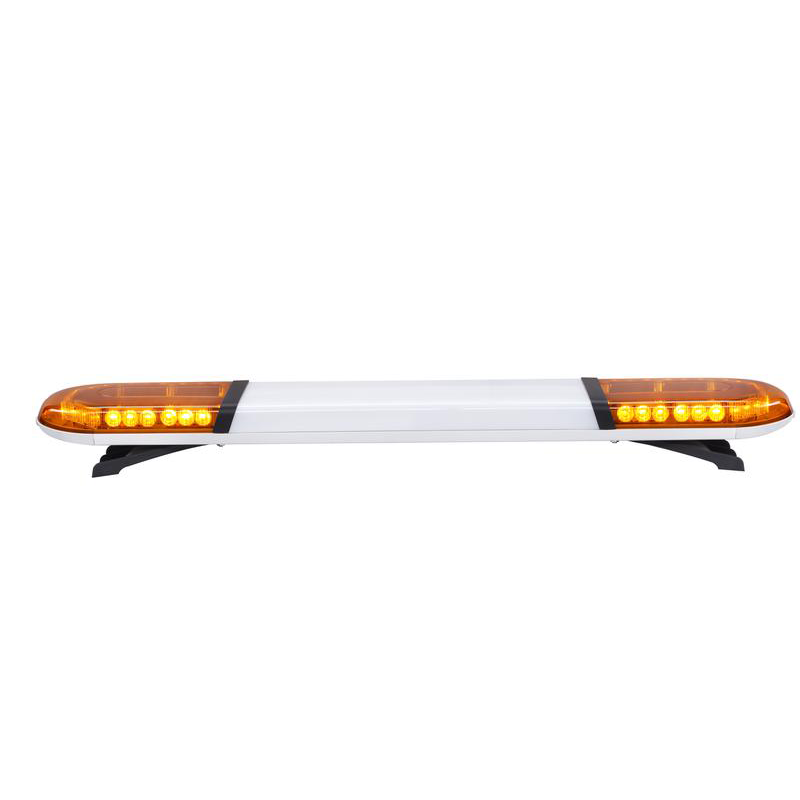

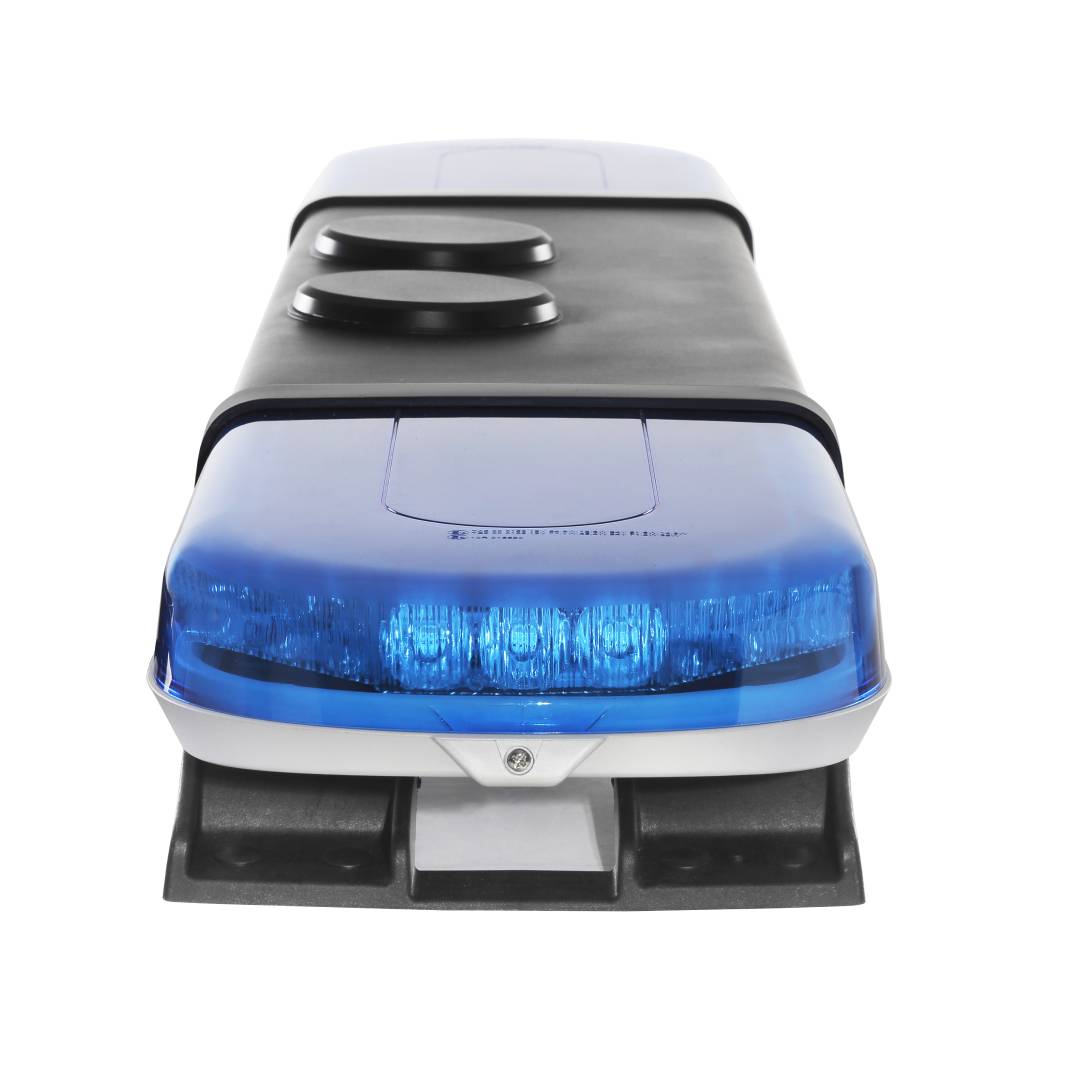

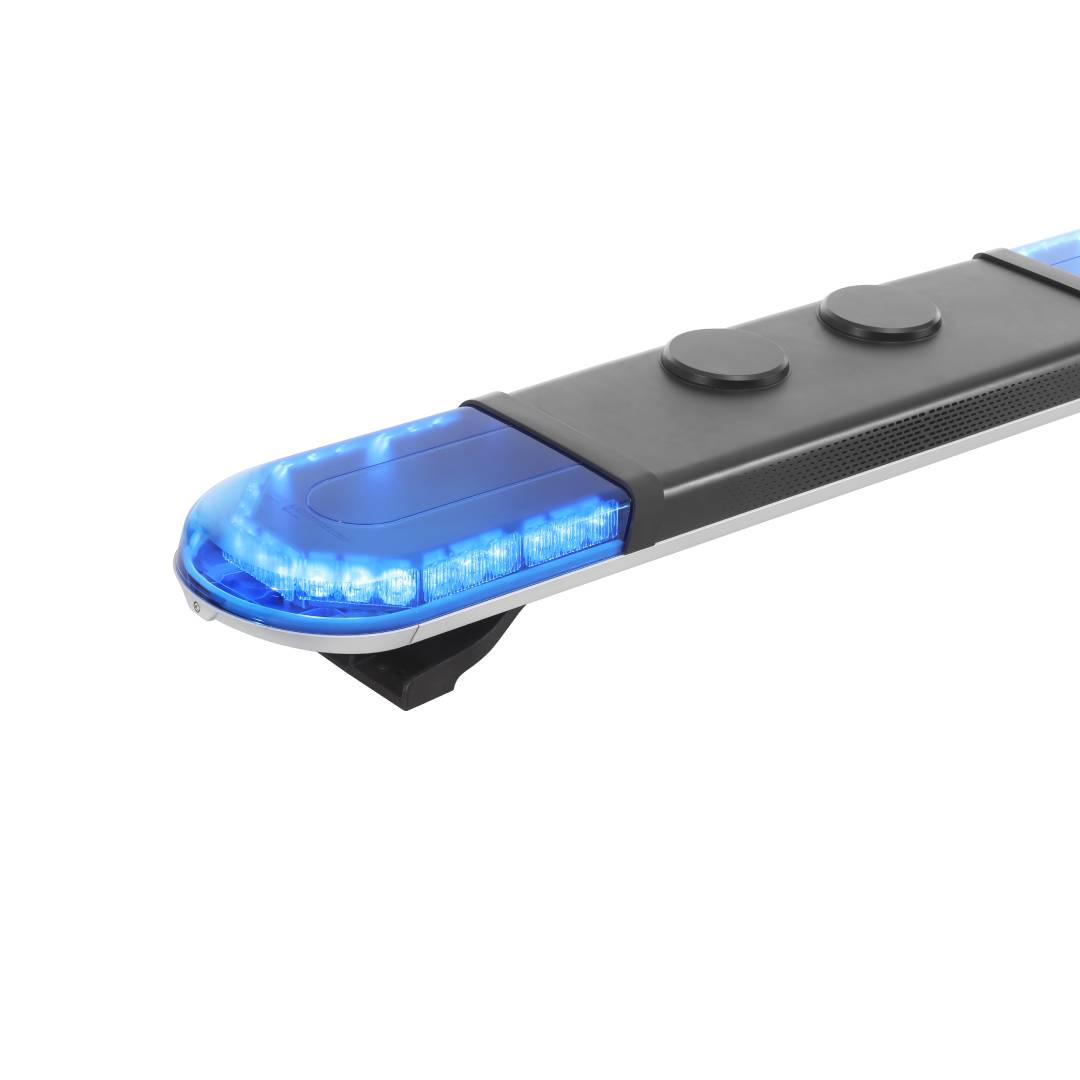

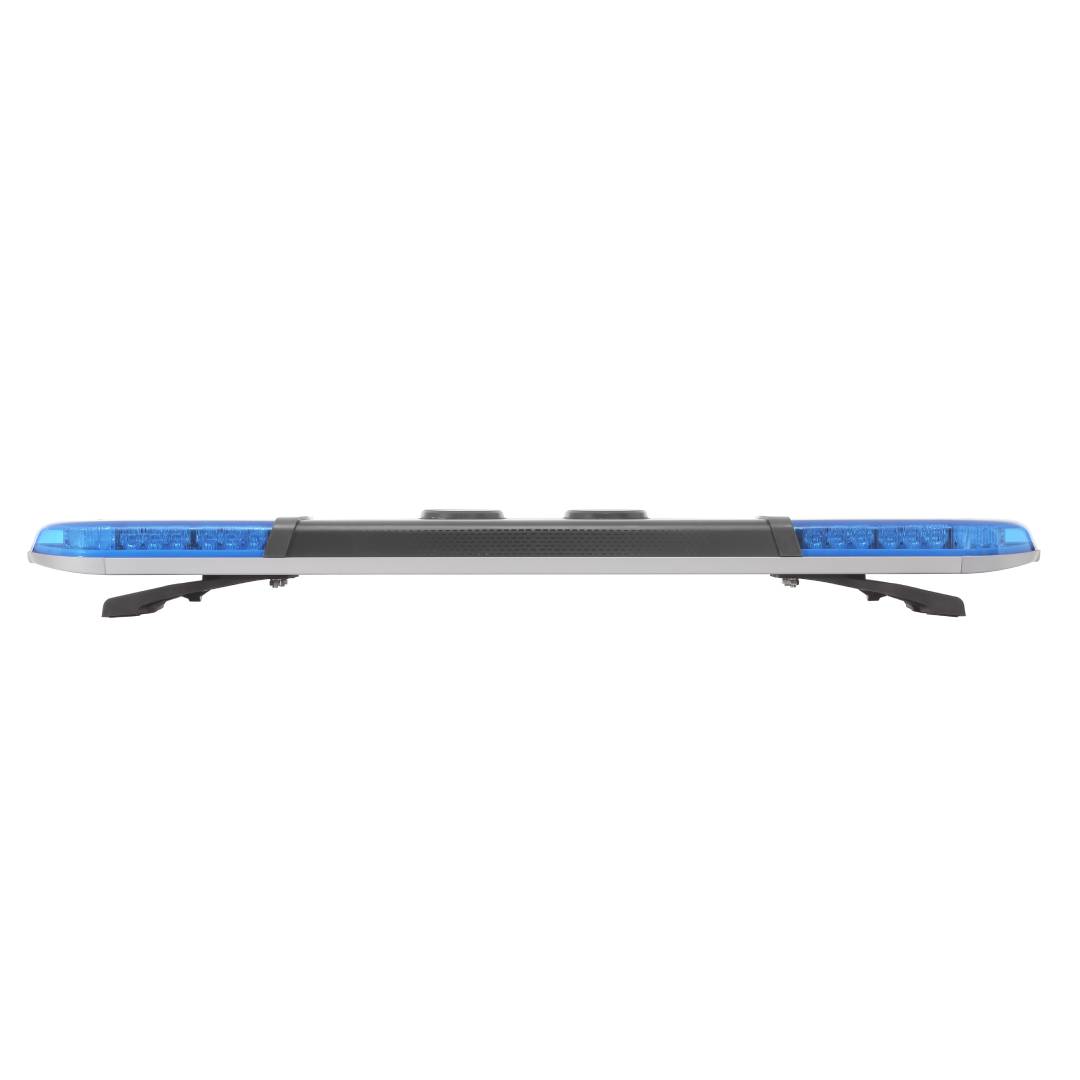

INSTRUCTOR AIR – Speaker module can be added
Get A Quote
DIMENSIONS
SPECIFICATION
Item/Length:
38”:014001
48”:014002
59”:014003
71”:014004
LED:42pcs 3W
Max.Power:70W
Votage:DC10-33V
FlashPatterns:19
Lens:TIR
OperatingTemperature:-30 to 70’C

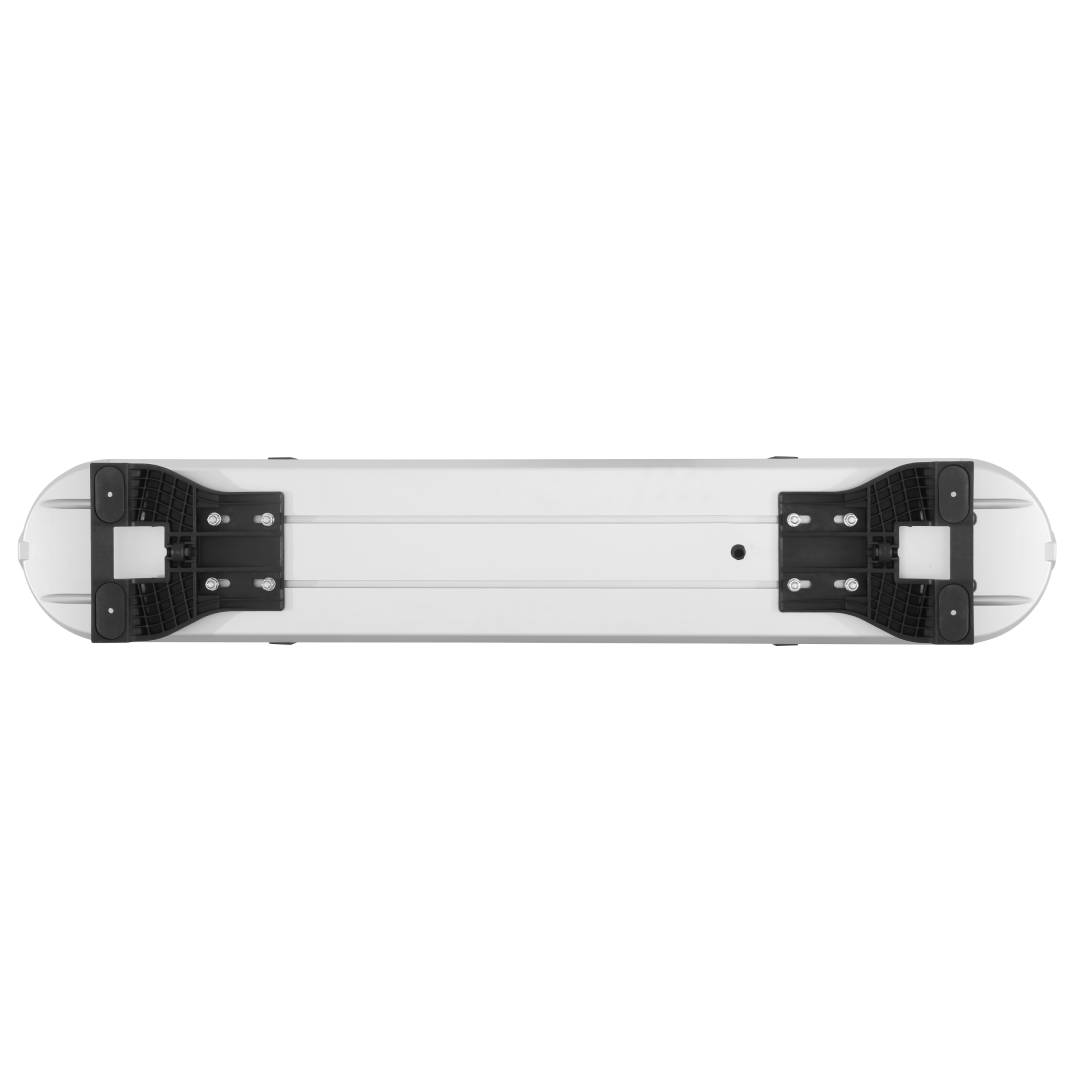

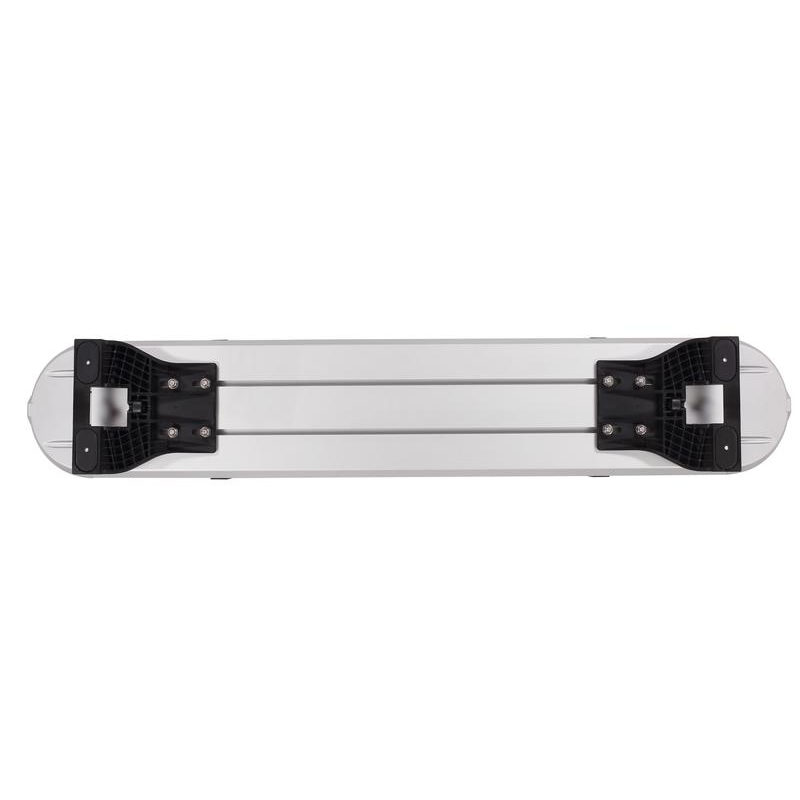

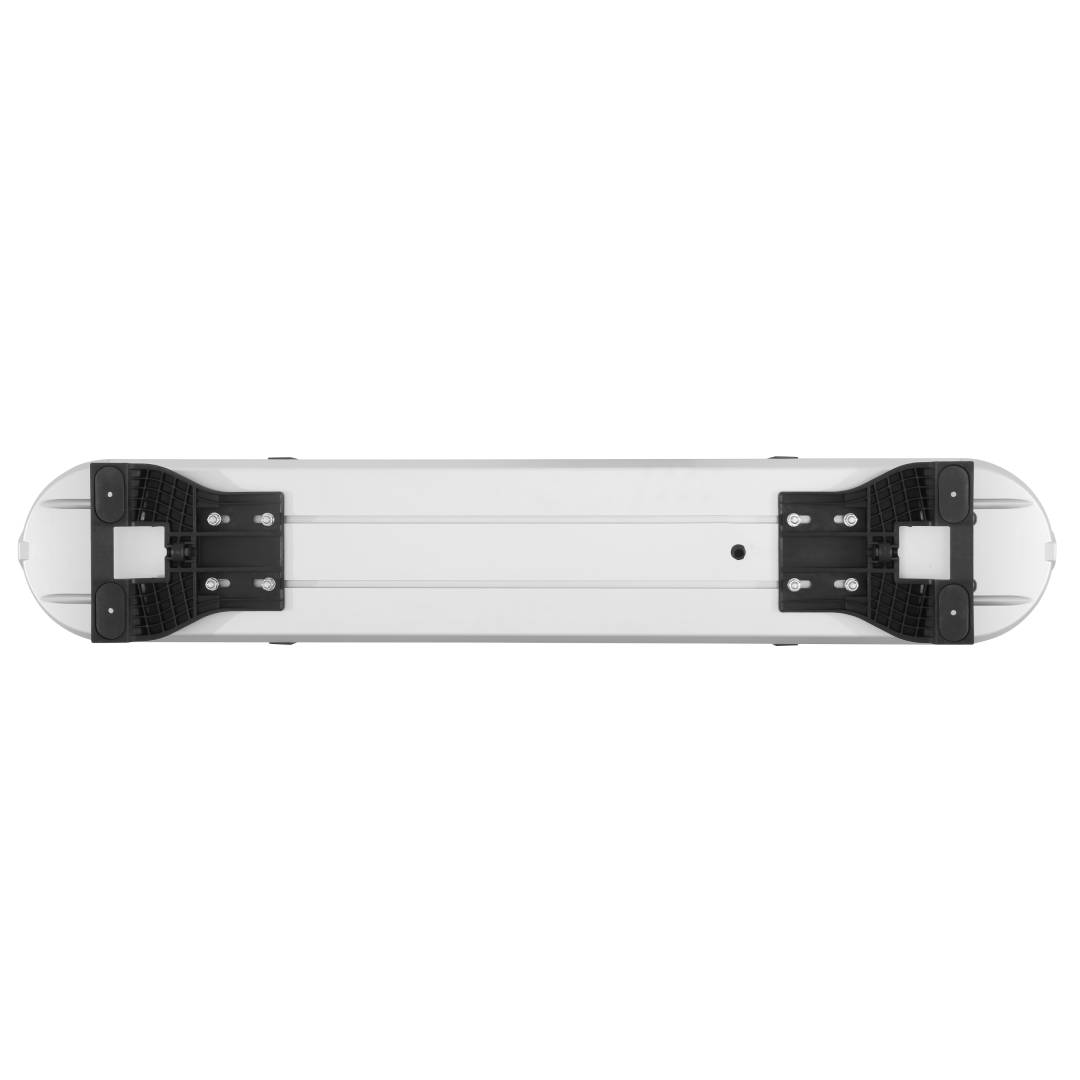

Mount:Strap kit
Certifications:ECE R65TA2,TB2,R1O
| ITEM | MODEL | SPECIFICATIONS |
| 014001A | INSTRUCTOR AIR-38 | DC10-33V|MAX 68W|994*217*127MM (not including tripod)|Transparent lens|Upper cover amber, porcelain white|Lower cover silver gray|1 light bar|42 LED amber colors|19 flash methods |Plastic tripod installation|2-core sheathed functional cable|IP67 |
| 014002A | INSTRUCTOR AIR-48 | DC10-33V|MAX 70W|1194*217*127MM (not including tripod)|Transparent lens|Upper cover amber, porcelain white|Lower cover silver gray|1 light strip|42 LED amber|19 flash methods |Plastic tripod installation|2-core sheathed functional cable|IP67 |
| 014002B | INSTRUCTOR AIR-48 | DC10-33V|MAX 69W|1194*217*127MM (not including tripod)|Transparent lens|Upper cover blue, porcelain white|Lower cover silver gray|1 light bar|42 blue LEDs|19 flash methods |Plastic tripod installation|2 functional cables|IP67 |
| 014003A | INSTRUCTOR AIR-59 | DC10-33V|MAX 72W|1494*217*127MM (without tripod)|Transparent lens|Upper cover amber, porcelain white|Lower cover silver gray|1 light strip|42 LED amber|19 flash methods |Plastic tripod installation|2-core sheathed functional cable|IP67 |
| 014003B | INSTRUCTOR AIR-59 | DC10-33V|MAX 71W|1494*217*127MM (not including tripod)|Transparent lens|Upper cover blue, porcelain white|Lower cover silver gray|1 light strip|42 LED blue lights|19 flash methods |Plastic tripod installation|2-core sheathed functional cable|IP67 |
| 014004A | INSTRUCTOR AIR-71 | DC10-33V|MAX 76W|1794*217*127MM (without tripod)|Transparent lens|Upper cover amber, porcelain white|Lower cover silver gray|3 light bars|42 LED amber|19 flash methods |Plastic tripod installation|2-core sheathed functional cable|IP67 |
| 014004B | INSTRUCTOR AIR-71 | DC10-33V|MAX 74W|1794*217*127MM (without tripod)|Transparent lens|Upper cover blue, porcelain white|Lower cover silver gray|42 LED blue lights|19 flash methods|Plastic tripod installation |2-core sheathed functional cable|IP67 |
| 014016A | INSTRUCTOR AIR-48 | DC10-33V|MAX 70W|1194*217*127MM (not including tripod)|Transparent lens|Upper cover amber, porcelain white|Lower cover silver gray|1 light bar|42 LED amber colors|19 flash methods |Plastic tripod installation|3-core sheathed functional cable|IP67 |
| 014016B | INSTRUCTOR AIR-48 | DC10-33V|MAX 69W|1194*217*127MM (not including tripod)|Transparent lens|Upper cover blue, porcelain white|Lower cover silver gray|1 light bar|42 blue LEDs|19 flash methods |Plastic tripod installation|3-core sheathed functional cable|IP67 |
| 014019A | INSTRUCTOR AIR-59 | DC10-33V|MAX 72W|1494*217*127MM (without tripod)|Transparent lens|Top cover transparent, porcelain white|Lower cover silver gray|42 LED blue lights|19 flash methods|Plastic tripod installation| 2-core sheathed functional cable|IP67 |
| 014022B | INSTRUCTOR AIR-71 | DC10-33V|MAX 75W|1794*217*127MM (not including tripod)|Transparent lens|Upper cover blue, porcelain white|Lower cover silver gray|3 light bars|42 LED blue lights|19 flash methods |Plastic tripod installation|2-core sheathed functional cable|IP67 |
| 014022B/R | INSTRUCTOR AIR-71 | DC10-33V|MAX 67W|1794*217*127MM (without tripod)|Transparent lens|Upper cover red, blue, porcelain white|Lower cover silver gray|3 light bars|21 blue LEDs, 21 red LEDs |19 flash methods|Plastic tripod installation|2-core sheathed functional cable|IP67 |
| 014022R | INSTRUCTOR AIR-71 | DC10-33V|MAX 59W|1794*217*127MM (without tripod)|Transparent lens|Upper cover red, porcelain white|Lower cover silver gray|3 light bars|42 red LEDs|19 flash methods|Plastic Tripod installation | 2-core sheathed functional cable | IP67 |
| 014023A | INSTRUCTOR AIR-59 | DC10-33V|MAX 72W|1494*217*127MM (not including tripod)|Transparent lens|Upper cover amber, porcelain white|Lower cover silver gray|1 light strip|42 LED amber|19 flash methods |Plastic tripod installation|3-core sheathed functional cable|IP67 |
| 014024A | INSTRUCTOR AIR-71 | DC10-33V|MAX 76W|1794*217*127MM (not including tripod)|Transparent lens|Upper cover amber, porcelain white|Lower cover silver gray|3 light bars|42 LED amber|19 flash methods |Plastic tripod installation|3-core sheathed functional cable|IP67 |
| 014025RB | INSTRUCTOR AIR-38 | DC10-33V|MAX 59W|994*217*127MM (not including tripod)|Transparent lens|Upper cover blue, red, porcelain white|Lower cover silver gray|1 light bar|21 blue LEDs and 21 red ones |19 flash methods|Plastic tripod installation|2-core sheathed functional cable|IP67 |
| 014026A | INSTRUCTOR AIR-55 | DC10-33V|MAX 65W|1400*217*127MM (without tripod)|Transparent lens|Upper cover amber, porcelain white|Lower cover silver gray|42 LED amber colors|19 flash methods|Plastic tripod installation |2-core sheathed functional cable|IP67 |
| 014026B | INSTRUCTOR AIR-55 | DC10-33V|MAX 64W|1400*217*127MM (without tripod)|Transparent lens|Upper cover blue, porcelain white|Lower cover silver gray|42 LED blue lights|19 flash methods|Plastic tripod installation |2-core sheathed functional cable|IP67 |
