- Easy installation by simply connecting the two wires to power supply
- Four kinds of beacons to choose from: Spot, C12, C24 and FD24Mini
- Best value for money with guaranteed quality

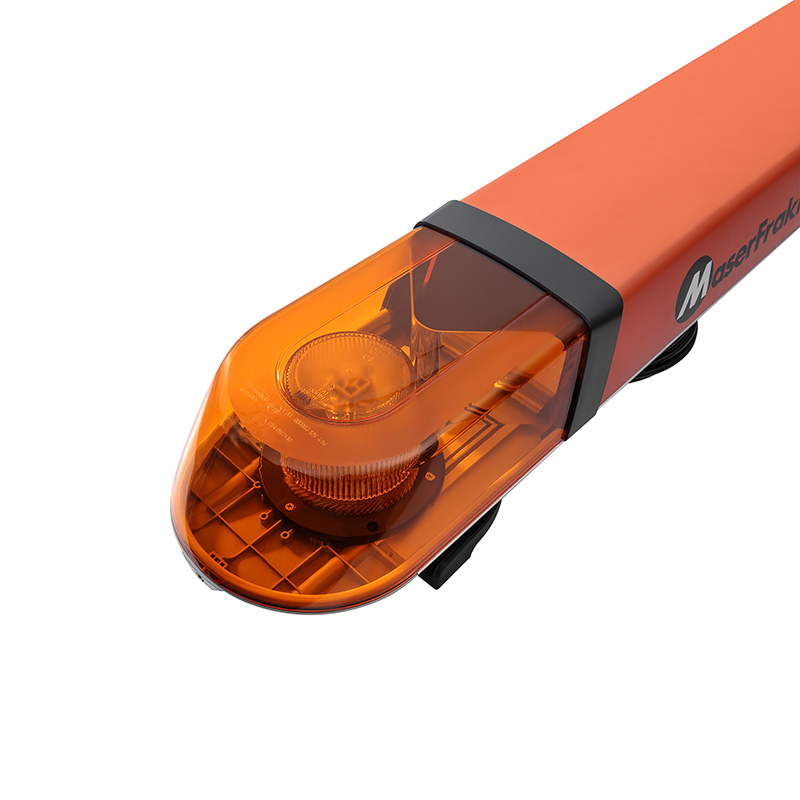

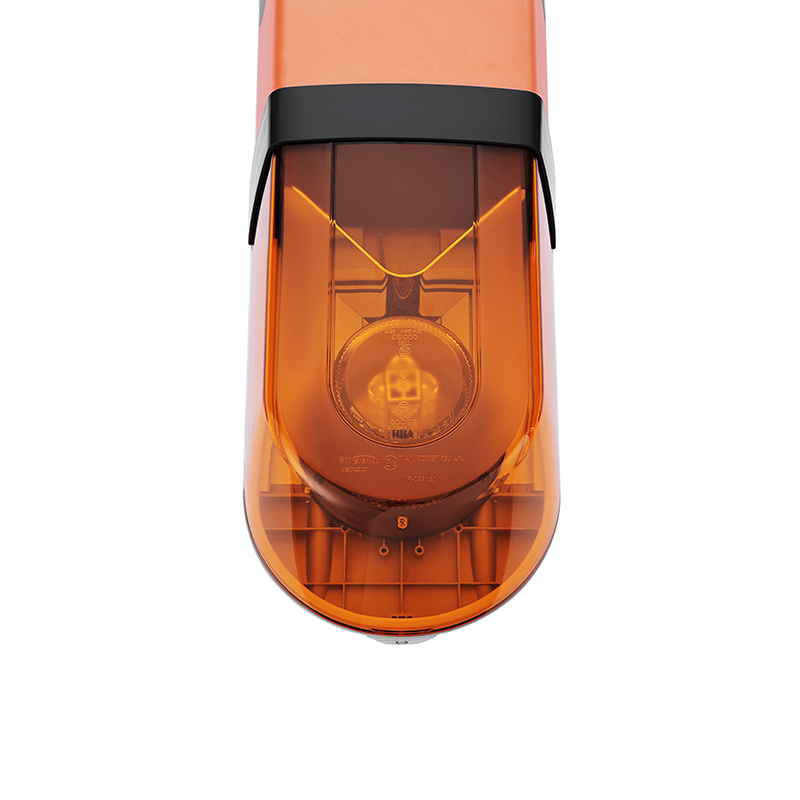

- IP67 rated beacons are used at both sides. Silicone seal is not only applied between the top housing and base but also between the chambers, making the product fully encapsulated for moisture, vibration and corrosion resistance

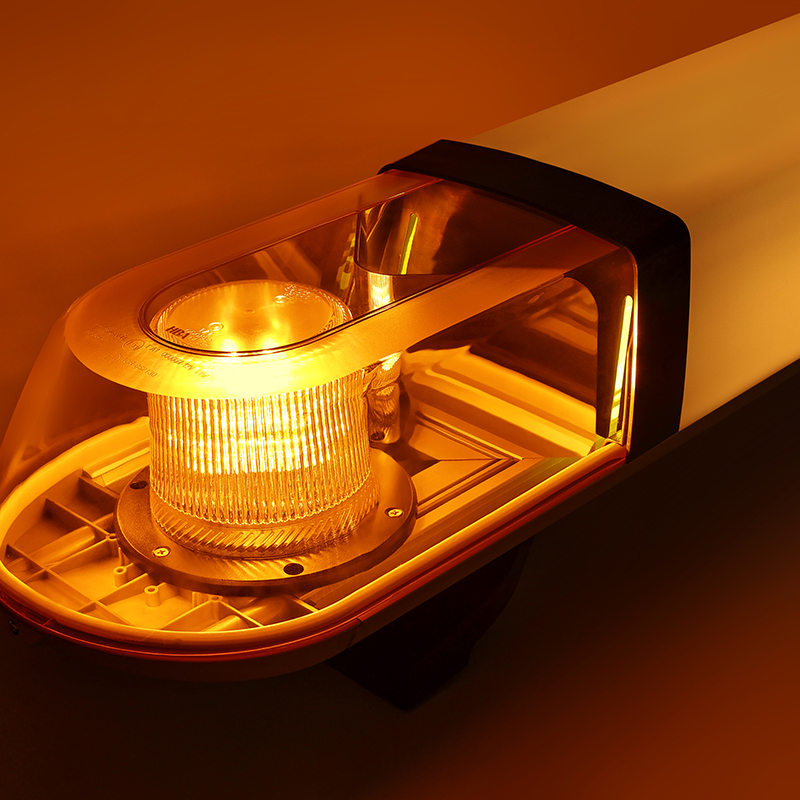

- Awesome heat dissipation: aluminum alloy is used to direct the heat from the beacon to the base, making sure the whole product will not be over-heated
- Tough outer dome minimizes environmental damage

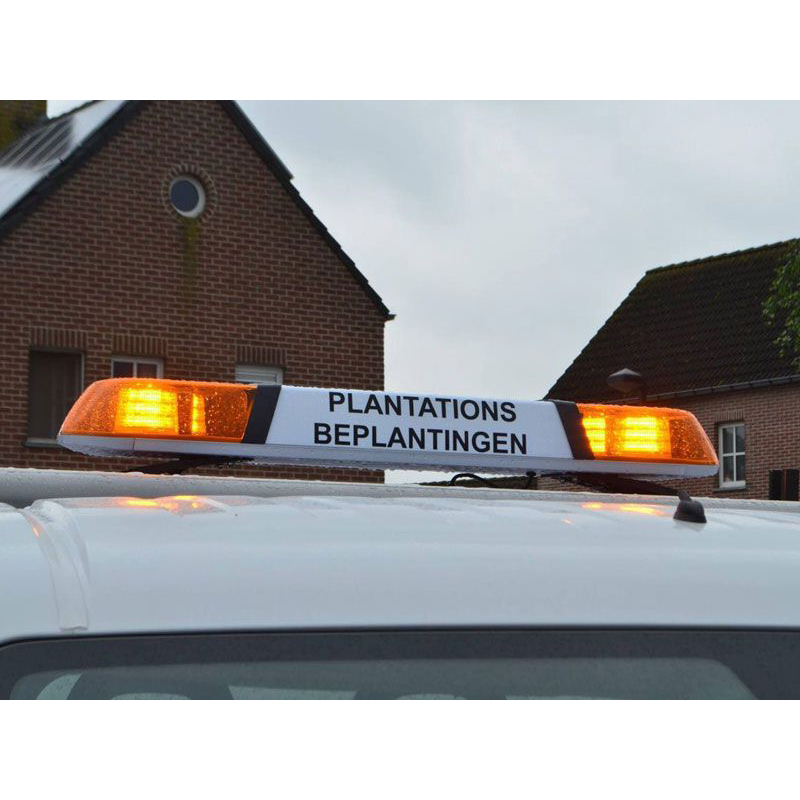

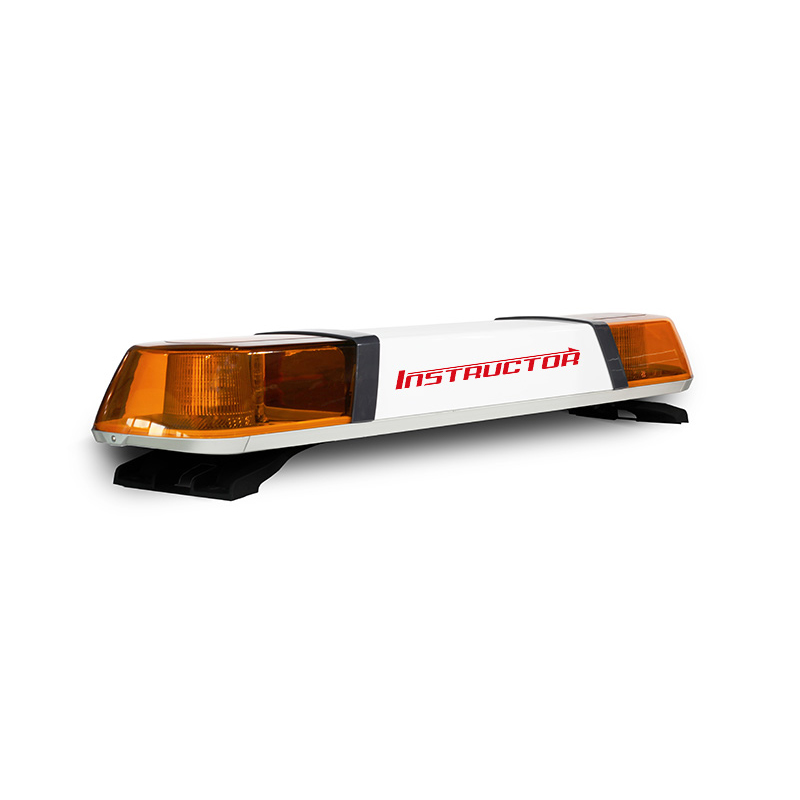

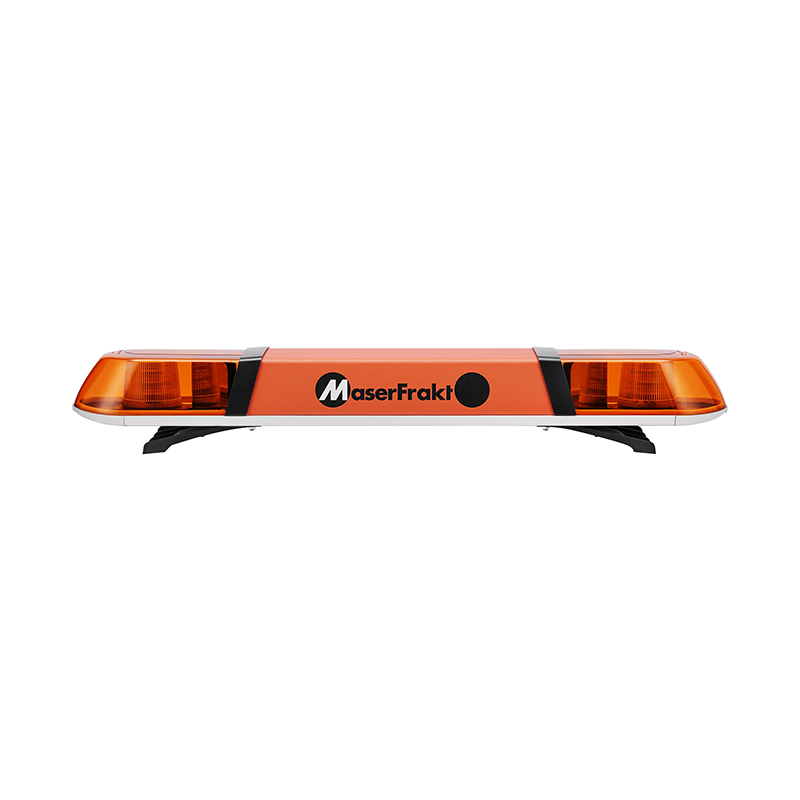

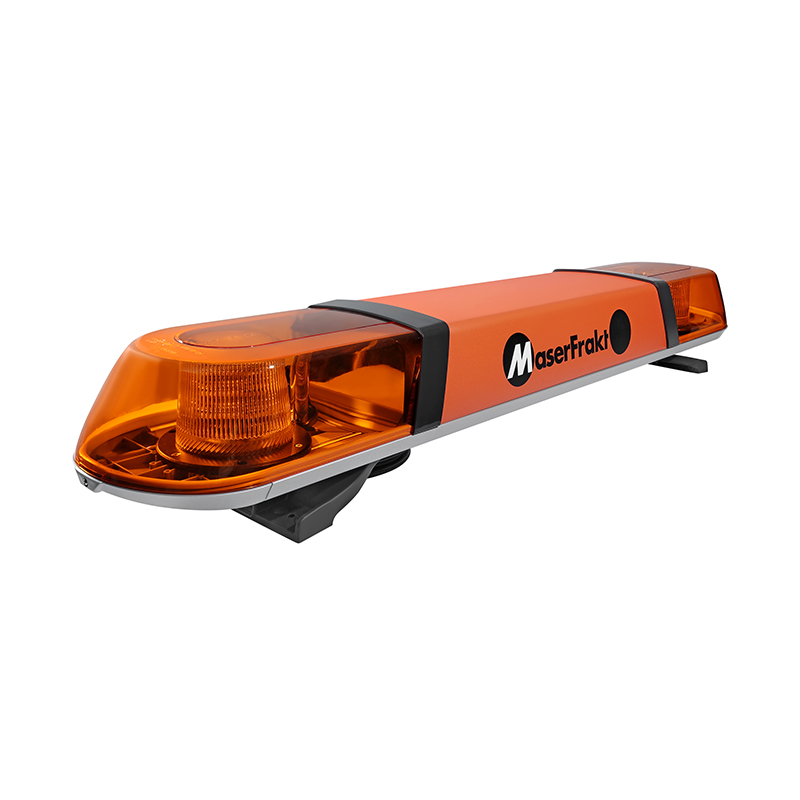

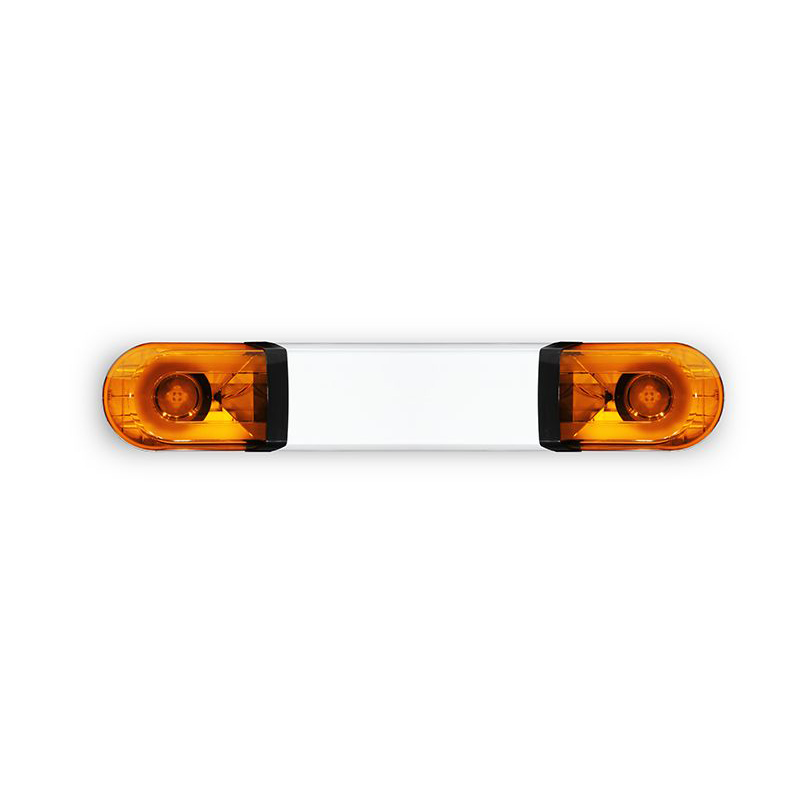

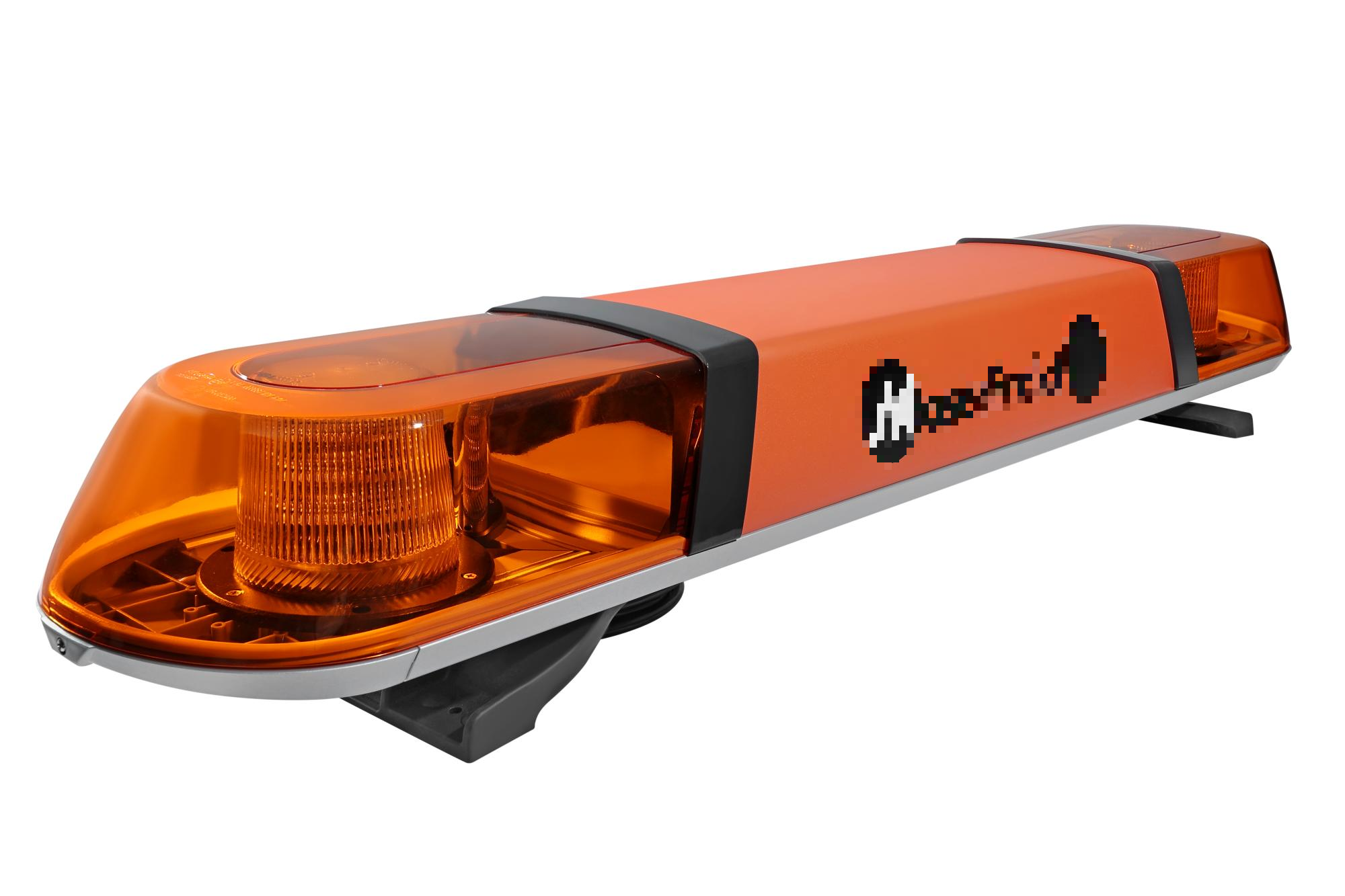

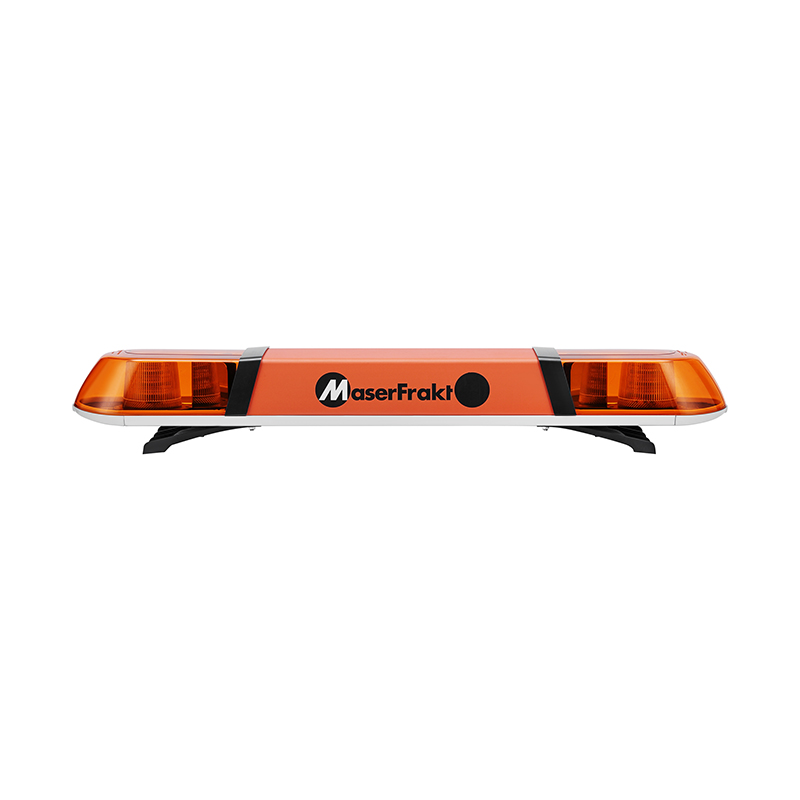

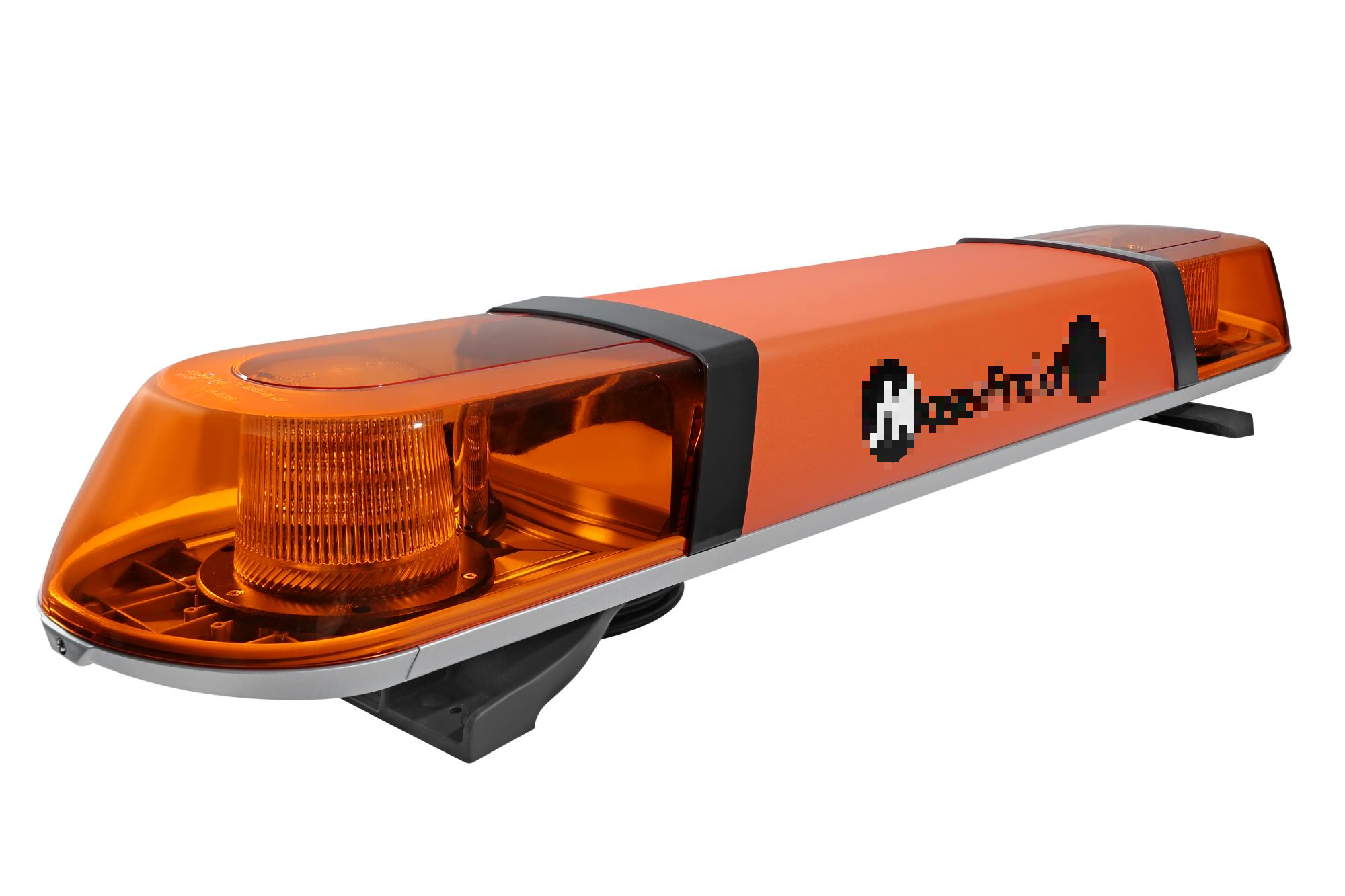

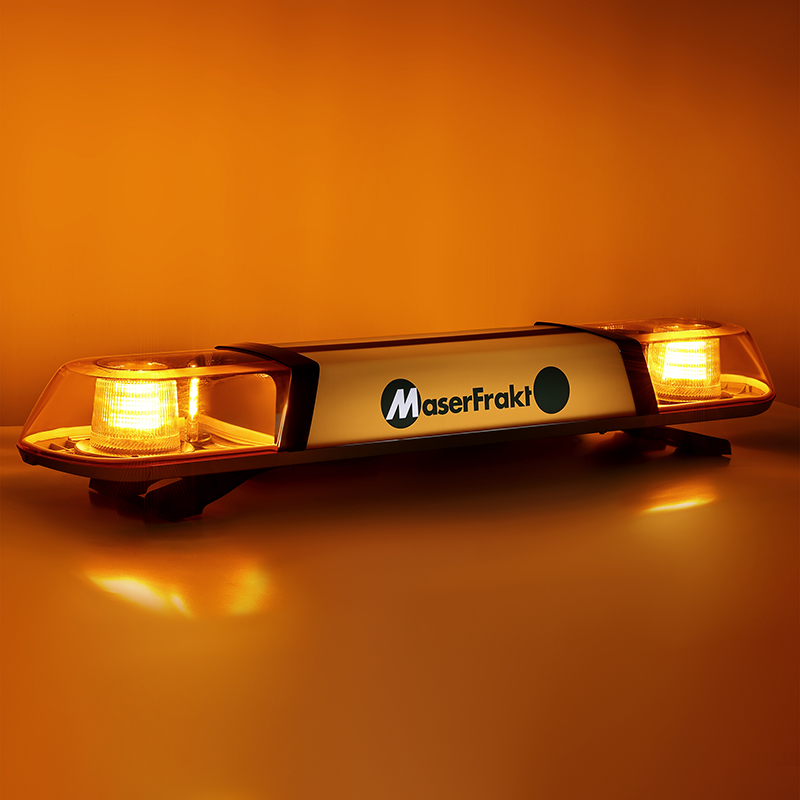

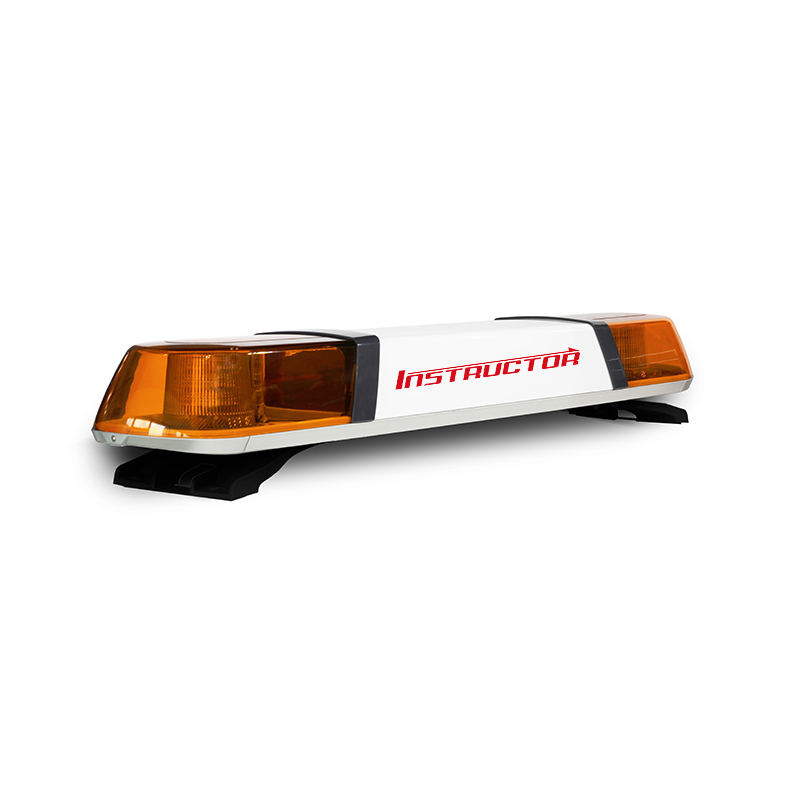

Instructor Series – Customizable light box signs
Get A Quote
DIMENSIONS
SPECIFICATION
Light Characteristics
Flash settings: 1-4HZ
LED C12: 3W 48Pcs
SPOT: 3W 24Pcs
Electrical Characteristics
Voltage: DC 10-33V
Physical Characteristics
Colour Available : blue,amber
Waterproof : IP68
Mounting : Gutter Mount, Direct/Bolt Mount
Flash patterns
C12: 14
SPOT: 5
Product Dimension: 39″ 48″ 59″ 71″
Meet and exceeds
012401:ECE R65 TA1 00 0087 , ECE R65 TB1 00 0193
012420:ECE R65 TA1 00 0041 , ECE R65 TB1 00 0042, ECE R10 052130
Wire
Red: ” + ”
Black: ” – ”
White: ” Mid Section Illumination ”
Yellow: ” Mode “
| ITEM | MODEL | SPECIFICATIONS |
| 012421A | INSTRUCTOR-38-SPOT | DC10-33V|MAX 34W|996*217*127mm (not including tripod)|Transparent lens|Upper cover amber, porcelain white|Lower cover silver gray|1 0.25m light bar|24 LED amber colors|5 types Flash method | Plastic tripod installation | 2-core sheathed functional cable | IP67 |
| 012462A | INSTRUCTOR-38-C24 | DC10-33V|MAX 78W|996*217*127mm (excluding tripod)|Reflective cup|Upper cover amber, porcelain white|Lower cover silver gray|1 0.25m light bar|48 LED amber colors|1 type Flash method | Plastic tripod installation | 2 functional cables | IP67 |
| 012421A(HBA) | INSTRUCTOR-38-SPOT | DC10-33V|MAX 34W|996*217*127mm (without tripod)|Transparent lens|Upper cover amber, porcelain white|Lower cover silver gray|1 0.25m light bar|24 LED amber colors|5 types Flash method | Plastic tripod installation | 2-core sheathed functional cable | IP67 |
| 012401A | INSTRUCTOR-48-C12 | DC10-33V|MAX 42W|1194*217*127mm (excluding tripod)|Reflective cup|Upper cover amber, porcelain white|Lower cover silver gray|1 0.45m light bar|24 LED amber colors|13 types Flash method | Plastic tripod installation | 2-core sheathed functional cable | IP67 |
| 012461A | INSTRUCTOR-48-C24 | DC10-33V|MAX 80W|1194*217*127mm (excluding tripod)|Reflective cup|Upper cover amber, porcelain white|Lower cover silver gray|1 0.45m light bar|48 LED amber colors|1 type Flash method | Plastic tripod installation | 2-core sheathed functional cable | IP67 |
| 012420A | INSTRUCTOR-48-SPOT | DC10-33V|MAX 34W|1194*217*127mm (not including tripod)|Transparent lens|Upper cover amber, porcelain white|Lower cover silver gray|1 0.45m light bar|24 LED amber colors|5 types Flash method | Plastic tripod installation | 2-core sheathed functional cable | IP67 |
| 012420A(HBA) | INSTRUCTOR-48-SPOT | DC10-33V|MAX 34W|1194*217*127mm (not including tripod)|Transparent lens|Upper cover amber, porcelain white|Lower cover silver gray|1 0.45m light bar|24 LED amber colors|5 types Flash method | Plastic tripod installation | 2-core sheathed functional cable | IP67 |
| 012422A | INSTRUCTOR-59-SPOT | DC10-33V|MAX 34W|1496*217*127mm (not including tripod)|Transparent lens|Upper cover amber, porcelain white|Lower cover silver gray|1 0.75m light bar|24 LED amber colors|5 types Flash method | Plastic tripod installation | 2-core sheathed functional cable | IP67 |
| 012422A(HBA) | INSTRUCTOR-59-SPOT | DC10-33V|MAX 34W|1496*217*127mm (not including tripod)|Transparent lens|Upper cover amber, porcelain white|Lower cover silver gray|1 0.75m light bar|24 LED amber colors|5 types Flash method | Plastic tripod installation | 2-core sheathed functional cable | IP67 |
| 012423A(HBA) | INSTRUCTOR-71-SPOT | DC10-33V|MAX 42W|1794*217*127mm (not including tripod)|Transparent lens|Upper cover amber, porcelain white|Lower cover silver gray|2 0.25m light strips, 1 0.45m light strip|LED 24 amber | 5 flash methods | Plastic tripod installation | 2-core sheathed functional cable | IP67 |
