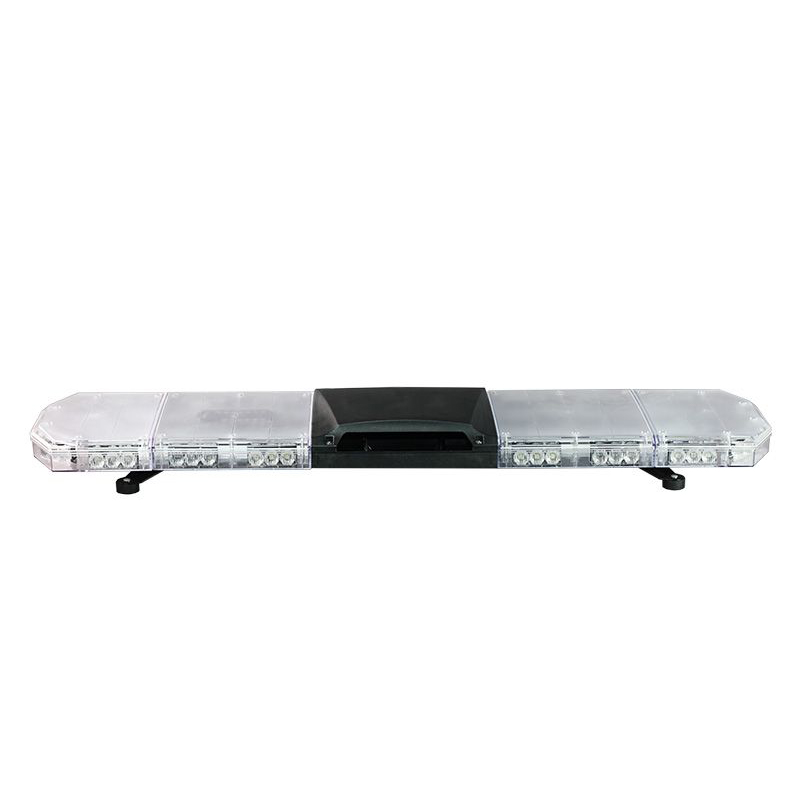

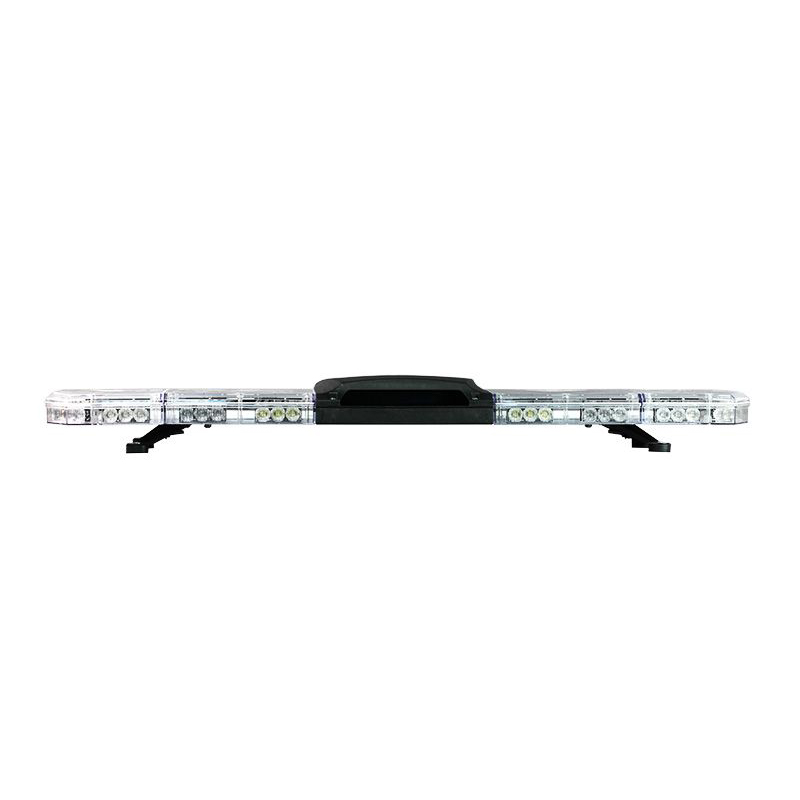

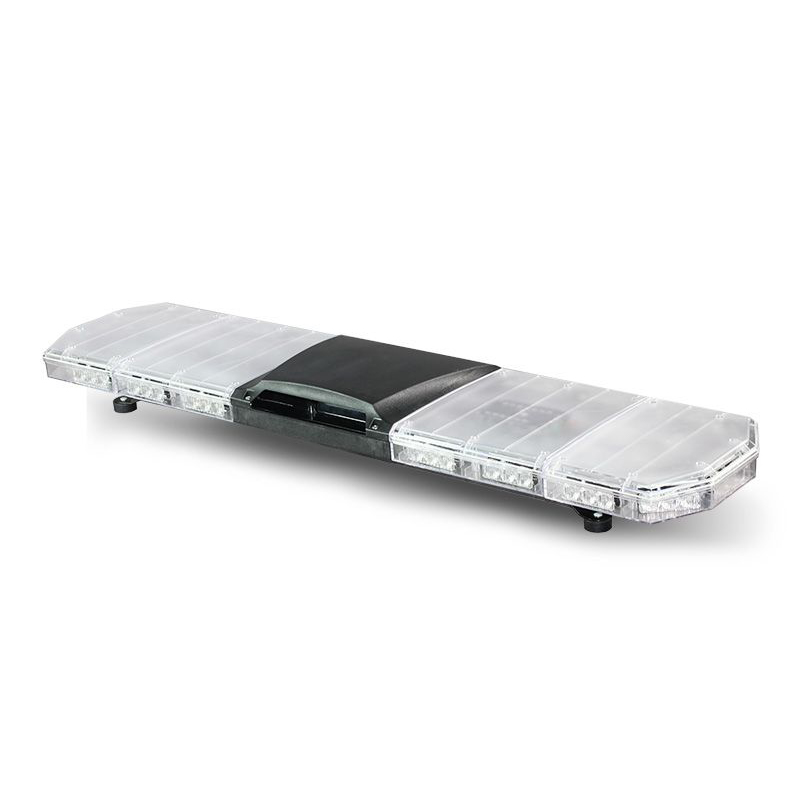

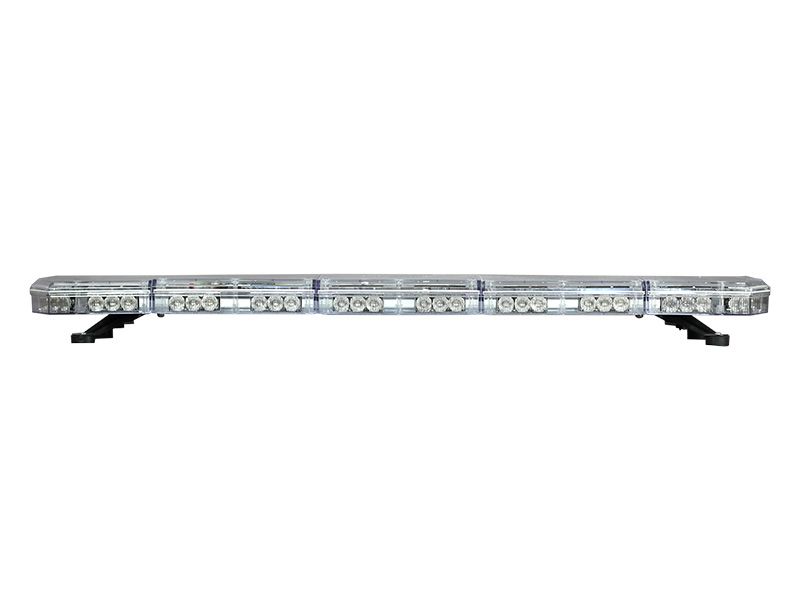

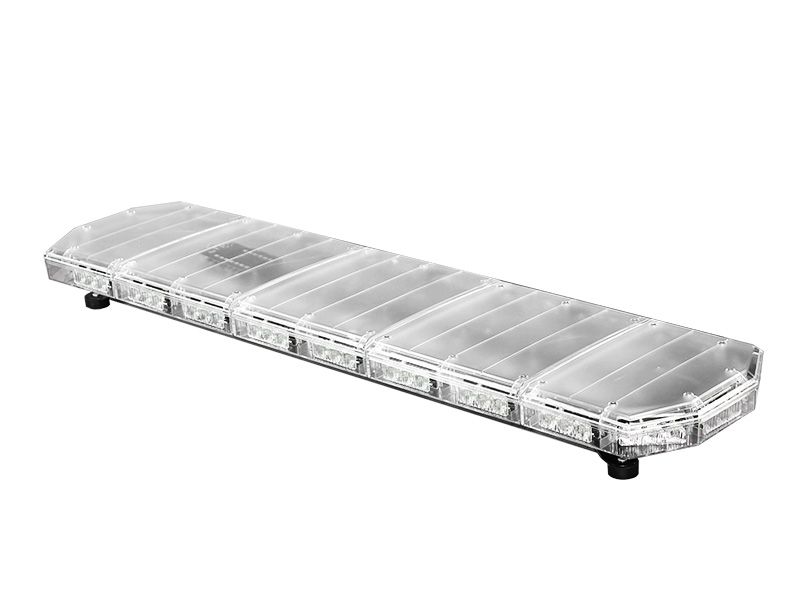

F117E3 Series – Lightbar with speaker module can be added

Low profile with a height of 2.2”
Integrated traffic directions, 35 flash patterns and are available in amber, blue, and red/blue combinations – along with multiple switch and gutter accessories
Upgraded PC material minimizes environmental damage and provides sufficient heat dissipation
IP 68 rated; fully encapsulated for moisture, vibration and corrosion resistance

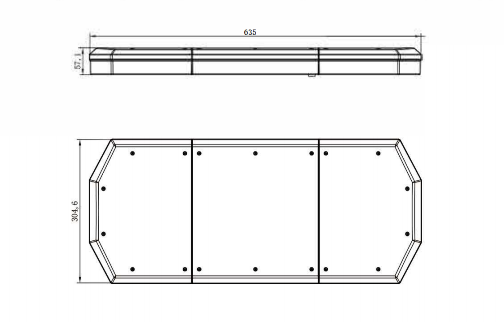

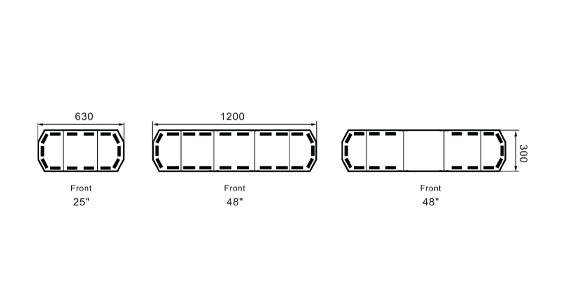

DIMENSIONS

SPECIFICATION

Light Characteristics

LED Power : 54PCS 3W LED

LED Lifespan: 100,000H

LENS: TIR

Speaker power: 100W @ 8 Ω

Flash settings: 1-4HZ

Electrical Characteristics

Voltage : DC 10-33V

Max Power: 120W

Physical Characteristics

Colour Available : Blue , amber and Blue-Red combination color

Housing Materials: Plastic

Ambient temperature: -20–+65℃

Waterproof : IP65

Mounting: Gutter Mounting by brackets

Flash patterns :35

Meet and Exceeds: ECE R65 TB1 00 0032, ECE R65 TA2 00 0033, ECE R10 04 12748

Product Dimension : 120cm L x 30cm W x 5.6cm H(48.0 “L x 11.8” W x 2.2″H)

ITEM	MODEL	SPECIFICATIONS
010447B	F117E3-48	DC10-33V\|MAX 83W\|120030050mm (excluding tripod)\|Transparent lens\|Upper cover blue\|Transparent lower cover\|66 blue LEDs\|33 flash methods\|Tripod installation\|8 functional lines \|IP67
010448B	F117E3-59	DC10-33V\|MAX 98W\|147530050mm (without tripod)\|Transparent lens\|Upper cover blue\|Transparent lower cover\|78 blue LEDs\|33 flash methods\|Tripod installation\|8-core sheath Functional line\|IP67
010501A	F117E3-48-SPEAKER	DC10-33V\|MAX 170W\|120030083mm (without tripod)\|Transparent lens\|Top cover transparent, black\|Lower cover transparent, black\|LED amber 42 pcs white 12 pcs\|33 flash methods, white light 6 flash methods \| tripod installation \| sheathed cable \| 10 functional cables \| with speaker \| IP67
010501B	F117E3-48-SPEAKER	DC10-33V\|MAX 169W\|120030083mm (excluding tripod)\|Transparent lens\|Top cover transparent, black\|Lower cover transparent, black\|LED blue 42 pcs white 12 pcs\|33 flash methods, white light 6 flash methods \| tripod installation \| sheathed cable \| 10 functional cables \| with speaker \| IP67
010506B	F117E3-48-SPEAKER	DC10-33V\|MAX 169W\|120030083mm (not including tripod)\|Transparent lens\|Upper cover blue, black\|Lower cover transparent, black\|LED blue 42 pcs white 12 pcs\|33 flash methods, white 6 ways to flash the light \| Tripod installation \| 10 functional cables \| With speaker \| IP67
010507B	F117E3-48-SPEAKER	DC10-33V\|MAX 168W\|120030083mm (without tripod)\|Transparent lens\|Upper cover blue, black\|Lower cover transparent, black\|54 blue LEDs\|33 flash methods\|Tripod installation\| 4-core sheathed functional cable \| with speaker \| IP67

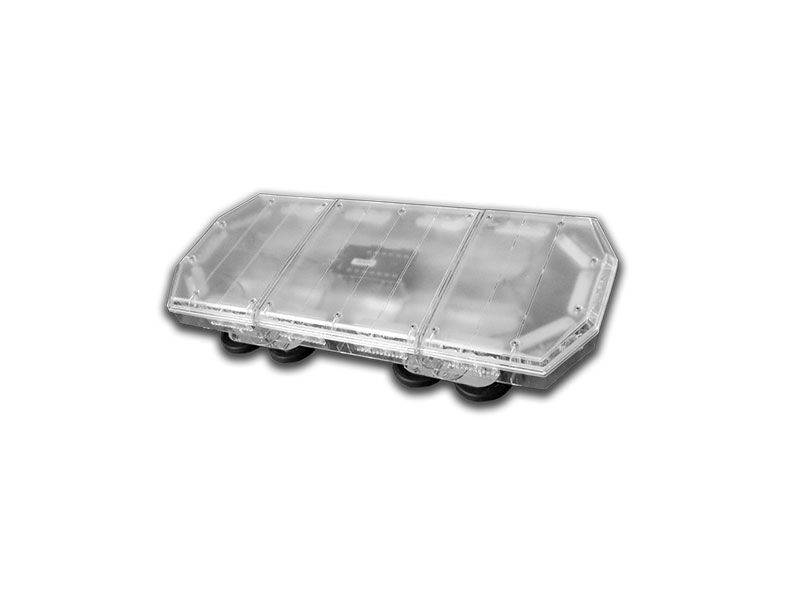

010513B	F117E3 MINI-30-SPEAKER	DC10-33V\|MAX 138W\|84330083mm\|Transparent lens\|Top cover transparent, black\|Bottom cover transparent, black\|30 blue LEDs\|30 flash methods\|Magnet installation\|A13-163 cigarette lighter\|3 Core sheathed functional cable \| with speaker \| IP67
010518AB	F117E3-48-SPEAKER	DC10-33V\|MAX 168W\|120030083mm (excluding tripod)\|Transparent lens\|Upper cover blue, black\|Lower cover transparent, black\|LED amber 18 pcs blue 36 pcs\|33 flash methods\| Tripod installation \| 8-core sheathed functional cable \| with speaker \| IP67
010521B	F117E3-48-SPEAKER	DC10-33V\|MAX 169W\|120030083mm (not including tripod)\|Transparent lens\|Upper cover blue, black\|Lower cover transparent, black\|LED blue 42 pcs white 12 pcs\|33 flash methods, white 6 ways to flash the light \| Tripod installation \| Sheathed cable \| 9 functional cables \| With speaker \| IP67
