- Hard-coated lenses and aluminum housing minimize
- environmental damage
- 3pcs heating radiators increase heat dissipation
- Super easy installation for multiple applications
- Synchronize to other 911Signal products
DIMENSIONS
SPECIFICATION
Light Characteristics
LED Power: 12PCS 3W LED
LED Lifespan: 100,000H
Flash settings: 1-4HZ
Electrical Characteristics
Voltage: DC 10-33V
Max Power: 12W
Physical Characteristics
Colour Available: B R A W BR WB WA RW
Ambient temperature: -35–+70℃

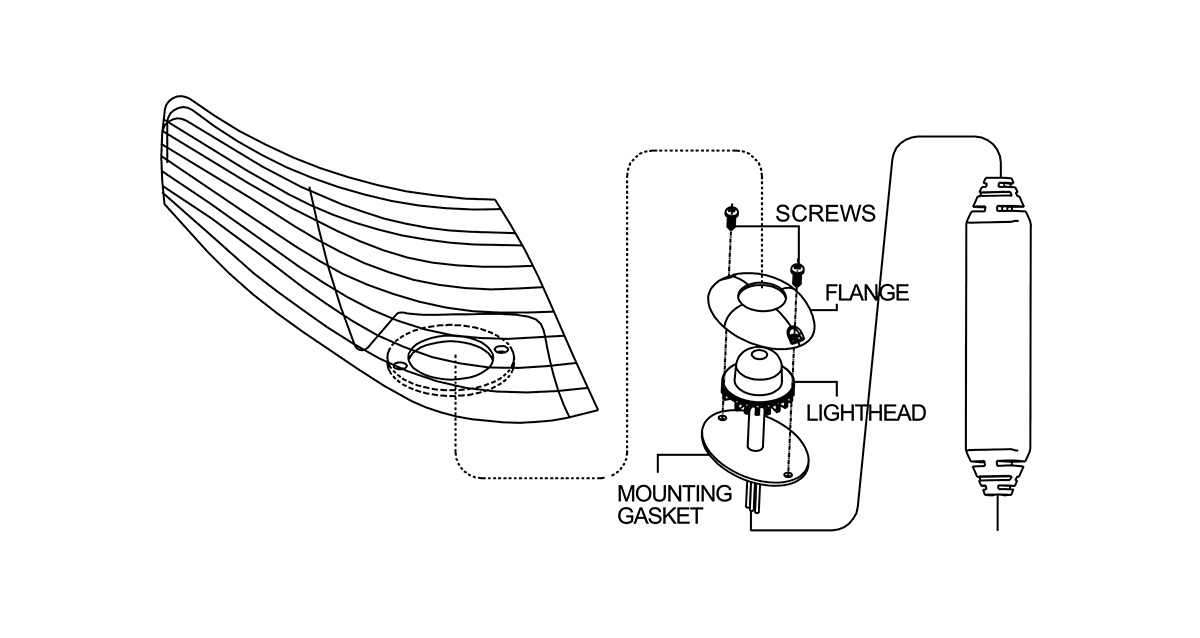

Mounting : Surface mount/Inside of headlight
Flash patterns: 19
Product Dimension: 2.3″L x 1.2″D
| ITEM | MODEL | SPECIFICATIONS |
| 060701A | H1200 | DC10-33V|MAX 12W|φ38×15.4MM|Transparent lampshade|Outer cover black|12 LED amber colors|19 flash methods|Screw installation|4-core sheathed wire|IP67\IP69K |
| 060701B | H1200 | DC10-33V|MAX 12W|φ38×15.4MM|Transparent lampshade|Outer cover black|12 LED blue|19 flashing methods|Screw installation|4-core sheathed wire|IP67\IP69K |
| 060701WA | H1200 | DC10-33V|MAX 12W|φ38×15.4MM|Transparent lampshade|Outer cover black|LED amber 6 pcs white 6 pcs| 19 flashing methods|Screw installation|4-core sheathed wire|IP67\IP69K |
| 060704R | H1200 | DC10-33V|MAX 12W|φ38×15.4MM|Transparent lampshade|No outer cover|12 red LEDs|19 flash methods|Screw installation|4-core sheathed wire|IP67\IP69K|Synthetic paper B04H12000001, instruction manual B08H12000002 |
| 060704B | H1200 | DC10-33V|MAX 12W|φ38×15.4MM|Transparent lampshade|No outer cover|12 blue LEDs|19 flash methods|Screw installation|4-core sheathed wire, |IP67\IP69K|Synthetic paper B04H12000001, Instruction manual B08H12000002 |
| 060701AW(SSI) | H1200 | DC10-33V|MAX 12W|φ38×15.4MM|Transparent lampshade|Outer cover black|LED amber 6 pcs white 6 pcs| 19 flash methods|Screw installation|4-core sheathed wire|IP67\IP69K|Instruction sheet B08H12000004 |
| 060703TRW | H1200T | DC10-33V|MAX 12W|φ38×15.4MM|Transparent lampshade|Outer cover black|LED red 6 pcs white 6 pcs| 12 flash methods|Screw installation|5-core sheathed wire|IP67\IP69K |
| 060703TBW | H1200T | DC10-33V|MAX 12W|φ38×15.4MM|Transparent lampshade|Outer cover black|LED amber 6 pcs white 6 pcs| 12 flash methods|Screw installation|5-core sheathed wire|IP67\IP69K |
| 060705TAW | H1200T | DC10-33V|MAX 12W|φ38×15.4MM|Transparent lampshade|No outer cover|LED amber 6 pcs white 6 pcs|12 flash methods|Screw installation|5-core sheathed wire, 4-core DJ7041-1.2-20|IP67 \IP69K|Customer label B04H12000001, instruction manual B08H12000002 |
| 060705TBW | H1200T | DC10-33V|MAX 12W|φ38×15.4MM|Transparent lampshade|No outer cover|LED blue 6 pcs white|12 flash methods|Screw installation|5-core sheathed wire|IP67\IP69K|Synthetic paper B04H12000001, instruction manual B08H12000002 |
| 060705TRA | H1200T | DC10-33V|MAX 12W|φ38×15.4MM|Transparent lampshade|No cover|LED amber 6 pcs red| 12 flash methods|Screw installation|5-core sheathed wire|IP67\IP69K|Synthetic paper B04H12000001, instruction manual B08H12000002 |
| 060705TRW | H1200T | DC10-33V|MAX 12W|φ38×15.4MM|Transparent lampshade|No outer cover|LED red 6 white 6 pcs|12 flash methods|Screw installation|5-core sheathed wire|IP67\IP69K|Synthetic paper B04H12000001, instruction manual B08H12000002 |
