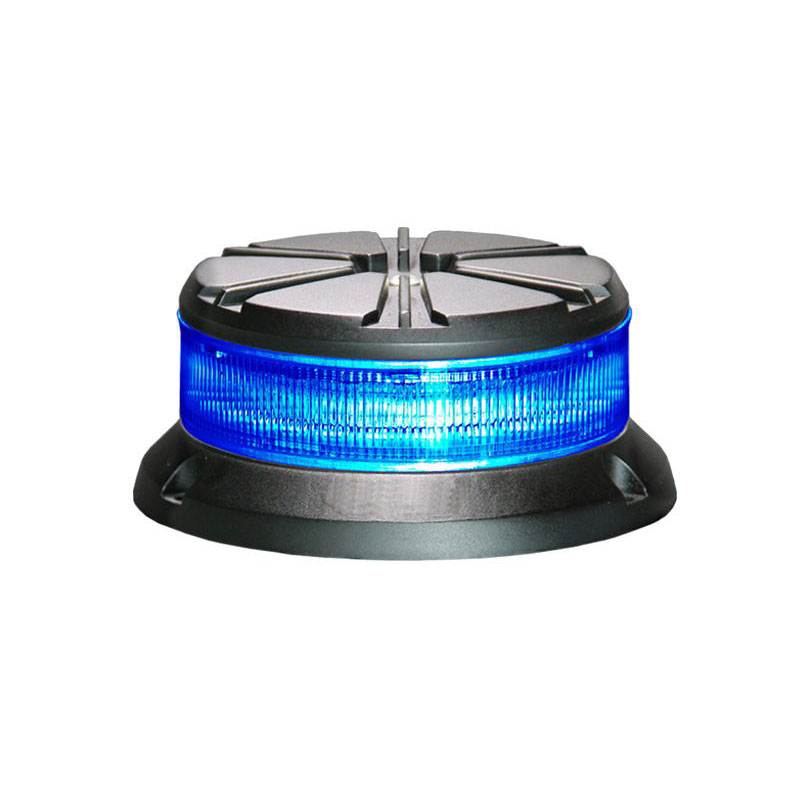

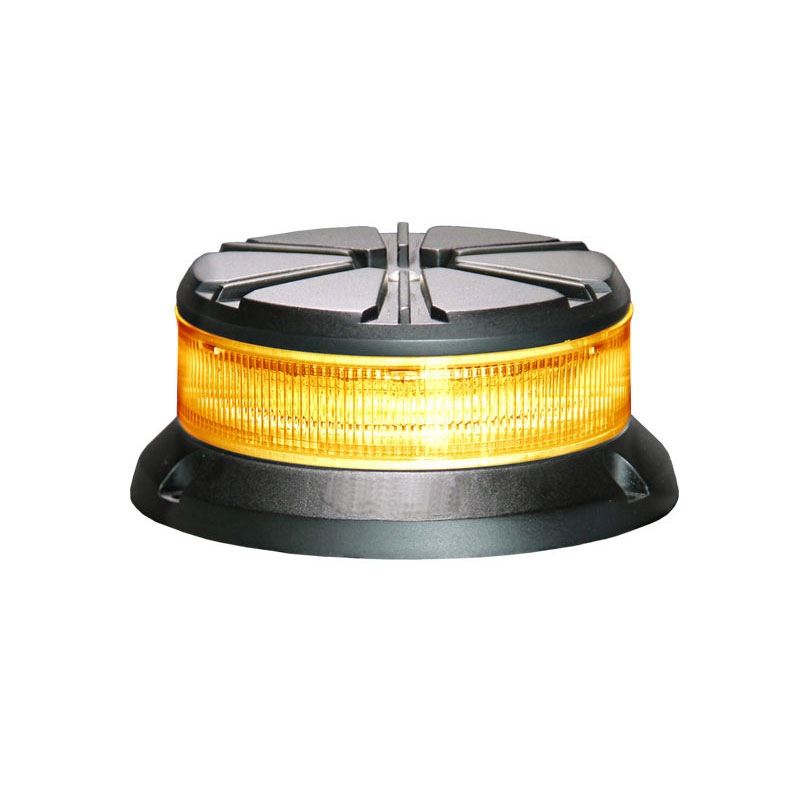

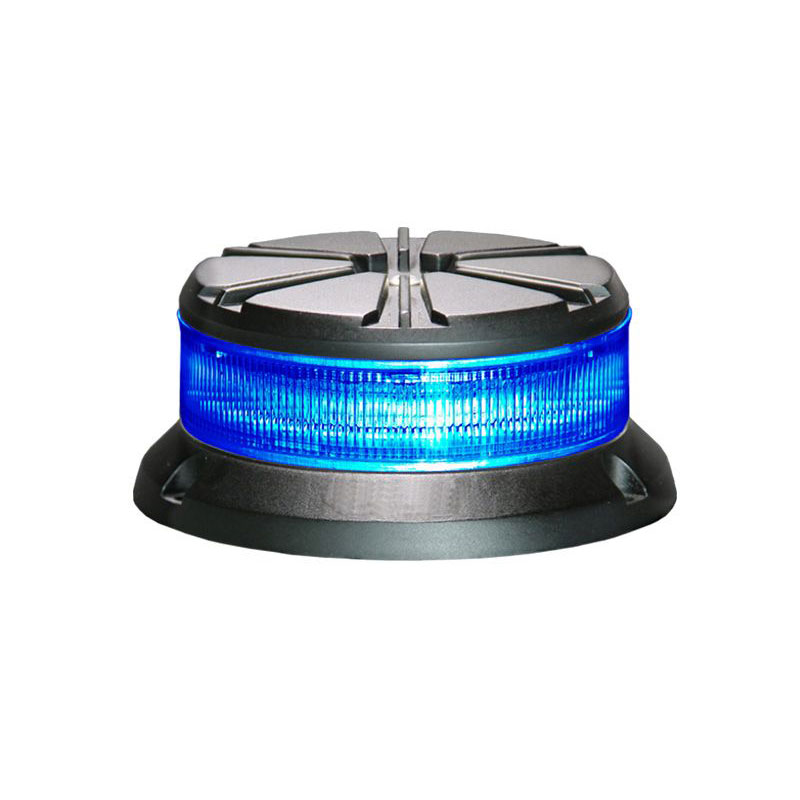

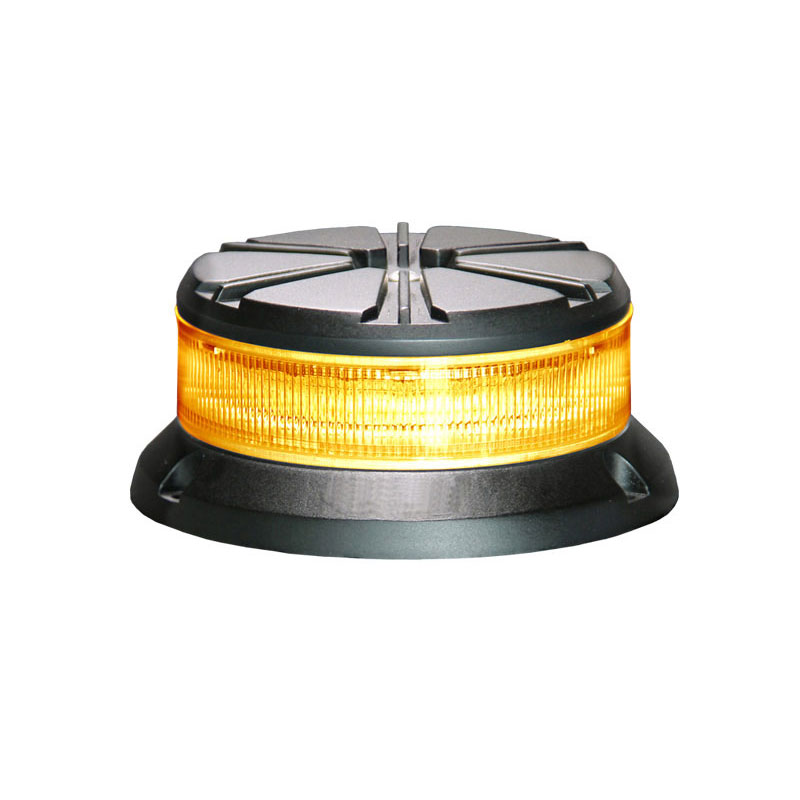

New LED strobe beacon, aluminum alloy housing - FD24mini

Item No.080602 / 080603

FEATURE

>IP 68 rated, excellent waterproof
>Available in amber and blue color
>A low profile design, with a height of only 1.9”
>PMMA housing and aluminum base protect the product from severe environmental damages
>8 flash patterns including rotating mode
>3 mounting options available: screw, suction cups and magnets(with a cigarette plug)
>Synchronization capability

Model:FD24mini(080602/080603)
Light Characteristics
LED Power:12PCS 1W LED
LED Lifespan:100,000H
LENS:Reflex
Flash settings:1-4HZ
Electrical Characteristics
Voltage:DC 10-33V
Max Power:24W
Physical Characteristics
Colour Available:amber/blue
Ambient temperature:-30--+70℃
Waterproof:IP68
Mounting:Four kinds of installation
Flash patterns:8(including rotating)
Meet and Exceeds:ECE R65 TA1 00 0064 ; ECE R65 TB1 00 0065
Materials:Outside cover: PMMA
Top and base: aluminum alloy
Wire:
080602: 3-core parallel lines:18AWG x 3C/3m + A13-163 cigarette lighter
080603: Single line: 20AWG x 3C(red,yellow,black) 35cm

FD24MINI is a smart LED beacon which with small size 110mm diameter base and 47.5mm height and high brightness. There are 4 different kinds of mounting options. Single, and dual color are available.

FD24mini Installation.pdf

Download

FD24mini.pdf

Download
