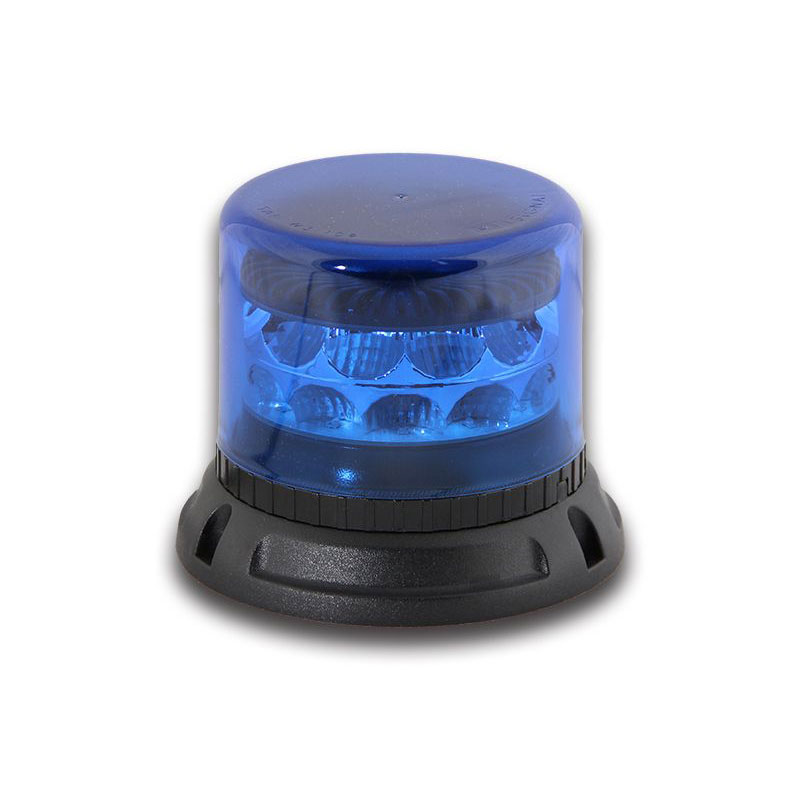

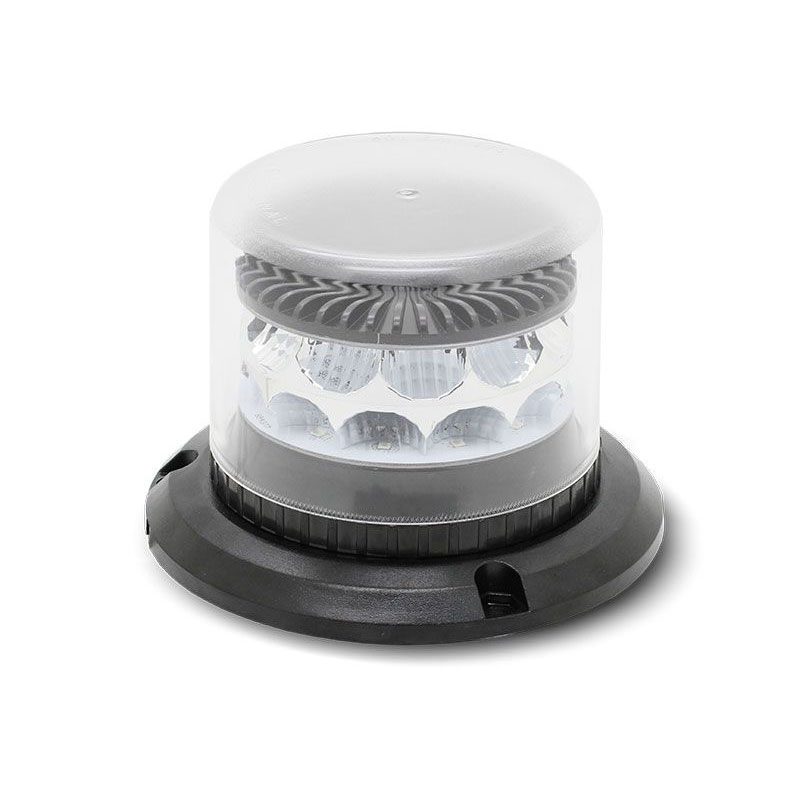

Round LED Signal Warning Rotating Beacon - C24(080106/080102)

Item No.080106 / 080102

FEATURE

>IP 68 rated and highly resistant to vibration and corrosion
>Available in amber and blue color
>Two levels of unique LED reflectors provide a focused signal for superior brightness
>The bottom of the strobe beacon incorporates an aluminum alloy for increased heat conduction and heat dissipation.
>Easily installed or uninstalled with permanent mount, suction cups or magnetic mount(utilizing a cigarette plug)

Model:C24(080106/080102)
Light Characteristics
LED Power:24PCS 3W LED
LED Lifespan:100,000H
Flash settings:1-4HZ
LENS:Reflex
Electrical Characteristics
Voltage:DC 10-33V
Max Power:37W
Physical Characteristics
Colour Available:Amber,Blue(TOP LENS)
Ambient temperature:-20--+65℃
Waterproof:IP67
Mounting:
080106:Sucker with Magnet Mount;
080102:Permanent Mount
Flash patterns:22(including 5 simulated rotating patterns)
Meet and Exceeds:ECE R65 TB2 00 0031,ECE R65 TA2 00 0030,ECE R10 04 12749,SAE W3-1 09

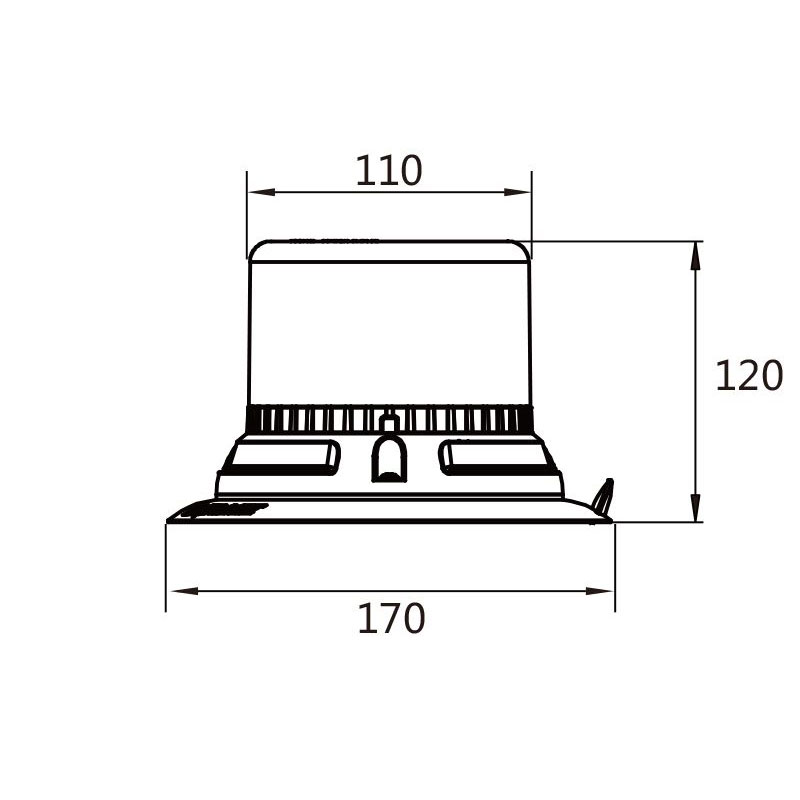

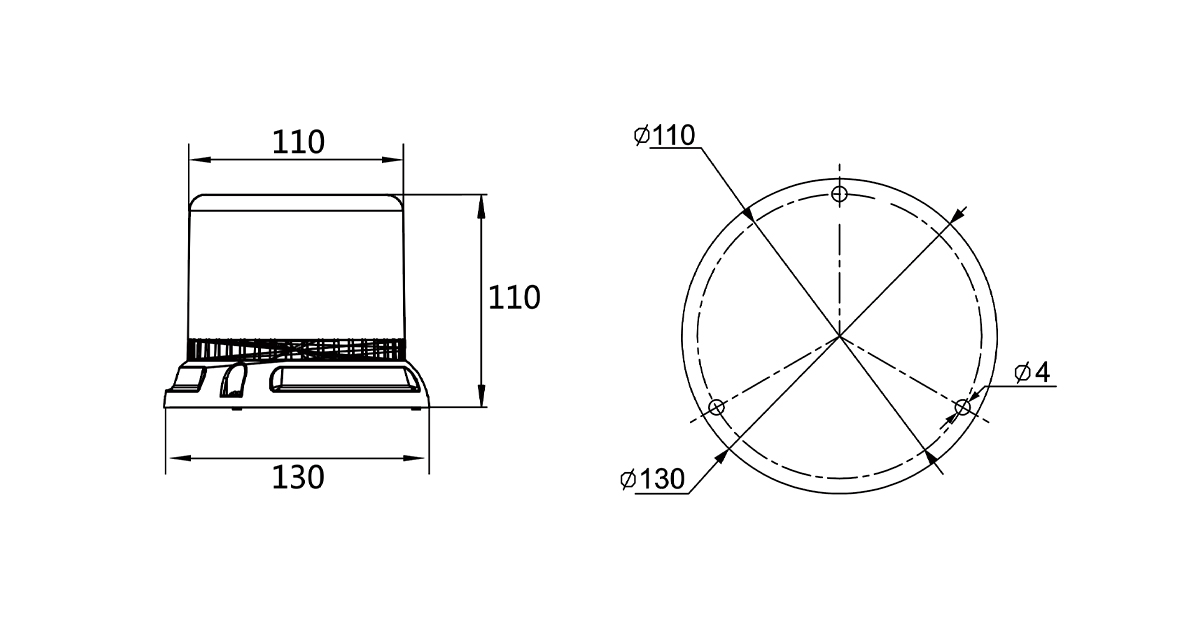

Product Dimension:4.5 " High x 6.0 "Base Diameter x 4.3 "Lens Diameter
WIRE:

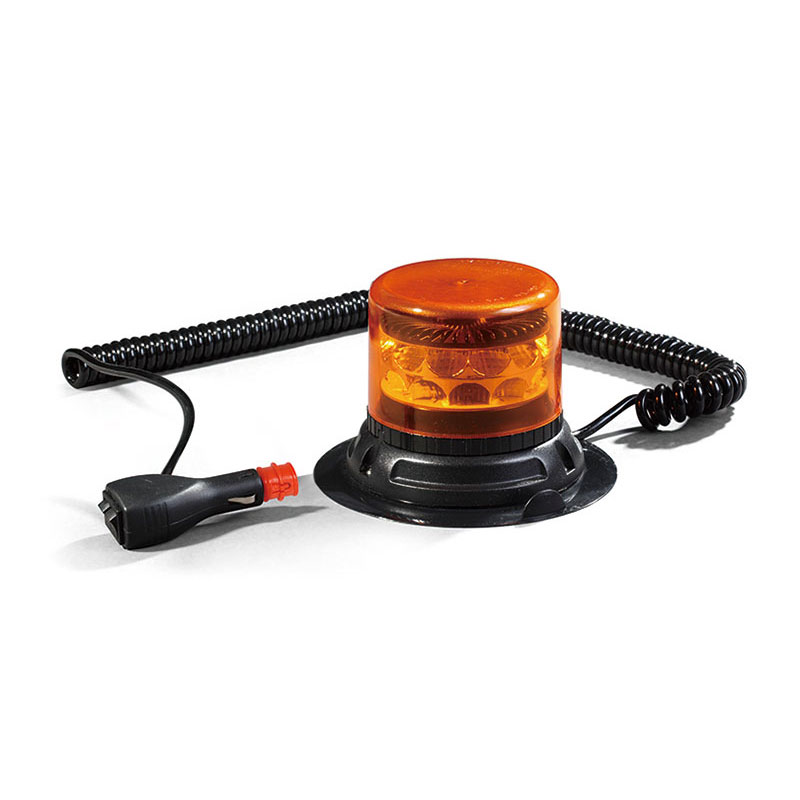

080106:6m long spring line with A13-E163 cigarette lighter.
080102:50cm long 4-core wire

The C24 is a beacon with the newes reflex lence design for highest LED brightness intensity. The certificate covers R65 amber and blue market. It is suitable for every kinds of road safety vehicles. For example trucks, police and ambulance cars, and fire fight trucks.

C24.pdf

Download

C24 Installation.pdf

Download

Comparison(C12&C24&FD24).pdf

Download
