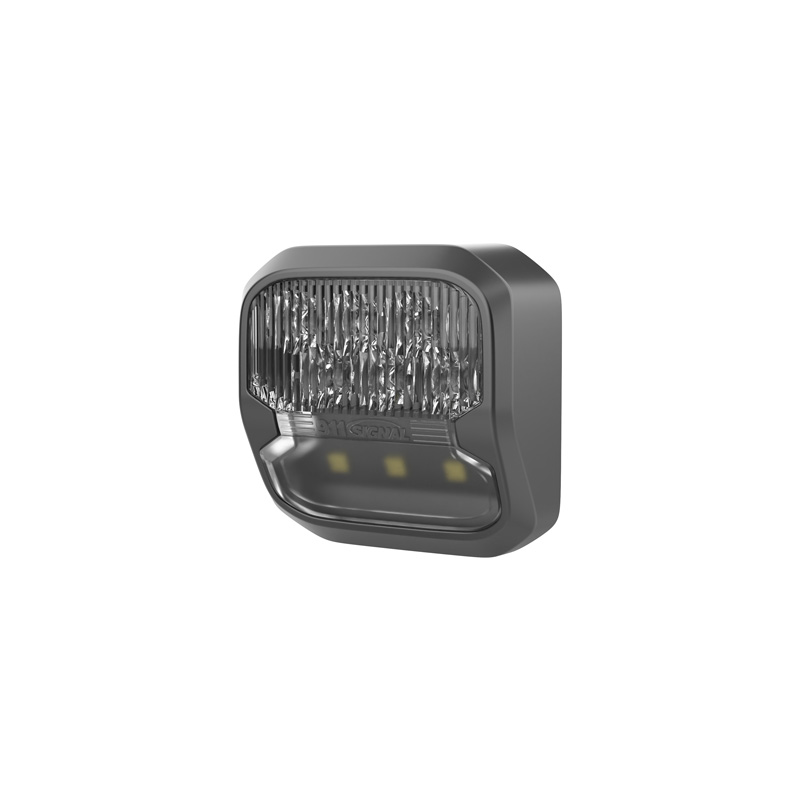

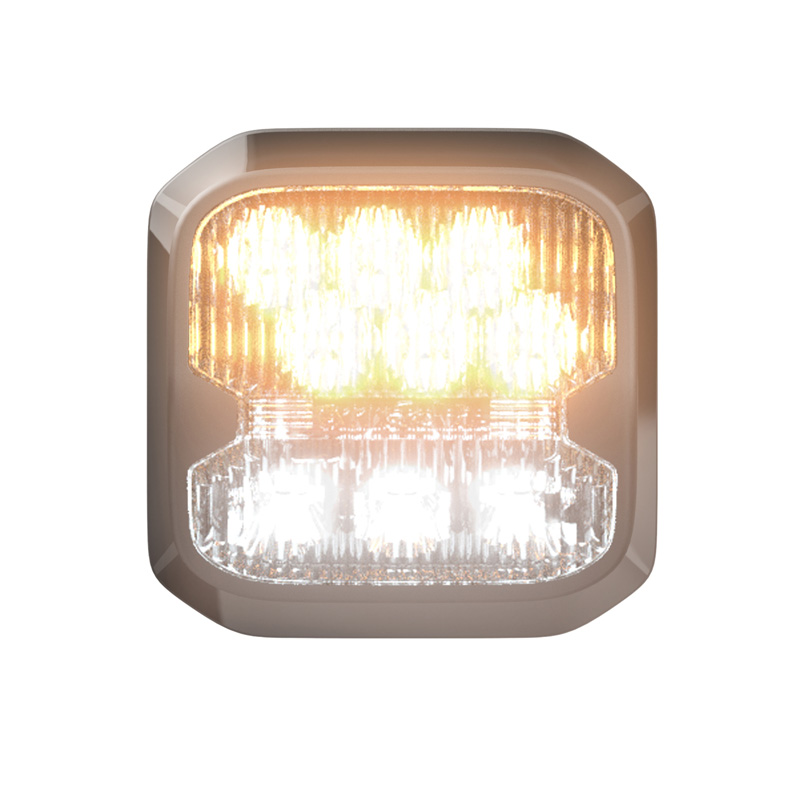

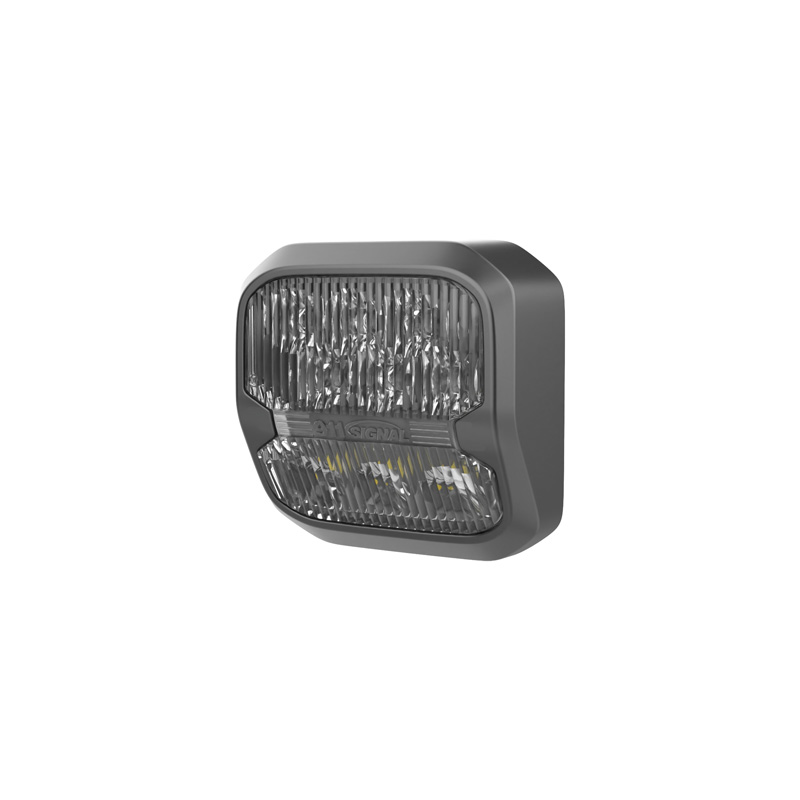

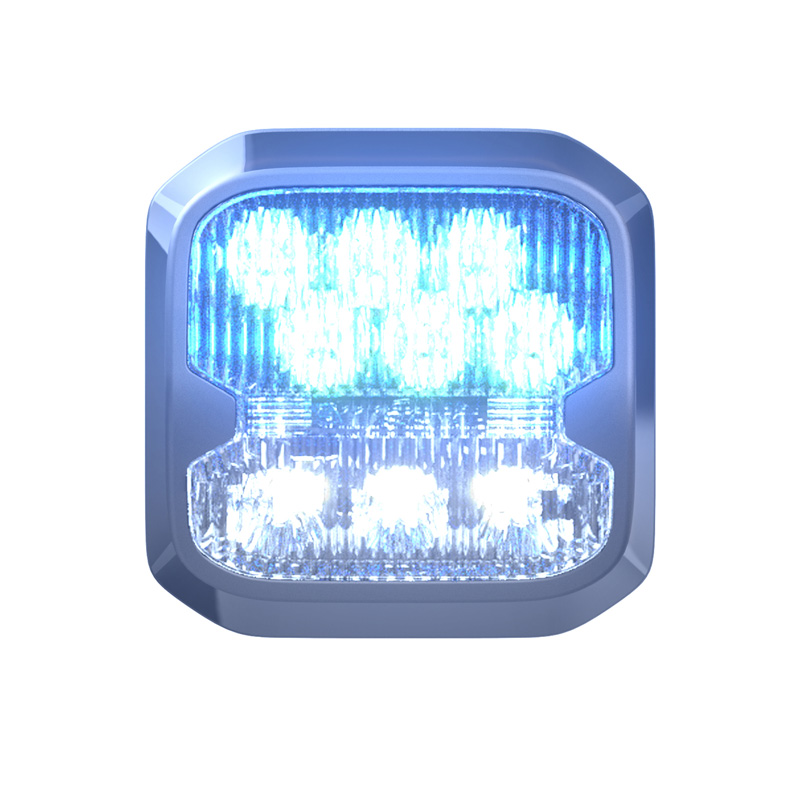

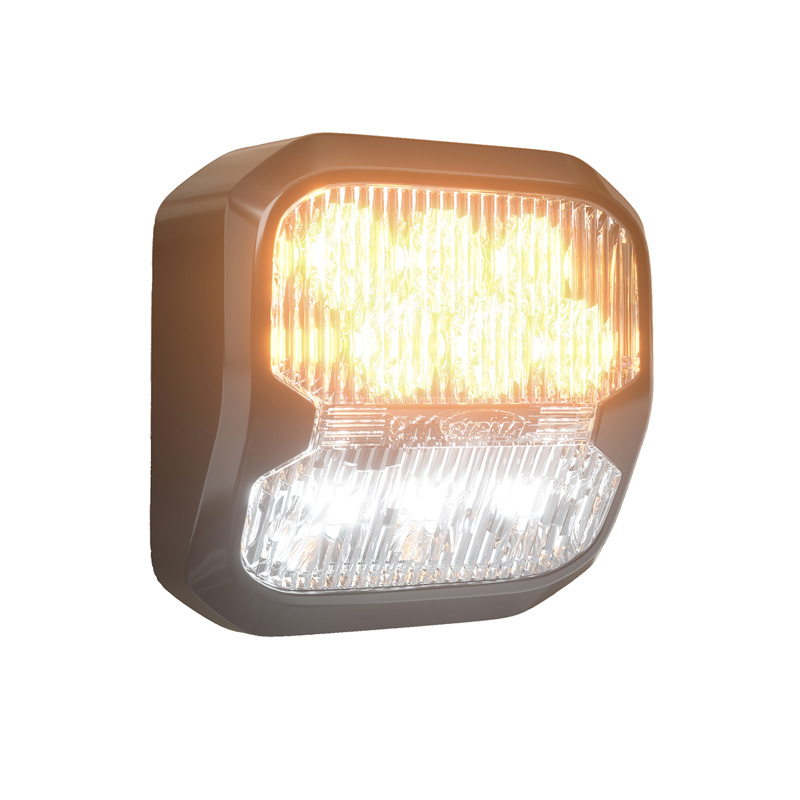

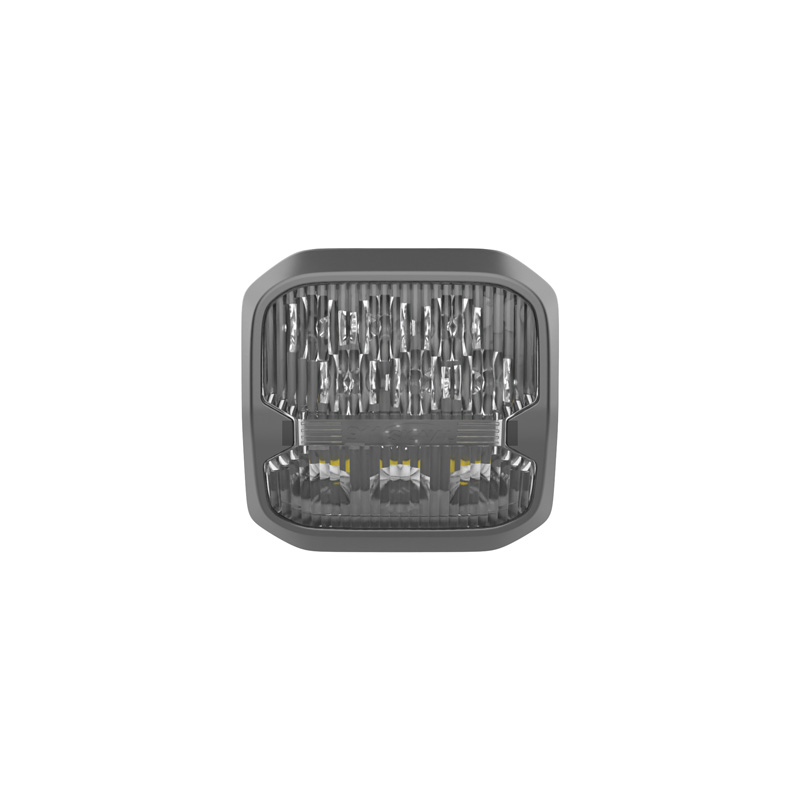

- Polaris is a versatile warning light head that integrates both warning and illumination functions.
- With an ultra-compact size of 45x45x19mm, it offers multiple mounting options, including surface screw mount, bracket mount, and adjustable hose clamp mount, to suit various application scenarios.
- Compatible with mainstream controllers from Europe and North America.
- Features a 25° downward lighting angle with a constant and stable light output of 360 lumens.ns
POLARIS-Warning and Illumination Lighthead
Get A Quote

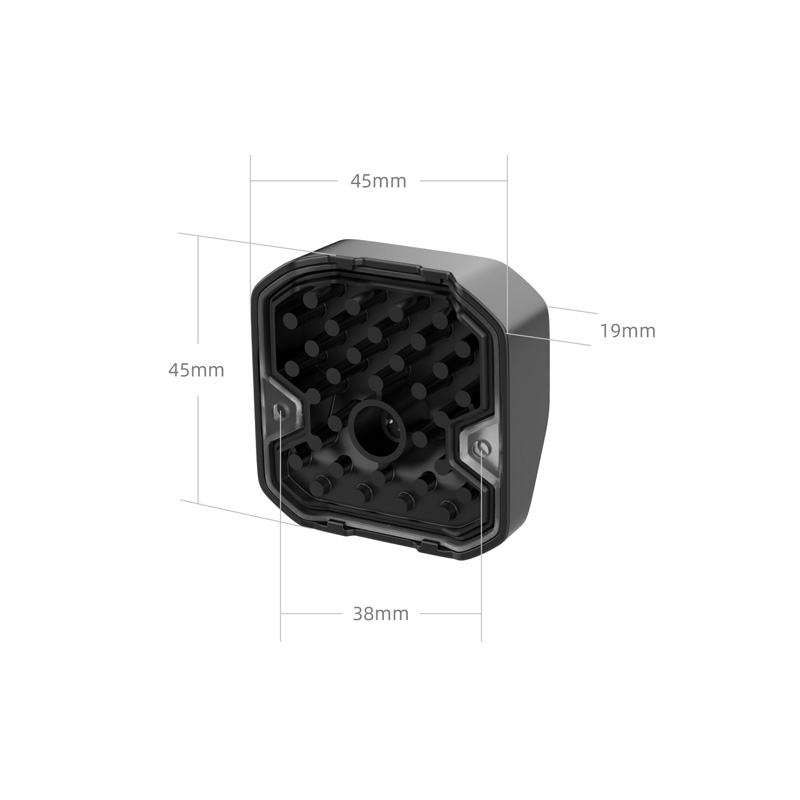

DIMENSIONS
SPECIFICATION
Product Name： Polaris
Max Power: 13.5W
Voltage: DC 10-33V/DC 12V
Dimensions: Only 45*45*19mm without bezel
Lens: TIR
LEDS: 6pcs*0.816W+3pcs*0.864W
Flash Pattern: 12
Operating Temp.: -30°C to +70°C
Protection Level: IP67+IP69K
Illumination Lumens: 360lm
Certifications: SAE J595, CA T13, ECE R65, ECE R10
Mounting: Surface Mount/Bracket Mount/Sadjustable Hose Clamp Mount
| ITEM | Mode | SPECIFICATIONS |
| 024117A | POLARIS-EU | DC10-33V|MAX 13.5W|45*45*19MM|TIR lens|Outer cover 70% black|6 amber LEDs*1.1725W|3 white LEDs*0.864W|360LM||9 flash patterns|Light angle H 30° V 8°|Screw installation|6*22AWG wires|IP67+IP69K |
| 024117B | POLARIS-EU | DC10-33V|MAX 13.5W|45*45*19MM|TIR lens|Outer cover 70% black|6 blue LEDs*1.1725W|3 white LEDs*0.864W|360LM||9 flash patterns|Light angle H 30° V 8°|Screw installation|6*22AWG wires|IP67+IP69K |
| 024117R | POLARIS-EU | DC10-33V|MAX 13.5W|45*45*19MM|TIR lens|Outer cover 70% black|6 red LEDs*0.816W|3 white LEDs*0.864W|360LM|Light angle H 30° V 8°|9 flash patterns|Screw installation|6*22AWG wires|IP67+IP69K |
| 024117W | POLARIS-EU | DC10-33V|MAX 13.5W|45*45*19MM|TIR lens|Outer cover 70% black|6 white LEDs*0.864W|3 white LEDs*0.864W|360LM||9 flash patterns|Light angle H 30° V 8°|Screw installation|6*22AWG wires|IP67+IP69K |
| 024122B | POLARIS-US | DC12V|MAX 13.5W|45*45*19MM|TIR lens|Outer cover 70% black|6 blue LEDs*1.1W|3 white LEDs*0.9W|12 flash patterns|360LM|Light angle H 30° V 8°|Screw installation|6*22AWG tinned wires|IP67+IP69K |
| 024122R | POLARIS-US | DC12V|MAX 13.5W|45*45*19MM|TIR lens|Outer cover 70% black|6 red LEDs*1.1W|3 white LEDs*0.9W|12 flash patterns|360LM|Light angle H 30° V 8°|Screw installation|6*22AWG tinned wires|IP67+IP69K |
| 024201A | POLARIS-W | DC10-33V|MAX 13.5W|45*45*19MM|TIR+Frosted lens|Outer cover 70% black|6 amber LEDs*1.5W|3 white LEDs*1.2W|10 flash patterns|360LM|Light angle floodlight|Screw installation|6*22AWG tinned wires|IP67+IP69K |
| 024201B | POLARIS-W | DC10-33V|MAX 13.5W|45*45*19MM|TIR+Frosted lens|Outer cover 70% black|6 blue LEDs*1.5W|3 white LEDs*1.2W|10 flash patterns||360LM|Light angle floodlight|Screw installation|6*22AWG tinned wirese|IP67+IP69K |
