- Available in single dual and split color
- 180° wide-angle coverage
- Aluminum base efficiently dissipates heat
- Surface mount or bracket mount, suitable for numerous applications
- Fully encapsulated for moisture, vibration and corrosion resistance
- Hard-coated lenses and aluminum housing minimize environmental damage
- Synchronize with other 911Signal products
- SAE J595 class1, CA T13, ECE R65 and ECE R10 certified
- Optional cover available

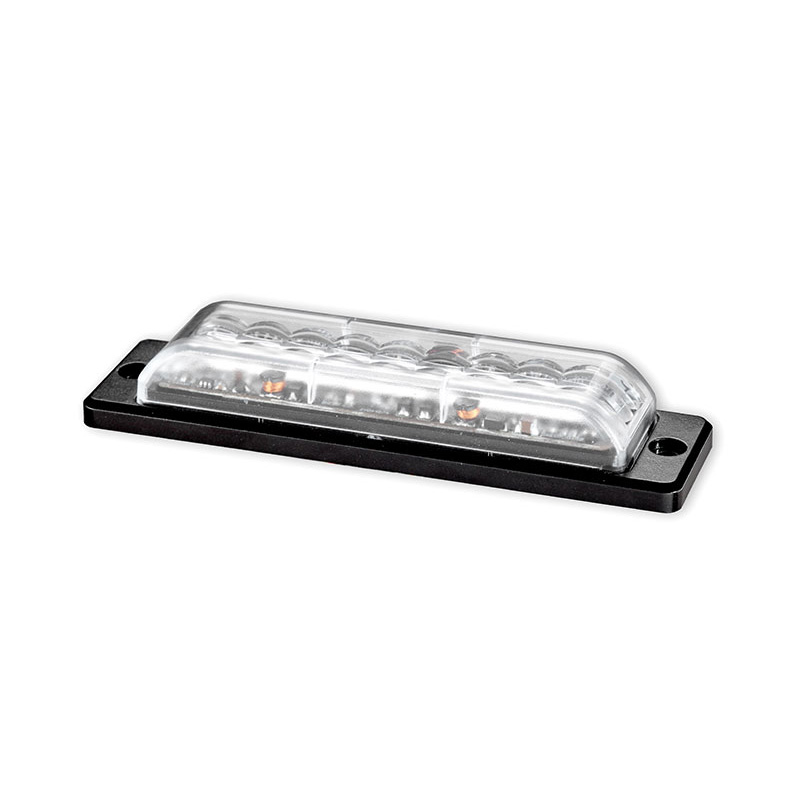

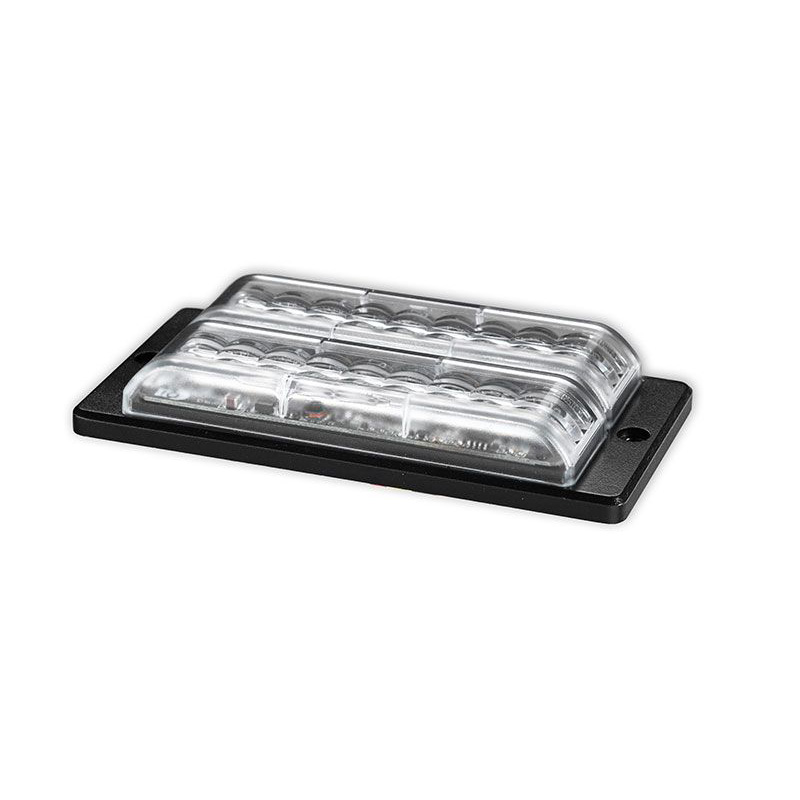

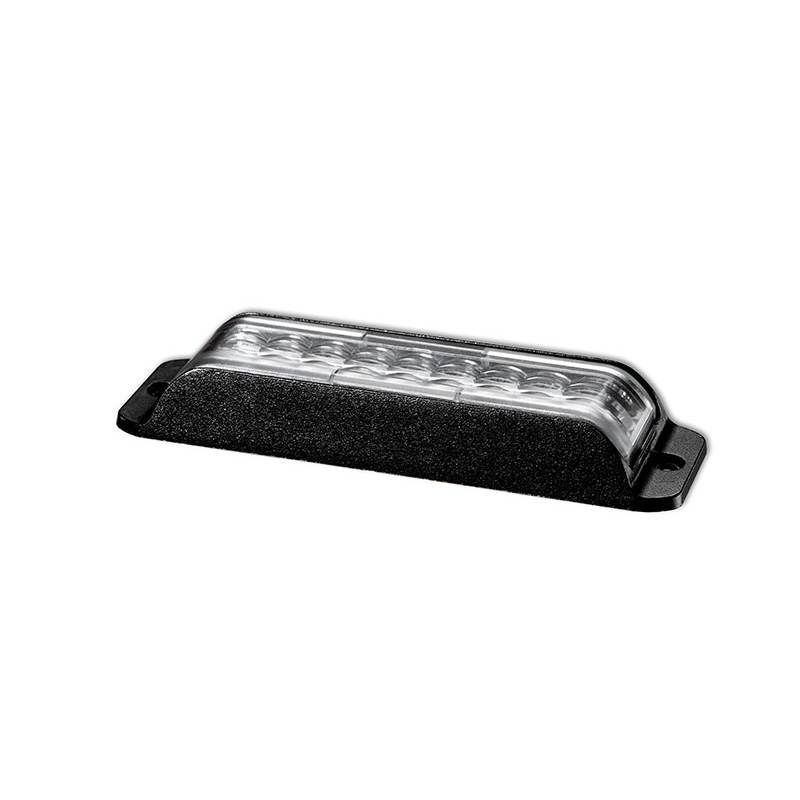

X9 & X18 Series – 180 Degrees LED Lighthead
Get A Quote
DIMENSIONS
SPECIFICATION
Model: X9T (clear lens: 021802 / smoked lens: 021804)
Light Characteristics
LED Power: 27 pcs of 3W
LED Lifespan: 100000
Flash settings: 1-4HZ
Lens: Lin(clear lens/smoked lens)
Electrical Characteristics
Voltage: DC 10-33V
Max Power: 12W
Physical Characteristics
Colour Available: WBR/ BRA/ WRA/ WBA
Ambient temperature: -20–+80℃
Mounting : Surface mount/Bracket mount
Flash patterns 12
Meet and Exceeds ECE R65 XA2 00 0083; ECE R65 XB2 00 0084; ECE R65 XR2 00 0085; SAE-16-W-1; CA T13
Product Dimension 130mm×38mm×18mm(5.1 “Long x 1.5” Wide x 0.7″High)
| ITEM | MODEL | SPECIFICATIONS |
| 021801B | X9 | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|LED blue 9 pieces|19 flashing methods|Screw installation|5-core wire|IP67\IP69K |
| 021801A | X9 | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|9 LED amber colors|19 flash methods|Screw installation|5-core wire|IP67\IP69K |
| 021801R | X9 | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|9 red LEDs|19 flashing methods|Screw installation|5-core wire|IP67\IP69K |
| 021801W | X9 | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|9 white LEDs|19 flashing methods|Screw installation|5-core wire|IP67\IP69K |
| 021801AWA | X9 | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|LED amber 6 pcs white 3 pcs|19 flashing methods|Screw installation|5-core wire|IP67\IP69K |
| 021801RBR | X9 | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|LED blue 3 pcs red|19 flashing methods|Screw installation|5-core wire|IP67\IP69K |
| 021801WBW | X9 | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|LED blue 3 pcs white 6 pcs|19 flashing methods|Screw installation|5-core wire|IP67\IP69K |
| 021802TBA | X9T | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|LED amber 9 pcs blue|12 flash methods|Screw installation|5-core wire|IP67\IP69K |
| 021802TBR | X9T | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|LED blue 9 pcs red|12 flash methods|Screw installation|5-core wire|IP67\IP69K |
| 021802TWA | X9T | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|LED amber 9 pcs white|12 flash methods|Screw installation|5-core wire|IP67\IP69K |
| 021802WBR | X9T | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|LED blue 9 pcs red 9 pcs white|12 flashing methods|Screw installation|6-core wire|IP67\IP69K |
| 021802RAW | X9T | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|LED amber 9 pcs red 9 pcs white|12 flashing methods|Screw installation|6-core wire|IP67\IP69K |
| 021802WBA | X9T | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|LED amber 9 pcs blue 9 pcs white|12 flash methods|Screw installation|6-core wire|IP67\IP69K |
| 021802ABR | X9T | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|LED amber 9 pcs blue 9 pcs red 9 pcs|12 flash methods|Screw installation|6-core wire|IP67\IP69K |
| 021802ABW | X9T | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|LED amber 9 pcs blue 9 pcs white|12 flash methods|Screw installation|6-core wire|IP67\IP69K |
| 021805A | X9 | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|9 LED amber colors|19 flash methods|Screw installation|5-core sheathed wire 2.6M Red: positive pole, black: negative pole , Blue: Dimming 50%, Yellow: Sync/Trigger, White: Alternate|IP67\IP69K||Outer box B01C9R65X201, brown box B02C9R65X201, instruction manual B0800X900002, sticker B040X9200001 |
| 021806A | X9 | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|LED amber 9 pieces|Ece R65 Double (All)|Screw installation|3-core connector 1-967584 male shell 15CM red: Positive pole, black: negative pole, yellow: sync/trigger, |IP67\IP69K|Instruction manual B0800X9AMP01 |
| 021806B | X9 | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Transparent lampshade|Base black|LED blue 9 pieces|Ece R65 Double (All)|Screw installation||3-core connector 1-967584 male shell 15CM| IP67\IP69K|Instruction Manual B0800X9AMP01 |
| 021809R | X9 | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Lampshade red|Base black|LED red 9 pieces|19 flash methods|Screw installation|5-core wire|IP67\IP69K |
| 021807TAB | X9T | DC10-33V|MAX 12W|130*35*19MM|Transparent lens|Lampshade transparent|Base black|LED amber 9 pcs blue 9 pcs|Ece R65 Double (All)|Screw installation|4-pin connector 1-967584 male Shell 15CM Red: Color 1 switch positive pole, Brown: Color 2 switch positive pole, Black: Negative pole, Yellow: Sync/trigger, |IP67\IP69K|Instruction manual B0800X9AMP02 |
| 021803A | X18 | DC10-33V|MAX 24W|130*66*19MM|Transparent lens|Transparent lampshade|Base black|18 LED amber colors|19 flash methods|Screw installation|2 5-core wires|IP67\IP69K |
| 021803B | X18 | DC10-33V|MAX 24W|130*66*19MM|Transparent lens|Transparent lampshade|Black base|18 blue LEDs|19 flash methods|Screw installation|2 5-core wires|IP67\IP69K |
| 021803R | X18 | DC10-33V|MAX 24W|130*66*19MM|Transparent lens|Transparent lampshade|Base black|18 red LEDs|19 flashing methods|Screw installation|5-core wire|IP67\IP69K |
| 021803BR | X18 | DC10-33V|MAX 24W|130*66*19MM|Transparent lens|Transparent lampshade|Base black|LED blue 9 pcs red|19 flashing methods|Screw installation|2 5-core wires|IP67\IP69K |
| 021803RA | X18 | DC10-33V|MAX 24W|130*66*19MM|Transparent lens|Transparent lampshade|Base black|LED amber 9 pcs red|19 flashing methods|Screw installation|2 5-core wires|IP67\IP69K |
| 021808R | X18 | DC10-33V|MAX 24W|130*66*19MM|Transparent lens|Lampshade red|Base black|18 red LEDs|19 flash methods|Screw installation|2 5-core wires|IP67\IP69K |
