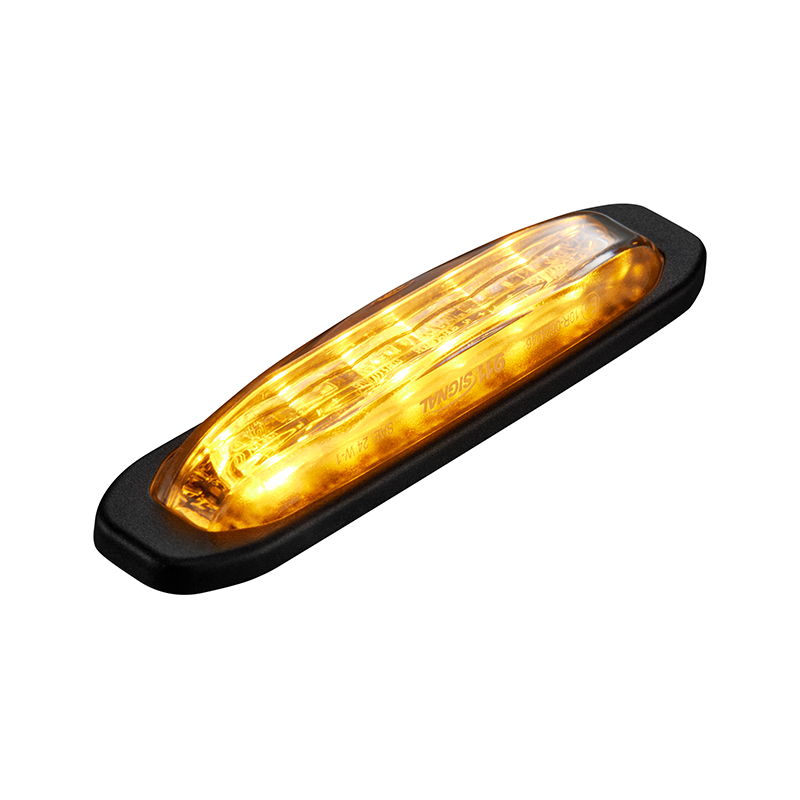

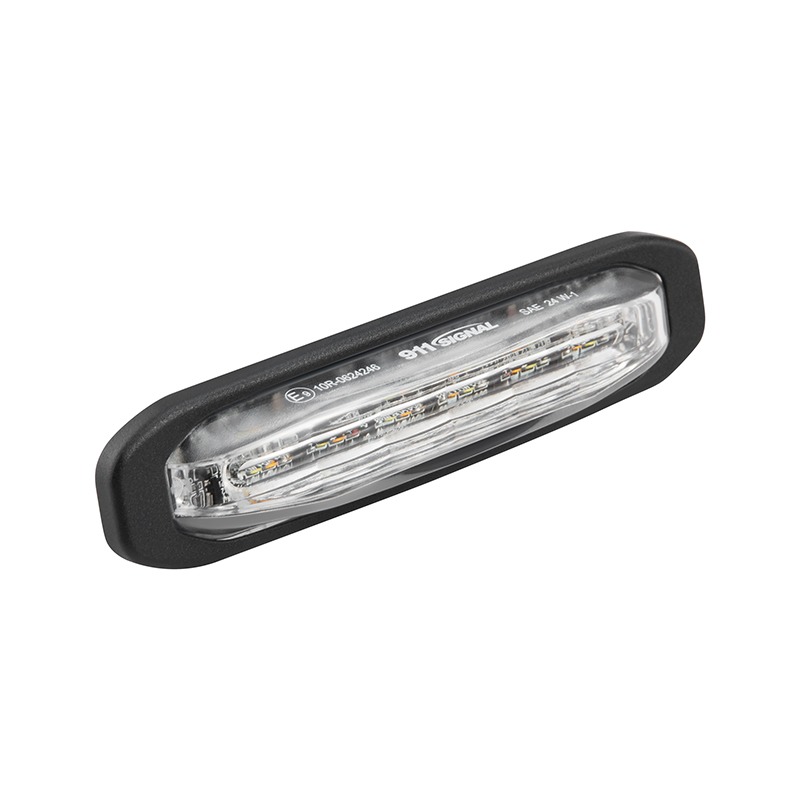

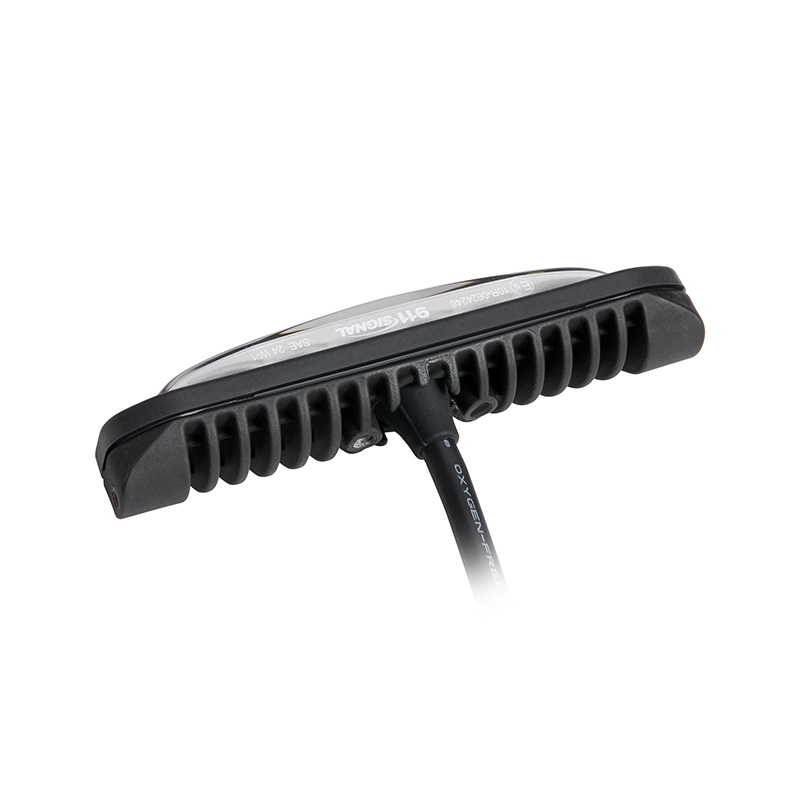

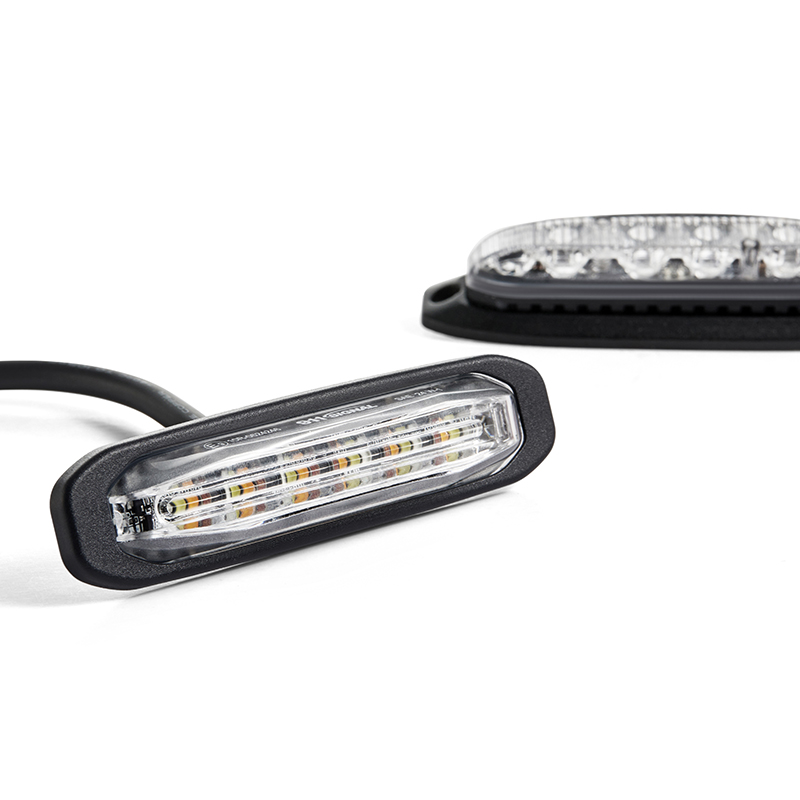

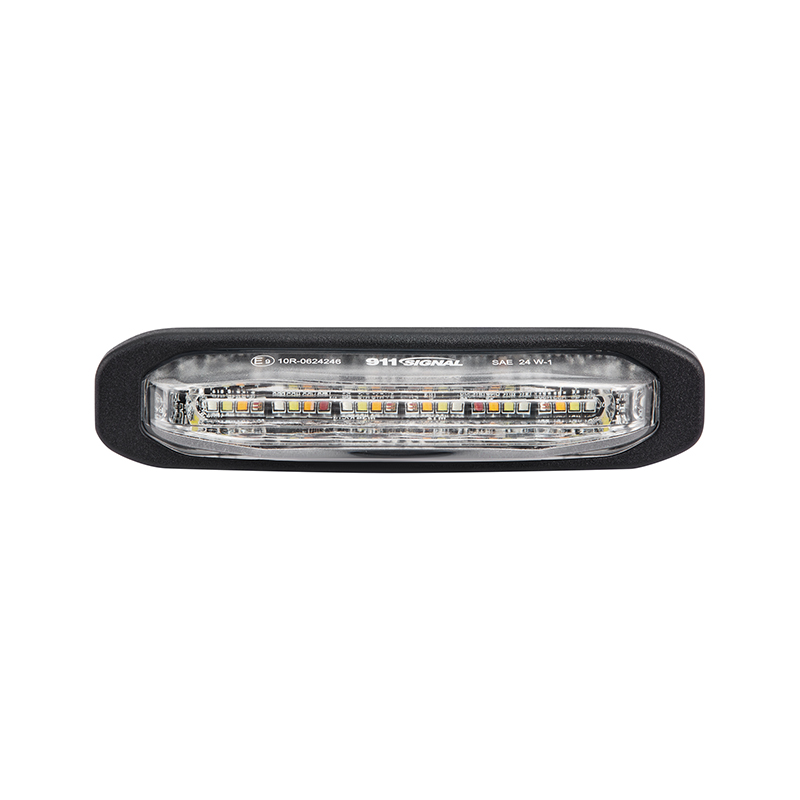

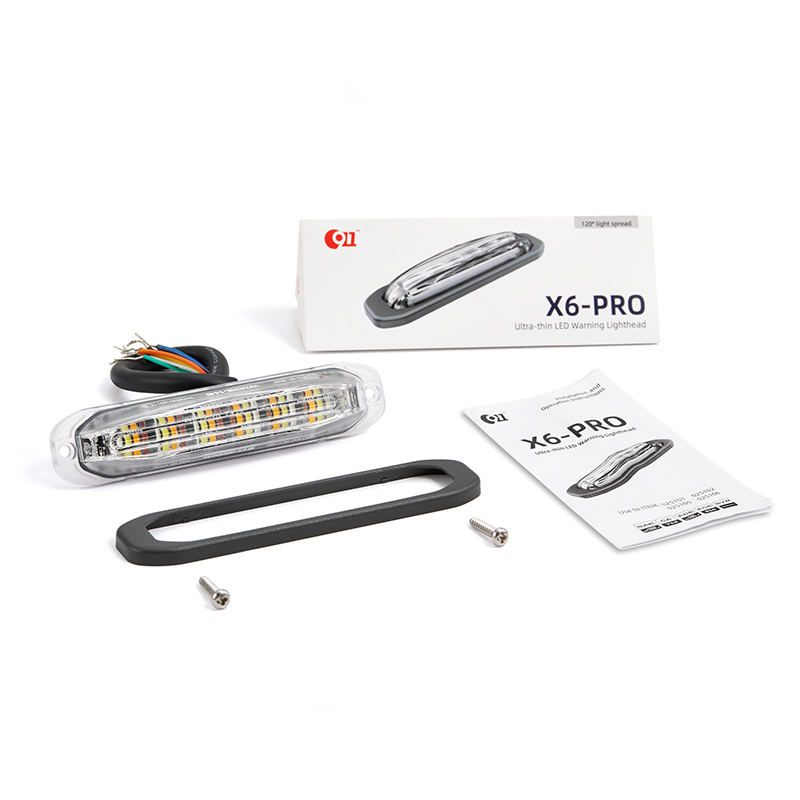

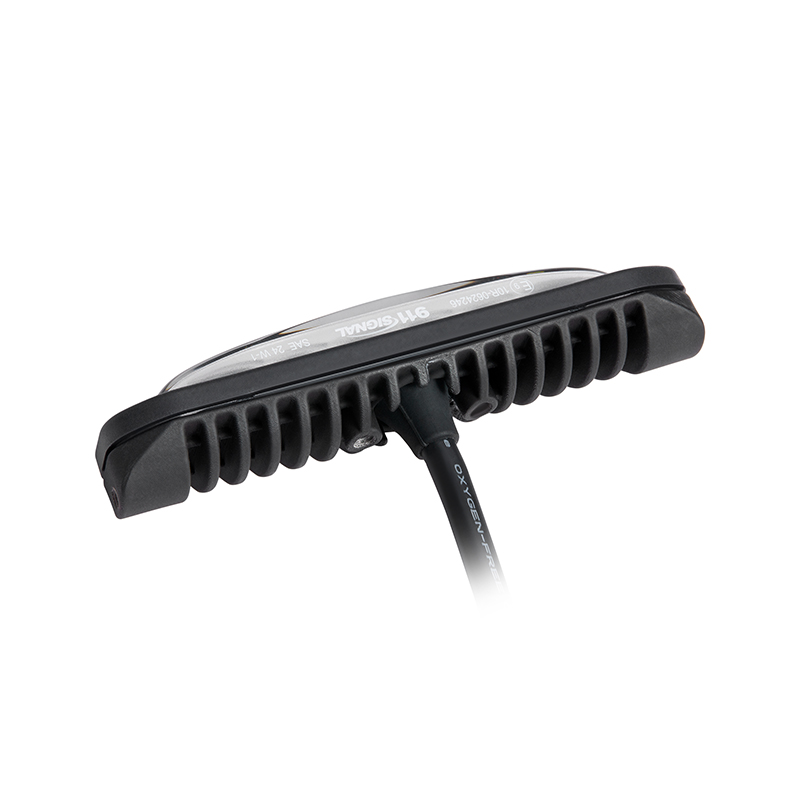

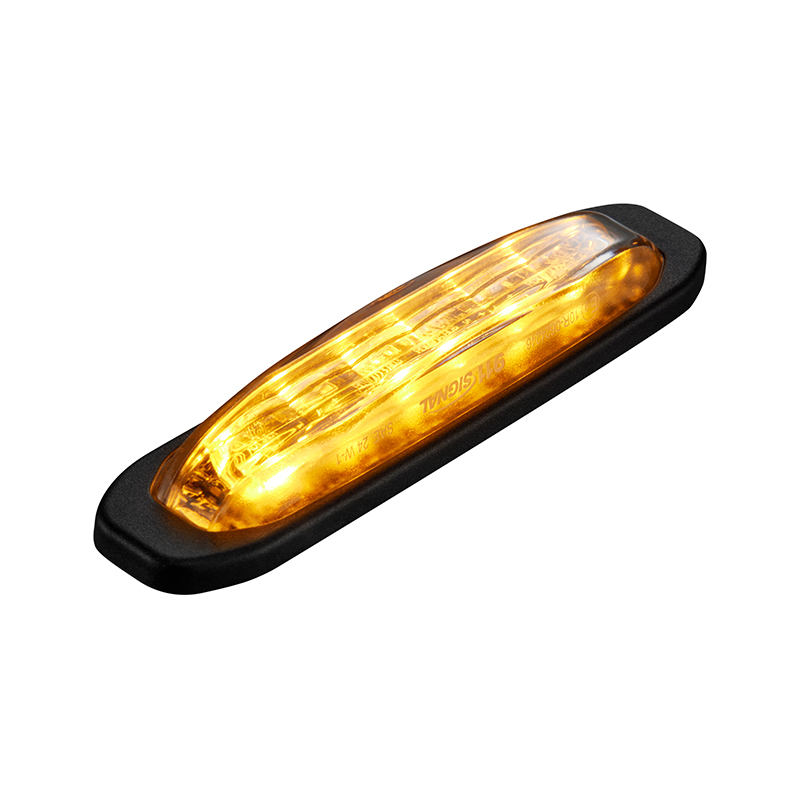

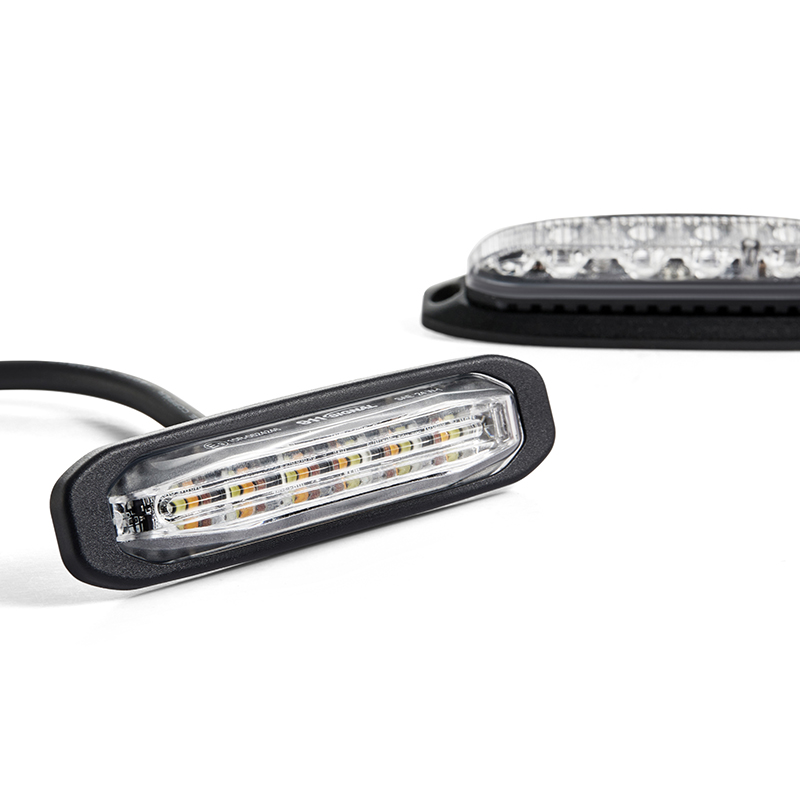

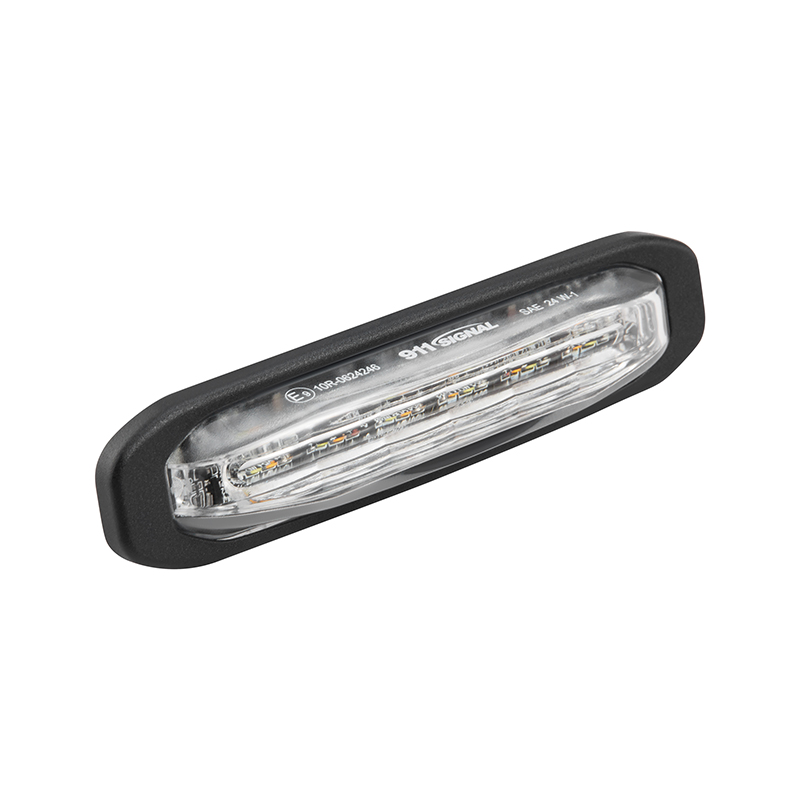

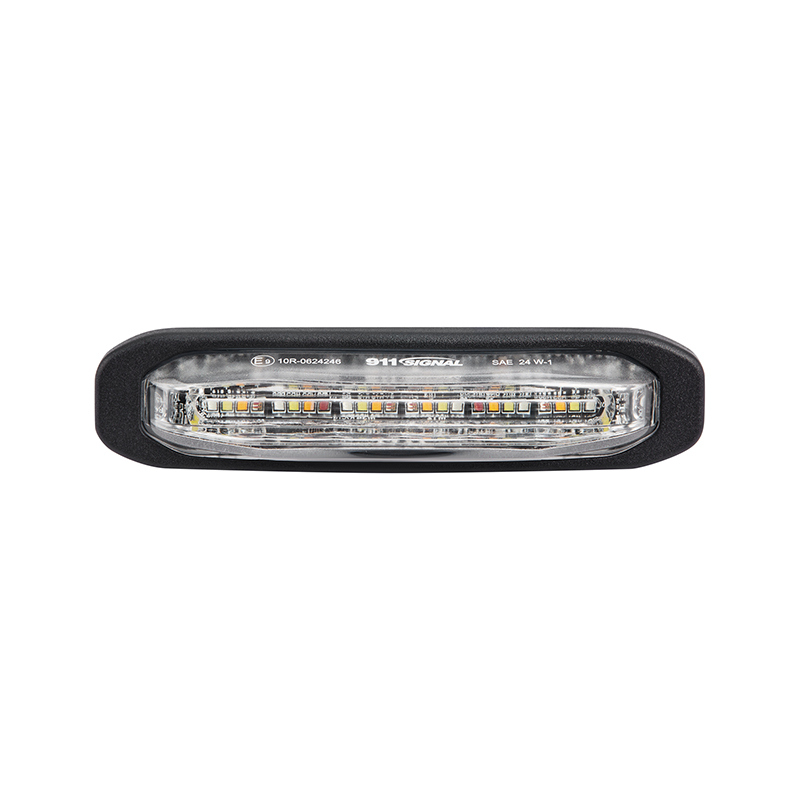

X6 PRO – 120° light spread Ultra-thin LED Warning Lighthead

  • Ultra-thin design with a thickness of only 15mm, suitable for installation on car bodies, bumpers, grilles, hoods, rearview mirrors, etc.
  • Available in single color, dual color, quad color, and segmented color modes
  • 14 flash patterns with synchronized alternating flash function

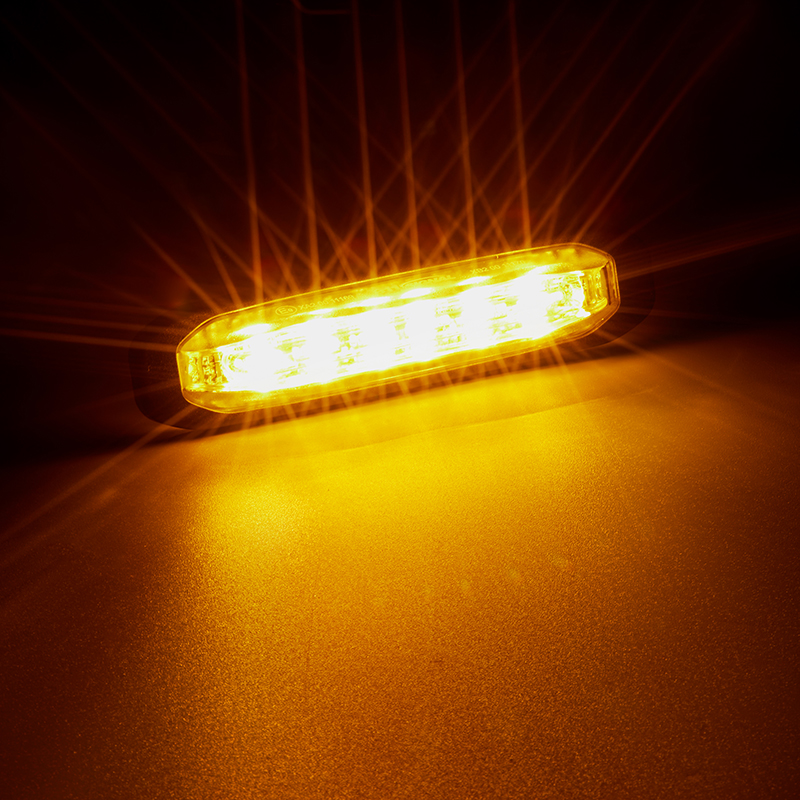

  • Wide-angle illumination up to 120 degrees
  • Includes warning and working light function
  • Fully encapsulated for moisture, vibration, and corrosion resistance
  • Optional smoked lens

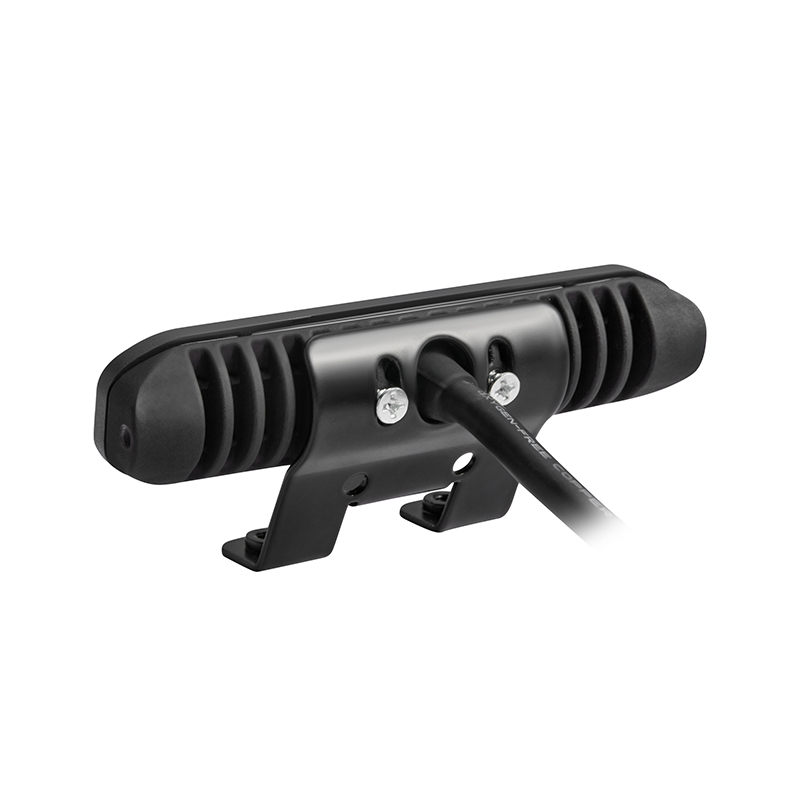

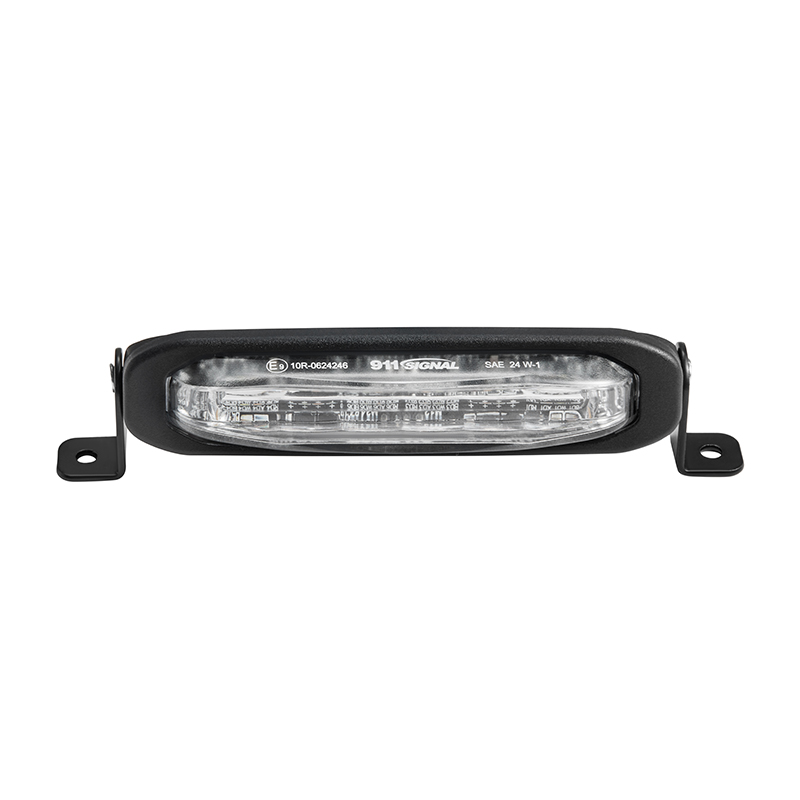

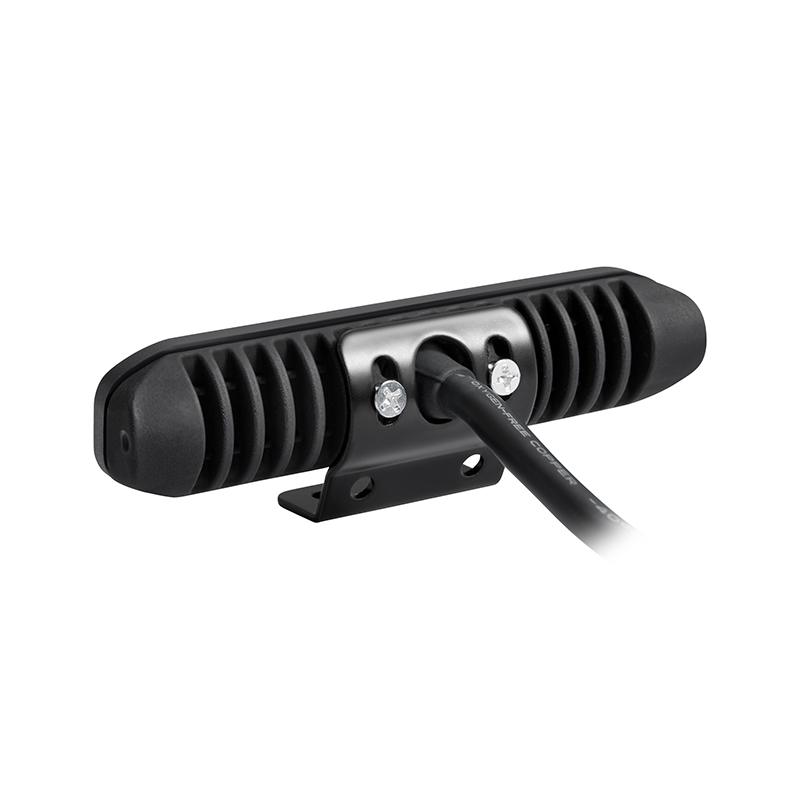

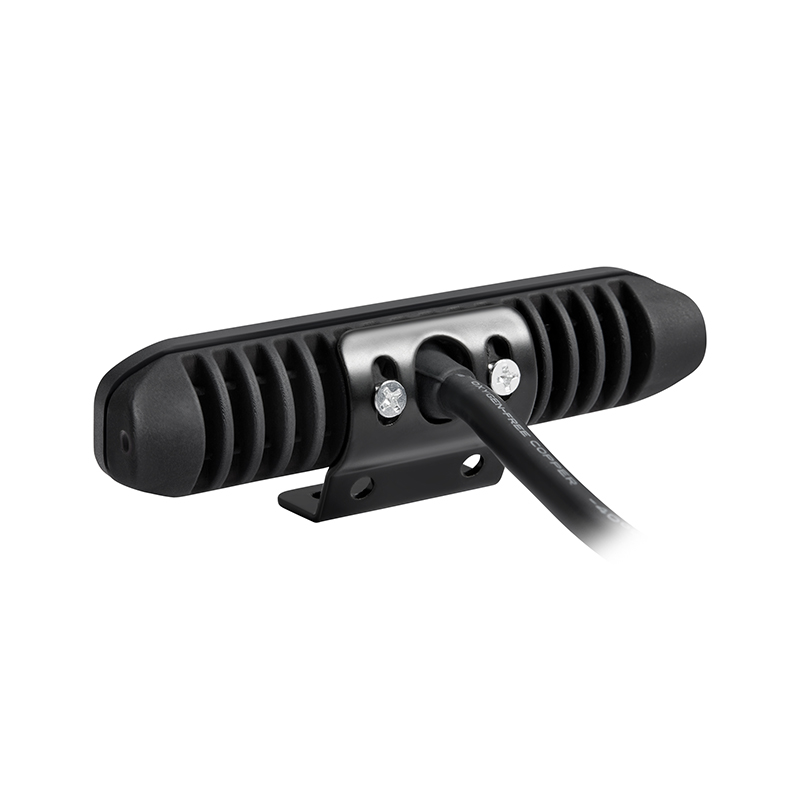

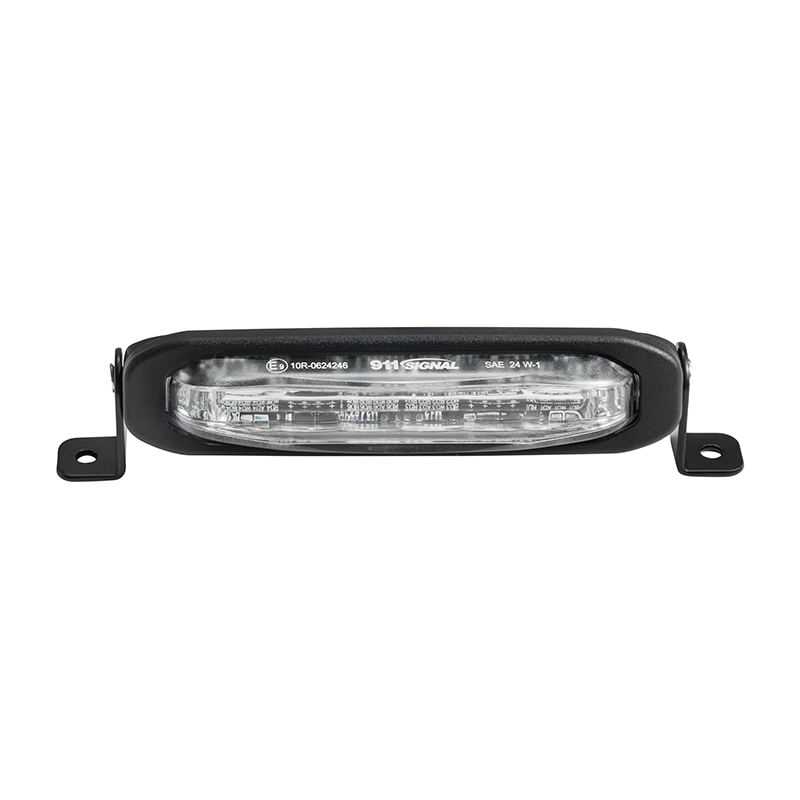

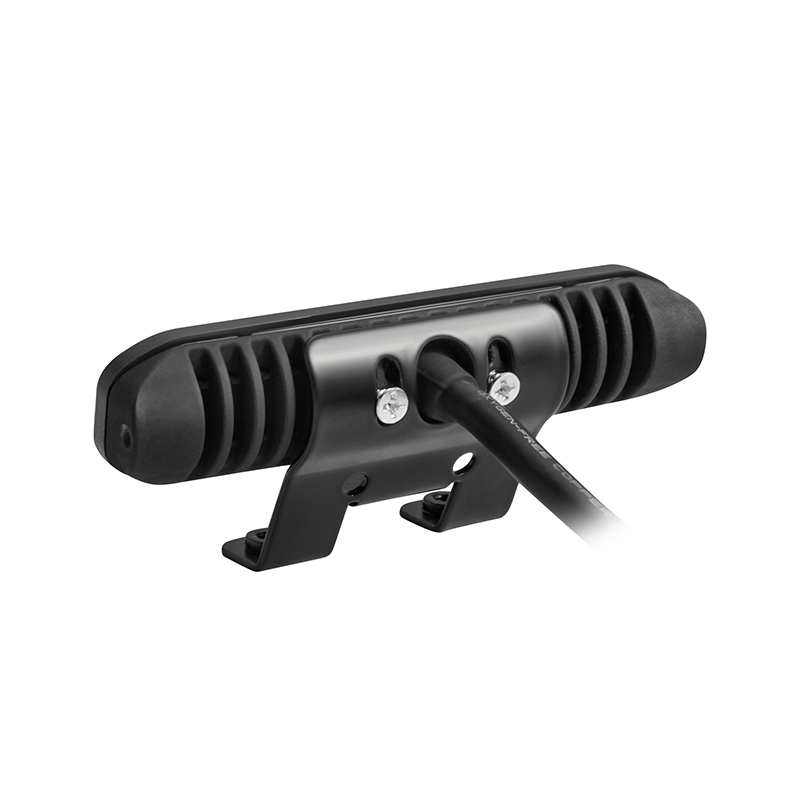

  • Surface mount and bracket mount
  • Quick programming with 4modes
  • IP67+IP69K, -30℃ to +70℃, maintain stable operation
  • Certified to ECE R10, ECE R65 Class 2, SAE J595 Class 1, CA T13
  • 5-year warranty
Get A Quote

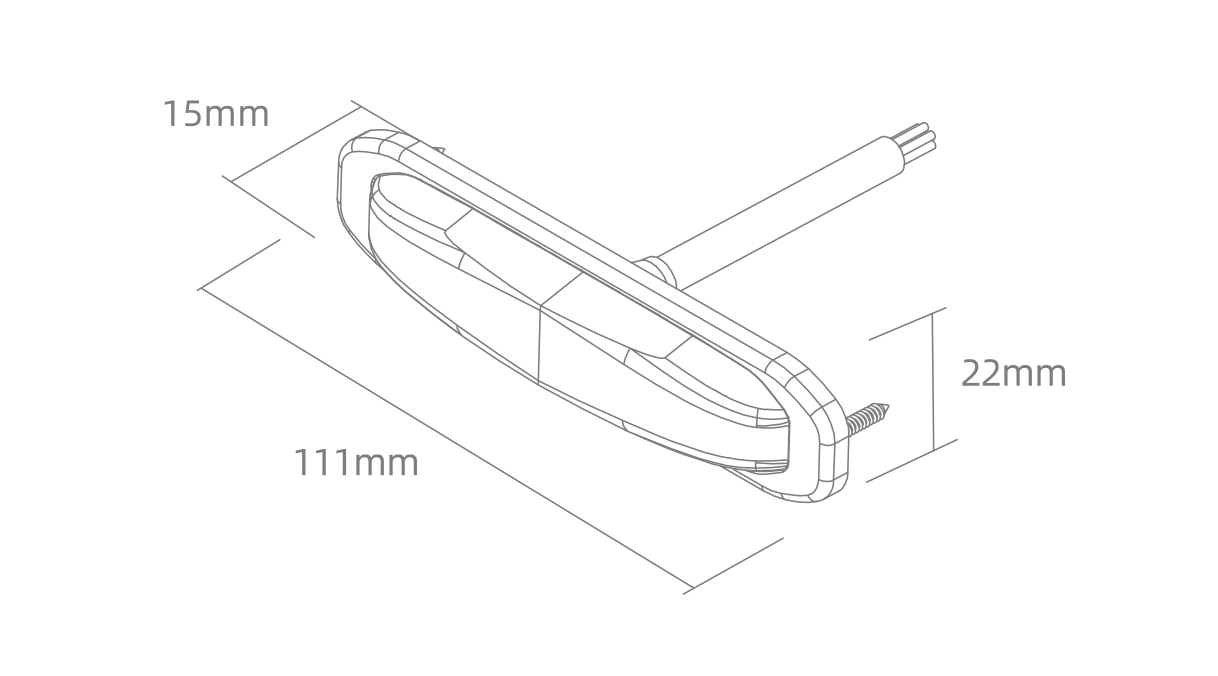

DIMENSIONS

SPECIFICATION

Code：X6-PRO

Voltage：DC10-33V

Color：Single Color/Dual Color/Quad Color

Flash Pattern：14

Function：Working & warning light

IP rating：IP67+IP69K

Operating Temperature： -30℃ ~ +70℃

Certification：ECE R10、ECE R65 XB2/XA2/XR2、SAE J595 class1、CA T13

Mounting：Surface Mount, Bracket Mount

Warranty：5-year

ITEMDESCRIPTION
025106TAWDC10-33V|MAX 10W|110*25*15mm|clear lens|clear lampshade|black base|6 amber LEDs,6 white LEDs|14 flash patterns|screw mount|sheathed cable|6-core wire|IP67\IP69K
025106TRWDC10-33V|MAX 10W|110*25*15mm|clear lens|clear lampshade|black base|6 red LEDs,6 white LEDs|14 flash patterns|screw mount|sheathed cable|6-core wire|IP67\IP69K
025106TARDC10-33V|MAX 10W|110*25*15mm|clear lens|clear lampshade|black base|6 amber LEDs,6 red LEDs|14 flash patterns|screw mount|sheathed cable|6-core wire|IP67\IP69K
025106TBWDC10-33V|MAX 10W|110*25*15mm|clear lens|clear lampshade|black base|6 blue LEDs,6 white LEDs|14 flash patterns|screw mount|sheathed cable|6-core wire|IP67\IP69K
025106TABDC10-33V|MAX 10W|110*25*15mm|clear lens|clear lampshade|black base|6 amber LEDs,6 blue LEDs|14 flash patterns|screw mount|sheathed cable|6-core wire|IP67\IP69K
025106TBRDC10-33V|MAX 10W|110*25*15mm|clear lens|clear lampshade|black base|6 blue LEDs,6 red LEDs|14 flash patterns|screw mount|sheathed cable|6-core wire|IP67\IP69K
025105WDC10-33V|MAX 10W|110*25*15mm|clear lens|clear lampshade|black base|6 white LEDs|14 flash patterns|screw mount|sheathed cable|5-core wire|IP67\IP69K
025105ADC10-33V|MAX 10W|110*25*15mm|clear lens|clear lampshade|black base|6 amber LEDs|14 flash patterns|screw mount|sheathed cable|5-core wire|IP67\IP69K
025105RDC10-33V|MAX 10W|110*25*15mm|clear lens|clear lampshade|black base|6 red LEDs|14 flash patterns|screw mount|sheathed cable|5-core wire|IP67\IP69K
025105BDC10-33V|MAX 10W|110*25*15mm|clear lens|clear lampshade|black base|6 blue LEDs|14 flash patterns|screw mount|sheathed cable|5-core wire|IP67\IP69K
025102TBRAWDC10-33V|MAX 10W|110*25*15mm|clear lens|clear lampshade|black base|6 amber LEDs,6 blue LEDs,6 redr LEDs,6 white LEDs|14 flash patterns|screw mount|sheathed cable|7-core wire|IP67\IP69K
025101TAWDC10-33V|MAX 10W|110*25*15mm|clear lens|clear lampshade|black base|6 amber LEDs,6 white LEDs|14 flash patterns|screw mount|sheathed cable|6-core wire|IP67\IP69K
025101TRWDC10-33V|MAX 10W|110*25*15mm|clear lens|clear lampshade|black base|6 red LEDs,6 white LEDs|14 flash patterns|screw mount|sheathed cable|6-core wire|IP67\IP69K
025101TBWDC10-33V|MAX 10W|110*25*15mm|clear lens|clear lampshade|black base|6 blue LEDs,6 white LEDs|14 flash patterns|screw mount|sheathed cable|6-core wire|IP67\IP69K
025101TBRDC10-33V|MAX 10W|110*25*15mm|clear lens|clear lampshade|black base|6 blue LEDs,6 red LEDs|14 flash patterns|screw mount|sheathed cable|6-core wire|IP67\IP69K
