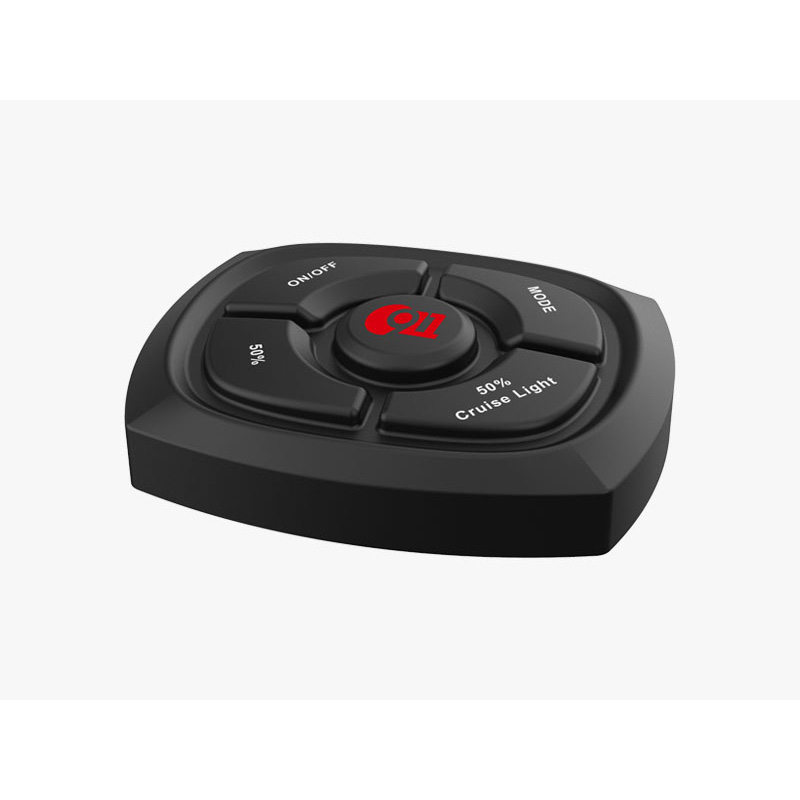

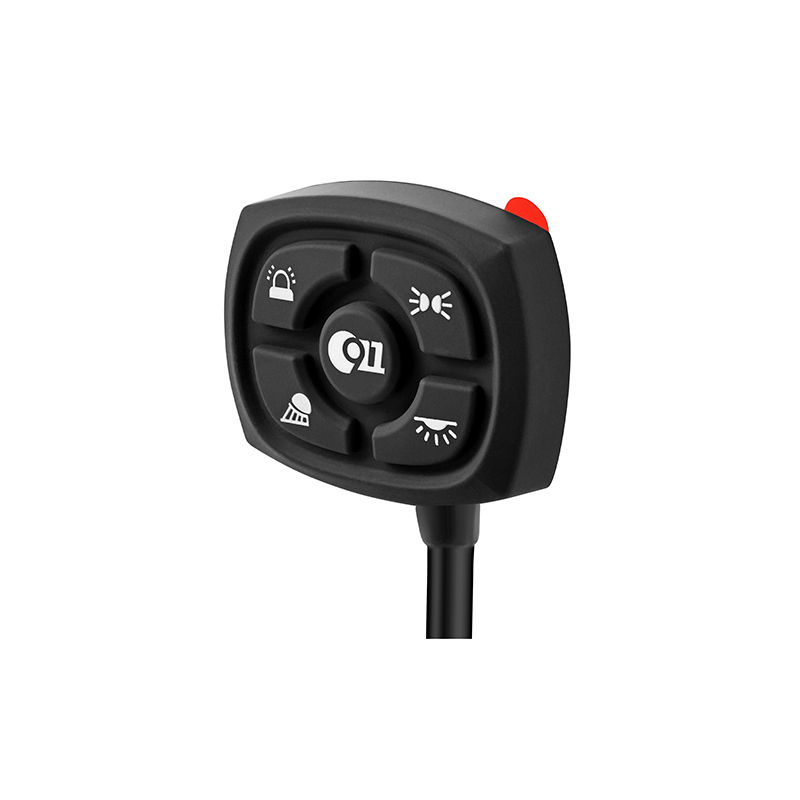

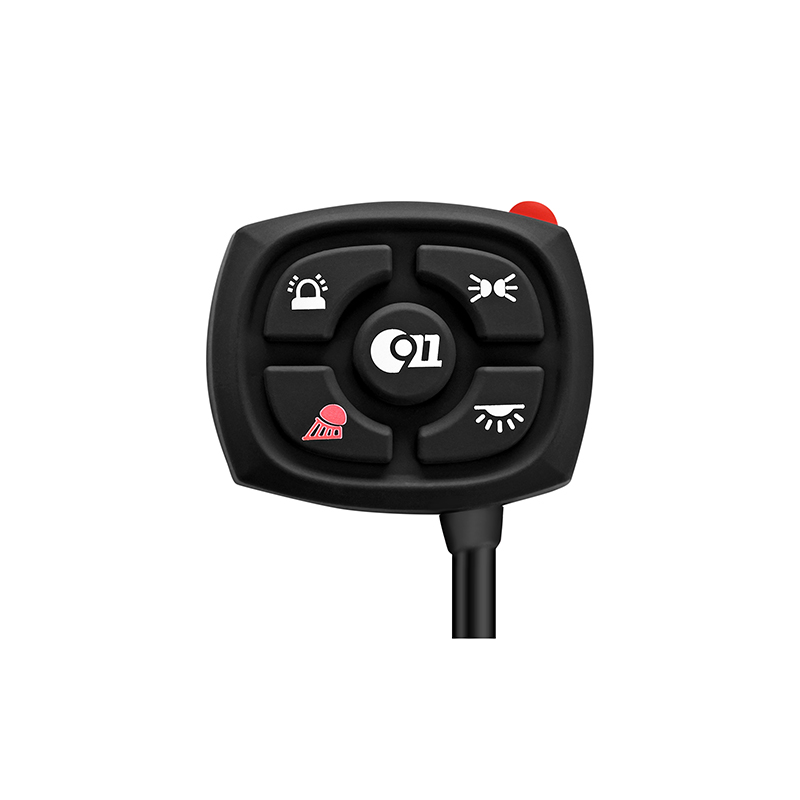

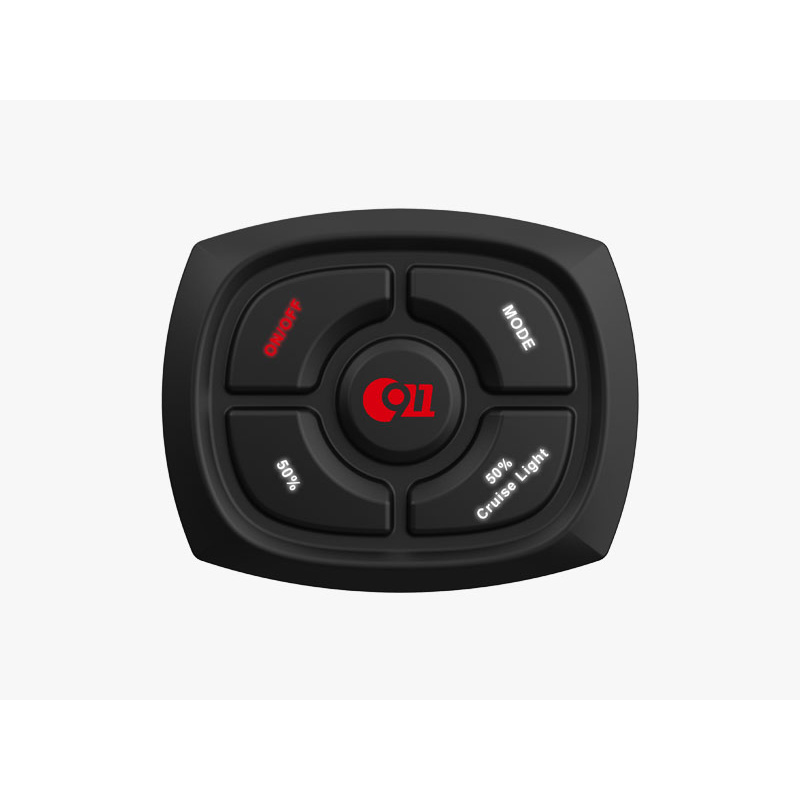

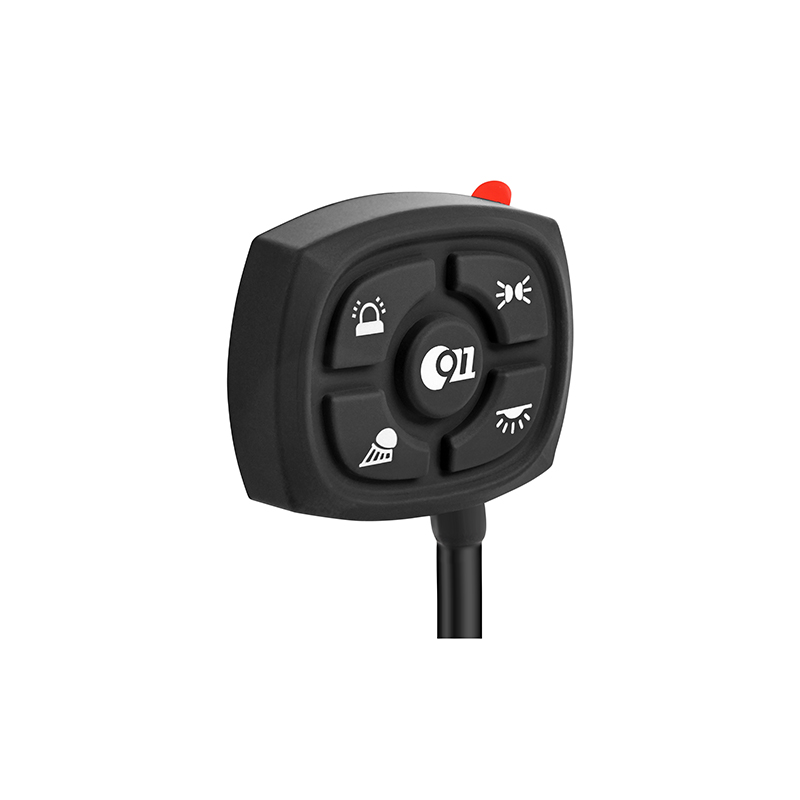

- A compact controller with five buttons, suitable for trucks, agricultural machinery, construction vehicles, service vehicles and special vehicles.
- Silicone shell, smooth touch, wear-resistant, high temperature resistant.
- Equipped with 5 control buttons, button icons can be customized.
- Buttons 1&2 can control high-power devices, with a maximum current of 12A.
- Buttons 3&4 can control low-power devices, and expand load capacity by connecting external relays.
- Compatible with 911Signal products and other brands.

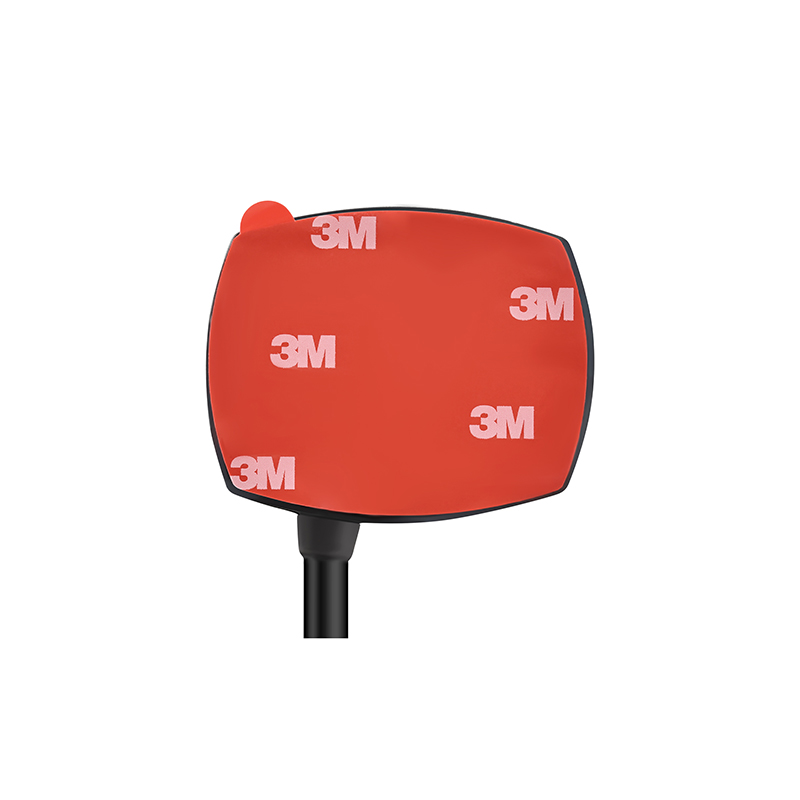

- Installed with 3M adhesive or with bracket, quick and easy installation and removal.
- Equipped with 1 meter long black sheathed wire.
- IP67, IP69K rating
Master5-16A Enhanced Load – 2 electronic power buttons can control MAX 120W
Get A Quote

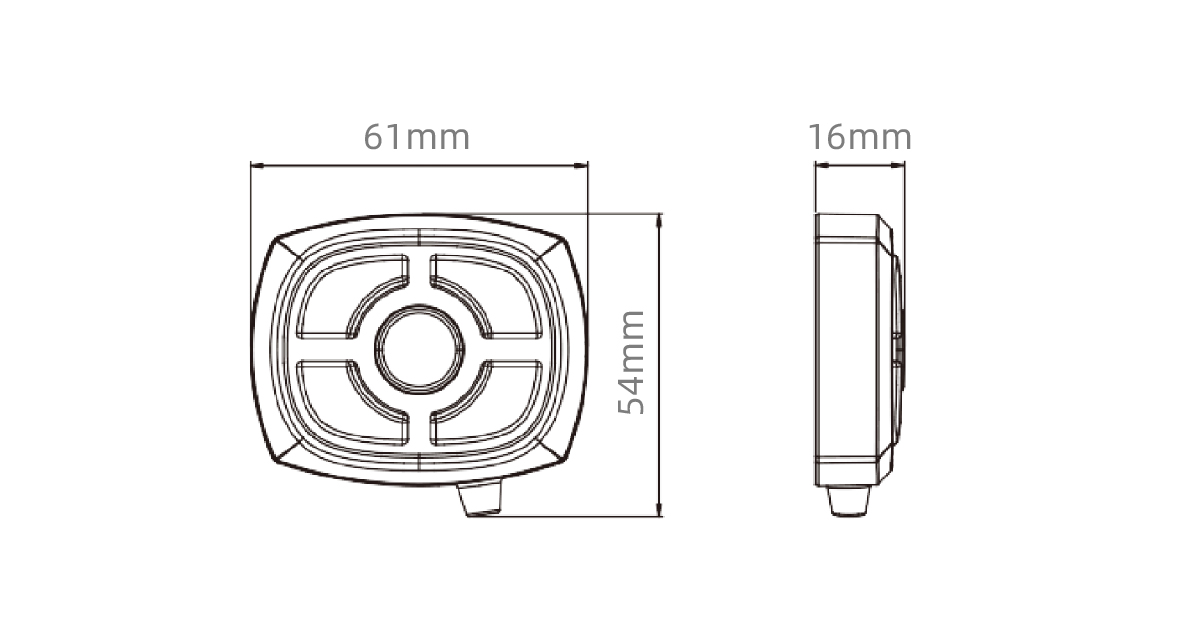

DIMENSIONS
SPECIFICATION
Code：Master5-16A Enhanced Load
Item：031509
Voltage：DC 10-33v
Type：Switch Panel
Output：5 Groups
Load：Yes
Max Current：Max12A(2 Groups) 300mA(3 Groups)
Button：5 Buttons set by yourself
Mount：3M Adhesive,Bracket mount
IP rating：IP67 & IP69K
Warranty：5-year
| ITEM | MODEL | SPECIFICATIONS |
| 031509 | Master5-16A Enhanced Load | DC 10-33V|60.5*50*16MM|Black shell|5 custom buttons|Max 12A (Switches 1 & 2), Max 300mA (Switches 3, 4, & 5)|3M adhesive paste|1-meter long black sheath wire |
| 031501 | Master5 | DC 10-33V|60.5*50*16MM|Black shell|5 custom buttons|No load 5 groups 1 group maximum 300MA, 4 groups maximum 5MA|3M adhesive paste|7-core sheathed wire |
| 031502 | Master5 | DC 10-33V|60.5*50*16MM|Black shell|5 customized buttons|No load 5 groups, 1 group maximum 300MA, 4 groups maximum 5MA|5 customized buttons|3M adhesive stick|7-core sheathed wire Yellow line: sound switching, brown: light ON/OFF, white: night mode, orange: sound 1, purple: sound 2 | Instruction manual B08MAST5X401 |
| 031503 | Master5 | DC 10-33V|60.5*50*16MM|Black shell|5 custom buttons|No load 5 groups, 1 group maximum 300MA, 4 groups maximum 5MA|3M adhesive tape|7-core sheathed wire yellow wire: sound switching, Brown: light ON/OFF, white: air horn, orange: light and siren, purple: crusie|Instruction manual B08MAST5X401 |
| 031504 | Master5 | DC 10-30V|60.5*50*16MM|Black shell|5 custom buttons|No load 5 groups, 1 group maximum 300MA, 4 groups maximum 5MA|3M adhesive paste|7-core sheathed wire |
| 031506 | Master5 | DC 10-30V|60.5*50*16MM|Black shell|5 customized buttons, no pattern|No load 5 groups, 1 group maximum 300MA, 4 groups maximum 5MA|3M adhesive paste|7-core sheathed wire |
| 031508 | Master5 | DC 10-30V|60.5*50*16MM|Black shell|5 custom buttons|No load 5 groups 1 group maximum 300MA, 4 groups maximum 5MA|3M adhesive paste|8-core connector KST3208A1004|7-core sheathed wire |
