- Silicone light strips for internal or external illumination, ideal for transport vehicles and tool carts.
- From a minimum of 330mm to a maximum of 10,000mm.
- Options for single-color and dual-color models, with colors including blue, yellow, red, cool white, and warm white.
- Can be directly installed (12V/24V) or with aswitch (10-33V).
- Made from silicone material, suitable for curved surfaces, and resistant to wear and corrosion.

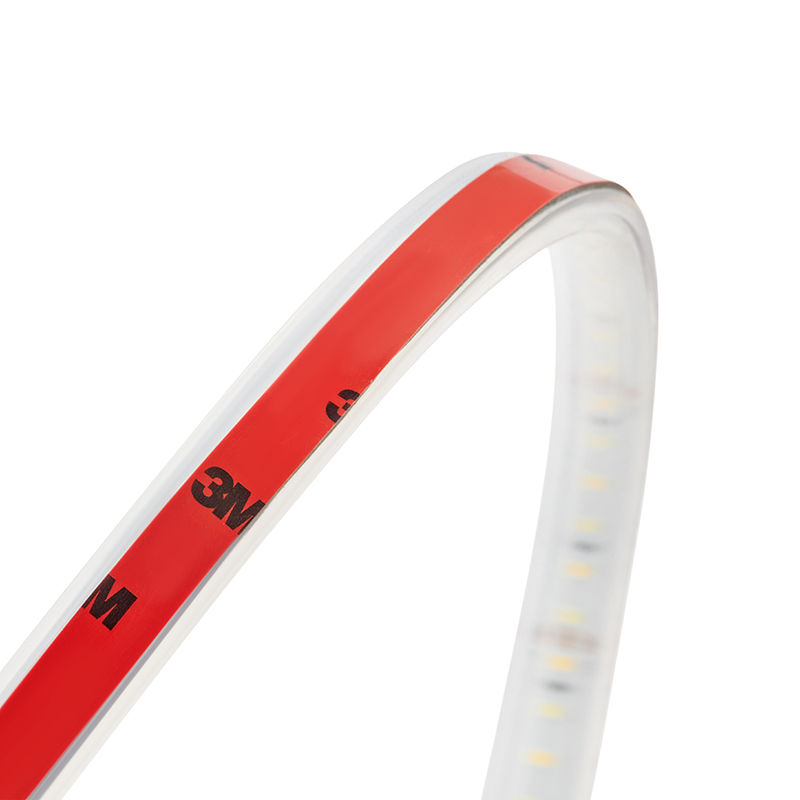

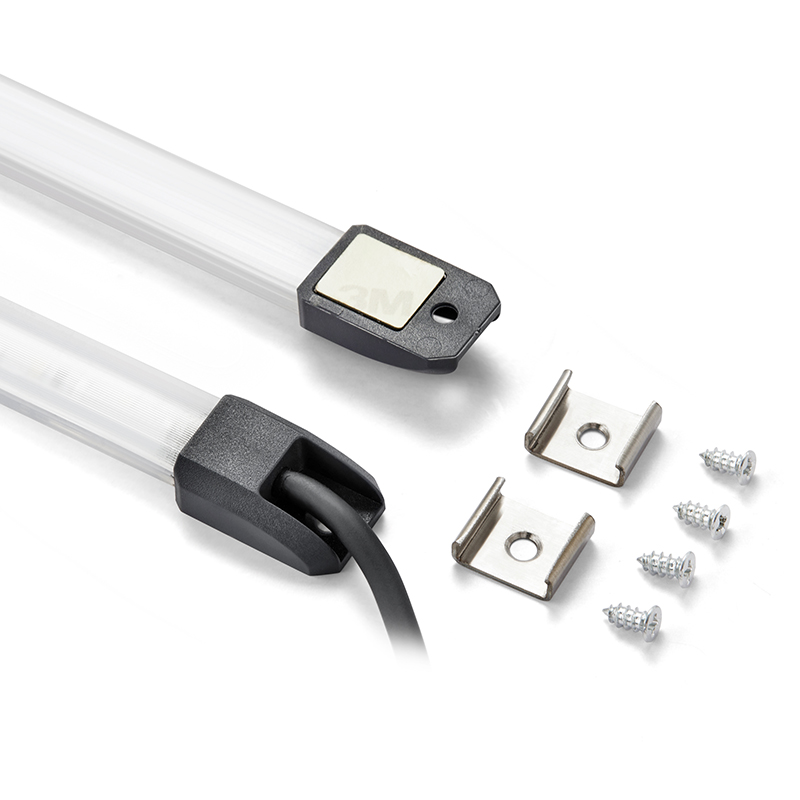

- Installation options include 3M adhesive, screw or metal brackets.

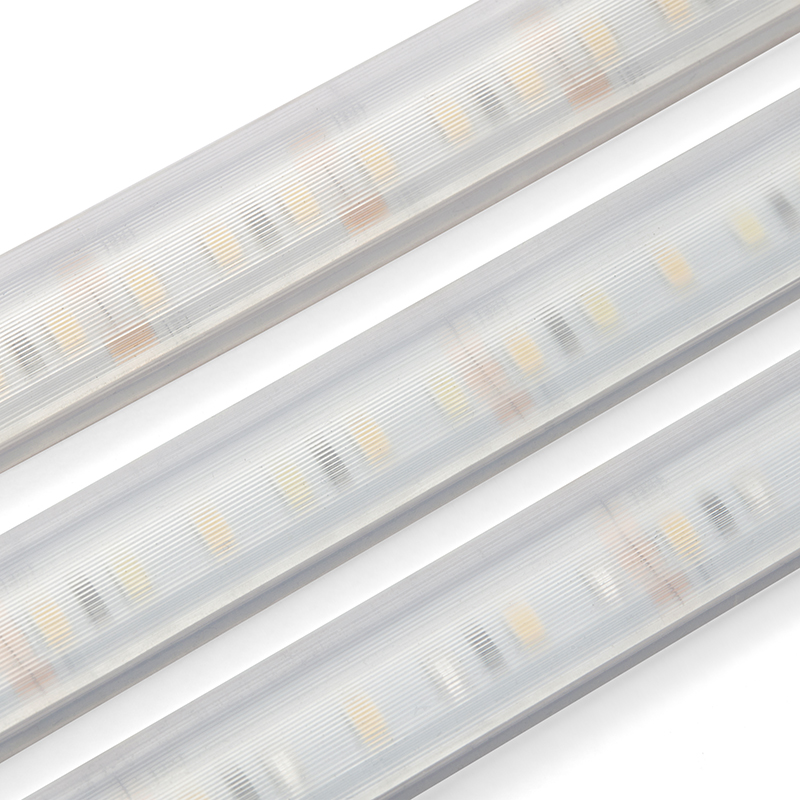

- The lampshade features a 3D striped design for even light distribution.
- 5 years warranty
- IP67+69K·ECE R10
Gecko—Silicone LED Light Strip
Get A Quote
DIMENSIONS
SPECIFICATION
Mode：GECKO——without switch
Dimensions（LxWxH）：X*20*11mm
Mounting：3M adhesive surface mounting/Bracket mounting/Screw mounting
Temperature：-30°C to +70°C
IP Rating：IP69K
Certification：ECE R10
Warranty：5-year
| ITEM | Description | |||||
| 170101W | DC 12V, Single-color | 350mm, Warm White(4000K) | DC 12V|MAX 5W|350×20×11mm|silicone cover|36 white LEDs|450LM|4000K|screw mount、3M adhesive mount|1M sheathed cable|2-core wire|IP69K | |||
| 170102W | 500mm, Warm White(4000K) | DC 12V|MAX 8.5W|500×20×11mm|silicone cover|54 white LEDs|750LM|4000K|screw mount、3M adhesive mount|1M sheathed cable|2-core wire|IP69K | ||||
| 170103W | 1000mm, Warm White(4000K) | DC 12V|MAX 18W|1000×20×11mm|silicone cover|114 white LEDs|1500LM|4000K|screw mount、3M adhesive mount|1M sheathed cable|2-core wire|IP69K | ||||
| 170104W | 2000mm, Warm White(4000K) | DC 12V|MAX 37W|2000×20×11mm|silicone cover|234 white LEDs|3120LM|4000K|bracket with screw mount、3M adhesive mount|1M sheathed cable|2-core wire|IP69K | ||||
| 170105W | 3000mm, Warm White(4000K) | DC 12V|MAX 56W|3000×20×11mm|silicone cover|354 white LEDs|4500LM|4000K|bracket with screw mount、3M adhesive mount|1M sheathed cable|2-core wire|IP69K | ||||
| 170106W | 5000mm, Warm White(4000K) | DC 12V|MAX 94W|5000×20×11mm|silicone cover|594 white LEDs|7500LM|4000K|bracket with screw mount、3M adhesive mount|1M sheathed cable|2-core wire|IP69K | ||||
| 170107W | DC 24V, Single-color | 350mm, Warm White(4000K) | DC 24V|MAX 5W|350×20×11mm|silicone cover|36 white LEDs|450LM|4000K|screw mount、3M adhesive mount|1M sheathed cable|2-core wire|IP69K | |||
| 170108W | 500mm, Warm White(4000K) | DC 24V|MAX 8.5W|500×20×11mm|silicone cover|54 white LEDs|750LM|4000K|screw mount、3M adhesive mount|1M sheathed cable|2-core wire|IP69K | ||||
| 170109W | 1000mm, Warm White(4000K) | DC 24V|MAX 18W|1000×20×11mm|silicone cover|114 white LEDs|1500LM|4000K|screw mount、3M adhesive mount|1M sheathed cable|2-core wire|IP69K | ||||
| 170110W | 2000mm, Warm White(4000K) | DC 24V|MAX 37W|2000×20×11mm|silicone cover|234 white LEDs|3000LM|4000K|bracket with screw mount、3M adhesive mount|1M sheathed cable|2-core wire|IP69K | ||||
| 170111W | 3000mm, Warm White(4000K) | DC 24V|MAX 56W|3000×20×11mm|silicone cover354 white LEDs|4500LM|4000K|bracket with screw mount、3M adhesive mount|1M sheathed cable|2-core wire|IP69K | ||||
| 170112W | 5000mm, Warm White(4000K) | DC 24V|MAX 94W|5000×20×11mm|silicone cover|594 white LEDs|7500LM|4000K|bracket with screw mount、3M adhesive mount|1M sheathed cable|2-core wire|IP69K | ||||
| 170113W | 10000mm, Warm White(4000K) | DC 24V|MAX 189W|10000×20×11mm|silicone cover|1194 white LEDs|15000LM|4000K|bracket with screw mount、3M adhesive mount|1M sheathed cable|2-core wire|IP69K | ||||
| 170114TAW | DC 12V, Dual-color | 1050mm, Amber and Warm White(4000K) | DC 12V|MAX 7.5W(A)/9.5W(WW)|1050×20×11mm|silicone cover|60 amber LEDs, 60 white LEDs|700LM|585-595nm(A)/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | |||
| 170114TBW | 1050mm, Blue and Warm White(4000K) | DC 12V|MAX 7.5W(B)/9.5W(WW)|1050×20×11mm|silicone cover|60 blue LEDs, 60 white LEDs|700LM|465-485nm(B)/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170114TRW | 1050mm, Red and Warm White(4000K) | DC 12V|MAX 7.5W(R)/9.5W(WW)|1050×20×11mm|silicone cover|60 red LEDs, 60 white LEDs|700LM|620-630nm(R)/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170114TWW | 1050mm, Cool White and Warm White（6000K, 4000K) | DC 12V|MAX 7.5W(CW)/9.5W(WW)|1050×20×11mm|silicone cover|120 white LEDs|550LM(CW)/700LM(WW)|6000K/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170115TAW | 2050mm, Amber and Warm White(4000K) | DC 12V|MAX 15W(A)/19W(WW)|2050×20×11mm|silicone cover|120 amber LEDs, 120 white LEDs|1400LM|585-595nm(A)/4000K|bracket with screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170115TBW | 2050mm, Blue and Warm White(4000K) | DC 12V|MAX 15W(B)/19W(WW)|2050×20×11mm|silicone cover|120 blue LEDs, 120 white LEDs|1400LM|465-485nm(B)/4000K|bracket with screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170115TRW | 2050mm, Red and Warm White(4000K) | DC 12V|MAX 15W(R)/19W(WW)|2050×20×11mm|silicone cover|120 red LEDs, 120 white LEDs|1400LM|620-630nm(R)/4000K|bracket with screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170115TWW | 2050mm, Cool White and Warm White（6000K, 4000K) | DC 12V|MAX 15W(CW)/19W(WW)|2050×20×11mm|silicone cover|240 white LEDs|1100LM(CW)/1400LM(WW)|6000K/4000K|bracket with screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170116TAW | DC 24V, Dual-color | 1050mm, Amber and Warm White(4000K) | DC 24V|MAX 7.5W(A)/9.5W(WW)|1050×20×11mm|silicone cover|60 amber LEDs, 60 white LEDs|700LM|585-595nm(A)/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | |||
| 170116TBW | 1050mm, Blue and Warm White(4000K) | DC 24V|MAX 7.5W(B)/9.5W(WW)|1050×20×11mm|silicone cover|60 blue LEDs, 60 white LEDs|700LM|465-485nm(B)/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170116TRW | 1050mm, Red and Warm White(4000K) | DC 24V|MAX 7.5W(R)/9.5W(WW)|1050×20×11mm|silicone cover|60 red LEDs, 60 white LEDs|700LM|620-630nm(R)/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170116TWW | 1050mm, Cool White and Warm White（6000K, 4000K) | DC 24V|MAX 7.5W(CW)/9.5W(WW)|1050×20×11mm|silicone cover|120 white LEDs|550LM(CW)/700LM(WW)|6000K/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170117TAW | 2050mm, Amber and Warm White(4000K) | DC 24V|MAX 15W(A)/19W(WW)|2050×20×11mm|silicone cover|120 amber LEDs, 120 white LEDs|1400LM|585-595nm(A)/4000K|bracket with screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170117TBW | 2050mm, Blue and Warm White(4000K) | DC 24V|MAX 15W(B)/19W(WW)|2050×20×11mm|silicone cover|120 blue LEDs, 120 white LEDs|1400LM|465-485nm(B)/4000K|bracket with screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170117TRW | 2050mm, Red and Warm White(4000K) | DC 24V|MAX 15W(R)/19W(WW)|2050×20×11mm|silicone cover|120 red LEDs, 120 white LEDs|1400LM|620-630nm(R)/4000K|bracket with screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170117TWW | 2050mm, Cool White and Warm White（6000K, 4000K) | DC 24V|MAX 7.5W(CW)/19W(WW)|2050×20×11mm|silicone cover|240 white LEDs|1100LM(CW)/1400LM(WW)|6000K/4000K|bracket with screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170301W | DC 10-33V, Single-color | 390mm, Warm White(4000K) | DC 10-33V|MAX 5W|390×20×11mm|silicone cover|36 white LEDs|500LM|4000K|screw mount、3M adhesive mount|1M sheathed cable|2-core wire|IP69K | |||
| 170302W | 540mm, Warm White(4000K) | DC 10-33V|MAX 7.5W|540×20×11mm|silicone cover|54 white LEDs|800LM|4000K|screw mount、3M adhesive mount|1M sheathed cable|2-core wire|IP69K | ||||
| 170303W | 1040mm, Warm White(4000K) | DC 10-33V|MAX 15W|1040×20×11mm|silicone cover|114 white LEDs|1600LM|4000K|screw mount、3M adhesive mount|1M sheathed cable|2-core wire|IP69K | ||||
| 170304TAW | DC 10-33V, Dual-color | 390mm, Amber and Warm White(4000K) | DC 10-33V|MAX 2.5W(A)/2.5W(WW)|390×20×11mm|silicone cover|18 amber LEDs, 18 white LEDs|200LM|585-595nm(A)/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | |||
| 170304TBW | 390mm, Blue and Warm White(4000K) | DC 10-33V|MAX 2.5W(B)/2.5W(WW)|390×20×11mm|silicone cover|18 blue LEDs, 18 white LEDs|200LM|465-485nm(B)/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170304TRW | 390mm, Red and Warm White(4000K) | DC 10-33V|MAX 2W(R)/2.5W(WW)|390×20×11mm|silicone cover|18 red LEDs, 18 white LEDs|200LM|620-630nm(R)/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170304TWW | 390mm, Cool White and Warm White(6000K, 4000K) | DC 10-33V|MAX 2.5W(CW)/2.5W(WW)|390×20×11mm|silicone cover|36 white LEDs|150LM(CW)/200LM(WW)|6000K/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170305TAW | 540mm, Amber and Warm White(4000K) | DC 10-33V|MAX 3.6W(A)/3.6W(WW)|540×20×11mm|silicone cover|27 amber LEDs, 27 white LEDs|350LM|585-595nm(A)/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170305TBW | 540mm, Blue and Warm White(4000K) | DC 10-33V|MAX 3.6W(B)/3.6W(WW)|540×20×11mm|silicone cover|27 blue LEDs, 27 white LEDs|350LM|465-485nm(B)/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170305TRW | 540mm, Red and Warm White(4000K) | DC 10-33V|MAX 3W(R)/3.6W(WW)|540×20×11mm|silicone cover|27 red LEDs, 27 white LEDs|350LM|620-630nm(R)/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170305TWW | 540mm, Cool White and Warm White(6000K, 4000K) | DC 10-33V|MAX 3.6W(CW)/3.6W(WW)|540×20×11mm|silicone cover|54 white LEDs|280LM(CW)/350LM(WW)|6000K/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170306TAW | 1040mm, Amber and Warm White(4000K) | DC 10-33V|MAX 7.5W(A)/7.5W(WW)|1040×20×11mm|silicone cover|silicone base|57 amber LEDs, 57 white LEDs|700LM|585-595nm(A)/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170306TBW | 1040mm, Blue and Warm White(4000K) | DC 10-33V|MAX 7.5W(B)/7.5W(WW)|1040×20×11mm|silicone cover|57 blue LEDs, 57 white LEDs|700LM|465-485nm(B)/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170306TRW | 1040mm, Red and Warm White(4000K) | DC 10-33V|MAX 6W(R)/7.5W(WW)|1040×20×11mm|silicone cover|57 red LEDs, 57 white LEDs|700LM|620-630nm(R)/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
| 170306TWW | 1040mm, Cool White and Warm White(6000K, 4000K) | DC 10-33V|MAX 7.5W(CW)/7.5W(WW)|1040×20×11mm|silicone cover|114 white LEDs|550LM(CW)/700LM(WW)|6000K/4000K|screw mount、3M adhesive mount|1M sheathed cable|4-core wire|IP69K | ||||
