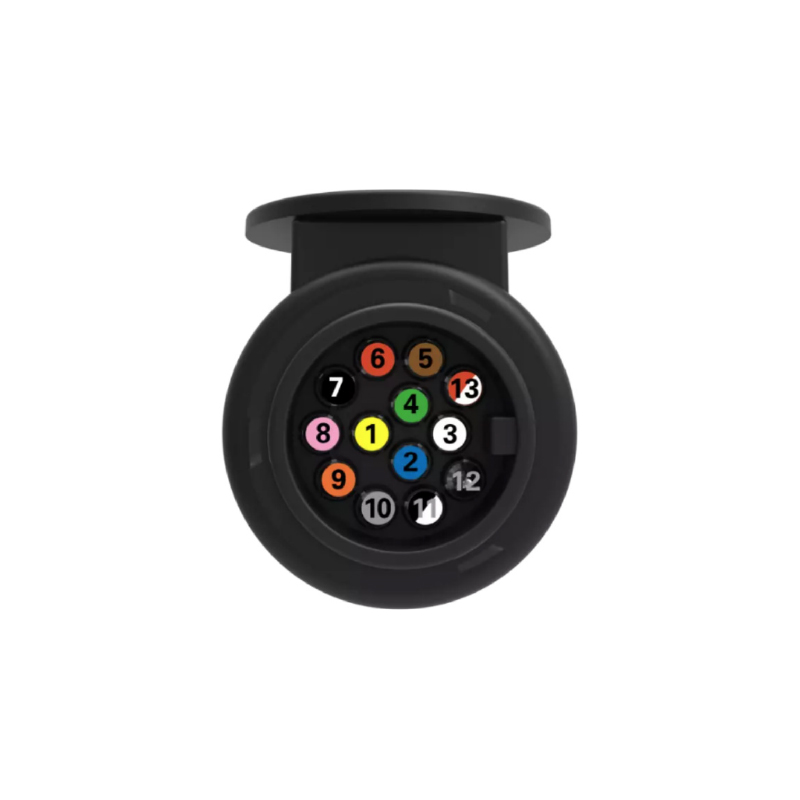

- 13-pin connector, physical design complies with ISO 11446 regulations
- Composite material is used on the outside of the connector to improve product strength, and brass/nickel is used on the inside

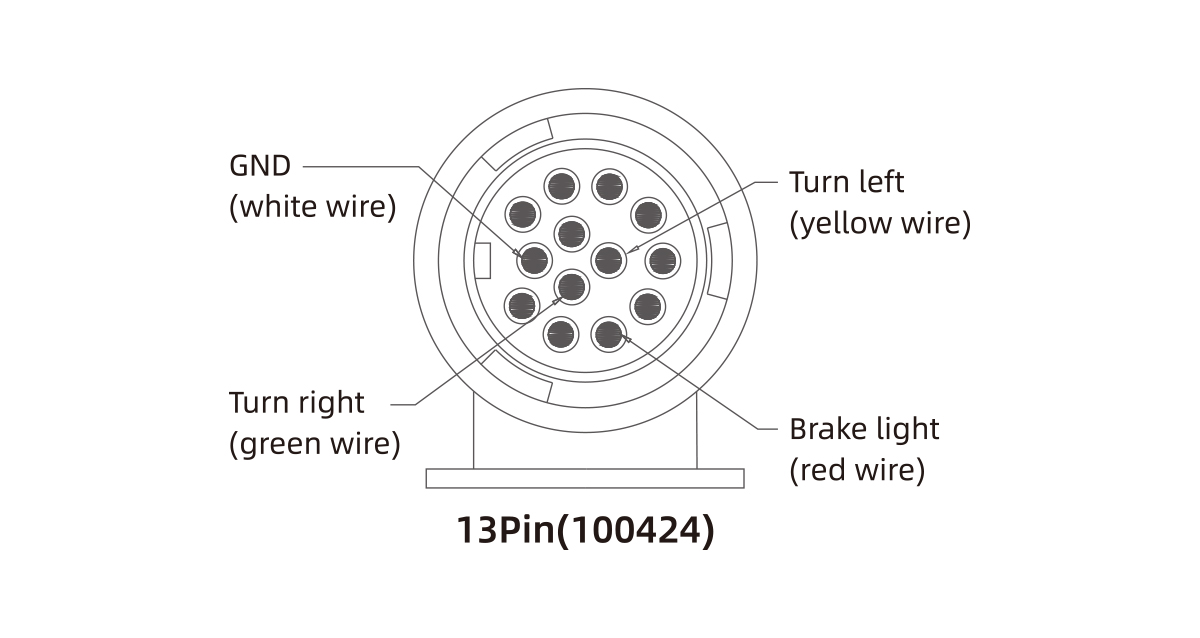

- Harness description: No. 1 yellow-left turn; No. 4 green-right turn; No. 6 red-brake light; No. 5/7 brown/black-tail light; No. 3 white-GND
- Connector that transmits radio signals from the tractor to the device
- This combination module is suitable for light trailers (12V) or heavy trailers (24V)
- IP66+IP69K meets most usage scenarios
Connector & Transmitter Combination Module（100424）
Get A Quote
DIMENSIONS
SPECIFICATION
item：100424
mode：Connector & Transmitter Combination Module
voltage: 12V/24V
function: No. 1 yellow-left turn; No. 4 green-right turn; No. 6 red-brake light; No. 5/7 brown/black-tail light; No. 3 white-GND
