Accurately achieve installation angles of 30°, 45°, 60°, and 90°, and the bracket can be adjusted within a range of ±10°

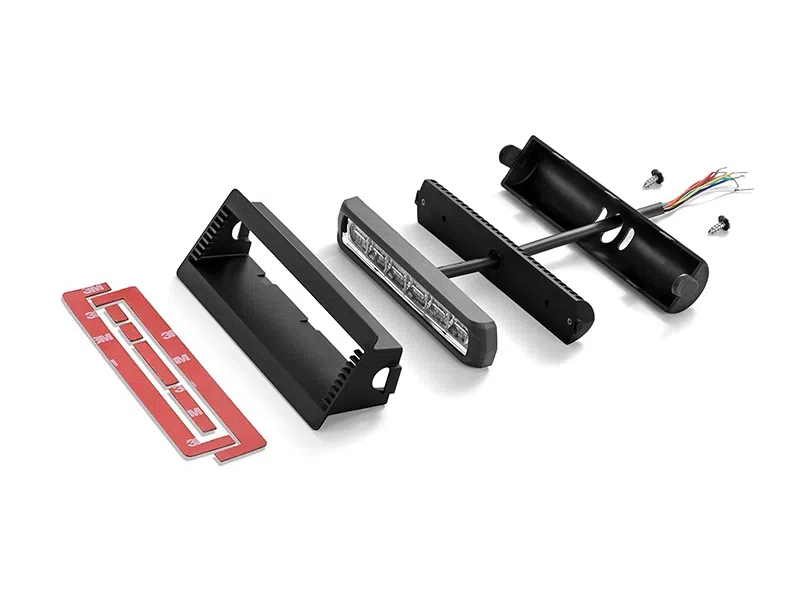

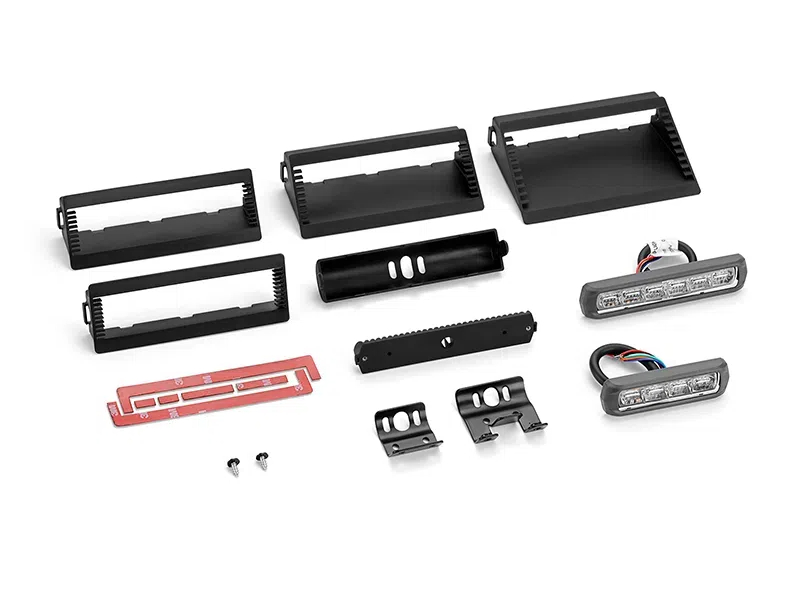

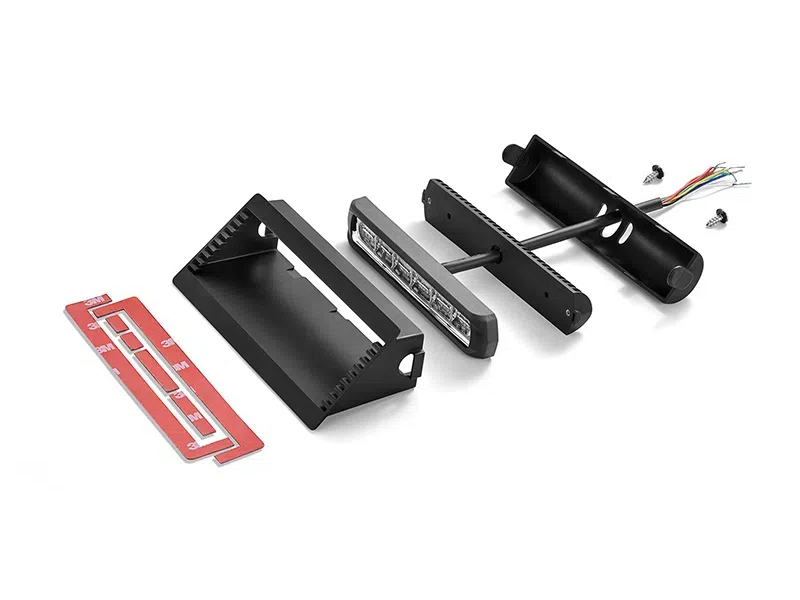

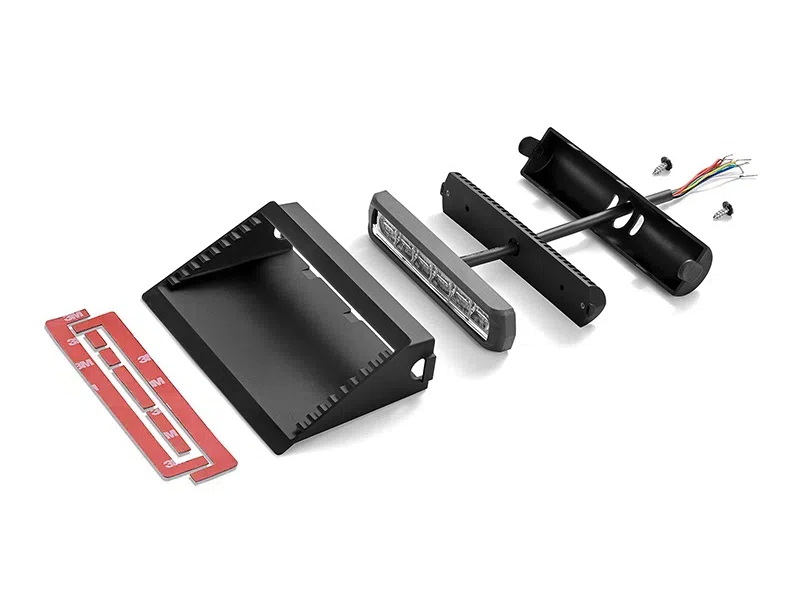

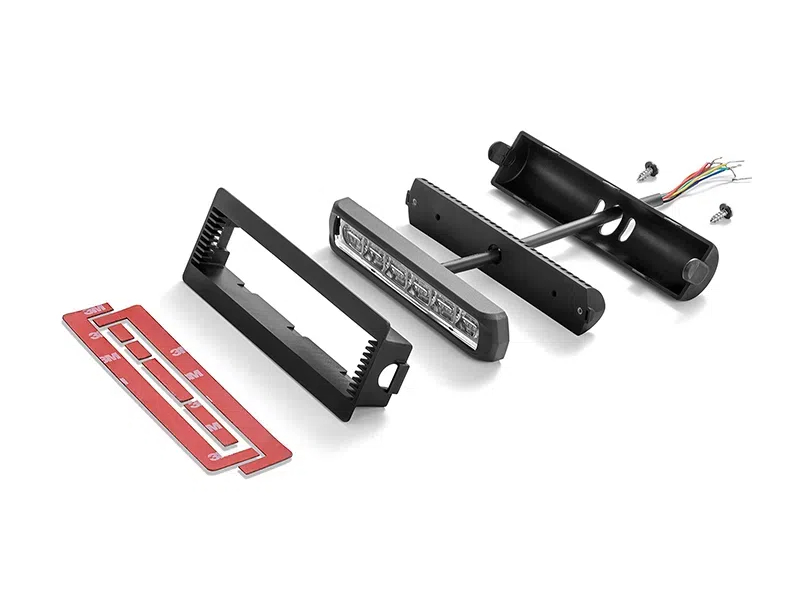

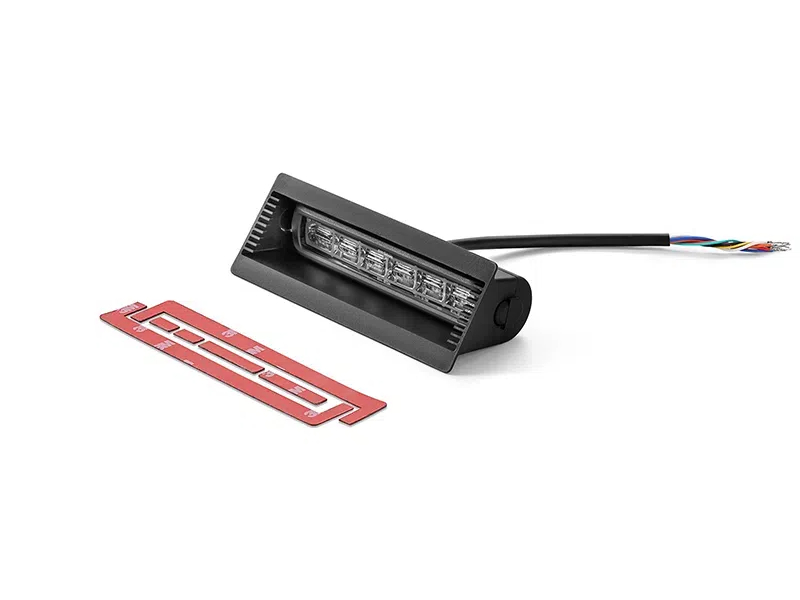

Components include: 1 set of sun visor + bracket, 1 radiator, 2 4×8mm self-tapping screws, 1 set of 3M glue
Overall dimensions of sun visor + bracket: 142×50×36mm
Sun visor and bracket are made of ABS+PC material, with good impact resistance and heat resistance
Radiator is made of thermal conductive nylon material, with excellent heat dissipation effect
Suitable for windshield installation, achieving installation flexibility

Mode：90°/60°/45°/30° visor bracket

Item：100508/100509/100510/100511

Dimension：142×50×36mm/142×50×53mm/142×47×75mm/145×44×105mm

Cover material：ABS+PC material

Mounting：3M Adhesive Mount

ARTICLE	Mode	CARACTÉRISTIQUES TECHNIQUES

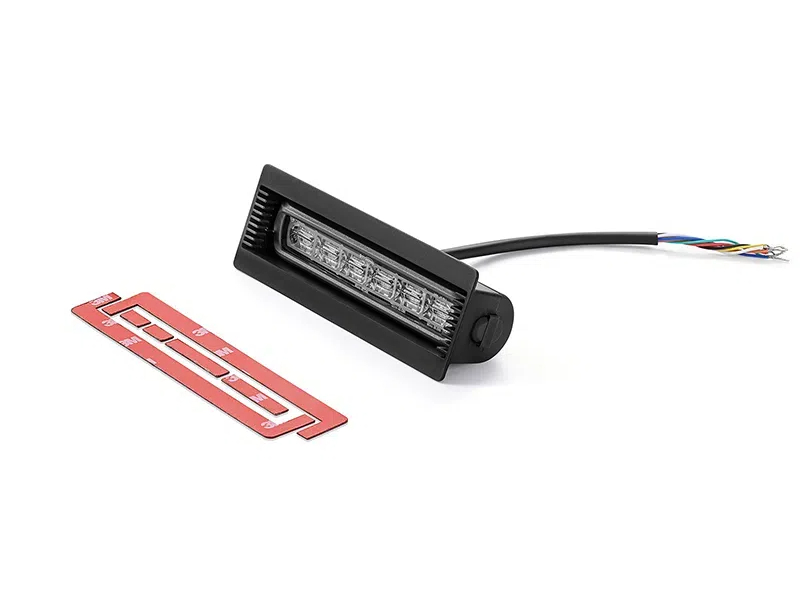

100508	TF 90° visor bracket	90° installation angle\|142×50×36mm\|ABS+PC cover\|Nylon heat sink\|3M adhesive mount

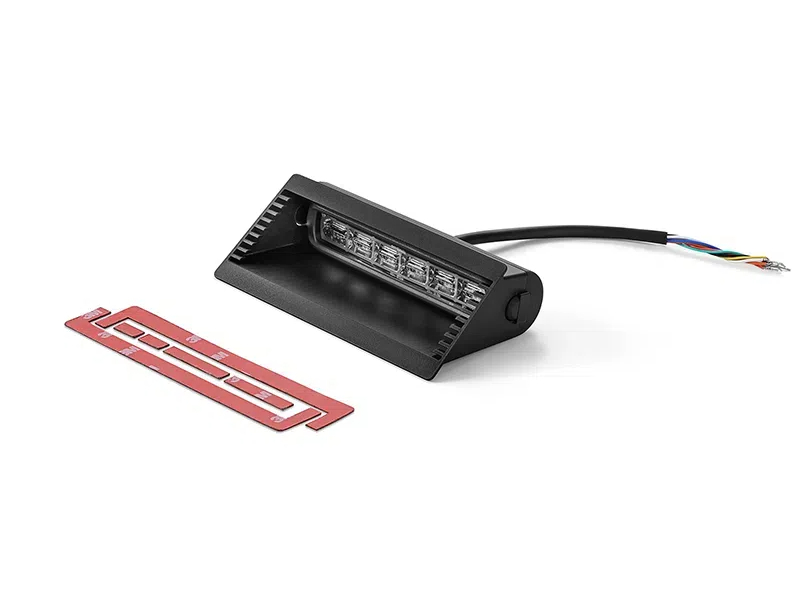

100509	TF 60° visor bracket	67° installation angle\|142×50×53mm\|ABS+PC cover\|Nylon heat sink\|3M adhesive mount

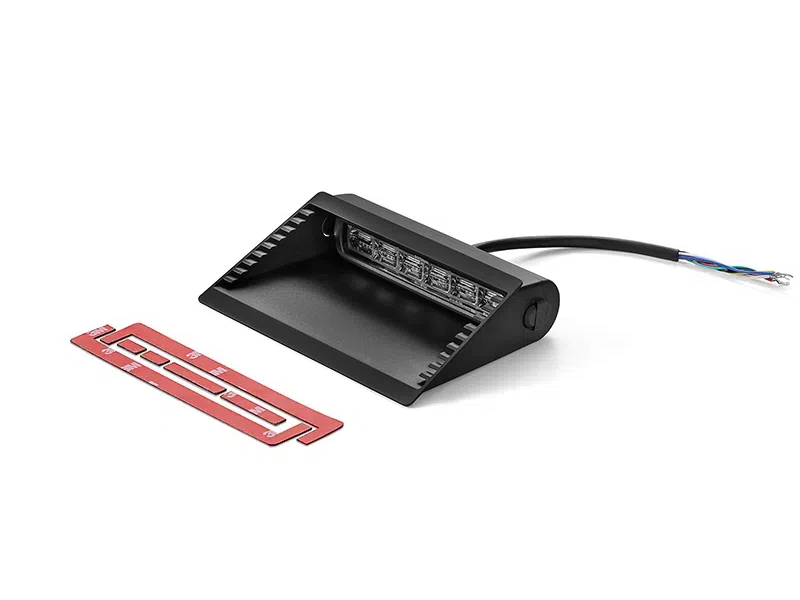

100510	TF 45° visor bracket	46° installation angle\|142×47×75mm\|ABS+PC cover\|Nylon heat sink\|3M adhesive mount
100511	TF 30° visor bracket	30° installation angle\|145×44×105mm\|ABS+PC cover\|Nylon heat sink\|3M adhesive mount
