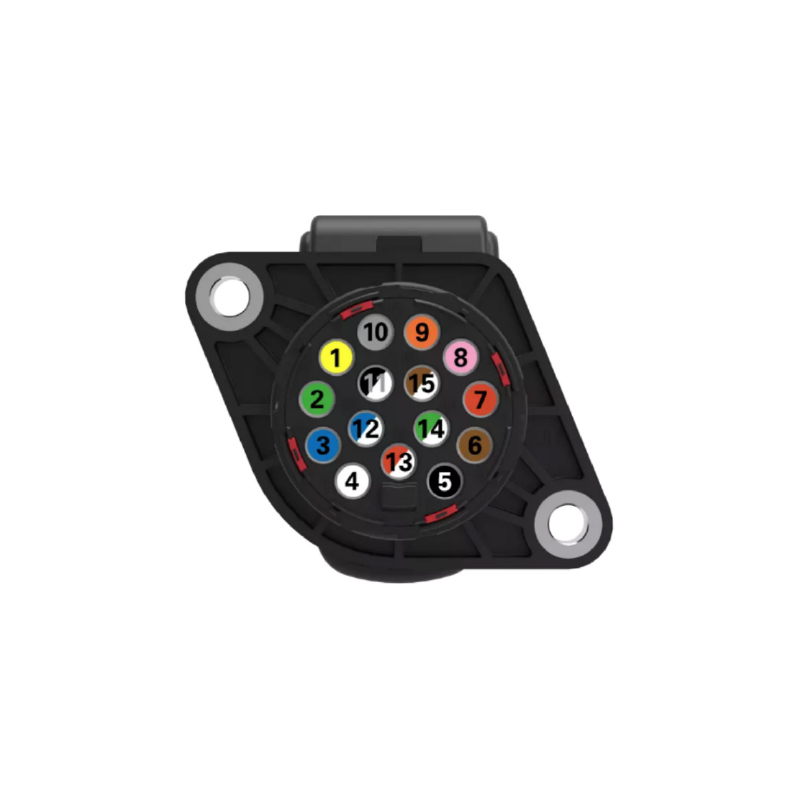

- 15-pin connector, physical design complies with ISO 12098 regulations
- Composite material is used on the outside of the connector to improve product strength, and brass/nickel is used on the inside
- Harness description: No. 1 yellow-left turn; No. 2 green-right turn; No. 7 red-brake light; No. 5/6 black or brown-tail light; No. 4 white-GND
- Connector that transmits radio signals from the tractor to the device
- This combination module is suitable for large trucks and trailers or semi-trailers
- IP66+IP69K meets most usage scenarios
Connector & Transmitter Combination Module(100425)
Obtenir un devis
DIMENSIONS
SPECIFICATION
item：100425
mode：Connect & Transmitter combination module
voltage：24V
function：No. 1 yellow-left turn; No. 2 green-right turn; No. 7 red-brake light; No. 5/6 black or brown-tail light; No. 4 white-GND
