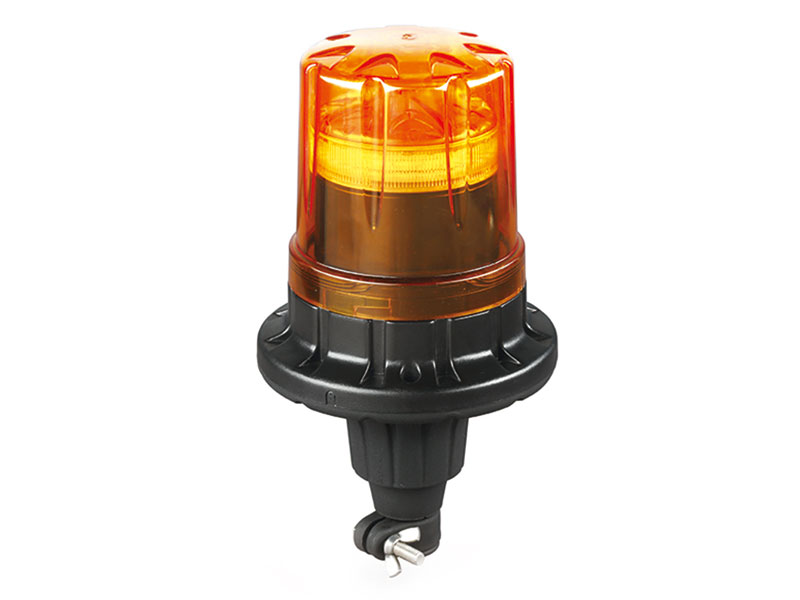

Amber Warning LED Beacon & Flexi Din Mount - FD24 (080601AF)

Item No.080601AF

FEATURE

>IP 68 rated, dual-protection for water resistance: seal loops in the base prevents water infiltration and discreetly placed holes dissipate any potential vapors
>Polycarbonate housing and nylon base offer sufficient protection from environmental damage
>8 flash patterns including rotating mode
>Versatile mounting options
>Synchronize with up to 20 911Signal products

Light Characteristics

 LED Power          24PCS 1W LED

LED Lifespan      100,000H

LENS           Reflex

Flash settings    1-4HZ

Electrical Characteristics

Voltage      DC 10-30V

Max Power         30W

Physical Characteristics

Colour Available         amber

Ambient temperature       -30--+70

Mounting          Four kinds of installation

Waterproof      IP68

Flash patterns 8(including rotating)

Meet and Exceeds     ECE R65 TA1 00 0043

Wire

AT / AF / AS35cm long 4-core wire

AM:6m long spring line with A13-E163 cigarette lighter

“Flexi Din” mount LED Beacon FD24-AF can help prevent breakage in the event that this top-side light is struck by a tree branch, fork-lift, or other object. It is a LED beacon with strong appearance design. There are 4 different kinds of mounting way, included screw mount, magnet mount, flexi Din, and single point. It is suitable for amber market, for example the high duty industrial trucks.

Comparison(C12 & C24 & FD24).pdf

Download

FD24(080601).pdf

Download

FD24 Installation.pdf

Download
